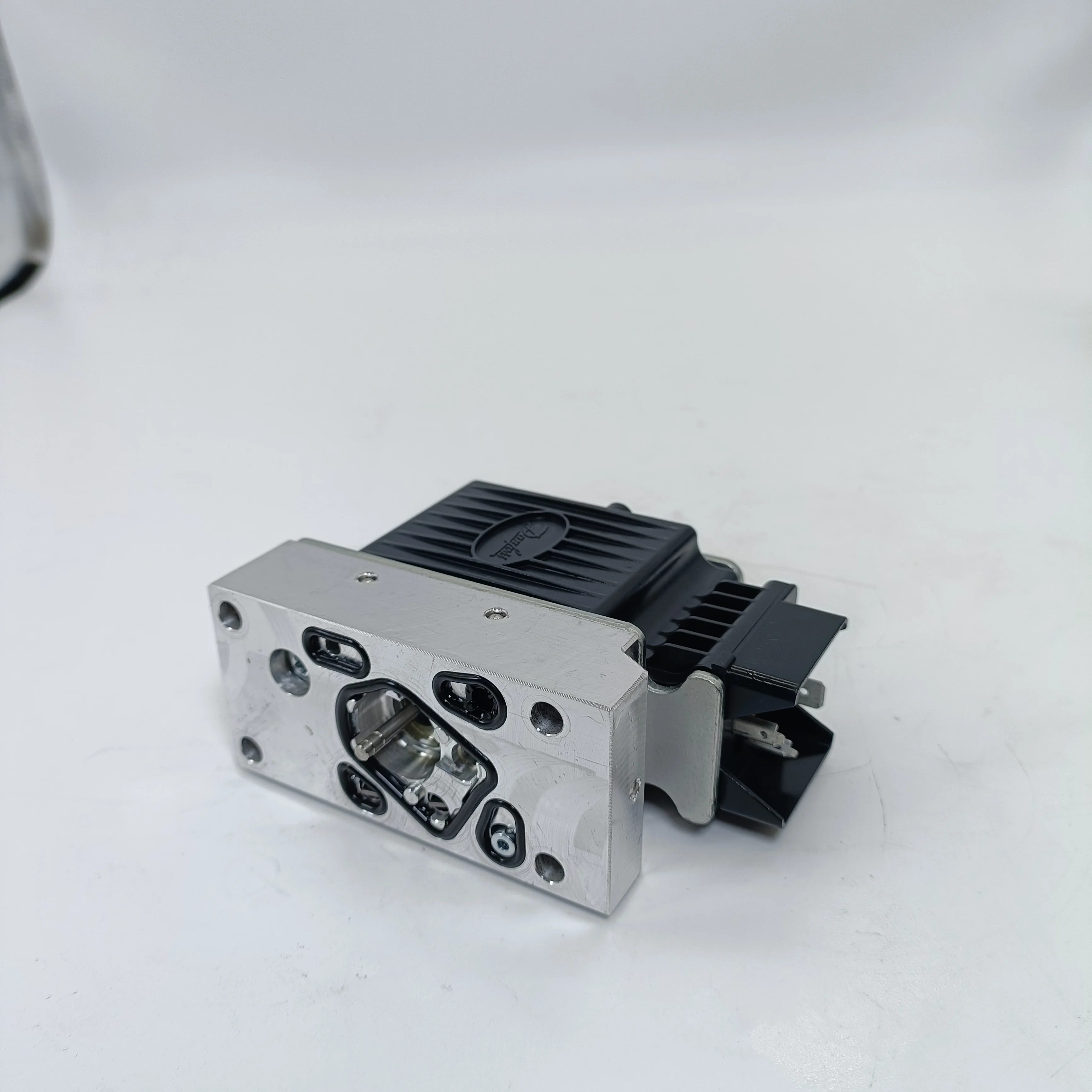

Danfoss PVG 32 Series Proportional Valve | 157B4032 157B4034 157B4035 | PVE Electric Control Actuator

Chengyuan Hydraulic offers the 157B Series Electric Actuators, meticulously engineered as high-performance replacements for the Danfoss PVG 32 proportional valve system. This range features industry-standard models including 157B4032 (PVEA), 157B4034 (PVEH), 157B4035 (PVES), and 157B4092/4093. These actuators serve as the critical interface between electronic control systems and hydraulic hardware, translating electrical signals into precise spool movement for proportional flow control.

Chengyuan guarantees 100% Drop-in Interchangeability with original Danfoss units, matching electrical connectors (Hirschmann/AMP), signaling protocols, and mechanical mounting points. Every unit is subjected to 100% simulation load testing on our digital test benches to ensure superior linearity and reliability under fluctuating voltages and extreme temperatures.

Technical Specifications

• Compatible Brand: Danfoss (PVG 32 System)

• Core Model Codes: 157B4032, 157B4034, 157B4035, 157B4092, 157B4093, 157B491

• Control Types: PVEA (Asynchronous), PVEH (High), PVES (Super)

• Supply Voltage: 11V – 30V DC (Rated 24V)

• Control Signal: Ratio-metric (25% – 75% UDC) or CAN-bus options

• Protection Rating: IP66 / IP67

• Spool Stroke: ± 7 mm

• Operating Temperature: -30°C to +90°C (-22°F to +194°F)

• Diagnostics: Integrated LED status indicator with fault output logic

Key Technical Advantages:

• Integrated LVDT Feedback: Features a high-precision inductive position sensor for closed-loop control. This ensures the spool remains exactly where commanded, regardless of load pressure changes, ensuring consistent hydraulic output.

• Robust EMC Compatibility: Engineered with industrial-grade shielding and electronic filtering to withstand high electromagnetic interference common in mobile machinery, preventing signal drift or unintended activation.

• Rapid Dynamic Response: The PVEH (157B4034) series is optimized for high-speed switching and rapid acceleration, providing operators with instantaneous control over heavy hydraulic loads.

• Fully Encapsulated Electronics: The internal circuitry is potted with high-grade resin to resist vibration, mechanical shock, and corrosion, ensuring a long service life in harsh outdoor environments.

Application Areas:

• Construction Machinery: Proportional control for excavators, mobile cranes, and aerial work platforms (AWP).

• Agriculture: Precision flow distribution for combine harvesters, seeders, and spraying equipment.

• Material Handling: Controlling lift and tilt functions in telehandlers and heavy-duty forklifts.

• Municipal Vehicles: Integrated control for refuse compactors and road sweepers.

Expert Maintenance Tips:

• Pin Definition Verification: Always double-check the pinout for Hirschmann or AMP connectors before powering the 157B module. Incorrect wiring can cause permanent damage to the onboard microprocessor.

• Pilot Oil Filtration: Since the actuator controls the pilot oil circuit, maintain oil cleanliness at ISO 4406 18/16/13 or higher. Contaminants can jam the pilot spool, causing the actuator to report a failure.

• Inspection of Seal Covers: Ensure the top screw cover of the module is tightly sealed. Moisture ingress is the leading cause of LVDT sensor drift, which results in erratic spool behavior or persistent error codes (flashing red LED).
