Danfoss PVG 32 Proportional Valve 157B Series | 157B4032 157B9712 11166825 | Load Sensing Valve

The PVG 32 Series proportional valve components from Chengyuan Hydraulic are high-performance control solutions fully compatible with Danfoss engineering standards. This comprehensive range includes basic modules, spools, and electrical actuators (e.g., 157B4032 shock valves, 157B9712/13 end plates, 151B3039 spools). Utilizing advanced load-sensing technology, the PVG 32 ensures precise flow distribution independent of system pressure fluctuations during multi-function operations. Every component undergoes 100% simulated load condition testing to guarantee that pressure compensation accuracy and shifting smoothness match OEM standards, ensuring 100% original-place interchangeability.

Technical Specifications :

• Core Model Series: PVG 32 (157B, 151B, 151G Series)

• Specific Part Codes: 157B4032 (Shock & Anti-cavitation Valve), 157B9712 (Electrical Actuator Interface), 151B3039 (Standard Spool)

• Max Operating Pressure (P-port): 350 bar (35 MPa)

• Max Operating Pressure (A/B-port): 350 bar (Up to 400 bar peak)

• Rated Flow (Basic Module): 130 L/min

• Work Port Flow: 5 L/min to 100 L/min (Spool dependent)

• Control Logic: Manual, Hydraulic Pilot, Electro-proportional (PVEA/PVEH/PVES)

• Fluid Cleanliness: ISO 4406 18/16/13 or better

Key Technical Advantages:

• Superior Load-Sensing (LS) Functionality: The PVG 32 precisely senses load pressure changes and signals the pump to deliver only the required flow and pressure. This “demand-based” logic significantly reduces energy loss and oil heating, extending the overall service life of the machinery.

• Modular & Flexible Construction: Featuring a stackable modular design, the valve blocks can be customized with various sections to fit specific applications like cranes or excavators. Precision-ground mating surfaces and high-resilience seals ensure zero leakage under high-pressure switching.

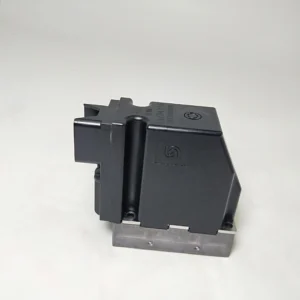

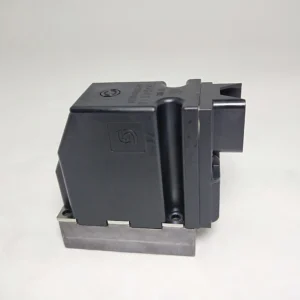

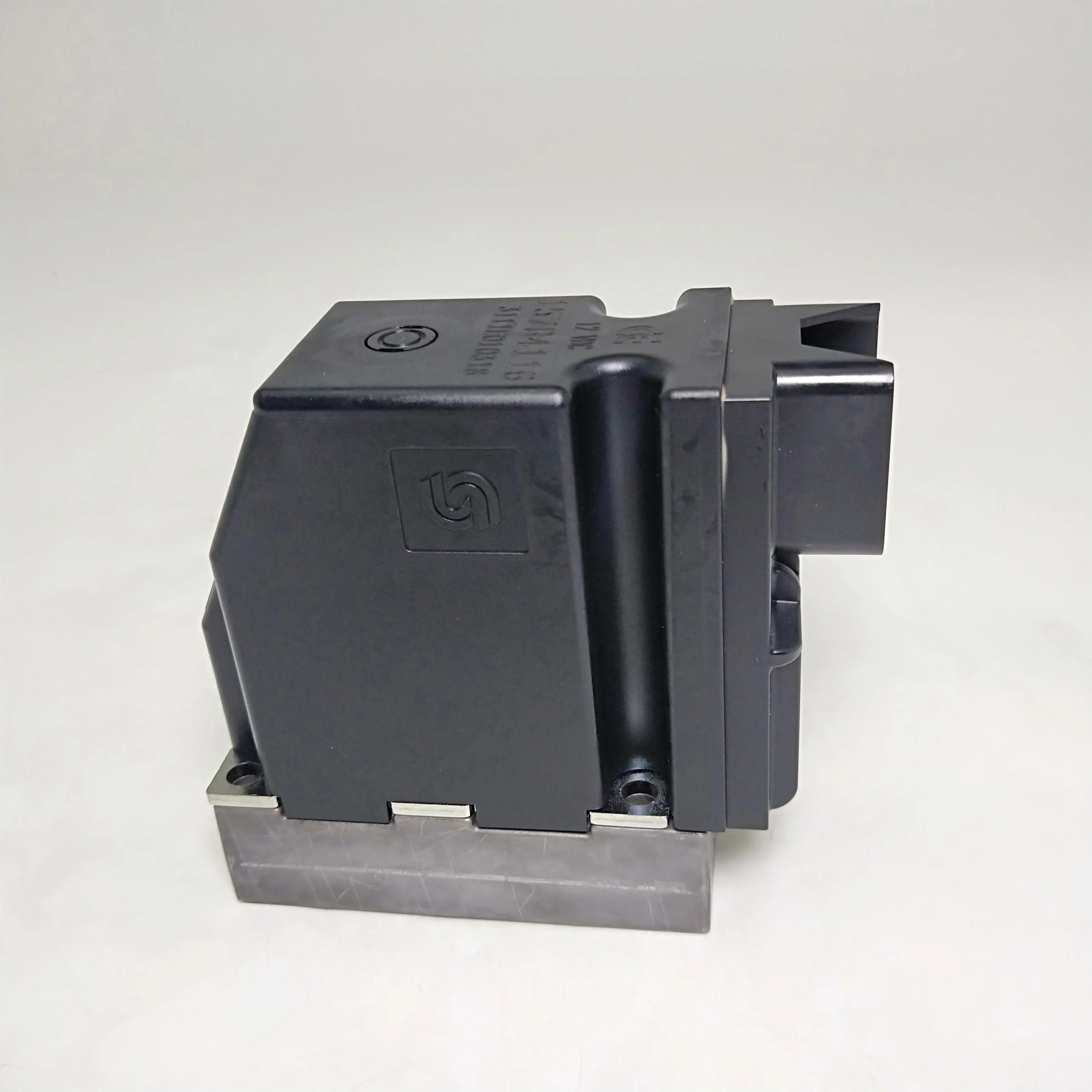

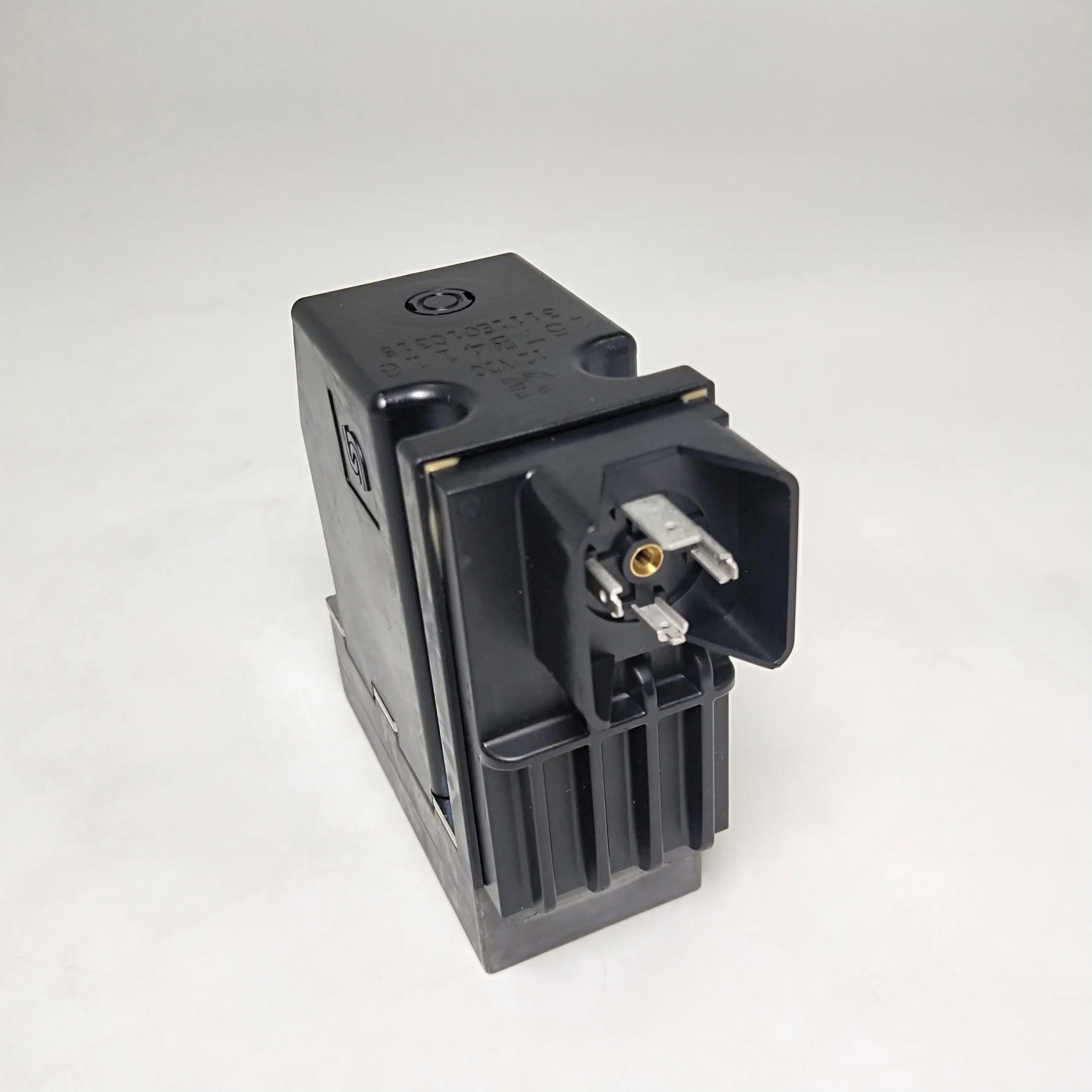

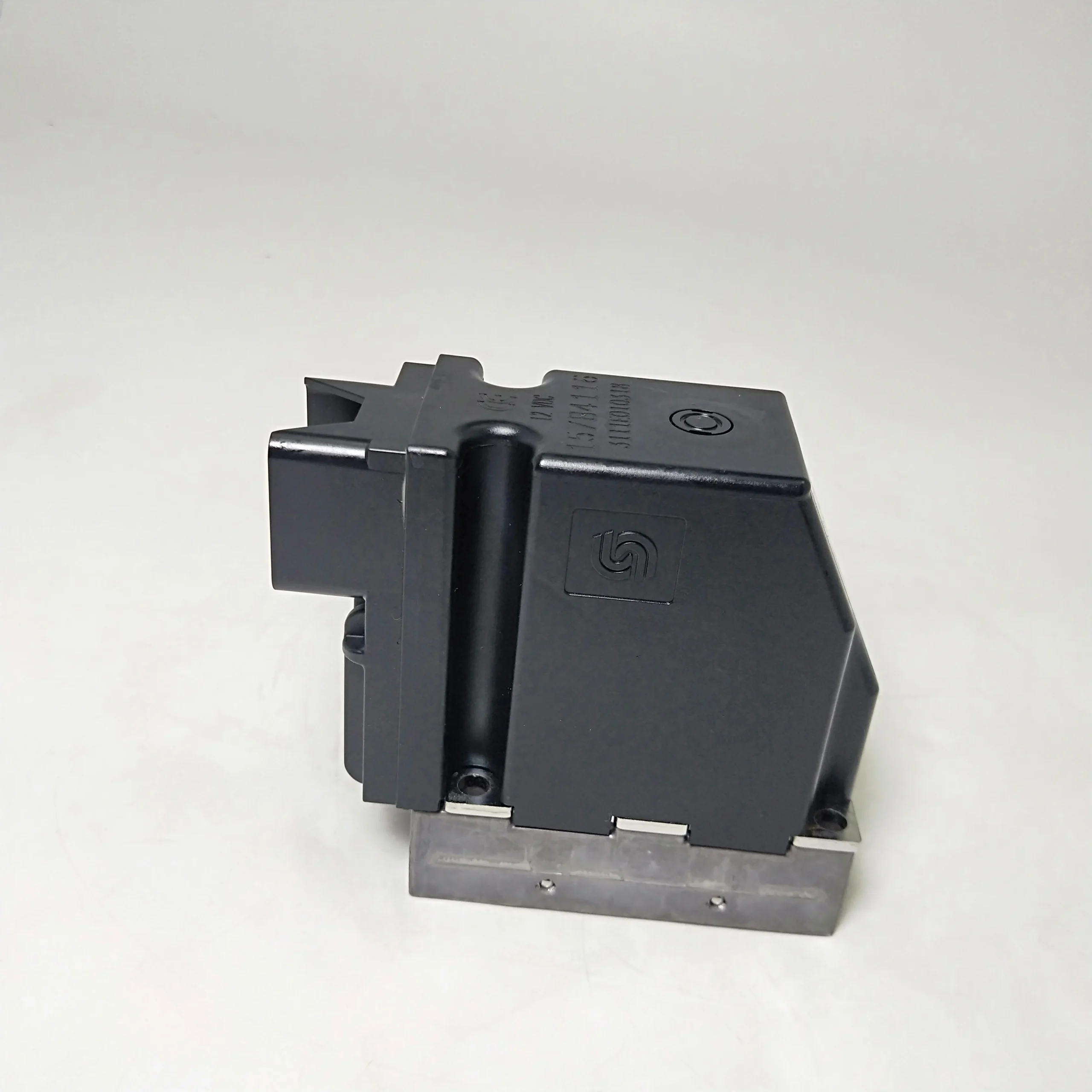

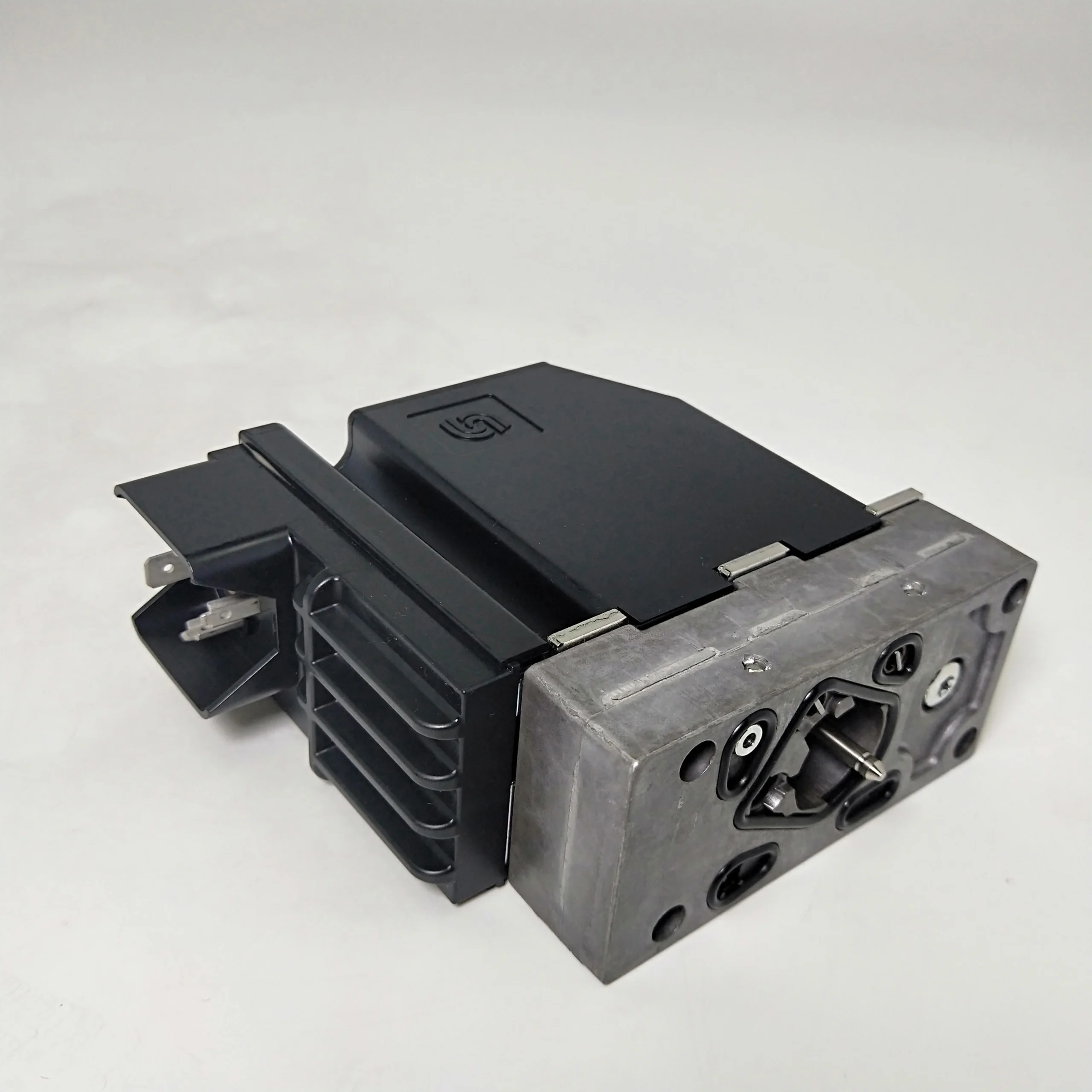

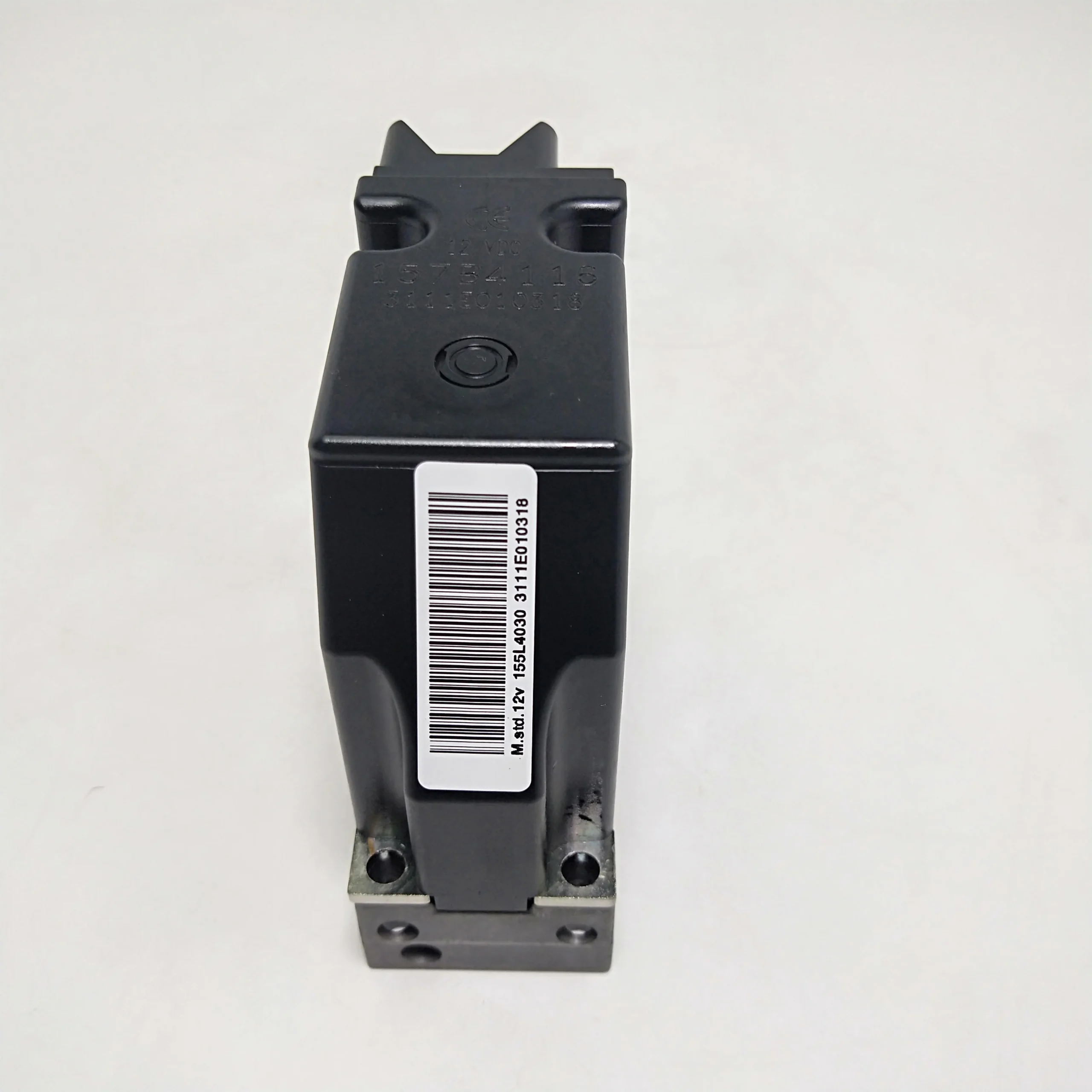

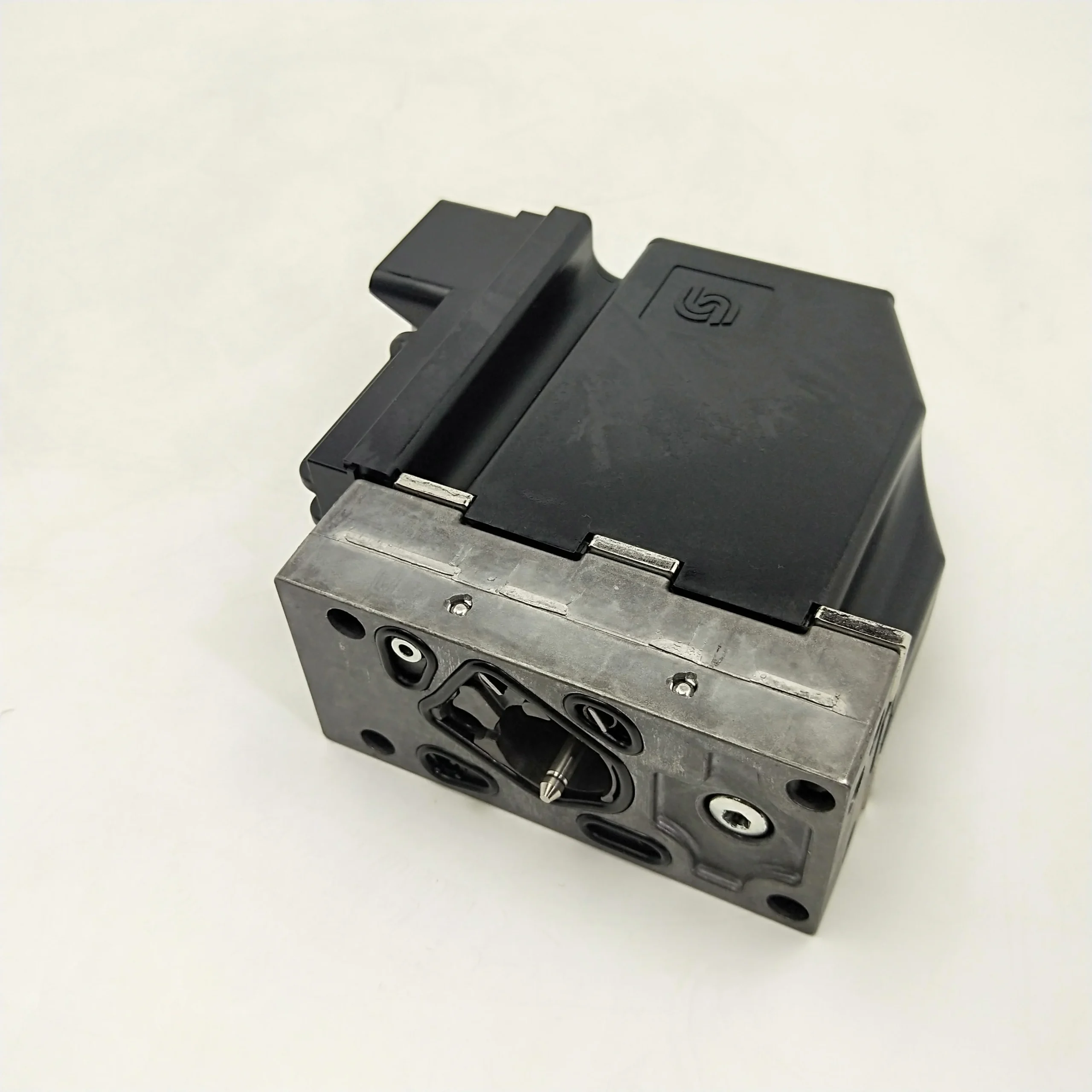

• High-Precision Electro-Hydraulic Control: Compatible with the latest generation of actuators (e.g., 11166825), featuring integrated displacement feedback. The ultra-low hysteresis and excellent linearity allow operators to achieve millimeter-level precision in actuator control.

• Full-Load Simulated Validation: Moving beyond static testing, Chengyuan performs dynamic load simulations on every PVG 32 assembly. We focus on pressure compensation consistency during multi-spool operations, ensuring the valve is “plug-and-play” upon installation.

Application Areas:

• Lifting Equipment: Winch and boom control for truck-mounted cranes, telehandlers, and crawler cranes.

• Construction Machinery: Multi-circuit coordinated control for mini-excavators, pavers, and horizontal directional drills (HDD).

• Agriculture & Forestry: Automated hydraulic systems for combine harvesters, log loaders, and large-scale sprayers.

Expert Maintenance Tips:

• Mounting Torque Management: When assembling valve stacks, use a torque wrench to tighten tie rods to exactly 28 Nm. Uneven torque can cause microscopic valve body deformation, leading to spool sticking or internal leakage.

• Actuator Moisture Protection: For PVE electrical actuators, despite IP66 ratings, we recommend using protective covers in extreme environments and regularly checking electrical connectors for moisture ingress.

• LS Circuit Bleeding: After initial startup or spool replacement, always bleed air through the LS pressure test point. Trapped air can lead to sluggish proportional response or abnormal vibration and noise.
