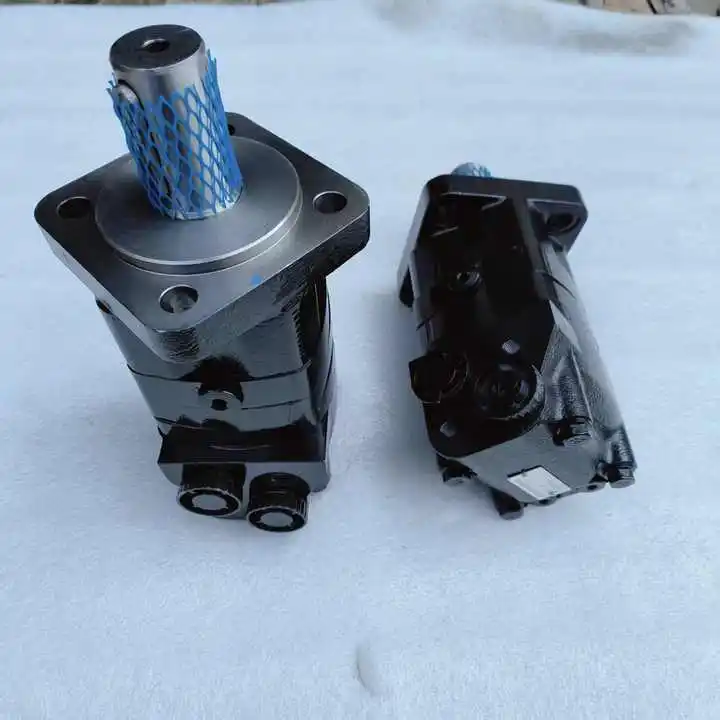

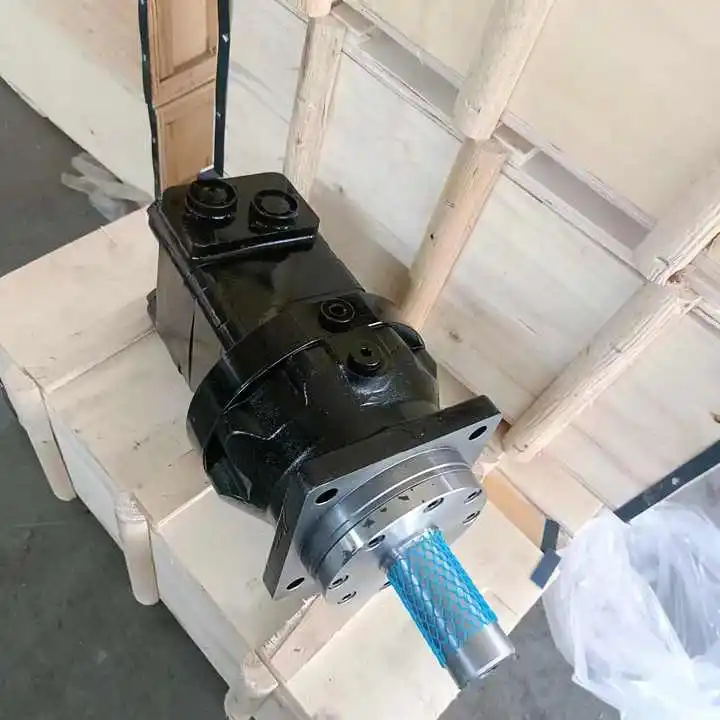

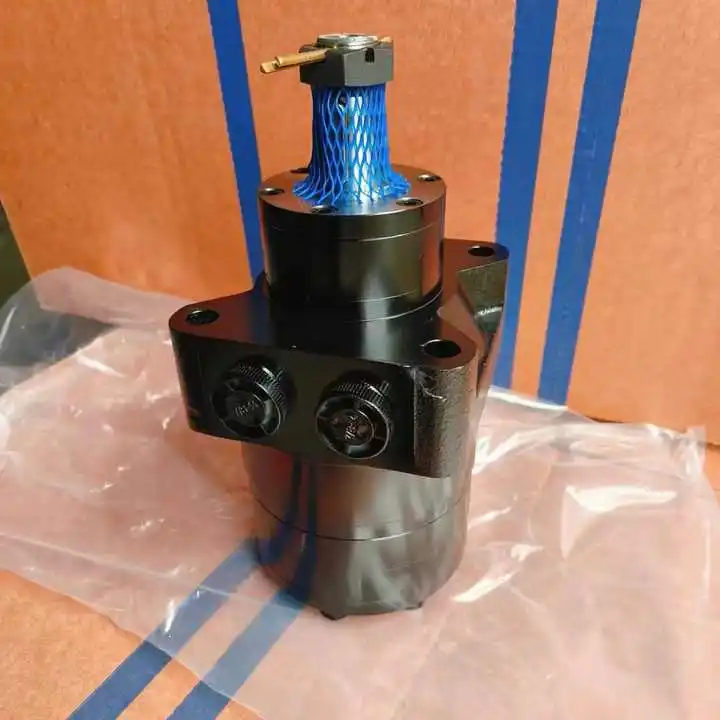

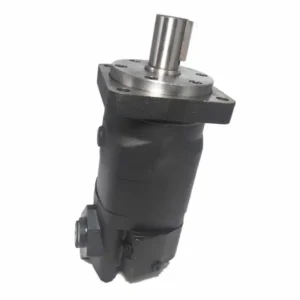

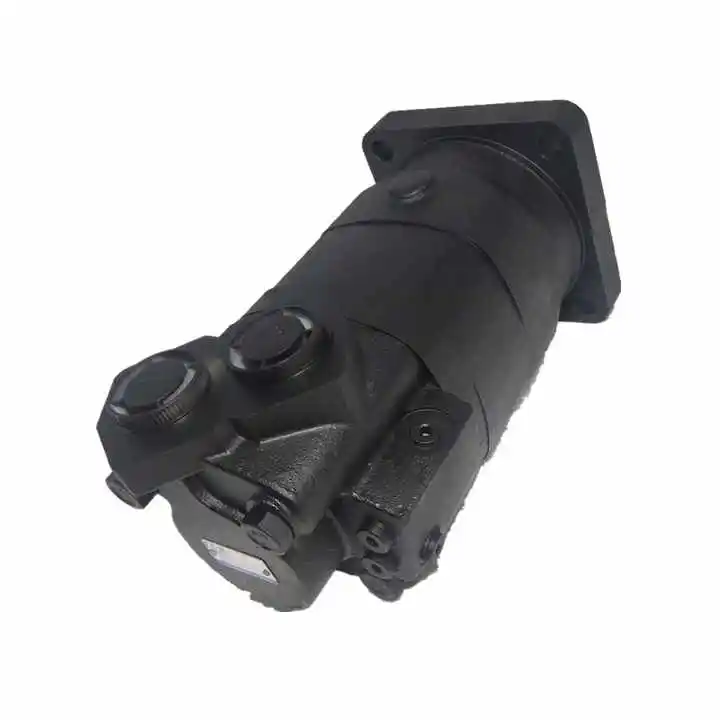

158-3425-001 158-3023-001 158-3875-001 Eaton Char-Lynn 2000 Series Orbit Motor | LSHT Hydraulic Motor

The Chengyuan Hydraulic 158 Series (Interchangeable with Eaton Char-Lynn 2000 Series) is a premier industrial-grade Orbit Motor engineered for high-load, Low-Speed High-Torque (LSHT) applications. Utilizing the sophisticated Disc Valve technology, these motors offer unparalleled volumetric efficiency. We guarantee 100% drop-in interchangeability with original Eaton part numbers. Every unit undergoes 100% simulated condition testing to ensure it meets or exceeds OEM specifications in terms of pressure capacity, torque output, and operational durability.

Technical Specifications (Bulleted List)

• Model Series: Eaton Char-Lynn 2000 (2K) Compatible

• Part Numbers: 158-3023-001, 158-3425-001, 158-3875-001

• Displacement Range: $100\text{ cm}^3\text{/r}$ to $395\text{ cm}^3\text{/r}$ ($6.2$ to $24.0\text{ in}^3\text{/r}$)

• Rated Pressure: $200\text{ bar}$ ($3000\text{ psi}$) Continuous

• Peak Pressure: $310\text{ bar}$ ($4500\text{ psi}$) Intermittent

• Max Speed: $700\text{ RPM}$ (Model 3023) down to $180\text{ RPM}$ (Model 3875)

• Max Torque: Up to $845\text{ N}\cdot\text{m}$ (Continuous) / $950\text{ N}\cdot\text{m}$ (Peak)

• Valve Type: Disc Valve technology

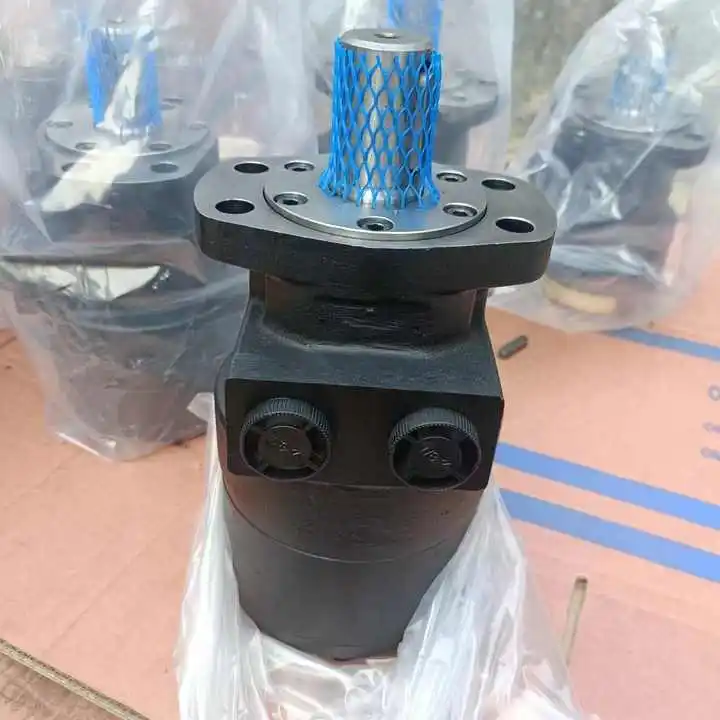

• Mounting: Standard 2-Bolt SAE A Flange

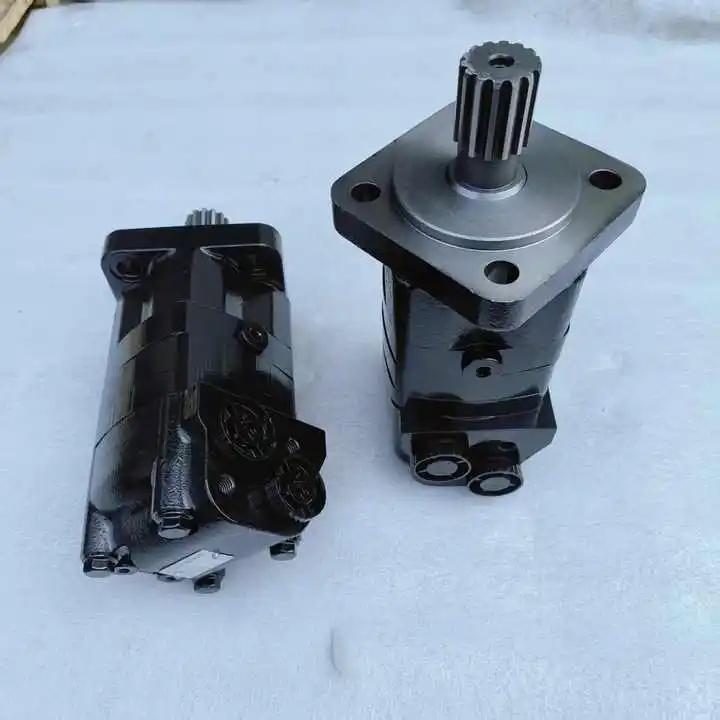

• Shaft Options: 1″ Straight Keyed or 6B/13T Splined Shaft

Key Technical Advantages

• Geroler® Technology: The inclusion of rollers in the rotor set reduces friction during startup and rotation, providing higher mechanical efficiency and smoother operation at ultra-low speeds compared to standard gerotor sets.

• Precision Disc Valve Design: The independent valve disc rotates synchronously with the drive link, automatically compensating for wear to maintain constant efficiency throughout the motor’s service life.

• High-Pressure Shaft Seals: Engineered with premium materials, the shaft seal handles high back-pressure without leakage, allowing for simplified hydraulic circuit designs with fewer drain lines.

• Heavy-Duty Bearings: Large tapered roller bearings allow the motor to withstand substantial radial and axial loads, making it ideal for direct-drive winch and vehicle wheel applications.

Application Areas

• Material Handling: Conveyor drives, forklift attachments, and specialized lift systems.

• Agriculture: Reel drives for harvesters, seeders, and feeder mixers.

• Construction: Compact loader drives, augers, trenchers, and crane winches.

• Industrial: Power units for sweepers, waste compactors, and plastic processing machinery.

Expert Maintenance Tips

• Air Bleeding: Upon initial installation, jog the motor under no load to purge air from the housing. This prevents cavitation damage to the precise disc valve interface.

• Fluid Cleanliness: To maximize the lifespan of the Geroler set, maintain hydraulic fluid at ISO 4406 18/16/13 or cleaner.

• Drain Line Management: For systems with back-pressure exceeding $50\text{ bar}$ ($750\text{ psi}$) or frequent reversals, connecting the external case drain is highly recommended to protect the shaft seal and dissipate heat.
