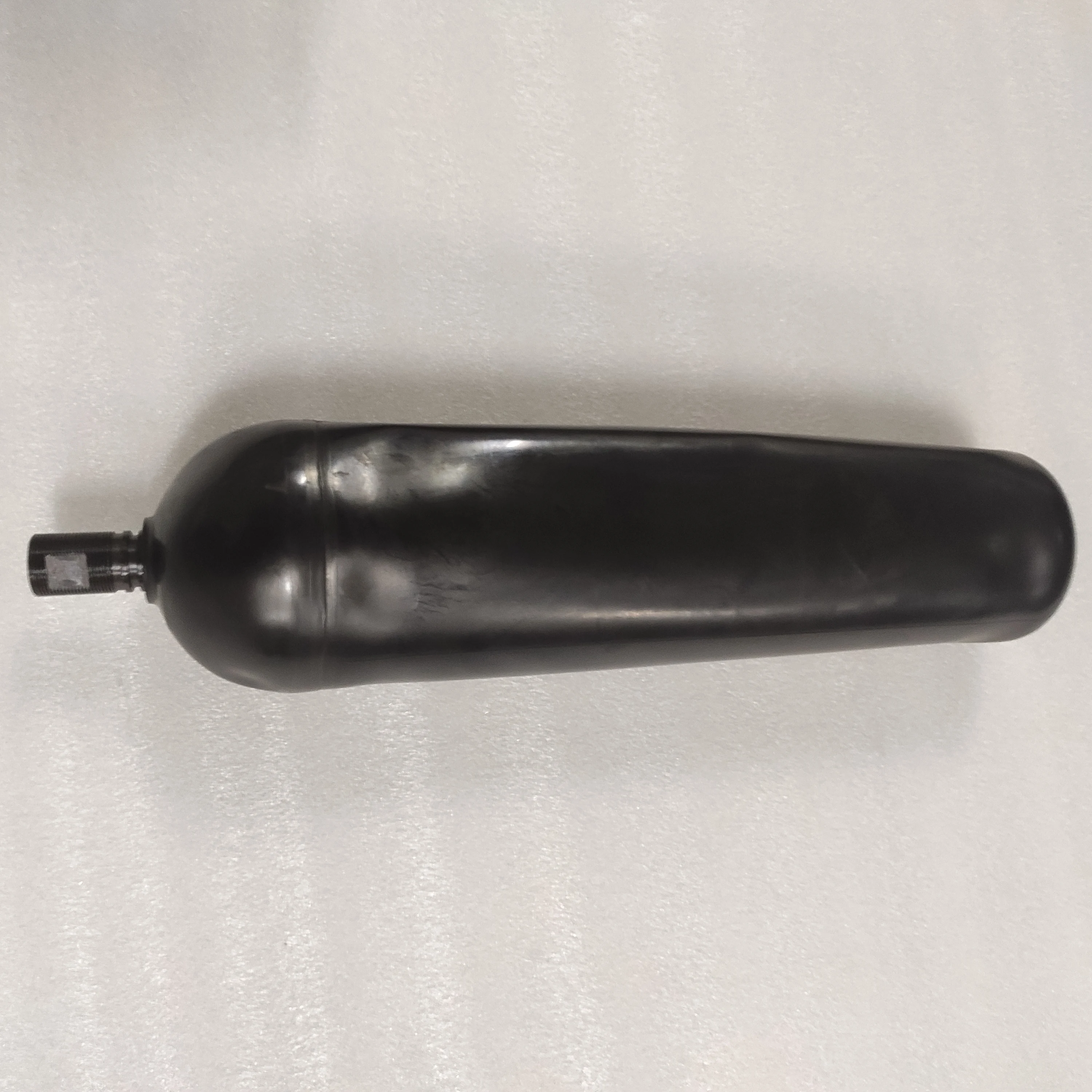

European Standard Bladder Accumulator Skin Bag | 32L 7/8-14UNF 50L M50x1.5

The European Standard High-Pressure Bladder Accumulator Skin Bags (Air Bags) manufactured by Chengyuan Hydraulic are high-resilience, industrial-grade elastomer isolation elements fully engineered to match global Olaer and Hydac accumulator system footprints. Operating as the essential “flexible lung” within hydraulic accumulation loops, the bladder’s compounding formulation and structural consistency dictate energy compensation efficiency and broad plant safety. This premium portfolio precisely matches target European large-capacity criteria: featuring the standard high-volume variants 32L*7/8-14UNF/VG5 NBR20/P460 and 50L*M50x1,5/VG5 NBR20/P460. The 32L asset interfaces seamlessly with standard imperial 7/8-14UNF gas valves, while the 50L variant couples with heavy-duty metric M50x1.5 reinforced gas valve connection pieces. The VG5 designation standardizes the charging interface to international European standards, backed by the NBR20 high-density modified Nitrile compound engineered to minimize gas permeation. The high-tier P460 pedigree ensures complete design type-approval under extreme pressure vessel fatigue rankings up to a 330 to 400 bar threshold. Every single accumulator bladder undergoes 100% micro-helium leak testing, high-magnification optical inspection for compression thickness uniformity, and long-term nitrogen-oil compatibility aging sampling prior to delivery to guarantee performance matching original standards, ensuring 100% original-place interchangeable compatibility and seamless installation.

Technical Specifications :

• Core Product Framework: European Standard (European Metric Profile) High-Pressure Bladder Accumulator Replacement Core Liners

• Target Customized Identification: 32L7/8-14UNF/VG5 NBR20/P460 / 50LM50x1,5/VG5 NBR20/P460

• Nominal Fluid Volumetric Capacity:

  • Configuration 32L Profile: 32 Liters rated capacity (matched to standard elongated European shell matrices).

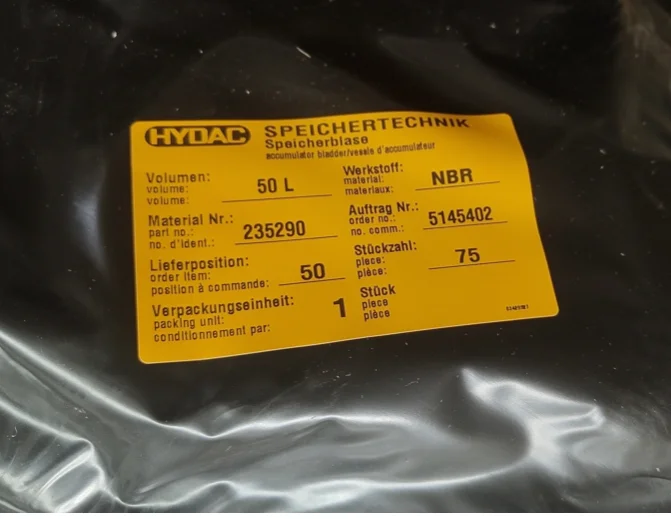

  • Configuration 50L Profile: 50 Liters heavy-capacity rating (the central standard for heavy-duty centralized HPUs).

• Gas Port Connection Thread Configurations:

  • 32L Variant Interface: Fine Unified Imperial Thread 7/8-14 UNF standard format.

  • 50L Variant Interface: Fine Metric Thread M50x1.5 reinforced structural profile (incorporating anti-torsion shoulder seating).

• Gas Valve Component Classification: VG5 European standardized gas charging valve interface.

• Elastomer Master Compound Formula (NBR20): High-density customized Nitrile Butadiene Rubber (NBR) infused with anti-abrasion and high tear-resistance properties, displaying an ultra-low gas permeability coefficient against compressed nitrogen.

• Pressure Equipment Safety Certification (Code P460): Fully certified under European pressure vessel regulations for continuous working thresholds up to 330 bar (33 MPa) and transient peak resistance capabilities reaching 400 bar.

• Media & Thermal Operation Envelope: Compatible with standard mineral-based hydraulic fluids (HLP, HM) and water-glycol fire-resistant emulsions across a thermal spectrum from -20°C to +80°C.

Key Technical Advantages:

• Seamless Vulcanization Molding Technology for Uniform Thickness: Unlike standard commercial bladders that rely on bonded rubber strips, our 32L and 50L bladders are manufactured using single-shot seamless compression molding on heavy-duty presses. Eliminating vulcanized seam junctions prevents stress concentration points and structural failure caused by alternating expansion and contraction cycles, improving overall tensile strength by over 40%.

• High-Density NBR20 Compound to Prevent Nitrogen Pressure Pre-Charge Drift: The customized NBR20 Nitrile formula uses a carbon-black micro-matrix network that shrinks the free molecular space between rubber chains. This design limits the natural migration of compressed nitrogen molecules into the hydraulic oil side, maintaining pre-charge pressure stability ($P_0$) over 12-month operating intervals and reducing plant re-gassing downtime.

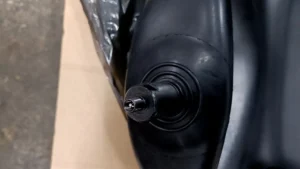

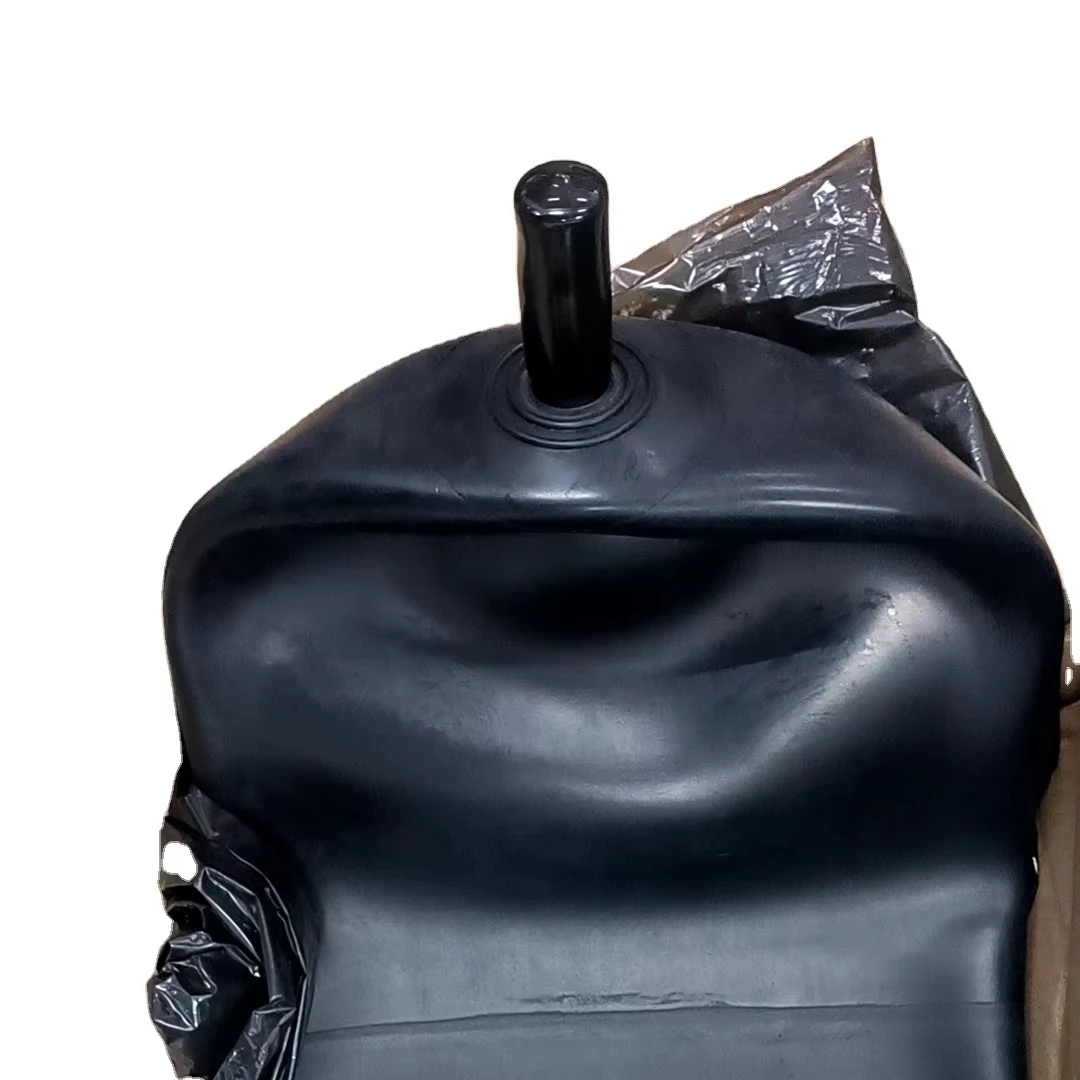

• Nickel-Plated Steel Gas Valve Stems with Anti-Separation Layered Vulcanization: The structural metal gas stems (7/8-14UNF or M50x1.5) are machined from high-strength carbon steel and chemically electroless nickel-plated for corrosion resistance. The metal-to-rubber binding boundary utilizes progressive multi-layered vulcanization over step-tapered profiles. This prevents delamination or stem blowout under rapid fluid evacuation cycles ($\ge 100 \text{ L/min}$), when the expanding bladder strikes the bottom poppet valve.

• Cold-Weather Resilience and High-Frequency Pulsation Damping: Advanced plasticizers within the NBR20 compound keep the rubber membrane flexible in cold outdoor conditions down to -20°C. Under normal working parameters, the bladder provides millions of smooth expansion and contraction cycles, reliably absorbing high-frequency pressure ripples from large axial piston pumps (e.g., Kawasaki K3V series).

Application Areas:

• Metallurgical Processing Plants & Heavy Steel Rolling Mills: Centralized accumulator banks for fast-acting automatic gauge control (AGC) cylinder modules and emergency backup power supplies for blast furnace safety systems.

• Marine Marine Deck Machinery & Offshore Drilling Platforms: Main energy-storing reservoirs for tensioner control systems and high-delivery auxiliary fluid supplies for large cargo cranes.

• Heavy-Duty Die Casting & Industrial Forging Infrastructure: Rapid-response fluid injection boosters for high-speed die-casting machinery and fast-advance circuit stroke components for heavy CNC press brakes.

Expert Maintenance Tips:

• Isolate Hydraulic Pressure and Evacuate Residual Gas Before Service: When servicing or replacing a 32L or 50L bladder on-site, open the HPU manual bypass circuit and verify that the hydraulic line gauge reads zero pressure. Use an authorized charging kit to vent any remaining compressed nitrogen from the bladder core. When folding and feeding the new bladder into the accumulator shell opening, never use flat-head screwdrivers, pry bars, or sharp metal tools; even a minor micro-scratch on the raw rubber surface can trigger a rapid tear under high pressure.

• Apply the “Low-and-Slow” Nitrogen Pre-Charging Method to Prevent Tearing: When pre-charging a newly installed bladder with nitrogen gas, never open the high-pressure nitrogen bottle valve fully at the start. Sudden gas rushes can cause a dry, folded bladder to expand unevenly or twist sharply against the shell wall, risking cuts from the bottom poppet valve edge. Open the regulator slightly to introduce gas below 5 bar, allowing the bladder to center itself and expand gradually against the shell internal walls before increasing pressure to the specified pre-charge target ($P_0$).

• Lubricate the Bladder Membrane Surface Thoroughly with Clean System Oil Before Assembly: Before inserting the replacement bladder (especially large-neck variants like the M50x1.5) into the accumulator housing, apply a generous, even layer of clean, matching system hydraulic oil across the rubber body, the gas stem threads, and the sealing washers. Avoid dry-assembly; proper fluid lubrication prevents the bladder from twisting along its axis during locknut torque adjustment and ensures smooth sliding against the shell wall during initial operation, preventing localized frictional heat wear.
