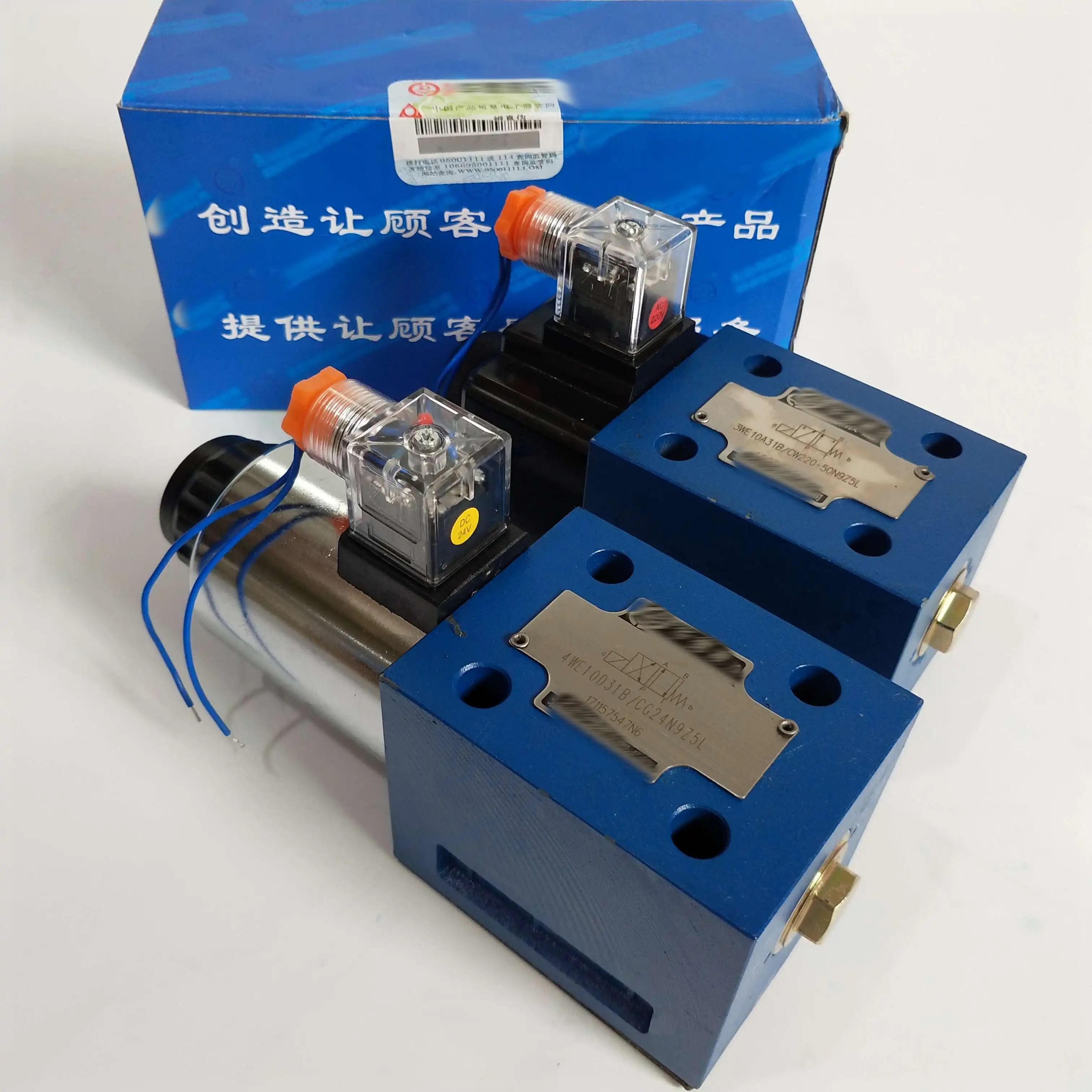

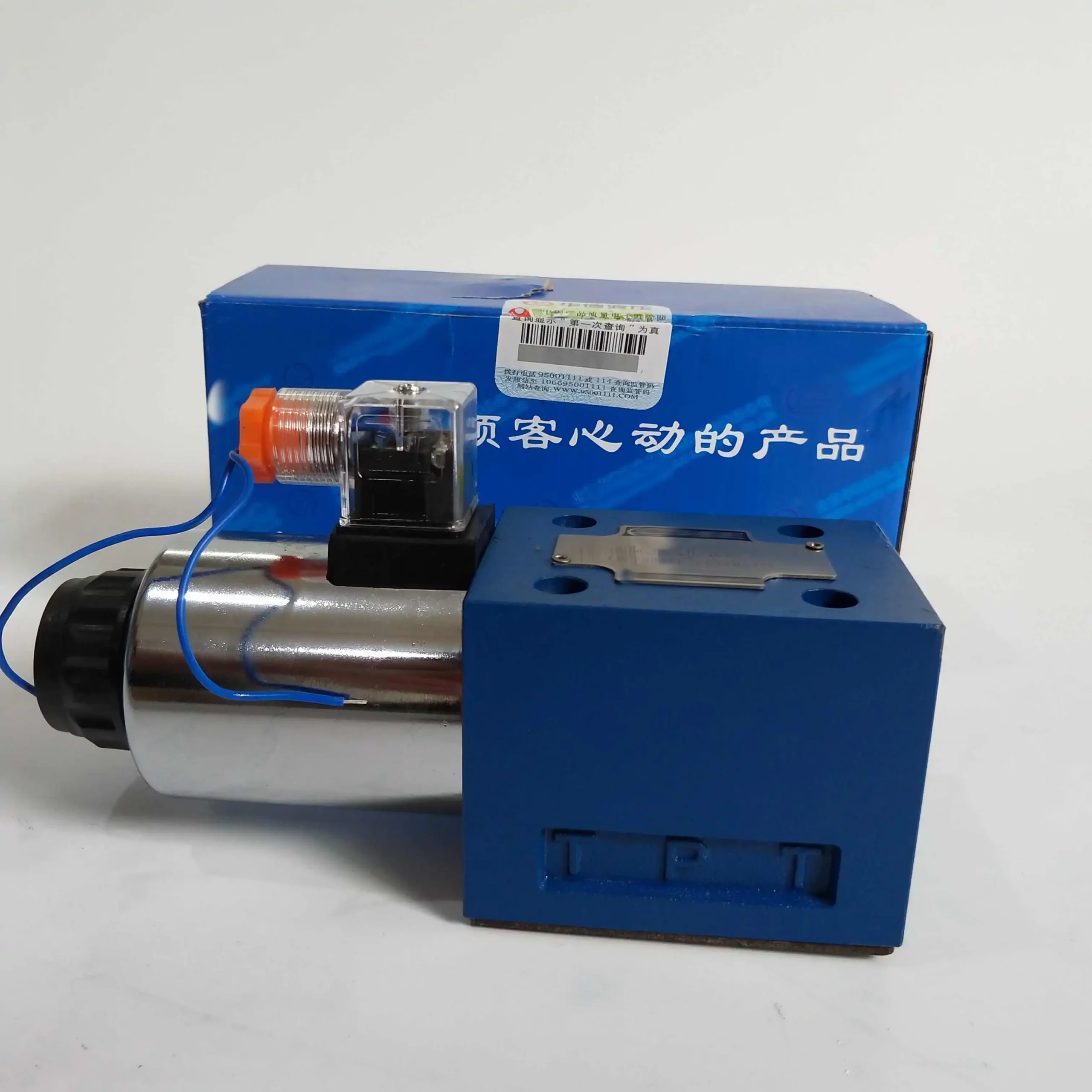

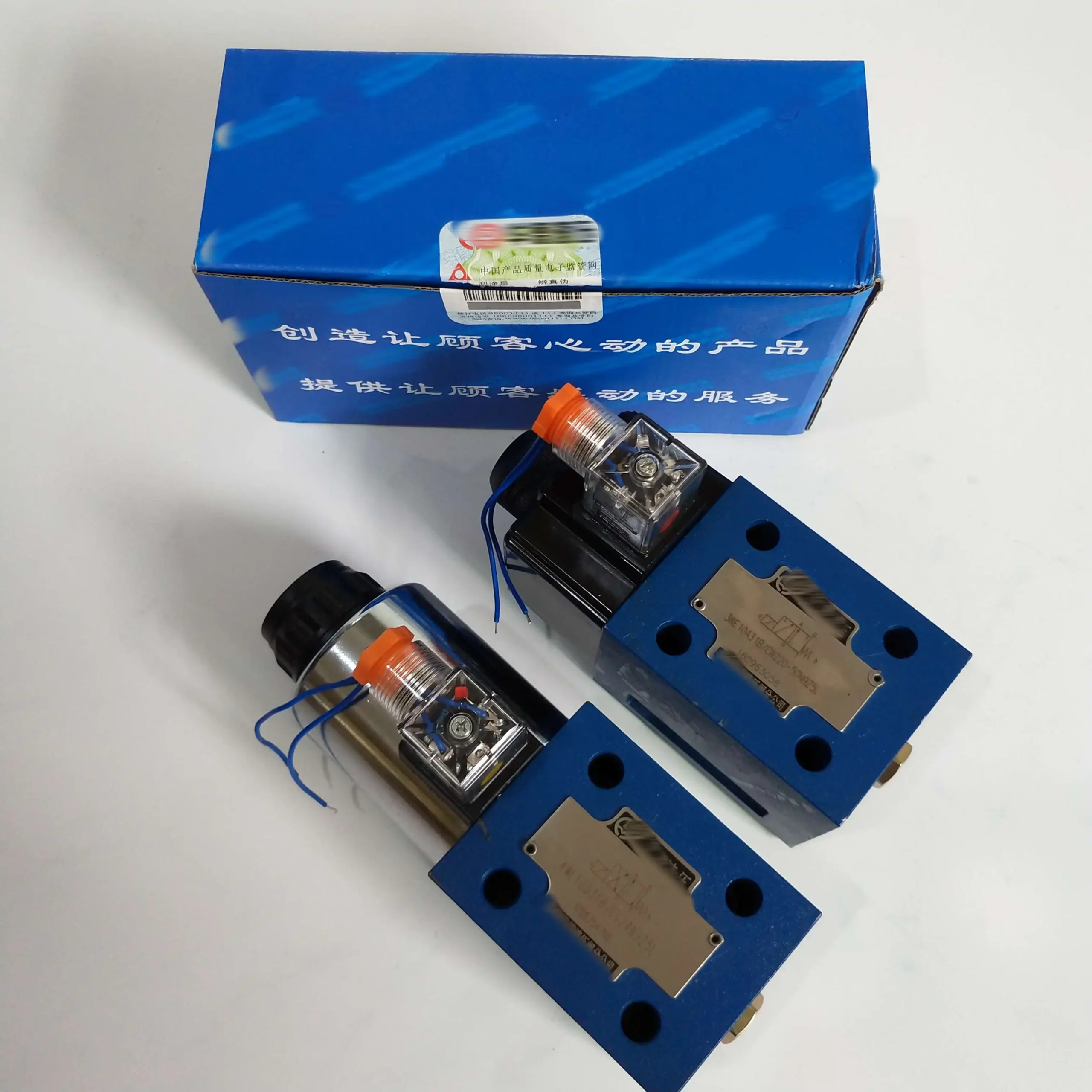

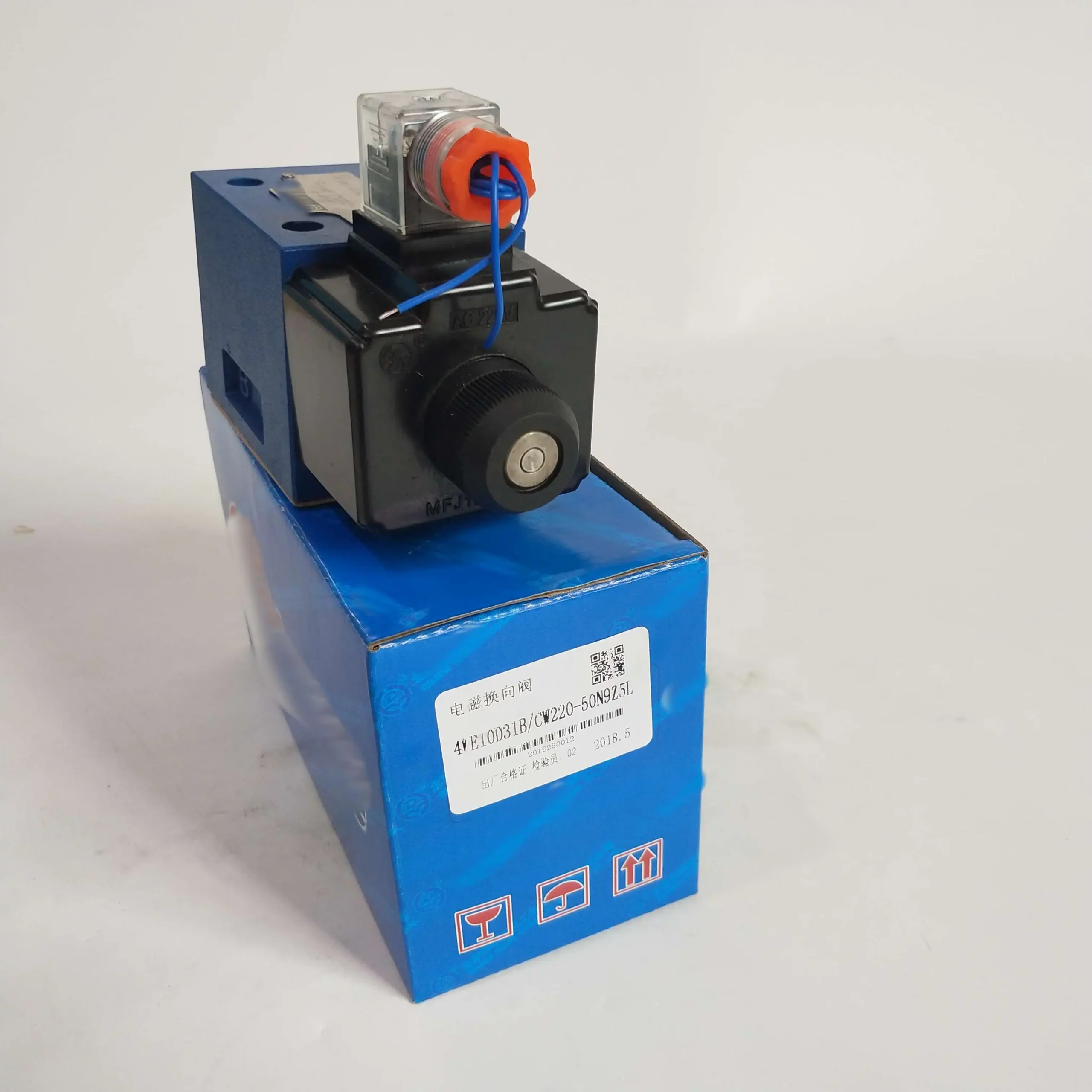

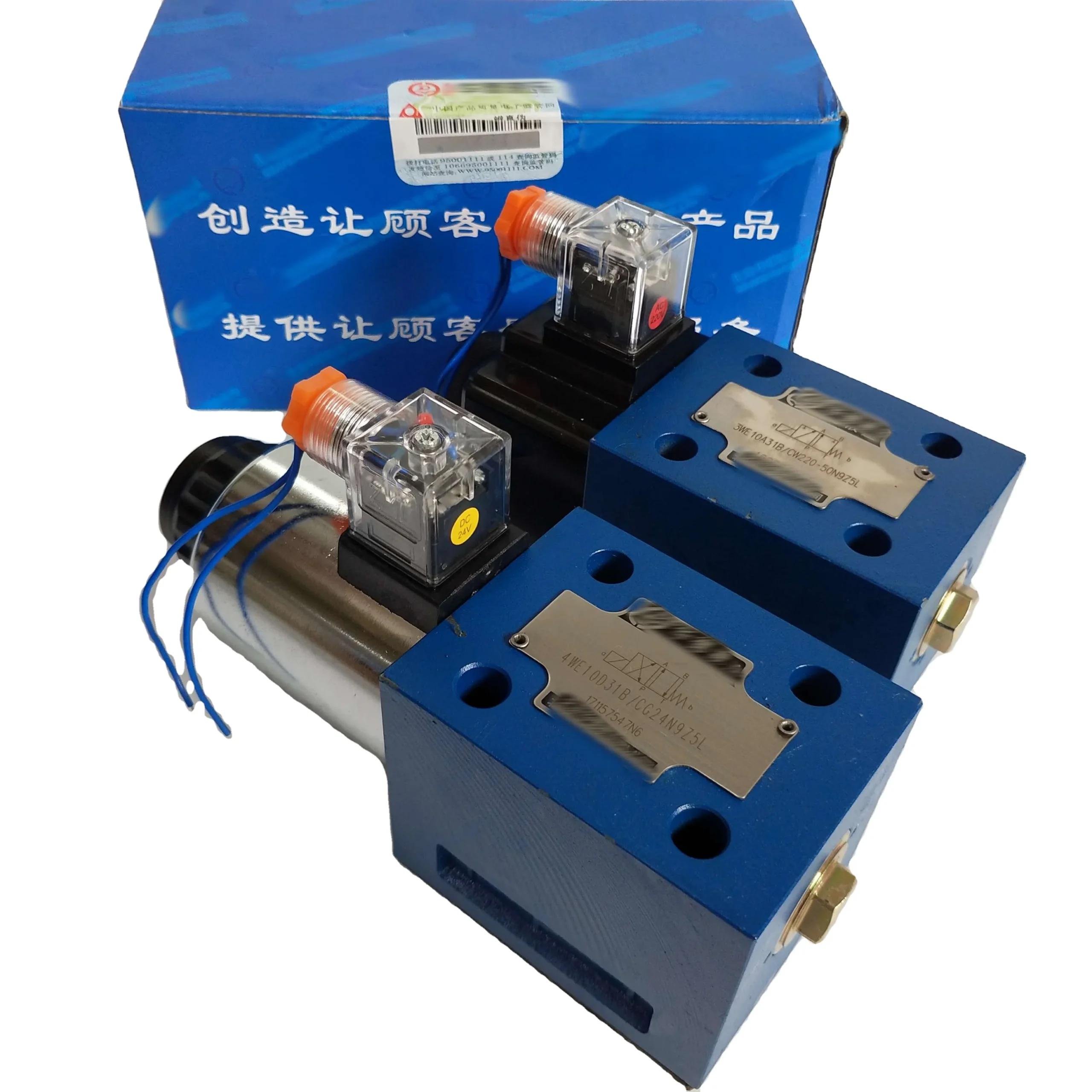

Rexroth 4WE10 Solenoid Valve 4WE10D 4WE10E Directional Valve

The industrial-grade Rexroth 4WE10 Series High-Pressure Solenoid Operated Directional Spool Valves, engineered by Chengyuan Hydraulic, are premium fluid-power control elements designed for medium-to-high pressure industrial hydraulic networks. Operating with a nominal size of $10\text{ mm}$ (ISO 4401-05 / Cetop 5), this series represents the absolute mechanical control core across the global B2B manufacturing and automation infrastructure. This product family is engineered to serve as a direct, seamless replacement for highly demanded, heavy-duty original part codes including 4WE10E3X/EW230N9K4, 4WE10D3X/CG24N9K4, and 4WE10D31B/CC24N9Z5.

Utilizing a direct-acting fluid architecture managed by high-output wet-pin AC or DC solenoids, the 4WE10 series shifts an internal hardened spool axially within the cast housing. This action alters port-to-port connectivity (P, A, B, T) to seamlessly govern the start, stop, and motion acceleration vectors of connected cylinders or hydraulic motors. Chengyuan’s premium alternative series guarantees 100% direct drop-in interchangeability with authentic Bosch Rexroth engineering manuals. Every precise dimension—including the subplate mounting pattern (fully compliant with ISO 4401-05-04-0-05 specifications), main port alignment tolerances, coil electrical consumption thresholds, internal oilway core cast areas, and spool overlapping geometries—matches original specs perfectly. This allows field technicians to complete drop-in upgrades without modifications to complex multi-station steel manifold systems.

In high-flow, high-pressure industrial environments, directional control valves face continuous exposure to severe pressure fluid waves, rapid cycling friction, and intense localized fluid shear forces. Poor housing tolerances, subpar spool metallurgy, or weak solenoids will result in extreme throttling pressure drops, severe internal cross-port leakage, and premature mechanical sticking. To ensure flawless field reliability, 100% of Chengyuan’s 4WE10 valves undergo 100% strict dynamic verification on digitized functional test stands. Evaluated under full continuous flow scales and peak working pressures up to $31.5\text{ MPa}$, every valve is certified for millisecond-level shifting response times, minimized null leakage rates, and long-term spring return calibration.

Technical Specifications

• Product Classification: Direct-Operated Directional Spool Valve with Solenoid Actuation

• Compatible Base Series Platform: Full engineering adaptation for Rexroth 4WE10 Series 3X (30 to 39) and 31B heavy-duty technical platforms

• Nominal Interface Sizing Footprint: Size $10\text{ mm}$ (compliant with ISO 4401-05, Cetop 5, and NFPA D05 subplate standards)

• Maximum Permissible Operational Pressures:

  • Working Ports P, A, and B: Rated up to $31.5\text{ MPa}$ (315 bar / 4570 psi) continuous duty

  • Return T-Port Back-Pressure Limit: Rated up to $16.0\text{ MPa}$ (160 bar) or $21.0\text{ MPa}$ (210 bar) depending on the design variant code

• Maximum Continuous Flow Volume: Accommodates volumetric flow scales up to $120\text{ L/min}$ (31.7 gpm) under optimal fluid viscosity

• Technical Control Methods Deconstruction:

  • Replacement Reference: 4WE10E3X/EW230N9K4

    • Configuration: 4-way, 3-position directional valve featuring an “E” spool center profile (all ports P, A, B, and T are completely blocked in the null position); “3X” denotes the major 30 to 39 design series; “EW230” indicates heavy-duty wet-pin AC $230\text{V } 50/60\text{Hz}$ removable coils; “N9” specifies an integrated rubber-booted manual override pin; “K4” matches standard square DIN 43650 Hirschmann connectors without cable plugs.

  • Replacement Reference: 4WE10D3X/CG24N9K4

    • Configuration: 4-way, 2-position directional valve utilizing a “D” spool arrangement (spring return to one side offset, altering flow paths dynamically); “CG24” designates a rapid-response wet-pin DC $24\text{V}$ solenoid system engineered for high-duty cycling industrial machinery.

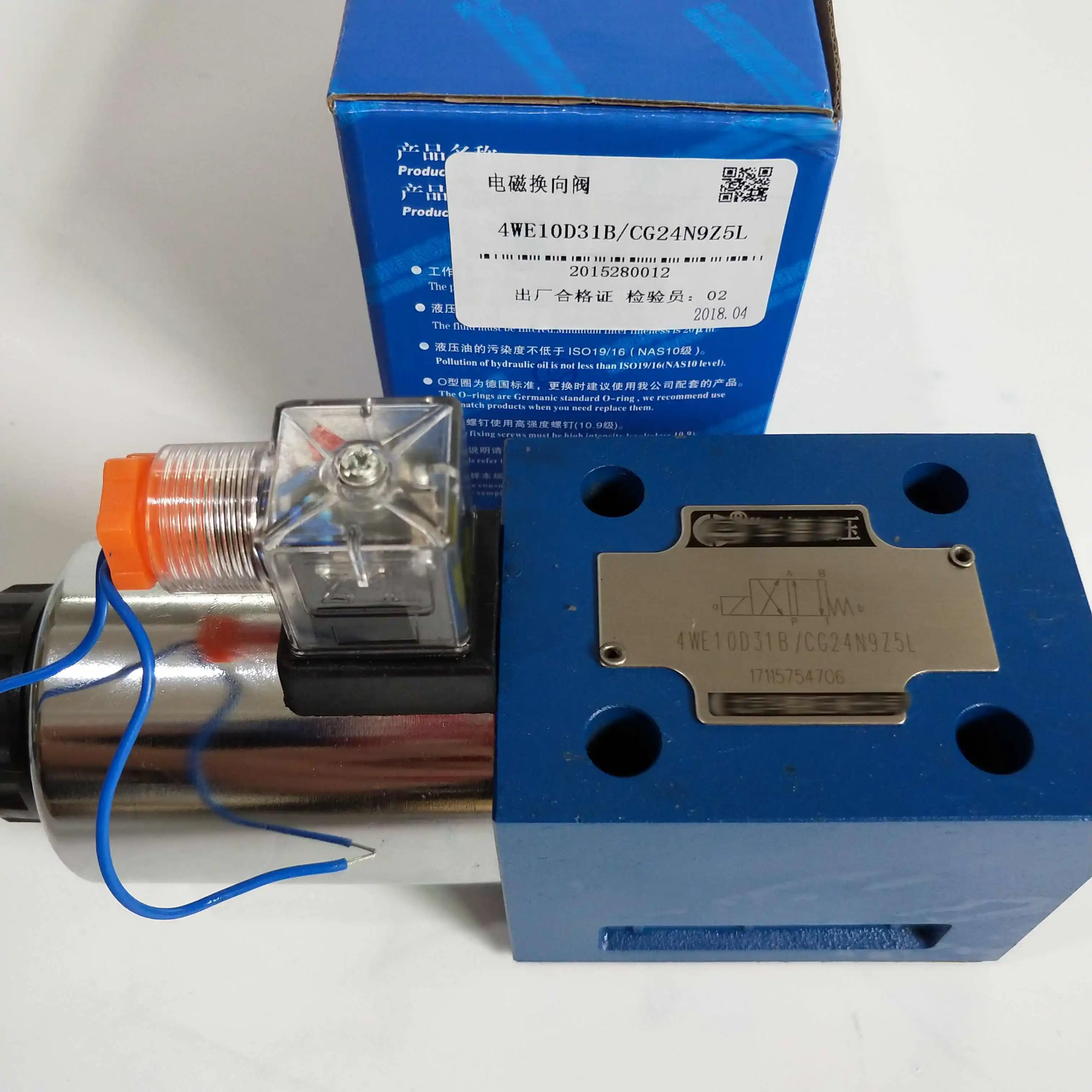

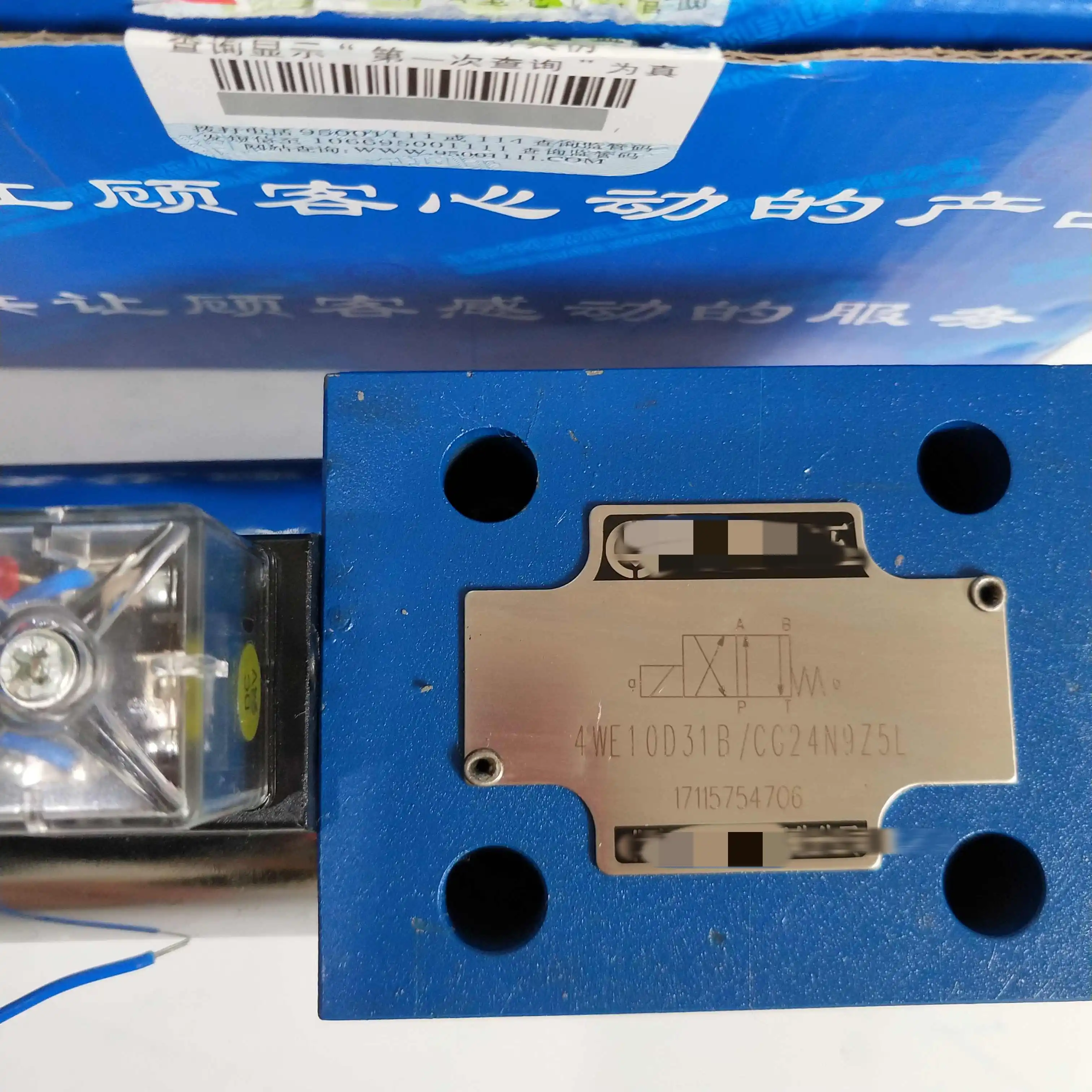

  • Replacement Reference: 4WE10D31B/CC24N9Z5

    • Configuration: Represents the optimized 31 series platform, providing structurally enhanced casting cavities and higher T-port back-pressure handling capabilities; “CC24” defines a $24\text{V DC}$ coil layout equipped with internal transient surge suppression diodes; “Z5” designates a large rectangular electrical box socket interface for heightened water, dust, and vibration insulation.

• Fluid Medium & Temperature Limits: Compatible with industrial mineral-based fluids and synthetic phosphate-ester fluids, spanning fluid temperatures from $-20^\circ\text{C}$ up to $+80^\circ\text{C}$

• Average Component Weight: 2-position single-solenoid models approx. $4.6\text{ kg}$; 3-position double-solenoid models approx. $6.0\text{ kg}$

Key Technical Advantages

• Shell-Molded High-Precision Flow Cavity Casting: The main valve body is cast from high-tensile ductile iron using automated shell-molding techniques to produce exceptionally smooth, oversized internal oilways. This optimized core geometry reduces internal throttling flow resistance and pressure drop by 12%, significantly mitigating fluid temperature elevation and parasitic energy losses.

• Super-Finished Spool with Micro-Match Clearance: The control spool is ground from high-hardenability alloy steel via multi-axis CNC cylindrical grinding, holding the sliding radial clearance within a strict $2\sim4 \mu\text{m}$ envelope. This micro-scale tolerance provides exceptionally smooth switching with low mechanical drag while delivering a tight volumetric seal that minimizes cross-port leakage under full system pressure.

• Wet-Pin Push-Type Removable Solenoid Assembly: The armature is fully submersed in the hydraulic return fluid (T-line), utilizing the fluid volume to naturally dampen high-frequency mechanical impact shocks and lower switching noise. The coil housing can be independently rotated or unplugged without oil leakage or line disconnection, allowing for zero-downtime electrical replacement.

• Fatigue-Resistant High-Stiffness Centering Springs: The internal centering springs undergo rigorous shot-peening and thermal stabilization treatments. They maintain stable spring rate characteristics through over 20 million shifting cycles, ensuring millisecond-level spool resetting to prevent execution drifts or system timing delays.

Application Areas

Chengyuan’s high-grade replacement Rexroth 4WE10 series solenoid directional valves are deployed across heavy-duty medium-to-large power industrial systems:

• Heavy Metal-Forming Machinery & CNC Hydraulic Presses: Governing the fast-forward, continuous industrial feed, and rapid retraction cycles of heavy stamping cylinders.

• Plastic Injection Molding & Rubber Compression Equipment: Serving as high-duty cycling actuators for mold toggle locking and injection carriage movement manifolds.

• Primary Hydraulic Power Units (HPUs) in Metallurgy & Power Plants: Integrated into dense multi-station manifold blocks to handle centralized automated branch circuit isolation.

Expert Maintenance Tips

• Mount the 4WE10 Solenoid Valve to Its Subplate Using a Calibrated Torque Wrench Maintained strictly Between $8.9\sim 9.5 \text{ N}\cdot\text{m}$: Always tighten the four mounting bolts using a progressive cross-pattern sequence. Avoid using high-torque impact guns. Because internal spool-to-bore clearances are measured in single microns, uneven bolt clamping forces will warp the valve body, causing spool binding, sluggish shifting, and eventual coil failure due to electrical overheating.

• Carefully Monitor Back-Pressure Spikes in the Return T-line to Ensure They Remain Safely Within Rated Limits: For AC configurations (such as the EW230 model), restricted return flow from narrowed pipe diameters or cold, high-viscosity oil can drive T-port pressures beyond rated thresholds. This pressure prevents the wet armature from closing fully, causing the AC coil to draw high inrush currents indefinitely until it burns out within minutes.

• Inspect the Electrical Plug Seals and Manual Override Rubber Boots Every Six Months: The 4WE10 series often operates in harsh environments with high dust, airborne oil mist, or cutting fluid spray. If moisture or oil penetrates an aging plug seal, it can cause short circuits between pins. This can damage upstream PLC digital output cards and disrupt system operation, making regular seal inspections vital.
