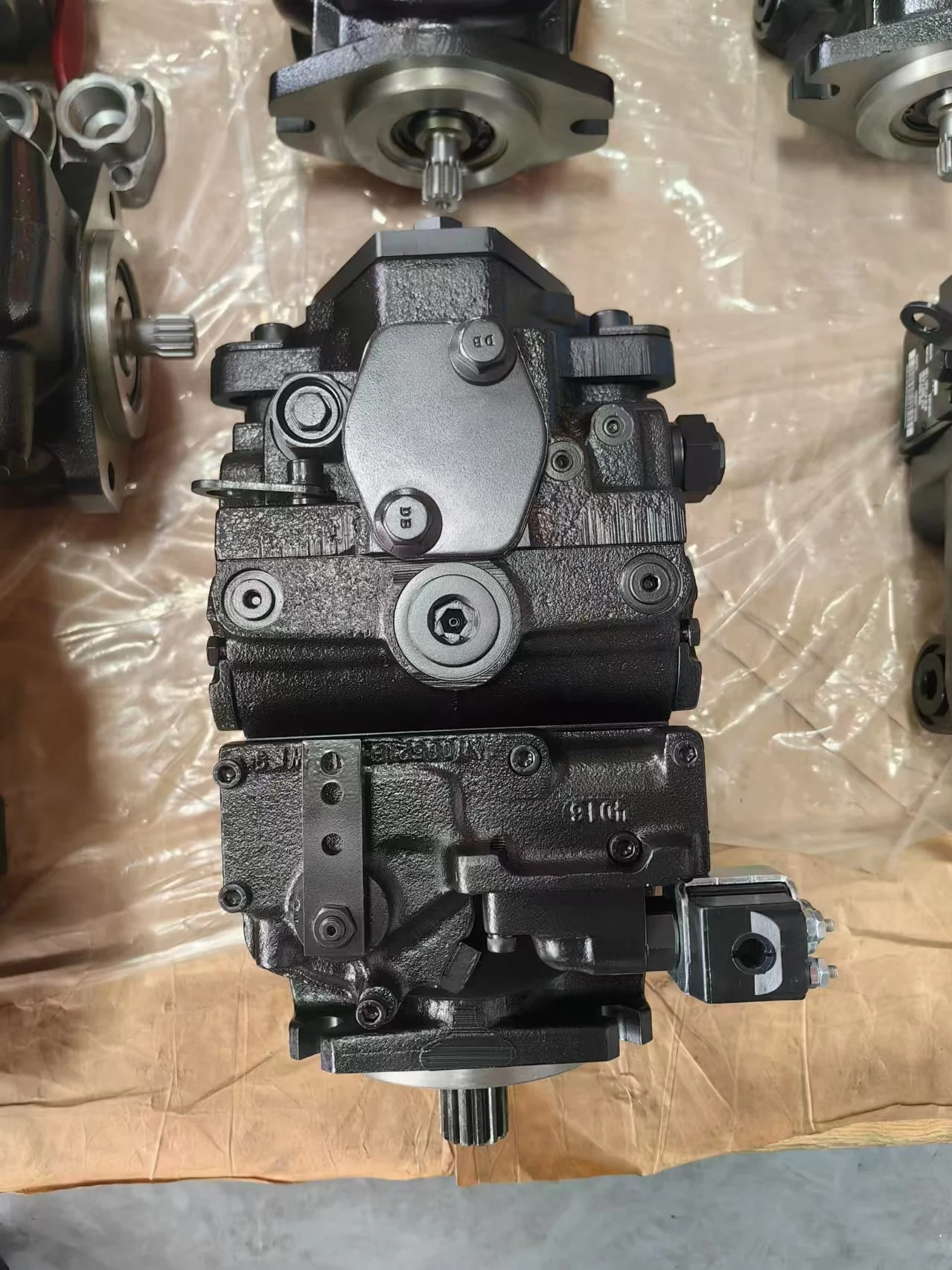

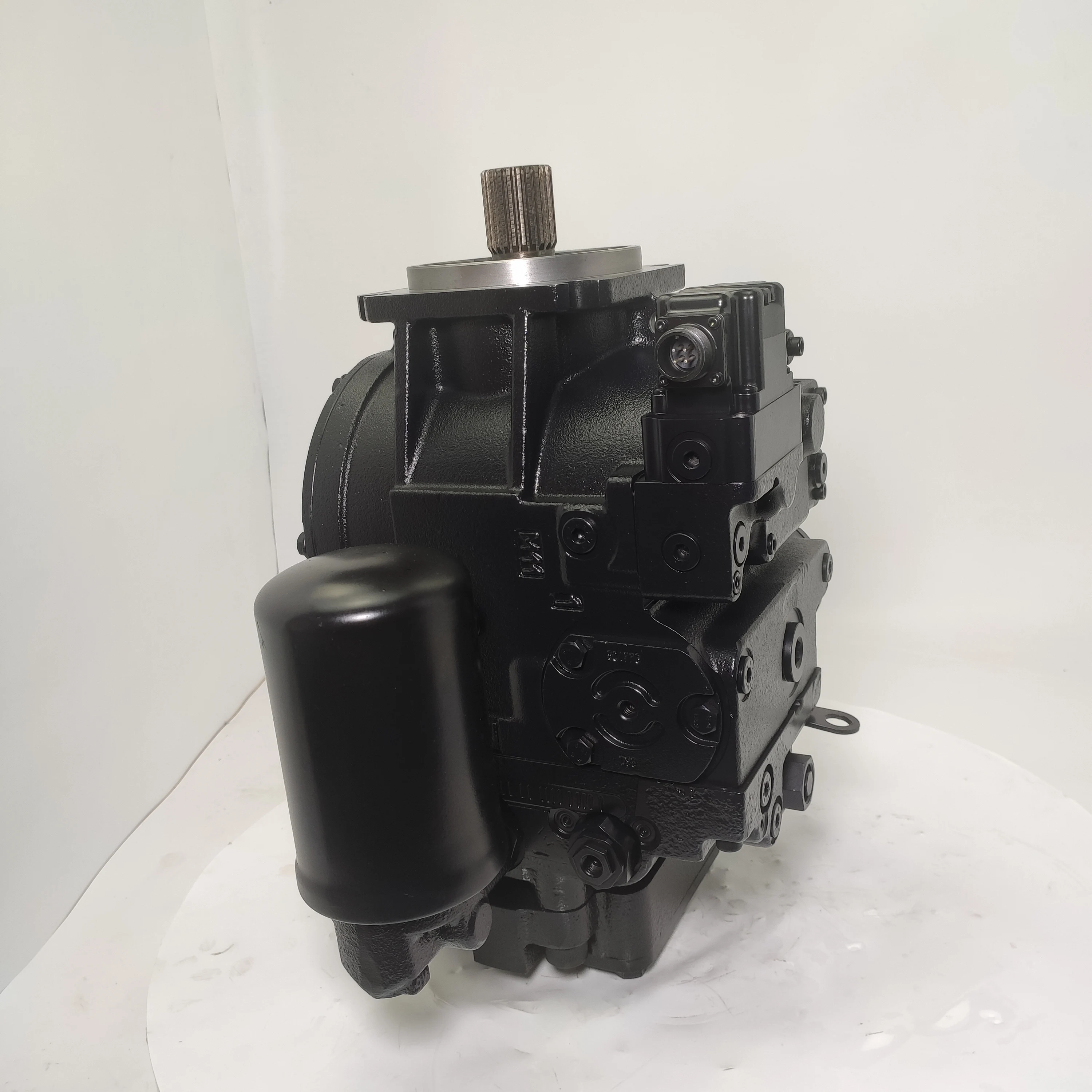

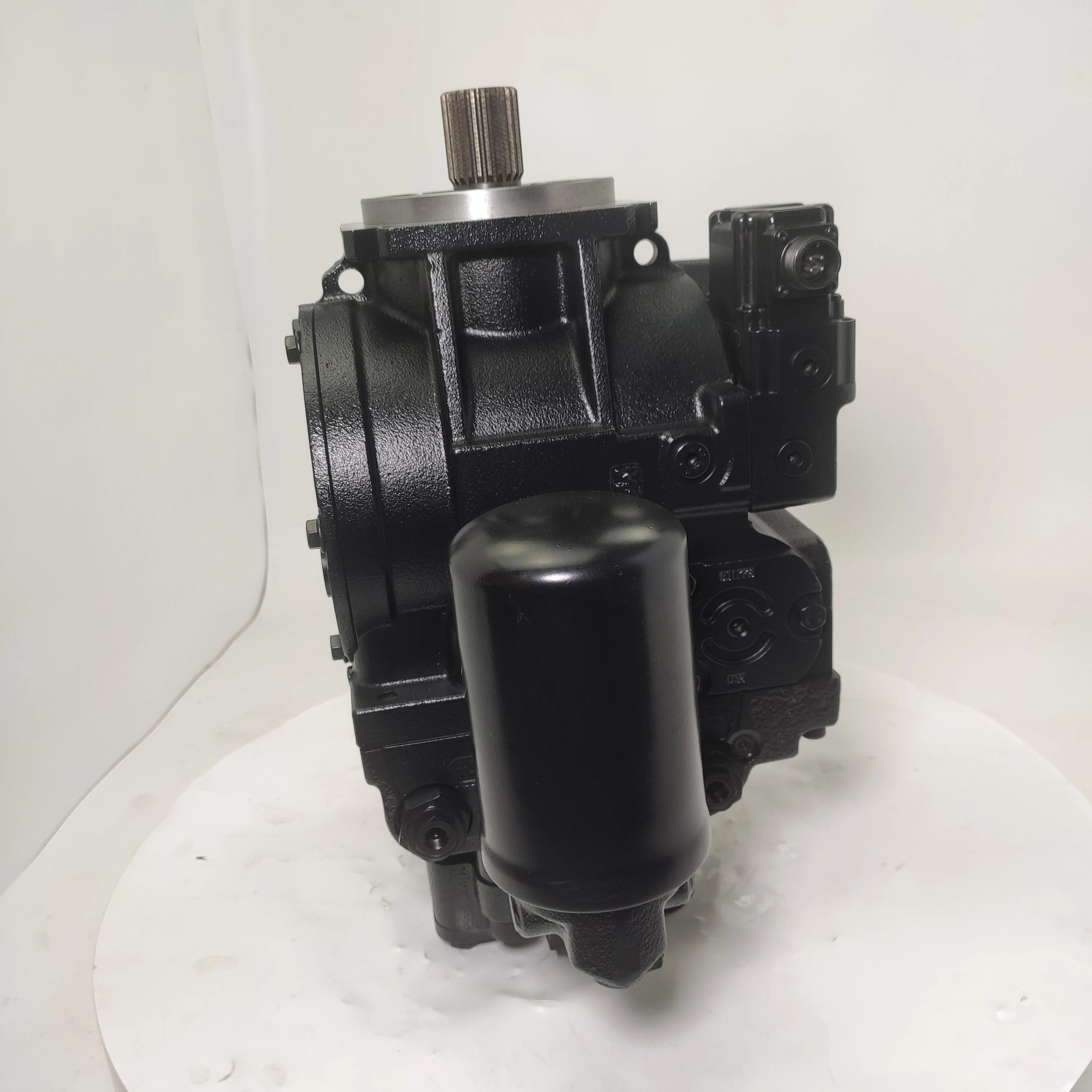

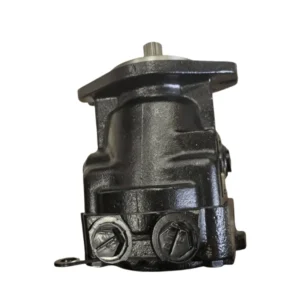

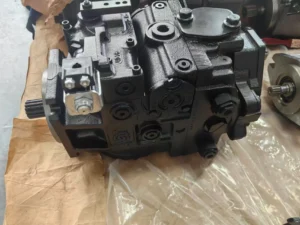

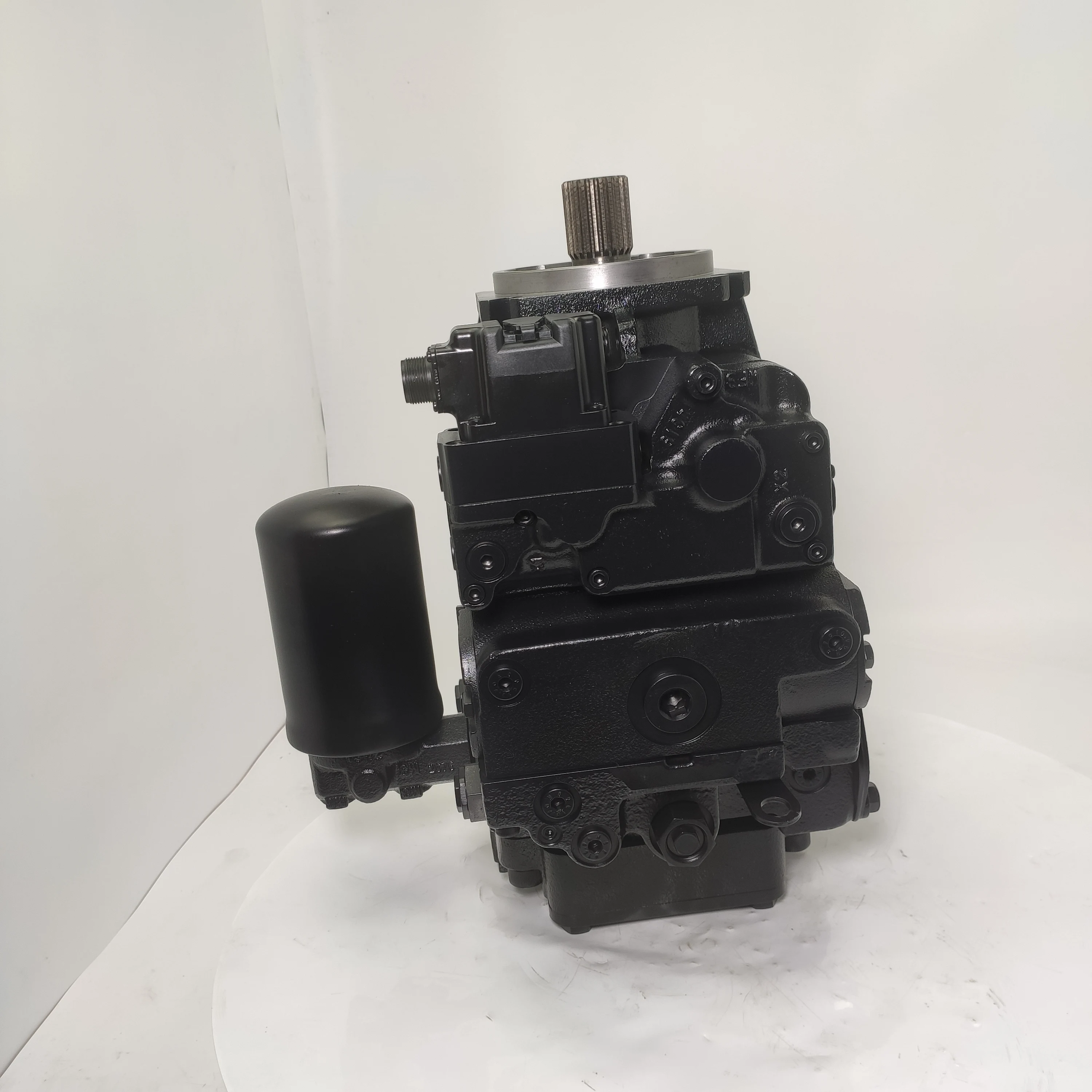

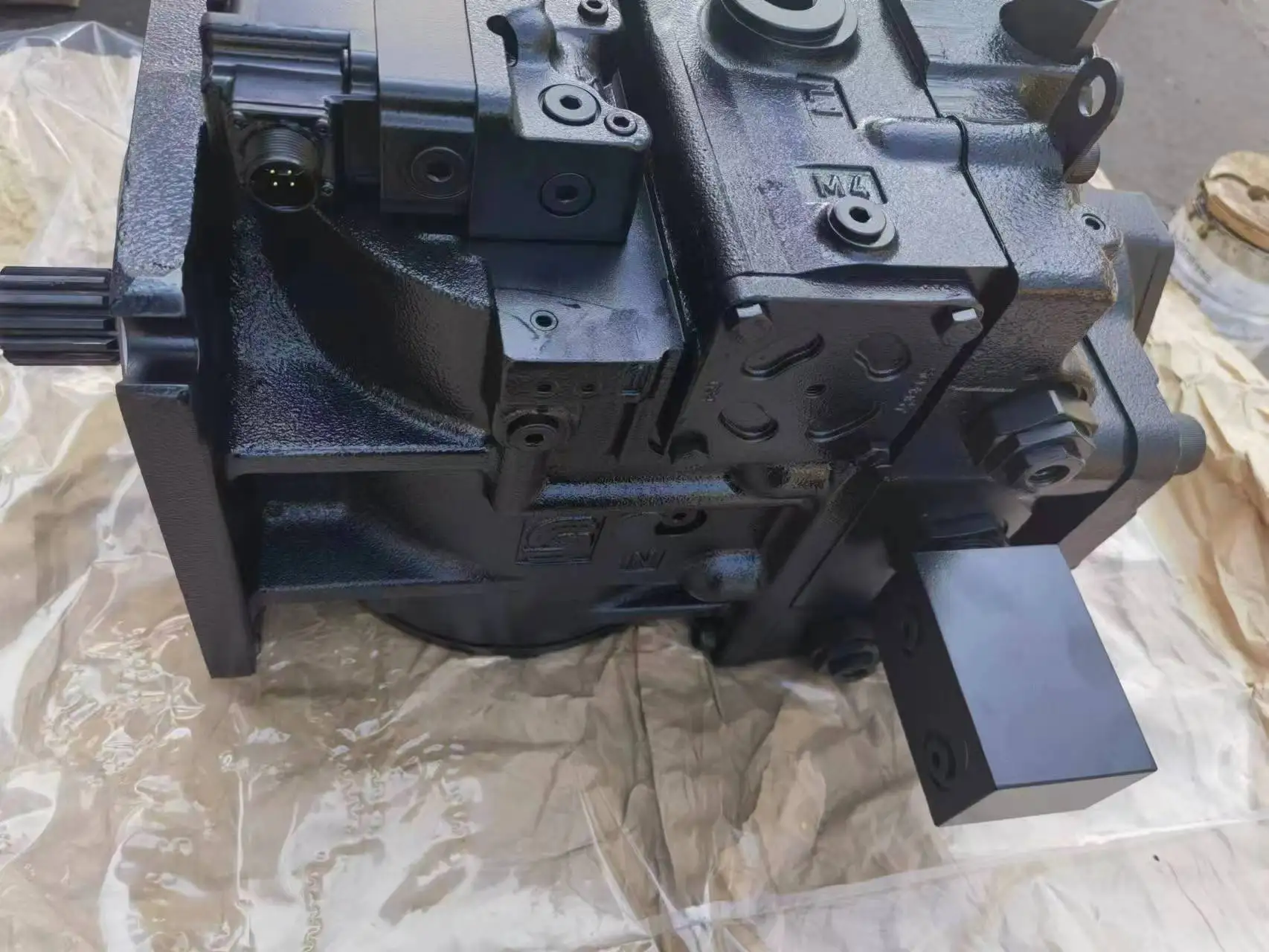

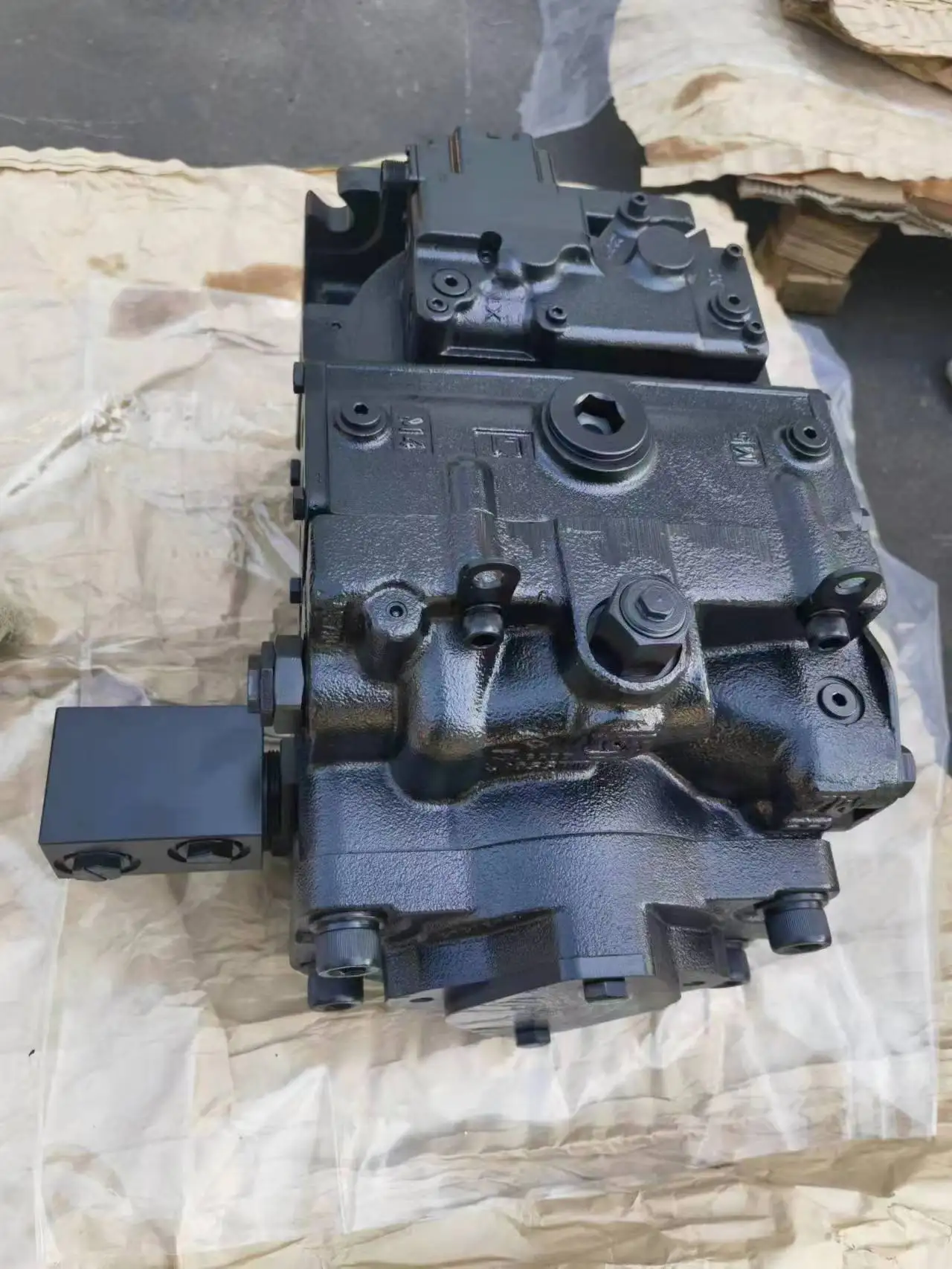

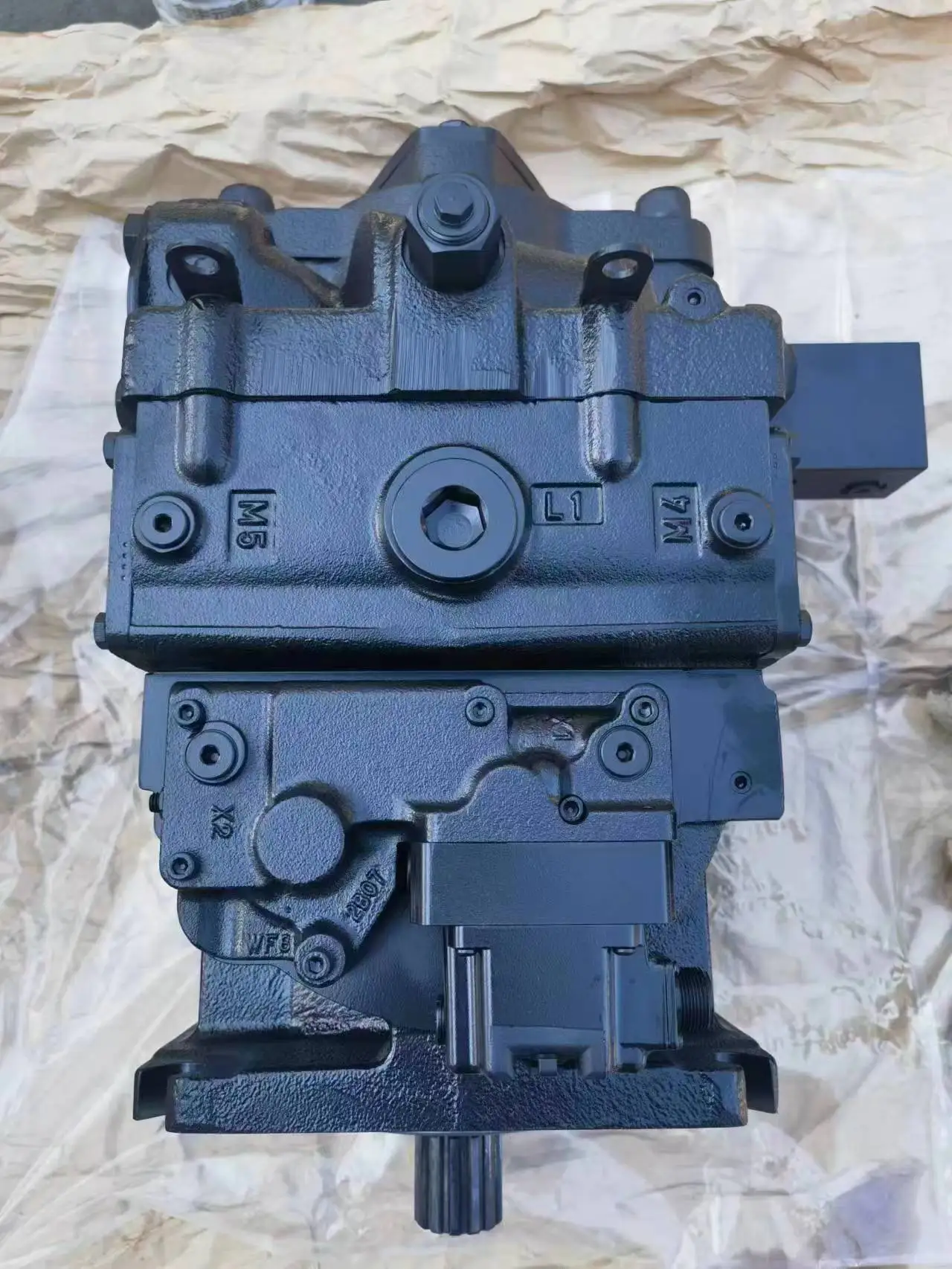

Aftermarket Hydraulic Piston Pump 83007357 5728362 83041431 C204110849

The heavy-duty Axial Piston Hydraulic Pump Series (encompassing premium industrial and mobile fleet specific part numbers 83007357, 5728362, C204110849, 83041431, 83027439, and 83026828) by Chengyuan Hydraulic represents durable, professional fluid power components engineered for 100% direct drop-in interchangeability within global open and closed-circuit hydraulic networks. Manufactured in strict structural alignment with original technical specifications and exact dimensional standards, this replacement piston pump portfolio perfectly matches original mounting pilot profiles, shaft end configurations (involute splined profiles), and high-pressure oil ports. B2B global industrial procurement sectors and heavy plant maintenance facilities can implement immediate on-site equipment swaps without modification to system chassis brackets, rigid connecting manifolds, or control lines.

Operating as the rugged hydraulic energy generator for heavy-duty systems, this piston pump line leverages a time-tested swashplate or bent-axis high-pressure design. Discarding loose tolerance standards, the assembly delivers high mechanical strength and exceptional resistance to continuous shaft speeds and extreme peak shock pressures. At Chengyuan, zero compromise is tolerated; every hydraulic pump completing production must pass our 100% rigorous dynamic simulation test bench schedule. By evaluating fluid delivery stability under full continuous rated pressure, tracking case drain leakage profiles across the entire thermal bandwidth, monitoring operational noise levels, and ensuring volumetric precision, we guarantee our replacement units mirror original performance benchmarks in the field.

Technical Specifications

• Product Type Classification: Heavy-Duty Axial Piston Fixed/Variable Hydraulic Pump

• Hydraulic Circuit Application: Open or Closed Circuit System Configurations (Application Dependent)

• Control Methodology: Pressure Limiter (Cut-off), Constant Power, or Load Sensing (LS) configuration matching the selected part number code

• Nominal Continuous Operating Pressure: 280 bar to 350 bar (28 MPa to 35 MPa)

• Maximum Peak Shock Pressure: 350 bar to 400 bar (40 MPa extreme resistance threshold)

• Drive Shaft Specification: High-torque involute splined drive shaft matching standard SAE/DIN profiles

• Model-Specific Nomenclature & Engineering Metrics:

  • Part Numbers: 83007357 / 5728362 / C204110849 (Primary Hydraulic Power Units)

  • Geometric Displacement Envelope: 45 cc/rev to 71 cc/rev ($cm^3/rev$) range; Continuous Rated Speed: 2200 rpm to 2600 rpm; Maximum Pressure Capacity: 350 bar; Theoretical Flow Delivery at 1800 rpm: Approx 81 L/min to 127 L/min; Net Weight Range: Approx 24.5 kg to 36.0 kg.

  • Part Numbers: 83041431 / 83027439 / 83026828 (Auxiliary / Tandem Hydrostatic Sub-Units)

  • Geometric Displacement Envelope: 28 cc/rev to 45 cc/rev ($cm^3/rev$) range; Rotation Profile: Clockwise (R) or Counter-Clockwise (L) configured per exact engine output design; Mounting Pilot: Standard SAE 2-bolt or 4-bolt configurations with tandem-through-drive expansion capability; Net Weight Range: Approx 18.0 kg to 23.0 kg.

Key Technical Advantages

• Micron-Precision Lapped Bi-Metal Valve Plate Pair: The interface running between the rotating cylinder barrel and the flat steel valve plate is processed with multi-axis CNC mirror-lapping. The plate surface incorporates a high-grade, vacuum-sintered copper alloy layer held to a flatness tolerance within $\le 1\,\mu\text{m}$ to establish a highly stable hydrostatic oil film under a continuous 350 bar load, keeping volumetric efficiency above 95% and suppressing system heat generation.

• Hydrostatically Balanced Piston-Slipper Configuration: Features an advanced hydrostatic balancing layout within the 9-piston rotating group. This architecture drops mechanical friction at the slipper-to-swashplate interface close to zero. The optimized fluid dampening orifices within the slippers actively absorb pressure pulses, reducing fluid-borne mechanical noise and system harmonics.

• High-Tensile Monoblock Ductile Iron Cast Enclosure: The primary pump housing is cast as a single piece from high-density ductile iron, delivering high yield strength and fatigue resistance. Under severe 400 bar pressure peaks, micro-elastic deflection is minimized, preserving precise coaxial alignment between the internal bearings and the cylinder centerline to suppress fluid-borne noise and prevent internal binding.

• Heavy-Duty Tapered Roller Bearings for Residual Load Resistance: The input drive shaft assembly is supported by oversized, pre-loaded tapered roller bearings. This robust configuration allows the drive shaft to comfortably handle radial and axial residual loads introduced by external mechanical couplings, universal joints, or gear drives, extending service life under continuous machine vibration.

Application Areas

Thanks to its high rotational velocity capabilities, robust structural framework, and strong shock-load tolerance, this high-pressure piston pump series is widely integrated as the primary power generator across open and closed hydrostatic loops:

• Mobile Mobile Engineering Machinery & Special Vehicles: Primary or auxiliary crane superstructure pumps, hydrostatic drives for heavy concrete mixers, high-capacity municipal refuse compactors, and asphalt milling/paving equipment.

• Agricultural Equipment & Forestry Machinery: Main hydrostatic travel drives for heavy-duty combine harvesters, logging processors, and high-delivery timber grabbers.

• Material Handling & Port Cargo Logistics Machinery: Primary fluid power sources for container reach stackers, main pump drives for port rubber-tired gantry (RTG) cranes, and high-tonnage heavy-duty material handling forklifts.

Expert Maintenance Tips

• Mandatory Pre-Commissioning Housing Priming: Because the axial piston series relies entirely on the internal oil bath inside the pump frame for critical tribological pair lubrication, the housing must be fully pre-filled with clean, filtered hydraulic fluid via the highest available drain port prior to initial commissioning. Running the unit dry will destroy the piston heads and valve plate within seconds of engine ignition.

• Verify Absolute Suction Line Seal Integrity & Diameter: As a self-priming pump, the intake plumbing must be entirely airtight and sized for proper flow velocity. Ensure the inlet vacuum level does not drop below -0.3 bar. Any air entry or restricted flow will cause severe cavitation pitting, leading to premature delamination of the bi-metal valve plate and immediate performance degradation.

• Enforce Strict Fluid Hygiene Benchmarks: Maintain system fluid cleanliness at or above ISO 4406 19/16/13 (NAS Class 7-8). Conduct routine inspection intervals and replace intake/return filter elements to prevent abrasive particles from scratching the internal mating faces, preserving the high volumetric efficiency and preventing early wear of the piston pump assembly.
