Danfoss 90 Series Hydraulic Pump | 90R250 90R075 Variable Displacement Pump

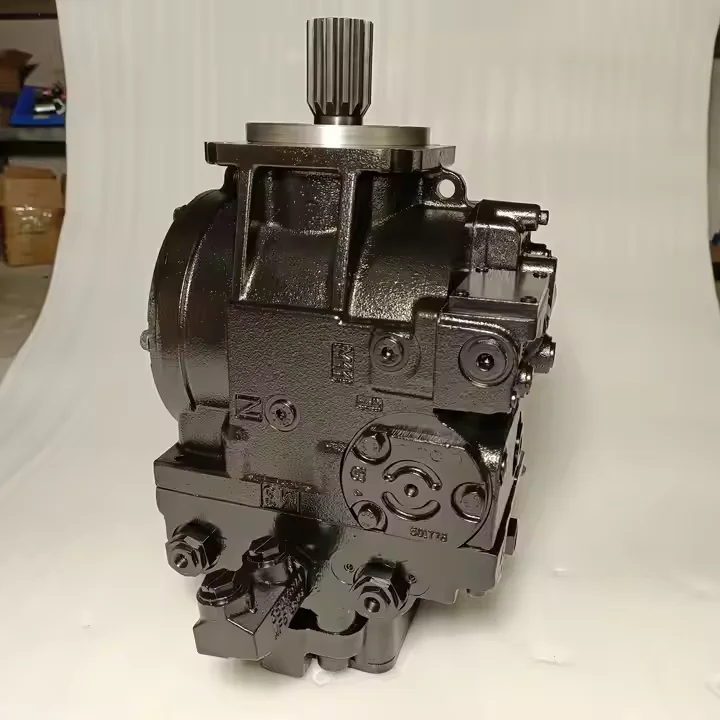

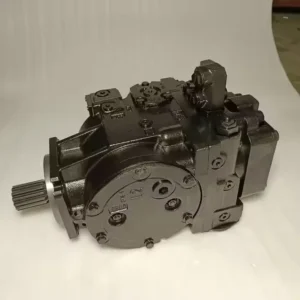

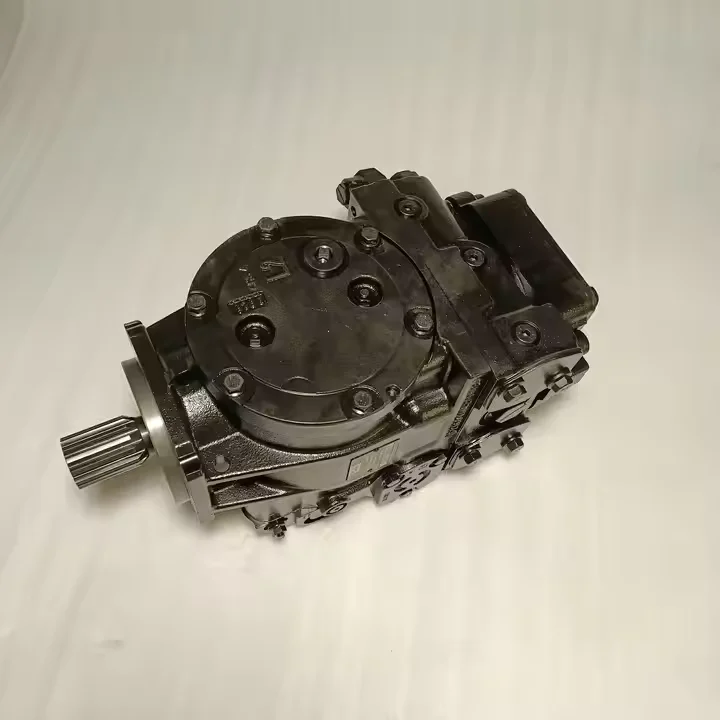

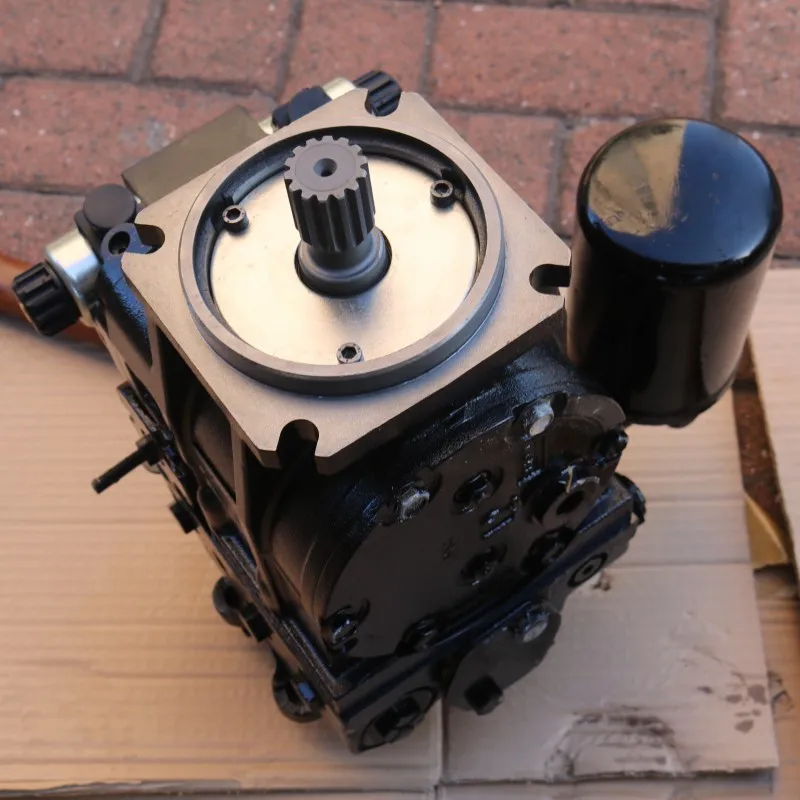

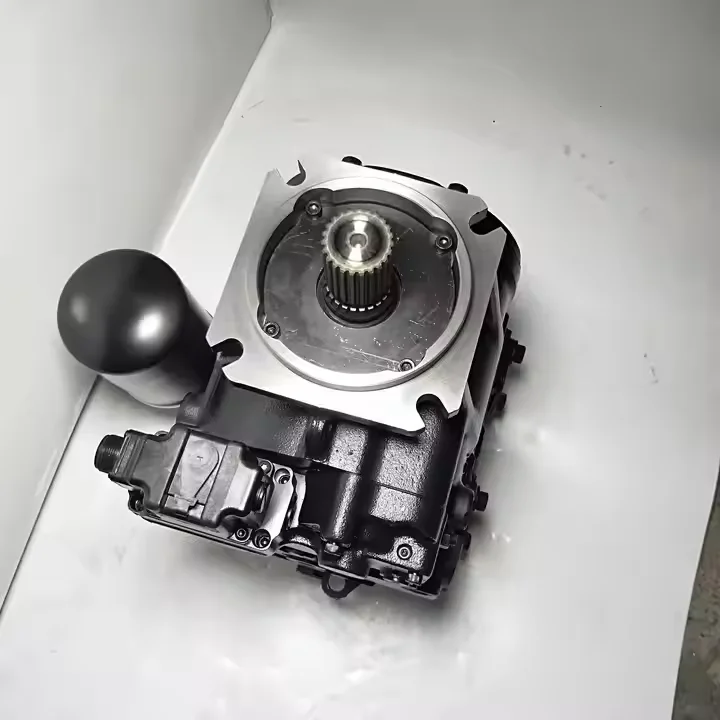

The 90L and 90R Series axial piston variable displacement pumps from Chengyuan Hydraulic are high-end power components engineered specifically for closed-circuit hydrostatic transmissions. Fully compatible with Sauer-Danfoss standards, this series covers displacements from 42cc to 250cc (including 90R075 and 90R250). As the heart of closed-loop systems, these pumps feature integrated charge pumps and pressure protection valves, offering high power density and a compact footprint. Every 90 series pump undergoes 100% simulated full-load condition testing to verify that swashplate response and volumetric efficiency match OEM standards, ensuring 100% original-place interchangeability.

Technical Specifications :

• Model Examples: 90R250, 90R075, 90L100

• Displacement (90R075): 75.0 cm³/rev

• Displacement (90R250): 250.0 cm³/rev

• Nominal Pressure: 420 bar (42 MPa)

• Peak Pressure: 480 bar (48 MPa)

• Max Speed (90R075): 3950 rpm

• Max Speed (90R250): 2700 rpm

• Control Options: MDC (Manual), EDC (Electric), HDC (Hydraulic Displacement Control)

• Max Case Pressure: 3.0 bar continuous, 5.0 bar intermittent

Key Technical Advantages:

• Advanced Swashplate Construction: Utilizing high-strength forged swashplates and nitrided piston sets to enhance fatigue resistance under 420 bar continuous pressure. Optimized hydrostatic support between the slippers and swashplate minimizes mechanical friction loss.

• Integrated Charge System: The built-in large-displacement charge pump provides control pressure and ensures thermal exchange during main circuit reversals. Integrated multi-function valves respond in milliseconds to protect the motor from pressure spikes.

• Efficient Thermal Management: The design incorporates flushing valve logic to effectively direct hot oil to the cooling system. Combined with Chengyuan’s precision tolerances, the pump maintains high volumetric efficiency even in high-temperature environments.

• Modular Control Valve Design: Supports rapid switching of control logics. Whether for heavy-duty travel in the 90R250 or precision tasks in the 90R075, the control spools are double-ground to ensure zero-lag response and high centering accuracy.

Application Areas:

• Construction: Drive systems for concrete mixers, heavy rollers, and asphalt pavers.

• Agriculture: Hydrostatic drives for combine harvesters and large-scale sprayers.

• Mining: Power sources for open-pit drills and heavy material handling equipment.

Expert Maintenance Tips:

• Charge Pressure Monitoring: In closed-circuit pumps, charge pressure is critical for swashplate stability. Verify that charge pressure is within the 20-25 bar range after startup; insufficient charge will cause immediate cavitation.

• Case Pressure Management: Never operate if case pressure exceeds 5.0 bar, as this will lead to shaft seal failure or feedback mechanism malfunction. Ensure the drain line is adequately sized.

• High-Precision Filtration: Closed circuits are extremely sensitive to contaminants. We recommend 10μm or finer filtration and regular oil analysis to maintain NAS cleanliness standards.
