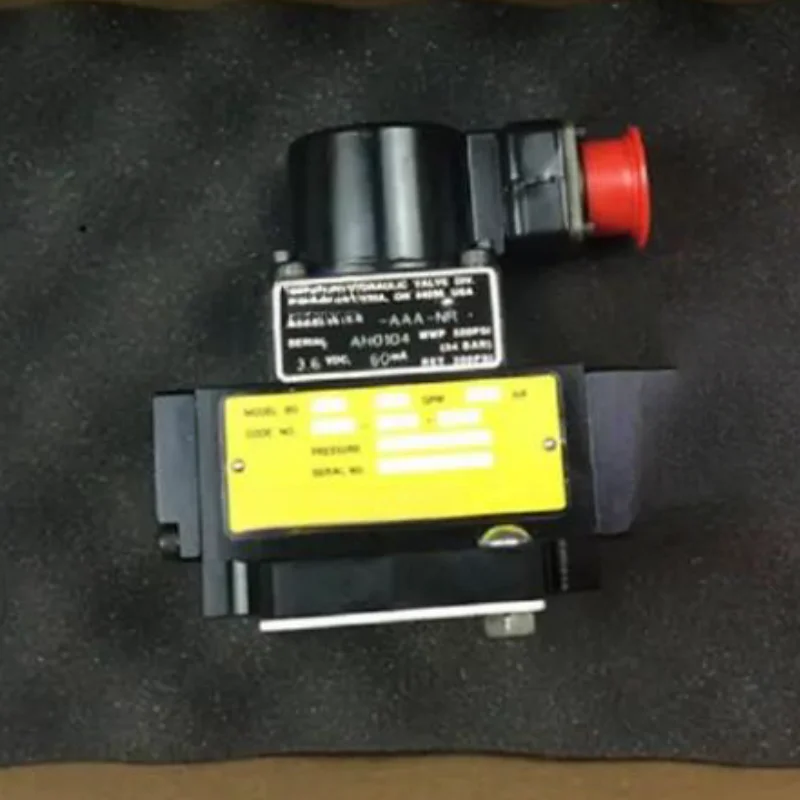

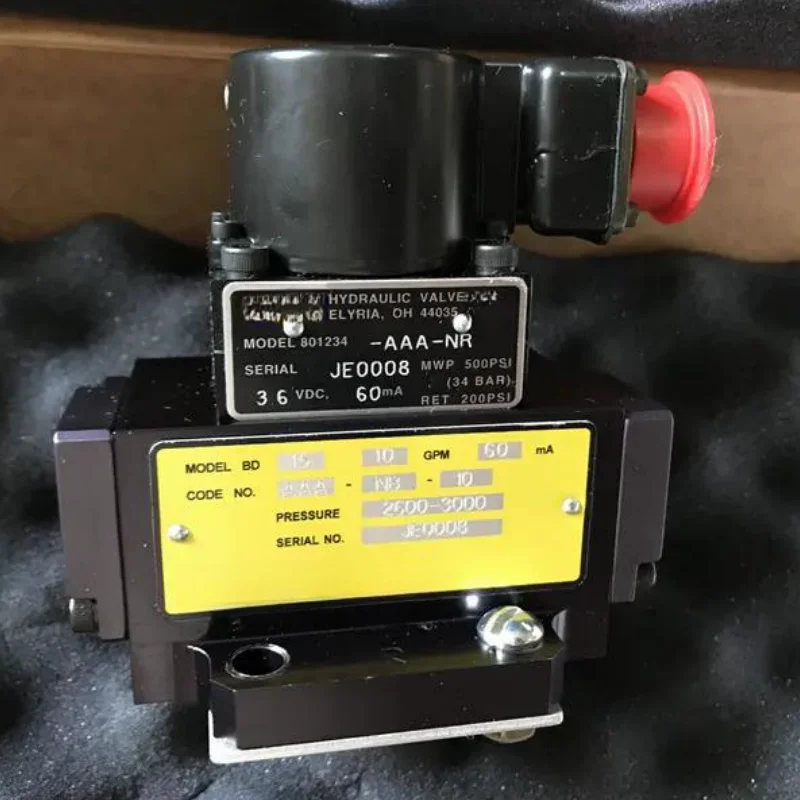

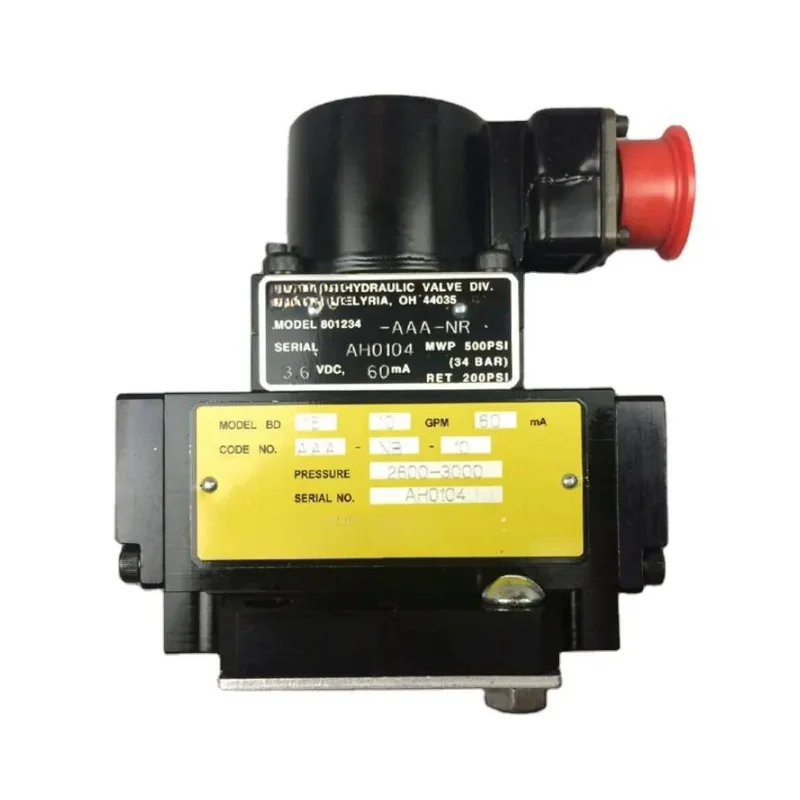

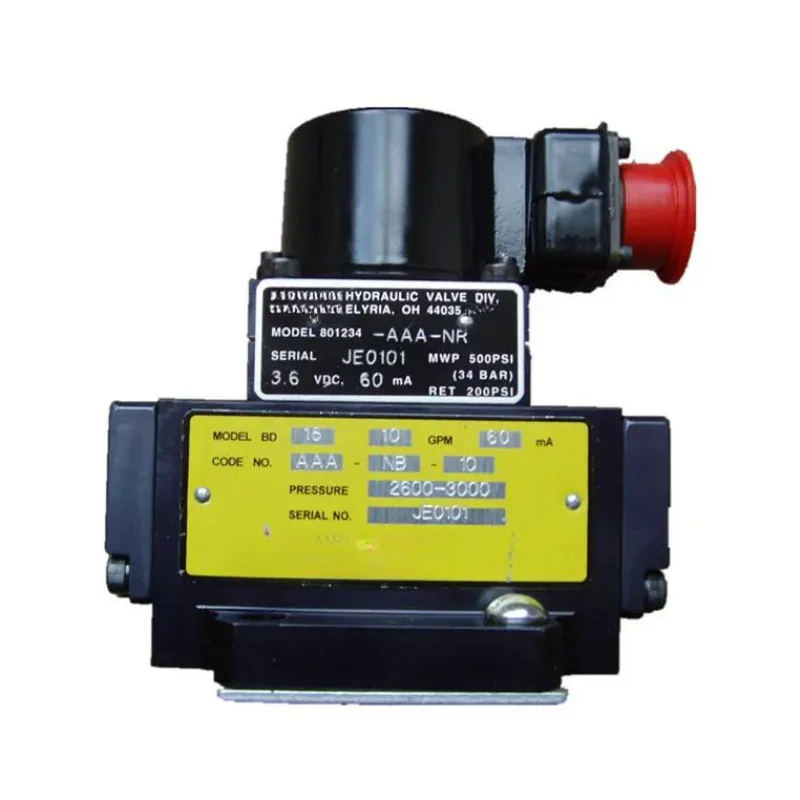

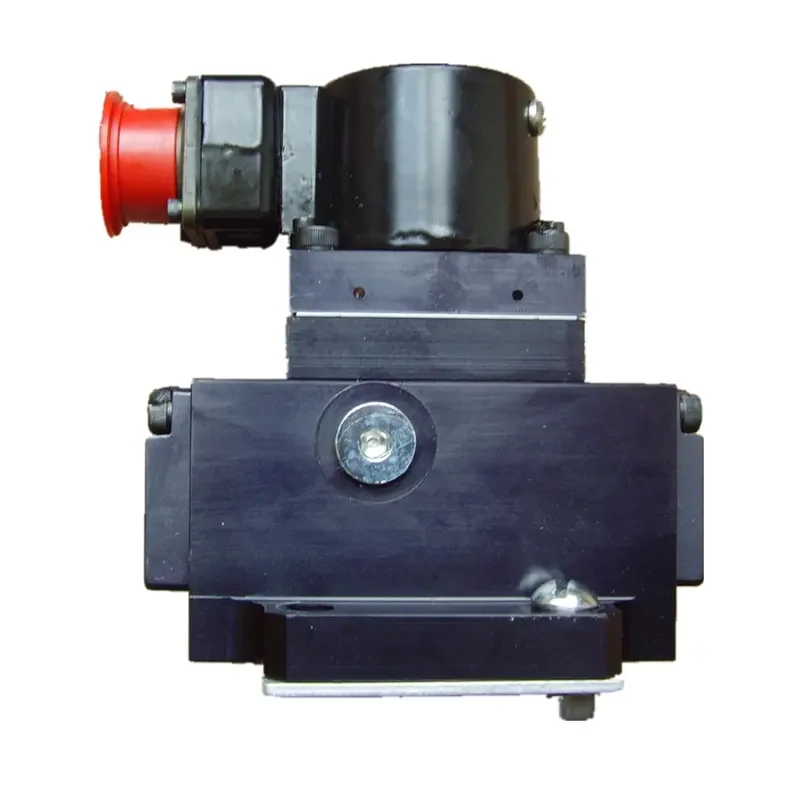

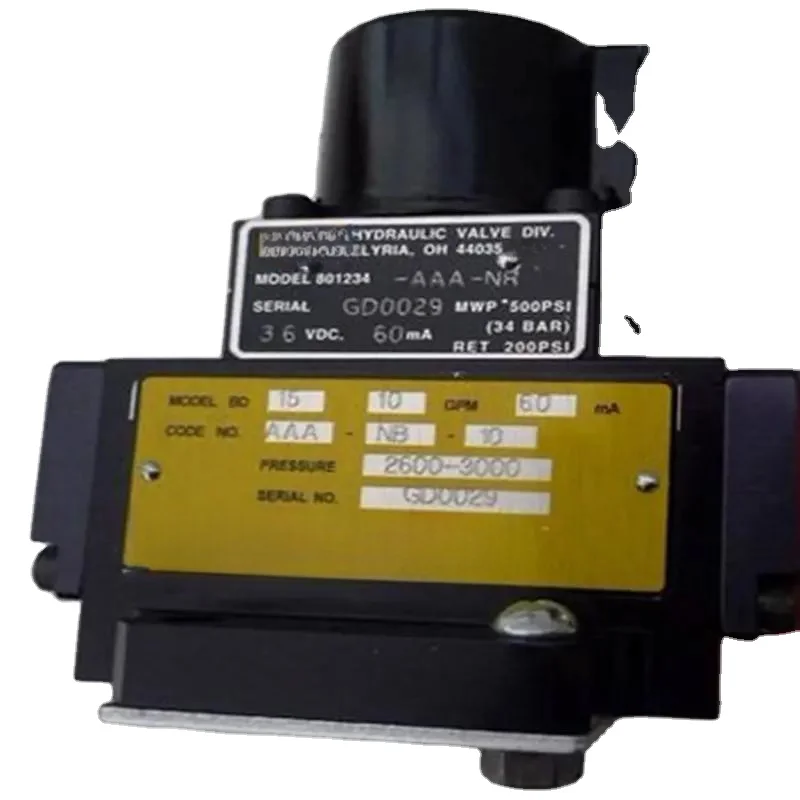

Moog BD Series Servo Valve | BD30AAEVC30 BD15AAANB10 BD15AAANB15

The BD Series electro-hydraulic servo valves by Chengyuan Hydraulic are precision-engineered control components designed to meet the historical performance standards of Moog and Parker BD series. This range specifically caters to the replacement of core models such as BD15AAANB10, BD15AAANB15, and the high-flow BD30AAEVC30.

The BD series utilizes a dual-stage design, where a dry torque motor drives the pilot stage to shift the main spool, providing ultra-dynamic regulation of flow and direction. Chengyuan ensures 100% original-place interchangeability regarding mounting patterns, electrical connectors, and flow gain characteristics. Every valve is assembled in a cleanroom environment and undergoes 100% dynamic servo performance testing to guarantee minimal resolution threshold and superior linearity around the null position.

Technical Specifications

• Compatible Series: Moog / Parker BD Series

• Core Models: BD15AAANB10, BD15AAANB15, BD30AAEVC30

• Rated Flow (at $\Delta p=70 bar$):

  • BD15 Series: Approx. 57 L/min (15 GPM)

  • BD30 Series: Approx. 113 L/min (30 GPM)

• System Pressure Range: 14 bar to 210 bar (3000 PSI)

• Rated Current: Configurable based on coil setup (e.g., 40mA, 200mA, or 10mA)

• Frequency Response (-3dB): Up to 50Hz – 100Hz (depending on size)

• Hysteresis: $< 3\%$

• Null Drift: $< 2\%$ (across operating temperature range)

• Protection Rating: IP65

Key Technical Advantages:

• High-Resolution Dry Torque Motor: Features a dry-type motor where the coils are completely isolated from the hydraulic fluid. This design prevents ferromagnetic particles in the oil from accumulating in the magnetic gaps, solving the most common cause of servo valve failure—electromagnetic contamination.

• Precision-Ground Spool & Sleeve Assembly: Crafted from high-strength alloy tool steel with sub-zero treatment. The spool-to-sleeve clearance is maintained under $2\mu m$ through micron-level hand honing, ensuring maximum volumetric efficiency and sensitive response near the null region.

• Robust Resistance to Shock and Vibration: The BD series is engineered with a compact internal mechanical feedback mechanism that is reinforced for durability. It maintains stable control characteristics and minimal null drift even in harsh environments like mobile machinery or injection molding.

• Optimized High-Flow Channeling: The BD30AAEVC30 model features an enhanced main-stage flow path. It delivers high dynamic response while significantly reducing pressure drops across the valve, ideal for industrial simulation systems requiring both efficiency and speed.

Application Areas:

• Industrial Robots & Manipulators: Multi-axis precise position and trajectory control.

• Fatigue Test Rigs: High-frequency cyclic loading tests for automotive and aerospace components.

• Paper Mills & Die-Casting: Real-time closed-loop control of press gaps or injection speeds.

Expert Maintenance Tips:

• Cleanliness is Critical: Servo valves are highly sensitive to contamination. Systems must utilize $3\mu m$ absolute filtration, maintaining oil cleanliness at NAS 5 or ISO 4406 14/11 or better.

• No Current Without Fluid: Avoid applying rated current to the valve for extended periods without hydraulic pressure, as this can cause mechanical fatigue or damage to the feedback assembly.

• Mandatory Flushing Protocol: Always use a “Flushing Plate” to clean the system piping during initial setup or after an oil change. Only connect the BD servo valve once the fluid cleanliness has been verified.
