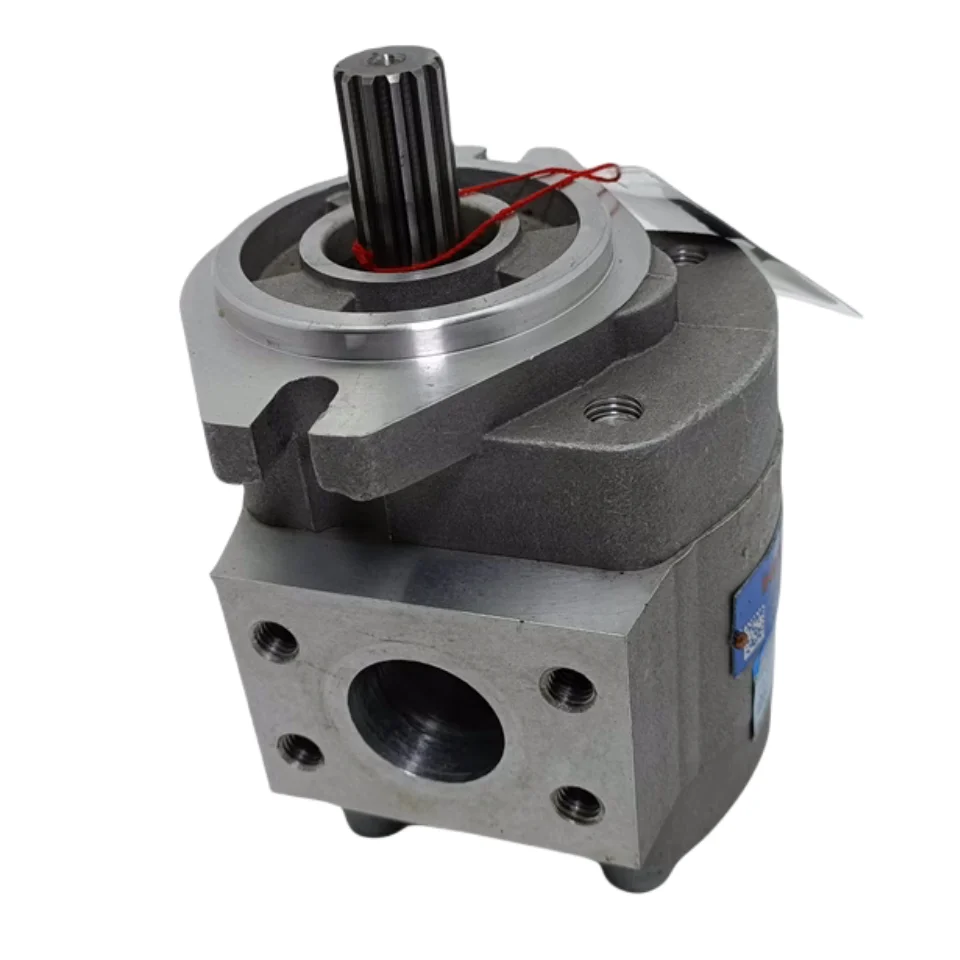

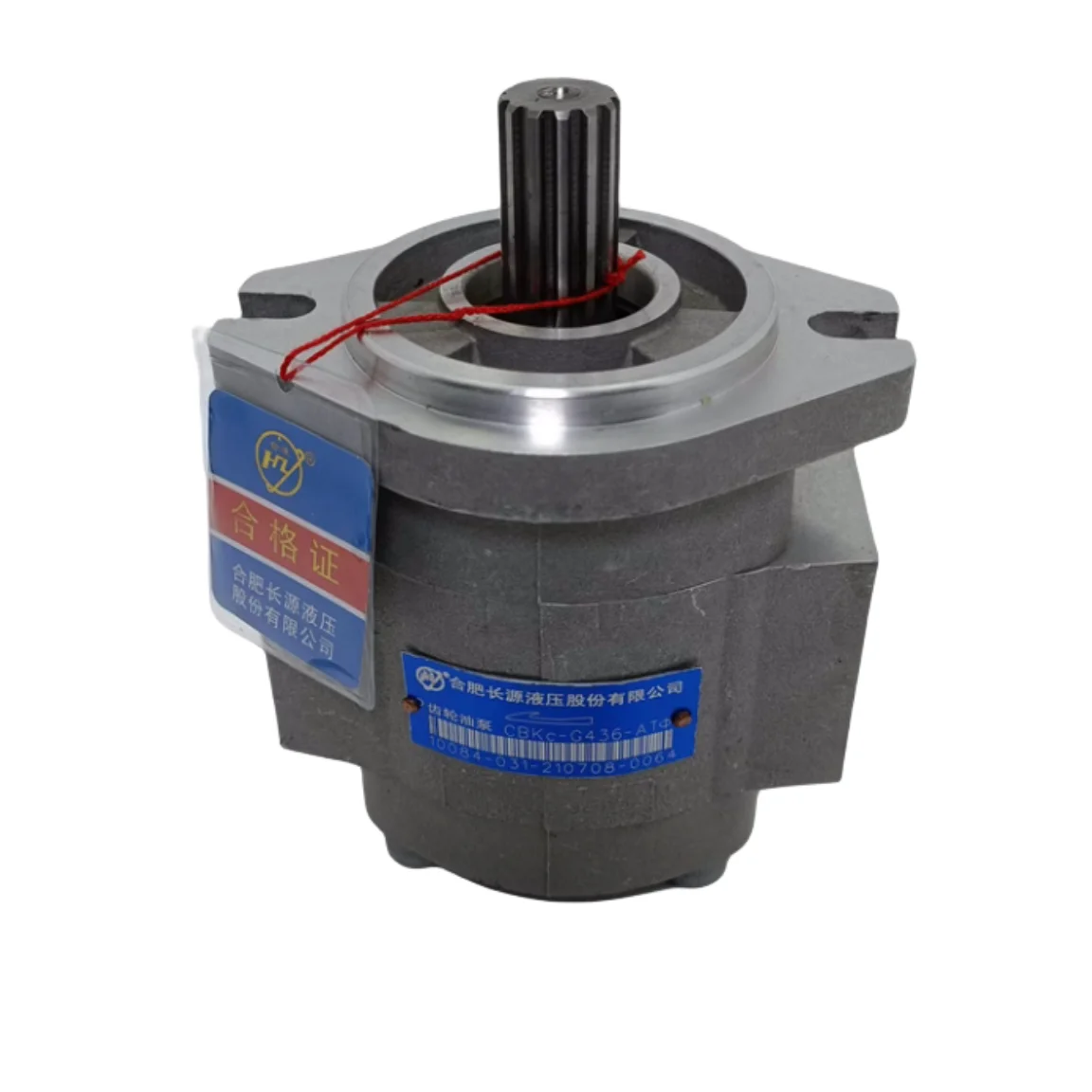

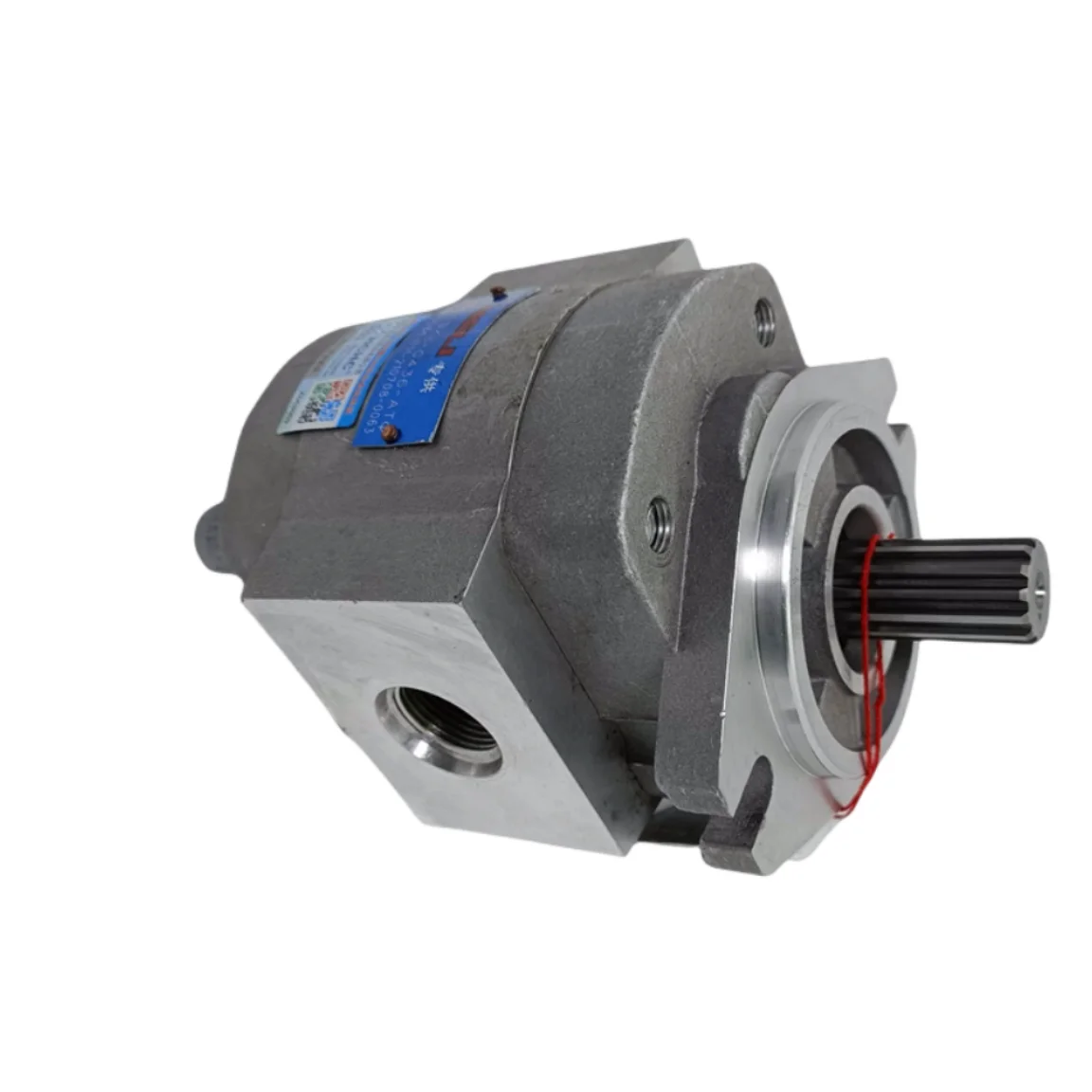

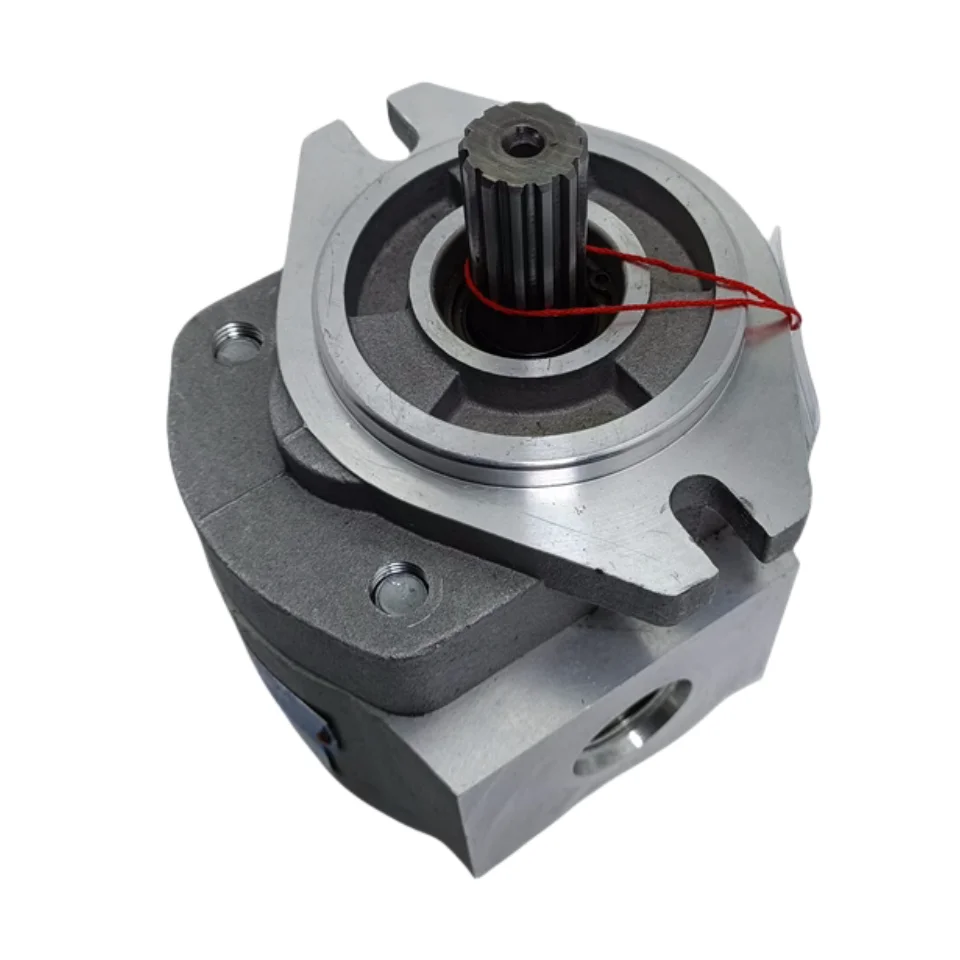

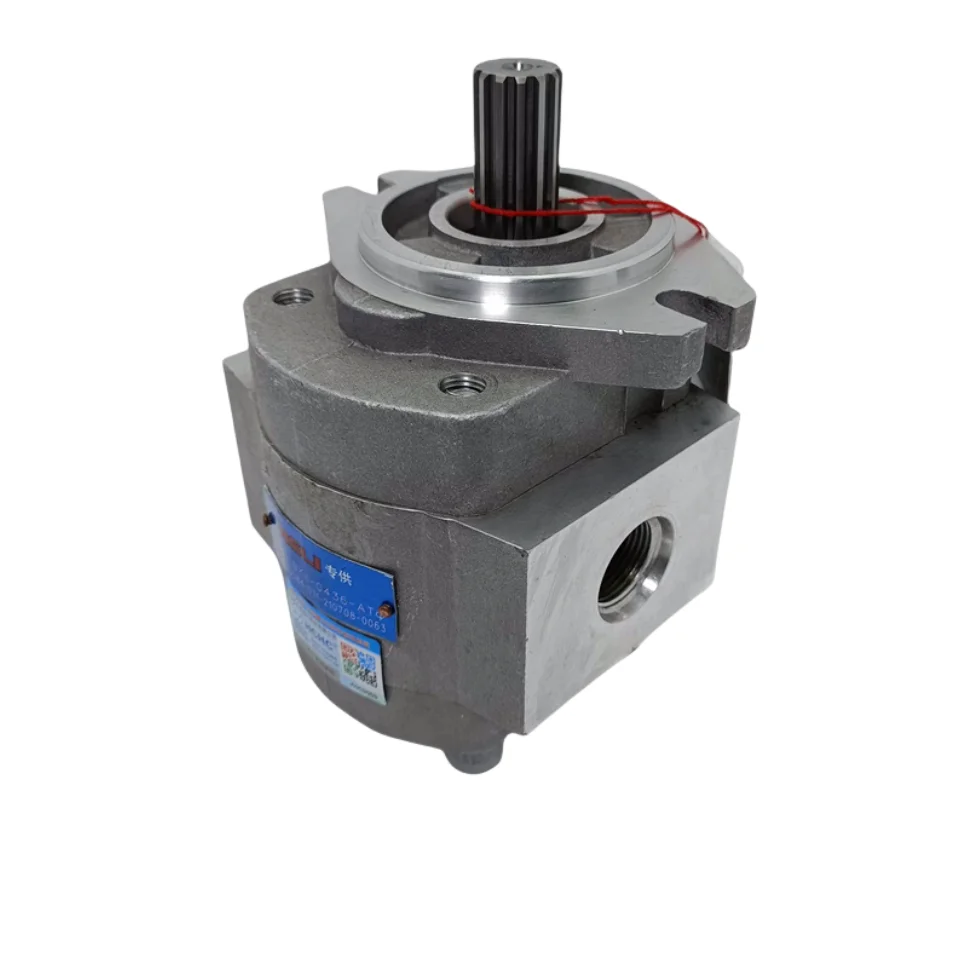

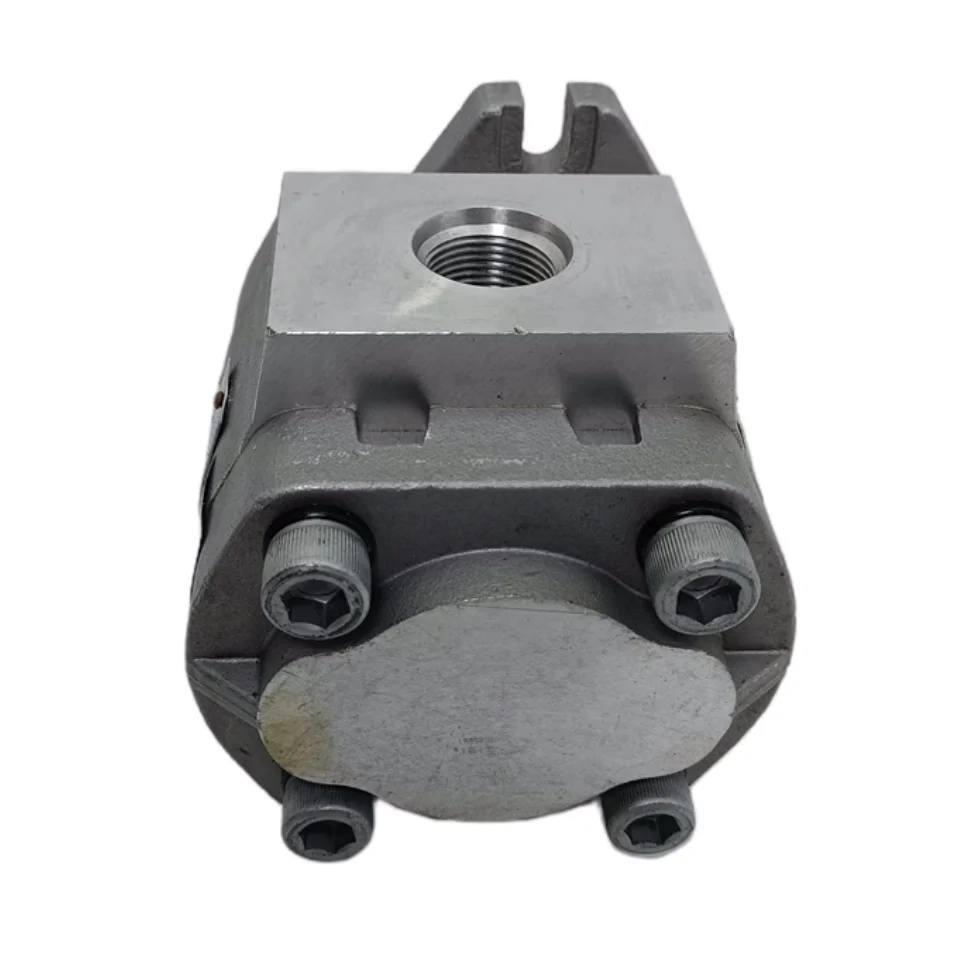

CBKC Series Hydraulic Gear Pump | CBKC-G436-AT CBKA-G436-ATL | High Pressure External Gear Pump

Chengyuan Hydraulic provides the CBKC and CBKA Series high-pressure gear pumps (specifically models CBKC-G436-AT and CBKA-G436-ATL), engineered for construction machinery, mining equipment, and material handling vehicles. These external gear pumps are defined by their high pressure resistance, impact durability, and extended service life. As a premium industrial-grade alternative, we guarantee 100% Drop-in Interchangeability with regard to mounting flanges, shaft specifications, and porting configurations. Supported by Chengyuan’s 100% Simulation Load Testing, each pump is validated at rated pressures and maximum speeds to ensure industry-leading volumetric efficiency, making it the dependable choice for enhancing hydraulic system stability.

Technical Specifications

• Example Models: CBKC-G436-AT / CBKA-G436-ATL

• Nominal Displacement: 36.0 cm³/rev (G436 size)

• Rated Pressure: 20 MPa (200 Bar)

• Max Pressure: 25 MPa (250 Bar)

• Rated Speed: 2000 r/min

• Maximum Speed: 3000 r/min

• Rotation: AT (Clockwise/Right) / ATL (Counter-clockwise/Left)

• Volumetric Efficiency: ≥ 93%

• Body Material: High-strength extruded aluminum alloy

Key Technical Advantages:

• Axial Pressure Compensation: Featuring an advanced floating bushing design, the pump utilizes internal pressure to achieve automatic clearance compensation. This engineering ensures extremely low internal leakage at 20 MPa, significantly boosting overall volumetric efficiency.

• Heavy-Duty Load Capacity: Precision-manufactured alloy steel gears undergo rigorous hobbing, grinding, and deep heat treatment (HRC 60+). Combined with high-load composite bearings, the pump handles frequent high-pressure shocks and heavy-duty cycles with ease.

• Specialized Sealing System: Designed for harsh work environments, the shaft seal is crafted from high-performance FKM (Viton). It offers excellent heat and aging resistance, preventing external leaks and effectively blocking dust ingress.

• Low-Noise Flow Path: The internal cavity is optimized via fluid dynamics for smooth gear engagement. This design minimizes pressure pulsation and significantly reduces mechanical noise and system vibration during high-speed operation.

Application Areas:

• Road Machinery: Roller steering systems and grader auxiliary circuits.

• Material Handling: Main pumps for 5-10 ton forklifts and crane outrigger controls.

• Mining Equipment: Power systems for underground transport vehicles and crushing stations.

• Sanitation Vehicles: Hydraulic drive modules for refuse compactors and street sweepers.

Expert Maintenance Tips:

• Shaft Load Management: CBKC gear pumps are strictly prohibited from bearing any axial or radial loads. Ensure coaxiality within 0.05mm when installing couplings and maintain proper axial clearance to prevent damage to internal thrust plates.

• Cavitation Prevention: Regularly inspect the sealing of the suction line. Air intake at the suction port will cause cavitation and loud noise, which can damage gear faces and bushings in a very short time.

• Filter Maintenance: Gear pumps are sensitive to metallic particles. It is recommended to replace the return filter after the first 100 hours of operation, and every 500 hours thereafter, ensuring a system cleanliness level of NAS Class 10 or better.
