2K-195 2K-315 2K-395 Eaton Char-Lynn 2000 Series Hydraulic Motor | Disc Valve Geroler Motor

The 2K (2000) Series from Chengyuan Hydraulic is a premier line of Disc Valve Orbit Motors engineered for heavy-duty, Low-Speed High-Torque (LSHT) applications. As a precision-engineered alternative, these motors provide 100% interchangeability with the Eaton Char-Lynn 2000 (2K) series, including specific OEM part numbers like 604-1055. Every unit is subjected to 100% simulated operational testing, guaranteeing zero-defect performance, high volumetric efficiency, and exceptional mechanical durability for global industrial clients.

Technical Specifications (Bulleted List)

• Models: 2K-160, 2K-195, 2K-245, 2K-305, 2K-315, 2K-395, 2K-400, 2K-490 (500)

• Displacement Range: $160\text{ cc/rev}$ to $490\text{ cc/rev}$ ($9.8\text{–}30.0\text{ in}^3\text{/r}$)

• Max Continuous Pressure: $205\text{ bar (3000 psi)}$

• Max Intermittent Pressure: $310\text{ bar (4500 psi)}$

• Max Torque: Up to $845\text{ N}\cdot\text{m}$ (Cont.) / $950\text{ N}\cdot\text{m}$ (Int.)

• Max Speed: $150\text{–}900\text{ RPM}$ depending on displacement

• Valving: Precision Disc Valve for independent timing

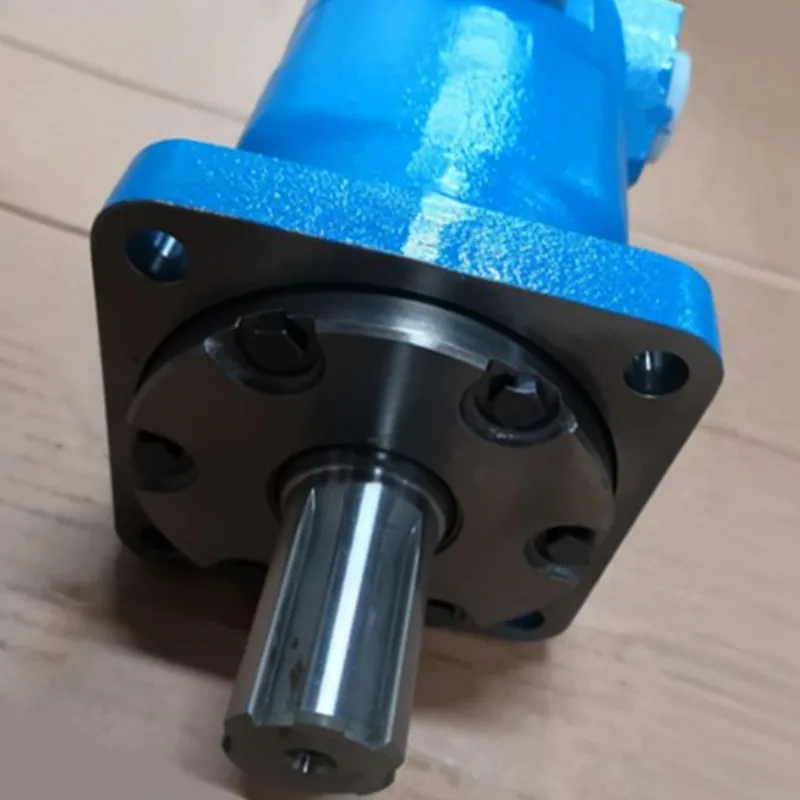

• Shaft Options: 1″ Straight Keyed, $6\text{B}$ Splined, or $13\text{T}$ Splined Shaft

• Mounting: 2-Bolt SAE A Flange or 4-Bolt Square Flange options

Key Technical Advantages

• Wear-Compensating Disc Valve: The independent valve disc automatically adjusts for wear to maintain a tight seal against the manifold. This ensures consistent volumetric efficiency and prevents loss of power throughout the motor’s lifespan.

• Geroler® Power Element: By incorporating rollers in the gear set, internal friction is significantly reduced. This results in higher mechanical efficiency, superior startup torque, and ultra-smooth rotation at very low speeds.

• Premium Shaft Seal Integrity: Designed with high-pressure resistant materials, the shaft seal can handle elevated back-pressure, allowing for simplified hydraulic circuit designs without the constant need for a drain line.

• Heavy-Duty Bearing Support: Tapered roller bearings handle high radial loads (up to $13,000\text{ N}$) and axial forces, making these motors rugged enough for direct-drive wheel or winch drum applications.

Application Areas

• Material Handling: Conveyor drives, forklift attachments, and specialized lifts.

• Marine & Winch Drives: Anchor winches, deck cranes, and net haulers.

• Agriculture: Reel drives for harvesters, seeders, and feeder mixers.

• Construction: Compact loader drives, augers, trenchers, and sweepers.

Expert Maintenance Tips

• Pre-Fill Housing: Always fill the motor case with filtered hydraulic oil via the drain port before the initial startup to ensure the internal splines and bearings are lubricated immediately.

• Case Drain Utilization: For applications with frequent reversals or continuous high-duty cycles, using the external case drain port is highly recommended to dissipate heat and protect the shaft seal.

• Oil Cleanliness: Maintain fluid cleanliness to $\text{ISO 4406 19/17/14}$ or better. Contamination is the leading cause of Geroler set wear and torque loss.
