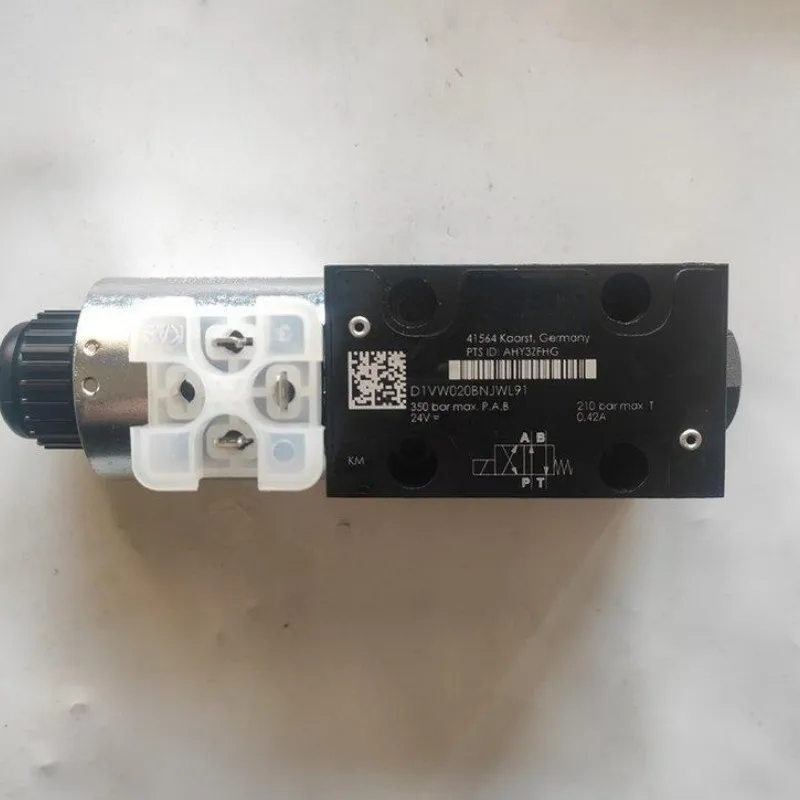

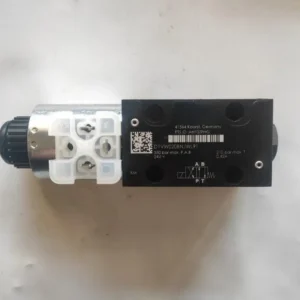

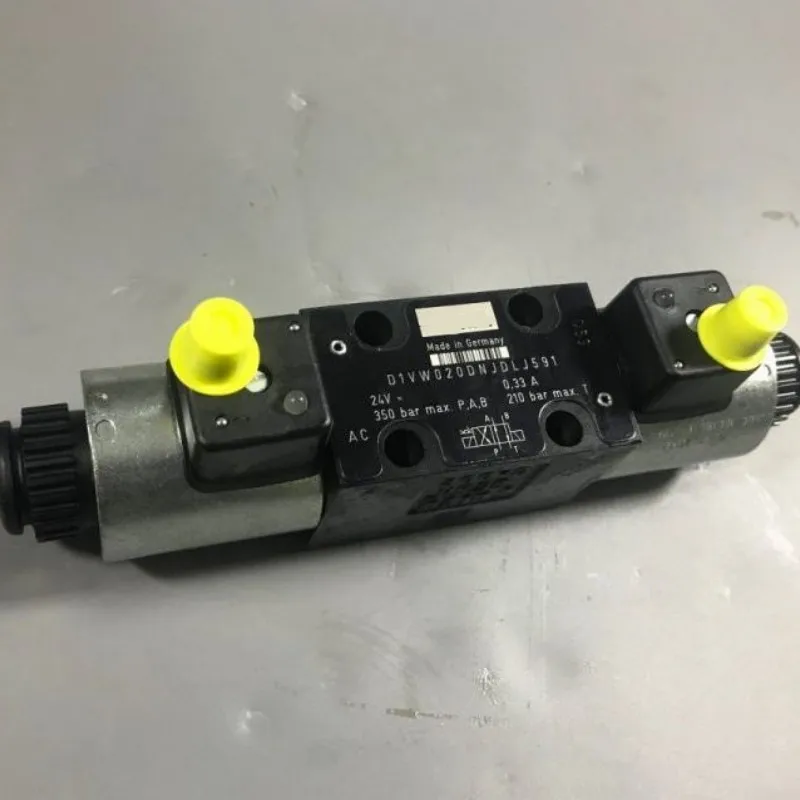

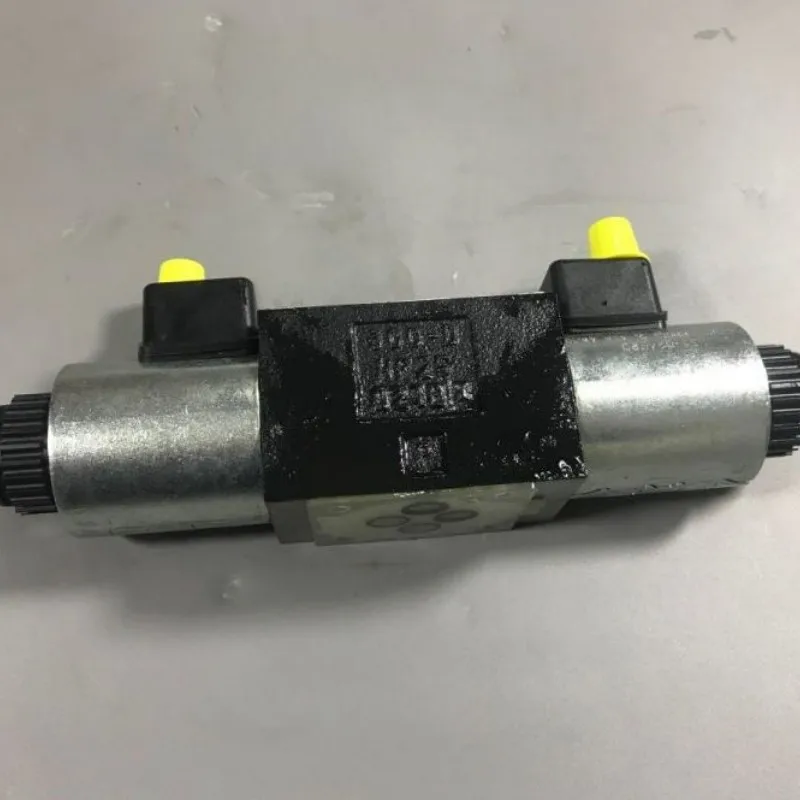

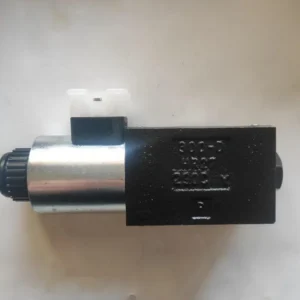

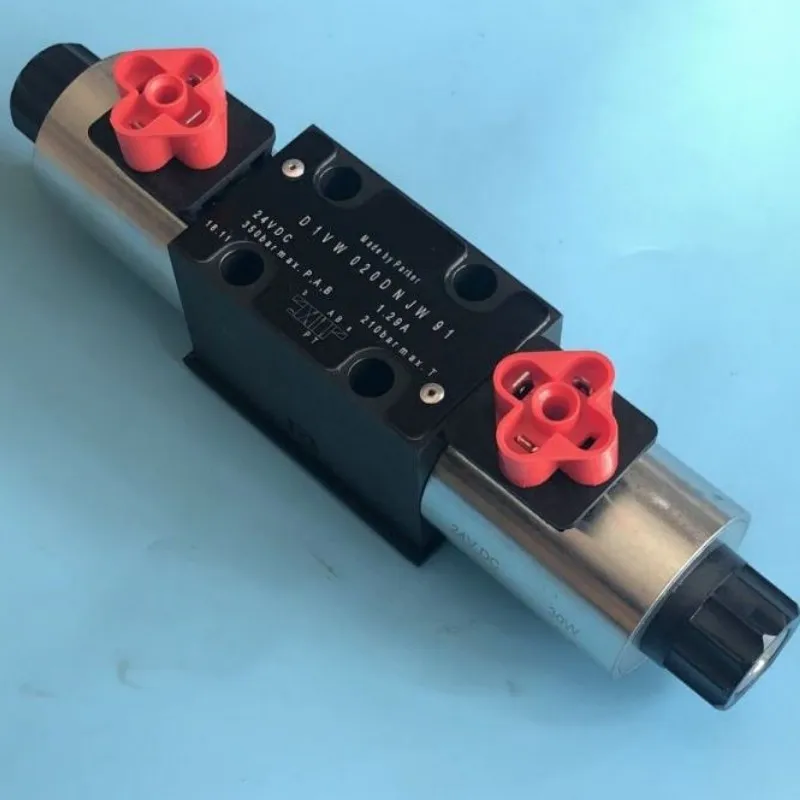

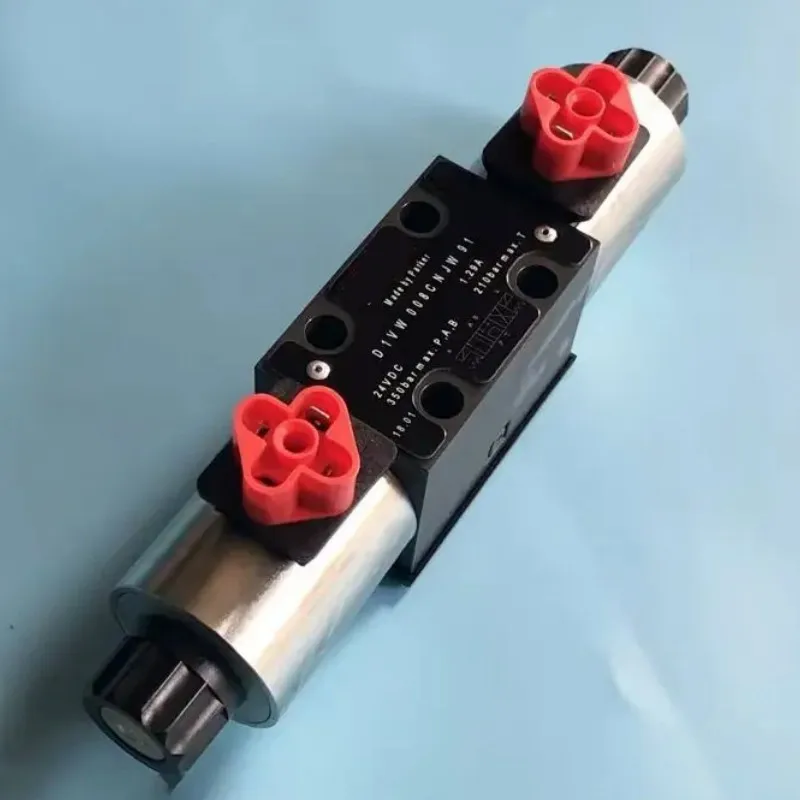

Parker D1VW Series Hydraulic Solenoid Directional Control Valve

The premium Parker D1VW Series Solenoid Operated Directional Spool Valves (including exact model designations D1VW009CNJW, D1VW004CNGW91, and D1VW004CNKW) by Chengyuan Hydraulic represent heavy-duty fluid power control solutions engineered for 100% direct drop-in interchangeability within global industrial and mobile applications. Manufactured in complete geometrical and fluid-dynamic conformity with Parker Hannifin D1VW standard engineering codes, this series features a mounting interface matching ISO 4401-03-02-0-05 standards (Size NG06 / CETOP 03 / NFPA D03). Sourcing procurement networks can swap out pre-existing system manifolds or factory valve blocks instantly with zero pipeline alteration or electrical wiring adaptations.

Operating as the reliable routing core for high-pressure hydraulic circuits, the D1VW series is globally recognized for its advanced 5-chamber valve housing design and high-performance wet-pin solenoids. Whether dealing with standard dual-position shifting or complex proportional manual overrides (such as the W91 setup), this valve line secures massive flow capabilities combined with minimized systemic pressure drop. At Chengyuan, zero compromises are tolerated; every single D1VW solenoid valve completes a 100% rigorous dynamic simulation test bench cycle before leaving our floor. By evaluating shifting response latency at a continuous 350 bar load, measuring cross-port volumetric leakage, and tracking continuous thermal coil resistance, we guarantee original-brand tracking precision under severe high-duty industrial environments.

Technical Specifications

• Product Series Classification: D1VW Directly Operated Directional Spool Valve Series

• Nominal Valve Size: NG06 / CETOP 03 / NFPA D03

• Body Structural Layout: High-tensile cast iron 5-chamber interior design

• Mounting Connection Standard: ISO 4401 / DIN 24340 A6 / CETOP RP 121-H

• Seal Architecture Material: N (NBR Nitrile rubber standard compounds, optimized for mineral-based oils)

• Maximum Operating Pressure (Ports P, A, B): 350 bar (5075 PSI)

• Maximum Permissible Back-Pressure (Port T): DC Solenoids: Up to 210 bar (3045 PSI) / AC Solenoids: Up to 140 bar (2030 PSI)

• Maximum Throughflow Capacity: Up to 80 L/min (21 GPM), depending on specific spool profiles and flow resistance

• Model-Specific Code Breakdown & Engineering Parameters:

  • Model Suffix: D1VW009CNJW

  • Spool Code 009: 3-position, 4-way layout. In neutral center position, Port P is blocked while Ports A, B, and T are entirely interconnected (Float Center configuration).

  • Actuation Style C: 3-position spool, dual solenoid operated with reliable center-spring return.

  • Solenoid Profile J: Heavy-duty DC solenoid coil configuration optimized for stable industrial distribution grids.

  • Model Suffix: D1VW004CNGW91

  • Spool Code 004: 3-position, 4-way layout. In neutral center position, Port P is blocked while Ports A and B bypass directly into return Port T.

  • Actuation Style C: Center-spring centering alignment.

  • Solenoid Profile G: 24V DC (Direct Current 24 Volts) high-response, energy-efficient solenoid coil.

  • Special Suffix W91: Integrated weather-sealed manual override boot or enhanced terminal block routing layout.

  • Model Suffix: D1VW004CNKW

  • Spool Code 004: 3-position, 4-way layout (P blocked, A/B to T in neutral).

  • Actuation Style C: Spring-centered configuration powered by dual solenoid blocks.

  • Solenoid Profile K: 12V DC (Direct Current 12 Volts) optimized for mobile asset bus networks and chassis wiring.

  • Special Suffix W: Outfitted with standard emergency manual override push-button rod.

Key Technical Advantages

• Optimized 5-Chamber Body Casting for Minimal Pressure Drop: The primary valve housing incorporates an advanced 5-chamber routing configuration. Compared to legacy 3-chamber configurations, it expands the internal cross-section of the return loops, driving down fluid turbulence and pressure drop ($\Delta p$) by more than 20%. This minimizes fluid-borne thermal accumulation even during high-delivery 80 L/min operations.

• Wet-Pin Solenoid Design with Smooth Fluid Cushioning: The internal solenoid armature operates fully submerged within the hydraulic oil reservoir. This wet-pin architecture eliminates dynamic external seals for enhanced leakage protection while utilizing the natural viscosity of the fluid to damp metallic impacts and structural vibration during shifting, lowering mechanical wear.

• Flow Force Compensation Channels with Micron-Tolerance Spools: The central valve spool undergoes precise multi-axis CNC grinding and thermal hardening, maintaining a tight clearance fit between 2 to 4 microns. Precision-machined flow force compensation notches on the spool edges counteract non-linear axial flow forces during high-delivery transitions, entirely eliminating spool sticking or failure to stroke.

• High-Fatigue Resilient Calibrated Centering Springs: The internal return spring array is wound from high-stress alloy spring steel, engineered to pass multi-million cycle shift testing. Even under continuous asymmetrical cross-loading or system pressure spikes, the springs preserve exceptional linearity, ensuring immediate and precise spool centering the moment the solenoid coils de-energize.

Application Areas

Thanks to its quick pressure response, standardized mounting profile, and reliable sealing characteristics, the D1VW solenoid valve series is widely integrated into industrial automation grids and mobile machine actuation manifolds:

• Industrial Factory Automation & Metal Forming Tools: Workholding clamping blocks for CNC machining centers, main pilot circuits for automated hydraulic presses, and ejector control pins on plastic injection molding lines.

• Heavy Metallurgy Plant Stations & Power Generation Units: Core auxiliary roll-clamping control blocks for steel rolling mills, turbine governor pilot actuators in thermal power plants, and primary directional arrays for heavy-duty multi-station industrial power units.

• Mobile Machinery Subsystems & Heavy Cargo Logistics: Boom slewing controls for concrete pump trucks, stabilizer outrigger interlocking circuits for mobile cranes, and secondary accessory control grids for container reach stackers.

Expert Maintenance Tips

• Monitor Tank Port Back-Pressure Limits to Avoid Valve Failure: While the D1VW DC coil variants handle static T-port pressures up to 210 bar, AC configurations are limited to 140 bar. When grouping multiple valves onto a common return manifold, never merge high-frequency shock lines (such as high-displacement pump/motor case drains) into the same return path, as momentary pressure surges can damage the armature tube or impede smooth shifting.

• Enforce Electrical Insulation and Maintain Voltage Stability: Direct current configurations G (24VDC) and K (12VDC) require clean electrical supplies with voltage drops restricted within $\pm 10\%$ of nominal values. For harsh outdoor environments (e.g., transit mixers or piling rigs), regularly inspect the solenoid junction box gaskets to prevent moisture ingress from triggering short circuits or coil failures.

• Prevent Particulate Contamination via Upstream Filtration: Due to the tight tolerances of the D1VW spool-to-bore interface, operating with contaminated fluid (lower than ISO 4406 20/18/15) allows fine abrasive particles or oxidation byproducts to deposit along the metering edges, leading to spool sticking. It is highly recommended to install a high-pressure filter element rated at $\le 10\,\mu\text{m}$ upstream of the pressure P line.
