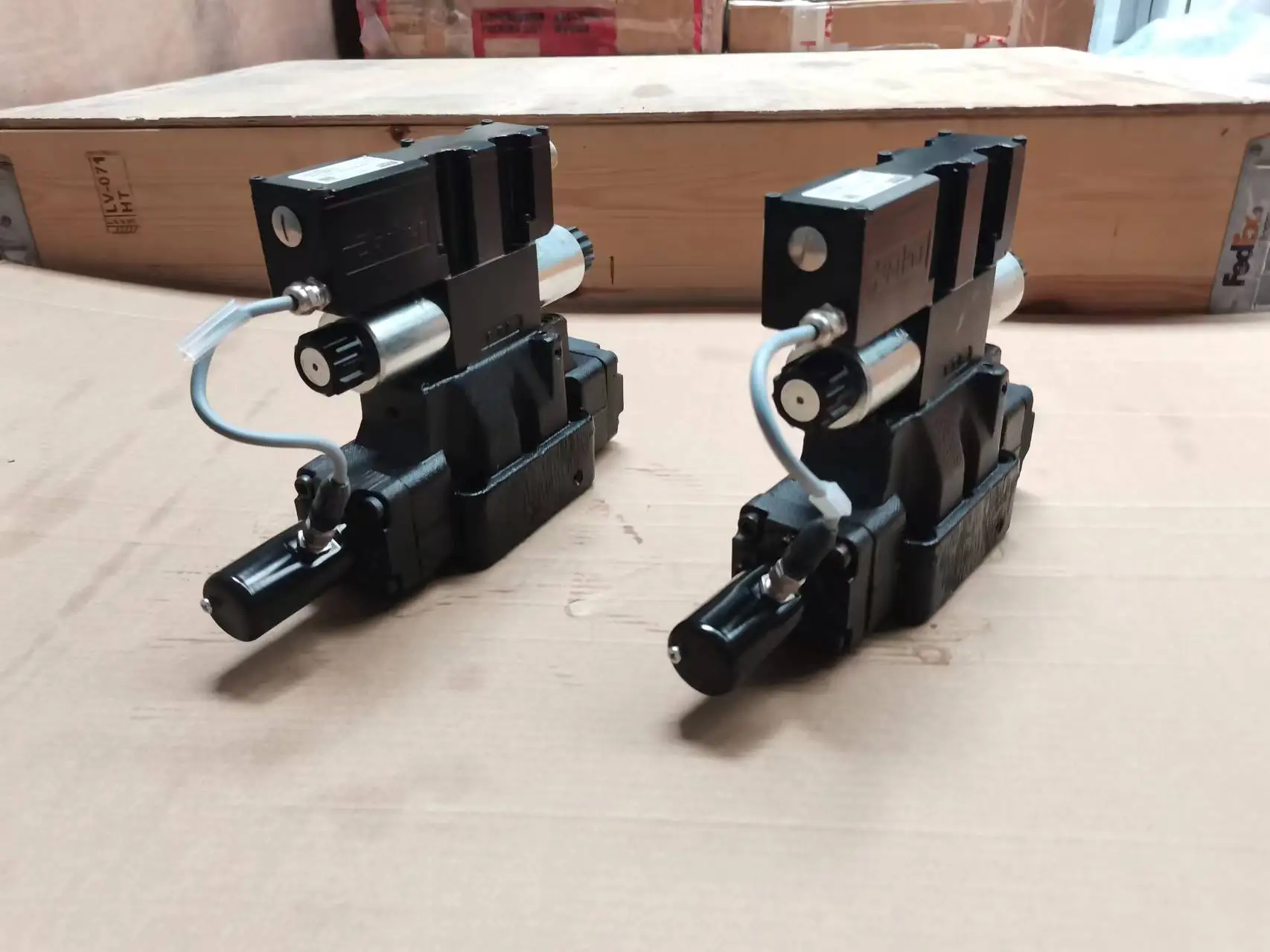

Parker D41 Series Proportional Valve | D41FBE02FC1NF00 D41FHE02C1NE00 Directional Valve

The D31 and D41 Series pilot-operated electro-hydraulic proportional directional valves manufactured by Chengyuan Hydraulic are high-tier fluid control components fully compatible with Parker industrial standards. This series is engineered for high-accuracy and continuous modulation of fluid velocity and direction in high-dynamic closed-loop or open-loop hydraulic architectures. For premium technical designations including D41FBE02FC1NF00 (with integrated digital On-Board Electronics), D41FHB31E1NE00, and D41FHE02C1NE00, we utilize a multi-stage pilot layout. The main spool displacement is driven by heavy-duty hydraulic pilot forces, completely overcoming transient flow forces. Every valve undergoes 100% simulated operational step-response, frequency-response profiling, and deadband null-shifting calibration prior to dispatch to guarantee exceptional metering linearity and deliver proven 100% original-place interchangeability.

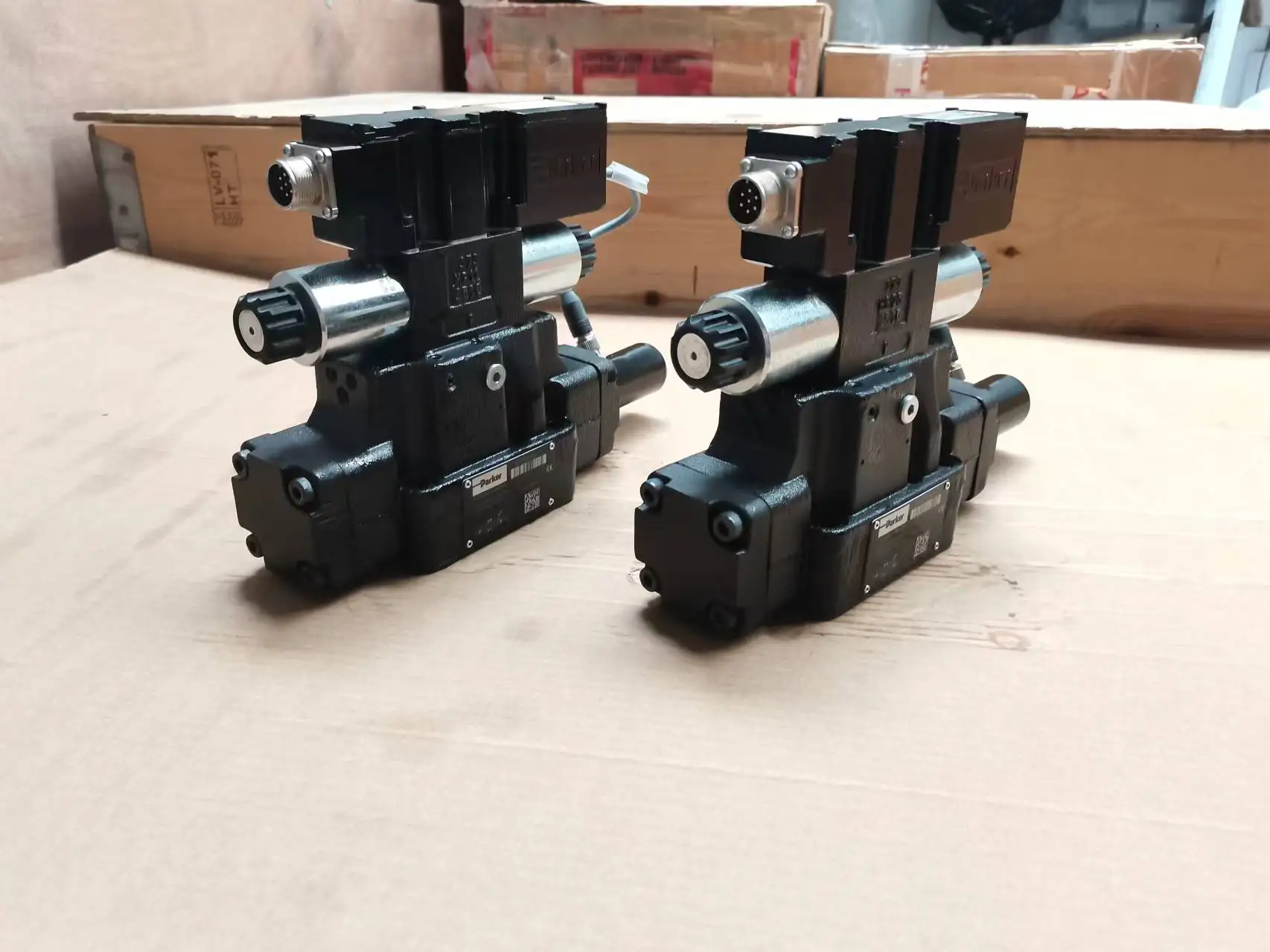

Technical Specifications:

• Series Specification: Parker D31 / D41 Series Pilot-Operated Proportional Directional Valve

• Model References Supported: D41FBE02FC1NF00 / D41FHB31E1NE00 / D41FHE02C1NE00

• Valve Frame Sizes: D31F Series (NG10 / CETOP 05) ; D41F Series (NG16 / CETOP 07)

• Maximum Pressure Limits: Ports P, A, and B rated up to 350 bar (35 MPa)

• Permissible T-Port Backpressure: 10 bar for internal drain configurations / Up to 210 bar for external independent drain loops

• Maximum Rated Flow Capacities: D31F: up to 140 L/min; D41F: up to 220 L/min ($\Delta p = 5 \text{ bar}$ per metering edge)

• Spool Profile Configurations: E02 (3-Position 4-Way, all ports blocked at center) / B31 (Asymmetric flow configuration for differential cylinder area ratios)

• On-Board Electronics (OBE): Code “FBE” specifies factory-integrated digital processing electronics via a 6+PE pin connector accepting $\pm10\text{V}$ or 4-20mA command input

• Pilot Supply & Drain Setup: Configurable via internal matrix (Internal/External pilot supply, Internal/External drain profile)

Key Technical Advantages:

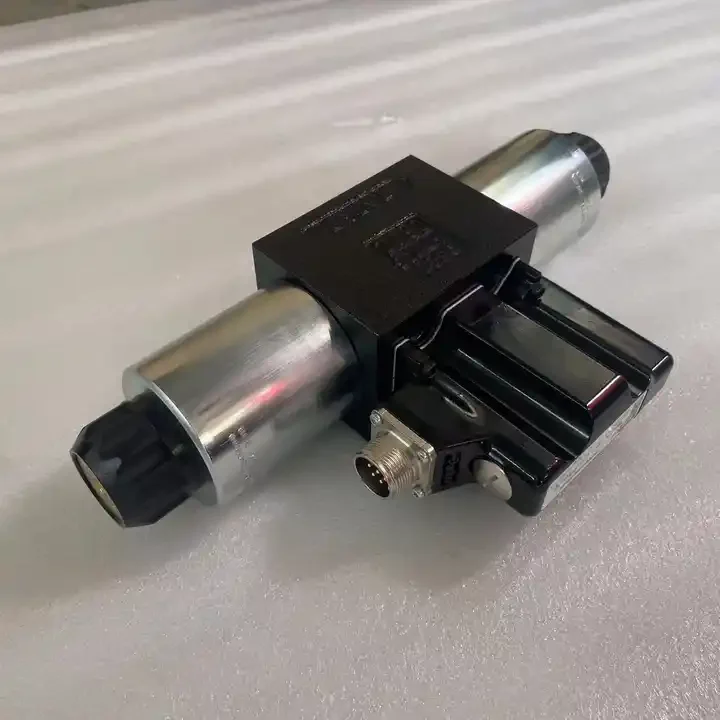

• High-Dynamic Two-Stage Electro-Hydraulic Pilot Stage: The D41F utilizes a refined proportional pilot operator to actuate the main spool. Even under maximum system pressure (350 bar) and heavy flow surges, the high-shifter hydraulic pilot force instantly overpowers flow forces, keeping step-response windows exceptionally brief.

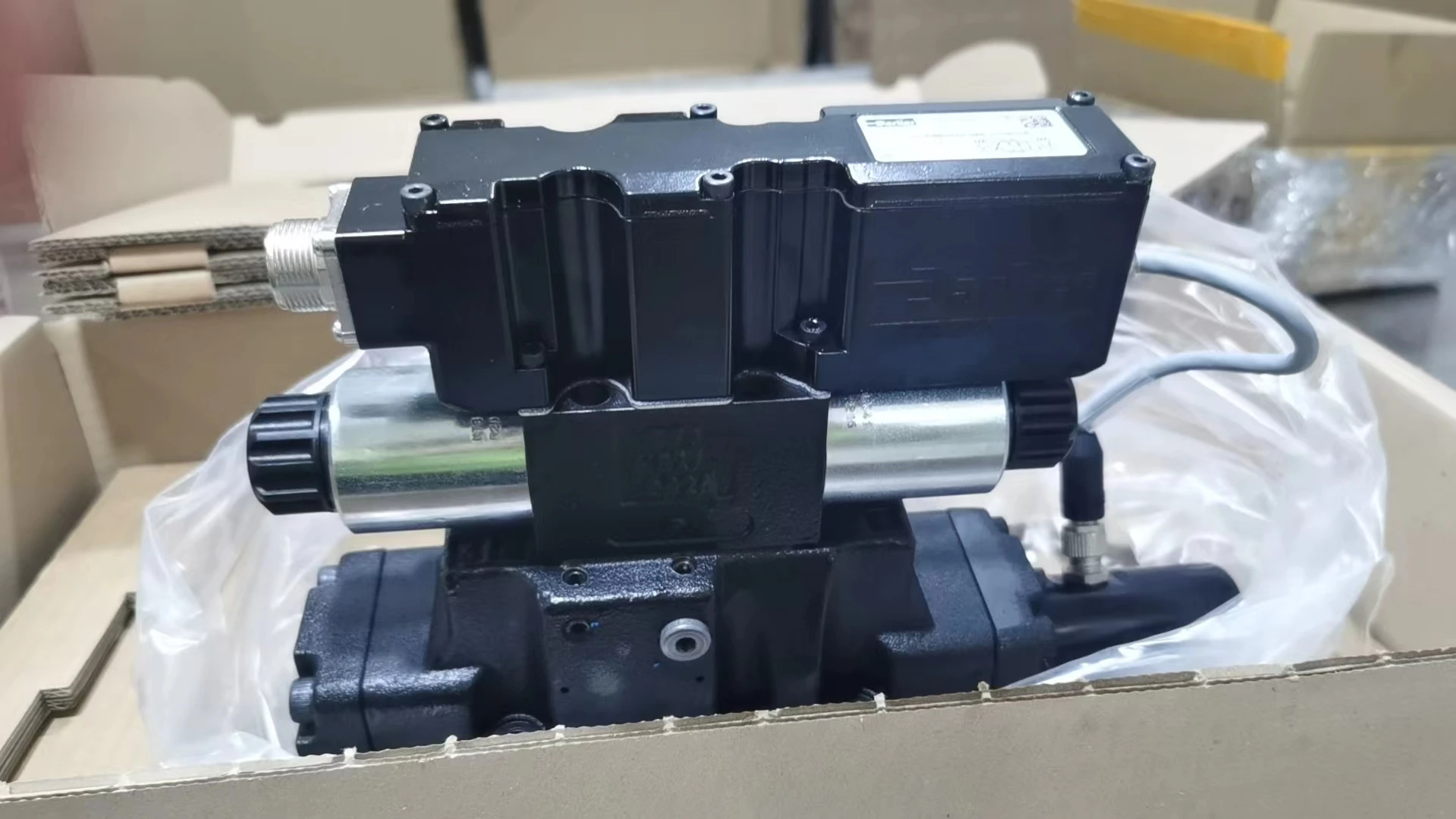

• Factory-Calibrated Integrated OBE Digital Card: Variants featuring On-Board Electronics have the electronic driver card sealed inside a heavy-duty metallic terminal shell. Offset voltage, gain parameters, and curve linearity are pre-tuned to the exact valve body before shipping, offering plug-and-play installation without onsite instrument tweaking.

• Progressive Metering Edge Spool Geometry: The throttling notches on the main spool are formed using advanced EDM wire-cutting and micro-honing techniques. As the spool travels, the flow area expands in a near-perfect progressive gradient, granting superb fine-positioning properties and subduing low-speed deadband issues.

• Highly Robust Cast Iron Valve Housing: The primary valve manifold is cast from premium high-tensile iron and fully stress-relieved. Internal fluid galleries are optimized using Computational Fluid Dynamics (CFD) simulation to reduce pressure drop ($\Delta p$) at max flow, efficiently controlling fluid temperature generation.

Application Areas:

• Heavy Forging & Metal-Stamping Presses: Controlled high-speed approach, precision slow pressing cycles, and shock-less decompressed return strokes of the main press ram.

• Plastics Injection & Rubber Vulcanization Machinery: Precision multi-stage injection speed profiling and ultra-smooth mold clamping platen positioning controls.

• Primary Metallurgy & Steel Rolling Mills: High-response electro-hydraulic roll-gap adjustment control and smooth speed indexing on heavy-duty coil tilting tables.

Expert Maintenance Tips:

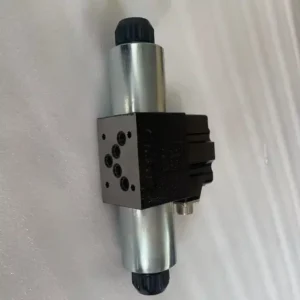

• Verify Internal Pilot Plug Matrix: The valve body houses micro-plugs that configure the internal/external pilot and drain passages. When replacing an existing assembly, double-check the plug orientation against the precise configuration code (e.g., C1 vs. 1N flow paths). Routing external drain into a high-pressure internal T-line will instantly rupture the pilot stage seals.

• Rigid Cleanliness Standards for Closed Loops: The precision pilot valve has micro-clearances. It is a strict system requirement to place high-efficiency glass fiber filter media rated at $\beta_5 \ge 200$ (ISO 4406 16/14/11) on pressure or return lines. Particulates larger than $5 \mu m$ risk jamming the pilot spool mechanism.

• Electrical Shielding & Grounding Integrity: For OBE models (FBE code), command signal wires must use twisted-pair shielded cables, with the shield grounded at the control cabinet side only. Never share the signal ground with heavy AC motor frames, as high-frequency electromagnetic interference can induce unexpected spool dither or oscillation.
