Parker D3FP D41FC Series Proportional Valve | D3FPE50YB9NB00 D41FCE01 High Response

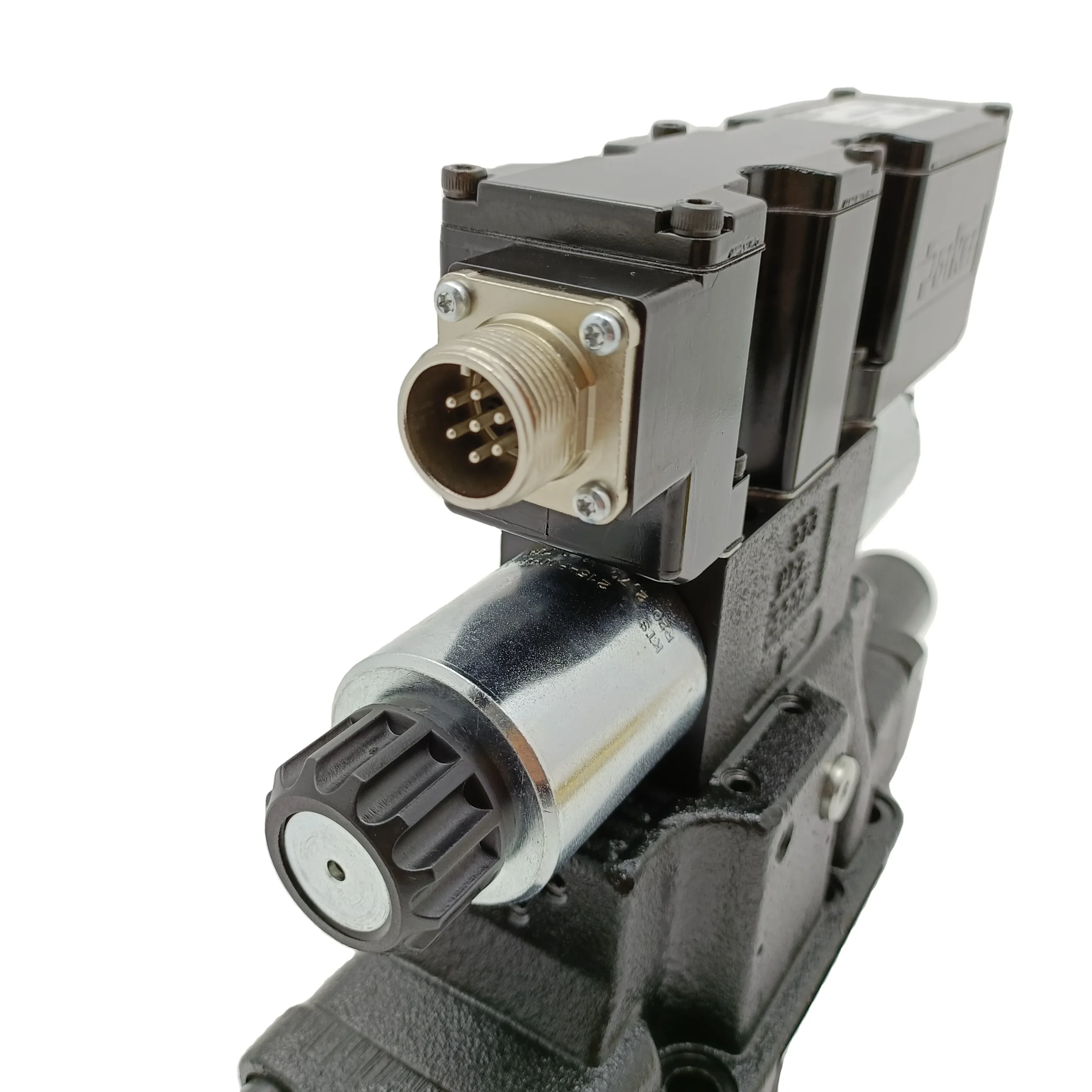

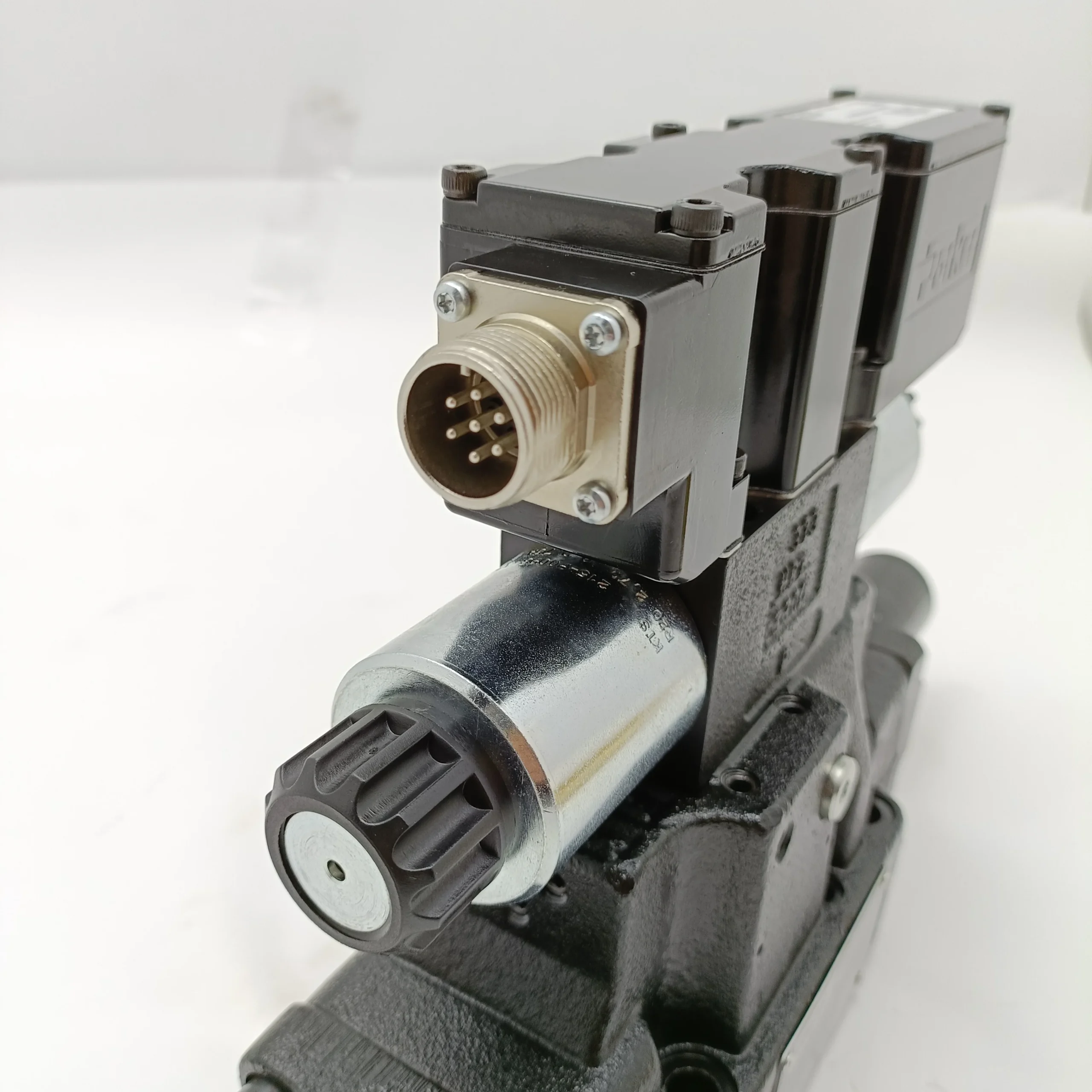

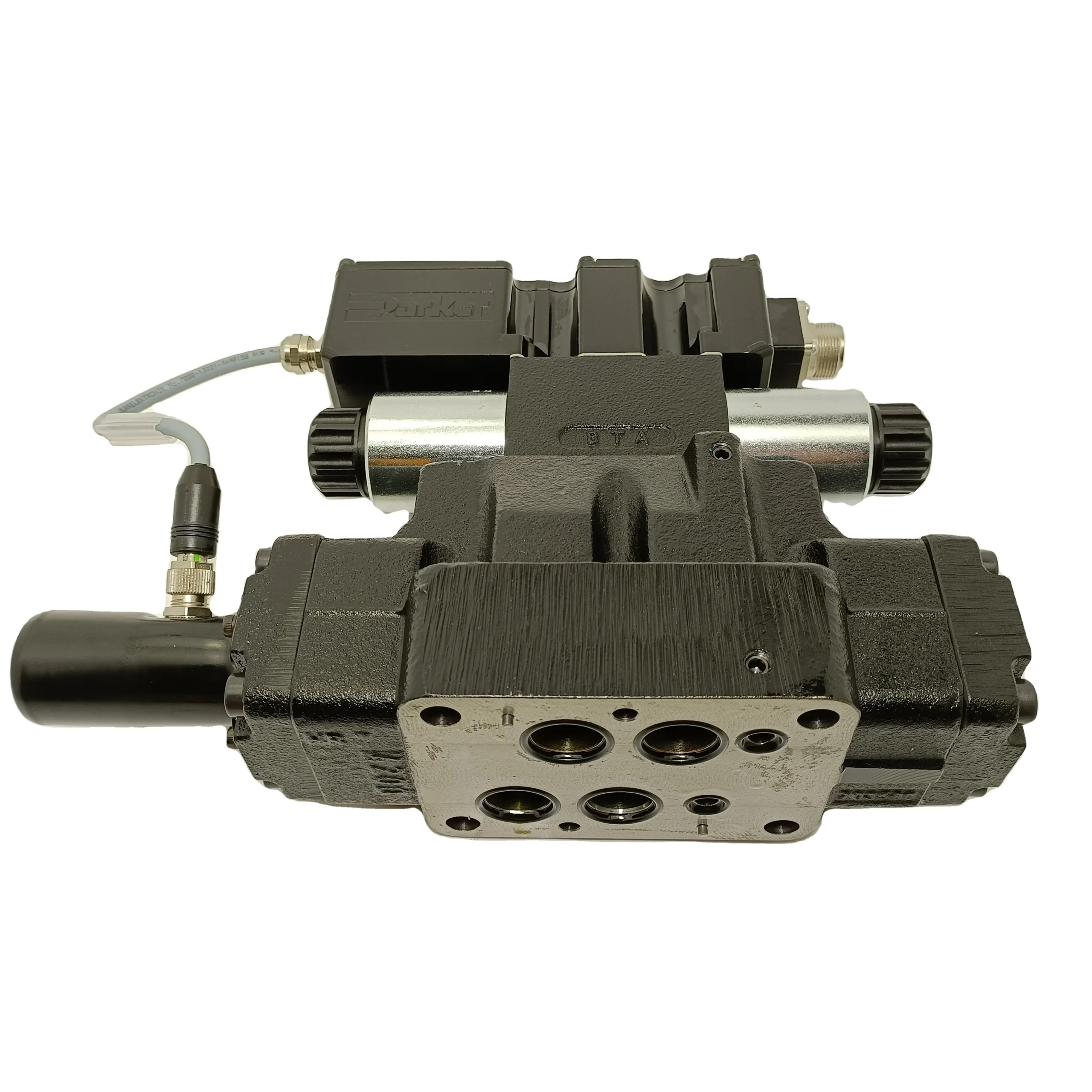

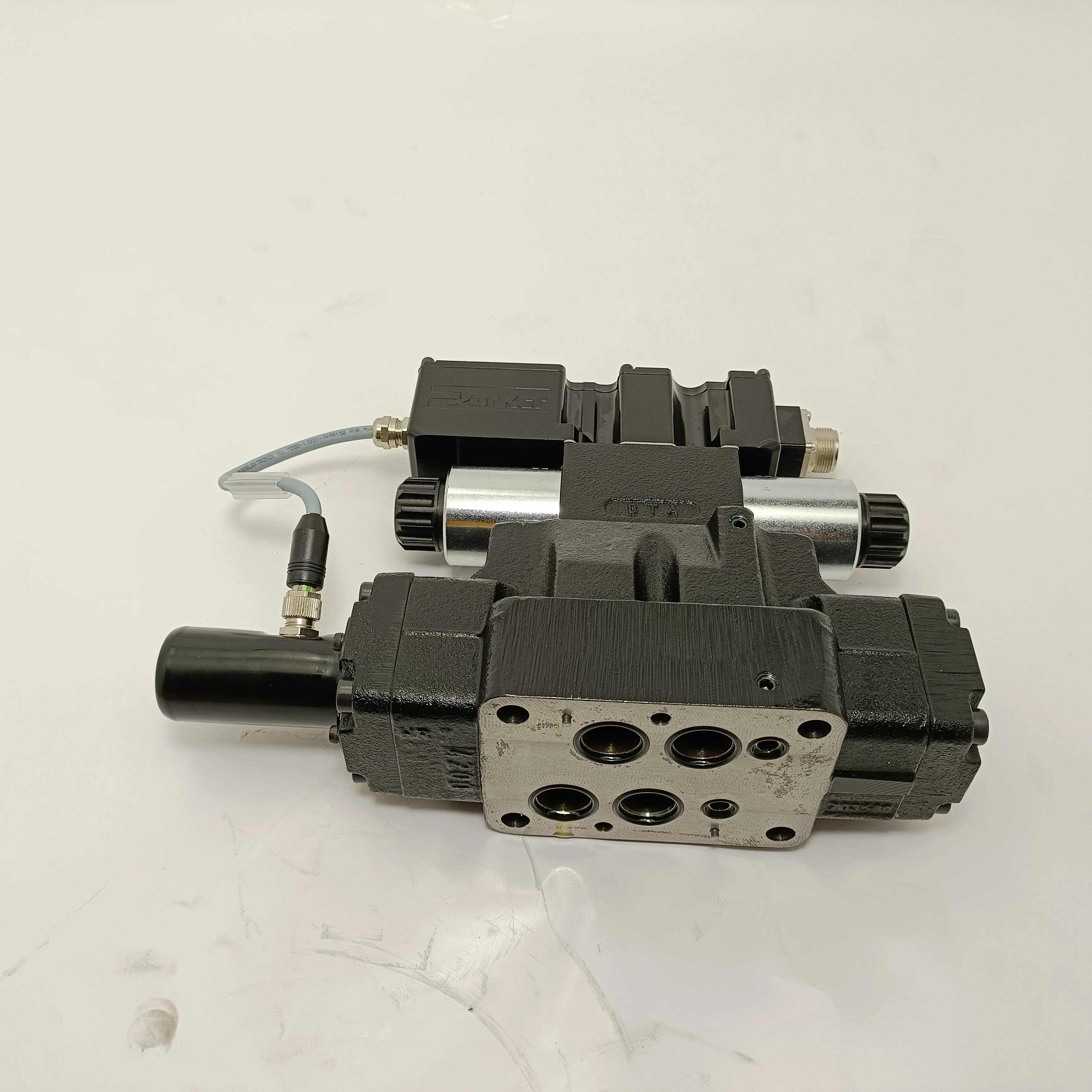

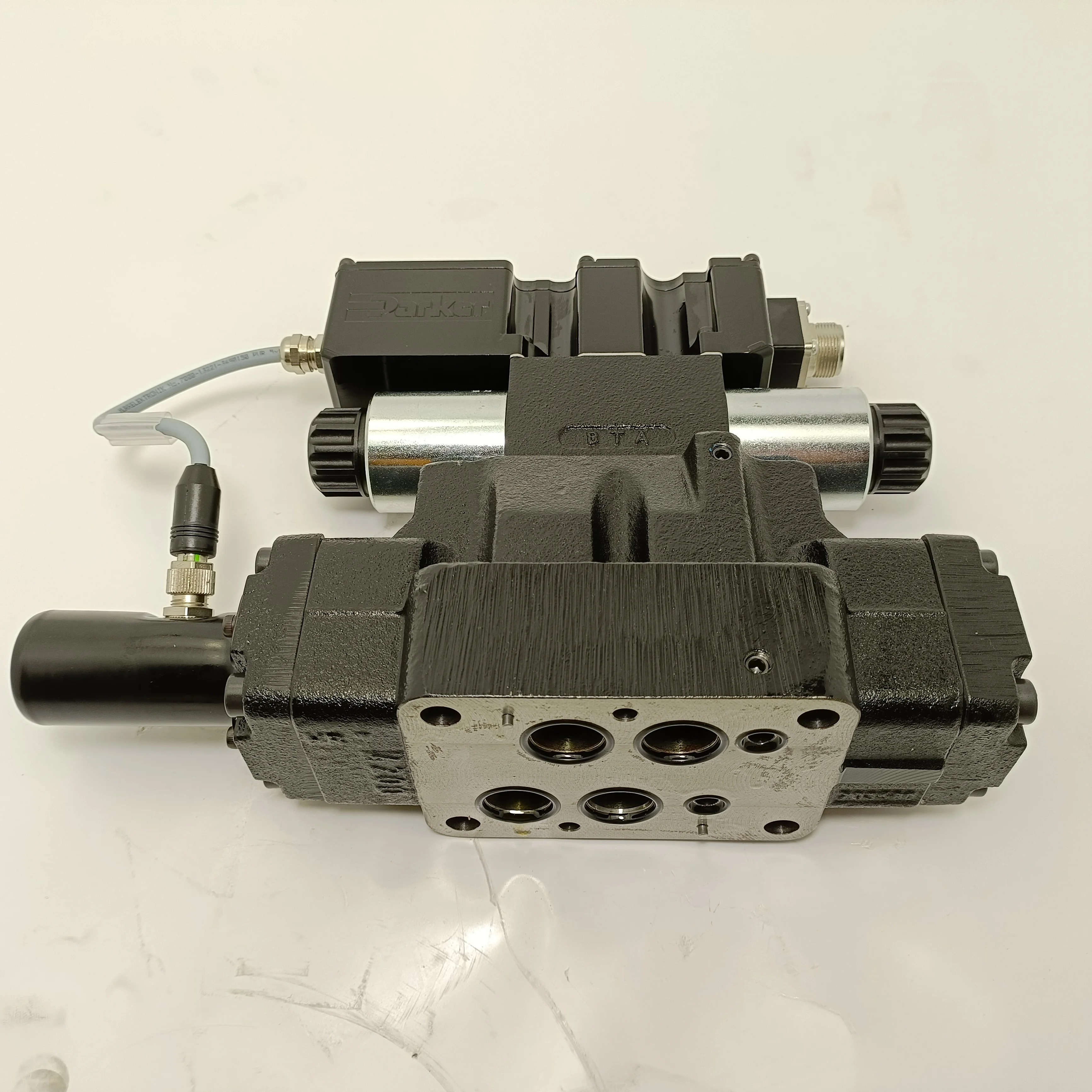

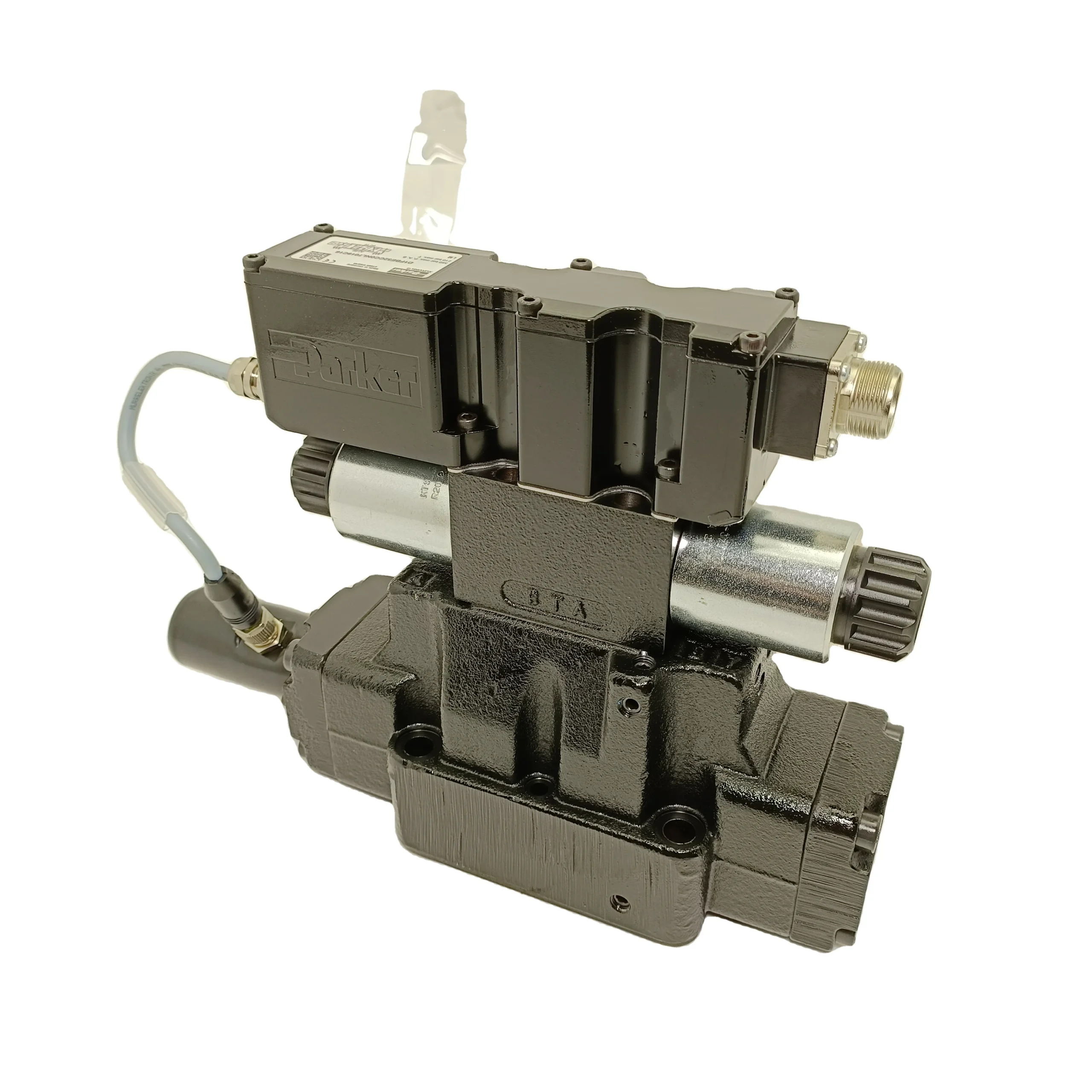

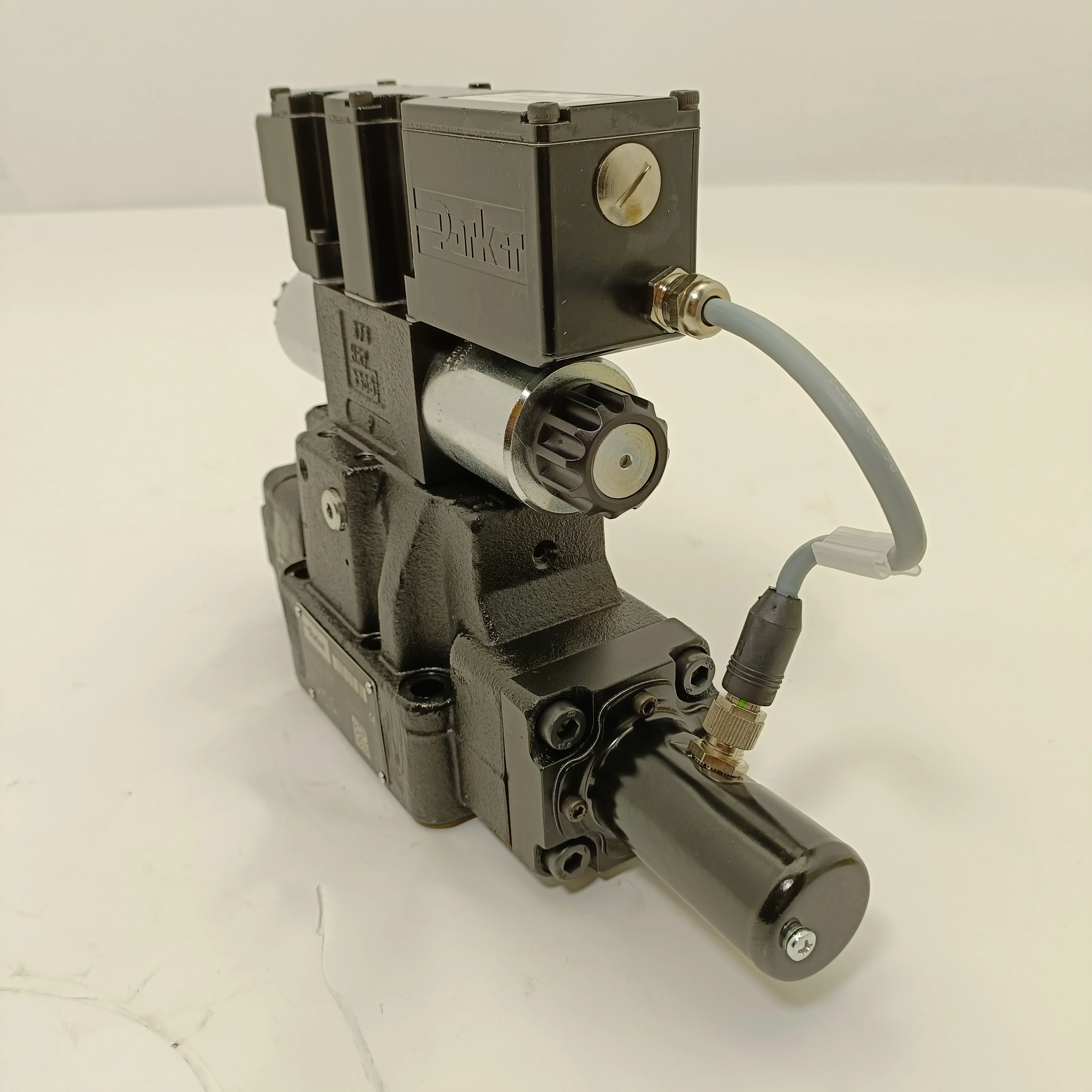

The D3FP and D41FC Series high-response pilot-operated proportional directional control valves manufactured by Chengyuan Hydraulic are high-precision digital fluid modulation elements fully engineered to match global Parker industrial benchmarks. This advanced product portfolio features integrated digital onboard electronics (OBE) paired with non-contact LVDT (Linear Variable Differential Transformer) spool position feedback feedback configurations. It covers critical heavy displacement and dynamic control model designations, including the direct-acting VCD® driven units D3FPE50YB9NB00 and D3FBE02MC0NF0019 (Size NG10 / ISO 4401-05), alongside the two-stage high-flow pilot arrays D41FCB31FC1NE7019 and D41FCE01FC1NE70 (Size NG16 / ISO 4401-07). These systems are optimized for precision closed-loop position matching, variable velocity trajectory tracking, and compound pressure/flow control across aluminum die-casting machines, heavy sheet extruders, and automated metal stamping presses. Every singular proportional unit undergoes 100% simulated load testing for dynamic frequency response bands, hysteresis limits, step-response timing profiles, and null-zone internal bypass drop checks prior to shipment to ensure genuine original-matching parameters and deliver proven 100% original-place interchangeable compatibility.

Technical Specifications :

• Core Product Framework: Parker D3FP / D3FB / D41FC Template Two-Stage Proportional Valves with LVDT Feedback & OBE

• Model Configurations Supported: D3FPE50YB9NB00 / D3FBE02MC0NF0019 / D41FCB31FC1NE7019 / D41FCE01FC1NE70

• Mounting Pattern and Nominal Size:

  • D3FP / D3FB Matrix: Size NG10 Interface (Compliant with ISO 4401-05 / CETOP 05 specifications)

  • D41FC Matrix: Size NG16 Interface (Compliant with ISO 4401-07 / CETOP 07 specifications)

• Maximum Allowed Working Pressure Limits (Ports P, A, and B):

  • Primary Main Stage Block: Rated up to 350 bar (35 MPa / 5075 psi)

  • Return Tank Port (T): Rated up to 210 bar continuous backpressure (on external drain variants)

• Maximum Nominal Flow Handling Capacity ($\Delta p = 5 \text{ bar}$ per metering notch):

  • D3FP / D3FB Platforms: Delivers up to 80 L/min to 100 L/min

  • D41FC Platforms (E01 / B31 Spools): High-capacity throughput up to 180 L/min to 250 L/min

• Pilot Flow Logic & Core Spool Profiles (E01 / B31):

  • Code E01 Profile: 3-position 4-way layout; ports A, B, and T blocked, port P blocked with minimal underlap clearance (standard for asymmetric single-rod cylinders)

  • Code B31 Profile: 3-position 4-way layout; symmetric throttling from P to A and B, port T completely isolated at null

• Onboard Electronics (OBE) Signal Interface: Universal 11-pin (11+PE) or 6-pin+PE main aviation socket connector; accepts electrical voltage commands ($\pm10\text{ V}$) or dynamic current loops ($4-20\text{ mA}$)

• Tracking Metric Limits: Hysteresis tolerance $\le 0.1\%$ (VCD core tiers), repeatability resolution $\le 0.05\%$

Key Technical Advantages:

• Closed-Loop Spool Calibration via High-Precision LVDT Feedback: The D3FP and D41FC series feature a micron-class, non-contact LVDT sensor tracking the rear end of the valve spool. The integrated onboard amplifier (OBE) monitors micro-位移 shifts at microsecond intervals, applying immediate closed-loop adjustments to counteract hydraulic flow forces and stiction. This suppresses dynamic lag, anchoring total system hysteresis under $0.1\%$.

• High-Stiffness VCD® (Voice Coil Drive) and Pressure-Stabilized Pilot Blocks: The D3FP series leverages an advanced voice coil actuator that delivers extreme mechanical shifting force. For the larger D41FC multi-stage units, the pilot head block incorporates a sandwich pressure-reducing valve. This stabilizes the pilot pressure at a steady 45 bar even when main P-port pressures fluctuate violently up to 350 bar, avoiding spool oscillations.

• Zero-Lap Scalloped Spool Windows with Micro-Matched Sleeve Fits: The central sliding spool and cage elements are formed from specialized high-hardness nitrogen-hardened alloy steels, match-ground to tight geometric bounds. Cut with specialized “Zero-Lap” micro-throttling windows, the spool provides instant fluid modulation with no dead-zone delays or flow drop-offs during cross-neutral strokes.

• Hermetically Sealed Shock-Resistant OBE Housing with Electro-Magnetic Shielding: The integrated digital microprocessor circuit board is isolated within a heavy-duty, die-cast aluminum shielding envelope that is fully encapsulated in vacuum-poured protective resins. This architecture withstands intense structural stress (up to $30\text{ g}$ mechanical shock load forces) and completely blocks electromagnetic interference (EMC), achieving an IP65 ingress rating.

Application Areas:

• High-Dynamic Sheet Metal Forming Equipment: Slide-block servo position synchronization loops for automated fast forging presses and precision multi-axis CNC press brake deflection cylinders.

• Heavy Die-Casting Solutions & Plastics Extruders: Multi-stage high-speed injection cylinders in magnesium-aluminum die-casters and precision parison thickness adjusters in heavy blow-mold arrays.

• Primary Metallurgy Automation Lines: Rolling mill automatic gauge control (AGC systems) and roll-bending hydraulic cylinder positioning grids in continuous steel production facilities.

Expert Maintenance Tips:

• Enforce Ultra-Fine Oil Filtration Redlines down to $\le 3\text{ }\mu\text{m}$ Absolute: Because the clearance between the matched sleeve and spool interfaces rests at 1-2 microns, the upstream circuit must be armored with high-pressure fluid filters rated at $\beta_{3} \ge 200$, continuously maintaining fluid cleanliness to ISO 4406 16/13/10 (NAS Class 5) or cleaner. Suspended silt or varnish will jam the pilot head or erode the zero-lap metering edges, causing control drift.

• Strict Electrical Disconnection Sequence and Clean DC Voltage Mandate: Onboard electronics demand a clean, surge-protected $24\text{ V DC}$ line feeding at least $\ge 3.5\text{ A}$. Never hot-plug or wrench the 11-pin main aviation socket connector while the control loop is live. The resulting inductive voltage spikes can damage the internal microprocessor. Always isolate the master power breaker before decoupling signal lines.

• Pre-Commissioning Gas Bleeding and Pilot Flow Plug Verification: Bleed air bubbles from all high-point ports before running full cycles on a fresh installation. Additionally, cross-reference the Parker model suffixes (such as code 7019 vs 70 configurations) and verify the internal plug configurations on the valve face to confirm if the pilot circuit is set to internal/external pilot and internal/external drain. Misconfiguring these plugs in an external-pilot circuit will prevent the spool from shifting entirely.
