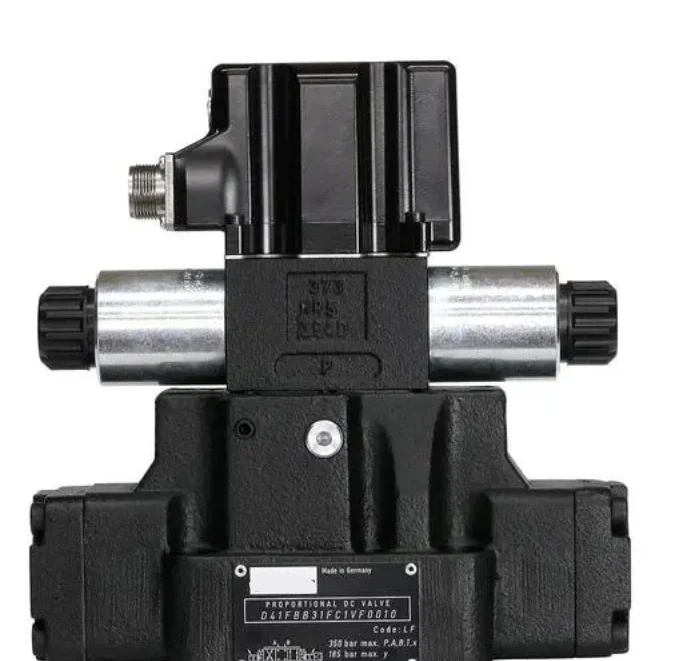

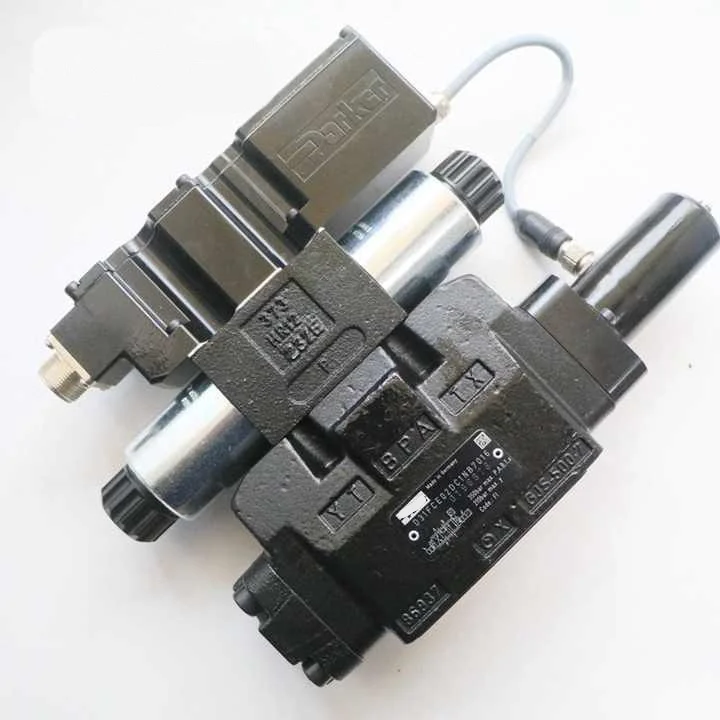

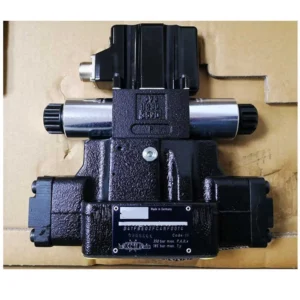

Parker D31FB D41FB Series Proportional Valve | D41FBE01F D31FBE01CC | High Response

Chengyuan Hydraulic provides high-performance D31FB and D41FB Series pilot-operated proportional directional control valves, engineered as premium replacements for Parker’s industry-leading standards. This range includes critical models with integrated electronics (OBE) like the D41FBE01F and pilot-controlled versions such as D31FBE01CC. These valves are designed for precise directional and stepless velocity control of hydraulic actuators. Chengyuan guarantees 100% Drop-in Interchangeability with original Parker units regarding mounting patterns (DIN NG10/NG25), flow curves, and command signal logic. Backed by our 100% Simulation Load Testing, every valve is verified for hysteresis and frequency response before delivery, ensuring superior repeatability in high-precision automated production lines.

Technical Specifications

• Compatible Brand: Parker

• Model Codes: D41FBE01F, D41VW00, D41FCB31FC, D31FBE01CC1NF00, D31FBE01EC1NF00

• Nominal Sizes: NG10 (D31) / NG25 (D41)

• Max Operating Pressure: Ports P, A, B at 350 Bar; Port T at 210 Bar (DC) / 250 Bar (AC)

• Max Flow Rate: ~75-100 L/min (D31); ~450 L/min (D41)

• Control Signals: ±10V (Voltage) / 4-20mA (Current)

• Integrated Electronics (OBE): Supported (Models with E01/E02 suffix)

• Spool Characteristics: Progressive / Linear / Step (Based on code, e.g., B31/E01)

• Protection Rating: IP65 (With cable plug)

Key Technical Advantages:

• High Dynamic Response Pilot Stage: Featuring optimized pilot control logic, these valves achieve extremely fast step response times. This high dynamic performance is essential for rapid reciprocating movements and complex pressure/flow composite control.

• Precision-Ground Spool & Sleeve: The spool-sleeve assembly is precision-ground to micron-level clearances. This minimizes the deadband and ensures exceptional resolution for fine flow adjustments, with hysteresis typically kept below 3%.

• Digital Integrated OBE: The integrated driver (e.g., D41FBE) utilizes full digital signal processing, providing excellent thermal stability and anti-interference capabilities. Users can input command signals directly without the need for expensive external amplifier cards.

• Heavy-Duty Optimized Housing: The valve body is cast from high-grade ductile iron with flow paths optimized via CFD simulation. This reduces pressure drops at high flow rates and minimizes the risk of cavitation, enhancing overall system energy efficiency.

Application Areas:

• Machine Tools: Precise speed switching and positioning for feed drives and spindles.

• Plastic & Rubber Machinery: Injection speed control for injection molding processes.

• Metallurgical Equipment: Dynamic regulation for rolling mill screw-downs and continuous caster vibration tables.

• Paper & Wood Processing: Synchronization of presses and linear pressure control.

Expert Maintenance Tips:

• Shielding & Grounding: For OBE valves (like D41FBE), always use shielded cables and ensure the shield is properly grounded to prevent electromagnetic interference from inverters causing spool fluctuations.

• Filtration Standards: Proportional valves are highly sensitive to fluid contamination. The system must maintain a filtration level of 5-10 microns (absolute), and an additional pilot line filter is highly recommended.

• Zero Adjustment: After replacing a valve, if a slight zero-drift is observed, use the potentiometer on top of the OBE to manually calibrate the zero point, ensuring perfect alignment between command signals and valve opening.
