Direational Control Solenoid Valve RZGO-A-033/315/18 31 RZGO-A-033 RZGO-A-01032 20 Proportional Reversing Valve RZGO-A-033/100
| Model Number | DKZOR-AE-5, DKZOR-A-171-S5, DKZOR-A-171-S5-40, RZGO-A-033/315/18 31, RZGO-A-033, RZGO-A-01032 20, RZGO-A-033/100 |
|---|
Product Description
Direational Control Solenoid Valve RZGO-A-033/315/18 31 RZGO-A-033 RZGO-A-01032 20 Proportional Reversing Valve RZGO-A-033/100
Regarding the features of the RZGO Product
▲Supports integration of check valve (reverse pressure resistance 315bar), pressure gauge port (G1/4), and pressure sensor mounting base, forming a pressure control unit without additional valve blocks; valve body made of forged aluminum alloy (EN AW-6082), 40% lighter than cast cast-iron valve body
▲ Built-in overload protection valve (cracking pressure 330bar) to avoid system damage due to overpressure; protection class IP65, resistant to dust and water splashing; solenoid coil standard with reverse polarity protection, preventing component burnout caused by wrong wiring
▲Built-in 20μm high-pressure filter (filtration accuracy ISO 4406 16/13), valve core surface coated with ceramic (hardness HV1200), particle wear resistance improved by 60%; shaft seal made of FKM fluororubber, compatible with mineral oil and synthetic ester hydraulic oil, leak-free operation cycle ＞8000 hours
▲Operating oil temperature adaptation range -20℃~100℃, pressure adjustment deviation ≤3% under -10℃ low-temperature condition; proportional solenoid filled with epoxy resin, insulation class H (temperature resistance 180℃), avoiding magnetic performance attenuation at high temperature
RZGO Related Model of：
RZGA-A-010/100/PA-M RZGO-A-033-350/18 31 RZGO-A-1-010/32 20
RZGO-A-033/100 RZGO-P1/P3/A/AES/TERS RZGO -A-010/100
RZGO-A-033/100 RZGO-P1/P3/A/AES/TERS RZGO -A-010/100
RZGO-REB-P-NP-033/210/I RZGA-A-010/100/PA-M/7 22 + MZA-A-24DC
RZGA-A-010/100/PA-M RZGO-A-033-350/18 31 RZGO-A-1-010/32 20
RZGO-A-033/100 31 RZGO-A-010/210 -AE-033/315 10/1

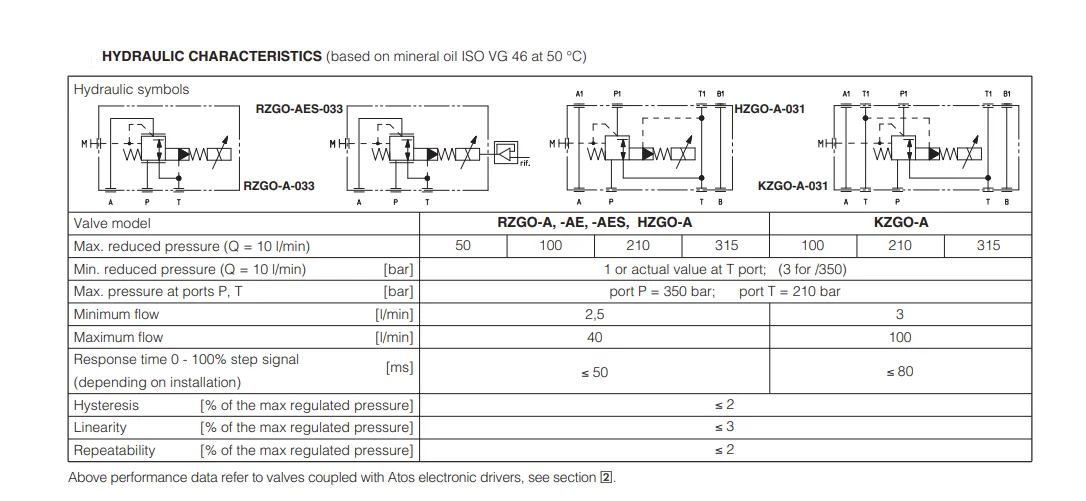

Data table:
