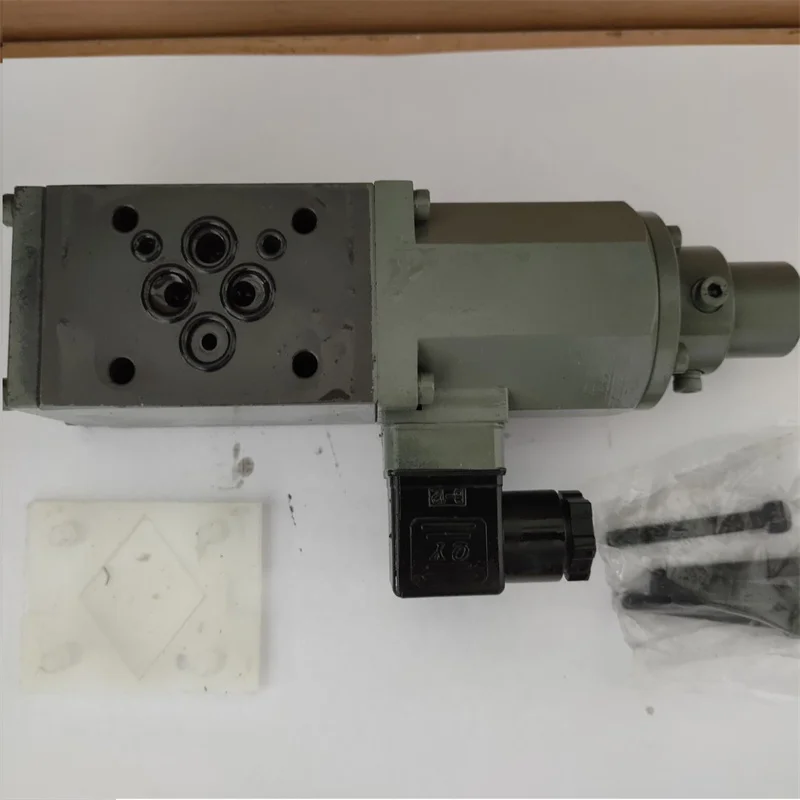

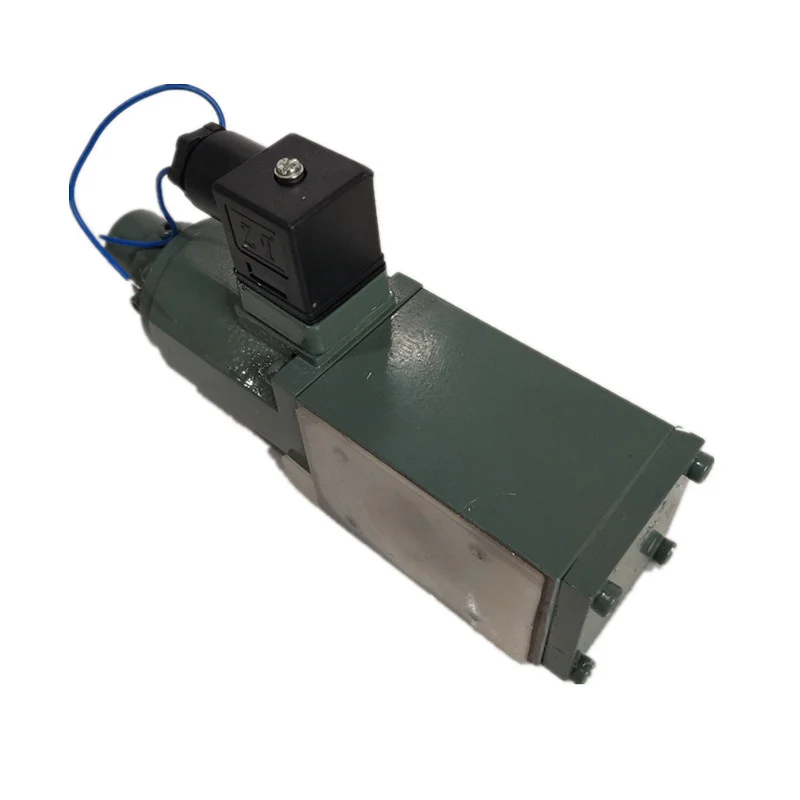

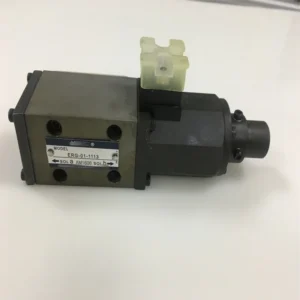

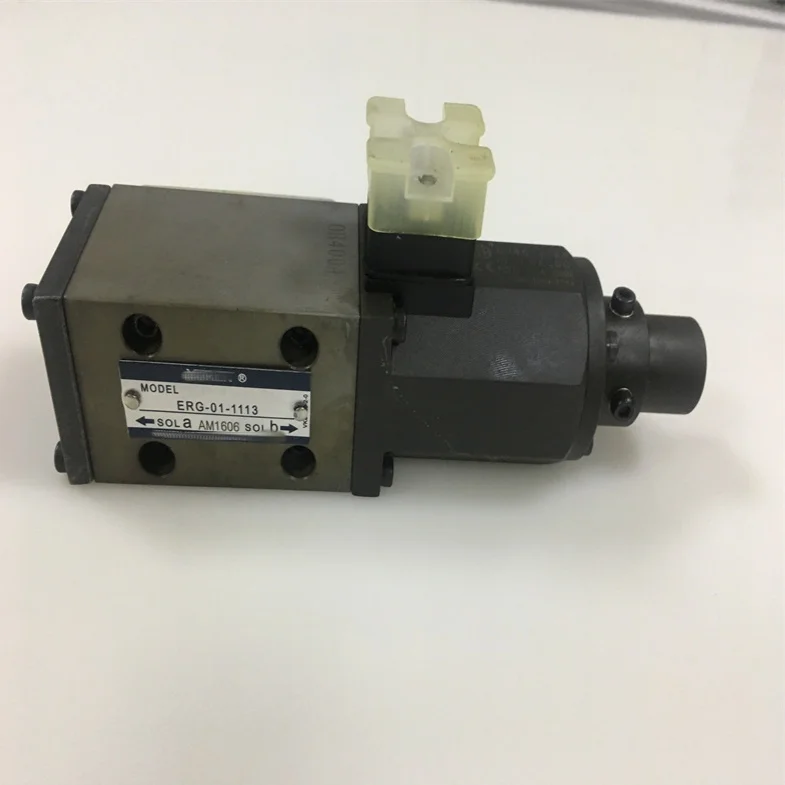

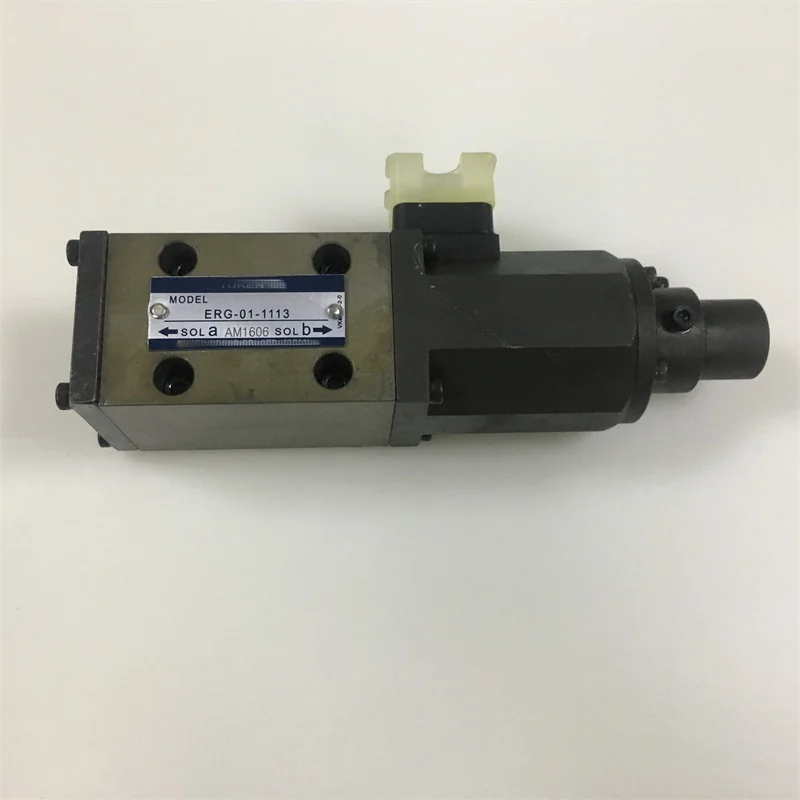

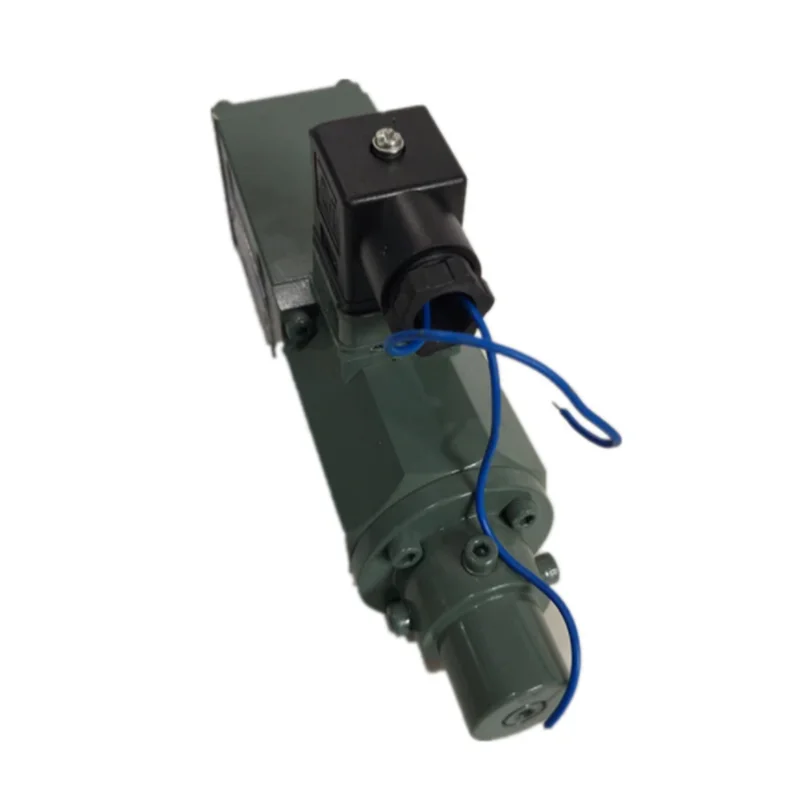

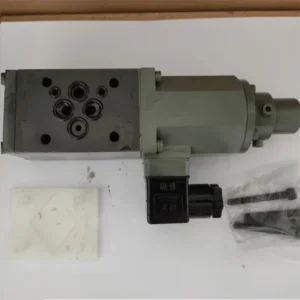

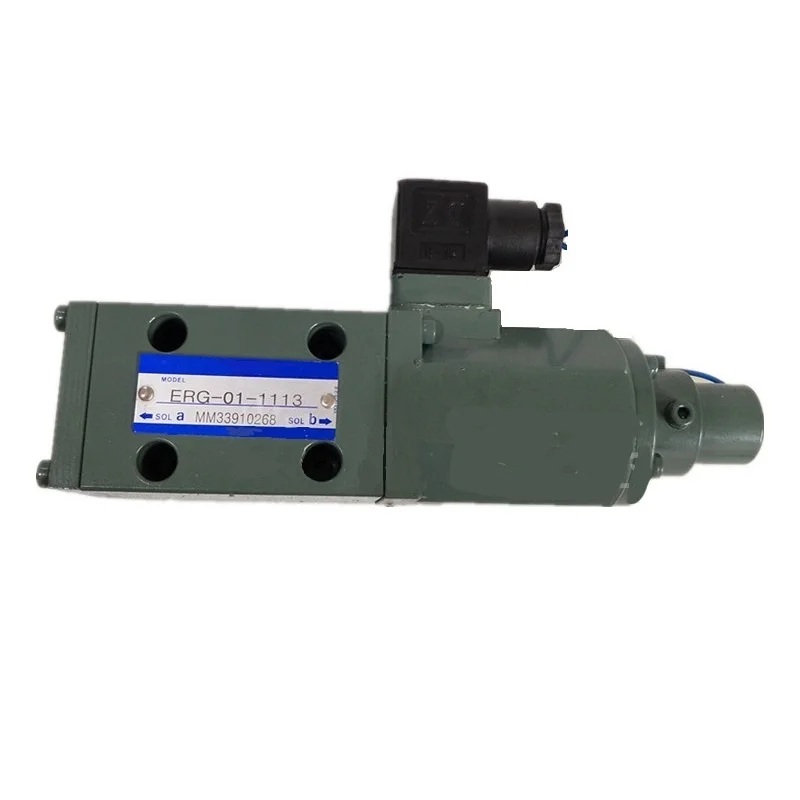

ERG Series Proportional Relief Valve ERG-01 ERG-01-1113

The severe-duty ERG Series Proportional Electro-Hydraulic Relief Valves Line (uniting precision industrial-automation profiles ERG-01-1113, ERG-01, and ERG-010 design sequences), manufactured by Chengyuan Hydraulic, serves as high-performance fluid power control components designed for seamless, infinitely variable pressure modulation within automated plastic injection molding machinery, metal forming equipment, heavy-duty shear systems, and metallurgical valve blocks. Integrating an advanced, linear proportional solenoid with a high-response pilot-operated relief valve structure, this series effortlessly translates variable electrical current signals into precise, continuous, and repeatable proportional hydraulic pressure limits.

Engineered to mirror the technical dimensions, micro-tolerances, and performance curves found in premium global brands’ (such as Yuken) official manuals, Chengyuan’s ERG valves offer 100% direct drop-in interchangeability. The subplate mounting patterns, bolt hole configurations, pilot control lines, and electrical DIN connectors match standard layouts exactly. Plant engineers can replace legacy units during routine maintenance without modifying fixed manifold designs or adjusting existing PLC control amplifier settings.

In automated hydraulic circuits, an individual proportional valve’s hysteresis, response delay, or internal leakage can cause pressure fluctuations or system instability. At Chengyuan, all products are built to strict quality standards; 100% of our produced ERG valves undergo 100% rigorous dynamic simulation test bench evaluation. Using specialized proportional fluid control diagnostics, each valve is subjected to its full pressure and flow envelope (up to 24.5 MPa) across various shifting frequencies. Our test protocols measure key indicators including pressure linearity, hysteresis, repeatability, and step-response curves, ensuring that every valve delivers highly stable, low-leakage performance under continuous operational duty.

Technical Specifications

• Product Series Grouping: ERG Series Pilot-Operated Proportional Electro-Hydraulic Relief Valves (Size 01 / 010)

• Maximum Permissible Operating Pressure: 24.5 MPa (245 bar)

• Maximum Pilot Flow Handling Capacity: 2 L/min (Engineered as a high-precision pilot stage to modulate main high-volume logic valves or variable displacement pump controllers)

• Pressure Adjustment Spectrum Configurations:

  • H-Type (High-Pressure Spec): 1.0 — 24.5 MPa (10 – 245 bar)

  • C-Type (Medium-Pressure Spec): 0.5 — 14.0 MPa (5 – 140 bar)

  • B-Type (Low-Pressure Spec): 0.5 — 7.0 MPa (5 – 70 bar)

• Proportional Solenoid Rated Current Input: 800 mA (Optimized for 24V DC proportional power amplifier modules)

• Solenoid Coil Cold Resistance: 10 $\Omega$ (Nominal value measured at $20^{\circ}\text{C}$)

• Electro-Hydraulic Performance Standards:

  • Hysteresis Index: $\le 2.0\%$

  • Linearity Threshold: $\le 1.0\%$

  • Repeatability Precision: $\le 1.0\%$

• Model Configuration Code Breakdown:

  • ERG-01-1113: “01” designates the standard nominal size (subplate mounted pilot control block). The “1113” suffix specifies the standard electrical connection layout (such as the DIN 43650 terminal plug package) paired with an encapsulated coil structure for enhanced environmental and moisture protection.

Key Technical Advantages

• Ultra-Low Hysteresis Precision Centerless Ground Spools: The internal pilot poppet and spool assemblies are machined from high-grade alloy steel (such as Cr12MoV), heat-treated to a hardness of $\ge HRC 60$. Precision centerless grinding and honing ensure micro-inch concentricity and optimal sliding clearances, limiting mechanical friction and keeping valve hysteresis below 2%.

• Linear High-Output Proportional Solenoid Core: The internal guide sleeve undergoes vacuum heat treatment to prevent residual magnetic buildup, ensuring linear magnetic pull and responsive actuation across the full stroke. The inductive coils are encapsulated in a high-grade epoxy resin matrix that provides excellent heat dissipation, preventing thermal degradation and keeping pressure control stable even at a sustained 800 mA current draw.

• Self-Adaptive Damping Fluid Geometry: The internal flow paths are refined using 3D CFD modeling to ensure smooth transitions, and a calibrated micro-orifice is integrated upstream of the pilot seat. This design dampens pressure spikes and high-frequency fluid pulses from external actuators, preventing the high-frequency whistling and spool resonance that can occur with conventional proportional valves in certain pressure ranges.

• High-Pressure Fluid Seal Matrix: Critical internal sealing surfaces combine premium Fluorocarbon (FKM/Viton) compounds with specialized PTFE back-up rings. This assembly provides zero external leakage across cyclical pressures up to 24.5 MPa and resists thermal degradation, preventing seal breakdown during long continuous runs.

Application Areas

Thanks to their linear pressure response and precise variable control, ERG series proportional valves are widely selected for multi-stage pressure profiling and soft-clamping control loops:

• Precision Plastic Processing Machinery: Multi-stage injection profiling, back-pressure tuning, and low-shock mold-clamping manifolds on plastic injection molders.

• Heavy Metal Forming & Stamping Equipment: Proportional safety relief and programmable pressure loops on heavy-duty sheet-metal bending brakes and industrial shears.

• Electro-Hydraulic Automation & Test Systems: Proportional pilot control stages for metallurgical servo systems, dynamic brake components fatigue testing rigs, and remote pressure controls for multi-station industrial manifold blocks.

Expert Maintenance Tips

• Never Energize the Proportional Solenoid on a Dry Valve or Without Fluid Present: The internal mechanical components of the proportional solenoid rely on the pilot return fluid for continuous cooling and lubrication. Energizing the coil with maximum current (e.g., $\ge 800\text{ mA}$) when dry can cause rapid heat buildup, risking coil failure or binding of the internal push-pin due to thermal expansion.

• Maintain Rigid Fluid Cleanliness Standards and Use High-Precision Filtration: Proportional valves utilize precision internal mechanics, with pilot seats and damping orifices measuring only 0.5 mm to 1.0 mm. Tiny particles or varnish can cause pilot clogging or spool binding. Maintain a system oil cleanliness standard of ISO 4406 18/15/12 or cleaner, and check or replace filters regularly.

• Drive the Valve Using a Proportional Electronic Amplifier with Matching Dither Controls: The proportional coil requires an explicit high-frequency dither current component to keep the spool in a micro-vibrational state, which overcomes static friction. Direct, unmodulated DC supply will increase valve hysteresis. Ensure that electrical plug connections are secure to protect against sudden pressure spikes caused by vibration-induced contact loss.
