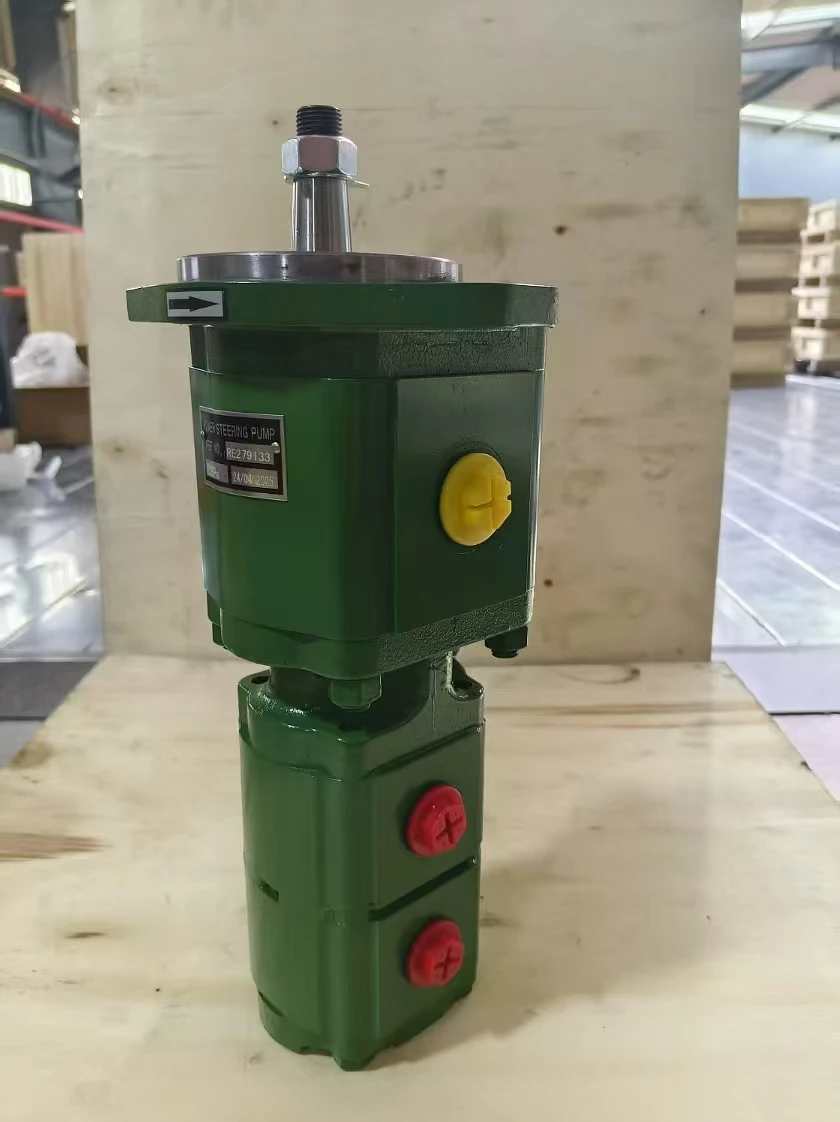

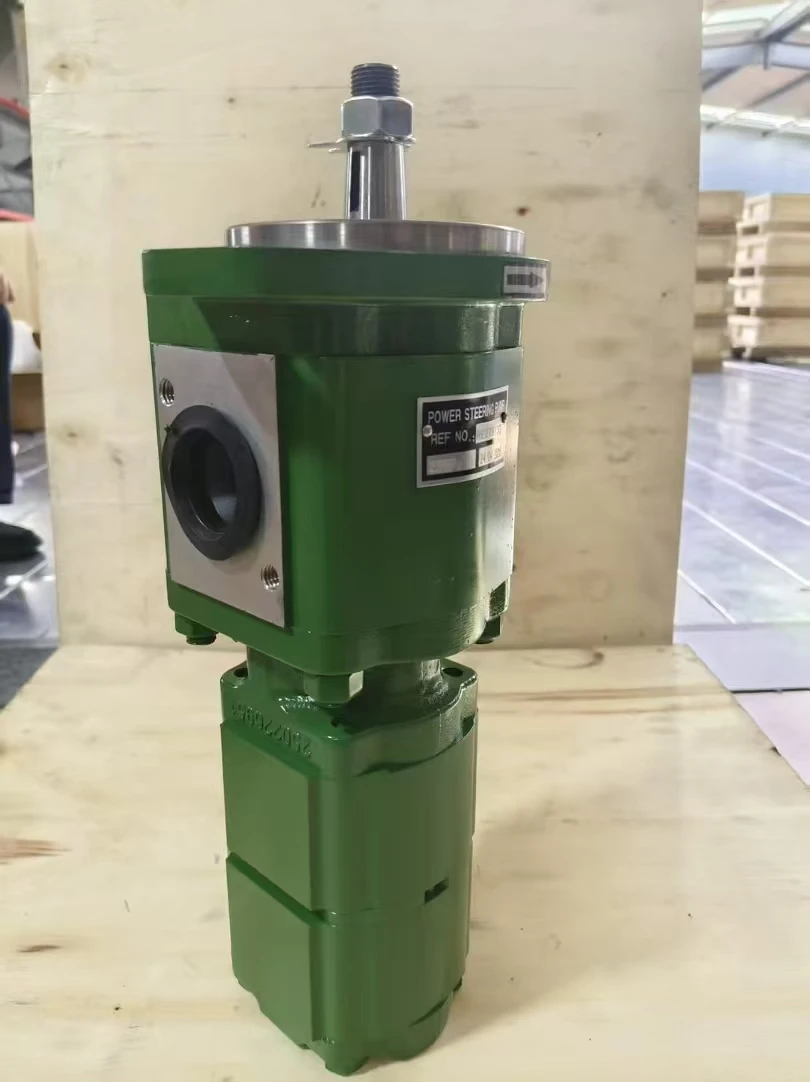

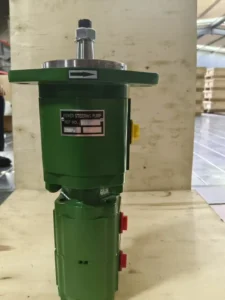

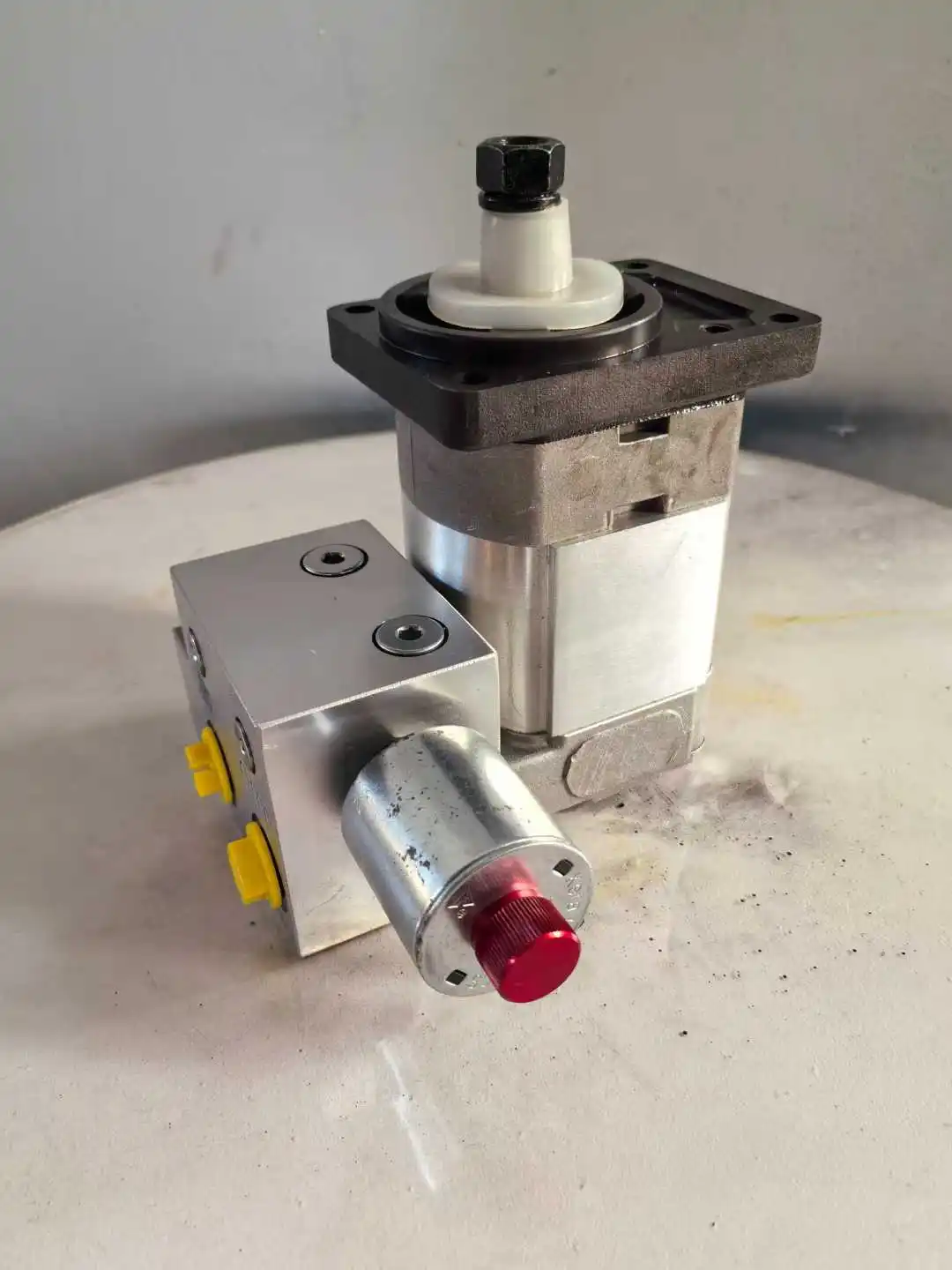

RE279133 RE263421 Hydraulic Pump for John Deere 6100D 6115D 6130D

The industrial-grade John Deere RE279133 and RE263421 Heavy-Duty Hydraulic External Gear Pumps, engineered by Chengyuan Hydraulic, are premium fluid-power components designed for John Deere 6D series (6100D, 6110D, 6115D, 6125D, 6130D, 6140D) heavy-duty utility tractors, associated construction machinery variants, front loaders, and modified digging attachments. Serving as the mechanical heart of the primary open-center or closed-center fluid networks, these pumps supply continuous, regulated high-pressure oil to the main directional valve blocks, rear 3-point hitch lift cylinders, steering control units, and auxiliary remote selective control valves (SCVs).

This high-performance pump portfolio specifically targets the global B2B agricultural and industrial aftermarket supply chain, delivering 100% direct drop-in interchangeability with authentic John Deere OEM part numbers RE279133 and RE263421. Every critical engineering boundary—including the front involute splined drive shaft, SAE split-flange connection interfaces, rear tandem port spaces, and sub-chassis mounting bolt layout—aligns perfectly with original manuals. Field technicians can rapidly execute direct component replacements without undergoing cutting, welding, or line adaptation, dramatically minimizing field downtime during critical farming or earthmoving seasons.

Operating in unforgiving open-air conditions, hydraulic components are regularly exposed to soaring thermal spikes, heavy vibration, and abrasive dust contamination. Continuous high-pressure duty cycles can cause axial clearance distortion and friction-induced side plate wear, resulting in rapid volumetric efficiency loss. To completely eliminate these field vulnerabilities, 100% of Chengyuan’s RE279133 / RE263421 alternative pumps undergo 100% strict dynamic simulation testing on digitized load blocks. Certified at rated engine speeds and peak pressures up to 20 MPa, each pump is precision-verified for volumetric efficiency, mechanical input torque matching, and zero shaft-seal weeping under maximum heat loading to provide peerless service longevity.

Technical Specifications

• Product Classification: Heavy-Duty External Hydraulic Gear Pump (Single / Tandem Assembly Configuration)

• OEM Reference Matching Identifier: John Deere RE279133, RE263421

• Target Machine Compatibility: John Deere 6100D, 6110D, 6115D, 6125D, 6130D, 6140D Utility Tractors and Earthmoving attachments

• Nominal Chamber Displacement: 36 cc/rev for primary section (tail auxiliary combinations configured precisely per JD model generations)

• Nominal Rated Operational Pressure: 20 MPa (200 bar / 2900 psi)

• Peak Permissible System Pressure: 24 MPa (240 bar / 3480 psi)

• Maximum Permissible Shaft Speed: 2400 rpm

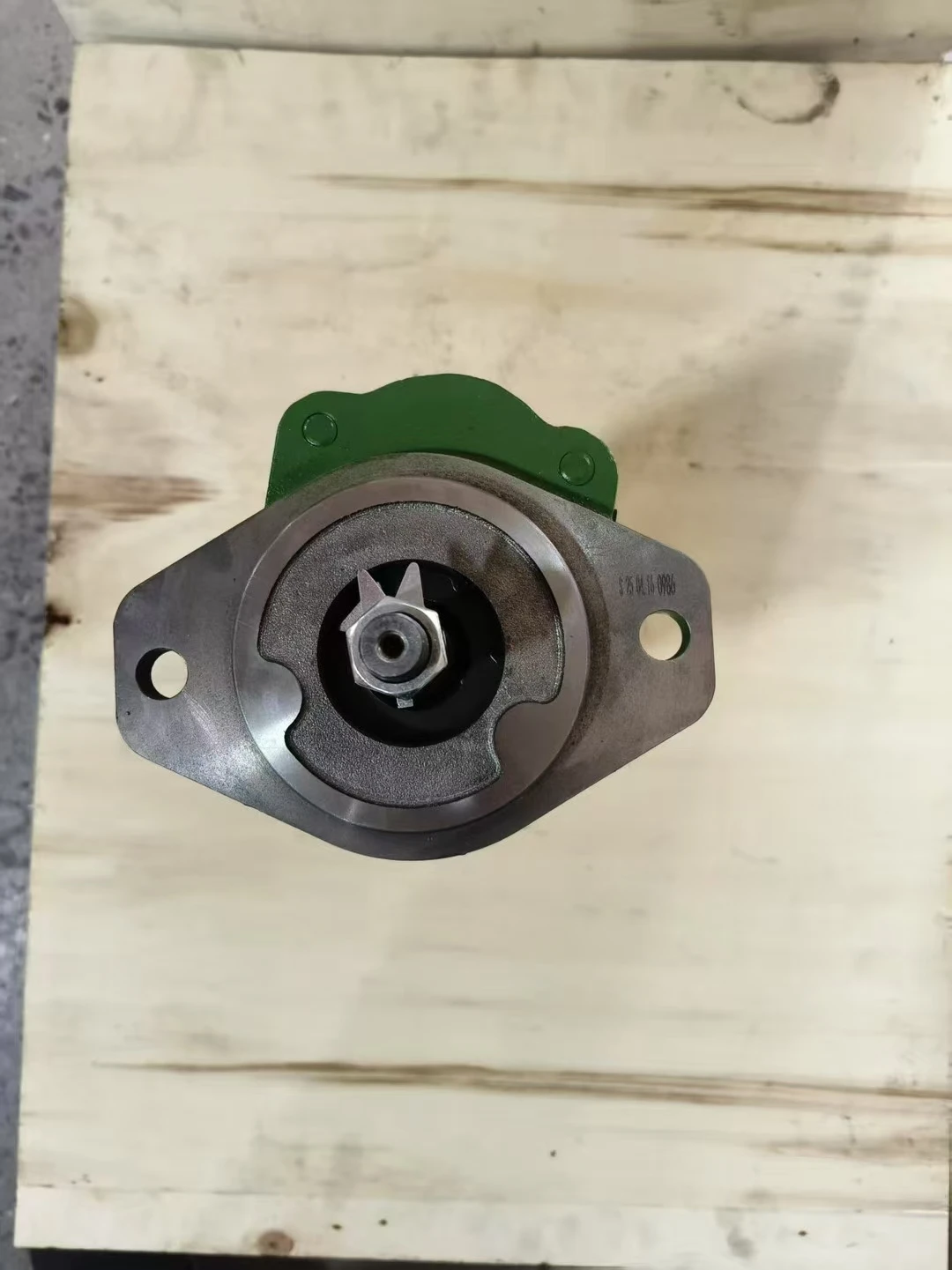

• Drive Shaft Interface Profile: Standard precision involute splined shaft (13-tooth or native OEM-matched configuration), induction-hardened for fatigue resistance

• Total Certified Flow Delivery (at 2200 rpm): Approximately 65 to 78 L/min (ensuring rapid front-loader cycling and hitch movement)

• Fluid Port Connectivity Formats: Standard SAE split-flange or heavy-duty O-ring boss thread connections to match native steel tube configurations

• Target System Fluid Cleanliness Threshold: Compliant with ISO 4406 19/16/13 (or NAS Class 8 or better)

• Average Component Net Weight: Approximately 11.5 kg

Key Technical Advantages

• High-Strength Extruded Aluminum & Ductile Iron Two-Piece Housing: The pump body mid-section is extruded from aerospace-grade high-density aluminum alloy, supported by heavy-duty ductile iron end covers. This rigid structural matrix counteracts high-pressure mechanical expansion loops under 24 MPa spikes, eliminating casing distortion and preventing external leakage paths.

• Axial Clearance Floating Pressure Plates with Dynamic Compensation: The internal “8”-shaped thrust plates feature an automated hydraulic balance mechanism on their backing areas. By utilizing system pressure to micro-position the plates flawlessly against the gear gear faces, it self-compensates for long-term wear, maintaining an ultra-high volumetric efficiency of over 95% during hot, continuous operations.

• Micro-Ground Involute Gear Pairs with Sub-Micron Profiles: The driving and driven gears are forged from premium 20CrMnTi alloy steel, carbonitrided for extreme surface hardness, and finished via CNC centerless micro-grinding. This extreme geometric accuracy minimizes high-pressure trapping pockets, smoothing fluid power delivery while dramatically dampening overall hydraulic whine.

• Self-Lubricated PTFE-Composite SF-1 Heavy-Duty Journal Bearings: Traditional roller setups are replaced with high-load steel-backed journal bushings lined with a porous bronze interlayer and a PTFE-lead anti-friction matrix. Operating via continuous wet lubrication from the system’s hydraulic oil, these bushings absorb punishing radial shock loads transmitted from the engine drive shaft, eliminating seizing vectors.

Application Areas

Chengyuan’s premium replacement John Deere RE279133 / RE263421 hydraulic pumps are engineered to deliver reliable hydraulic power under high-load agricultural and earthmoving applications:

• John Deere 6D Series Primary Implement Hydraulics: Driving high-tonnage rear 3-point hitch mechanisms, heavy-duty reversible disc plows, and seed drill lifting actuators during intense seasonal workflows.

• Front-End Utility Loaders & Shovels: Providing high-volume continuous flow for rapid boom lift, bucket tilt, and dual-action hydraulic grapple operations.

• Excavating, Trenching, & Aux Auxiliary Attachments: Powering auxiliary steering control units (SCUs) and multi-spool directional attachment loops requiring quick fluid response.

Expert Maintenance Tips

• Prior to Final Machine Installation, Mandatorily Pre-Fill the New Pump with Clean Hydraulic Oil via the Suction Port and Rotate the Input Shaft Manually Several Times: Never allow a “dry start.” If the gear teeth and floating pressure plates engage under initial engine starting speeds without an established hydrodynamic oil film, immediate scuffing and extreme adhesive friction wear will ruin the internal thrust surfaces, destroying the pump’s efficiency within seconds.

• Verify the Absolute Sealing Integrity of the Inlet Suction Hose and Hose Clamps Immediately Following Installation to Prevent Cavitation: If the inlet pipeline allows even microscopic air ingress, the pump will ingest air pockets under high suction vacuum. When these bubbles encounter 20 MPa pressures within the gear chambers, they implode violently. This cavitation process rapidly erodes the internal aluminum housing and fractures the thrust plate back-seals, causing sudden failure.

• Mandatorily Flush the Hydraulic Reservoir and Install a Fresh 10-Micron Fluid Filter Element Concurrent with the Pump Replacement: Mechanical pump wear or catastrophic failures always deposit fine metal particulates into the system oil. If you fail to replace the main return filter and clean the tank, these circulating metallic fragments will wash directly into the micro-scale clearances of the new pump, inducing severe scoring. Always enforce a high filtration standard.
