Parker F11 F12 Axial Piston Motor Pump | F12-080-MF F11-005-MB F11-019-HU

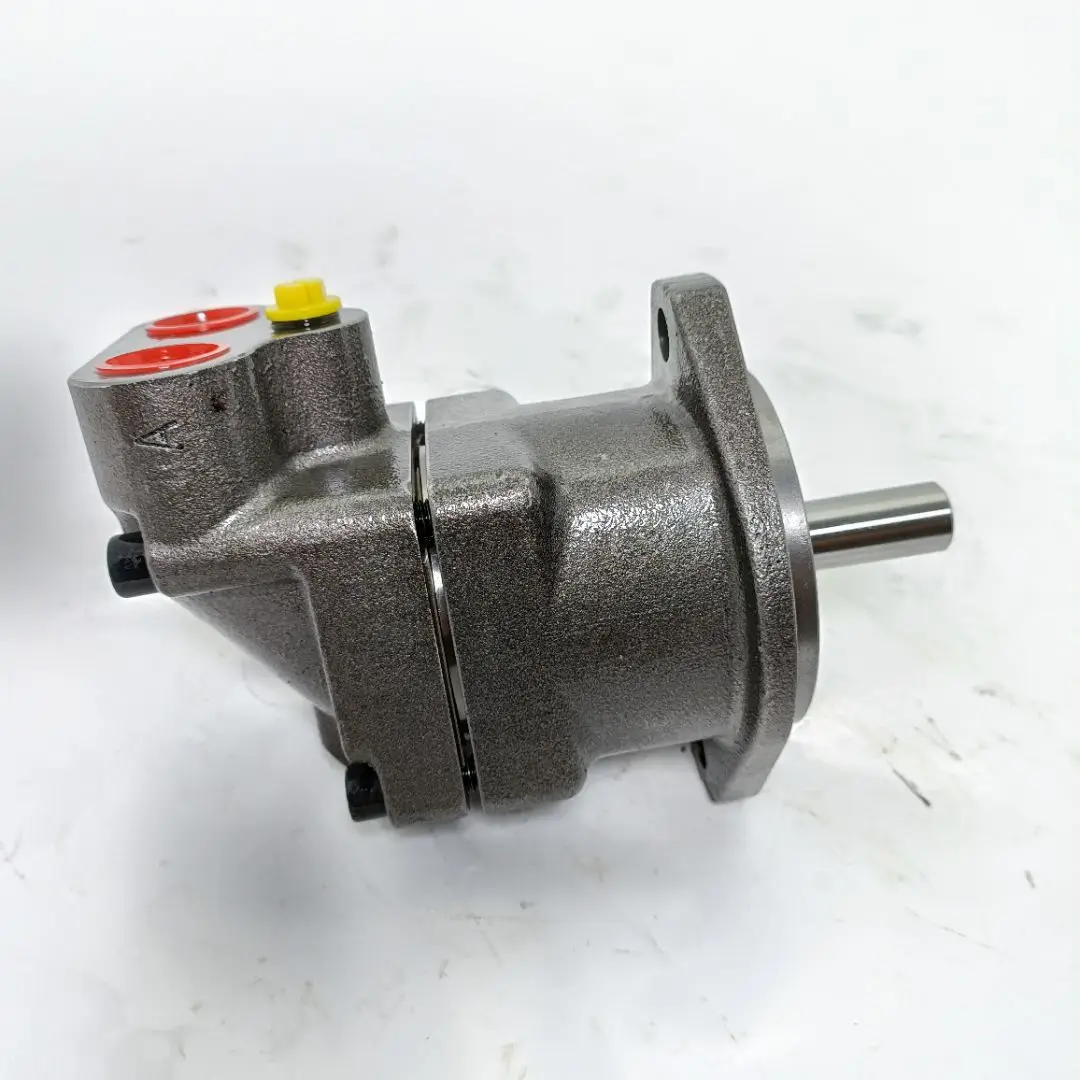

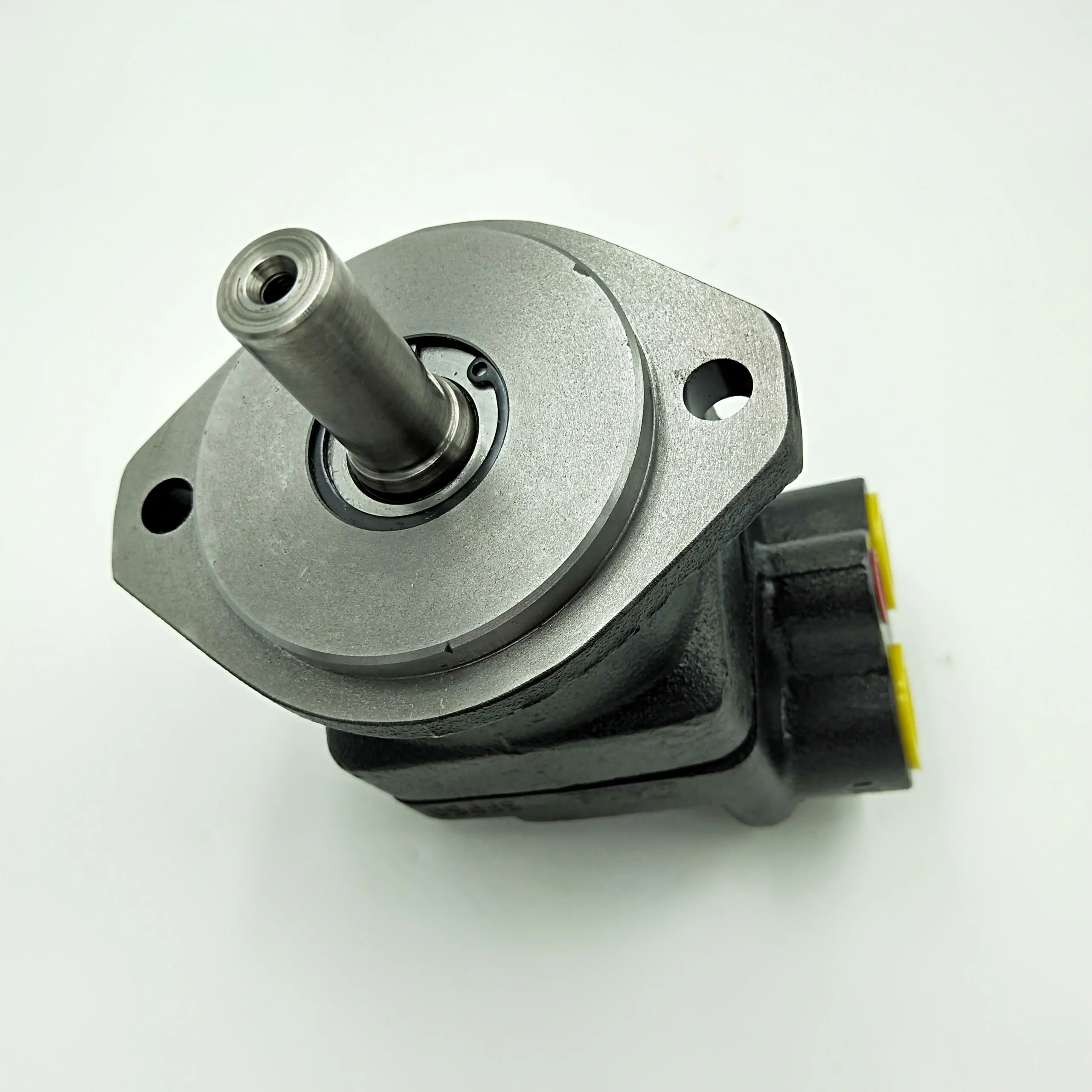

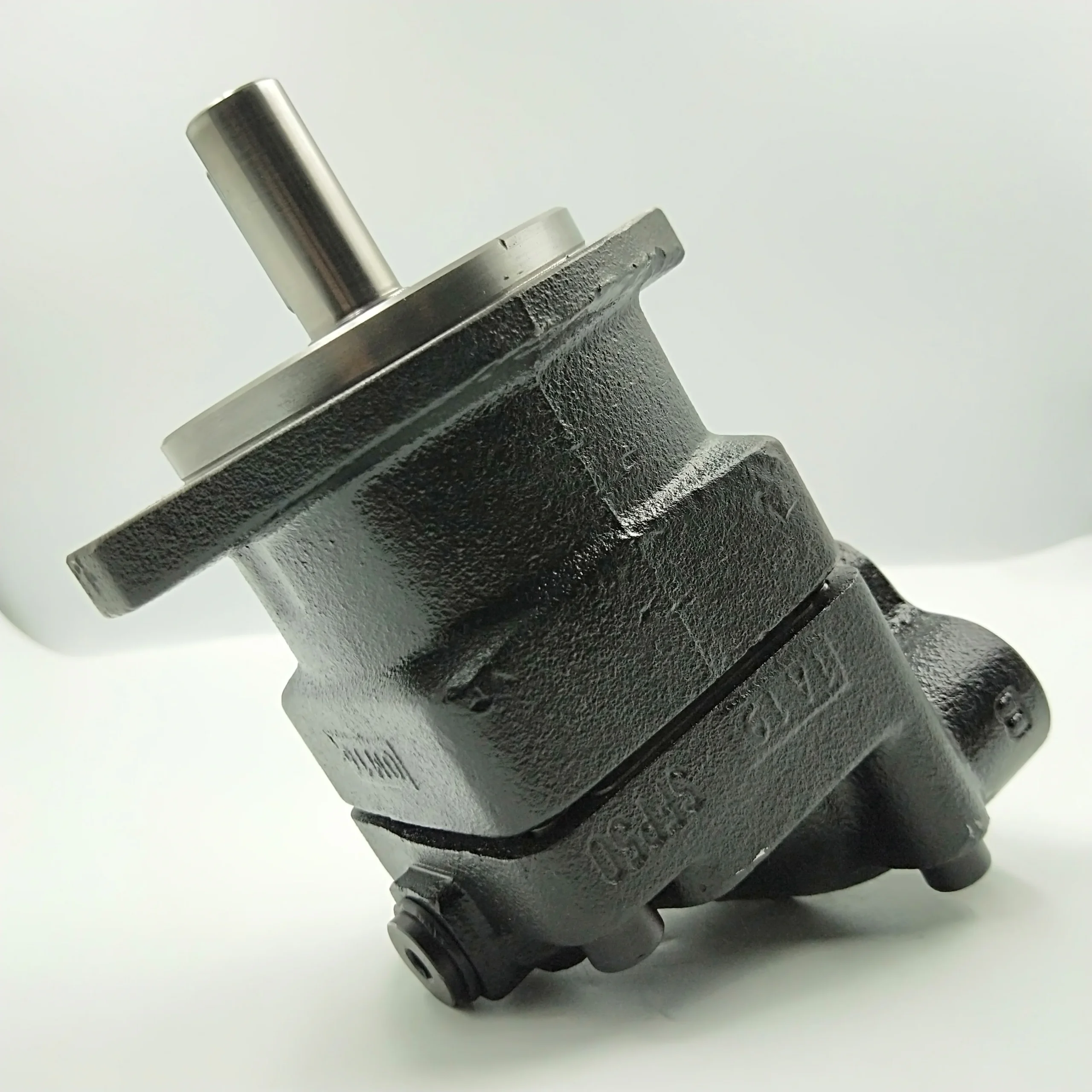

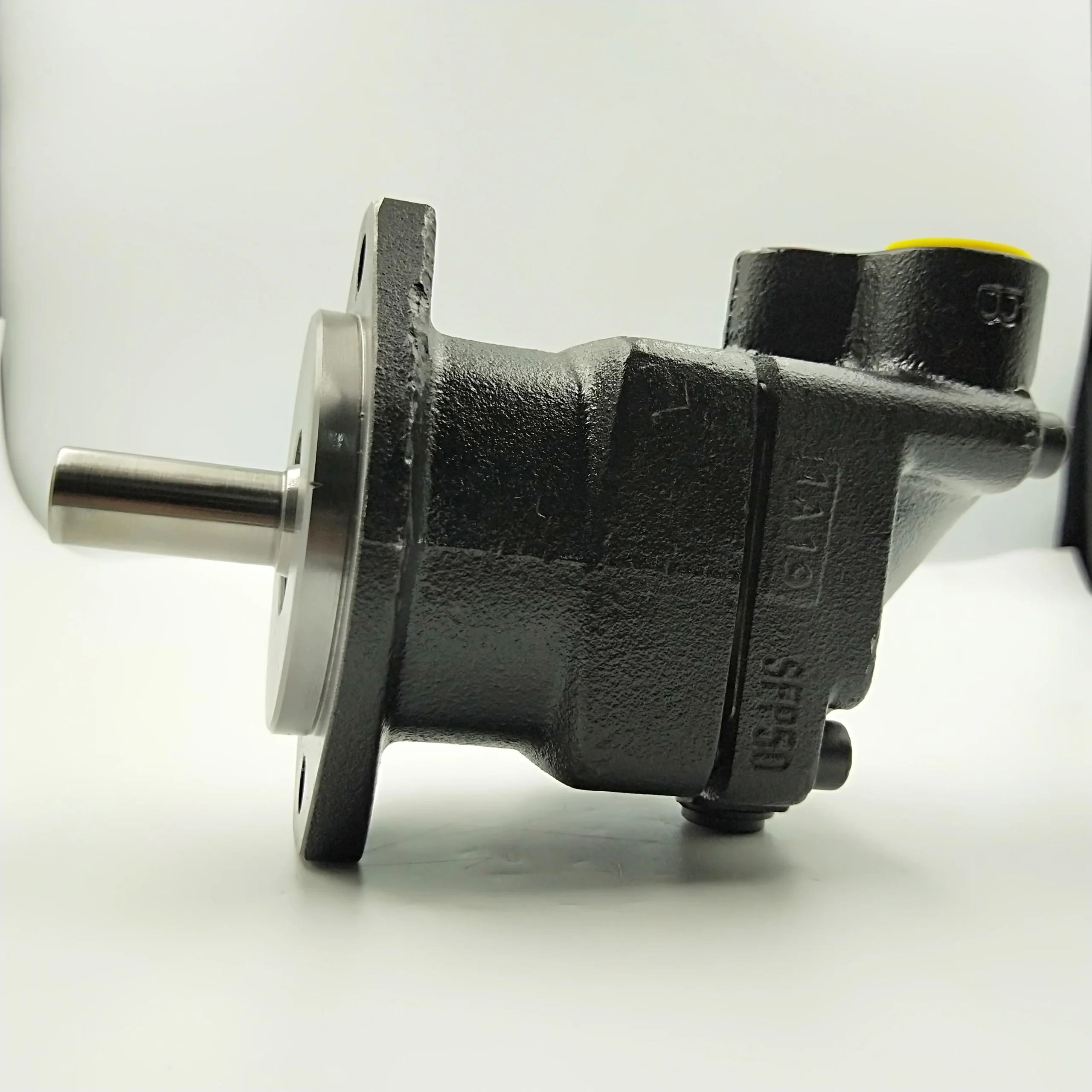

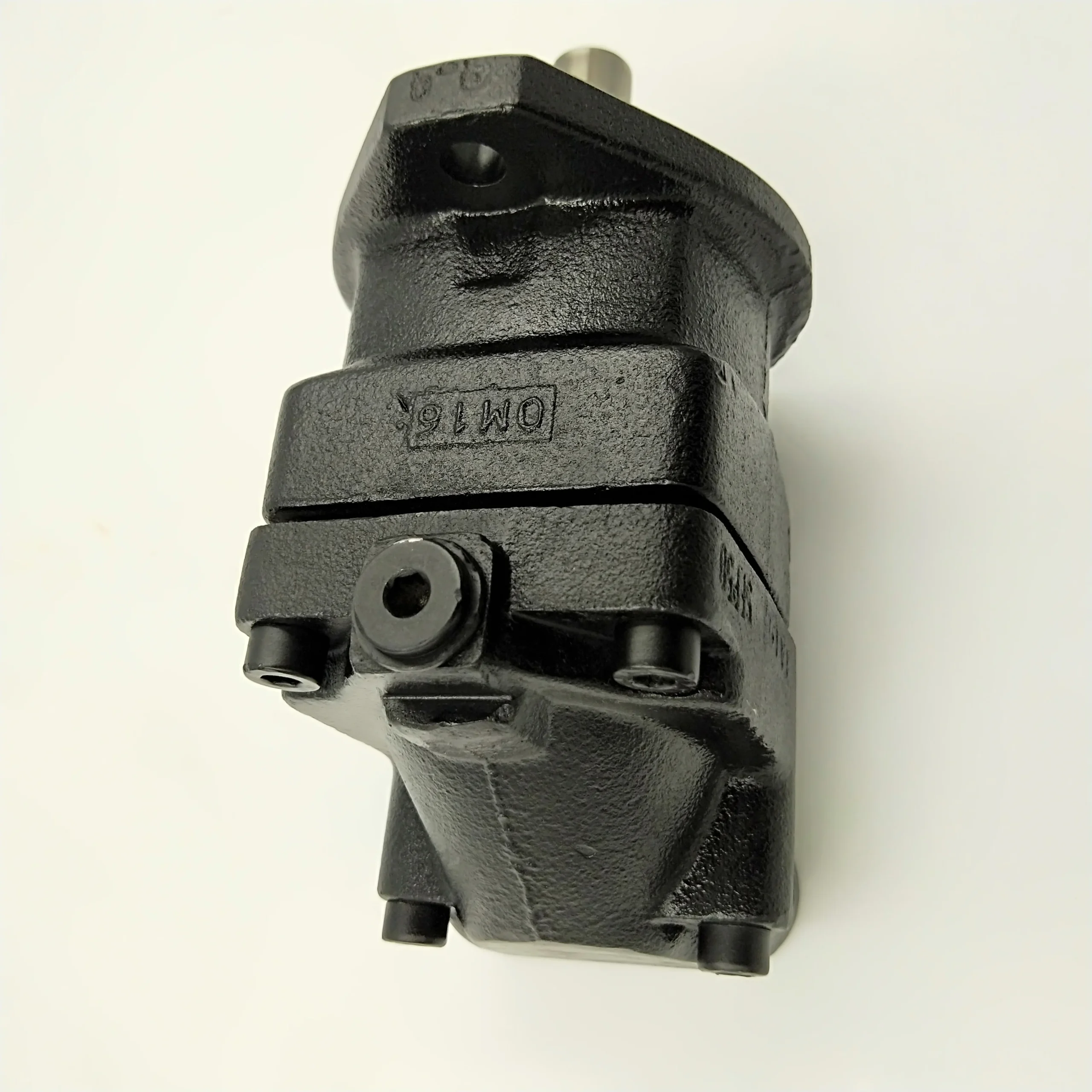

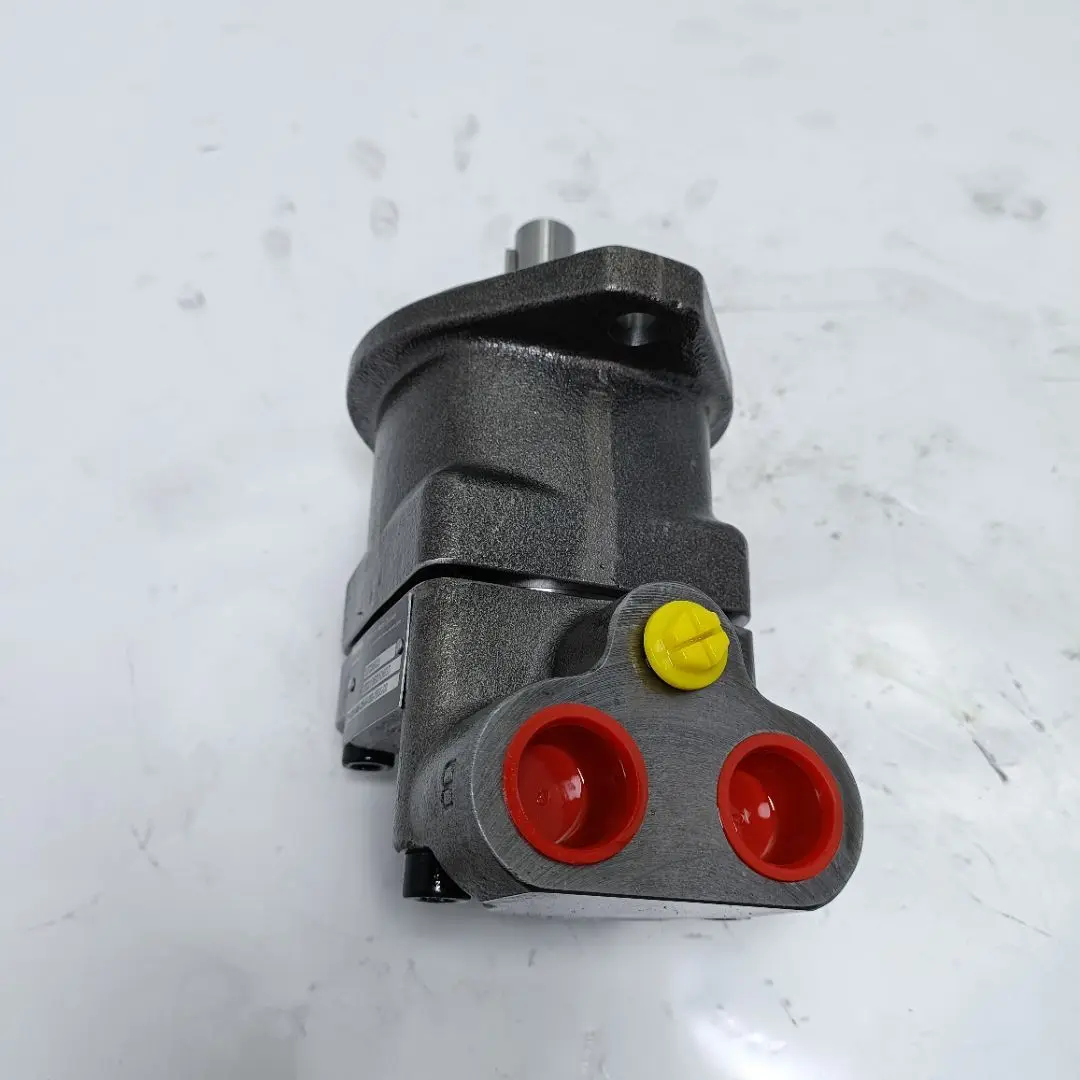

The F11 and F12 Series of high-pressure, bent-axis axial piston pumps and motors manufactured by Chengyuan Hydraulic are flagship fluid power components engineered to fully Cross-Reference the rigorous heavy-duty technical standards of Parker Voac. Renowned globally as the undisputed “heavy-duty endurance benchmark” for operating under severe system limitations, this platform leverages a radical $40^\circ$ bent-axis bent-housing layout, an asymmetric spherical valve plate interface, and signature laminated metallic piston ring profiles. Focusing on the targeted procurement catalog codes provided—F12-080-MF-CV-C-000-000-0 (80cc high-load motor variant), F11-005-MB-CN-K-206 (5cc micro high-pressure execution), and F11-019-HU-SV-T-000-000-0 (19cc dynamic saw/traction optimized motor)—Chengyuan applies specialized vacuum metallurgic hardening and micro-paired lap-finishing to guarantee 100% original-place interchangeable plug-and-play compatibility. Every single unit undergoes a strict 100% simulated loaded condition matrix, thermal shock profiling, and volumetric drainage tracking before dispatch, securing rock-solid reliability up to 420 bar continuous pressures and 6000 rpm shaft velocities.

Technical Specifications :

• Brand Cross-Reference: Parker Voac F11 / F12 Series Equivalent Platform

• Target Part Nomenclature Covered: F12-080-MF-CV-C-000-000-0, F11-005-MB-CN-K-206, F11-019-HU-SV-T-000-000-0

• Core Geometric Displacements:

  • F11-005 Variant: 4.9 $cm^3/rev$

  • F11-019 Variant: 19.0 $cm^3/rev$

  • F12-080 Variant: 80.4 $cm^3/rev$

• Continuous Rated Operating Pressure: 420 bar (42 MPa / 6000 psi continuous structural index)

• Maximum Intermittent Peak Pressure: 480 bar (48 MPa / 7000 psi surge envelope)

• Maximum Rated Shaft Speeds:

  • F11-005: Up to 6000 rpm continuous (Intermittent maximum up to 8000 rpm)

  • F11-019: Up to 4600 rpm continuous (Intermittent maximum up to 5400 rpm)

  • F12-080: Up to 3100 rpm continuous (Intermittent maximum up to 3700 rpm)

• Mounting Flange & Drive Shaft Profiles (Model Specific):

  • F12-080-MF Profile: ISO 3019-2 standard flange (Metric Code C-series) paired with heavy-duty involute splined shaft end

  • F11-005-MB Profile: CETOP standard structural interface featuring keyed straight shaft or splined configurations

  • F11-019-HU Profile: SAE standard mounting interface mated with high-velocity specialized output shafts

• Sealing Matrix Configurations: Integrated high-temperature, high-velocity Viton (Fluorocarbon) shaft seal rings as standard configuration

Key Technical Advantages:

• Advanced $40^\circ$ Bent-Axis Angle & Laminated Metallic Piston Rings: While conventional alternatives are limited to milder $20^\circ-30^\circ$ geometric angles, the F11/F12 framework utilizes a steep $40^\circ$ configuration. Paired with proprietary multi-layered laminated metal piston rings rather than single elastomeric composite loops, this setup maintains exceptional cylinder block compression under full 420 bar stresses and high rotational velocities, holding total volumetric efficiency at an unyielding 97%.

• Self-Centering Spherical Valve Plate Design: The cylinder block-to-valve plate boundary features a micro-lapped spherical mating profile. During high-velocity rotation, this geometry achieves hydro-mechanical self-centering, neutralizing shaft angular deflections caused by sudden, extreme pressure loads. This completely avoids the localized face-scuffing and barrel-stitching issues inherent to flat-surface designs, yielding superior thermal shock resistance.

• Reinforced High-Backpressure Shaft Sealing System: The internal structural shell and shaft lip-seal configurations are physically hardened to accept extreme continuous case backpressures. Even when deployed in multi-motor series loops or encountering abrupt return-line restrictions, the sealing lips stay physically intact without flipping or weeping fluid, preventing catastrophic environmental leaks or field failures on high-altitude machinery.

• Acoustically Dampened Nodular Iron Casing with Low-Inertia Rotor: The outer motor housing is cast as a single block from premium long-fiber high-ductility nodular iron, offering superb acoustic dampening to absorb fluid whine. Concurrently, the forged steel internal pistons and drive assemblies are optimized for low mass, yielding a minimal moment of inertia. This gives the motor exceptional angular acceleration for rapid start-stop and reverse-cycling duties, such as high-frequency woodcutting saw loops.

Application Areas:

• High-Speed Forestry Equipment & Harvester Attachments: High-velocity main saw motors for forestry harvester heads (F11-019 and F11-005 variants experiencing extreme acceleration spikes).

• Heavy Marine & Port Material Handling Grids: Spreader rotator drives for reach stackers, and heavy-duty auxiliary hoist winch drives for crawler excavators (F12-080).

• Hydrostatic Mobile Powertrains: High-pressure power heads for compact mining drill rigs, industrial cold planers, and asphalt paving machine drive lines.

Expert Maintenance Tips:

• Mandatorily Execute Dual-Port Air Purging and Case Pre-Filling Prior to Commissioning: Bent-axis housings retain large internal volumetric spaces. Following installation or extensive fluid drainage overhauls, you must fill the motor housing completely with clean hydraulic oil through the highest available case drain port before running the unit! Manually rotate the drive shaft by hand for at least 5 revolutions to vent all trapped air pockets through the opposite vent port. Starting the unit dry will cause the laminated metallic piston rings and main bearing surfaces to experience localized frictional scorching within 3 seconds, rendering the entire assembly unserviceable.

• Isolate the Case Drain Line and Route It Directly to the Reservoir: While the F11/F12 framework is highly resilient against backpressure, the housing drain line must never be tied directly into the main system low-pressure return manifold (T-port). It must be piped via an independent, unrestricted line straight back to the reservoir below the oil level. Regularly audit drain-line flow rates; a sudden escalation in drainage indicates premature wear on the internal spherical faces or piston rings, requiring immediate service.

• Guard Against Cold-Start Cavitation in Sub-Zero Operational Climates: In open-air sub-zero environments (such as winter forestry logging camps), fluid viscosity spikes dramatically. If the motor is suddenly accelerated to 6000 rpm while cold-thickened fluid lags behind from the main pump supply, severe cavitation will destroy internal components. Always enforce a minimum 15-minute low-speed, zero-load warming cycle to bring fluid temperatures above 20°C and normalize viscosity before initiating full-pressure high-velocity operations.
