Parker F11 F12 Series Bent Axis Hydraulic Motor | F11-019-SB-CS-K F12-090 Fixed Displacement

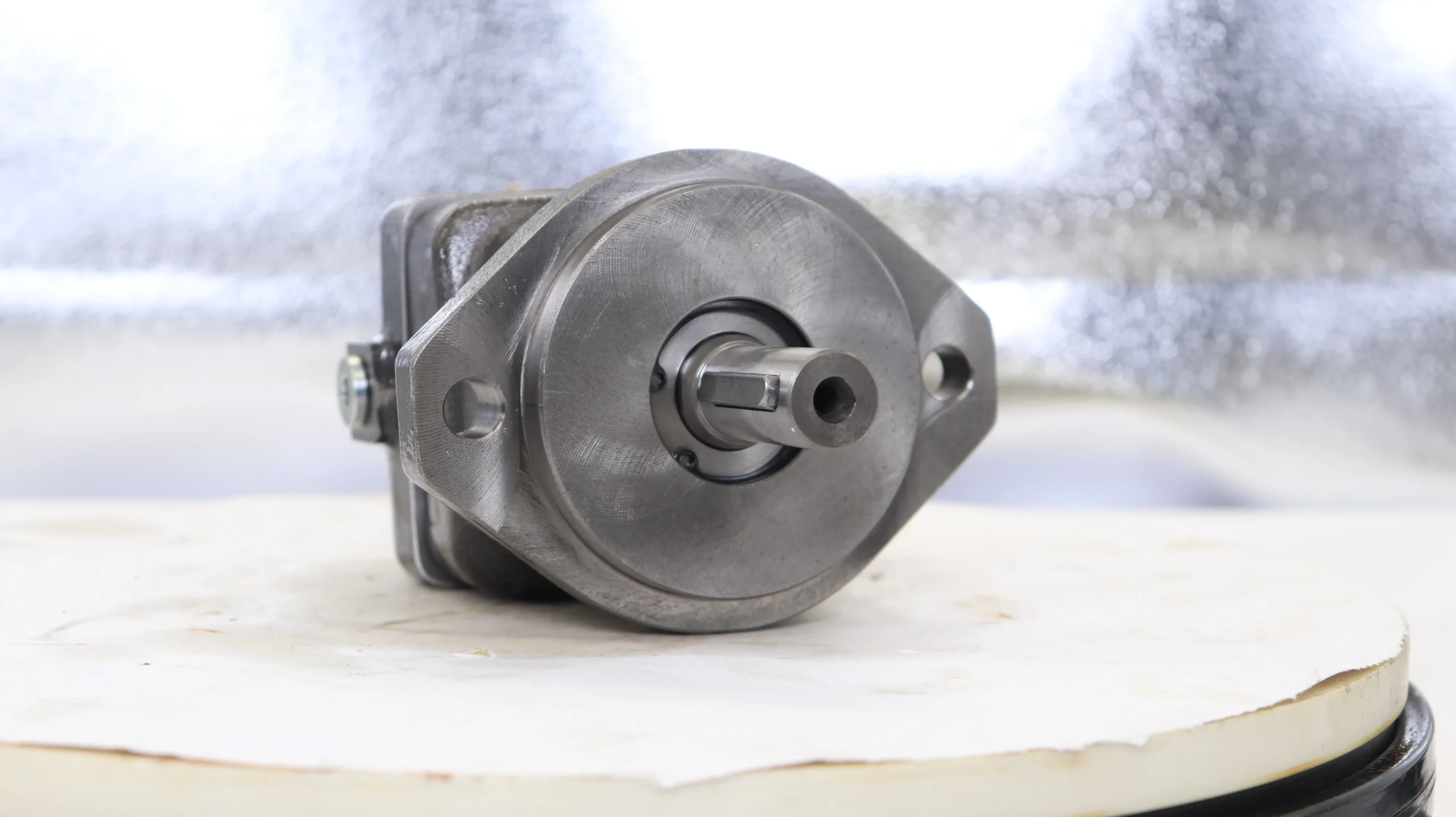

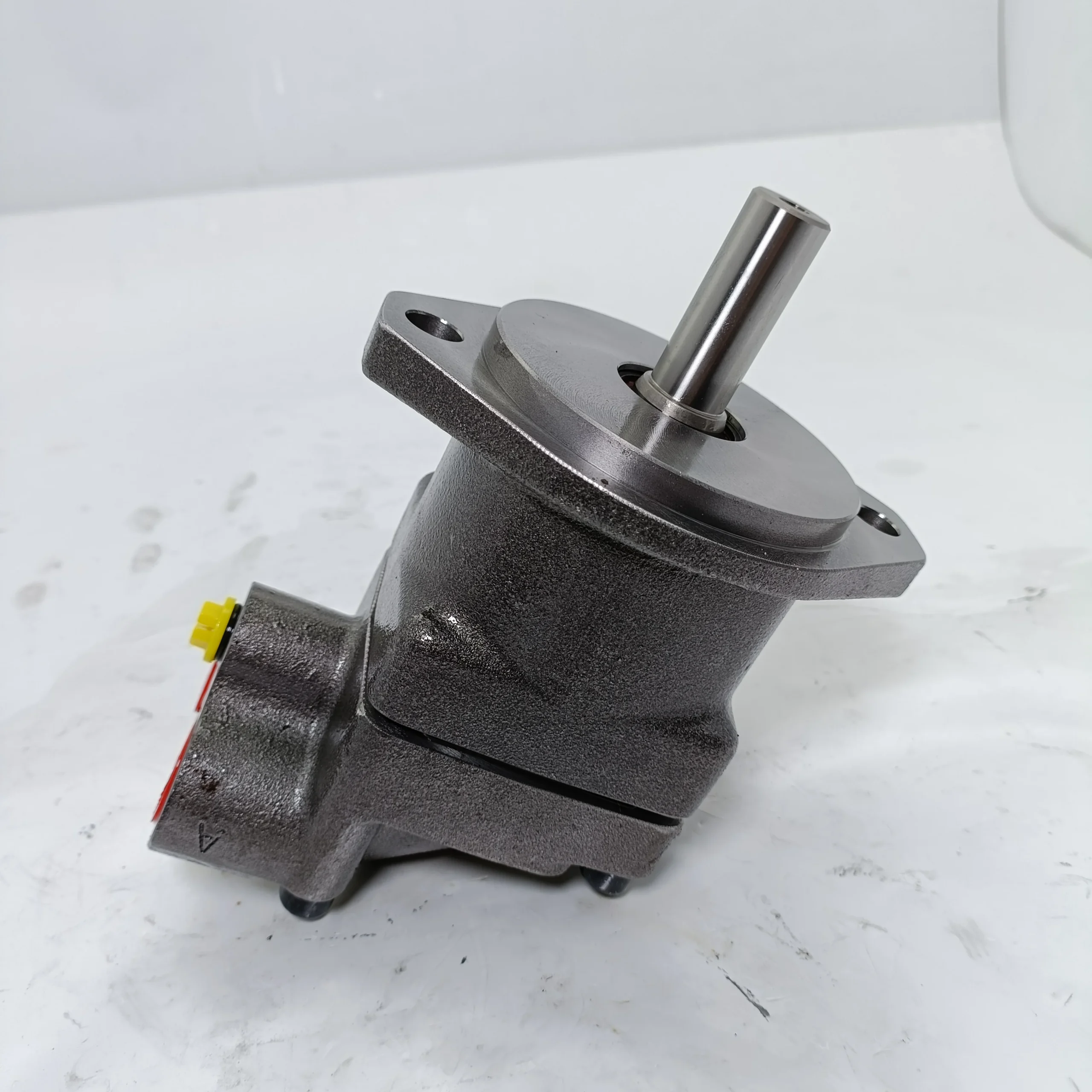

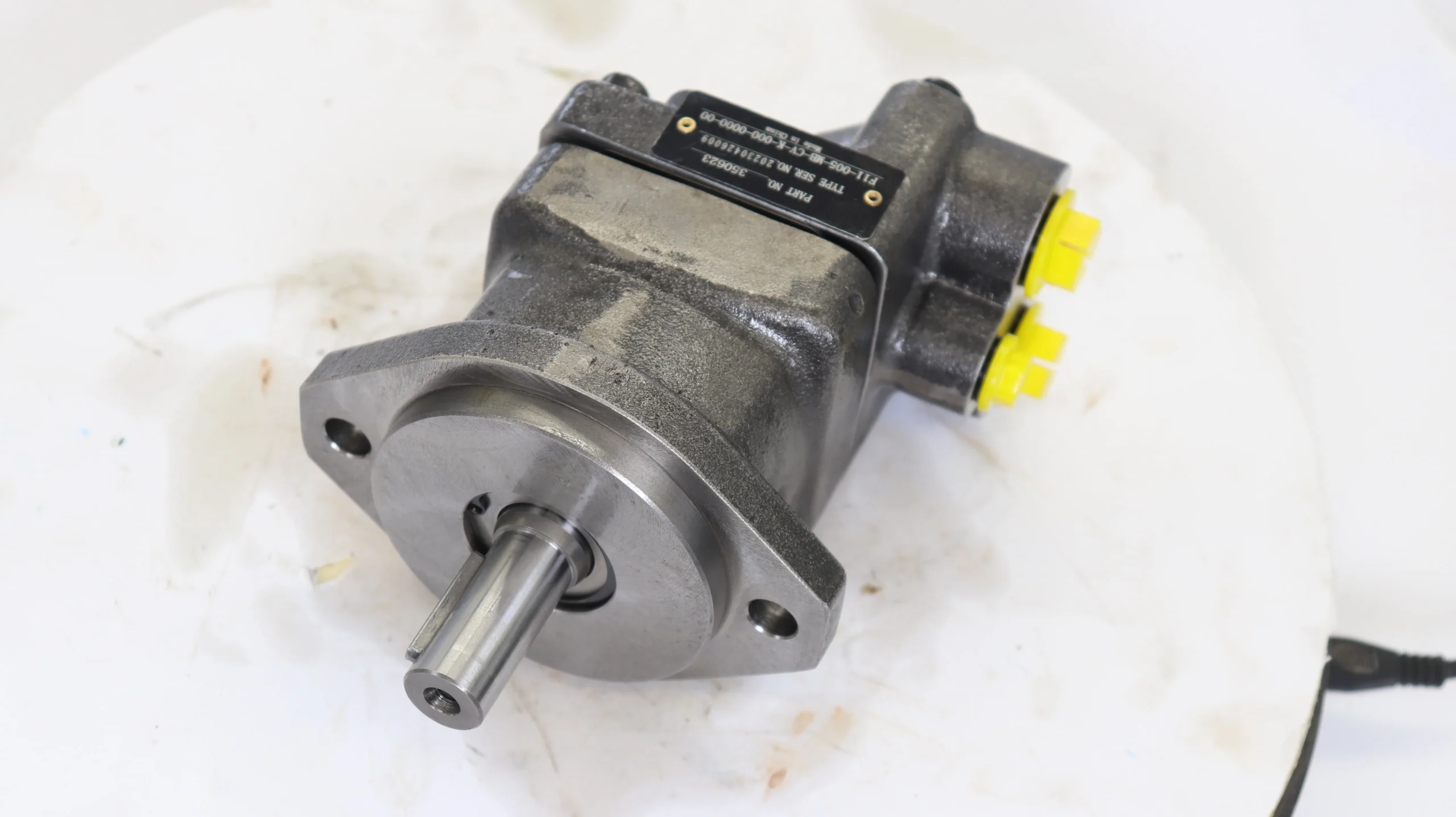

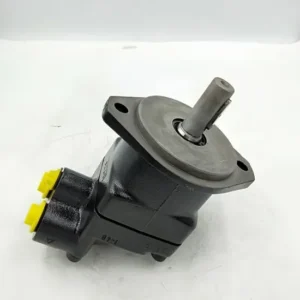

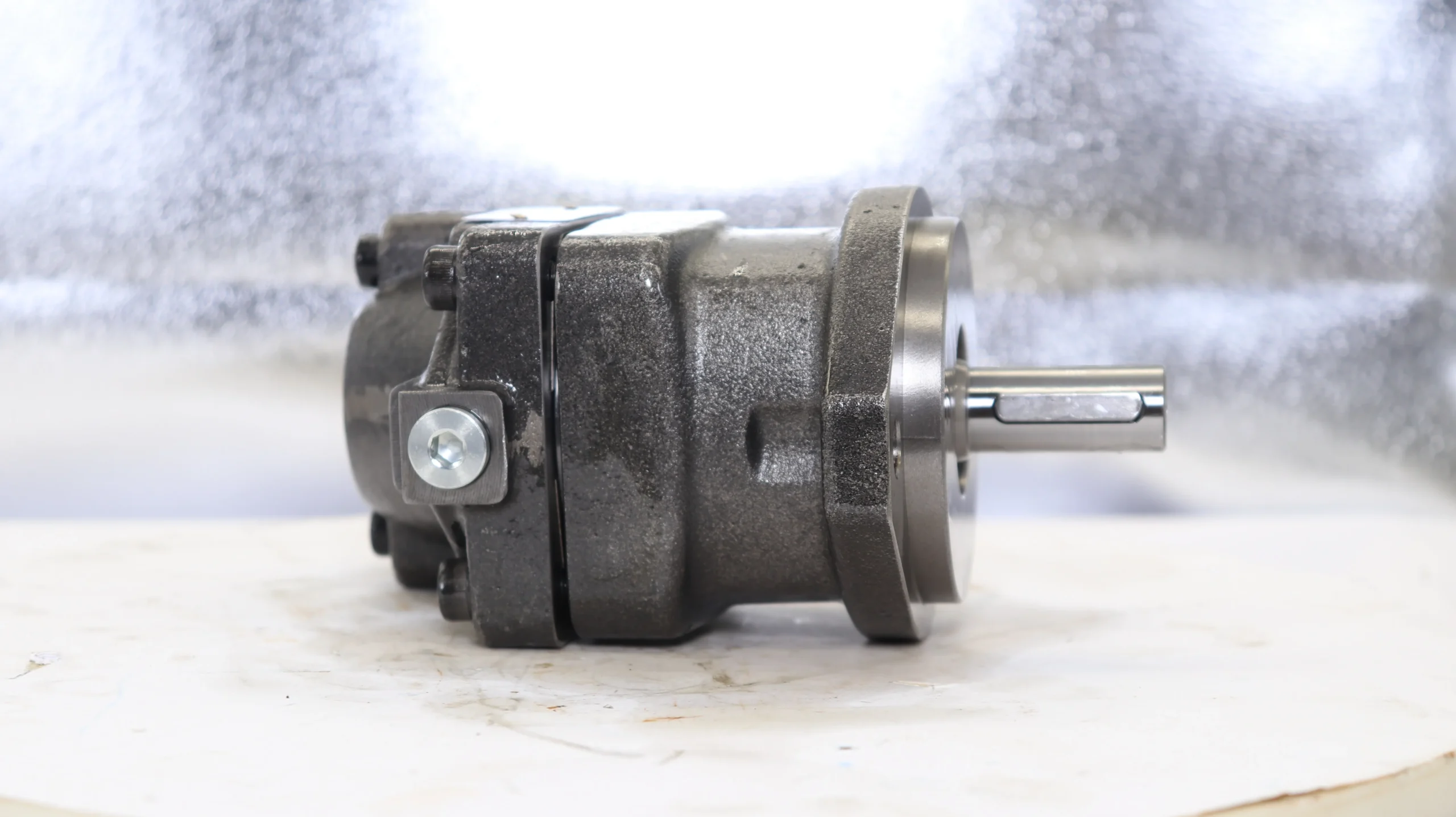

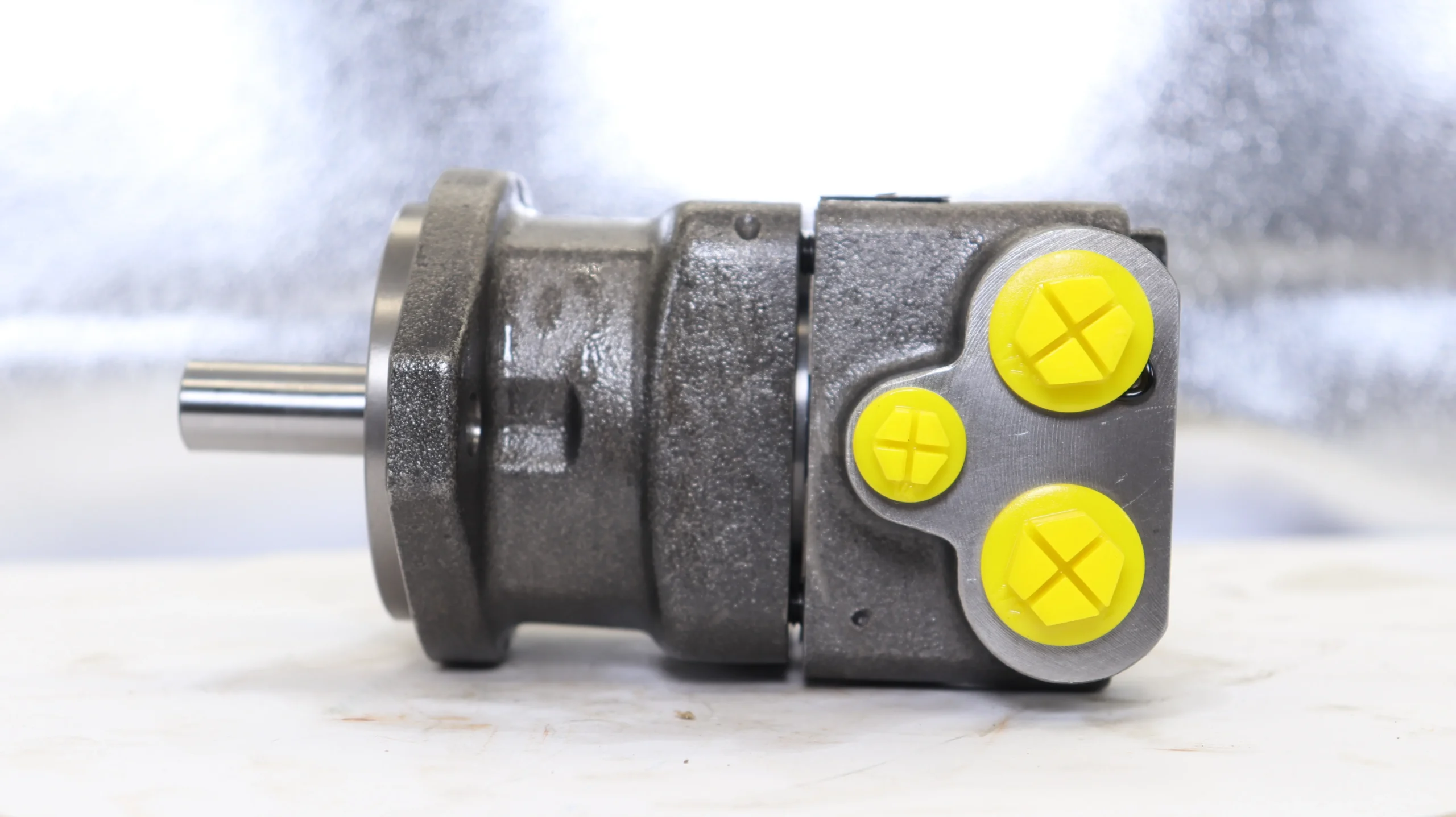

The F11 and F12 Series heavy-duty bent-axis fixed displacement hydraulic motors and bi-directional pumps manufactured by Chengyuan Hydraulic are high-efficiency, high-speed fluid power components fully engineered to match global Parker (Commercial/Voac) industrial and mobile machinery footprints. Utilizing the legacy 40° extreme spherical-piston bent-axis architecture, this premium product series natively covers precise user-defined technical designations: including the ultra-high speed compact variants F11-005 and F11-010, the core mid-range powerhouses F11-019-SB-CS-K-000-0000-PT (ISO flange with parallel keyed drive, reinforced bearings, and PTFE seals) and F11-019-MB-CV-K-000-000-0 (SAE interface with splined input), alongside the massive torque generator F12-090. Due to the unique combination of spherical pistons and laminated structural piston rings, these units sustain operational reliability under continuous pressures up to 420 bar and severe rotational overshoot thresholds. Every single F11 and F12 unit undergoes 100% simulated load testing for dynamic bi-directional commutation response, thermal torque holding at low-velocities, and case pressure limit retention prior to shipment to ensure matching original blueprints and deliver proven 100% original-place interchangeable compatibility.

Technical Specifications :

• Core Product Framework: Parker F11 / F12 Template Heavy-Duty 40° Bent-Axis Fixed Displacement Motors & Pumps

• Model Configurations Supported: F11-019-SB-CS-K-000-0000-PT / F11-019-MB-CV-K-000-000-0 / F11-005 / F11-010 / F12-090

• Geometric Volumetric Displacements:

  • F11-005 Framework: 4.9 $cm^3/rev$

  • F11-010 Framework: 9.8 $cm^3/rev$

  • F11-019 Framework: 19.0 $cm^3/rev$

  • F12-090 Framework: 91.5 $cm^3/rev$

• Operational Pressure Envelopes:

  • F11 Series Continuous Rating: 350 bar (35 MPa / 5075 psi)

  • F12 Series Continuous Rating: 420 bar (42 MPa / 6090 psi)

  • Intermittent Maximum System Peak Limit: Reaches up to 480 bar (48 MPa / 6960 psi)

• Maximum Permissible Shaft Input Velocities:

  • F11-005 Open-Circuit Self-Priming Limit: Up to 4600 rpm (intermittent intermittent motor overshoot capability up to 14000 rpm)

  • F11-019 Continuous Operational Band: 4200 rpm (Motor configuration)

  • F12-090 Continuous Operational Band: 2500 rpm (Open-loop priming pump) / 3100 rpm (High-pressure closed-loop motor configuration)

• Fluid Control Dynamics: Fixed Displacement format, locked via a non-adjustable 40° rigid synchronization link

• Catalog Code Breakdown (SB-CS-K vs. MB-CV-K):

  • SB / MB Markers: ISO standard 2-bolt circular mounting alignment configuration (SB) versus standard SAE-B 2-bolt square flange interface (MB).

  • CS / CV Markers: Output shaft formats; CS indicates an ISO parallel cylindrical shaft with rectangular key (fitted with a Code K heavy-duty tapered roller assembly); CV represents an SAE 13-tooth involute splined drive.

  • PT/000 Markers: Specialized fluid flange surface options with integrated porting blocks for rear instrumentation or specialized flushing circuits.

• Component Net Weight: F11-019 clocks at approximately 11 kg; F12-090 holds at 36 kg.

Key Technical Advantages:

• Legacy 40° Bent-Axis High-Stiffness Structural Geometry: Moving beyond restrictive 20° swashplate designs, the F11 and F12 series position the cylinder barrel at a severe 40° orientation relative to the drive shaft. This physical arrangement minimizes the lateral shearing vectors exerted by the pistons against the bore linings. The synchronized rotation of the drive shaft and cylinder frame spreads mechanical radial forces evenly across the main bearing array, allowing the motor to achieve high breakaway torque and elevated rotational velocity limits.

• Spherical Piston Profiles with Layered Elastic Laminated Piston Rings: The piston crown relies on an integrated spherical profile wrapped in specialized three-piece laminated steel compression rings. Under intense high-pressure spikes and thermal expansion, these layered rings expand elastically to provide self-compensating end-face contact. This restricts case leakage to less than 30% of traditional piston options, locking volumetric efficiency above 95%.

• Reinforced Radial-Axial Tapered Roller Bearings (Code K Configuration): Engineered for high-stress applications, variants like the F11-019-SB-CS-K discard standard light-load bearings for high-dynamic-capacity tapered roller assemblies paired with heavy radial needle rollers (K-type array). This allows the input shaft extension to tolerate harsh direct external radial forces and strong cyclical vibrations from direct sprockets, gear meshes, or industrial saw disc links without secondary support housings.

• Nitride-Hardened Face Valve Plates Optimized for Continuous Reversals: The main face valve plate undergoes deep nitriding treatment and multi-axis sub-micron lapping. Precision-sculpted with progressive pressure-attenuating relief grooves, the plate permits seamless bi-directional operation as a pump or motor. It softens pressure transitions during directional shifts, suppressing fluid pulsation noise for stable velocity control.

Application Areas:

• High-Velocity Mobile Machinery Attachments: High-speed direct-drive motors for industrial forestry harvester saw heads, heavy-duty land clearing brush cutters, and main mixing paddles on concrete pump trucks.

• Heavy Marine Deck Equipment & Crane Winches: High-pressure hydraulic motor arrays for offshore mooring winches, cargo hoists, and closed-loop main lift drums on marine cranes.

• High-Pressure Industrial Hydrostatic Power Stations: Functioning as an open-loop self-priming main hydraulic pump capable of managing continuous 420 bar output in extreme remote fluid power units.

Expert Maintenance Tips:

• Uncompromising Case Drain Line Mandate to Shield the PTFE Shaft Seal: Under high-pressure operation, internal bypass cooling fluid accumulates within the motor frame. You must run an independent, un-restricted case drain line from the highest port on the motor shell straight back to the oil reservoir (do not install check valves in this loop). Case pressure must be kept below 2 bar continuous (4 bar transient). Obstructing this line or running the housing dry will immediately blow out the high-temperature PTFE shaft seal, resulting in external leakage.

• Pre-Lubrication Case Priming & Fluid Column Air Bleed Rule: Because the bent-axis cylinder barrel tilts at a steep 40° angle, internal air pockets form easily during initial setup. After mounting the valve and before starting the prime mover, pre-fill the entire motor housing with clean hydraulic system oil through the highest drain port, and rotate the shaft 5 times by hand. Never crank the unit dry; doing so will cause immediate galling and thermal scuffing of the copper slider interfaces within the first 3 seconds of engine turnover.

• Enforce Loop Flushing Protocols in High-Duty Closed-Loop Circuits: When configurations like the F12-090 or F11-019 operate continuously at high RPMs within closed-loop systems or under heavy high-inertia flywheel loads, local thermal spikes occur due to continuous fluid recycling. You must integrate a high-response loop flushing valve (shuttle relief arrangement) to continuously bleed off at least 10% of the hot case oil for filtering and cooling, avoiding early fatigue fracturing of the internal bearings and piston rings.
