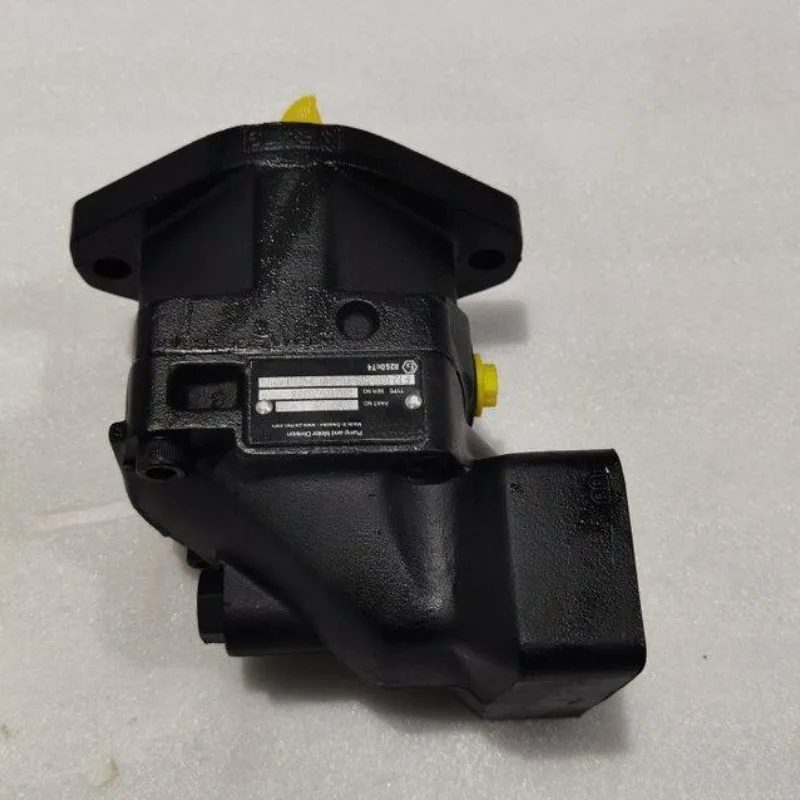

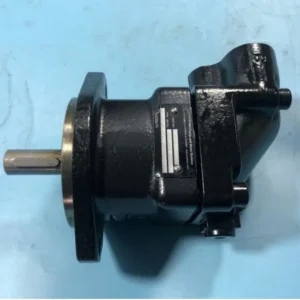

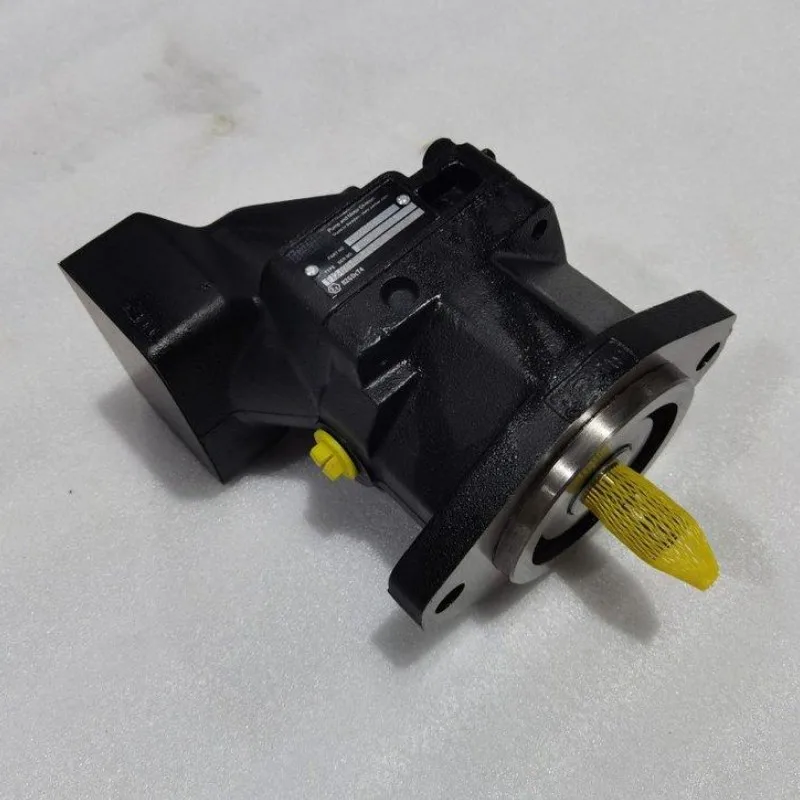

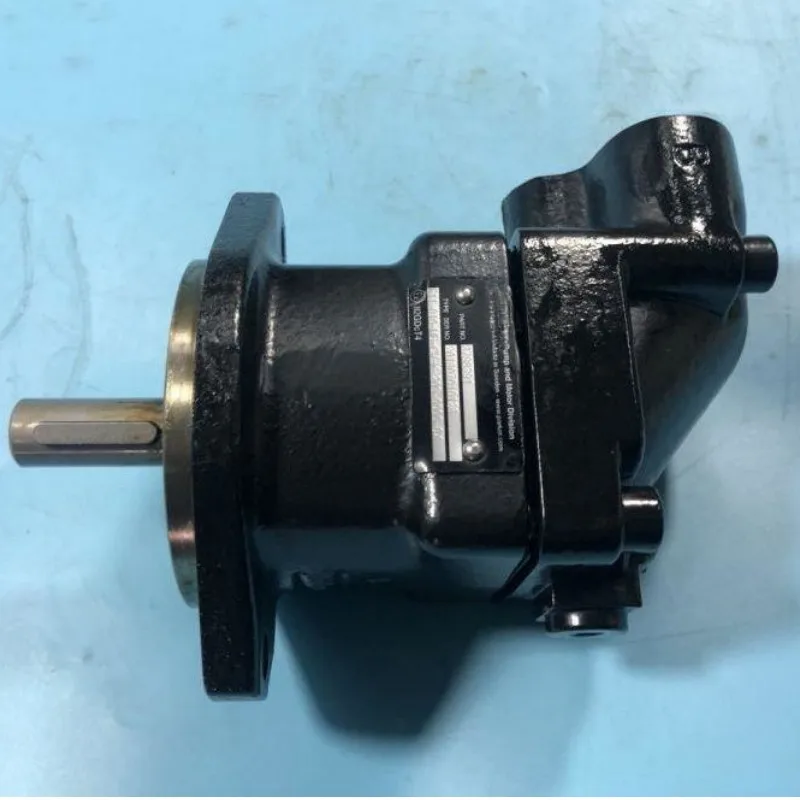

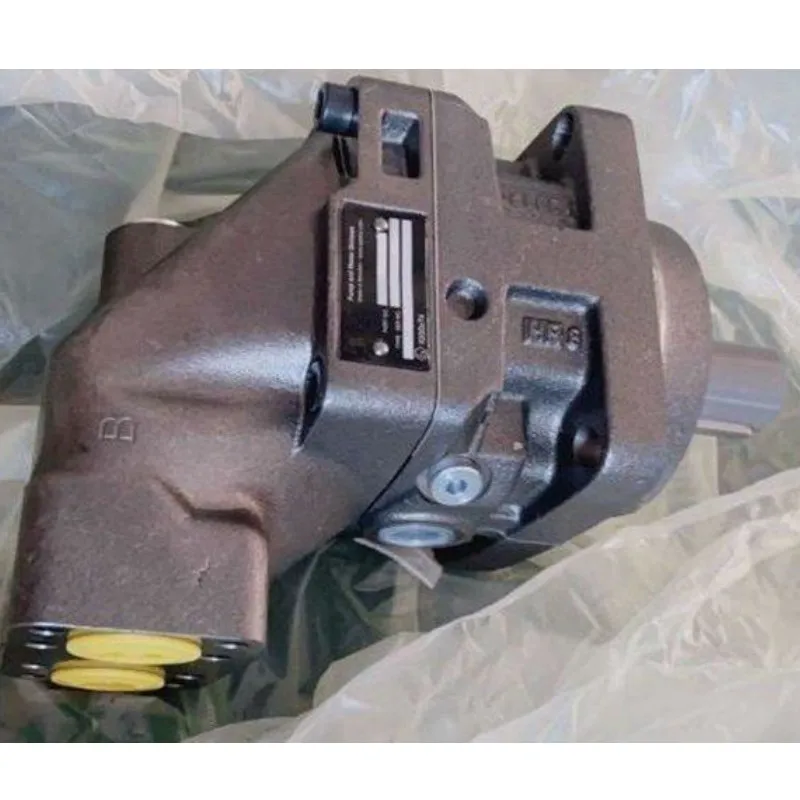

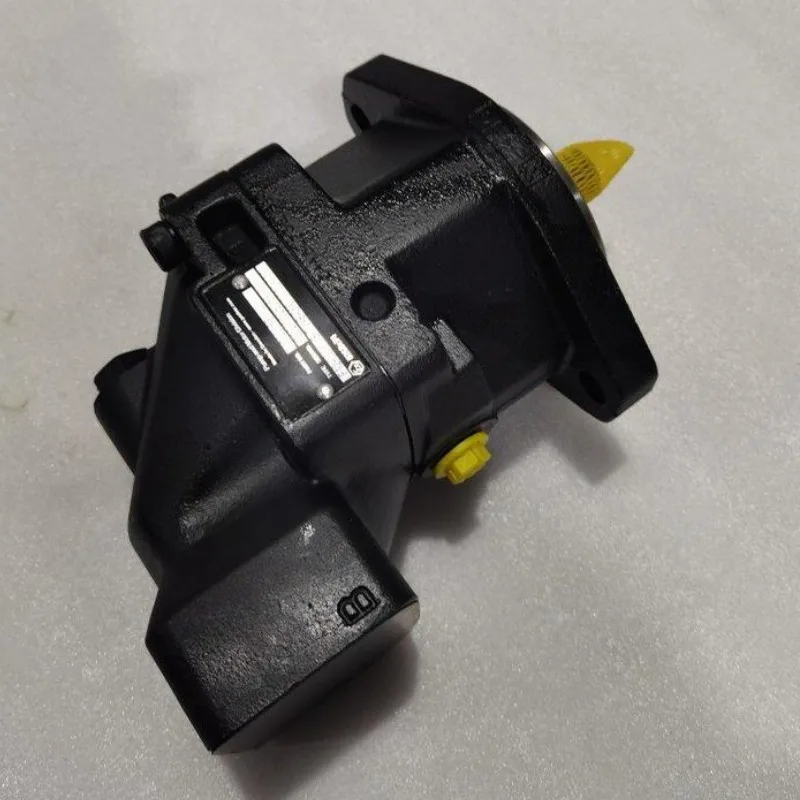

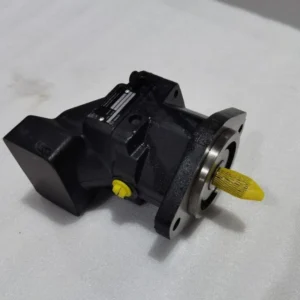

Parker F12-110 F12-060 Hydraulic Motor | F12-110-MS-SV-S-604 | High Speed Bent Axis Motor

The F12 Series high-pressure bent axis fixed displacement motors from Chengyuan Hydraulic are heavy-duty power units fully compatible with Parker engineering standards. Engineered for the most demanding environments, the F12 series utilizes a 40° bent axis design and advanced piston ring technology to deliver superior performance at pressures up to 480 bar and extreme speeds. For core models like F12-110-MS and F12-060-MS, we ensure 100% original-place interchangeability regarding mounting flanges, shaft extensions, and porting. Each unit undergoes 100% simulated full-load testing to guarantee that volumetric efficiency and durability under shock loads meet OEM benchmarks.

Technical Specifications :

• Model Variants: F12-110-MS-SV-S-604 / F12-060-MS-SV-S

• Displacement: 110.1 cm³/rev (F12-110) / 59.8 cm³/rev (F12-060)

• Nominal Operating Pressure: 420 bar (42 MPa)

• Peak Operating Pressure: 480 bar (48 MPa)

• Max Continuous Speed: 4600 rpm (F12-110) / 5800 rpm (F12-060)

• Max Intermittent Speed: 5300 rpm (F12-110) / 6700 rpm (F12-060)

• Max Torque (at 420 bar): 735 Nm (F12-110) / 400 Nm (F12-060)

• Sealing: Type S (Viton/FKM high-temp shaft seals)

• Mounting: M (ISO Metric) / S (SAE Standard)

• Shaft Ends: S (Splined) / K (Keyed)

Key Technical Advantages:

• Laminated Piston Ring Design: The F12 series features a unique triple piston ring configuration. This provides an exceptional seal that minimizes internal leakage and allows the motor to withstand rapid temperature changes (thermal shock), maintaining high efficiency even during cold starts at high pressure.

• 40° Bent Axis Geometry: The optimized 40° angle results in an incredible power-to-weight ratio. The compact design, integrated with a heavy-duty head casting, allows the motor to handle high axial and radial loads, making it ideal for high-speed applications in confined spaces.

• Superior Shock Resistance & Self-Priming: The spherical valve plate design provides excellent self-centering between the cylinder block and the port plate. Constructed from premium alloy steels, this ensures a long service life even in closed-loop systems with frequent reversals and pressure spikes.

• Rigid One-Piece Housing: Chengyuan utilizes high-strength ductile iron housings, precision-machined to ensure perfect alignment of bearings and cylinder chambers. This significantly reduces mechanical noise and vibration at high RPMs.

Application Areas:

• Forestry Machinery: Saw-head drives for harvesters (requiring high RPM).

• Mobile Equipment: Power transmission for mowers and road sweepers.

• Industrial Presses & Winches: Auxiliary drives or high-pressure winch motors in closed-circuit systems.

Expert Maintenance Tips:

• Case Drain Management: As a bent axis motor, the F12 is sensitive to case pressure. The drain line must be connected directly to the tank, ensuring the case pressure does not consistently exceed 2 bar to protect the shaft seal.

• Initial Priming: Before the first startup or after long-term storage, the motor housing must be filled with clean hydraulic oil through the highest drain port. Never operate the motor dry.

• Fluid Viscosity & Cleanliness: Given the high-speed capability, we recommend using high-quality ISO VG 32 or VG 46 anti-wear hydraulic oil. Maintain system cleanliness at NAS Grade 8 or better.
