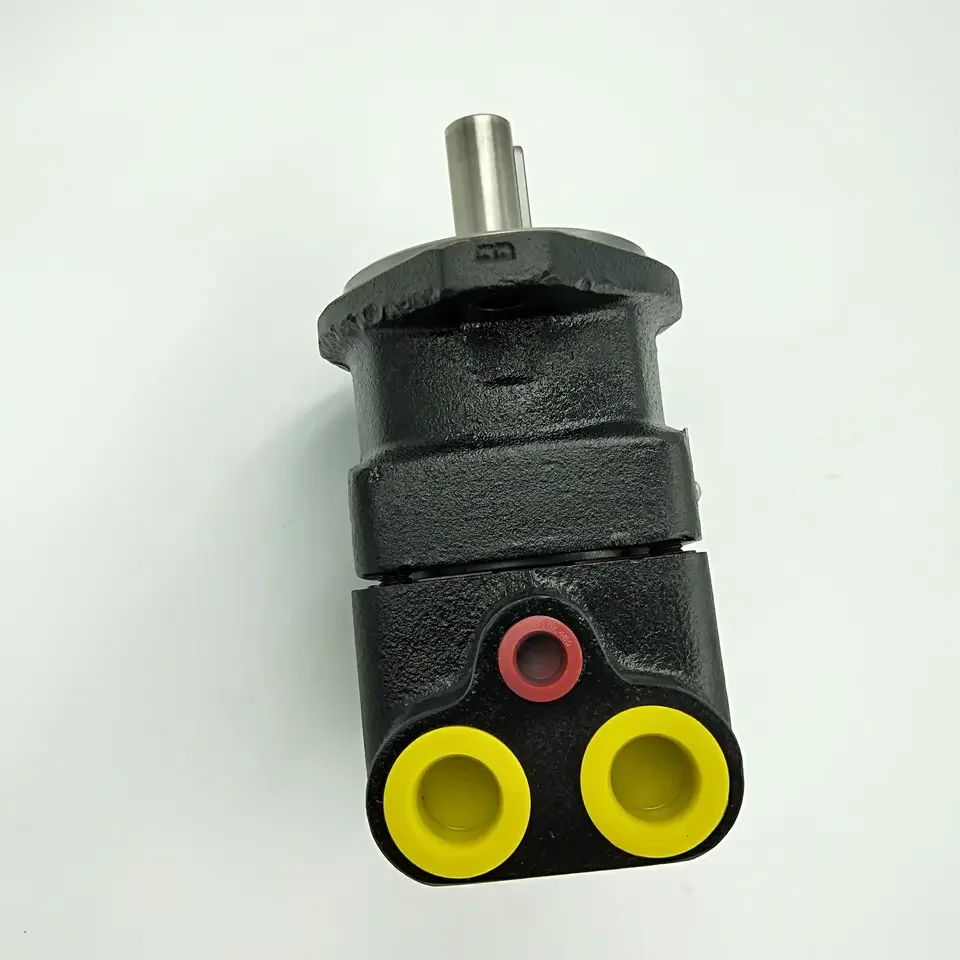

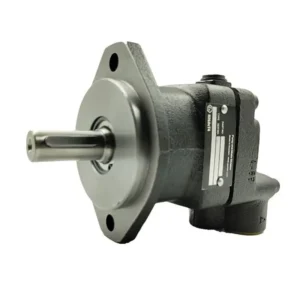

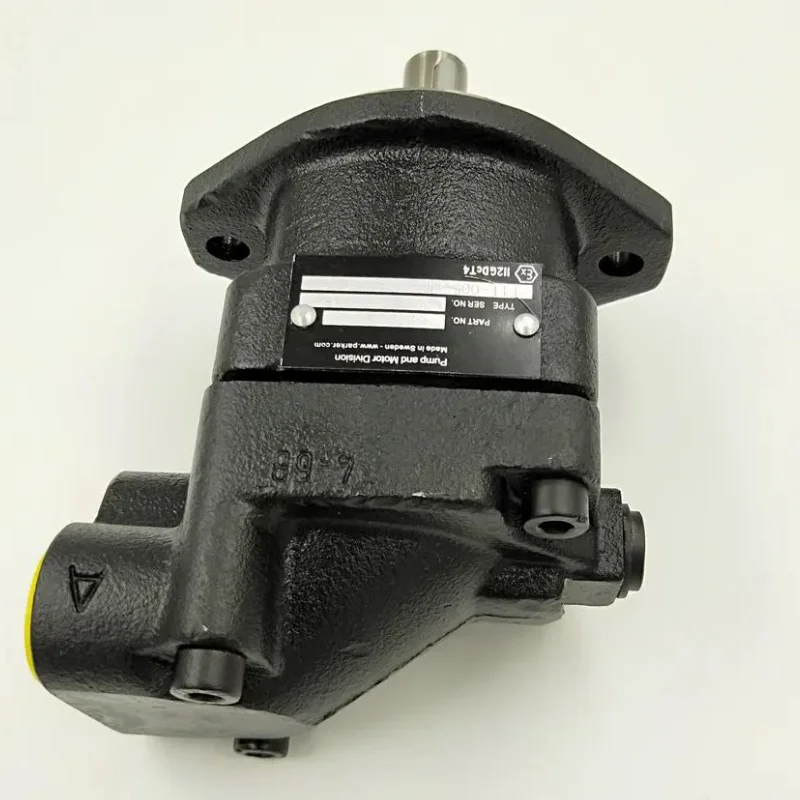

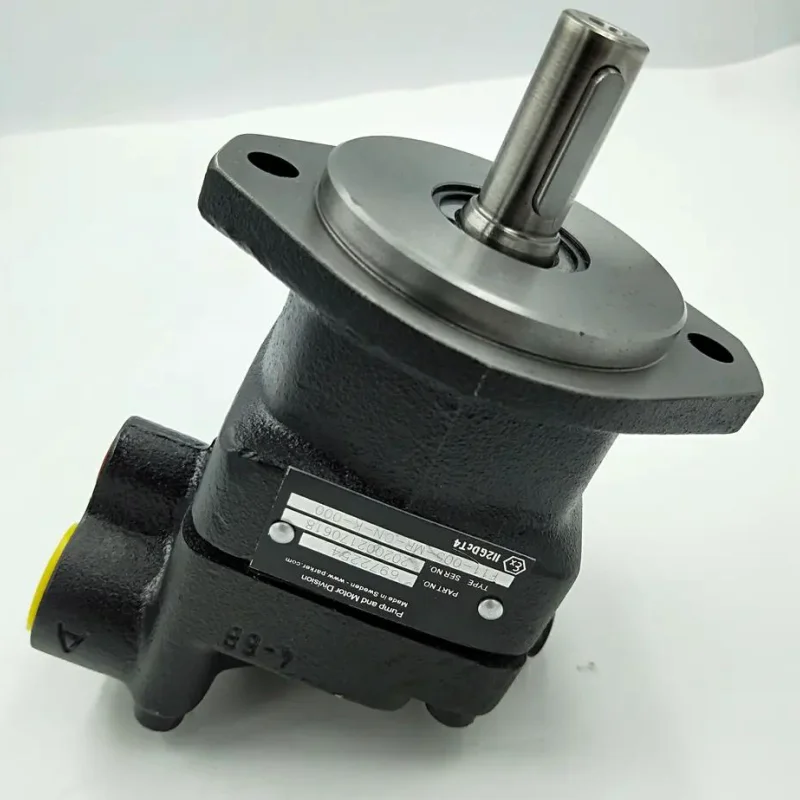

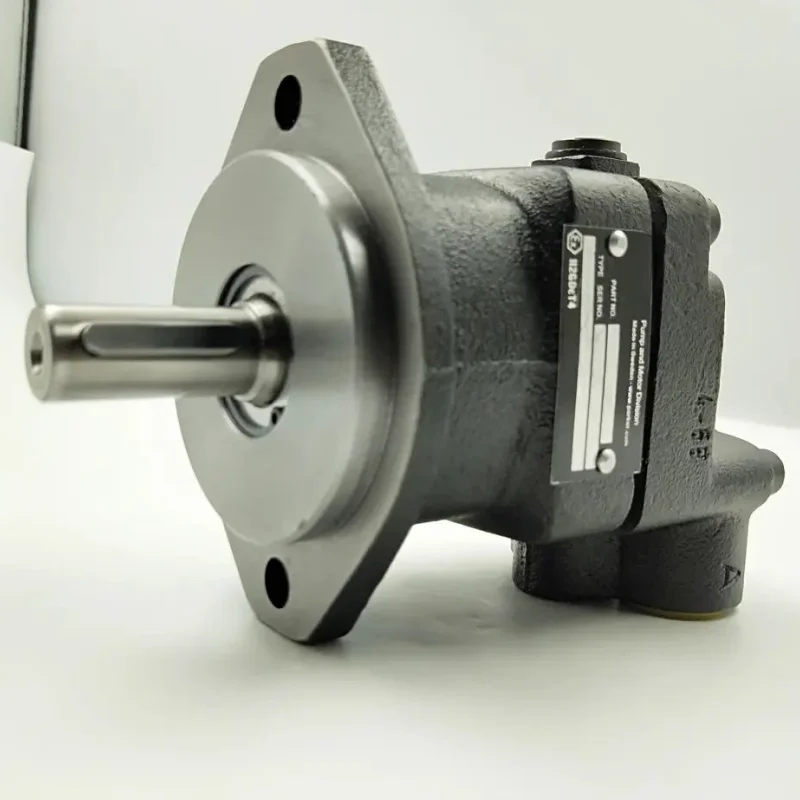

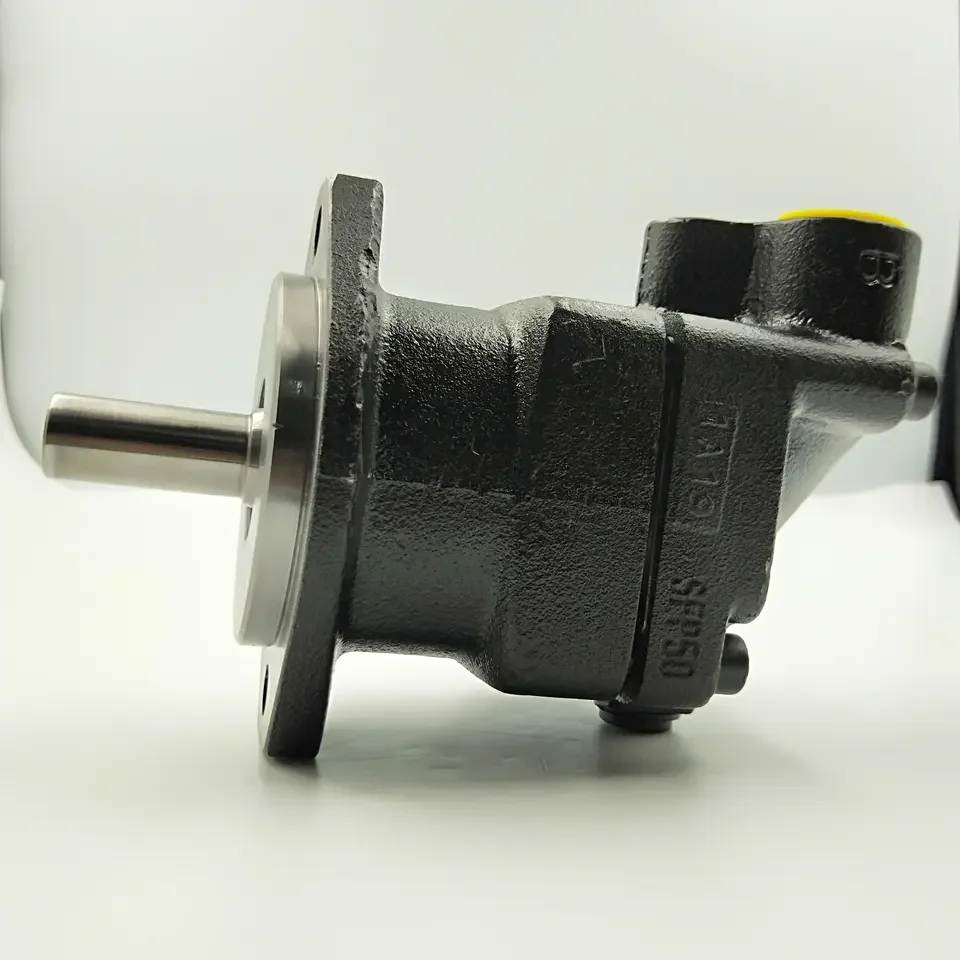

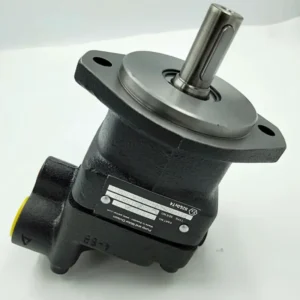

Parker F12 Series Motor F12-110 F12-125 Bent Axis Hydraulic Piston Motor

The industrial-grade Parker Compatible F12 Series Bent-Axis Fixed Displacement Hydraulic Piston Motors, manufactured by Chengyuan Hydraulic, are heavy-duty fluid power execution elements configured for extreme high-pressure boundaries, elevated rotational speed limits, and rigorous multi-directional reversal duties. Operating within both open and closed-loop hydraulic configurations, this motor series leverages a classic 40-degree bent-axis mechanical topology and high-modulus spherical piston elements to deliver exceptional starting torque efficiency, dynamic acceleration curves, and extended fatigue lifecycles under volatile structural shock loading.

This heavy-capacity component profile is precision-aligned to provide 100% direct drop-in interchangeability with premium native Parker reference part numbers, including: F12-110-MS-SV-S-000-000-P0 and F12-125-MS-SV-S-000-000-P0. Positioned within the specialized F12 mobile machinery framework, the “MS” suffix designates an enhanced, fatigue-resistant cylinder and heavy-duty bearing arrangement optimized for mobile operations, while “SV” and “S” denote standard SAE involute splined drive shafts and corresponding rear/side port face distributions.

Chengyuan’s alternative bent-axis piston motors are built to match standard SAE engineering parameters, shaft geometries, and fluid-dynamic performance curves. Every installation interface—including the SAE 4-bolt mounting flange footprint, the pitch and module of the involute splined drive shaft, and the metric/split-flange main working fluid ports—guarantees a precise match. During plant maintenance cycles or original machine assembly, engineering personnel can execute a rapid replacement without re-routing rigid high-pressure lines or altering existing mechanical mounting structures.

In demanding applications like excavator swing gears, heavy-duty cargo winches, and rotary drilling heads, hydraulic motors must continuously manage intense pressure spikes over 400 bar. To eliminate early field failures like piston cup detachment, synchronization link breakage, or face scoring typical of low-grade alternatives, 100% of Chengyuan’s F12 series motors undergo 100% strict dynamic load testing on digitized simulation benches. Verified across peak operating pressure regimes up to 420 bar, each unit is certified for volumetric integrity, cold/hot break-away torque, and low case drain leakage to ensure reliable performance.

Technical Specifications

• Product Classification: Bent-Axis Fixed Displacement High-Pressure Hydraulic Piston Motor

• Compatible Reference Platform Series: Parker / Denison F12 Heavy-Duty Mobile & Industrial Motor Frameworks

• Technical Model Coding Decoupling & Precision Parameters:

  • Replacement Reference: F12-110-MS-SV-S-000-000-P0

    • Nominal Geometric Displacement: 110.1 cc/rev

    • Continuous Operating Pressure: 420 bar (42 MPa / 6090 psi)

    • Intermittent Peak Pressure: 480 bar (48 MPa / 6960 psi)

    • Maximum Continuous Self-Priming Speed (Open Loop): 2250 rpm

    • Maximum Closed-Loop / Boost-Fed Operational Speed: 4100 rpm

    • Continuous Output Torque (at $\Delta p = 420$ bar): 736 N·m

    • Continuous Rated Output Power: 173 kW

  • Replacement Reference: F12-125-MS-SV-S-000-000-P0

    • Nominal Geometric Displacement: 125.0 cc/rev

    • Continuous Operating Pressure: 420 bar (42 MPa / 6090 psi)

    • Intermittent Peak Pressure: 480 bar (48 MPa / 6960 psi)

    • Maximum Continuous Self-Priming Speed (Open Loop): 2100 rpm

    • Maximum Closed-Loop / Boost-Fed Operational Speed: 3900 rpm

    • Continuous Output Torque (at $\Delta p = 420$ bar): 835 N·m

    • Continuous Rated Output Power: 184 kW

• Control & Construction Suffix Architecture (MS-SV-S-000-000-P0):

  • “MS”: Mobile Motor Standard configuration optimized for high-frequency shock loading across off-highway equipment.

  • “SV”: High-stiffness SAE standard involute splined drive shaft assembly.

  • “S”: Standard SAE side and rear-facing threaded/split-flange fluid port configuration.

  • “000-000-P0”: Fixed displacement structure without integrated loop flushing valves or speed sensing arrays, equipped with heavy-duty NBR/FKM high-pressure shaft lip seals.

• Average Dry Weight (F12-110/125 Frame Grouping): Approx. 47.0 kg (103.6 lbs)

• Target Hydraulic Oil Cleanliness Standard: Must strictly adhere to ISO 4406 20/18/13 parameters or better

Key Technical Advantages

• 40° Extreme Bent-Axis Spherical Piston Topology: The physical drive shaft centerline is oriented at a 40° angle relative to the cylinder block axis, incorporating spherical multi-ring piston heads. Compared to traditional 20° swashplate designs, this large bent-axis orientation significantly reduces lateral piston forces against the cylinder walls, minimizing friction. The self-sealing spherical rings provide excellent fluid containment and high rotational acceleration, easily managing overspeed conditions up to 4100 rpm.

• Self-Aligning Spherical Valve Plate Matrix: The mechanical interface between the cylinder barrel and the valve plate utilizes a precision-ground spherical configuration. This spherical interface self-aligns dynamically during high-speed rotation, ensuring effective face sealing. Integrated noise-damping fluid channels smooth pressure transitions to lower flow pulsation and acoustic signature while maintaining a volumetric efficiency above 95%.

• Heavy-Duty Tapered Roller Shaft Bearing Arrays: The main drive shaft is supported by dual pre-loaded, oversized tapered roller bearings. This bearing configuration directly absorbs severe radial and axial forces from gear mesh alignments, belt drives, or cable drum loads, eliminating shaft deflection to protect the main lip seals and extend operational life under high-load conditions.

• Monoblock High-Ductility Cast Iron Housing: The external motor casing is cast from high-density ductile iron and precision machined on 5-axis CNC centers. This rigid casing minimizes structural deflection when exposed to 480 bar peak pressure pulses, maintaining accurate geometric alignment between the cylinder block and drive shaft to prevent synchronization binding or uneven component wear.

Application Areas

Chengyuan’s high-performance replacement F12-110 / F12-125 bent-axis piston motors deliver dependable mechanical output and high torque capacity across punishing machinery layouts:

• Heavy Marine Deck Machinery & Cargo Winches: Powering high-capacity mooring lines, cargo winches, and marine crane hoist drums requiring stable lifting control and reliable braking under full load.

• Heavy-Duty Construction Rotary Drives & Swings: Serving as the primary drive motor for rotary piling heads, drilling rigs, and the 360-degree continuous rotation circuits of large crawler excavators.

• Specialty Off-Highway Mobile Fleet Propulsion: Integrated as heavy wheel-hub or track drive motors within asphalt road milling machinery, large agricultural harvesters, and heavy-duty industrial transport vehicles.

Expert Maintenance Tips

• Prior to Initial Machine Startup, Pre-Fill the Motor Housing Cavity with Clean System Fluid via the Highest Available Case Drain Port (M22 or G3/4 Sizing); Never Attempt a Dry Dry-Jog: Bent-axis motors do not contain internal piston return springs, depending entirely on an initial oil film for lubrication across the spherical piston sockets and shaft drive joints upon startup. Starting a dry motor can score or weld these precise interfaces within the first second of operation, leading to catastrophic failure.

• Route the External Case Drain Line Directly Back to the Main Reservoir without Passing Through Block-off Valves or High-Resistance Filters (Maintain Internal Case Pressure Below 2 bar): High rotational speeds inside bent-axis motors mean that shaft lip seals have low tolerance for elevated backpressure. Excess resistance in the drain line will quickly blow out the shaft seal or disrupt the hydraulic balance face forces on the valve plate, leading to cylinder block separation.

• When Deploying the Motor in an Open-Loop Breaker or Dynamic Braking Downhill Configuration, Install Dual Overpressure Relief and Anti-Cavitation Makeup Valves: The F12 series slows down quickly under high inertia loads. If the main directional control valve closes abruptly while the system fluid supply lags behind the motor’s coasting intake demand, severe vacuum cavitation will occur inside the piston bores. Ensuring a steady, adequate makeup oil feed is essential for protecting bent-axis components.
