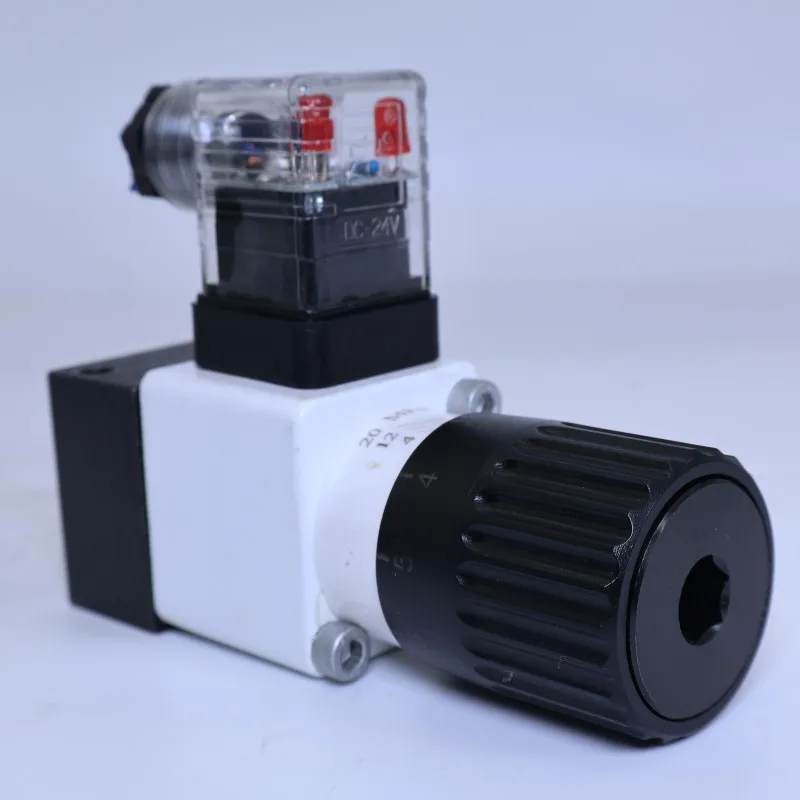

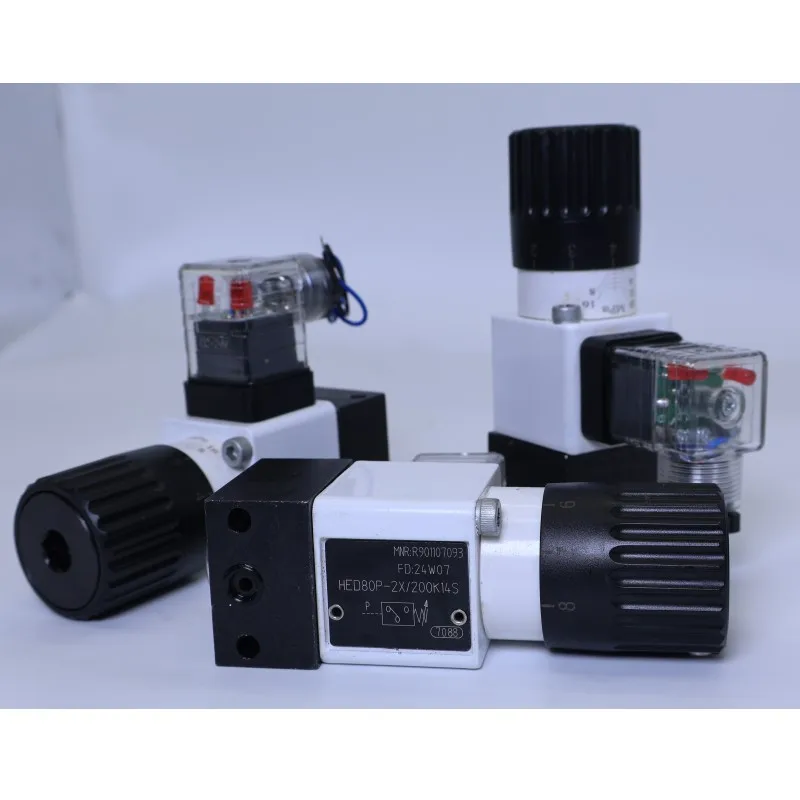

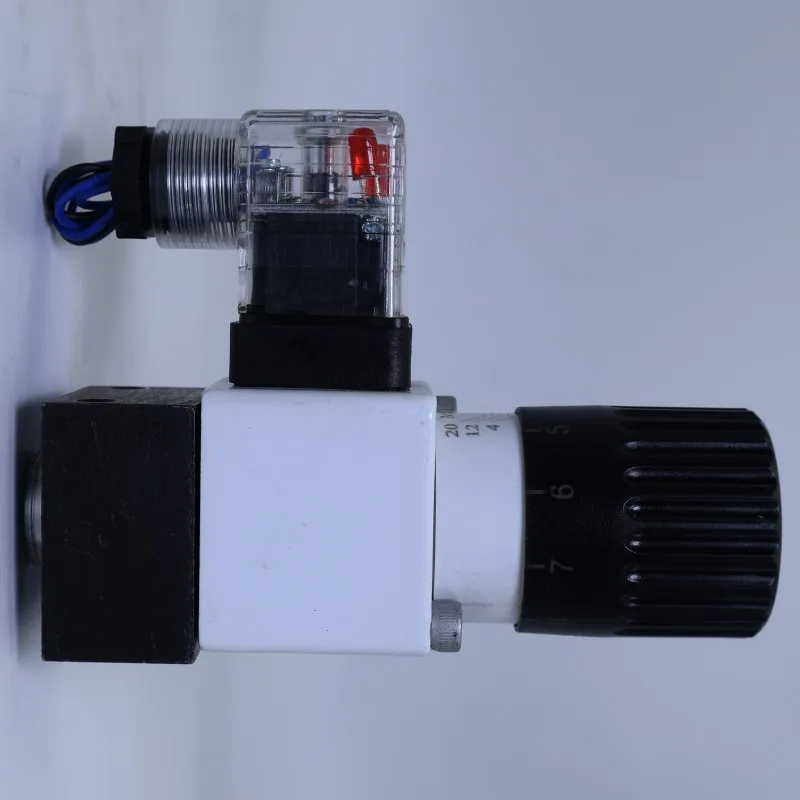

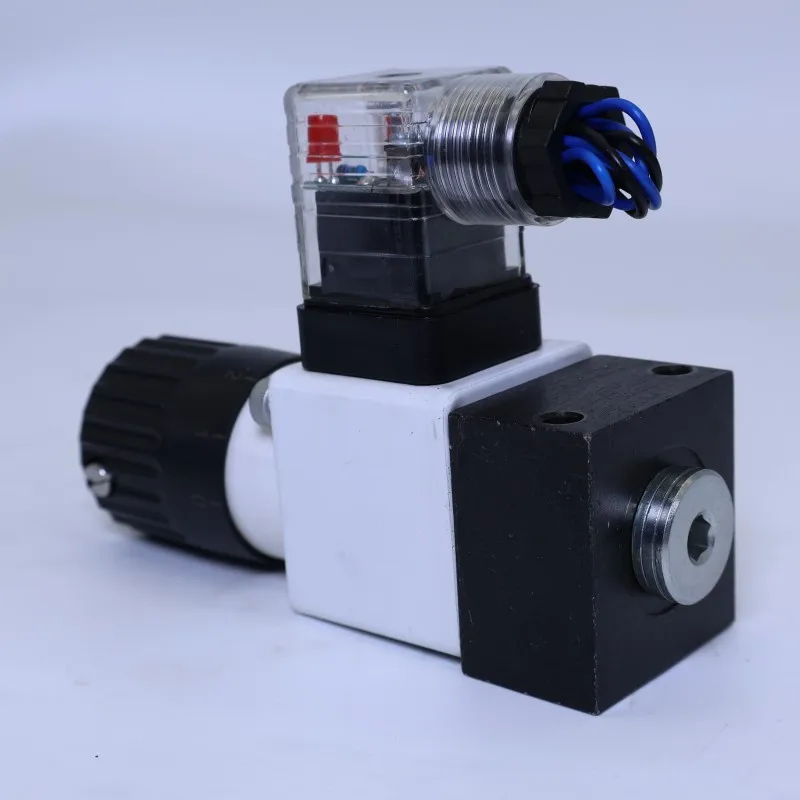

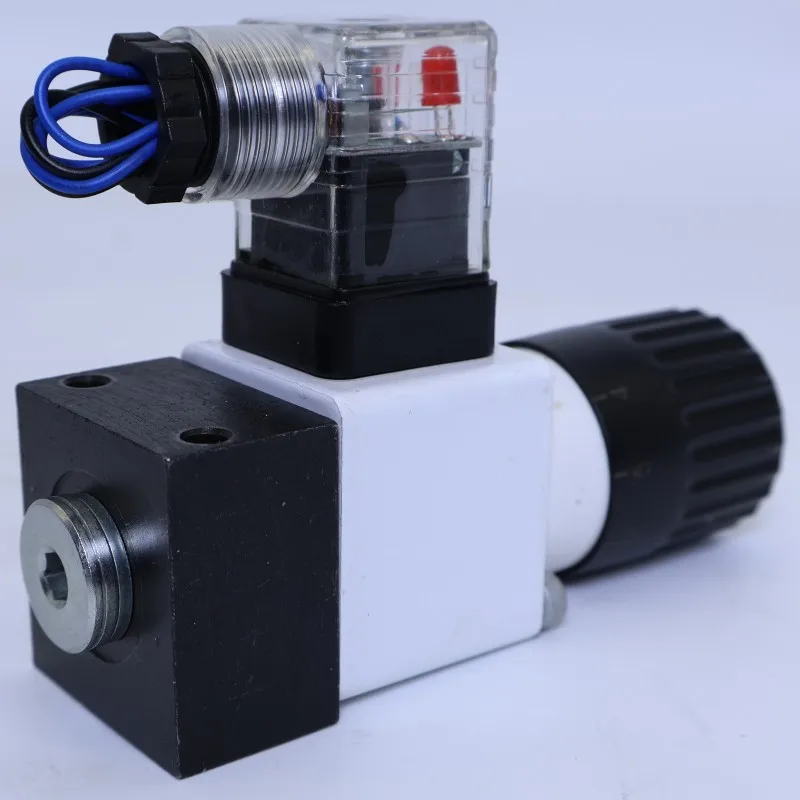

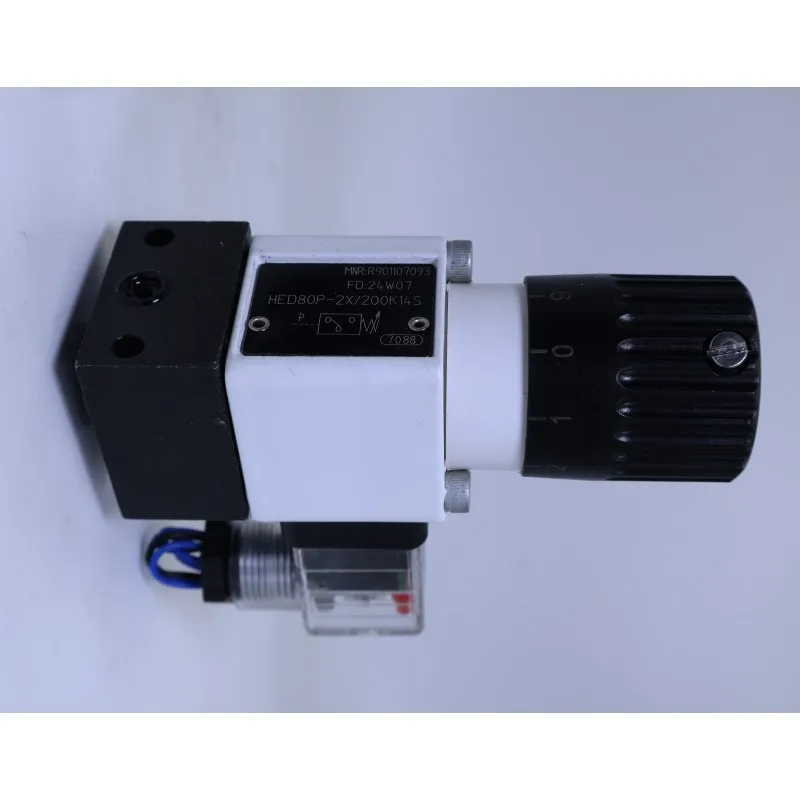

Rexroth HED8 Series Hydraulic Piston Pressure Switch

The premium HED8 Series Hydro-Electric Piston-Type Pressure Switches (comprising configuration classifications HED8OA-2X/350K14KW, HED8OH-20/350K14A, and subplate-mounted HED8OP-20/100K14S) by Chengyuan Hydraulic represent precise, military-grade electro-hydraulic monitoring components engineered for 100% direct drop-in interchangeability within global B2B fluid power distribution grids. Manufactured in absolute alignment with Bosch Rexroth HED8 (Series 2X/20) engineering specifications, this series perfectly matches original mounting matrices, connecting thread sizing, and electrical pin configurations. Industrial maintenance crews can execute instant on-site swap-outs with zero modifications required for pre-existing electronic controls or mechanical backplanes.

Functioning as the critical interface tracking hydraulic pressure surges and routing digital signals, the HED8 product line employs a high-accuracy piston-actuated design (designated by ‘O’). When the circuit pressure exceeds the preset adjustable mechanical threshold, the internal piston translates against a calibrated spring to trip a durable microswitch. At Chengyuan, zero margin for error is tolerated; every HED8 switch must complete a 100% rigorous dynamic simulation test cycle before factory release. By subjecting the switches to extreme 100 bar and 350 bar load cycling, checking for microvolt contact resistance, and logging shifting hysteresis data, we guarantee stable signal transmission and zero calibration drift under severe high-vibration industrial environments.

Technical Specifications

• Product Series Classification: HED8 Series Piston-Type Hydro-Electric Pressure Switch (Series 2X / 20)

• Core Sensor Layout: O (Precision piston/cushioned-spool tracking element, zero drain line design)

• Repeat Switching Accuracy: $\le \pm 1\%$ of the maximum preset upper-scale value

• Electrical Rating Thresholds: AC: Max 250V / 5A; DC: Max 24V / 4A (Resistive load profiles)

• Ingress Protection Rating: IP65 Rated (Achieved under secure DIN EN 175301-803 mating connector setups)

• Operational Temperature Bandwidth: -20°C to +80°C (Utilizing premium high-performance NBR/FKM seal arrays)

• Model-Specific Code Breakdowns & Engineering Metrics:

  • Model Designation: HED8OA-2X/350K14KW

  • Interface Architecture A: Pipe thread G1/4 female porting for direct inline plumbing connection.

  • Technical Generation: Series 2X (Backward and forward compatible with 20 to 29 series layouts).

  • Pressure Adjustment Envelope: 5 bar up to 350 bar (35 MPa heavy industrial tier).

  • Electrical Interface K14: Large square plug connector configuration adhering to DIN EN 175301-803 Form A.

  • Special Hardware Suffix KW: Integrated bright LED status indicator lamp providing immediate visual confirmation under field conditions, outfitted with high-vibration resistant gasket seating.

  • Net Weight: Approx 0.85 kg.

  • Model Designation: HED8OH-20/350K14A

  • Interface Architecture H: Specialized cartridge-style flange or integrated manifold pocket connection layout.

  • Technical Generation: Series 20 configuration.

  • Pressure Adjustment Envelope: 5 bar up to 350 bar (35 MPa heavy industrial tier).

  • Electrical Interface K14A: Standardized plug assembly with dedicated pin mapping and optimized transient surge suppression.

  • Net Weight: Approx 0.90 kg.

  • Model Designation: HED8OP-20/100K14S

  • Interface Architecture P: Subplate mounting configuration utilizing flush profile O-ring seal faces.

  • Technical Generation: Series 20 configuration.

  • Pressure Adjustment Envelope: 5 bar up to 100 bar (10 MPa, engineered for close-tolerance low-to-medium logic grids).

  • Electrical Interface K14S: Heavy-duty connector with gold-plated microswitch terminals or electrostatic shielding options.

  • Net Weight: Approx 0.75 kg.

Key Technical Advantages

• Precision Sharp-Stroke Piston Actuation Geometry: By avoiding fragile bourdon tubes or rubber diaphragms, the HED8 incorporates a hardened alloy steel piston assembly. The piston outer diameter is processed via micro-inch CNC cylindrical lapping to eliminate mid-travel creeping, resulting in crisp microswitch actuation and eliminating signal jitter during rapid system pressure spikes.

• High Repeatability with Low Hysteresis Performance: The adjustment compression springs are coiled from high-fatigue valve-spring steel, ensuring the mechanical repeat accuracy remains locked within $\le \pm 1\%$. This optimized internal clearance minimizes operational hysteresis, effectively preventing the electrical relay from flickering due to minor fluid pulses.

• Hex-Locking High-Rigidity Anti-Vibration Housing: The outer frame combines structural cast aluminum with high-tensile alloy steel components, finished with hard anodization and chemical nickel plating. The internal microswitch is secured onto a dampening vibration-absorbent seat, guaranteeing zero calibration drift even when subjected to continuous industrial shock loads.

• Premium Alloy Microswitch Contacts for Extended Service Life: Sourced microswitches feature heavy gold/silver alloy contact linings that resist electrical arcing and oxidation. With an overall mechanical design tested to withstand tens of millions of structural cycles, the electrical service life surpasses one million operations, substantially driving down downtime for B2B facility operators.

Application Areas

Thanks to its fast switching cycles, industrial-grade vibration dampening, and high overpressure limits, the HED8 electro-hydraulic pressure switch series is widely deployed across automated locking and safety interlock networks:

• Automated Machinery & Precision Machine Tools: Real-time workpiece clamping pressure tracking in CNC machinery, top-dead-center interlocking safety protection for heavy hydraulic pressing blocks, and automated metal scrap shear overrides.

• Plastic Injection & Heavy Industrial Molding Equipment: Pressure-hold terminal stage signal controls on high-speed injection molding lines, mold-close tonnage verification for rubber vulcanizing machines, and safety warning networks for heavy central power stations.

• Heavy Metallurgical Mills & Hydraulic Power Packs: Real-time fluid delivery monitoring across steel rolling mill central lubrication lines, automated accumulator charging station limit tracking, and power plant servo actuator security loops.

Expert Maintenance Tips

• Always Engage the Secondary Locking Screw Post-Adjustment: Once the target switching pressure is established via the top adjusting bolt (clockwise increases pressure, counter-clockwise decreases it), the integrated internal hex-locking set screw must be torqued down. This prevents high-frequency machine resonances from backing out the adjustment mechanism.

• Ensure Accurate Alignment of the Subplate O-rings: For the subplate-mounted HED8OP-20/100K14S, tighten the four mounting fasteners in a crosswise pattern. Ensure the high-elasticity Viton O-rings sit flush inside their designated seats to prevent micro-leakage, which can degrade pressure transfer efficiency to the piston chamber.

• Mitigate Inductive Load Contact Arcing via External Suppression: Direct routing of the pressure switch micro-contacts into heavy inductive loads (such as high-wattage DC solenoid directional valves or large relays) will cause high counter-electromotive force arcs during cutoff. It is highly recommended to install a flyback diode (for DC circuits) or an RC snubber network (for AC grids) to safeguard the internal switch contacts from premature welding.
