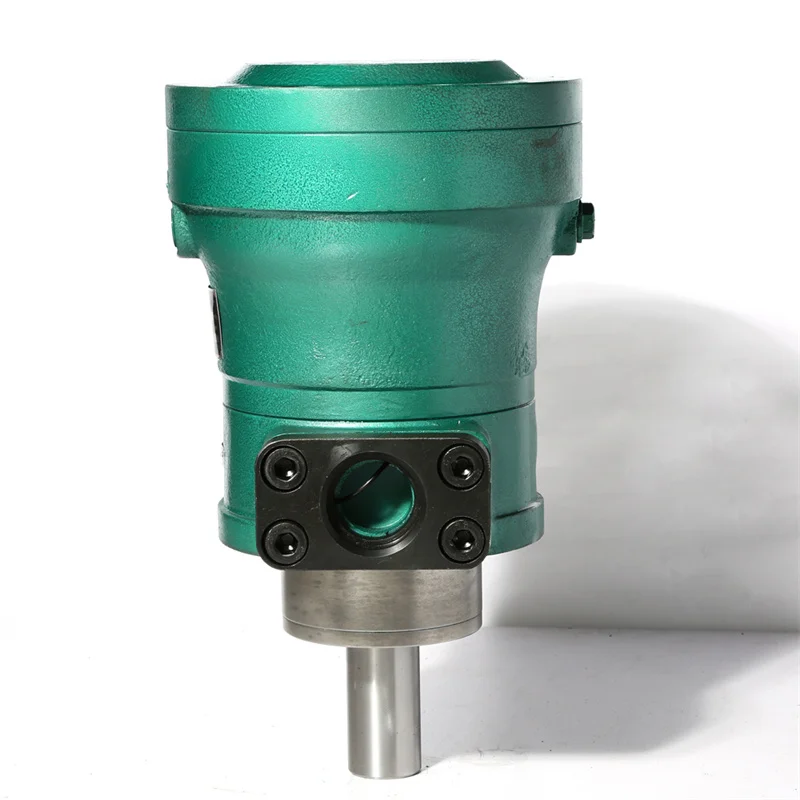

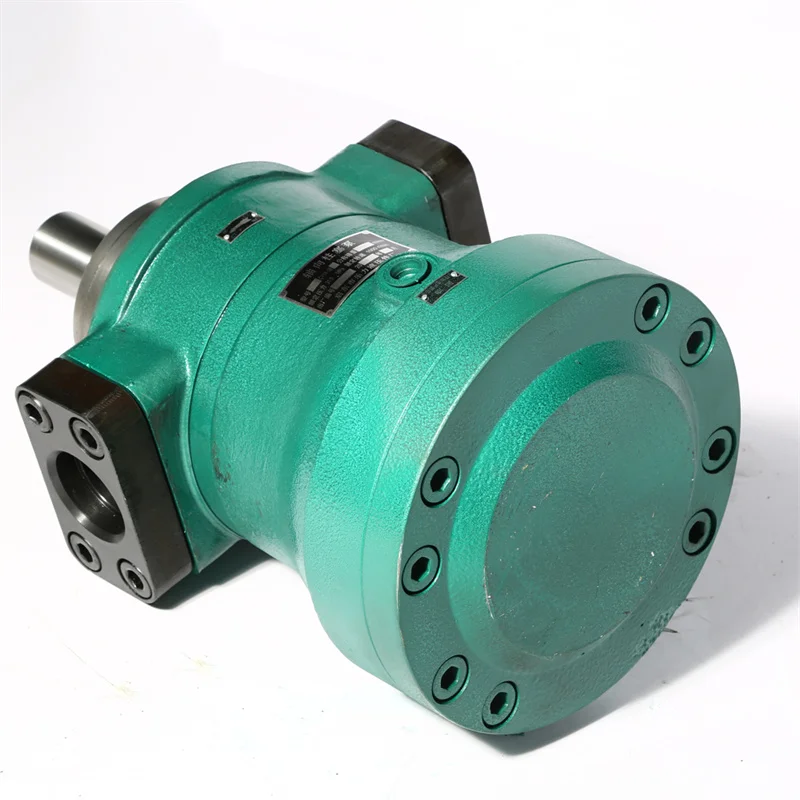

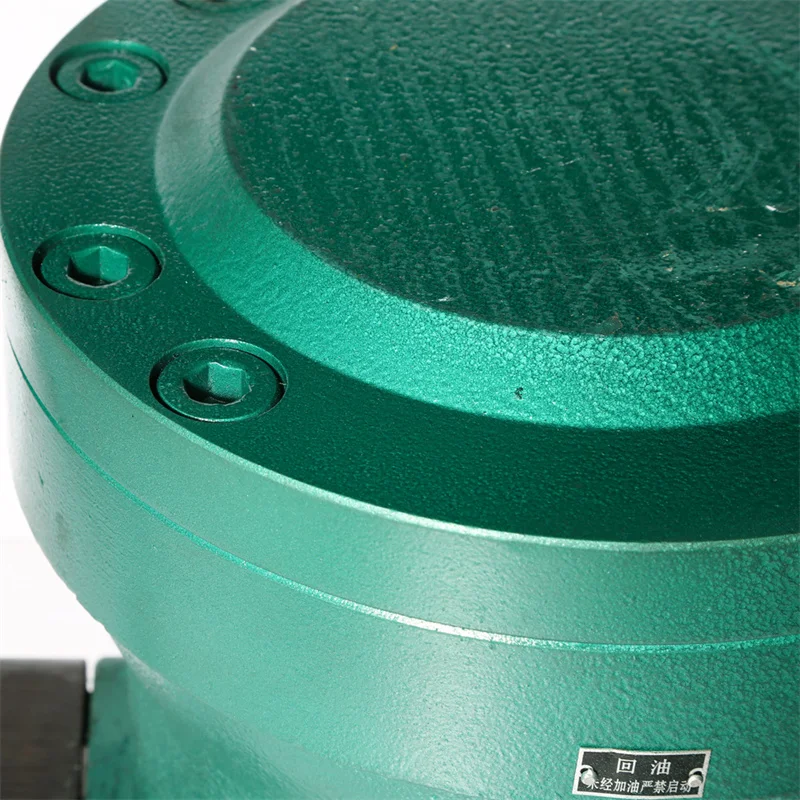

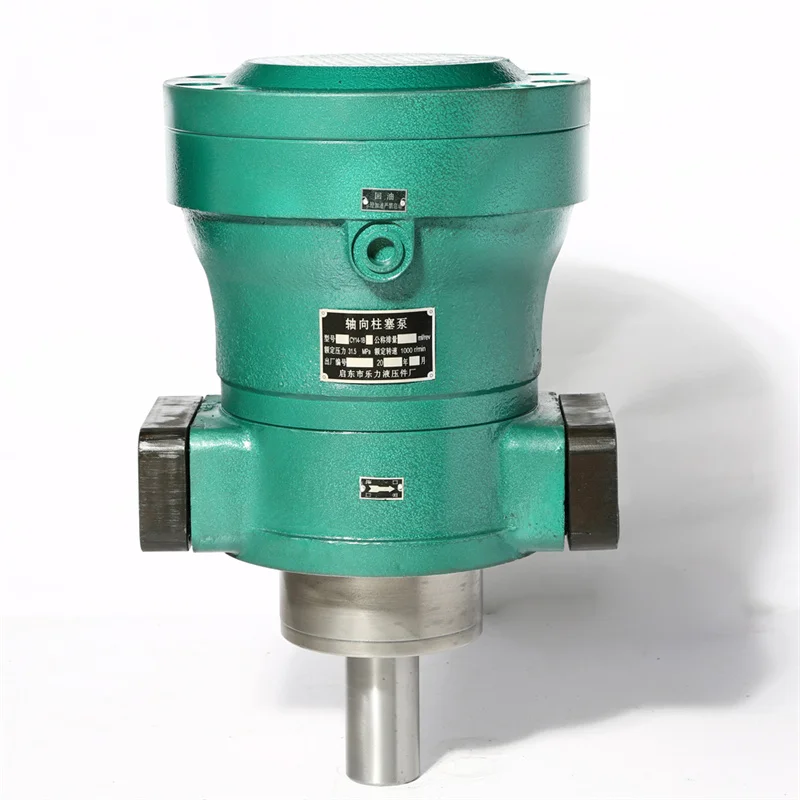

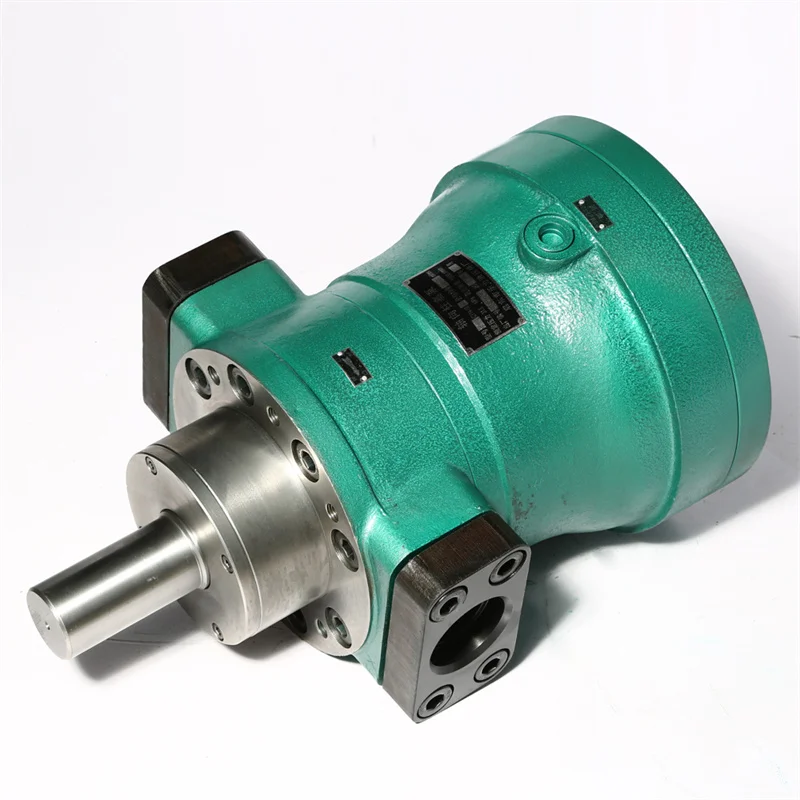

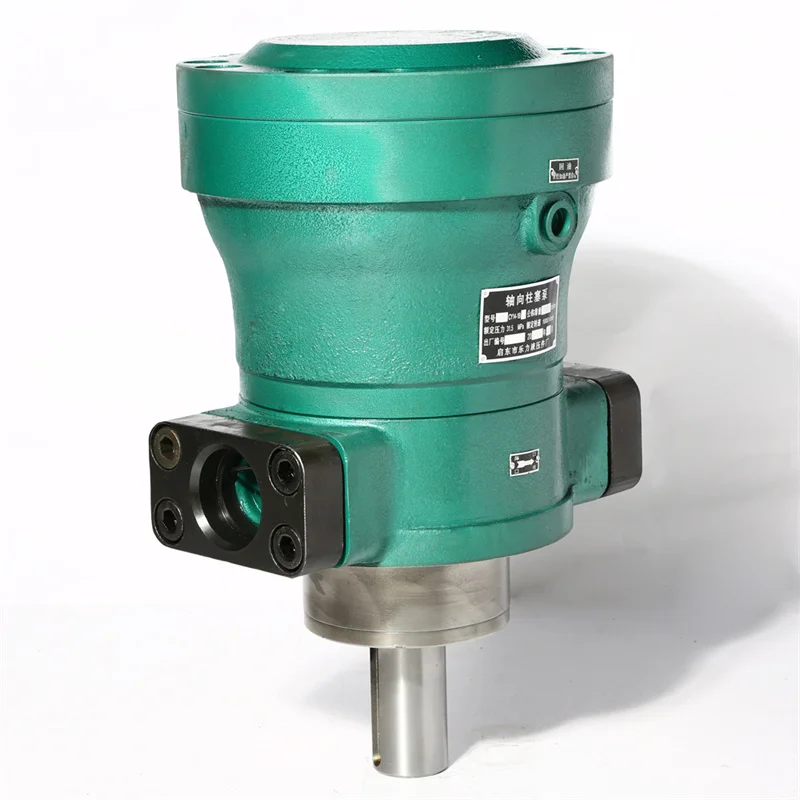

CY14-1B Series Axial Piston Pump | 160MCY 160YCY 250MCY 250YCY | 31.5MPa High Pressure Pump

The CY14-1B Series high-pressure axial piston pumps by Chengyuan Hydraulic are robust power sources designed for heavy-duty industrial applications such as forging, metallurgy, and heavy machinery. Available in 160 and 250 frame sizes, these pumps utilize a cylinder-rotating and valve-plate distribution structure, supporting rated pressures up to 31.5 MPa. We prioritize 100% Interchangeability with standard CY series pumps. Every unit is subjected to 100% simulated condition testing at our facility, ensuring peak mechanical efficiency and axial balance even under extreme pressure cycles.

Technical Specifications :

• Displacement (160 Series): 160 ml/rev

• Displacement (250 Series): 250 ml/rev

• Rated Pressure: 31.5 MPa (4568 psi)

• Peak Pressure: 40 MPa (5800 psi)

• Rated Speed: 1000 — 1500 RPM

• Control Types:

  • MCY: Fixed Displacement

  • YCY: Constant Pressure Variable Control

  • MYCY: Constant Power Variable Control

  • PCY: Pressure Compensated Variable Control

  • BCY: Electro-hydraulic Proportional Control

• Weight (160 Series): Approx. 165 kg

• Weight (250 Series): Approx. 285 kg

Key Technical Advantages:

• Hydrostatic Balance Design: The contact surfaces between the piston shoe/swash plate and the cylinder/valve plate utilize hydrostatic balancing. This minimizes metal-to-metal friction, reduces heat generation, and drastically extends service life.

• High-Pressure Reliability: Critical components are forged from high-grade alloy steel with advanced heat treatment. The central spring mechanism ensures a tight seal between the cylinder and valve plate at all pressures up to 31.5 MPa.

• Excellent Self-Priming: The unique structural design gives the CY series superior self-priming capabilities, simplifying the hydraulic circuit design and reducing the risk of cavitation.

• Responsive Variable Control: The YCY constant pressure mechanism reacts instantly to system load changes, optimizing energy consumption and keeping the system oil temperature stable.

Application Areas:

• Forging Machinery: Heavy hydraulic presses, bending machines, and scrap balers.

• Metallurgical Industry: Rolling mill controls and mining hydraulic supports.

• Large-Scale Machinery: Modular machine tool power units and heavy-duty lifting platforms.

Expert Maintenance Tips:

• Filtration Standard: Maintain hydraulic oil (L-HM46/68) cleanliness to NAS Class 9 or better to protect the valve plate and pistons.

• Case Drain Installation: An external drain line is mandatory for the CY series. It must be connected from the upper drain port directly to the reservoir without backpressure to prevent shaft seal failure.

• Suction Height: For optimal performance and to prevent aeration, the suction height should not exceed 0.5 meters above the oil level.
