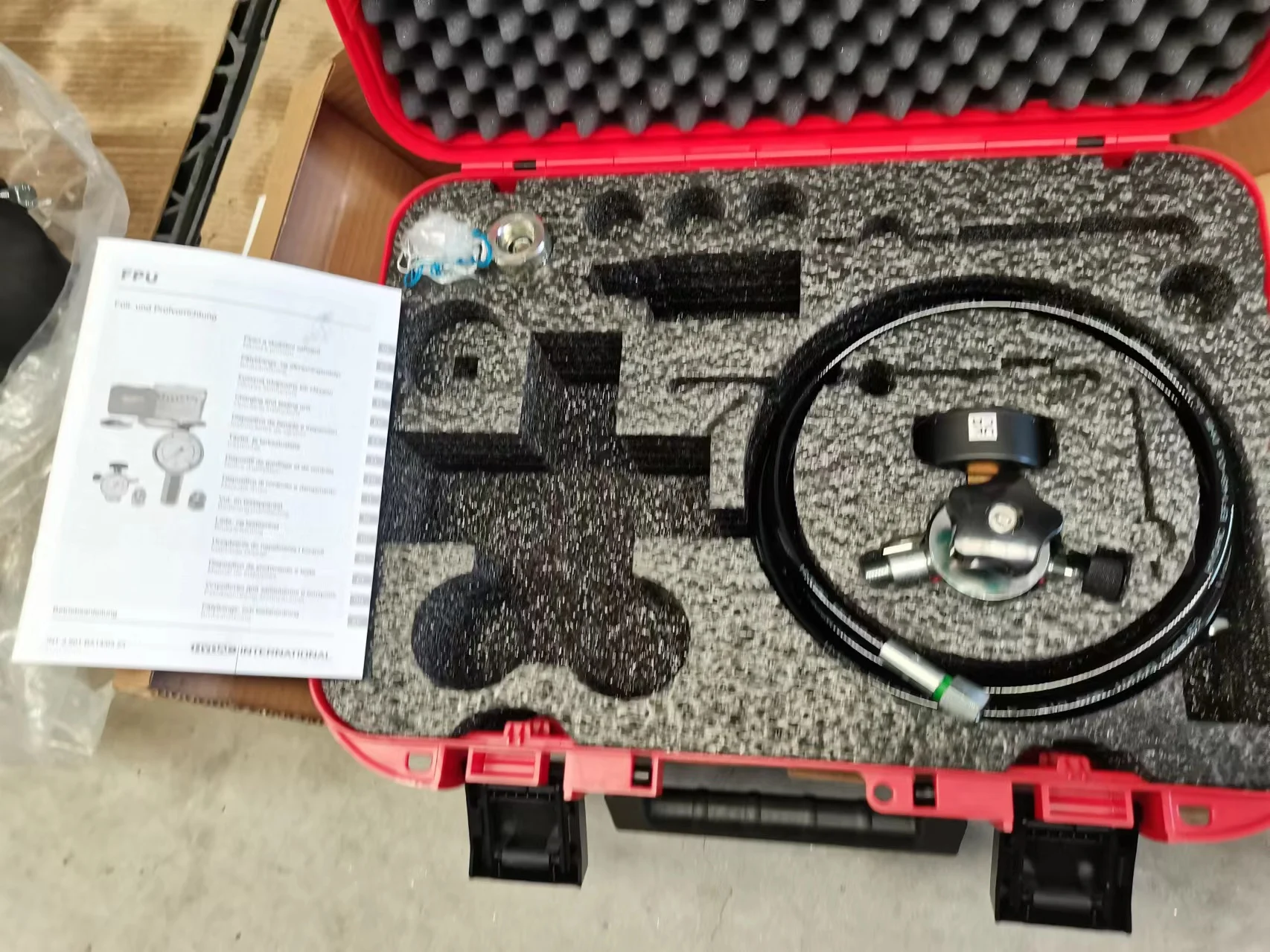

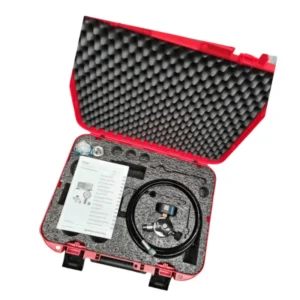

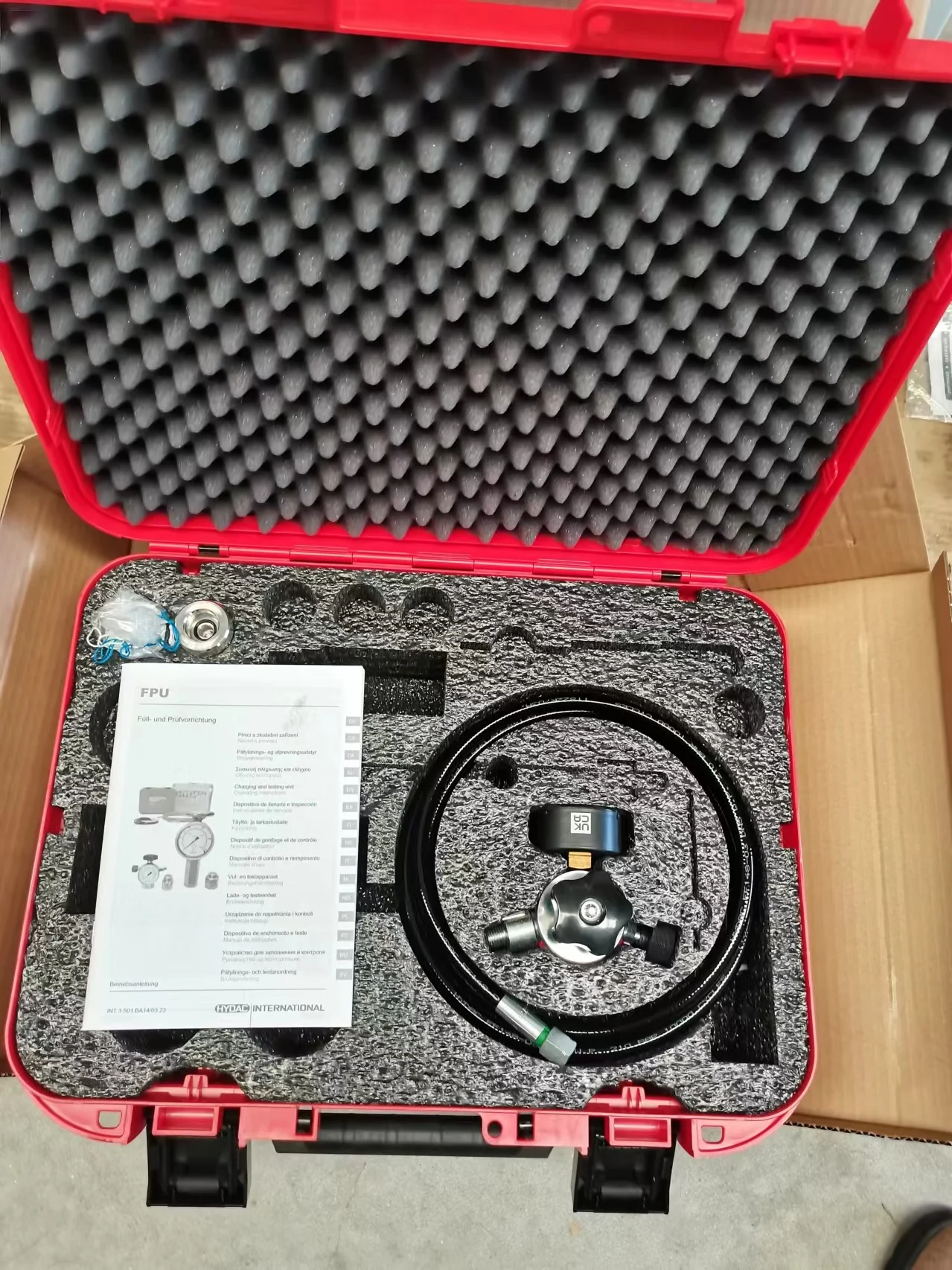

HYDAC Accumulator Nitrogen Charging Tool FPU-1-250 FPU-1-350

The heavy-duty HYDAC Compatible FPU-1 Series Industrial Accumulator Nitrogen Charging and Testing Units (featuring globally standardized marketplace variations FPU-1-250F2.5G11A3K, FPU-1-250F4G11A3K, and the ultra-high pressure heavy-capacity profile FPU-1-350-250F4G11A3K), manufactured by Chengyuan Hydraulic, stand as premium, field-service-proven maintenance fluid power control kits delivering 100% direct drop-in interchangeability within automated manufacturing plants, power plants, offshore drilling platforms, and industrial overhaul facilities. Specifically engineered for verifying pre-charge nitrogen pressures, depressurizing diagnostics, and execution of gas-replenishment across all bladder, piston, and diaphragm-type accumulators, this high-integrity matrix flawlessly aligns with original HYDAC dimensional frameworks. Maintenance technicians and field support engineers can securely hook up to any imported hydraulic power unit with zero alignment mismatch, eliminating micro-gas leakage or dangerous cross-threading risks.

Serving as the essential safety node and pressure control asset during hydraulic accumulator maintenance cycles, the gas-tightness and rupture-proof safety thresholds of the charging apparatus directly protect operator safety and determine pressure accuracy. At Chengyuan, build quality is backed by rigorous testing; 100% of our manufactured FPU-1 charging units pass 100% rigorous high-pressure gas-tightness simulation test bench criteria. Tested inside multi-point automated pressure bays, every chuck body, adjustable bleeder needle, armor-braided flexible hose, and dual-gauge assembly is evaluated at up to 1.5 times the nominal pressure rating (reaching up to 525 bar). This processing ensures millions of secure diagnostic cycles under harsh, dust-heavy, or coastal high-salinity operating conditions.

Technical Specifications

• Product Series Classification: FPU-1 Series Universal Accumulator Nitrogen Charging and Testing Instrumentation

• Maximum Permissible Continuous Working Pressure Tiers:

  • 250 Bar Configurations (e.g., FPU-1-250 Series): Maximum nominal operating threshold rated at 250 bar (25 MPa).

  • 350 Bar Configurations (e.g., FPU-1-350-250 Series): Valve matrix and heavy-duty armor hose assembly engineered to withstand up to 350 bar (35 MPa).

• Gas Delivery Charging Hose Length Specifications: Outfitted with standard premium F2.5 (2.5 meter) or F4 (4.0 meter) ultra-high pressure flexible fluid paths, featuring high-density polyamide co-extruded inner cores reinforced with high-tensile stainless steel braiding.

• Accumulator Footprint Interface Configuration: Standard G1/4 thread connection on the core FPU chuck body, supplemented by an extensive A3K zinc-plated adaptive fitting profile matching global GB, ISO, and standard OEM gas-valve layouts.

• Nitrogen Cylinder Source Interface Connection: Standard W24.32×1/14 (DIN 477 Part 1) industrial gas bottle adapter fitting (US standard CGA-580 or specialized localized fittings available upon custom request).

• Nomenclature Breakdown & System Parameter Matrices:

  • Part Specification: FPU-1-250F2.5G11A3K

    • Core Functional Type: FPU-1 standard dual-purpose diagnostic charging/testing master assembly.

    • Vessel Structural Pressure Tier: 250 bar maximum rating body block.

    • Hose Segment Length: F2.5 designates an integrated 2.5-meter industrial-grade high-pressure charging lead.

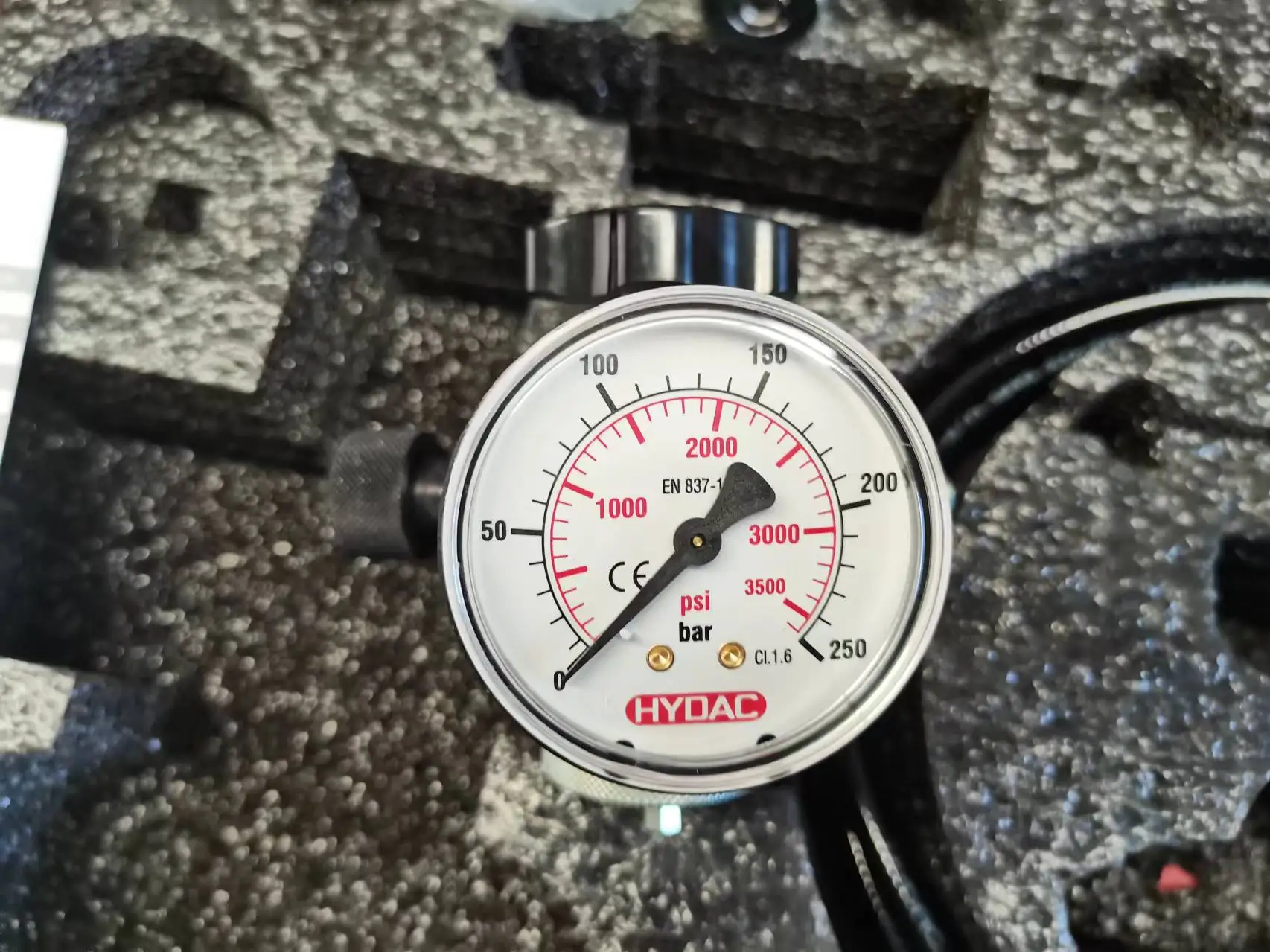

    • Pressure Gauge Matrix: G11 specifies dual shock-resistant analog pressure gauges (typically consisting of a 0-25 bar low-pressure gauge and a 0-250 bar primary gauge for high-resolution readouts).

    • Corrosion Protection: A3K trivalent zinc plating on all carbon steel adapters for high-level rust resistance.

  • Part Specification: FPU-1-250F4G11A3K

    • Shares identical pressure ratings and technical attributes with the 2.5m trim, but utilizes an extended F4 (4-meter) high-pressure charging hose line. This variant is designed for restricted-access environments where gas cylinders must remain far from the accumulator base plate.

  • Part Specification: FPU-1-350-250F4G11A3K

    • Heavy-Duty Ultra-Pressure System: Upgraded structural frame rated for 350 bar, paired with dual-gauge systems matched to specific field safety limits. Includes an F4 (4-meter) hose lead, G11 diagnostic gauge assembly, and premium A3K anti-corrosion coating. Built for demanding 31.5 MPa industrial gas replenishment schedules.

Key Technical Advantages

• Monoblock Forged Heavy-Duty Alloy Brass Chuck Body: The central core charging chuck is forged from premium Hpb59-1 brass alloy via a multi-axis CNC machining center. Internal galleries are precision polished to sub-micron smoothness, eliminating flow turbulence, edge burrs, and stress hot-spots while maximizing burst-proof safety under high-velocity gas entry.

• Low-Torque Precision Tapered Bleeder Needle Valve: Integrated directly onto the chuck flank, the exhaust micro-bleed valve utilizes an ultra-fine tapered stainless steel needle. Even when exposed to full 350 bar gas loads, operators can achieve micron-level exhaust modulation with minimal hand torque, which is essential for dialed-in pressure accuracy.

• Multi-Layer Aramid Fiber Steel-Armored Hose Assemblies: The F2.5 and F4 high-pressure gas hoses feature a co-extruded POM/PA inner core for near-zero gas permeability, wrapped in high-density aramid fibers and an outer 304 stainless steel wire armor. This design permits tight bend radii without kinking while offering excellent protection against crushing and abrasion.

• Floating Self-Centering Actuator Pin Mechanism: The actuator hand-knob at the apex of the chuck body incorporates a spring-assisted self-centering floating alignment pin. When turned to depress the accumulator internal valve core, the pin automatically centers its downward vector, protecting the internal valve stem from bending, seizing, or accidental high-output gas blowback.

Application Areas

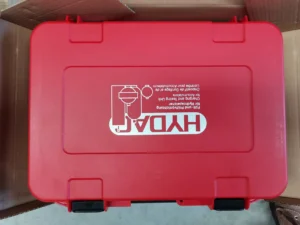

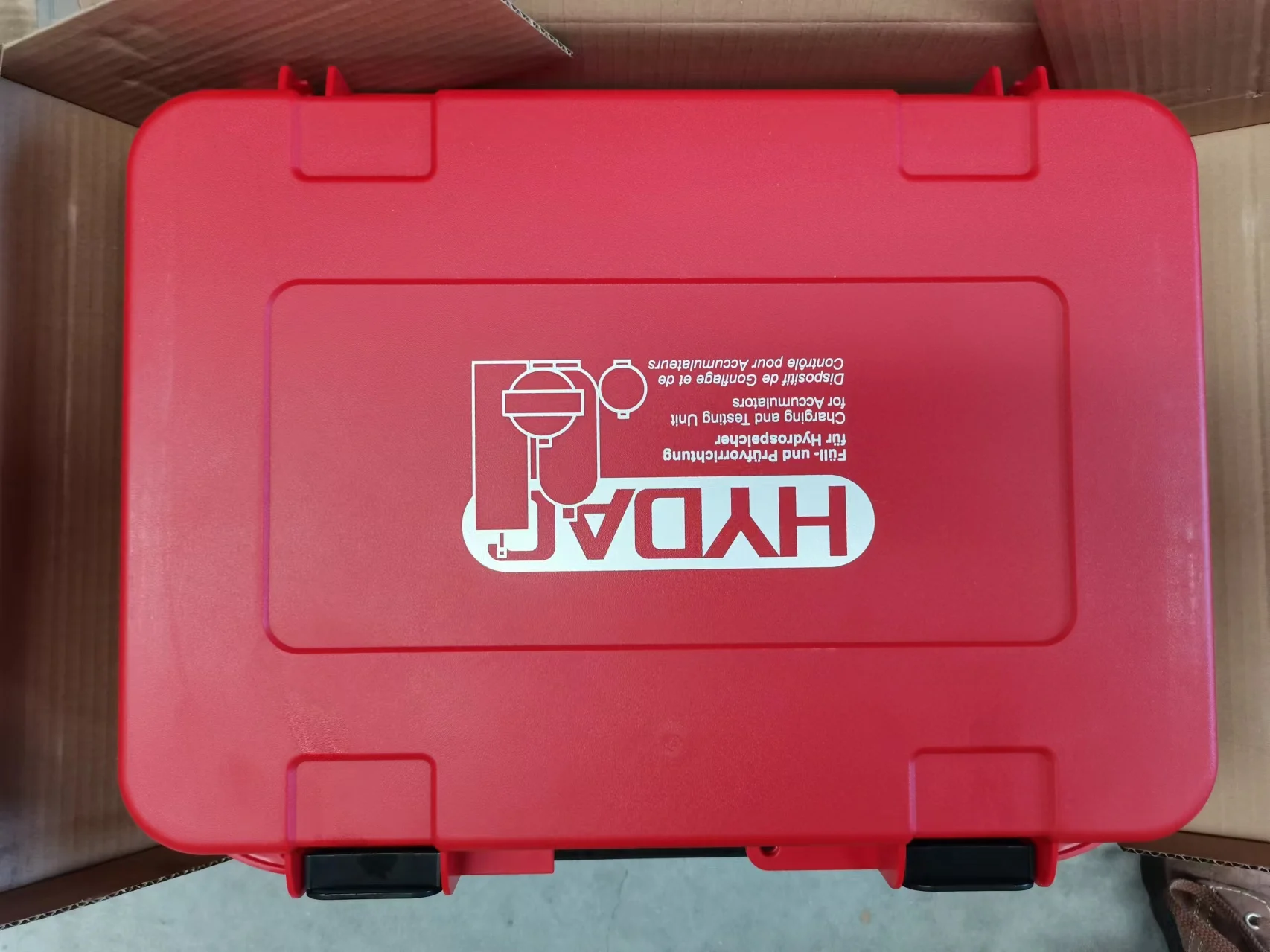

Thanks to their wide compatibility profiles, high pressure ratings, and rugged shock-proof packaging, the FPU-1 charging toolkits serve as crucial field support kits across heavy industry:

• Primary Metallurgy & Rolling Mills: Routine gas balancing and pressure checks across high-volume bladder accumulator banks on mill stand automatic gauge controls (AGC).

• Thermal Power Stations & Wind Turbine HPU Systems: Field maintenance of main turbine EH steam valve trip accumulators and pitch-control hydraulic blocks on large wind turbines.

• Heavy Industrial Processing Machinery & Die-Casting: On-site gas management for heavy-tonnage injection molders, hydraulic metal scrap balers, and mobile crane suspension control manifolds.

Expert Maintenance Tips

• Never Orient High-Pressure Hoses Towards Personnel and Verify Thread Engagement: Gas charging involves high-pressure pneumatic energy. Before opening the cylinder supply valve, check that all internal elastomeric face seals are seated and all union nuts are fully hand-tightened and locked with a wrench. Always open the primary gas cylinder valve slowly to prevent thermal shock and velocity distortion from damaging the inner valve core.

• Perform Regular Bubble Leak Tests Along Critical Connection Joints: Because the toolkits face continuous adaptive refitting and variable thread loads, internal FKM O-rings and composite gaskets are subject to normal wear. Every 20 to 30 service runs or at 6-month intervals, pressurize the tool to approximately 50 bar and apply a standard soapy water solution along all port junctions, crimp ends, and the bleeder valve to check for micro-leakage. Replace damaged seals immediately.

• Retract the Actuator Pin and Bleed Residual Line Pressure Before Disassembly: Upon completion of gas charging, turn the top actuator handle counter-clockwise to fully disengage the pin, letting the accumulator internal valve core close completely. Then, open the integrated bleed valve to vent all trapped gas from the charging line until the gauge reads zero. Never attempt to loosen or disconnect any fittings while under pressure to prevent serious injury from high-velocity gas release.
