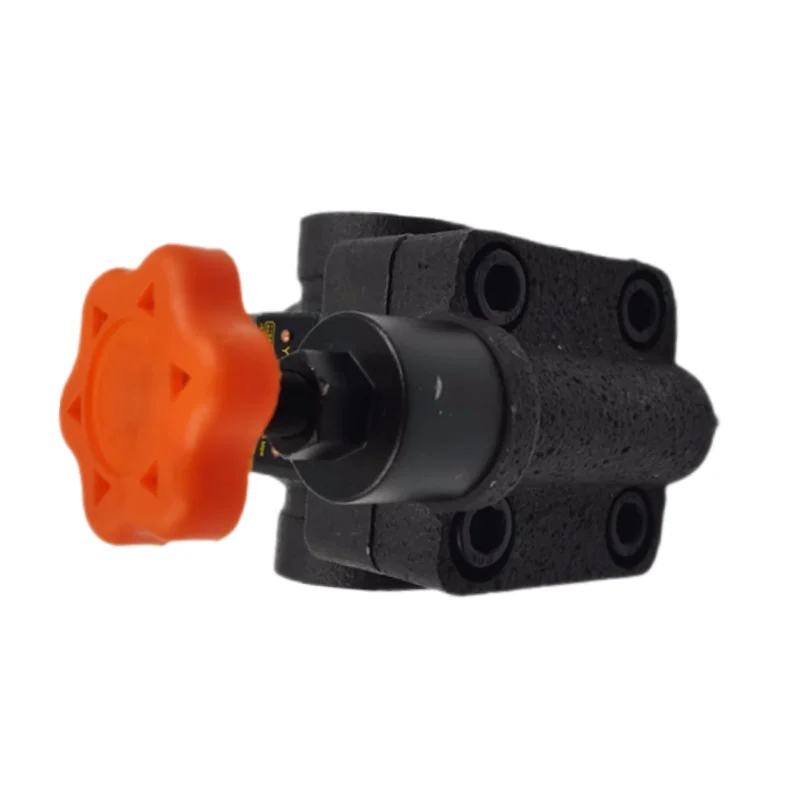

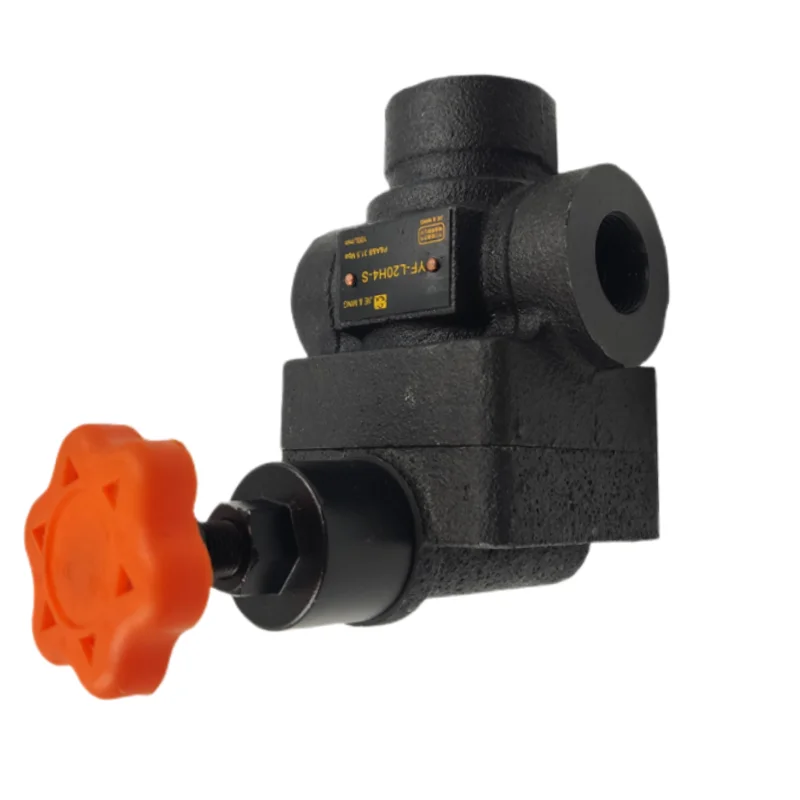

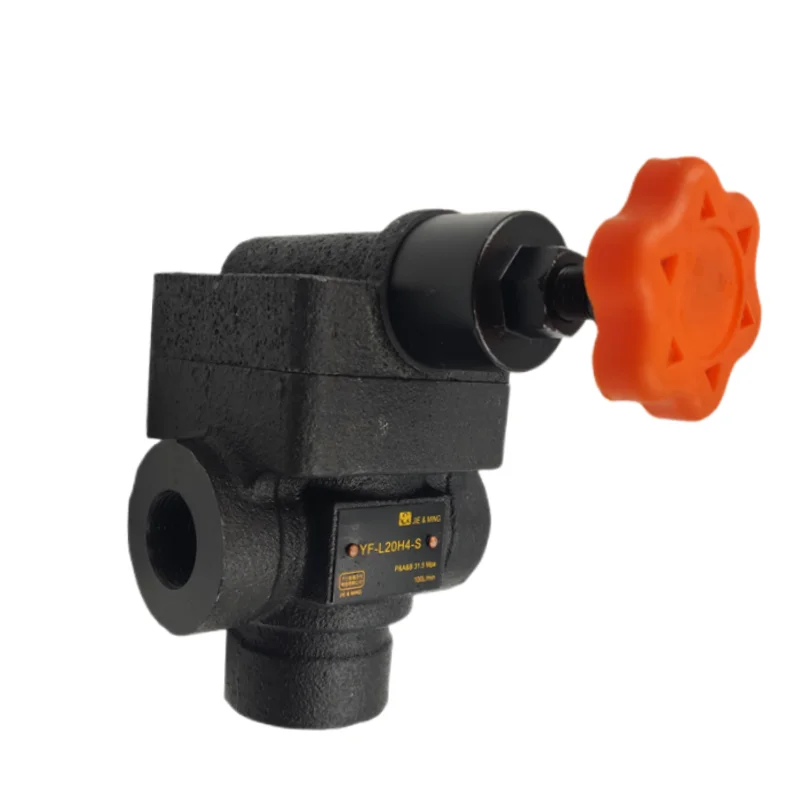

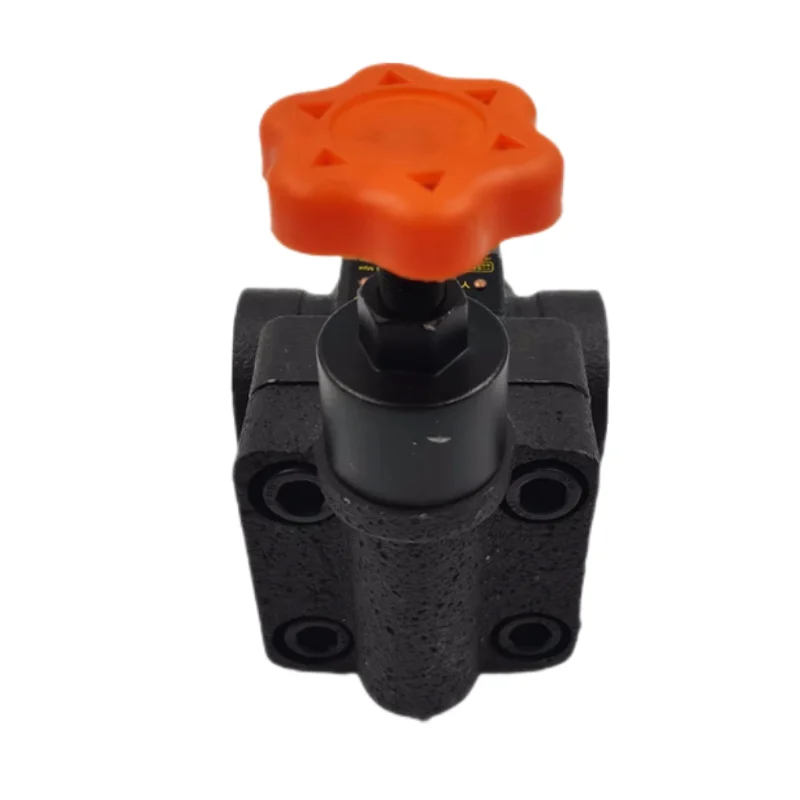

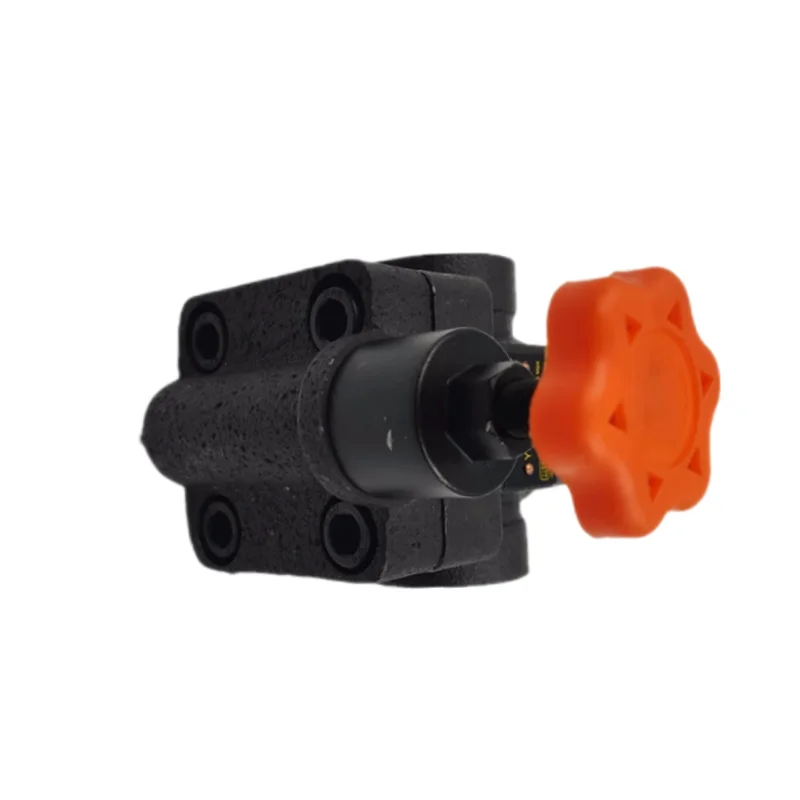

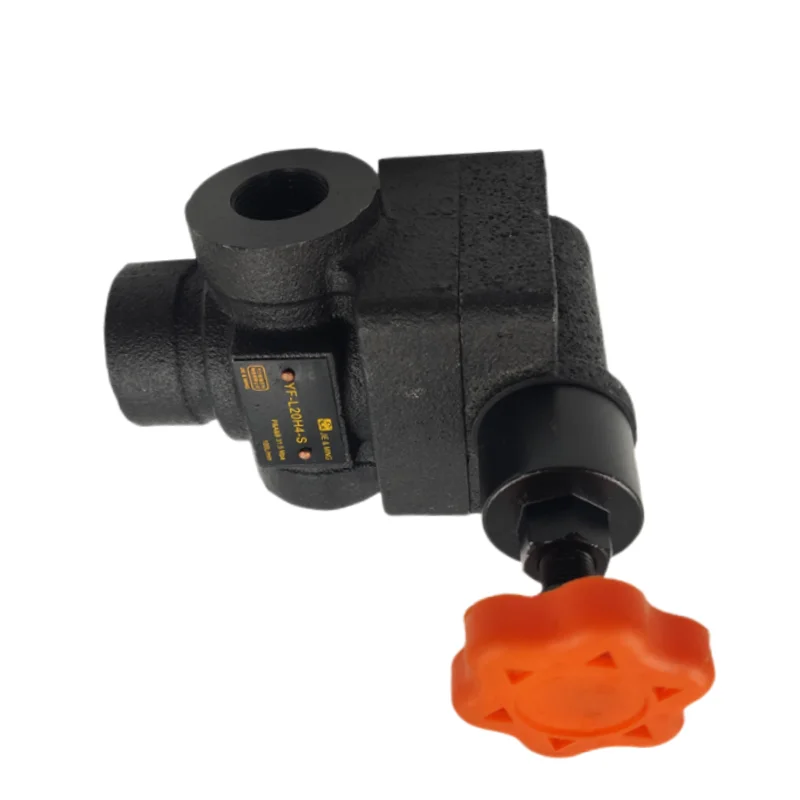

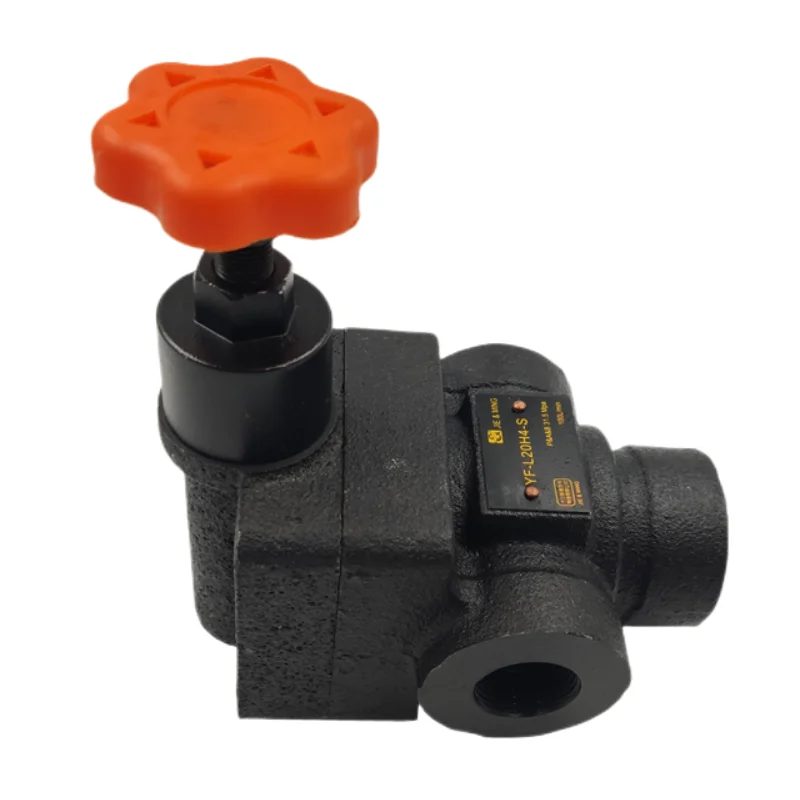

Rexroth Type YF-B10C YF-B10K YF-B10H Relief Valve | NG10 Pressure Control

The YF Series pilot-operated relief valves from Chengyuan Hydraulic are high-pressure control components fully compatible with Rexroth industrial standards. Serving as the “safety guardian” of the hydraulic system, the YF-B10 maintains constant system pressure, prevents overloading, or acts as a remote pressure regulator. For core models like YF-B10C, YF-B10K, and YF-B10H, we utilize high-hardness alloy steel spools and precision-ground seats. Every valve undergoes 100% simulated opening/closing pressure testing before shipment to ensure minimal pressure overshoot and zero high-frequency whistling, guaranteeing 100% original-place interchangeability.

Technical Specifications :

• Series Model: YF Series (Pilot-Operated Relief Valve)

• Nominal Size: Size 10 (NG10 / Cetop 5)

• Pressure Grade B: 0.5 – 10 MPa (100 bar)

• Pressure Grade C: 1 – 20 MPa (200 bar)

• Pressure Grade H/K: 1.6 – 31.5 MPa (315 bar)

• Max Flow Rate: 100 L/min

• Mounting Type: Subplate Mounting

• Connection: Standard ISO/DIN subplate interface

• Drain Type: Y1 (External drain/Remote control port)

• Weight: Approx. 3.5 kg

Key Technical Advantages:

• Two-Stage Pilot Structure: By utilizing a pilot-stage and main-stage spool linkage, the YF series provides a much smoother pressure-flow characteristic curve compared to direct-acting valves, effectively reducing system pressure spikes.

• Optimized Damping Orifice: The main spool damping hole is precision-machined and deburred, significantly enhancing dynamic response speed and suppressing hydraulic resonance and low-frequency noise.

• High-Pressure Alloy Steel Seat: The valve seat is heat-treated to provide excellent resistance to cavitation and erosion, maintaining a long-term zero-leakage seal even under frequent high-pressure cycles.

• Linear Pressure Adjustment: Equipped with a precision adjustment screw and lock nut, the valve supports smooth regulation from 0.5 to 31.5 MPa with a linear feel, preventing sudden pressure jumps.

Application Areas:

• Hydraulic Power Units (HPU): Acting as the main safety valve to protect pump sets from transient high-pressure shocks.

• Injection Molding & Presses: Used for system pressure setting and pressure-holding circuits.

• Metallurgical Equipment: Managing multi-stage pressure control in heavy-duty hydraulic systems.

• Industrial Machinery: Suitable for all types of high-pressure hydraulic power systems.

Expert Maintenance Tips:

• Maintain Oil Cleanliness: The pilot stage has very small orifices. We recommend system filtration of NAS Class 9 or better to prevent fine particles from clogging the damping hole, which can cause the valve to fail (stuck open or closed).

• Setting Procedures: Never force the adjustment screw to its limit. Slowly increase pressure clockwise based on actual system load while monitoring the pressure gauge.

• Remote Control Lines: If using the Y1 port for remote pressure regulation, ensure the remote line does not exceed 2 meters to prevent pressure lag or oscillation caused by fluid compressibility.
