Sauer-Danfoss 90 Series Hydraulic Motor & Pump | 90M 90R 90L | SPV2/089-R6Z

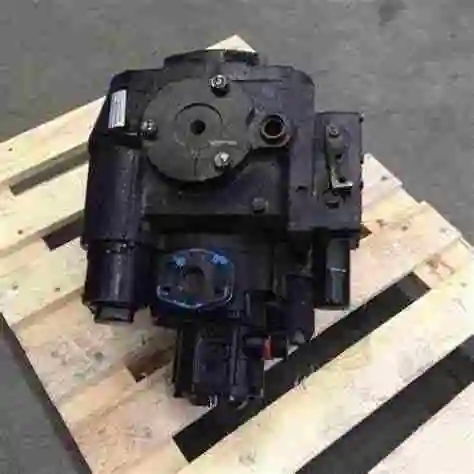

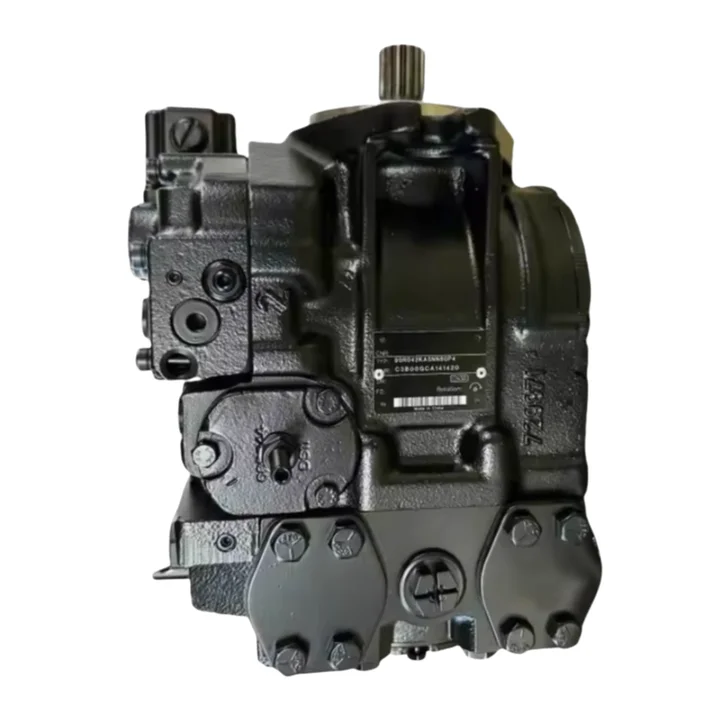

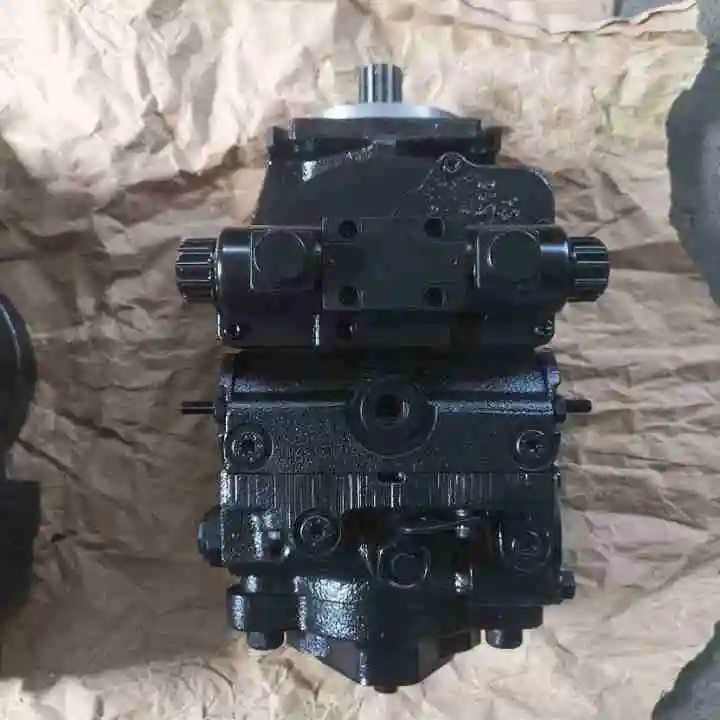

The 90 Series axial piston pumps and motors (including 90M fixed/variable motors, 90R/90L variable pumps, and SPV2/089 specifications) by Chengyuan Hydraulic are heavy-duty components engineered for high-pressure closed-circuit hydrostatic transmissions. Fully compatible with Sauer-Danfoss (90 Series) technical standards, these units offer 100% original-place interchangeability. Renowned for high power density and extreme pressure ratings (up to 480 bar peak), the 90 Series is built for reliability. Through 100% simulated condition testing, we ensure that every unit maintains peak volumetric efficiency under extreme loads and rapid reversals, making it the premier drive solution for mixers, pavers, and heavy construction machinery.

Technical Specifications

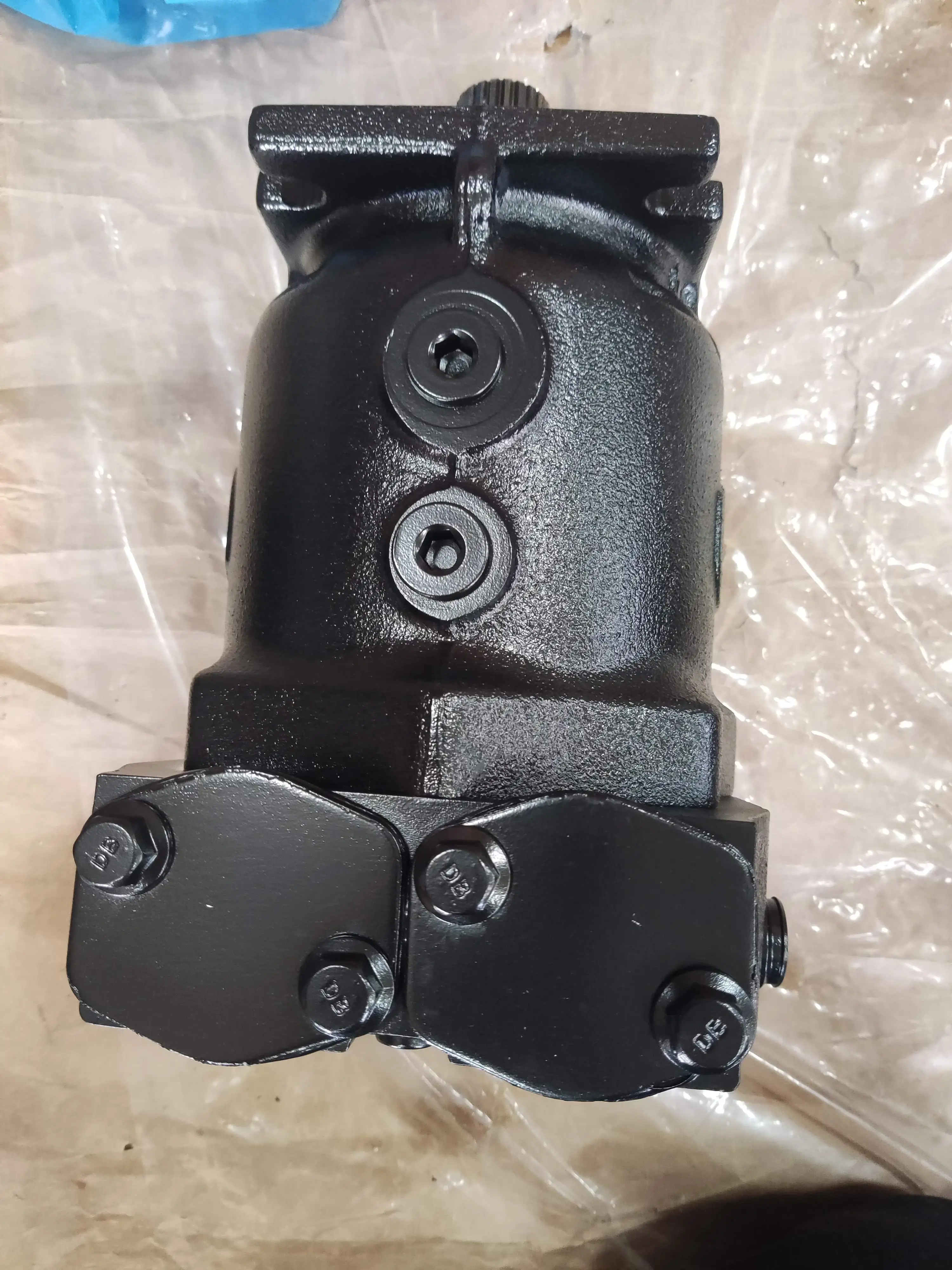

• Series Types: 90M (Motor), 90R/90L (Pump), SPV2/089 (Pump)

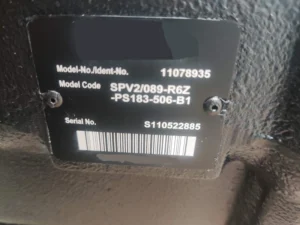

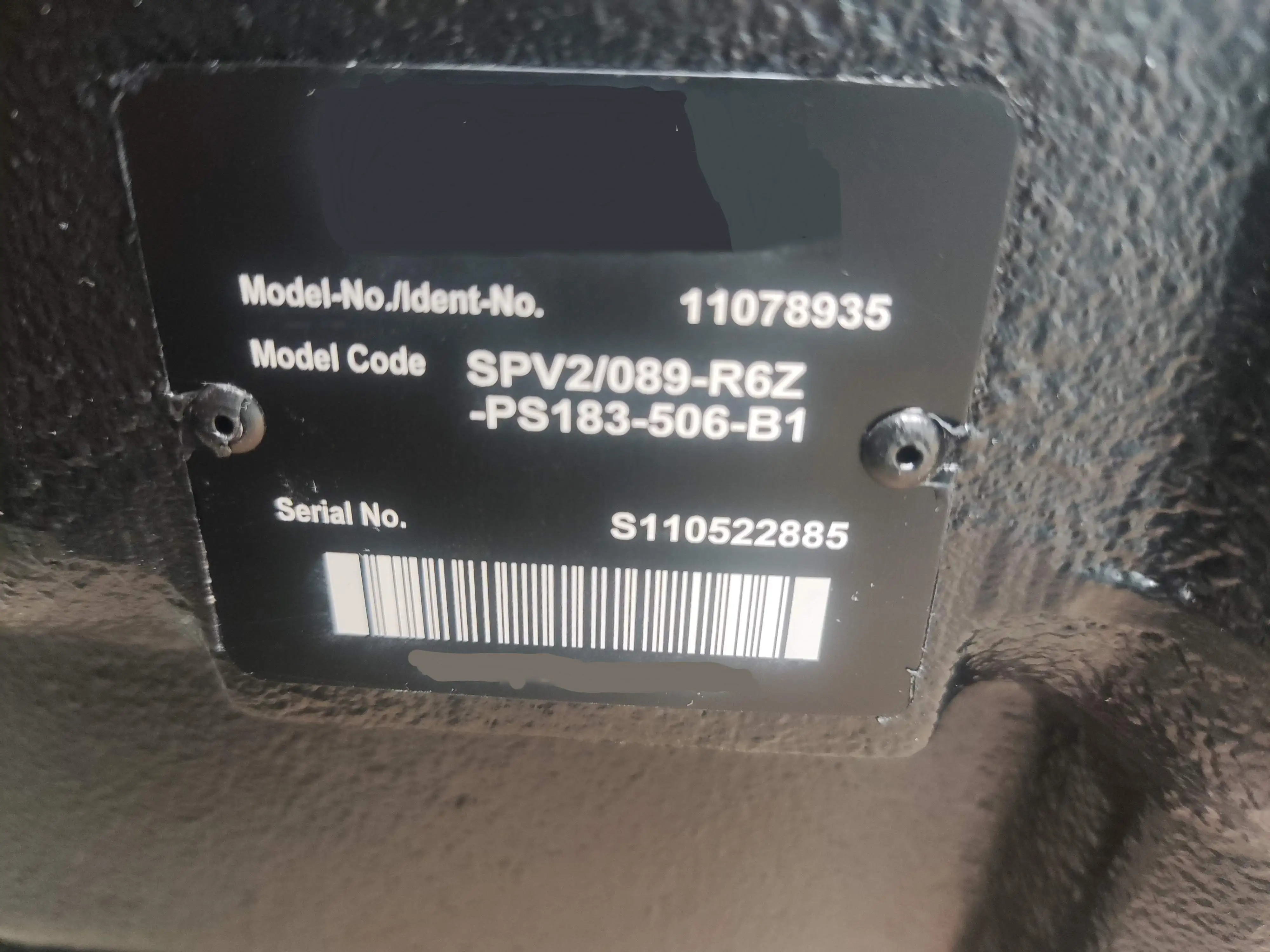

• Representative Code: SPV2/089-R6Z-PS183-CXX-B1

• Displacement: $89.0\text{ cm}^3\text{/rev}$

• Rated Pressure: $420\text{ bar (42 MPa / 6090 psi)}$

• Peak Pressure: $480\text{ bar (48 MPa / 6960 psi)}$

• Max Operating Speed: $3800\text{–}4160\text{ rpm}$

• Control Options: MDC (Manual), EDC (Electric Proportional), or HD (Hydraulic)

• Charge Pump Displacement: $17\text{ cm}^3\text{/rev}$ or $20\text{ cm}^3\text{/rev}$

• Weight: Pump approx. $73\text{ kg}$; Motor approx. $34\text{ kg}$

Key Technical Advantages

• Integrated Closed-Loop Architecture: Incorporates high-performance charge pumps, relief valves, and flushing valves. This compact design eliminates excessive external plumbing, increasing power density and improving dynamic system response.

• High-Pressure Balanced Swashplate: Features an optimized cradle-supported swashplate with extreme rigidity. This minimizes swashplate deflection under $420\text{ bar}$ continuous loads, ensuring precise displacement control and high mechanical efficiency.

• 9-Piston Valve Plate Technology: Utilizing a 9-piston arrangement reduces high-pressure flow ripples. Combined with precision-lapped bi-metal valve plates, it significantly lowers operational noise and extends the service life of the slippers.

• Extreme Environment Resilience: Seals are made from high-performance Viton, and valve bodies undergo specialized heat treatment. This ensures superior sealing integrity even in temperatures up to $100\text{°C}$ or corrosive saline environments.

Application Areas

• Mobile Drives: Concrete mixer drum drives, travel systems for asphalt pavers and vibratory rollers.

• Heavy Lifting: Winch motors for crawler cranes and primary hoists for port machinery.

• Mining Machinery: Cutter head drives for shearers and travel power for LHDs.

Expert Maintenance Tips

• Cold Start Prevention: In cold climates, ensure oil temperature reaches at least $10\text{°C}$ before startup. Forcing operation with high-viscosity oil can lead to charge pump cavitation and retainer plate failure.

• Charge Pressure Verification: Regularly monitor charge pressure. Insufficient pressure can cause slippers to disconnect from the swashplate due to centrifugal force, leading to catastrophic internal damage.

• Case Drain Management: Ensure case drain lines are unobstructed. Case pressure must remain below $3\text{ bar}$ to prevent shaft seal failure and inaccurate servo piston positioning.
