Kawasaki M3X & M3B Series Axial Piston Motor | M3X530 M3X280 M3X200 M3B280 | High Torque Hydraulic Motor

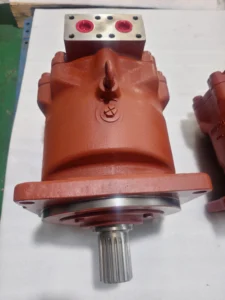

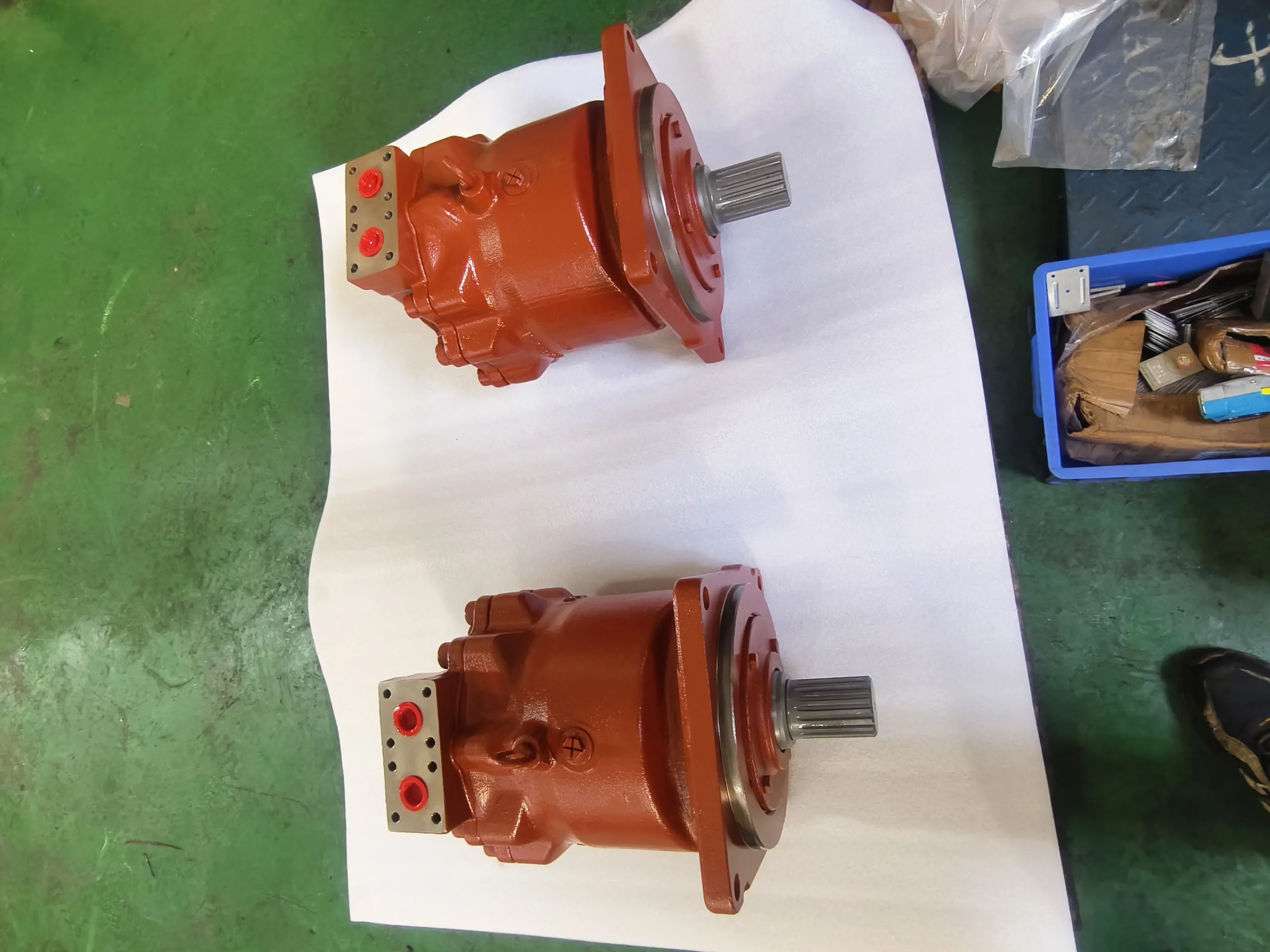

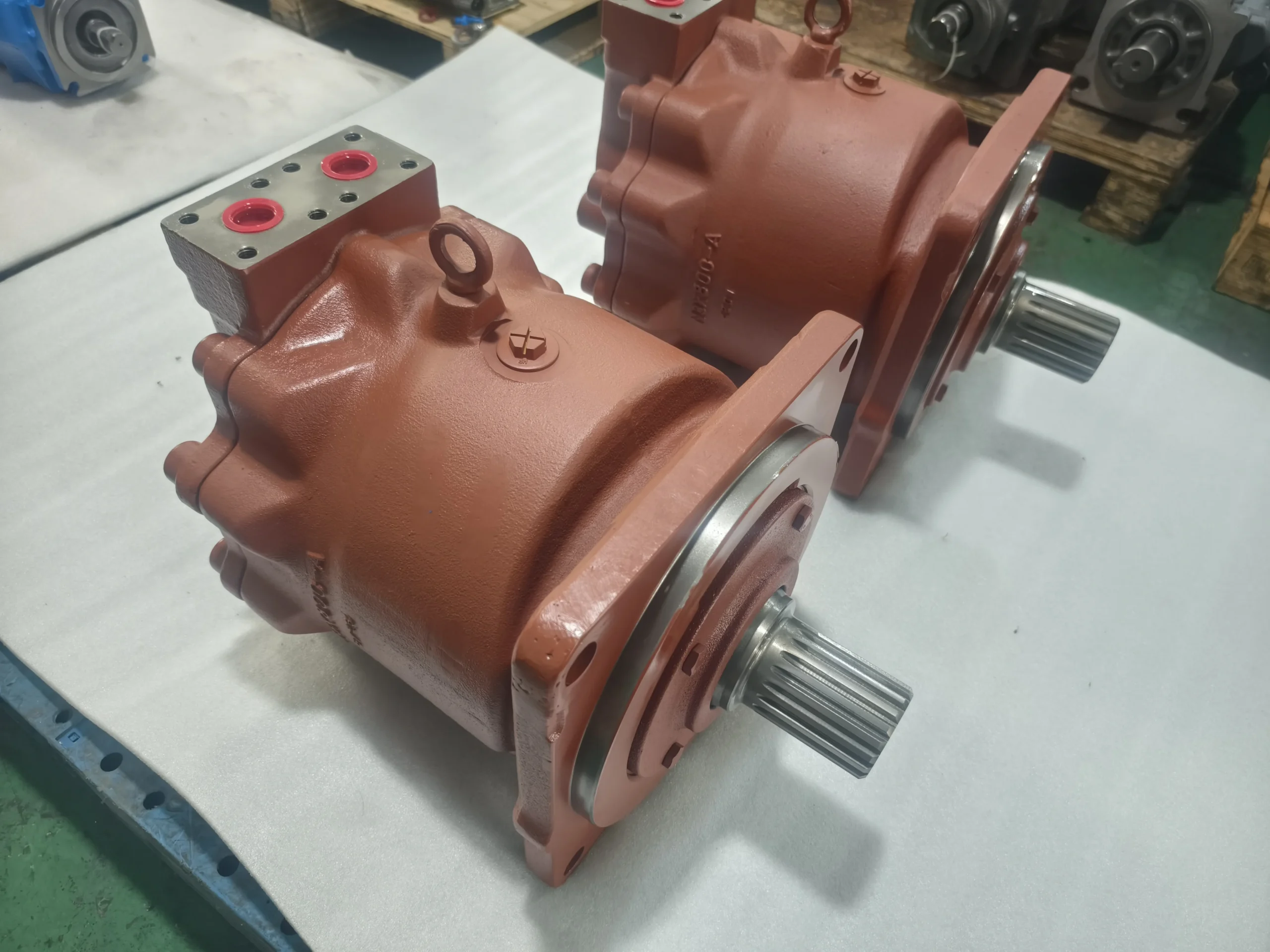

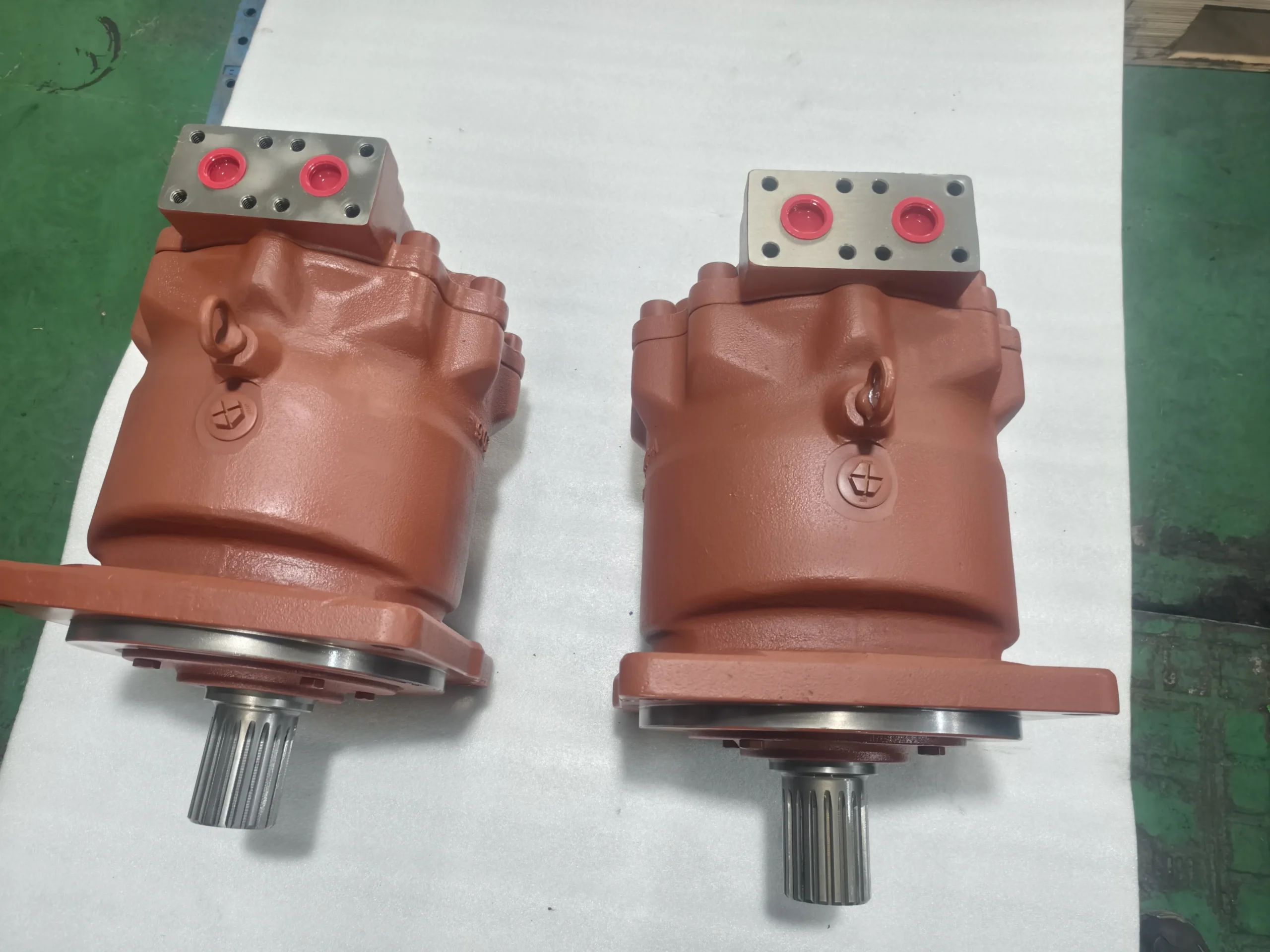

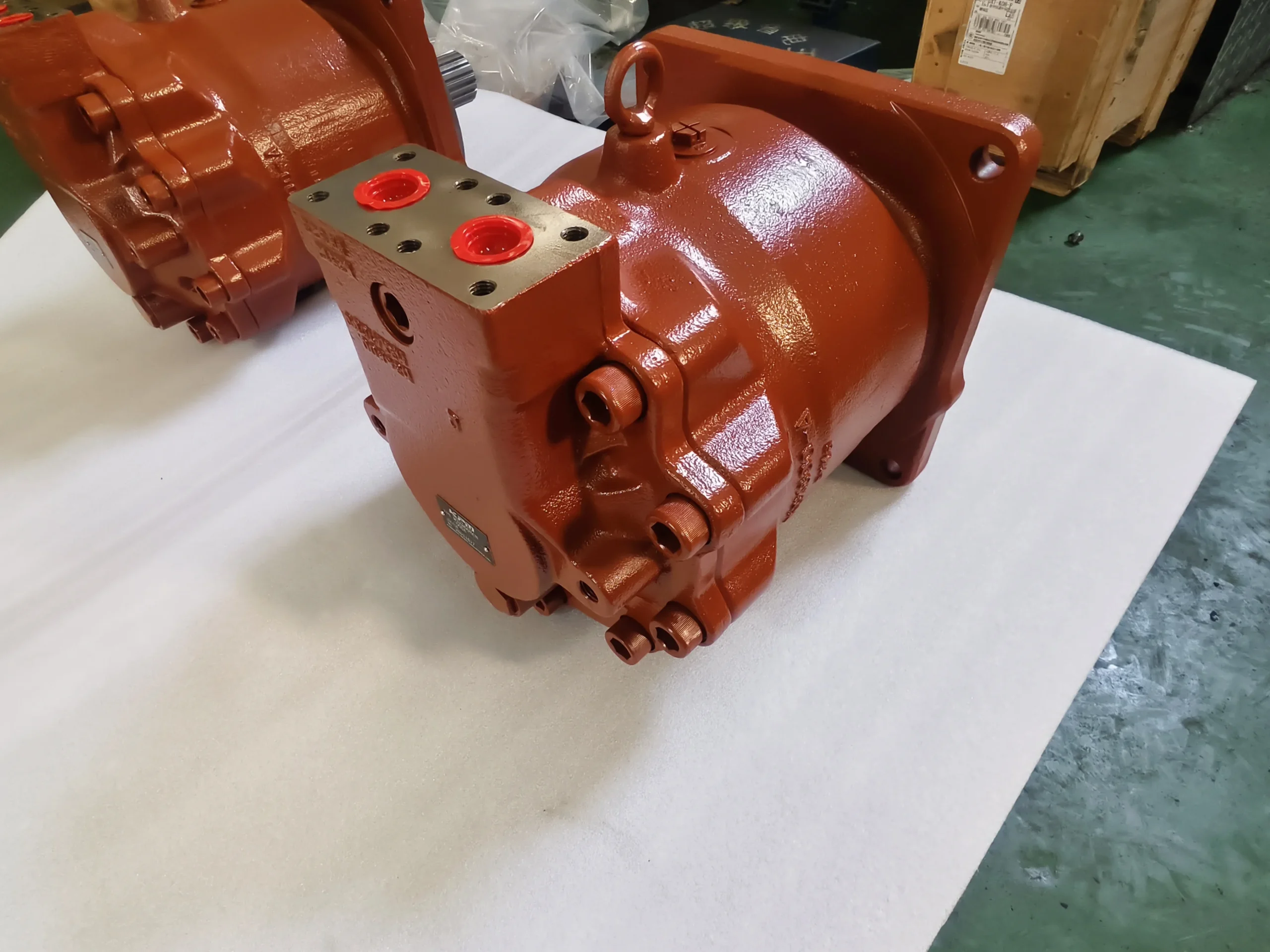

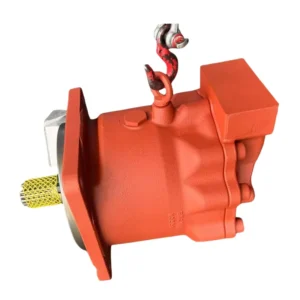

The Kawasaki M3X and M3B Series premium heavy-duty swash plate type axial piston motors manufactured by Chengyuan Hydraulic are high-pressure, high-torque fluid power components engineered to match the rigorous technical parameters of Kawasaki Precision Machinery. This robust aftermarket alternative product matrix thoroughly addresses the intense operating demands of global heavy-lifting machinery and industrial drives, encompassing fixed displacement models M3X200, M3X280, M3X530 (including specialized builds M3X530ACN-501A, M3X530APN, and M3X530APN-467-018A), alongside the variable dual-displacement winch motor variant M3B280.

Operating as the primary driving heart inside large crane main hoist winches, heavy rotary mechanisms, and crawler travel gearboxes, an axial piston motor’s low-speed stability and mechanical starting efficiency directly govern load-holding safety and millimeter-level micro-positioning accuracy. The M3X/M3B architecture is globally recognized for its smooth low-speed operation and high self-priming capability. Chengyuan guarantees 100% original-place drop-in interchangeability across all assemblies concerning standard splined drive shaft profiles, high-pressure split-flange bolt configurations, heavy-duty load bearing matrices, and integrated control brake valve port alignments. Every single motor undergoes 100% full-capacity simulated load, high-pressure cross-over, and instant dynamic braking tests on our advanced digital diagnostics benches, ensuring stable volumetric performance up to 29.4 MPa.

Technical Specifications

• Compatible Brand: Kawasaki Precision Machinery (Heavy Duty Industrial Motor Standard)

• Target Replacement Configurations: M3X530ACN-501A, M3X530APN, M3B280, M3X530APN-467-018A, M3X200, M3X280, M3X530

• Motor Mechanism & Displacement Control:

  • M3X Series: Swash plate type fixed displacement axial piston motor

  • M3B Series: Swash plate type dual-displacement variable axial piston motor (optimized for high/low speed winch shift controls)

• Geometric Volumetric Displacement Matrix ($cm^3/rev$):

  • M3X200 Model: 195 $cm^3/rev$

  • M3X280 / M3B280 Models: Maximum 280 $cm^3/rev$ (M3B280 shifts down to a minimum of 93 $cm^3/rev$)

  • M3X530 Series Models: 533 $cm^3/rev$

• Hydraulic Pressure Matrix:

  • Rated Continuous Pressure: 29.4 MPa (294 bar / 4,264 psi)

  • Maximum Allowable Peak Pressure: 34.3 MPa (343 bar / 4,974 psi)

• Maximum Continuous Rotation Speed:

  • M3X200: 1,900 rpm

  • M3X280 / M3B280 (at Max. Displacement): 1,700 rpm (M3B280 reaches up to 2,200 rpm when shifted to Min. Displacement)

  • M3X530 Series: 1,400 rpm

• Control Valve Suffix Meaning: ACN / APN codes denote integrated heavy-duty brake valve blocks and specific case drain circuitry designed for smooth load retardation and anti-fall security.

• Total Assembly Structural Weight: M3X200 approx. 57 kgs; M3X280 approx. 93 kgs; M3X530 approx. 147 kgs (Heavy rigid cast casings)

Key Technical Advantages:

• Spherical Valve Plate Design for Outstanding Low-Speed Starting Torque: The M3X/M3B rotary core leverages a precision-ground spherical valve plate system. At ultra-low starting velocities ($\le 10$ rpm), the spherical contact interface maintains a tough hydrodynamic fluid oil film under 29.4 MPa pressures. This reduces internal cross-port leakage, achieving starting torque efficiencies over 90% and completely preventing load-drop spikes during initial hoist actuation.

• High-Tensile Induction-Hardened Ductile Iron Cylinder Block: The cylinder barrel is cast from high-grade nodular ductile iron, and the piston bores are micro-honed before undergoing a specialized vacuum nitriding stabilization cycle (hardness $\ge$ HRC 60). This treatment eliminates mechanical fatigue or bore expansion under continuous 34.3 MPa peak load impacts, ensuring high resistance to cavitation damage.

• Positive Slipper Retaining Rigidity & High Self-Priming Security: Utilizing a heavy-duty mechanical slipper retainer mechanism, the piston slippers are securely locked against the swash plate face. This prevents slipper liftoff during high-speed rotation or rapid return-line backpressure fluctuations, giving the motor excellent self-priming capabilities in both open and closed-loop winch configurations.

• Heavy-Duty Front-End Cylindrical Roller Bearing Architecture: The primary drive shaft is supported by an oversized arrangement of imported cylindrical roller bearings and angular contact thrust bearings. This structural design absorbs significant external radial and axial forces from external drive gears, drive chains, or couplings, ensuring shaft alignment during rapid, frequent directional reversals.

Application Areas:

• Construction Lifting Machinery & Marine Engineering Deck Machinery: Powering main and auxiliary hoist winches on crawler cranes, mobile hydraulic truck cranes, and marine mooring/anchor winches.

• Tunnels Shield Tunneling Machines (TBM) & Heavy Drilling Rigs: Driving the primary cutterhead rotation loop on subway TBMs via multi-motor parallel manifolds, and powering rotary heads on large rotary drilling rigs.

• Heavy Industrial Drive Transmissions & Mobile Under-carriages: Driving industrial bulk material conveyor systems and serving as the primary drive motor for heavy tracked transport systems and planetary final drives.

Expert Maintenance Tips:

• Mandatory Pre-Fill of Casing Oil Prior to Initial Motor Ignition: This is an absolute rule for the longevity of all high-pressure piston machinery. Once the new motor is mechanically secured and connected, remove the highest case drain plug on the top of the housing and fill the cavity completely with clean hydraulic oil to vent all trapped air. Failure to pre-lubricate will run the piston slippers and valve plates completely dry, destroying the internal cartridge assembly within the first 10 seconds of motor ignition.

• Control Casing Backpressure to Protect the Front Shaft Seals: The case drain lines for M3X/M3B motors must run independently back to the reservoir. Never tee them into the main system return line or merge them with high-pressure valve returns. Continuous dynamic internal housing pressure must be held under 0.1-0.2 MPa. Excessive case pressure will rupture the front shaft lip seals, causing external leakage and damaging the slipper retainer assembly.

• Strict Fluid Cleanliness Maintenance to Prevent Microscopic Scoring: Piston motor systems operate under extremely tight clearances and require a fluid cleanliness level held to NAS 9 or ISO 4406 18/16/13 at a minimum. Hard particulate contaminants bypass filtration and scratch the piston faces, causing severe slip. Additionally, never attempt to apply high pressure to the motor before the mechanical brakes are fully disengaged to avoid adhesive wear on the valve plates.
