50T Series Hydraulic Vane Pump | 50T-23-F-R 50T-12-L-RL | High Pressure Oil Pump

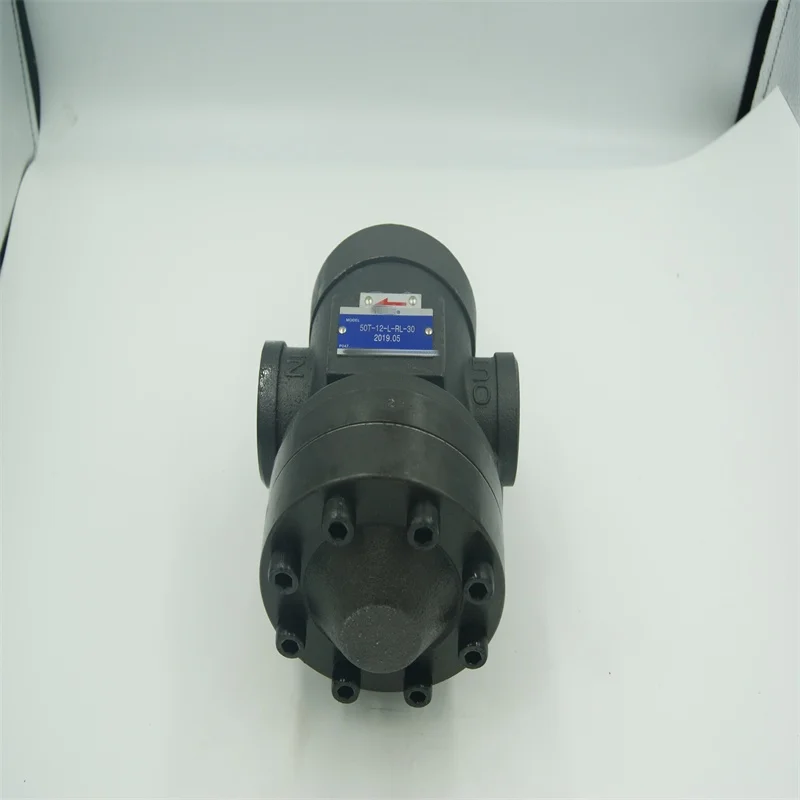

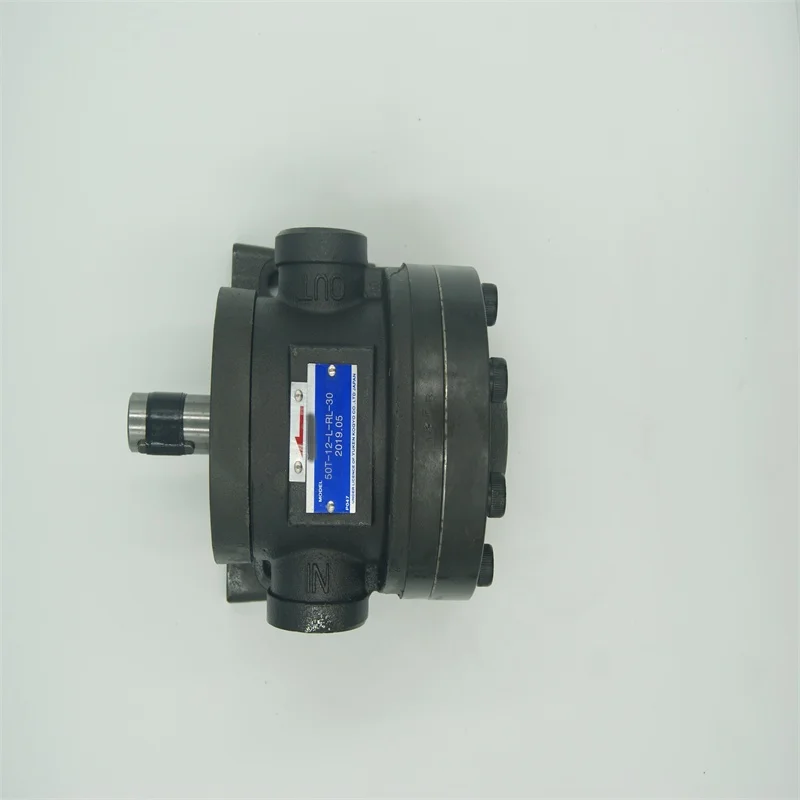

The 50T Series fixed displacement medium-high pressure vane pumps by Chengyuan Hydraulic are high-efficiency power components specifically developed for industrial hydraulic systems. This series broadly replaces mainstream T-style vane pumps on the market, covering a full range of displacements from 50T-7 to 50T-43, with a focus on models such as 50T-23-F-R-02 and 50T-12-L-RL-30.

Renowned for their compact structure and excellent noise reduction characteristics, the 50T series is ideal for indoor hydraulic power units with strict acoustic requirements. Chengyuan ensures that the mounting flanges, shaft ends, and port positions are 100% original-place interchangeable with industry-standard specifications. Every pump undergoes 100% simulated high-pressure load testing before leaving the factory to ensure peak volumetric efficiency at rated pressures.

Technical Specifications

• Compatible Series: 50T Standard Vane Pumps

• Geometric Displacement: 7, 12, 17, 23, 26, 30, 36, 39, 40, 43 ($cm^3/rev$)

• Max Operating Pressure: 175 bar (17.5 MPa)

• Rated Pressure: 140 bar (14 MPa)

• Speed Range: 600 – 1800 rpm

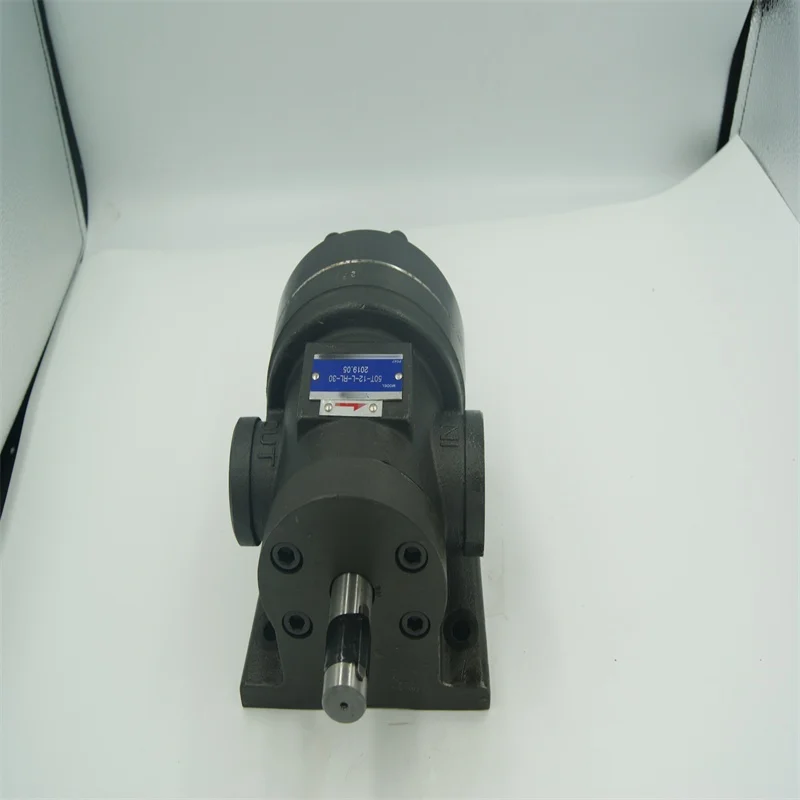

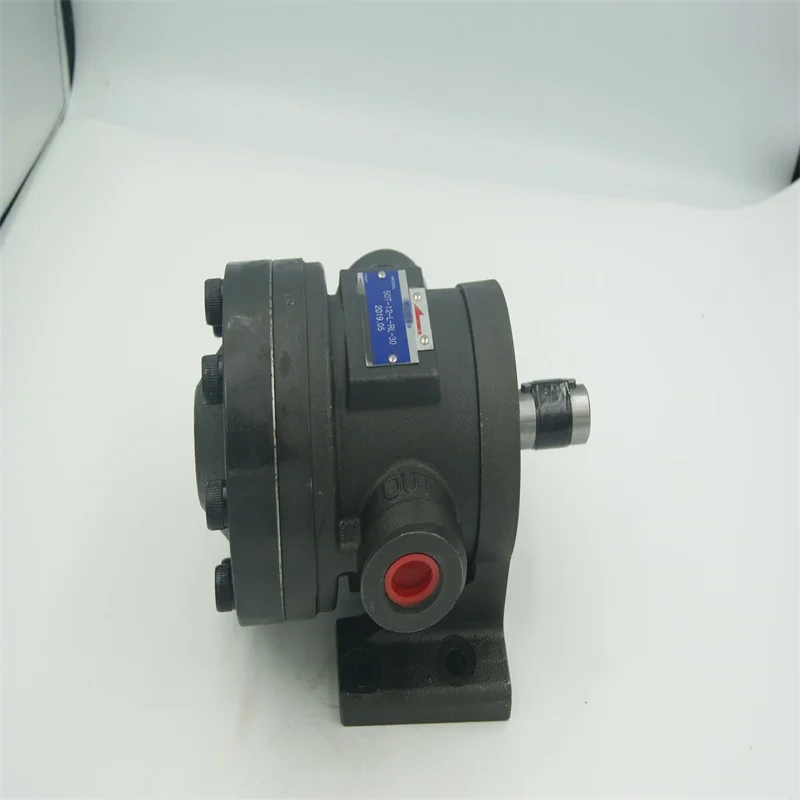

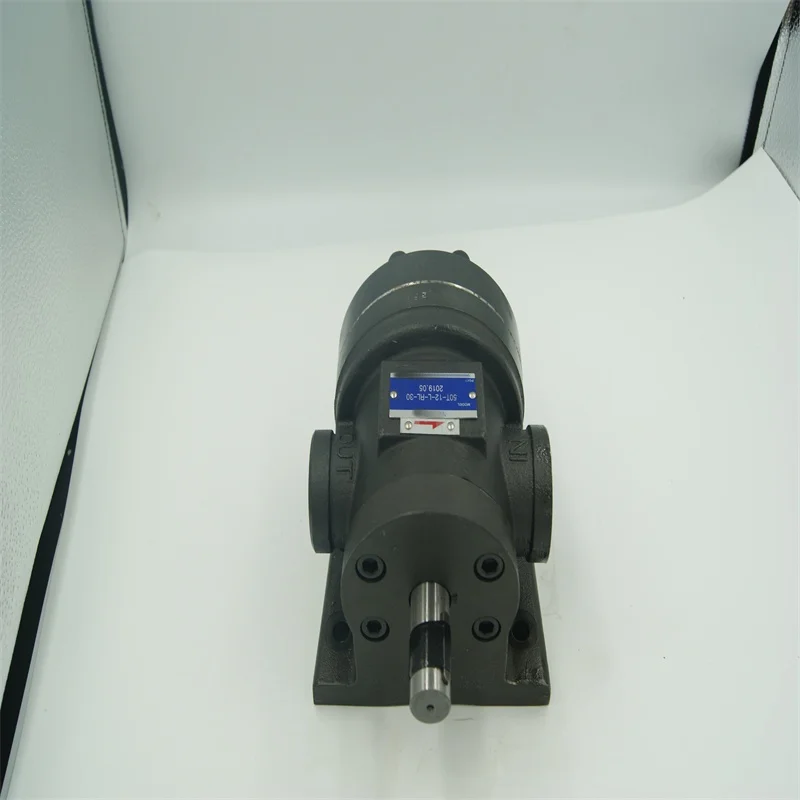

• Mounting Type: F-Flange / L-Foot

• Rotation: R-Clockwise / L-Counter-clockwise

• Port Orientation: R-Right / L-Left / U-Upward (viewed from shaft end)

• Shaft Type: Standard Parallel Key

• Recommended Oil Viscosity: 32 – 68 cSt (ISO VG32/46/68)

Key Technical Advantages:

• Dual-Vane Structural Design: The 50T series utilizes an advanced vane configuration that minimizes unbalanced radial forces on the cam ring. This improves mechanical efficiency under high pressure and extends the fatigue life of both bearings and the cam ring.

• Ultra-Low Noise Performance: Through precision optimization of the pressure pulsation damping grooves on the valve plate, discharge pressure spikes are drastically reduced. Under full load, the noise levels are significantly lower than those of equivalent gear pumps, making it the perfect choice for high-end injection molding and bending machines.

• Precision-Ground Stator and Rotor: Core components are forged from premium alloy steel and subjected to multi-stage vacuum heat treatments. The cam ring profiles are ground on high-precision machinery to ensure micron-level contact with the vanes, resulting in exceptional volumetric efficiency.

• Modular Maintenance Design: The internal cartridge kit is designed as an independent unit. During maintenance, users can restore rated performance simply by replacing the internal kit without disturbing the piping, significantly reducing downtime.

Application Areas:

• Machine Tools & Machining Centers: Providing power for lubrication, auxiliary clamping, and primary circuits.

• Injection Molding Machinery: Serving as a low-decibel power source for noise-sensitive workshop environments.

• Pressing Machinery: Suitable for light-duty presses, balers, and forming machines.

Expert Maintenance Tips

• Priming & Bleeding: After installation, fill the pump with hydraulic oil through the outlet and manually rotate the shaft several times. Use an “inching” start-up method to ensure all air is purged, preventing vane shattering due to dry friction.

• Suction Filtration: Vane pumps are sensitive to contaminants. It is recommended to install a 100-150 mesh strainer on the suction line and regularly monitor pressure differentials to avoid cavitation-induced screeching.

• Viscosity & Temperature Control: Maintain operating oil temperatures between 15°C and 60°C. Excessive heat thins the oil film, leading to metal-on-metal contact between vanes and the cam ring, which accelerates wear.
