PVCM Series Proportional Control Valve | PVCMERCN3 PVCMER1N1 PVCMAF1V1 | Hawe Replacement

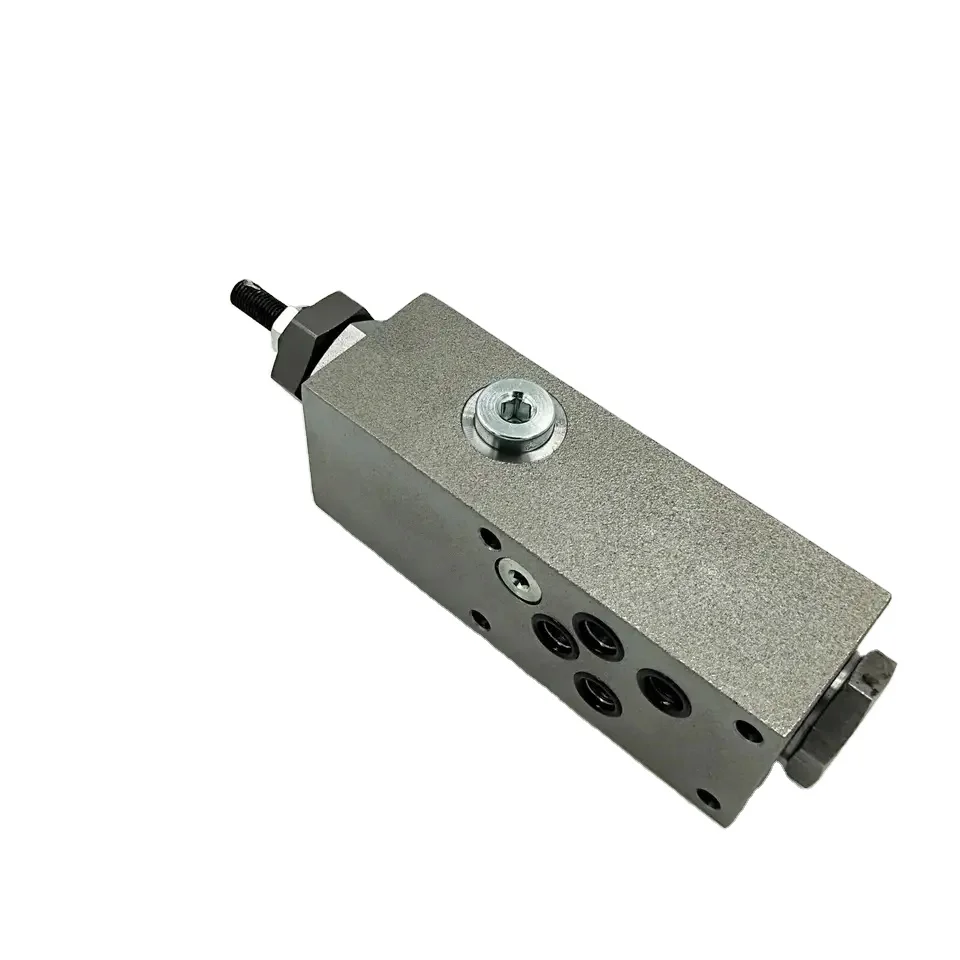

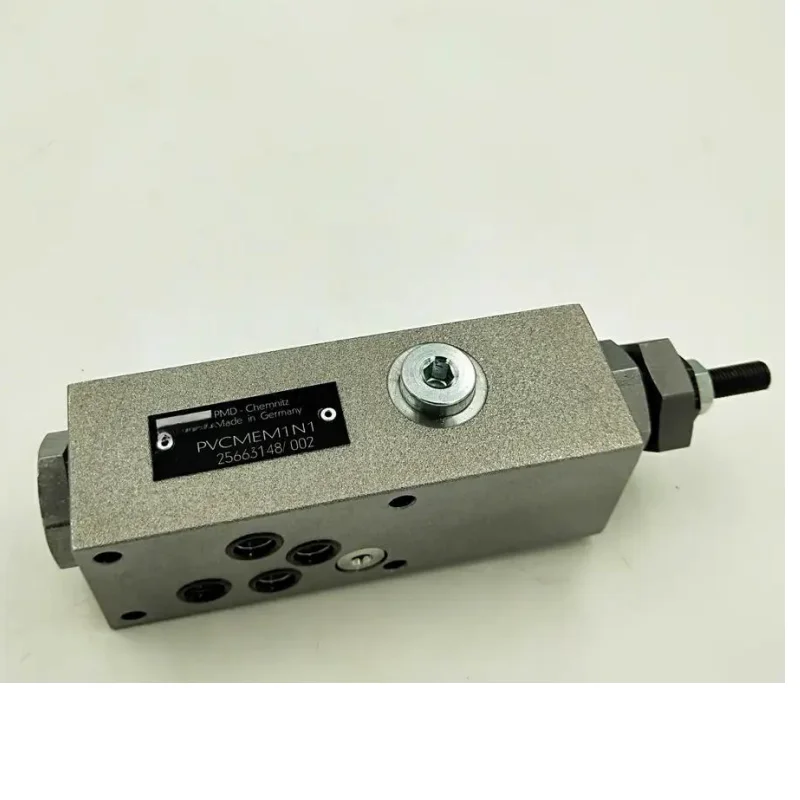

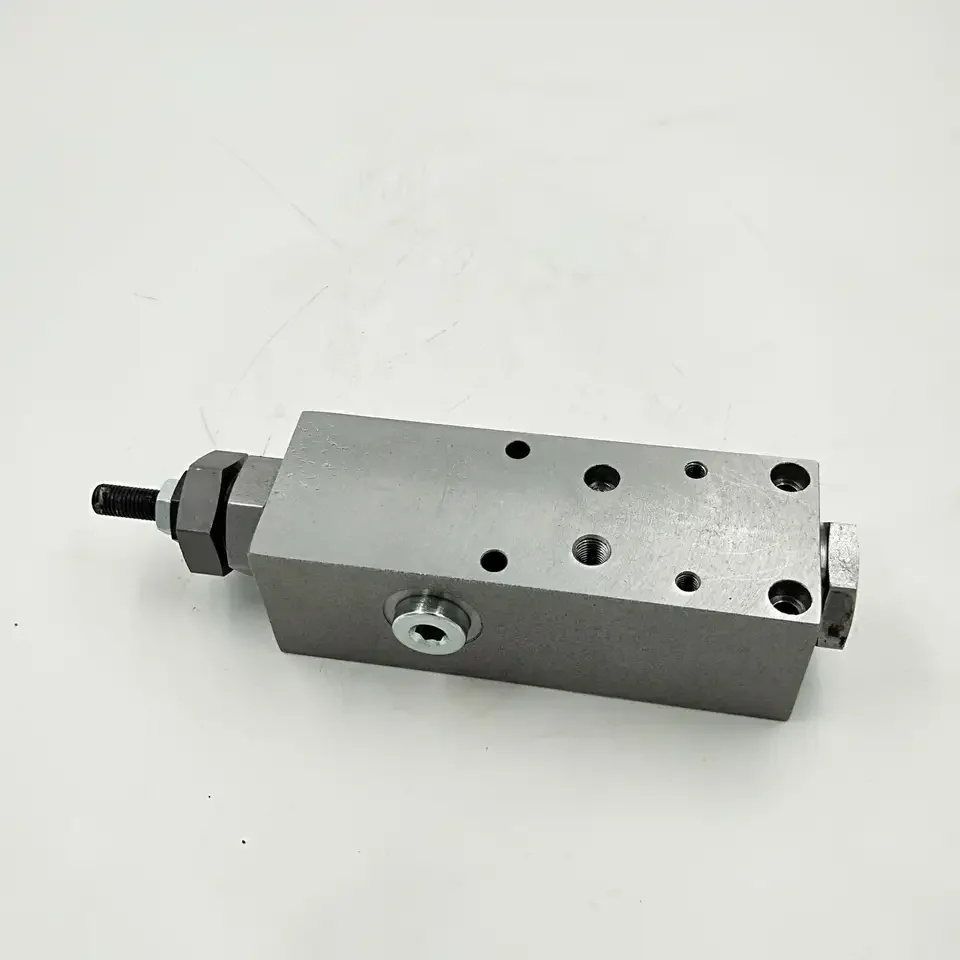

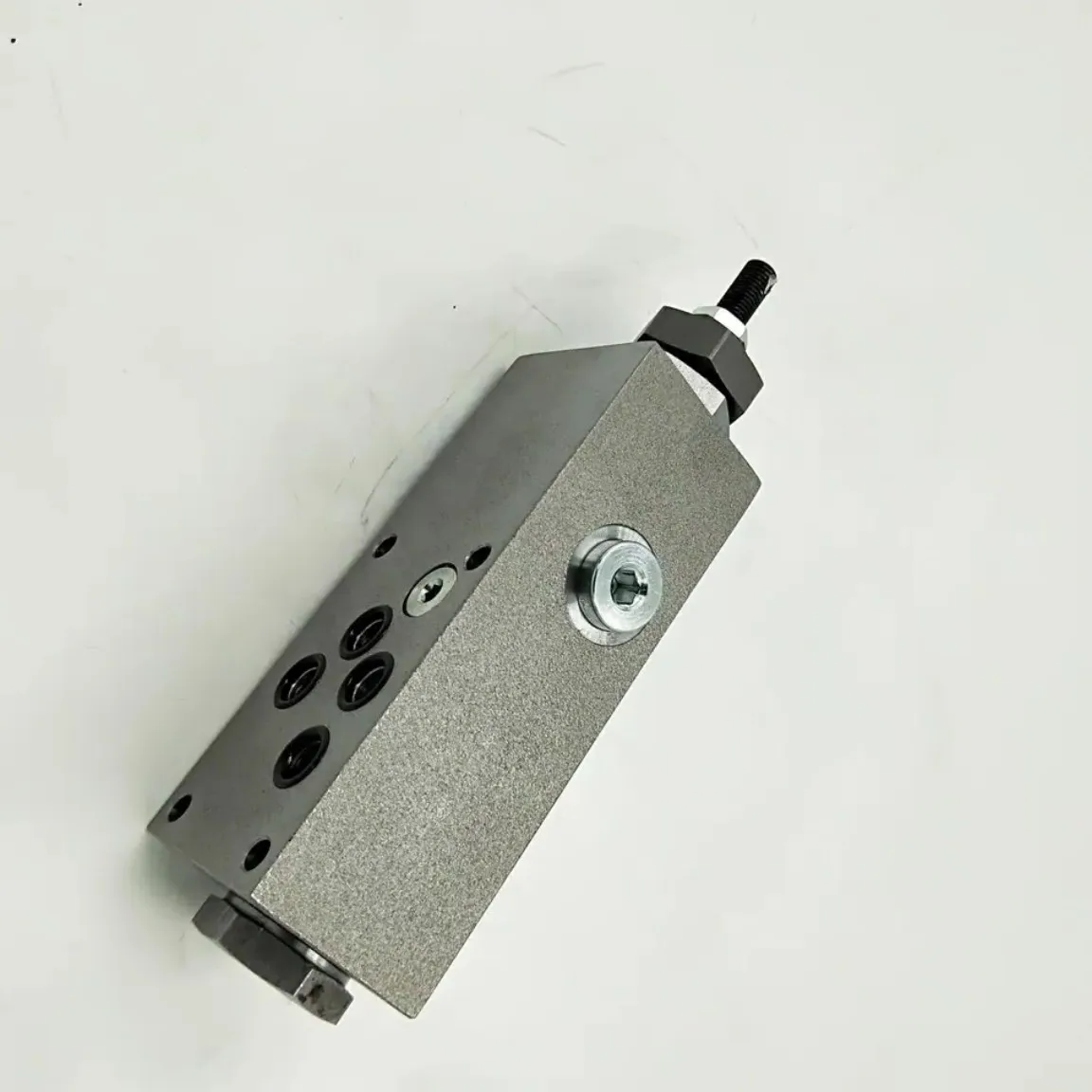

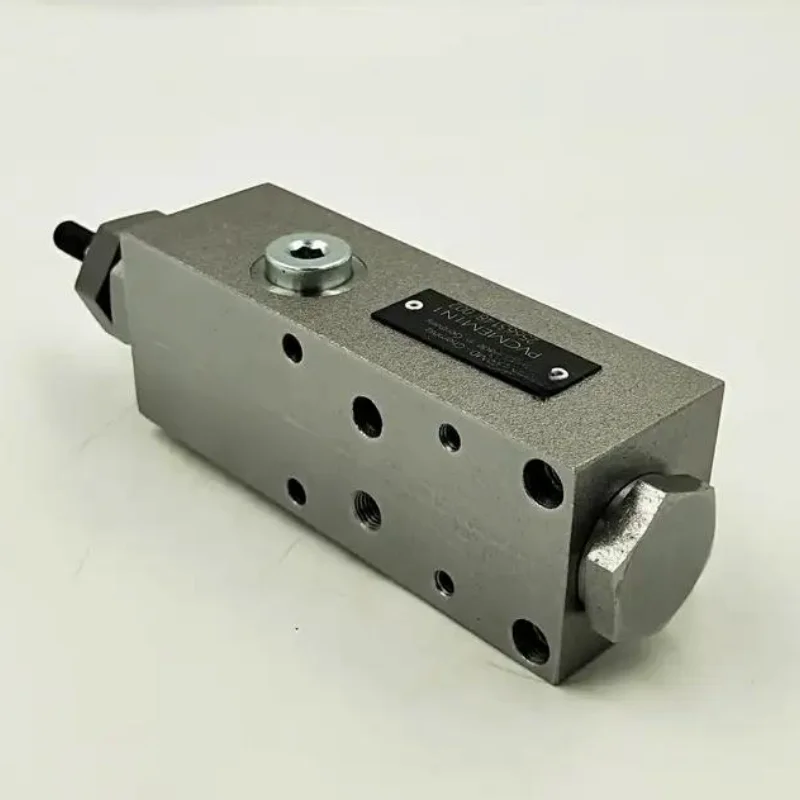

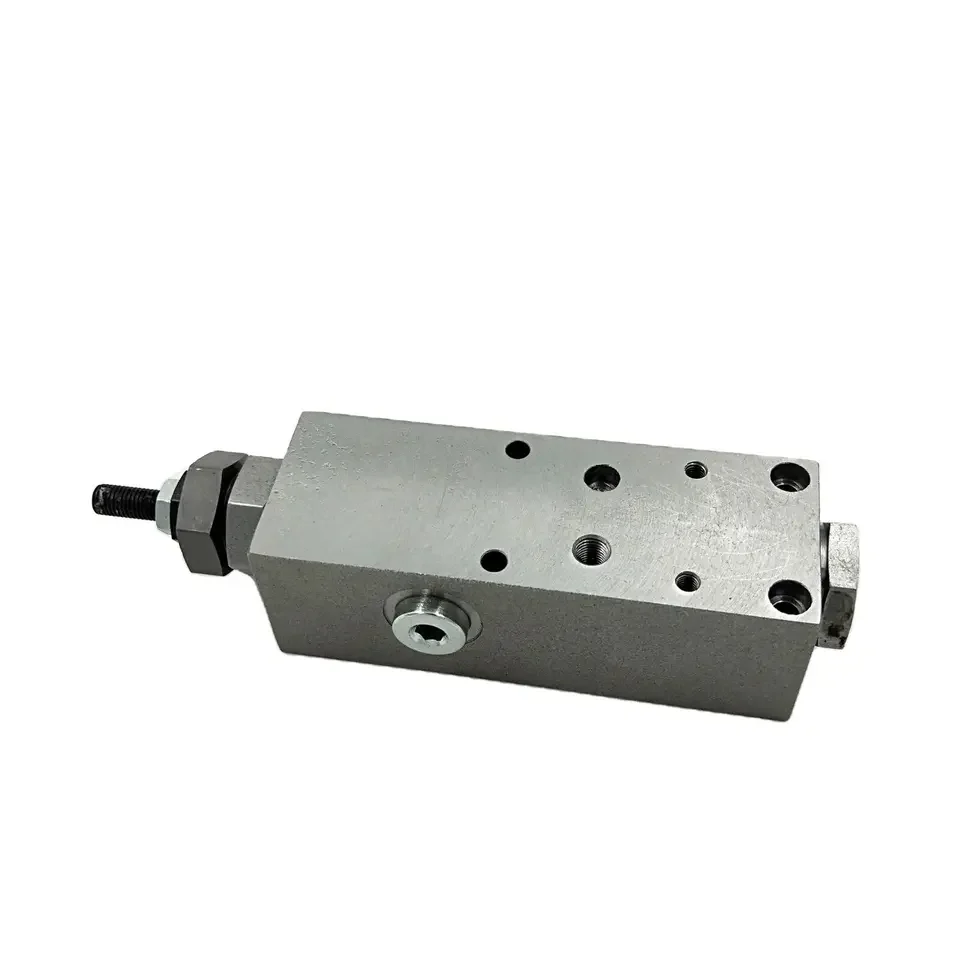

The PVCM Series (including PVCMERCN3, PVCMER1N1, PVCMAF1V1, etc.) by Chengyuan Hydraulic is a high-performance load-sensing electro-hydraulic proportional directional control valve. Engineered to be 100% interchangeable with Hawe technical standards, this series provides precise speed and direction control regardless of load pressure. Each valve bank is constructed with high-tensile ductile iron and precision-ground spools, ensuring 100% simulated condition testing before delivery. Whether for delicate micro-movements or high-speed operations, the PVCM series delivers unmatched responsiveness and system stability for your hydraulic circuits.

Technical Specifications :

• Series: PVCM Load-Sensing Proportional Multi-way Valve

• Key Models: PVCMERCN3, PVCMER1N1, PVCMAF1V1, PVCMAM1N147

• Rated Pressure (P-port): 40 MPa (400 bar / 5800 psi)

• Peak Pressure: 42 MPa (420 bar / 6090 psi)

• Max Flow Rate: Up to 160 L/min (depending on spool size)

• Control Methods: Electro-proportional, Manual, or Hydraulic Pilot

• Fluid Medium: Mineral oil per DIN 51524

• Viscosity Range: 10 to 500 $mm^2/s$

• Seal Material: NBR or FKM (Viton) as required

Key Technical Advantages:

• Load-Sensing Flow Distribution (LS): Features integrated 3-way pressure compensators for each section, ensuring that flow remains proportional to spool stroke despite varying load pressures. This enables seamless simultaneous multi-actuator movements.

• Micron-Level Spool Precision: Spools are crafted from heat-treated alloy steel and ultra-precision ground. The customized metering notches provide extremely low hysteresis and a linear flow gain curve for superior “inching” performance.

• High-Durability Ductile Iron Body: Utilizing high-grade EN-GJS-400 ductile iron, the valve body withstands fatigue and shock. It maintains micro-level dimensional stability at 40 MPa, preventing spool binding and internal leakage.

• Modular & Customizable Design: The PVCM series supports modular stacking. Users can integrate primary relief valves, anti-cavitation valves, and secondary port relief valves into a single compact manifold to simplify machine plumbing.

Application Areas:

• Lifting Equipment: Proportional control for boom extension and rotation in truck-mounted cranes.

• Construction Vehicles: Precision driving for concrete pumps and aerial work platforms.

• Mining Machinery: Complex hydraulic control systems for roadheaders and roof supports.

Expert Maintenance Tips:

• Pilot Circuit Cleanliness: Proportional valves are sensitive to contamination. Maintain system filtration at $\beta_{10} \ge 75$ to prevent blockage of the pilot orifices and solenoid plungers.

• Electronic Calibration: When using electronic control, ensure the PWM frequency is optimized (approx. 100Hz) and dither settings are correctly calibrated to minimize hysteresis caused by friction.

• LS Line Management: Ensure the Load-Sensing signal line is properly vented to the tank when in neutral to reduce standby power consumption and prevent oil overheating.
