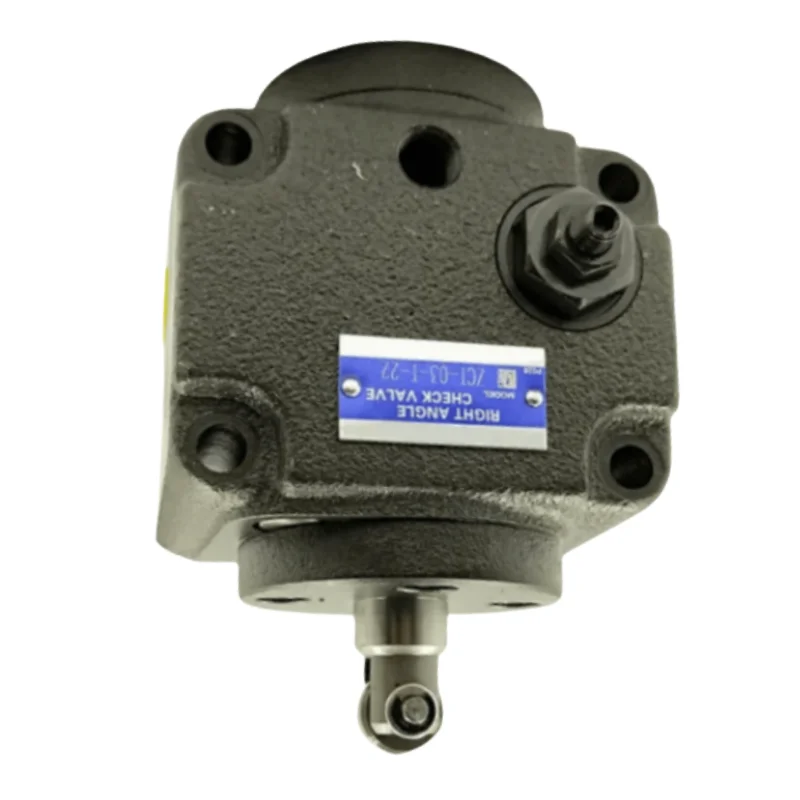

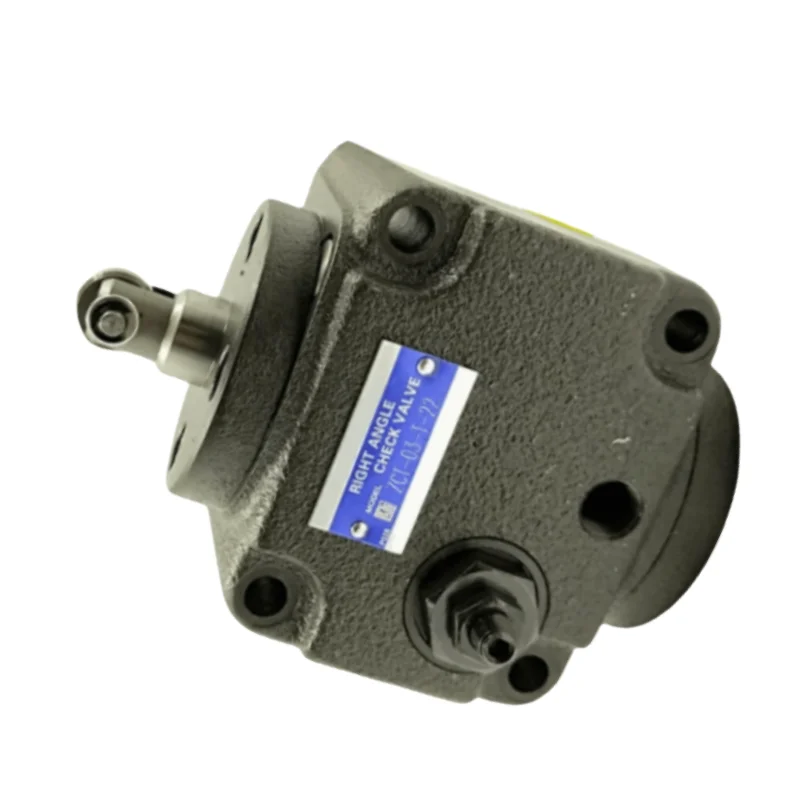

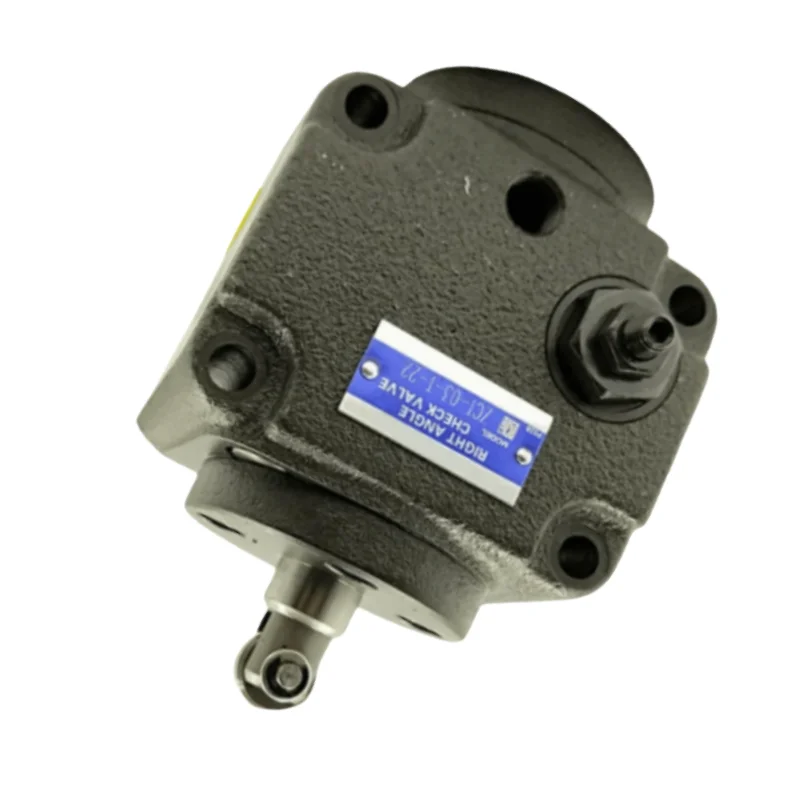

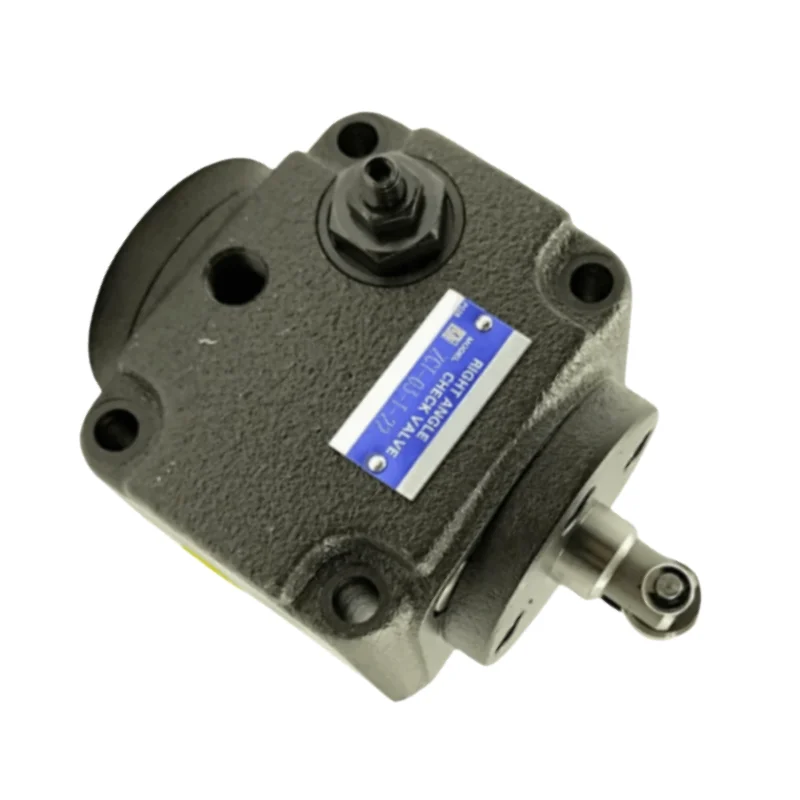

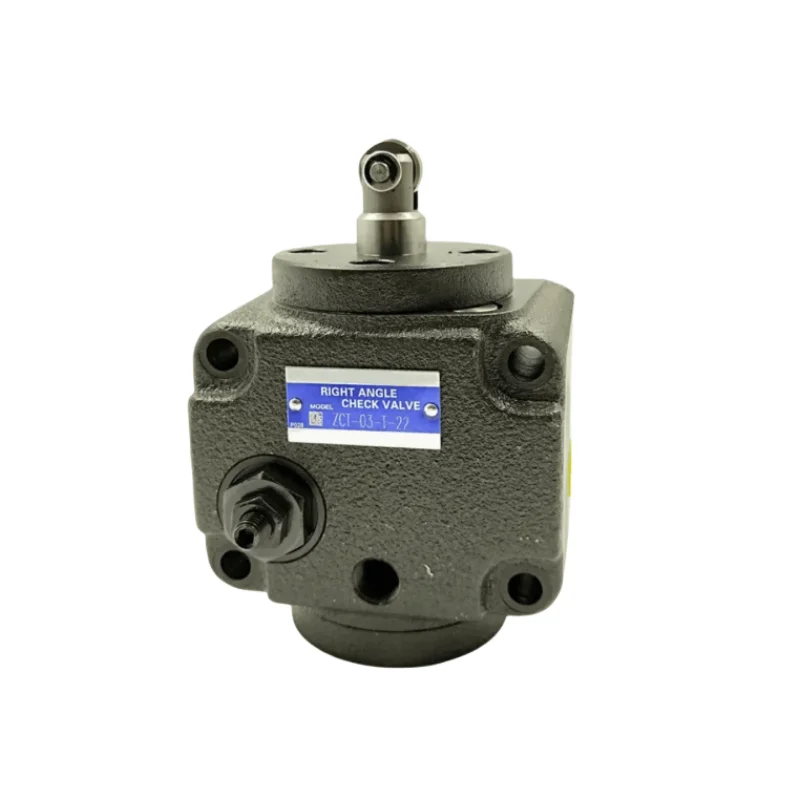

ZCT Series Deceleration Check Valve ZCT-03-B ZCT-03-T | Yuken Equivalent

The heavy-duty ZCT/ZCG/ZT/ZG Series Industrial Mechanical Deceleration and Check Valves (highlighting highly sought-after global B2B procurement codes ZCT-03-B-10 and ZCT-03-T-22, along with the comprehensive 03 and 06 dimensional ranges), engineered by Chengyuan Hydraulic, stand as ultra-reliable, mechanical fluid-velocity throttling and direct flow-check components. Specially designed for machine-tool tables, heavy brick-molding machinery, metallurgy control blocks, and automated factory transfer lines, these valves utilize an external mechanical cam or striker block to press down the valve stem. This action smoothly and infinitely shifts fluid delivery from a high-velocity line down to a regulated slow speed (deceleration), while permitting unrestricted free-flow in the reverse direction.

Manufactured to replicate the exact port dimensions, structural limits, and technical performance curves found in premium global brands’ (such as Yuken) official data manuals, Chengyuan’s deceleration check valves provide 100% direct drop-in interchangeability. Available in sub-plate mounting styles (B Type) and threaded in-line configurations (T Type), they align seamlessly with pre-existing modular manifold systems and mechanical trigger limits. OEM field mechanics can execute quick replacements without modifying mounting holes or realigning external mechanical slide cams.

Because deceleration valves are constantly subjected to severe fluid shearing forces and high-frequency mechanical impacts during machine reversing phases, any structural variance or internal leakage will result in speed drift or destructive hydraulic shock. To ensure zero-defect components, 100% of Chengyuan’s manufactured deceleration check valves pass 100% rigorous dynamic simulation test bench protocols. Our diagnostics test under continuous mechanical stroke cycling at rated pressures up to 21 MPa, monitoring cracking limits, pressure drops, and shut-off seal leakage profiles. This guarantees exceptionally low vibration and highly repeatable slowing precision over millions of duty cycles.

Technical Specifications

• Product Series Nomenclature: ZCT / ZCG / ZT / ZG Mechanically Actuated Deceleration and Check Valves

• Nominal Port Size Spectrum: Size 03 (3/8-inch interface) / Size 06 (3/4-inch interface)

• Maximum Continuous Working Pressure: 21.0 MPa (210 bar / 3045 psi)

• Maximum Design Volumetric Flow Rate:

  • Size 03 Spec (e.g., ZCT-03): 30 L/min (approx. 7.9 US GPM)

  • Size 06 Spec (e.g., ZCT-06): 80 L/min (approx. 21.1 US GPM)

• Integral Check Valve Cracking Pressure: Standardized at 0.2 MPa (2 bar / 29 psi)

• Required Roller Mechanical Actuation Force: Continuous rating within 110 N to 150 N

• Model Configuration Structural Profiles:

  • Part Reference: ZCT-03-B-10

    • ZCT: Core product series code for deceleration and check functionality.

    • 03: Size designation indicating a 3/8-inch flow capability.

    • B: Specifies sub-plate mounting engineering configuration.

    • 10: Factory baseline engineering design sequence.

  • Part Reference: ZCT-03-T-22

    • ZCT: Core product series code for deceleration and check functionality.

    • 03: Size designation indicating a 3/8-inch flow capability.

    • T: Specifies threaded in-line port connection configuration.

    • 22: Upgraded vibration-resistant design sequence code.

Key Technical Advantages

• High-Hardness Anti-Impact Bearing Steel Roller Matrix: The external mechanical cam roller is machined from high-carbon chromium bearing steel (GCr15), undergoing vacuum quenching and precision cylindrical grinding to reach a surface hardness of $HRC 60 – 64$. Micro-toleranced alignment on the inner needle shafts ensures that the roller resists flattening or axial skewing under continuous impact from mechanical striker blocks.

• Linear Anti-Shock V-Notch Throttling Spool Geometry: The internal deceleration spool integrates a specialized V-notch throttling profile. As the cam roller is steadily depressed, the internal fluid orifice area diminishes along a smooth parabolic curve. This design dampens sudden pressure spikes and fluid kinetic energy variations, reducing system reversal vibration and noise by over 85%.

• High-Fatigue Silicon-Chromium Return Spring System: The internal return springs are coiled from premium imported silicon-chromium spring steel alloy (55SiCrA), undergoing pre-setting compression and surface shot-peening. This ensures stable spring force output and minimal set deformation even under high-frequency operation, preventing spool lag or incomplete deceleration.

• High-Density Cast Body with Tight Leakage Control: The valve body is cast from high-density ductile iron (QT500-7) to withstand high backpressures and transient shock waves. The internal spool and sleeve assemblies undergo ultra-precision centerless grinding, keeping internal cross-port leakage low at a full 21 MPa load to maximize system volumetric efficiency.

Application Areas

Thanks to their reliable mechanical actuation and precise deceleration profile, ZCT/ZCG valves are widely integrated into severe systems where electronic positioning sensors are impractical:

• Precision Metal Cutting Machine Tools: Smooth deceleration and braking loops for high-speed tables on gantry mills, slideway grinders, and planing machines.

• Heavy Forging & Metallurgy Equipment: Pilot deceleration control blocks for main pre-fill valves on industrial scrap balers and refractory brick presses to prevent severe valve slamming.

• Automated Factory Conveyance Lines: Reversing deceleration manifolds for heavy mechanical pick-and-place gantry arms and mechanical travel-limit safety valves on specialized industrial transport vehicles.

Expert Maintenance Tips

• The External Striker Block (Cam) Slope Angle Must Not Exceed $35^{\circ}$: The valve stem relies on a progressive downward mechanical force. If the cam slope is too steep ($\ge 45^{\circ}$), excessive lateral side-load can bend or score the valve stem and its guide bore. Maintain an ideal cam angle between $20^{\circ}$ and $30^{\circ}$ and regularly apply extreme-pressure grease to the roller surface.

• Regularly Inspect the External Stem Dust Seal During Planned Maintenance: Because the valve stem strokes outward into ambient plant air, it is vulnerable to metallic chips, abrasive dust, or cutting fluids. If debris bypasses a compromised wiper seal and enters the tight internal clearances, it can cause the spool to stick or jam.

• Always Use Two Wrenches When Tightening Threaded In-Line (T Type) Connections: When securing fluid lines into the valve ports, use a backup wrench to stabilize the valve body and prevent structural twisting. Because the clearance between the internal spool and bore is measured in microns, even minor torque-induced housing deformation can cause spool binding.
