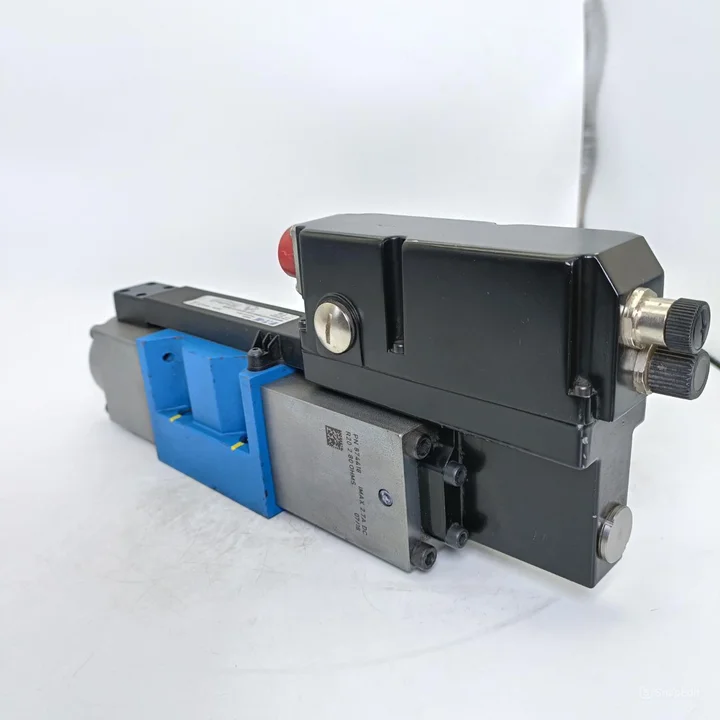

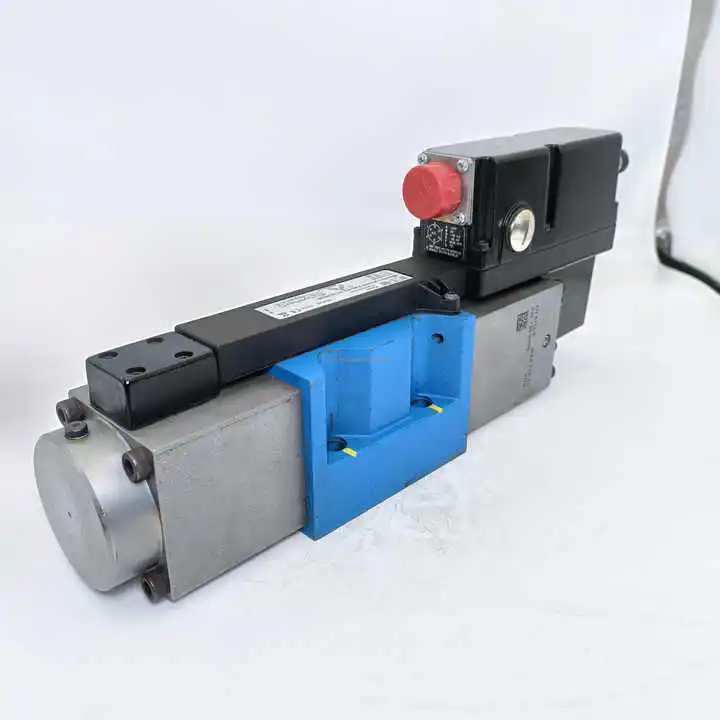

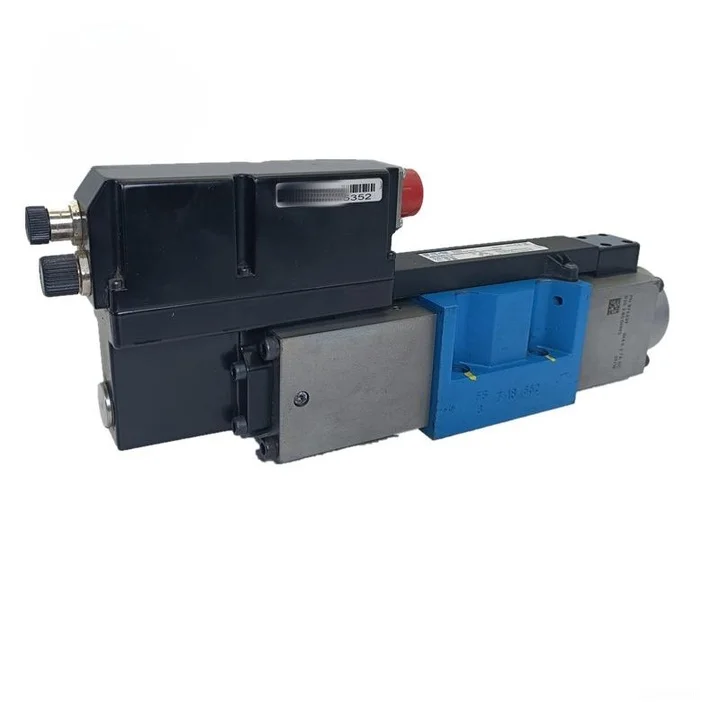

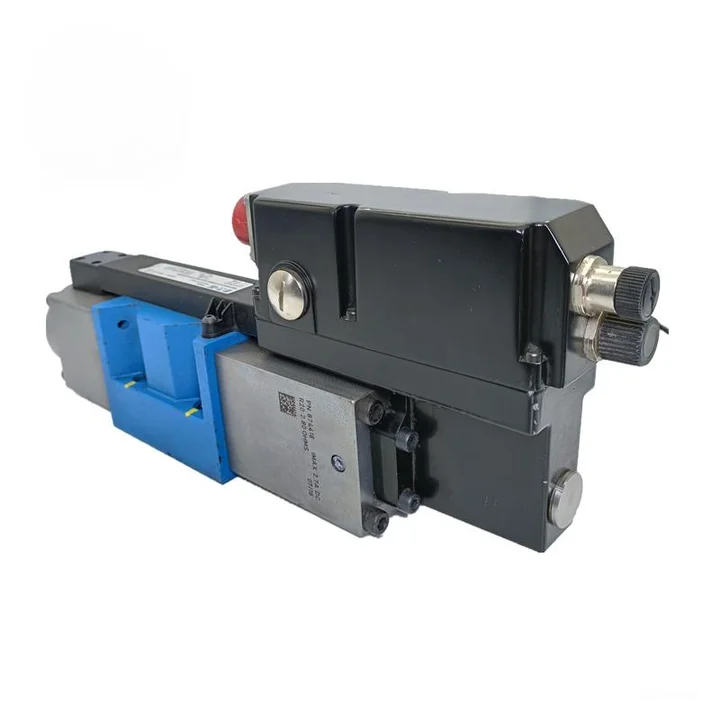

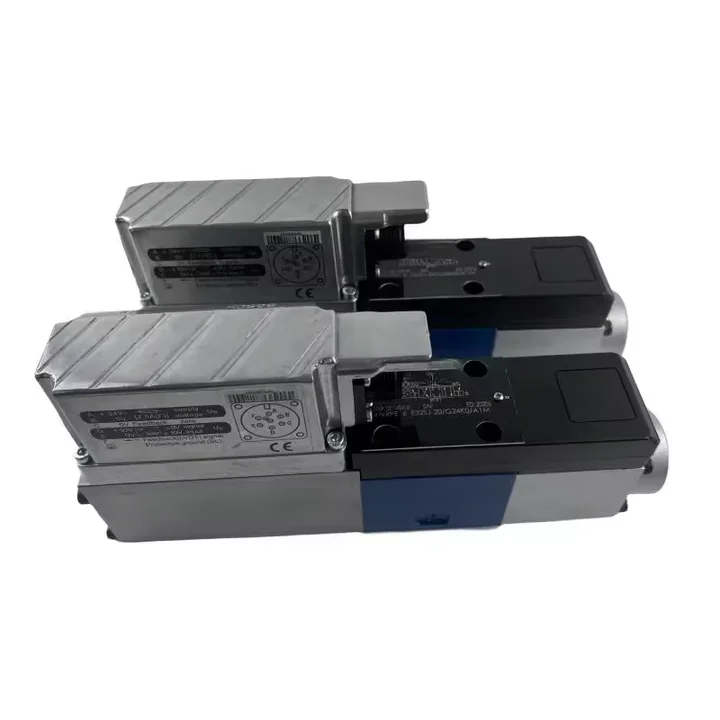

Vickers KBFDG4V KFDG4V Proportional Valve | KBFDG4V-5-2C70N-Z-M1-PE7-H7-12

The Vickers K(B)FDG4V Series premium direct-operated electro-hydraulic proportional directional control valves manufactured by Chengyuan Hydraulic are high-frequency fluid power components engineered to thoroughly match the rigorous engineering standards of Vickers (now Danfoss Power Solutions / Eaton Industrial Hydraulics division). This advanced product portfolio is fully configured to directly replace critical closed-loop proportional control platforms found in demanding factory automation settings, encompassing standard external-amplifier driven valves (KFDG4V), single-solenoid proportional throttles (KFTG4V), linear-displacement tracking throttles (KBFTG4V), and the flagship integrated on-board electronics (OBE) model: KBFDG4V-5-2C70N-Z-M1-PE7-H7-12.

Operating as the responsive primary execution brain within plastic injection molding velocity loops, heavy metal forging press synchronization manifolds, and high-velocity die-casting injection blocks, a proportional valve’s shifting profile and spool hysteresis directly impact finished part tolerances. Chengyuan guarantees 100% original-place drop-in interchangeability across all assemblies concerning standard subplate mounting footprints (fully matching standard ISO 4401-05, CETOP 5, NFPA D05, or size NG10 interfaces), internal metering land geometric alignments (such as the zero-lap “2C” fully-blocked configuration), linear variable differential transformer (LVDT) mechanical shock dampening, and the heavy-duty 7-pin main connection layout (delivering standard $\pm 10V$ command inputs paired with actual spool tracking voltage feedback). Prior to distribution, every modular valve assembly undergoes 100% simulated load testing on computerized diagnostic rigs to verify exact flow linearity slopes, step response frequencies, and thermal slip limitations, ensuring continuous performance up to 315 bar.

Technical Specifications

• Compatible Brand: Vickers by Danfoss / Eaton (Industrial Proportional Fluid Control Infrastructure)

• Target Replacement Model Codes: KBFDG4V-5-2C70N-Z-M1-PE7-H7-12, KFDG4V-5, KFTG4V-3, KBFTG4V-5

• Subplate Mounting Interface: ISO 4401-05 / CETOP 5 / NFPA D05 / NG10 nominal size

• A & B Port Nominal Flow Rating: 70 L/min (Sustained at a calibrated 5 bar differential single-land pressure drop)

• Maximum Allowable Pressure (Ports A, B, P): 315 bar (31.5 MPa / 4500 psi) continuous duty

• Maximum Return Port Backpressure (Port T): 210 bar (Critical for proper non-compensated spool balance mechanics)

• Spool Center Condition Designator: 2C Variant (All ports closed, zero-lap precision configuration for absolute load locking)

• Metering Profile Designation: N Code (Symmetric Meter-In / Meter-Out matching flow path distribution)

• On-Board Electronics (OBE) Operating Profile (For KBF configurations):

  • Supply Requirements: 24V DC stable industrial power supply source (Peak draw rated at 2.7 Amp)

  • Interface Control: M1 Variant ($\pm 10V$ differential analog input command coupled with a integrated $\pm 10V$ LVDT internal loop position feedback output)

• Electrical Interface Matrix: PE7 Code (Includes heavy-duty, vibration-isolated 7-pin electrical plug with mating half hardware connector)

• Seal Architecture and Auxiliary Control: Assembled with high-temperature Fluorocarbon (Viton) sealing matrices as standard. The ‘Z’ designation indicates a completely electrical safety lock profile without hard mechanical manual overrides

• Total Assembly Structural Weight: 9.07 kgs (20 lbs)

Key Technical Advantages:

• Vibration-Isolated OBE Circuitry for Low-Noise Command Tuning: The On-Board Electronics (OBE) module fixed to the KBFDG4V rear body features heavy-duty surface-mount boards shielded in flame-retardant shock-absorbing potting gel. This configuration tracks digital PLC command ramp modifications under 40ms. By unifying the proportional valve matrix and control electronic logic into a single unit, this layout completely eliminates long-distance analog signal attenuation and EMI distortion.

• Thermal-Compensated Closed-Loop Spool LVDT Micro-Tracking: A core differential transformer sensor sits co-axially bound to the rear face of the sliding spool. If the main spool suffers micron-level axial displacement due to unexpected transient fluid forces or high-viscosity resistance, the LVDT detects the variance instantly, enabling the onboard amplifier to adjust internal driving current. This dampening mechanism holds mechanical hysteresis strictly below 0.5% for excellent repeatability.

• Cryogenic Vacuum Case-Hardened Zero-Lap Spool Pairs: The main metering spool is machined from premium chrome-vanadium tool steel treated via multi-stage vacuum oil-quenching and sub-zero cryogenic stabilization cycles. This ensures the edge boundaries of the 2C blocked configuration maintain sharp micron-level geometry, providing a smooth, linear crack response curve that eliminates directional deadbands and initial machine shudder.

• CFD Hydrodynamic Sculpted Housing Against Jet Cavitation: Internal flow ports within the cast body are sculpted using Computational Fluid Dynamics (CFD) modeling to minimize flow resistance. This profile reduces localized pressure drop and lateral Bernoulli fluid forces under high flow velocity, minimizing internal energy loss at 315 bar. An outer industrial zinc-phosphate coating provides resistance against marine salt mist and corrosive casting gases.

Application Areas:

• Heavy-Duty Industrial Die Casting & Forging Presses: Directing high-speed injection cylinders on auto-casting machinery and controlling main platen speed transitions on industrial extrusion presses.

• High-Precision Metal Forming Machine Tools: Providing dual-cylinder positioning and synchronized travel control for heavy-duty metal press brakes and punching machines.

• Marine Active Wave Compensation & Multi-Axis Motion Simulation: Core multi-axis servo loop regulation for high-tonnage marine cargo cranes and structural motion control on multi-degree-of-freedom flight or driving simulation platforms.

Expert Maintenance Tips:

• Mandatory Solenoid Bleed Venting at Initial Commissioning: This is a critical step for stabilizing proportional valve operation. When first filling the manifold system with fluid and booting the controller, you must slowly back out the air bleed cap screws located at the outer tips of the proportional solenoid housings using an Allen wrench. Allow fluid to weep continuously until all tiny trapped air bubbles escape, then re-torque the bleed screw to 2.5-3.0 Nm. Trapped air pockets cause internal spool hunting, chattering, and erratic pressure fluctuations.

• Torque Control and Shielding Grounding for 7-Pin Plug (PE7): When inserting the main heavy-duty 7-pin cable block into the OBE housing connector, the external metal retaining nut must be manually tightened with a calibrated tool to a strict specification of 2.0-2.5 Nm. Achieving this torque seating ensures the IP67 ingress standard and maintains the full EMC integrity of the system. Ensure the cable’s external braided shield is securely grounded at the cabinet end to eliminate analog loop cross-talk.

• Rigid Adherence to Ultra-Clean Fluid Micron Ratings: Because the KBFDG4V series relies on Single-micron matching clearances between the spool land and main bore, the assembly is vulnerable to fine particulate abrasive jamming. System fluid cleanliness must be held at or above ISO 4406 17/15/12 (or NAS Class 6 targets, requiring absolute filter element ratings of $\le 5$ microns). Allowing particulate contamination or varnish to bypass filtration can wear down the LVDT tracking shaft or score the precision spool edge, which may cause sudden valve sticking and machine operational failure.
