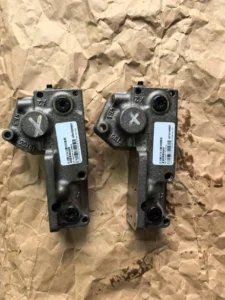

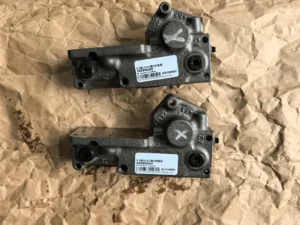

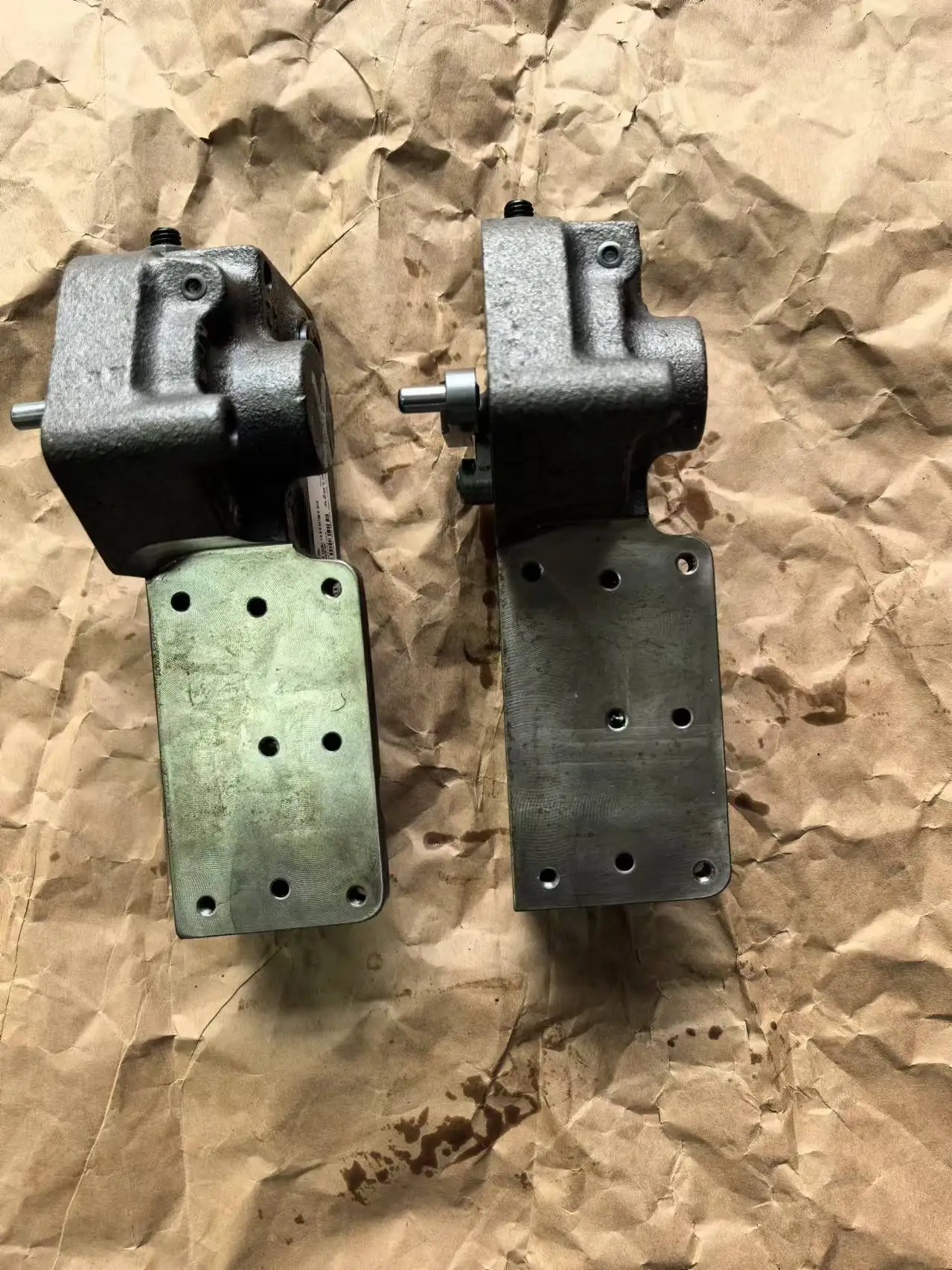

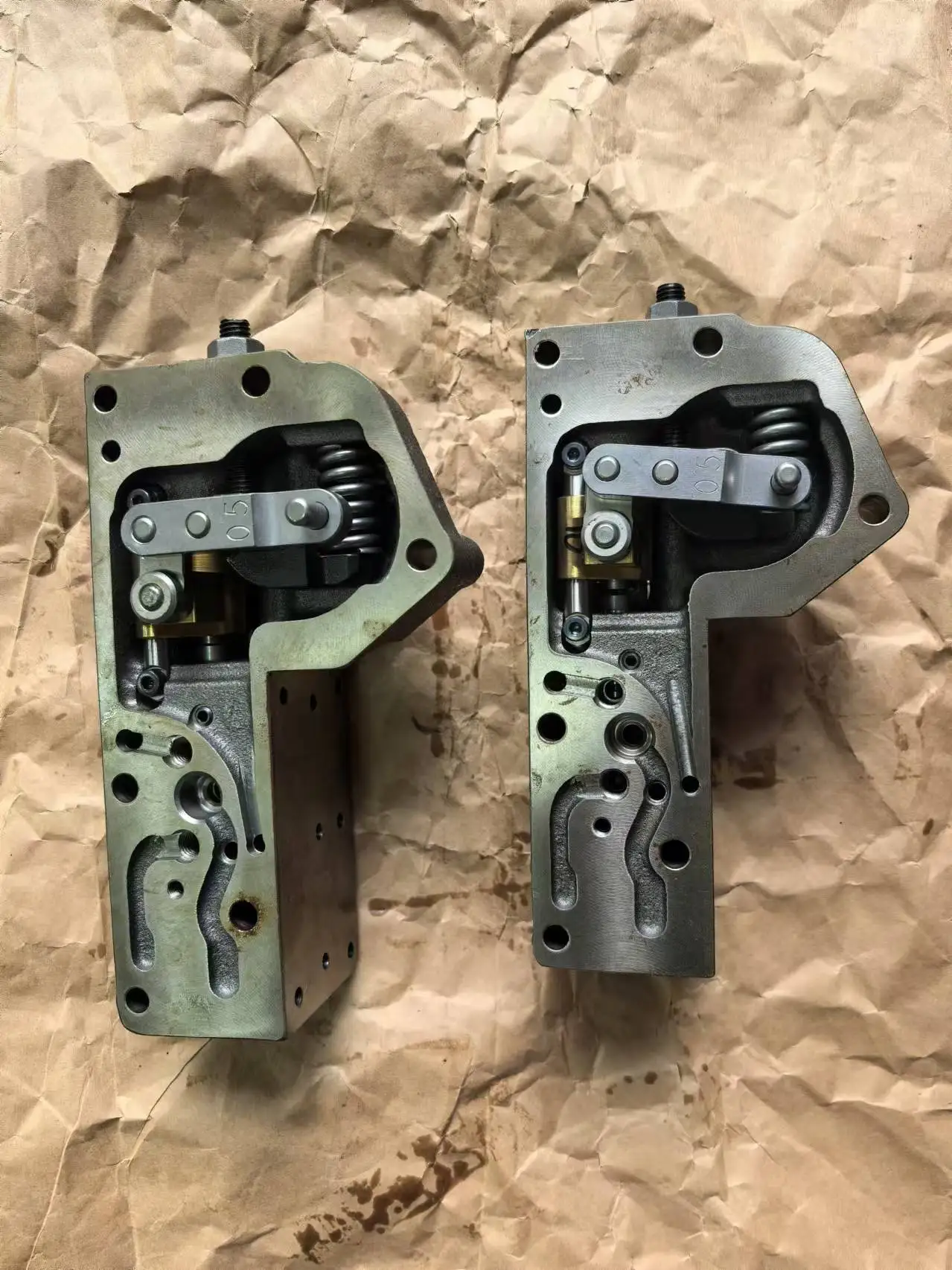

Danfoss KVE Series Hydraulic Pilot Valve | MCV116G4201 KVEBB1402 Pressure Control Valve

The KVE Series (and its matched MCV116G series) electro-hydraulic proportional pressure control pilot valves from Chengyuan Hydraulic are ultra-precision control components fully compatible with Danfoss (formerly Sauer-Danfoss) mobile and heavy industrial heavy-duty machinery standards. These valve stacks—comprising the MCV116G4201 proportional pilot valve head and KVEBB1402, KVEBB1802, KVEBB0504, KVEBB0502 pressure-reducing cartridge base blocks—are custom-engineered for electro-hydraulic displacement controls (EDC) of hydrostatic pumps/motors and pilot operations of main proportional directional valves. Utilizing optimized magnetic circuits paired with anti-clogging spools, every proportional pilot valve stack undergoes 100% simulated operational hysteresis plotting, microsecond-level step response time, and zero-position deadband trim auditing before delivery to guarantee premium output pressure linearity, achieving proven 100% original-place interchangeability.

Technical Specifications :

• Core Technical Assembly: MCV116G4201 (Proportional Pilot Header) + KVEBB Series (Pressure Reducing Cartridge Base Block)

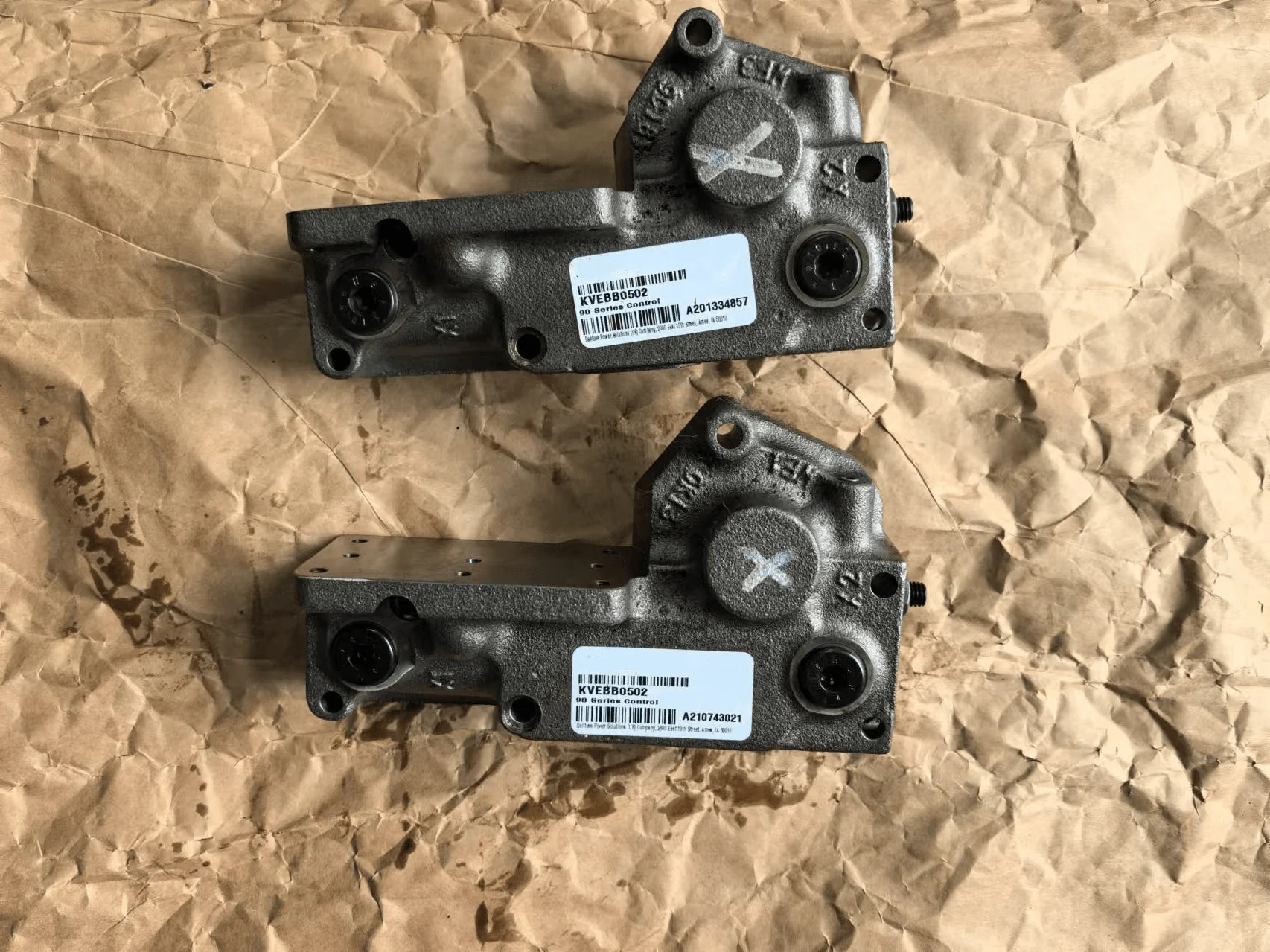

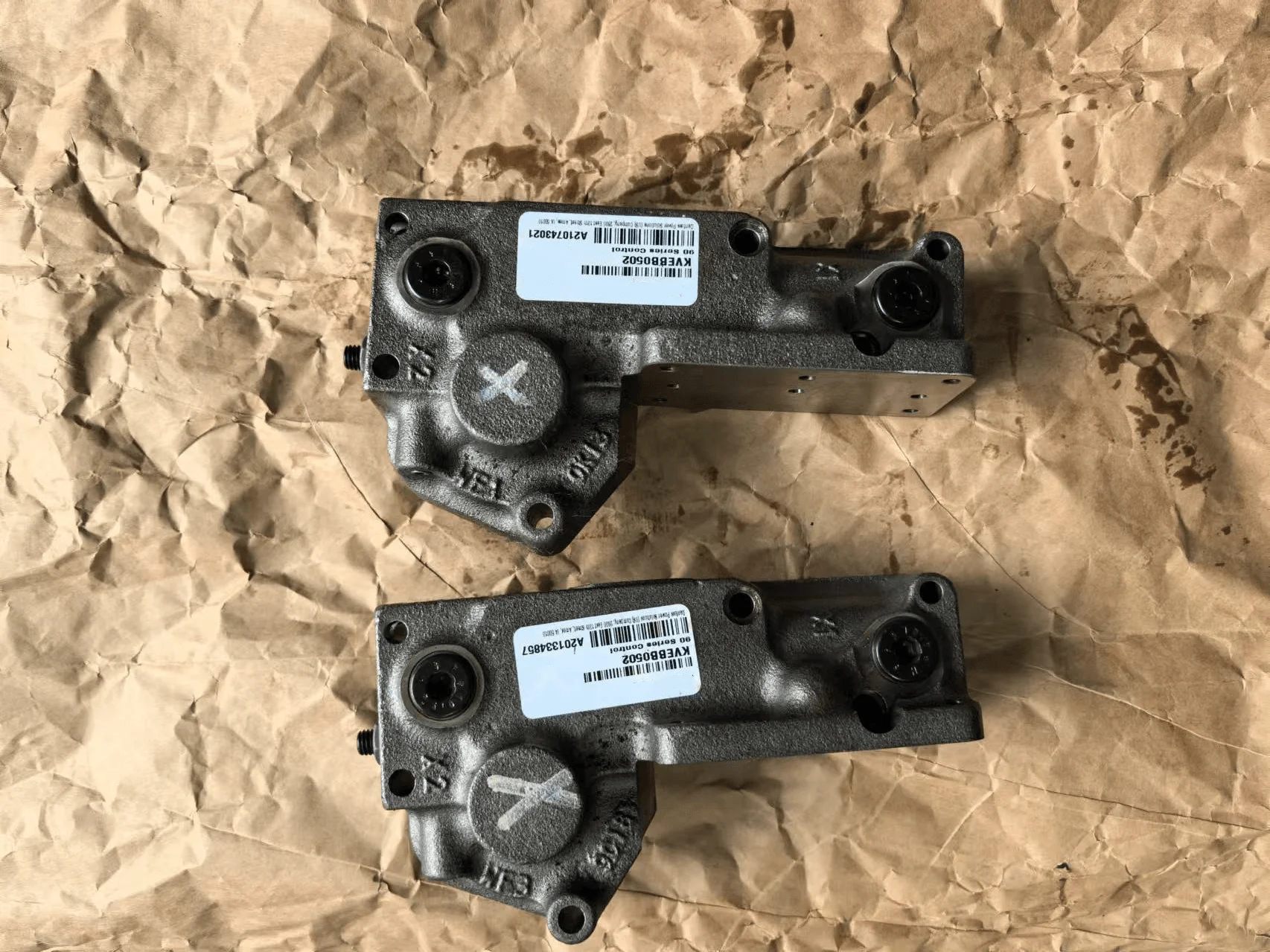

• Cartridge Base Configuration Codes: KVEBB1402 / KVEBB1802 / KVEBB0504 / KVEBB0502

• Rated Solenoid Coil Voltage: 12V DC / 24V DC (Configuration dependent)

• Command Control Current: 200 mA to 1500 mA (Driven via precise Pulse Width Modulation – PWM signal)

• Maximum Pilot Supply Intake Pressure (P-Port): 50 bar (5.0 MPa)

• Proportional Control Pressure Ranges:

  • 05 Variants: 0 – 5 bar (0 – 72.5 psi)

  • 14 Variants: 0 – 14 bar (0 – 203 psi, standard for closed-loop pump EDC terminals and steering pilots)

  • 18 Variants: 0 – 18 bar (0 – 261 psi)

• Maximum Pilot Flow Rate: 2 L/min to 5 L/min (Optimized micro-channel pilot flow scaling)

• Coil Environmental Insulation Rated: IP67 / IP69K moisture and thermal intrusion ingress protection

• Sealing Compounds: Premium FKM (Viton) standard, built for severe chemical resistance and continuous fluid shear

Key Technical Advantages:

• Ultra-Low Electromagnetic Hysteresis ($< 3\%$): The internal armature cavity is precision vacuum-annealed and layered with a self-lubricating dry coating. Working in sync with standard PWM command inputs, it lowers friction and residual magnetism lags to under 3%, translating tiny current fluctuations into lightning-fast, linear pressure adjustments without deadband lag.

• Hydrostatic Spool-to-Bore Gap Compensation: The core KVEBB cartridge spools undergo micron-level centerless grinding, securing a matching sliding clearance restricted strictly between $3 – 5 \mu m$. This micro-tolerance guarantees excellent static pressure holding and uniform axial stroke delivery despite severe circuit swapping shocks.

• Anti-Cavitation Step-Down Orifice Geometry: The pilot damping channels and spool metered edges feature custom multi-stage decompression grooves. This layout successfully suppresses vapor cavitation bubbles under high velocity drops, while shredding fine particulate matter to avoid localized siltation jams.

• True Drop-In Modular Interface Compounding: The interface face, locating pin holes, and mounting bolt centers of the MCV116G4201 are machined on tight-tolerance CNC tooling. Users can swap components directly onto the EDC cap blocks of Danfoss 90 series or H1 series hydrostatic pumps in the field without any tedious electronic deadband recalibration.

Application Areas:

• Hydrostatic Transmission (HST) Loops: Primary pilot supply for Electronic Displacement Controls (EDC) mounted on traction pumps (e.g., Danfoss PV90R / H1P series) for wheel loaders, soil compactors, and rotary drilling rigs.

• Heavy Crawler Steering Assemblies: Displacements proportion control modules for high-capacity hydraulic travel motors on aerial work platforms and tracked excavators.

• High-Precision Proportional Directional Valves: Proportional electro-hydraulic actuators for multi-way load-sensing valve manifolds (such as PVG32 / PVG120 series) on truck cranes and agricultural combine harvesters.

Expert Maintenance Tips:

• PWM Driver Non-Negotiable Mandate: The KVE/MCV116G series are high-precision proportional valves. The solenoid coils must be powered via a Pulse Width Modulation (PWM) controller incorporating dither signals. Never subject the coil to unmodulated, raw 12V or 24V DC battery power; raw DC will burn out the coil within moments or result in heavy spool stutter due to friction locks.

• Rigid Low-Backpressure Case Drain Rule (T-Port): Zero-point baseline references and armature lubrication are dependent on a clean, unrestricted tank link. Ensure the T-port discharges directly to the primary reservoir with dynamic backpressure strictly maintained under 2 Bar. Excess backpressure will skew the entire output calibration upward, leading to uncommanded machine movements.

• Stringent Filtration Thresholds: Because the internal pilot damping channels feature cross-sections smaller than $1mm$, the hydraulic loop must be backed by a $10 \mu m$ absolute (ideally $5 \mu m$ magnetic core) filtration matrix. Allowing contamination to breach ISO 4406 18/16/13 levels will cause continuous pilot pressure drift or instant spool seizure.
