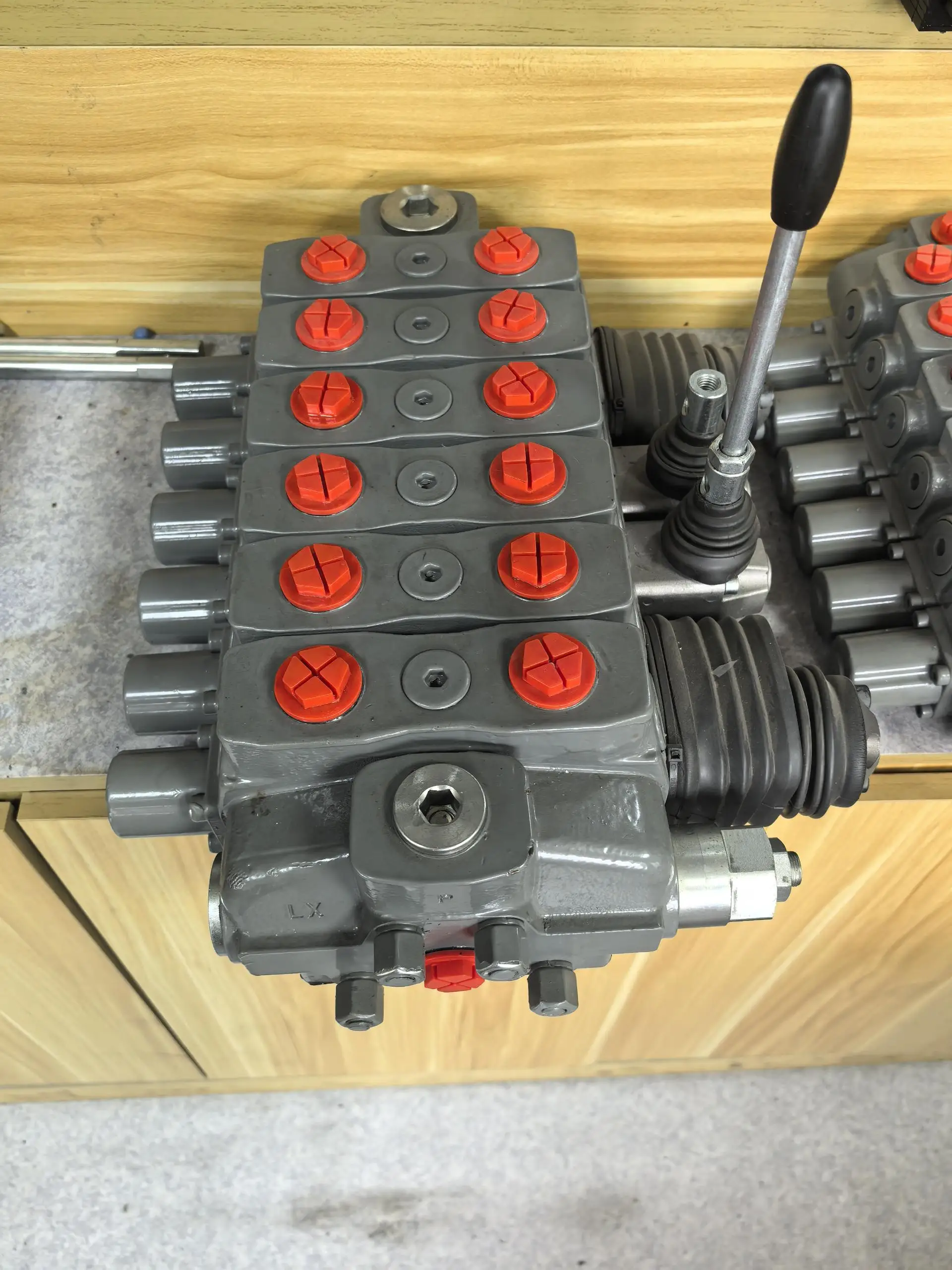

RD5300 RD5200 Series Manual Hydraulic Control Valve | PC70-1 PC100-1 Directional Valve

Chengyuan Hydraulic offers a premium range of manual hydraulic directional control valves, including the RD5300, RD5200, DF250, and DF380 series. These valves are engineered as critical direction-control components for medium-to-heavy duty construction machinery, agricultural equipment, and material handling systems. This series is specifically designed to fit PC70-1 and PC100-1 machinery, providing precise control over cylinder and motor movements. As a high-performance industrial replacement, Chengyuan ensures 100% Drop-in Interchangeability in terms of mounting patterns, porting, and hydraulic logic. Backed by our 100% Simulation Load Testing, every valve assembly is verified for internal leakage rates and switching reliability under rated pressures, ensuring a superior tactile feel and exceptional durability in extreme environments.

Technical Specifications

• Model Series: RD5300 / RD5200 / D5100 / DF250 / DF380

• Compatible Machinery: PC70-1 / PC100-1 Excavator Series

• Nominal Flow Rate: 95 L/min (RD5300) / 115 L/min (DF250)

• Rated Operating Pressure: 21 MPa (210 Bar)

• Max Operating Pressure: 25 MPa (250 Bar)

• Max Back Pressure (Port T): 1 MPa (10 Bar)

• Control Method: Manual Lever (Spring Return or Detent options)

• Body Material: High-strength compacted graphite iron

• Port Specifications: Standard G-thread or SAE-thread configurations

Key Technical Advantages:

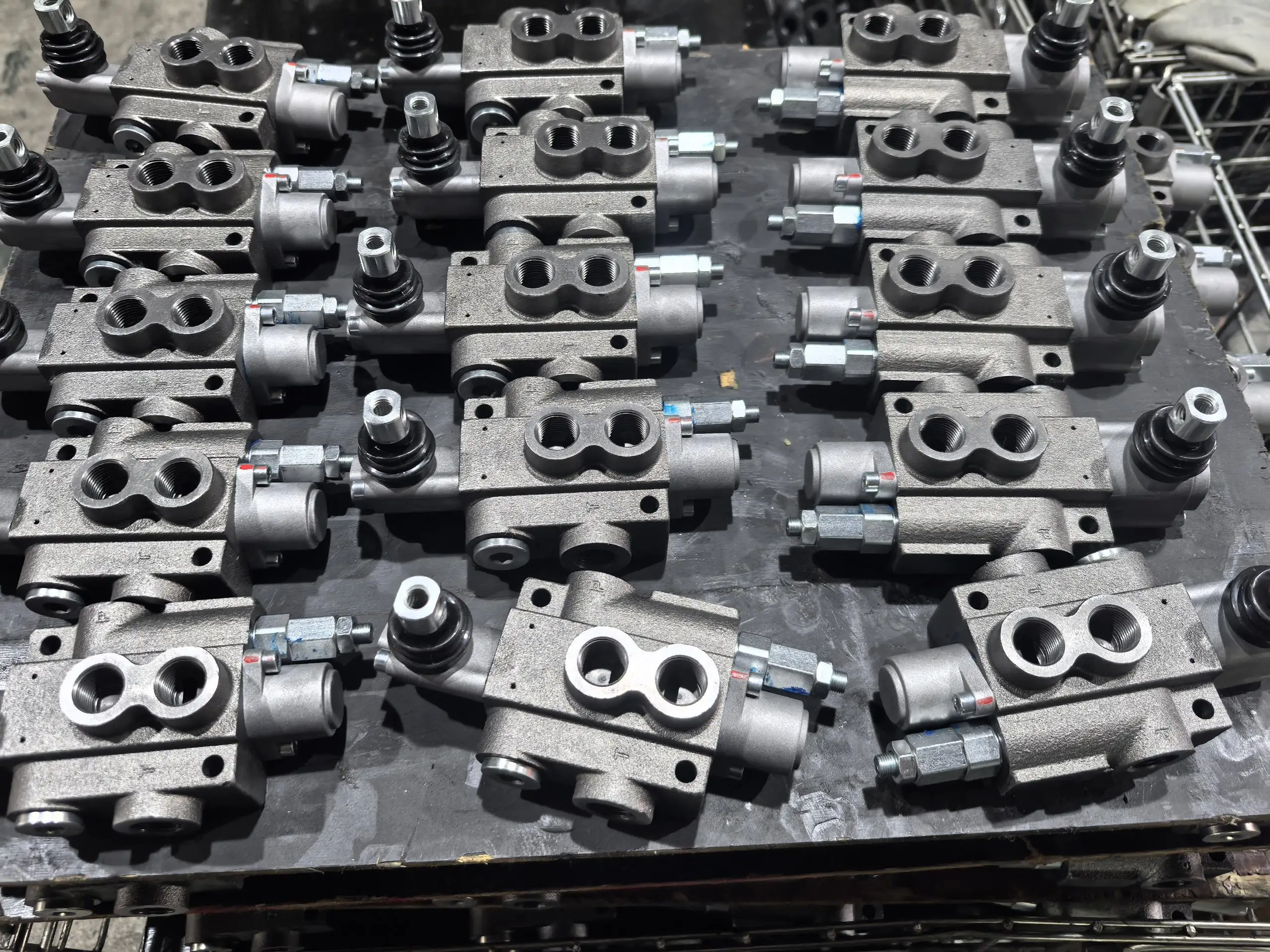

• Mono-block Construction: The valve features a single-piece casting design, eliminating potential leak paths between sections. This structure offers extreme resistance to deformation under alternating high-pressure loads.

• Precision-Ground Hard Chrome Spools: Spools are crafted from heat-treated alloy steel, hard-chrome plated, and precision-ground. This ensures micron-level clearances between the spool and bore, minimizing neutral leakage and providing a silky-smooth operation.

• Integrated Differential Relief Valve: A high-performance, adjustable relief valve is built-in to react instantly to pressure spikes, protecting the pump and actuators from overload damage.

• Enhanced Metering Characteristics: The valve port geometries are optimized via CFD simulation to provide excellent metering. This allows operators to achieve micro-fine, steady speed adjustments based on lever stroke.

Application Areas:

• Construction Machinery: Auxiliary circuits for PC70-1/PC100-1 or main controls for mini-excavators.

• Sanitation Vehicles: Hydraulic distribution for refuse compactors and sweepers.

• Agriculture: Rear hitch control for tractors and header lift systems for combines.

• Material Handling: Tilt cylinder and side-shifter circuits for forklifts.

Expert Maintenance Tips:

• Linkage Alignment: When installing control linkages, ensure they are perfectly centered. Any side-loading will cause one-sided wear on the spool, leading to increased leakage or sticking.

• Filtration Integrity: Directional valves are sensitive to particulate contamination. Maintain a return filtration of at least 20μm and monitor oil quality to prevent metallic particles from scratching the chrome plating.

• Pressure Adjustment Protocol: Always use a precision gauge when adjusting the integrated relief valve. Never exceed the system’s maximum rated pressure to avoid fatigue cracks in the valve body.
