MCV116 MCV111 Pressure Control Pilot Valve | MCV116A3102 MCV116G4201 | Danfoss Interchangeable Hydraulic Valve

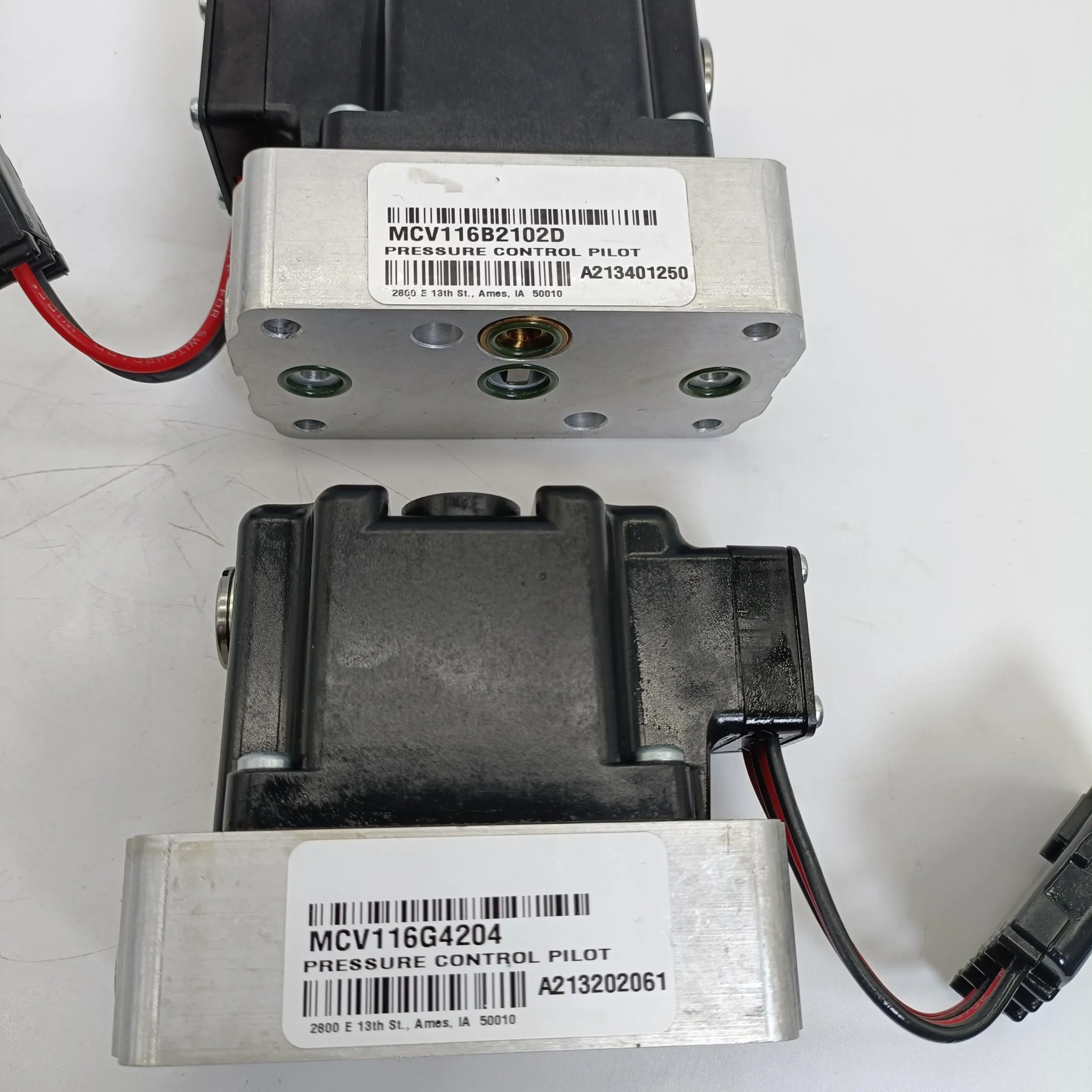

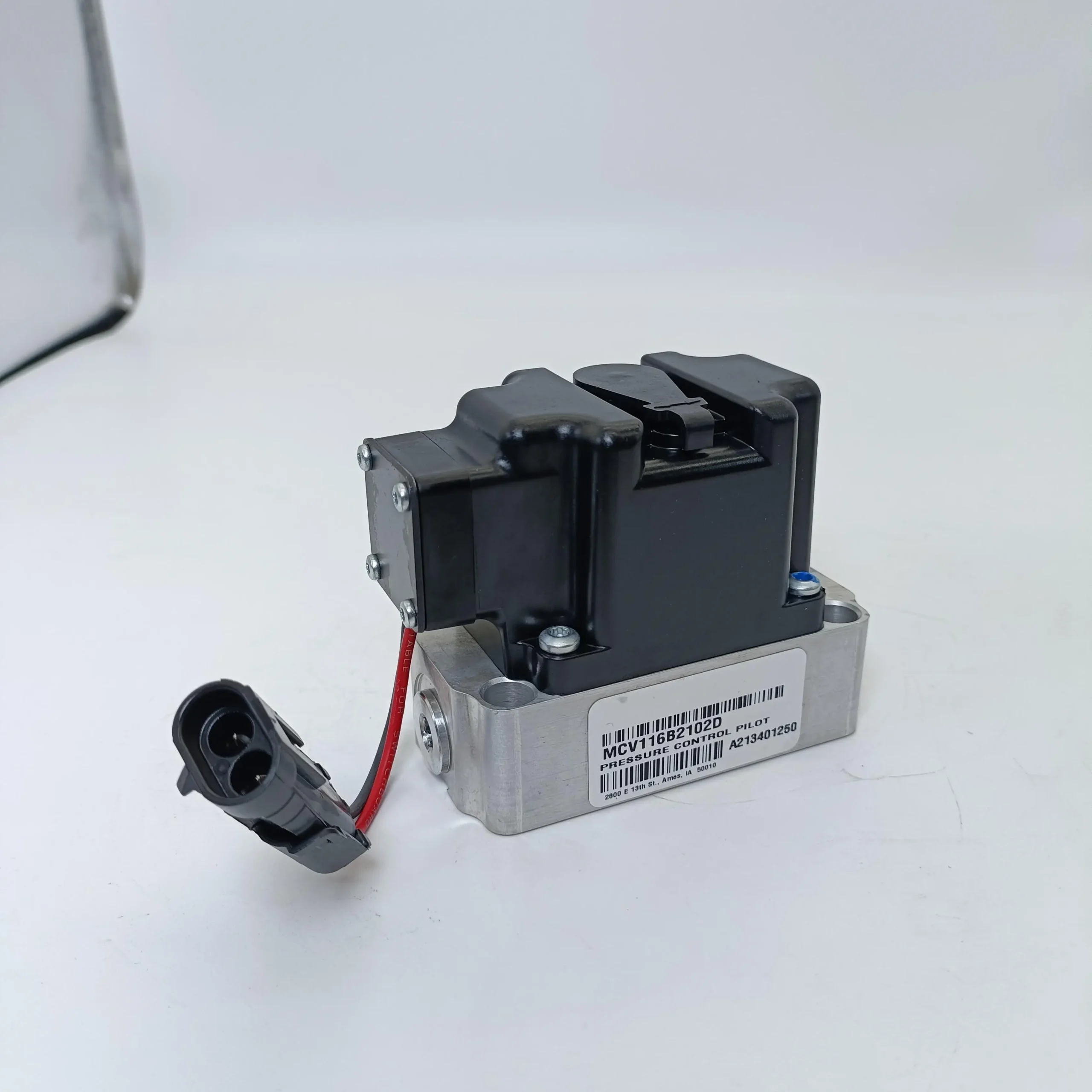

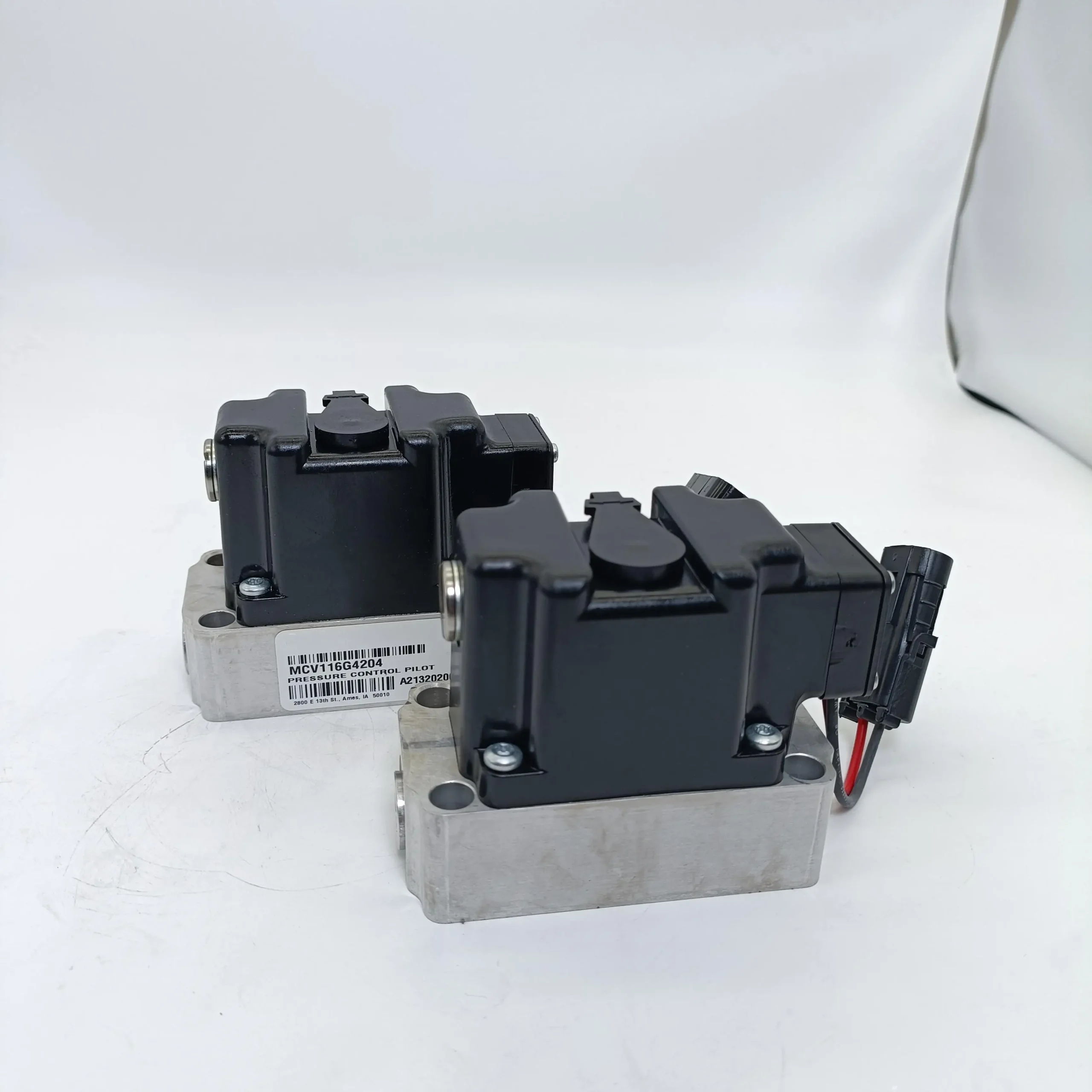

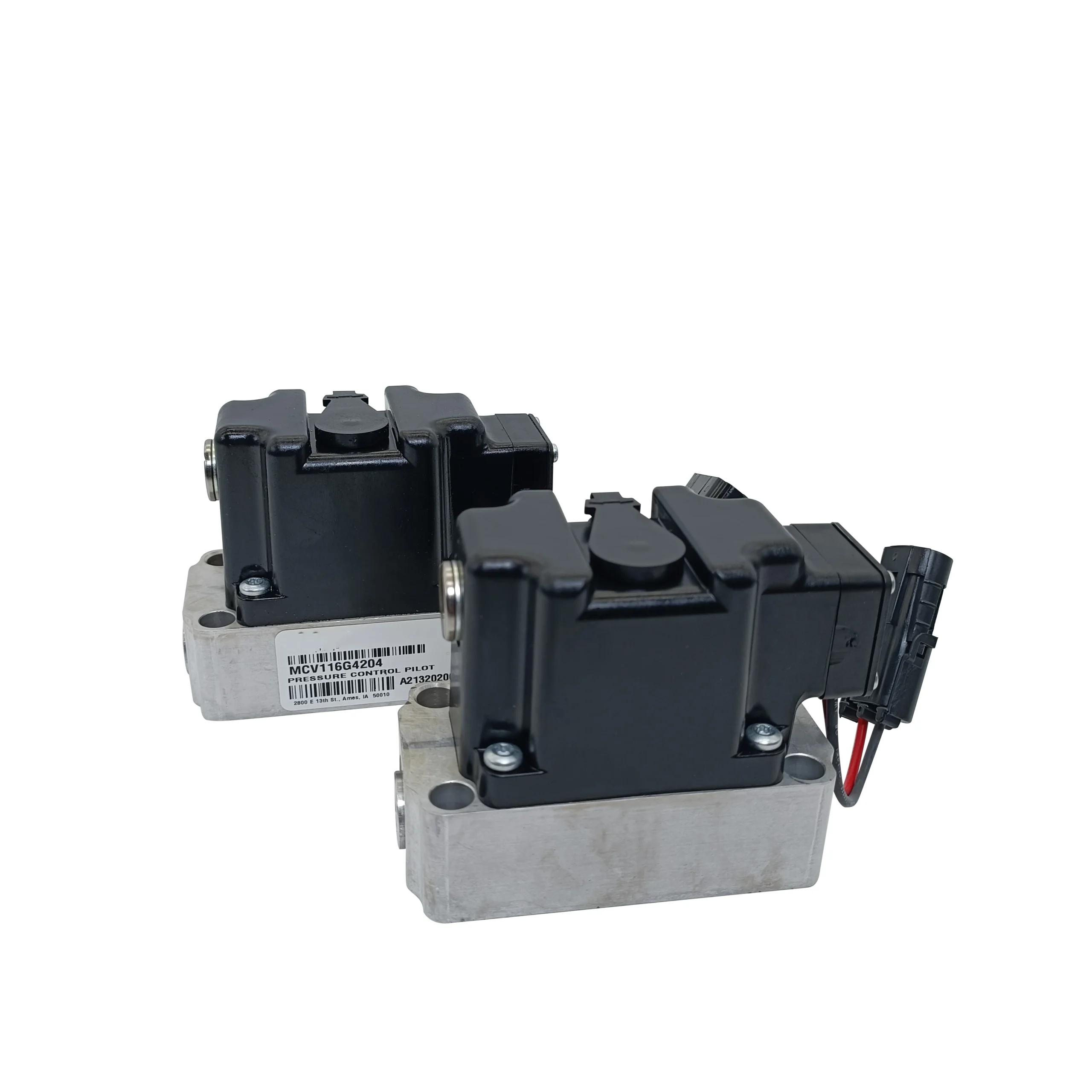

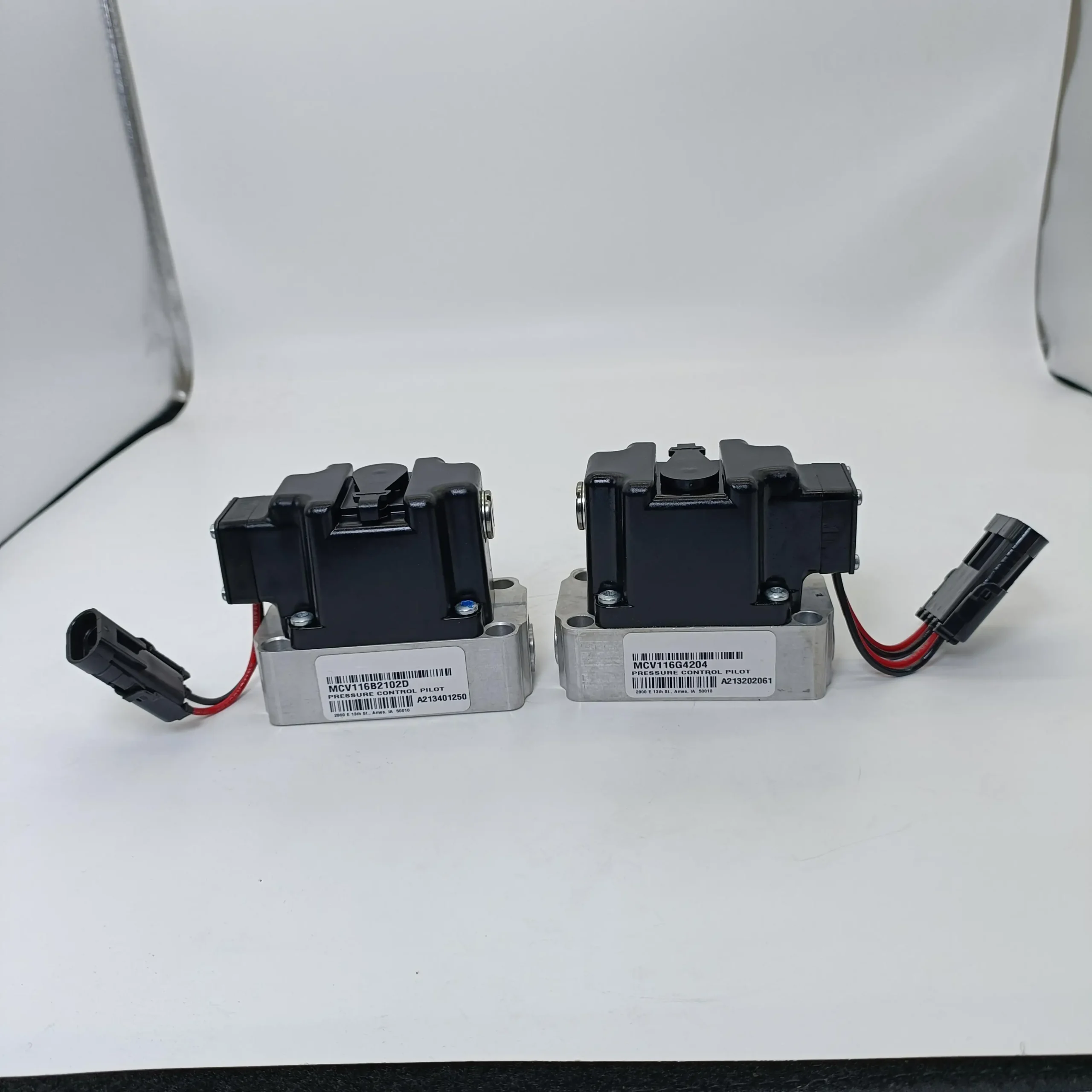

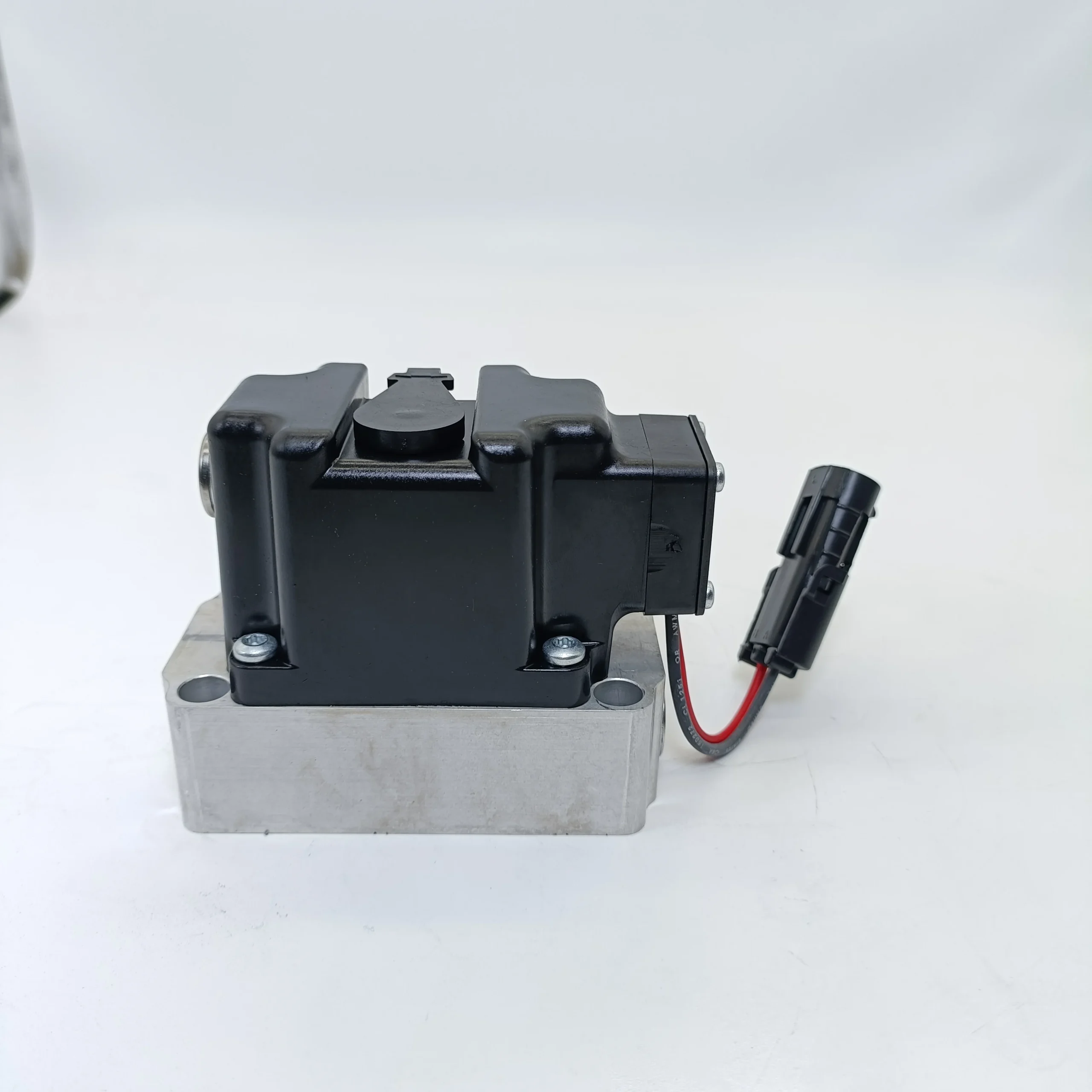

Chengyuan Hydraulic offers high-performance MCV Series (MCV116A, MCV116G, MCV111B) Pressure Control Pilot Valves, designed for the precision management of hydrostatic transmissions. These valves act as the critical link between electronic control systems and hydraulic power, regulating pump or motor displacement. Our valves are engineered for 100% interchangeability with Danfoss originals. At Chengyuan, each valve undergoes 100% simulated operational condition testing to ensure zero-defect performance and industry-leading response times in heavy-duty mobile applications.

Technical Specifications (Bulleted List):

• Model Codes: MCV116A3102 / MCV116G4201 / MCV116G4204 / MCV111BB1002

• Control Type: Electro-hydraulic Proportional Pressure Control

• Max. Pilot Supply Pressure: 35 bar (507 psi)

• Control Pressure Range: 3.5 to 22 bar (Customizable via spring configuration)

• Rated Flow Rate: 1.9 L/min (0.5 US gpm)

• Input Current Range: 100 – 450 mA

• Coil Resistance Options: 20 Ω / 40 Ω

• Seal Type: High-temperature Fluorocarbon (Viton)

• Fluid Operating Temperature: -30°C to +110°C

Key Technical Advantages:

• Precision Proportional Linearity: The internal spool geometry and force motor are optimized for a highly linear relationship between current input and pressure output, providing the operator with smooth and predictable machine control.

• Rapid Dynamic Response: Specialized damping orifice designs allow for instantaneous pressure modulation, reducing lag in the pump/motor displacement control circuit for higher machine productivity.

• Contamination Resilience: Utilizing integrated fine-mesh filtration and hardened spool coatings, our MCV valves resist the “stick-slip” effect caused by micro-particles in the oil, ensuring long-term reliability.

• Seamless OEM Integration: All physical dimensions, mounting patterns, and electrical connectors are identical to the OEM Danfoss MCV series, allowing for “plug-and-play” replacement without modifying system software.

Application Areas:

• Construction Machinery: Closed-loop pump control for excavators, road rollers, and asphalt pavers.

• Agricultural Equipment: Hydrostatic drive control for harvesters, sprayers, and forestry tractors.

• Material Handling: Directional and speed control for large-scale telehandlers.

Expert Maintenance Tips:

• Pilot Pressure Calibration: Upon installation, verify the neutral and full-stroke pilot pressures using a precision gauge. Minor adjustments can be made via the mechanical adjustment screw to match specific pump requirements.

• Filtration Management: Pilot valves have extremely tight tolerances. To prevent orifice clogging, maintain system filtration at ISO 4406 18/16/13. Always flush the pilot lines before installing a new MCV valve.
