Poclain MS08 MSE08 Hydraulic Motor | MS05-2-14A Radial Piston Wheel Motor | High Torque

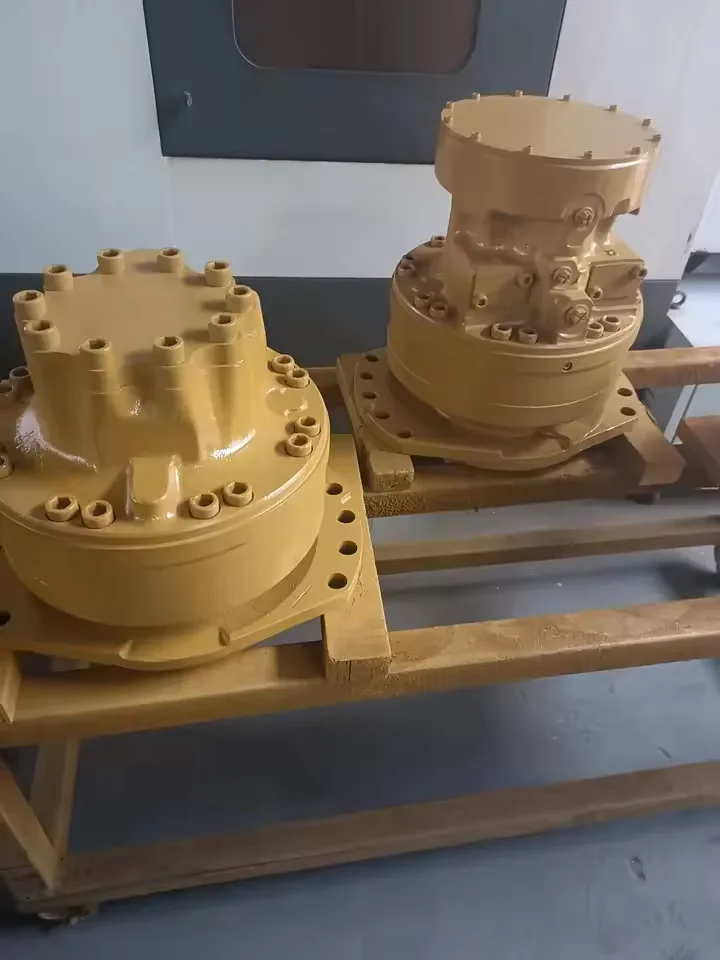

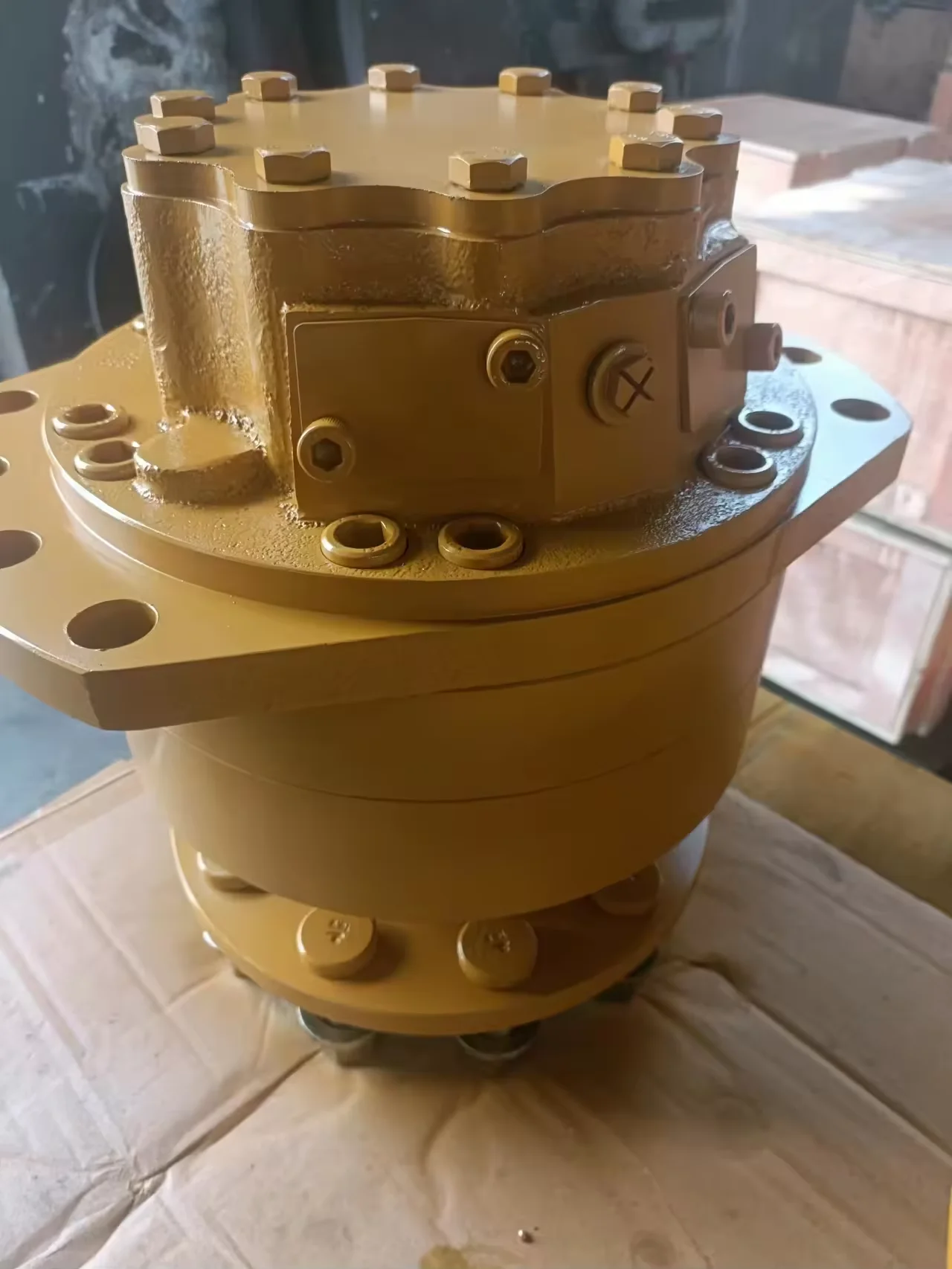

The Poclain MS/MSE Series (including MS08-0-125 and MS05-2-14A) offered by Chengyuan Hydraulic is a premium line of radial piston motors. These motors are engineered with a modular design, specifically optimized for wheel drive applications and heavy-duty industrial rotations. We guarantee 100% original-place interchangeability with Poclain components. At Chengyuan, every motor undergoes 100% simulated condition testing to ensure superior Low-Speed High-Torque (LSHT) performance, making them the ideal propulsion core for construction, agriculture, and specialty vehicles.

Technical Specifications (Bulleted List)

• Specific Models: MS08-0-125-R08-1130-EJ00 / MS05-2-14A-F05-8AD0-56EFZ

• Displacement Range: $468\text{ to }1250\text{ cm}^3\text{/rev}$ (MS08) / $260\text{ to }750\text{ cm}^3\text{/rev}$ (MS05)

• Rated Pressure: $40\text{ MPa (5800 psi)}$

• Peak Pressure: $45\text{ MPa (6526 psi)}$

• Max Output Torque: Up to $6000\text{ N}\cdot\text{m}$ (MS08 peak)

• Max Speed: $150\text{–}240\text{ RPM}$ (depending on displacement)

• Braking: Optional integrated multi-disc hydraulic parking brake

• Weight: Approx. $35\text{ kg}$ (MS05) / $52\text{ kg}$ (MS08)

Key Technical Advantages

• Multi-stroke Radial Piston Design: The cam-lobe geometry ensures smooth, ripple-free torque output. Unlike axial piston motors, the MS series maintains constant torque even at speeds as low as $1\text{ RPM}$, eliminating “stiction” or jerky movements.

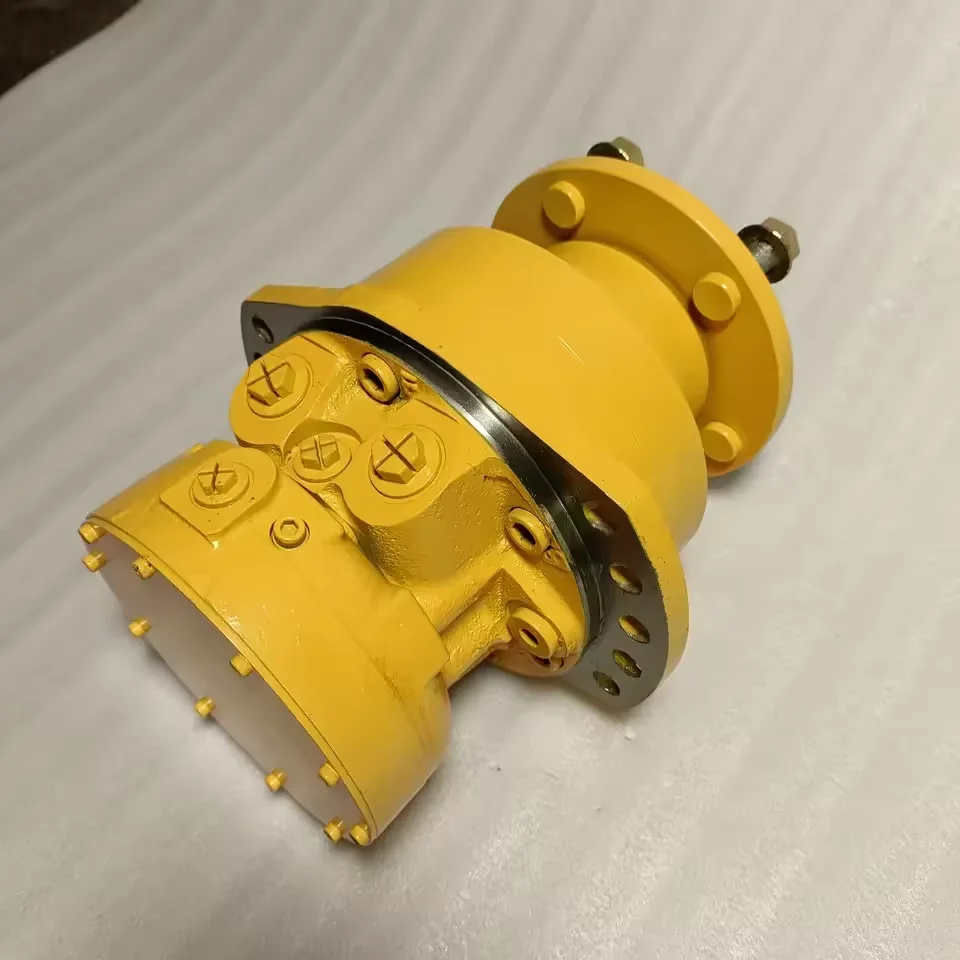

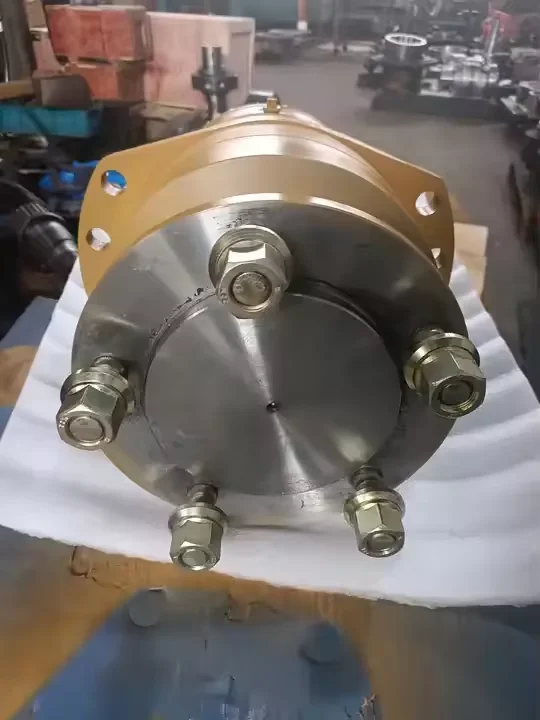

• High Radial Load Capacity: The wheel motor configuration features reinforced bearings that allow the motor to act as a structural axle, supporting significant vertical and horizontal loads while simplifying chassis design.

• Advanced Valve Plate Technology: Utilizing flat valve distribution with precision-ground surfaces, we ensure minimal internal leakage. Coupled with 100% simulation testing, the motor delivers exceptional volumetric efficiency even at $450\text{ bar}$.

• Integrated Braking Solution: Supports the direct integration of a spring-applied, hydraulic-released brake at the rear, ensuring heavy-duty incline parking safety in a compact footprint.

Application Areas

• Construction Machinery: Skid steer loaders, telehandlers, and self-propelled aerial platforms.

• Agricultural Equipment: Combine harvesters, grape harvesters, and sprayers.

• Specialty Vehicles: Airport tugs, heavy-duty forklifts, and mining conveyors.

Expert Maintenance Tips

• Case Drain Connection: Always ensure the highest drain port is connected directly to the reservoir. The case pressure must not exceed $0.2\text{ MPa}$ to protect the shaft seal.

• Initial Priming: Before the first start, the motor case must be filled with clean hydraulic oil to prevent dry friction between the pistons and the cam track.

• Temperature Regulation: Because radial motors dissipate heat slowly at low speeds, keep the operating temperature between $30\text{ and }60\text{°C}$. Temperatures above $80\text{°C}$ will drastically accelerate seal wear.
