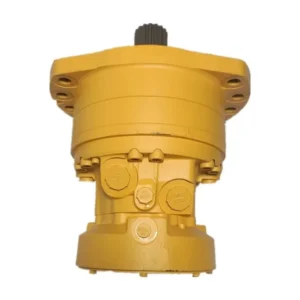

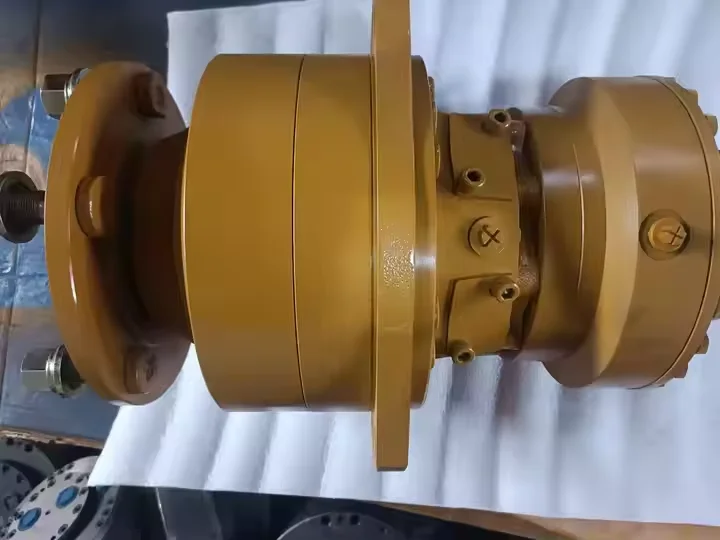

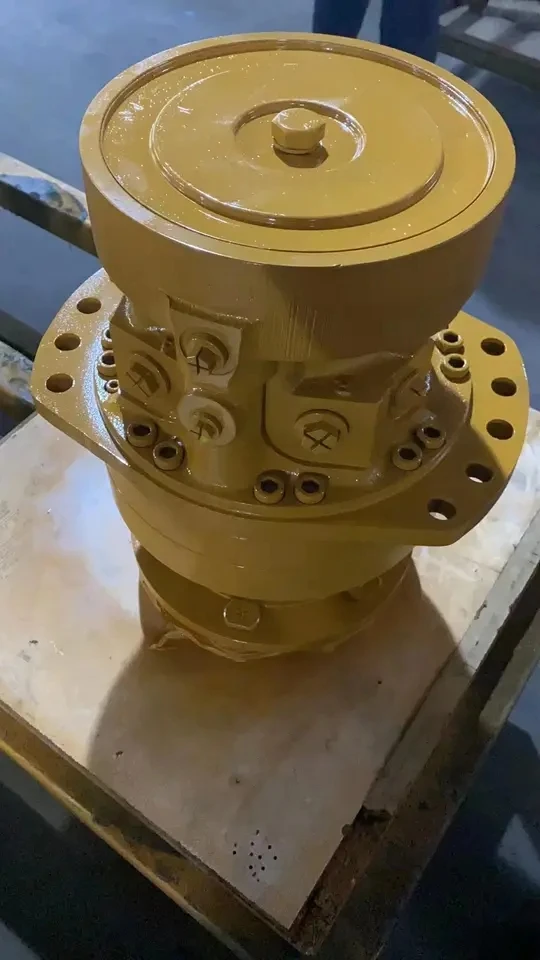

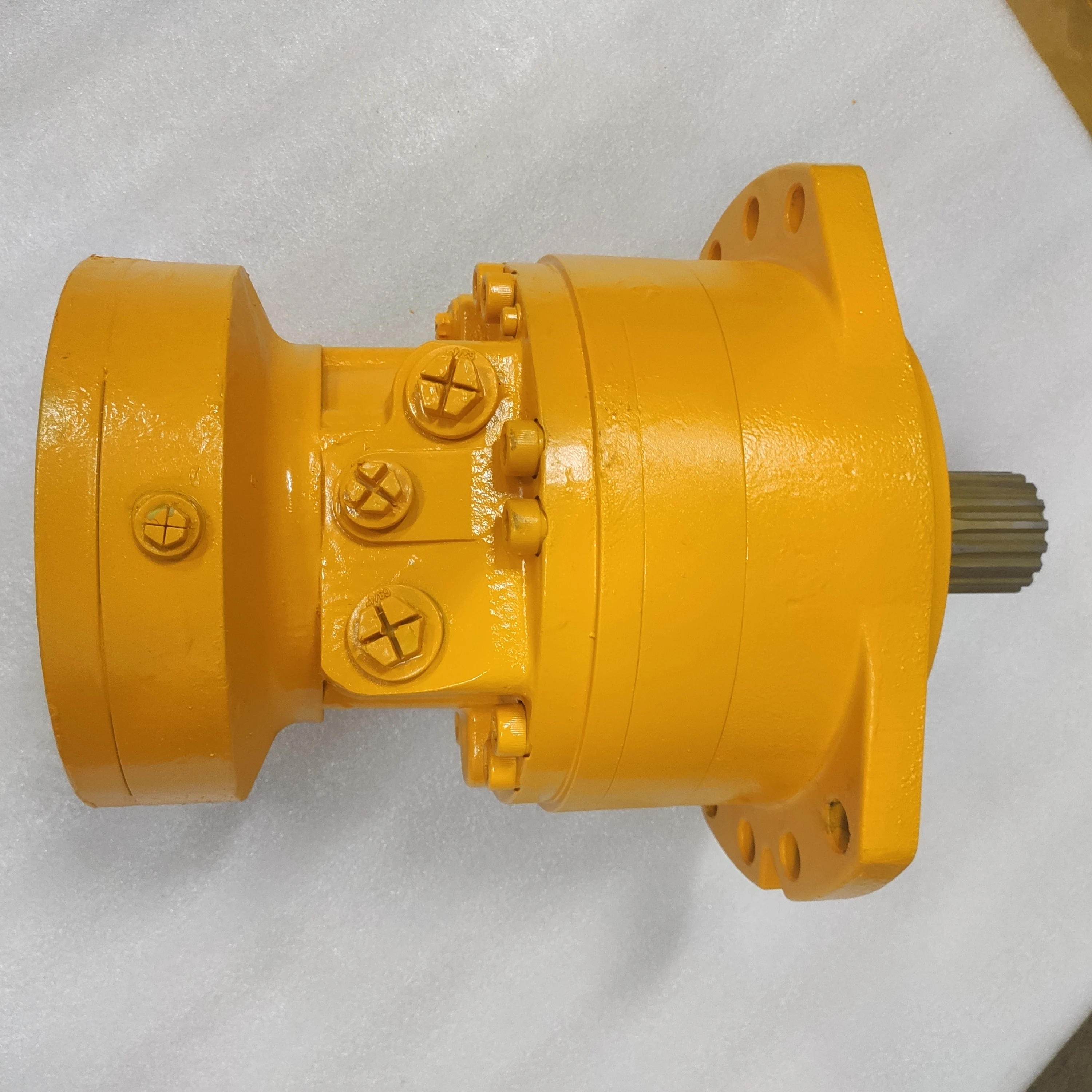

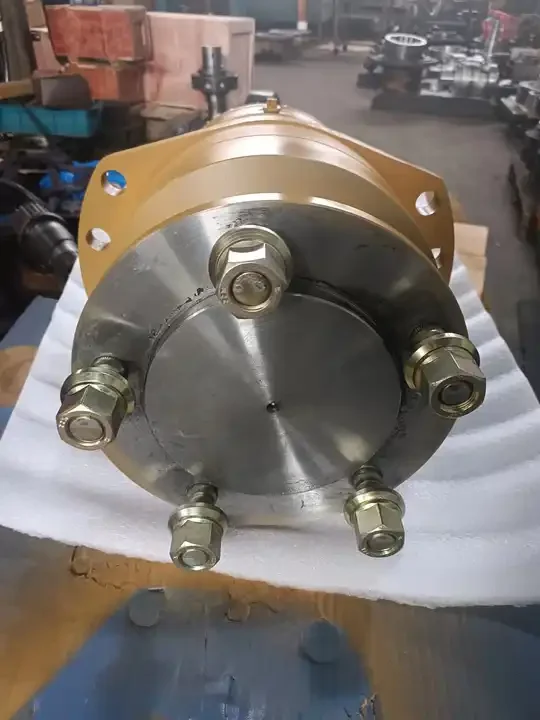

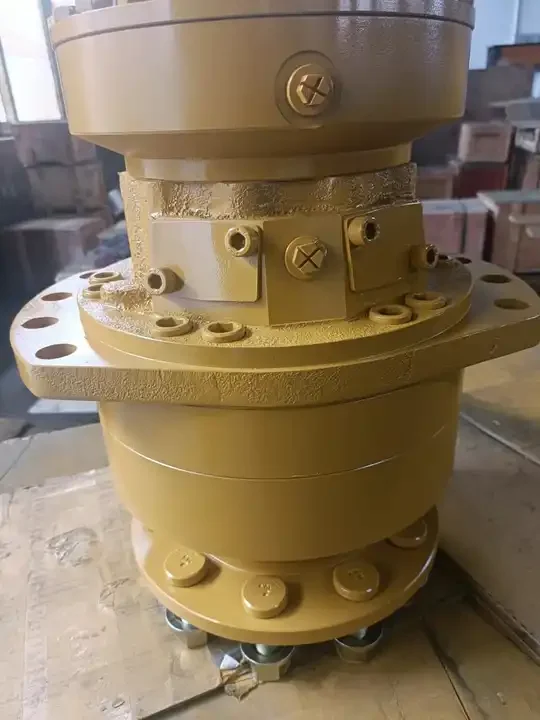

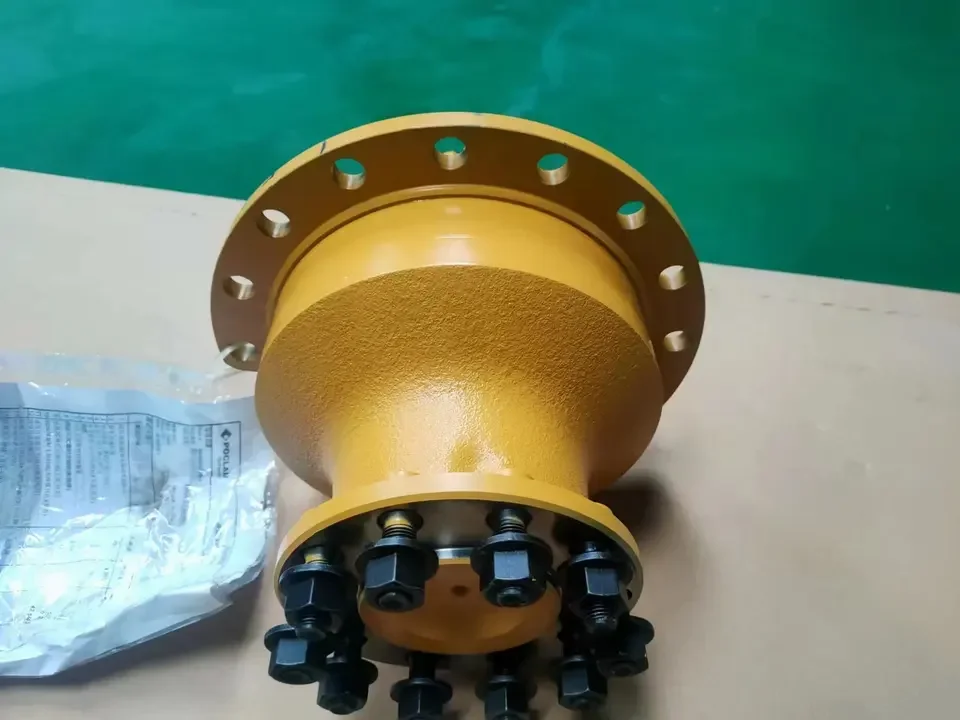

Poclain MSE Series Hydraulic Motor | MSE02 MSE08 MSE11 MSE18 MSE25 | High Torque Low Speed Piston Motor

Chengyuan Hydraulic offers the MSE Series radial piston hydraulic motors, expertly engineered as high-end replacements for the Poclain technical standards. This series covers the full spectrum from the compact MSE02 to the heavy-duty MSE25, including specific complex configurations such as MSE11-2-121-R11 and MSE02-2-123-A02. Designed for High Torque Low Speed (HTLS) applications, these motors feature a modular architecture with high power density and exceptional low-speed stability. Chengyuan ensures 100% Drop-in Interchangeability with original Poclain units regarding mounting flanges, output shafts, and porting. Backed by our 100% Simulation Load Testing, every motor is verified for displacement accuracy and volumetric efficiency at rated pressures before leaving our facility, ensuring rugged reliability for construction and agricultural machinery.

Technical Specifications

• Compatible Brand: Poclain MSE Series

• Core Models: MSE02, MSE05, MSE08, MSE11, MSE18, MSE25

• Displacement Range: 175 ml/r to 3000 ml/r (model dependent)

• Rated Pressure: 25 MPa (250 Bar)

• Peak Pressure: 40 MPa / 45 MPa

• Max Torque: Up to 15,000 N.m (for MSE25 models)

• Speed Range: 0.5 – 300 r/min (Excellent ultra-low speed crawling performance)

• Control Logic: Single displacement / Dual displacement (1-speed / 2-speed) available

• Braking Options: Available with integrated hydraulic-mechanical parking brakes

Key Technical Advantages:

• Radial Piston with Multi-Roller Design: The motor utilizes a proven radial piston structure where force distribution between the distributor and rotor is precisely balanced. This ensures smooth torque output even at near-zero speeds, making it ideal for precision travel control.

• High-Pressure Sealing Technology: Equipped with high-performance, pressure-resistant composite seals, our motors allow for higher case backpressures and superior thermal resistance. This guarantees zero leakage under frequent reversing and high-impact loads.

• Modular Versatility: The MSE series is characterized by its diverse shaft ends (including splined, keyed, tapered, and brake-integrated shafts). Chengyuan strictly follows the original coding rules, allowing for direct replacement without any mechanical modifications.

• Heavy-Duty Impact-Resistant Bearings: Large-scale rolling bearings are used to support significant radial and axial loads. In wheel-drive or crawler-drive applications, these bearings effectively resist external shocks caused by uneven terrain.

Application Areas:

• Agricultural Machinery: Wheel drives for harvesters, sprayers, and orchard tractors.

• Construction Equipment: Drum drives for rollers, cold planers, and pavers.

• Material Handling: Travel motors for forklifts and narrow-aisle stackers.

• Mining Machinery: Crawling mechanisms for roadheaders and rotary drives for drilling rigs.

Expert Maintenance Tips:

• Case Priming Protocol: Before the initial run after installation, the motor housing MUST be filled with clean hydraulic oil through the drain port. Dry starts will destroy the piston slippers and cam ring within seconds.

• Drain Line Pressure: Ensure the drain line returns directly to the tank and that the backpressure remains below 0.2 MPa. Excessive case pressure will rupture the shaft seal and disrupt internal lubrication.

• Temperature Management: Maintain operating oil temperatures between 30°C and 60°C. If temperatures exceed 80°C, the decrease in oil viscosity will thin the lubrication film, drastically accelerating motor wear.
