NXQ Series Bladder Hydraulic Accumulator NXQ-6.3L Carbon Steel 10Mpa 31.5Mpa

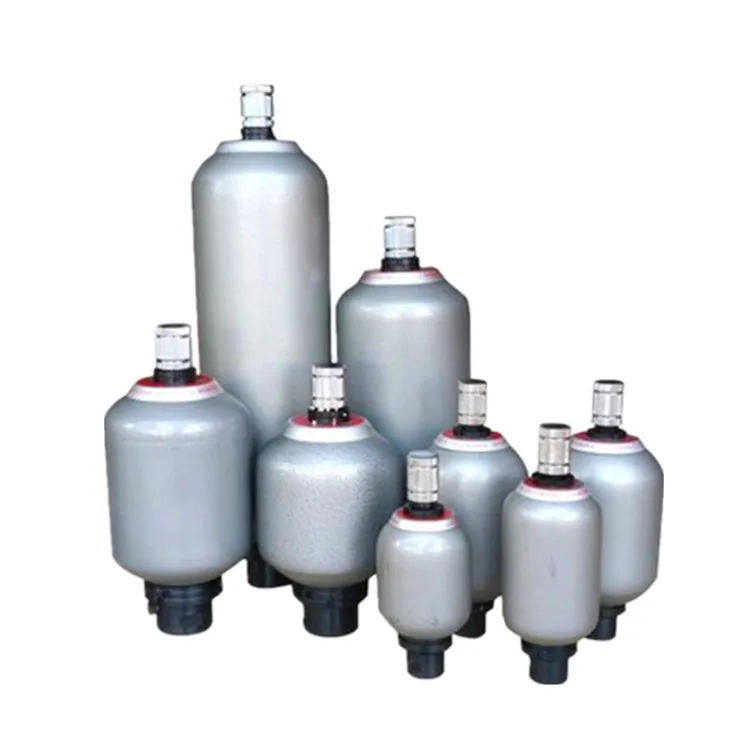

The severe-duty National Standard NXQ Series Bladder Hydraulic Accumulators (comprising central marketplace specific configurations NXQ-0.4L, NXQ-0.63L, NXQ-1L, NXQ-1.6L, and the heavy-capacity NXQ-6.3L), manufactured by Chengyuan Hydraulic, represent premium, high-integrity fluid storage and pressure containment mechanisms engineered for 100% direct drop-in interchangeability within modern industrial hydraulic circuits, high-speed clamping manifolds, emergency back-up loops, and central Hydraulic Power Units (HPUs). Adhering precisely to rigorous National Manufacturing Directives (GB/T 20663 / JB/T 7033 standards) and international dimensional parameters, this versatile matrix preserves exact physical exterior envelopes, fluid-end interface connecting configurations (metric/UNF threads or heavy SAE split-flange profiles), and gas-end charging valve connections. Procurement directors, system integrators, and aftermarket maintenance workshops can seamlessly execute on-site component retrofits onto pre-existing frame brackets or manifold lines with zero secondary pipe modifications.

Functions as an “energy reservoir” and dynamic pressure dampener inside modern fluid power architectures, bladder accumulators manage the vital task of absorbing high-frequency flow pulsations from positive displacement pumps, conquering hydraulic line shockwaves (water hammer spikes), and providing instantaneous high-volume fluid output for high-speed actuators. At Chengyuan, manufacturing safety parameters are unyielding; 100% of our produced NXQ bladder-type accumulators undergo 100% rigorous pressure and gas-tightness simulation test bench criteria. Tested inside digital containment vaults, every seamless steel shell is subjected to hydrostatic proof testing exceeding nominal working limits. Our diagnostics real-time log elastomeric gas-permeability margins under cyclic fluid loading up to 31.5 MPa, gas-valve core scaling stability, and sub-zero bladder elastic return velocity. This guarantees zero external leakage, low pressure decay, and durable field endurance.

Technical Specifications

• Product Series Classification: NXQ Series National Standard Bladder Type Hydraulic Accumulators (Type A or Type AB Threaded/Flanged Fluid Port Configurations)

• Nominal Continuous Operating Pressure Matrix: 10 MPa (100 bar), 20 MPa (200 bar), and 31.5 MPa (315 bar) standard engineering design tiers

• Permissible Charging Gas Medium: Absolute prohibition of oxygen, compressed air, or flammable gases; must be pressurized exclusively with high-purity industrial Nitrogen gas ($N_2 \ge 99.99\%$)

• Recommended System Hydraulic Fluid: Premium anti-wear mineral fluids or customized water-glycol compounds matching ISO 4406 19/17/14 cleanliness standards

• Ambient Working Temperature Window: $-10^\circ\text{C}$ to $+70^\circ\text{C}$ (Fitted with standard Formula I-1 NBR rubber compound bladder); Optional premium $-40^\circ\text{C}$ to $+120^\circ\text{C}$ configurations (Vitono/FKM or Silicone rubber variants available)

• Detailed Capacity Specifications & Geometry Breakdowns:

  • Specification Designation: NXQ-0.4L / 10-M

  • Nominal Gas Volumetric Scale: 0.4 Liters

  • Nominal Working Pressure: 10 MPa (100 bar)

  • Fluid-End Interface: Threaded port layout, standardizing on M22x1.5 or custom connections; optimized for micro-power packs.

  • Dry Assembly Weight: Approx 4.5 kg

  • Specification Designation: NXQ-0.63L / 20-F

  • Nominal Gas Volumetric Scale: 0.63 Liters

  • Nominal Working Pressure: 20 MPa (200 bar)

  • Fluid-End Interface: High-pressure thread or customized flange; engineered for high-cycle machine tool workholding保压 networks.

  • Dry Assembly Weight: Approx 6.2 kg

  • Specification Designation: NXQ-1L / 31.5-A

  • Nominal Gas Volumetric Scale: 1.0 Liter

  • Nominal Working Pressure: 31.5 MPa (315 bar – Heavy-duty ultra-high pressure trim)

  • Fluid-End Interface: Standard Type A straight-thread, engineered with thick-walled safety margins.

  • Dry Assembly Weight: Approx 9.5 kg

  • Specification Designation: NXQ-1.6L / 16-AB

  • Nominal Gas Volumetric Scale: 1.6 Liters

  • Nominal Working Pressure: 16 MPa (160 bar)

  • Fluid-End Interface: Type AB combined lower flange or heavy threaded fluid block; widely deployed across industrial valve setups.

  • Dry Assembly Weight: Approx 12.0 kg

  • Specification Designation: NXQ-6.3L / 31.5-A

  • Nominal Gas Volumetric Scale: 6.3 Liters

  • Nominal Working Pressure: 31.5 MPa (315 bar – Mid-sized energy storage configuration)

  • Fluid-End Interface: Heavy-duty base mounting flange or large-diameter ports (e.g., M50x2 configurations); equipped with an internal high-flow poppet valve to eliminate bladder extrusion risks.

  • Dry Assembly Weight: Approx 36.0 kg

Key Technical Advantages

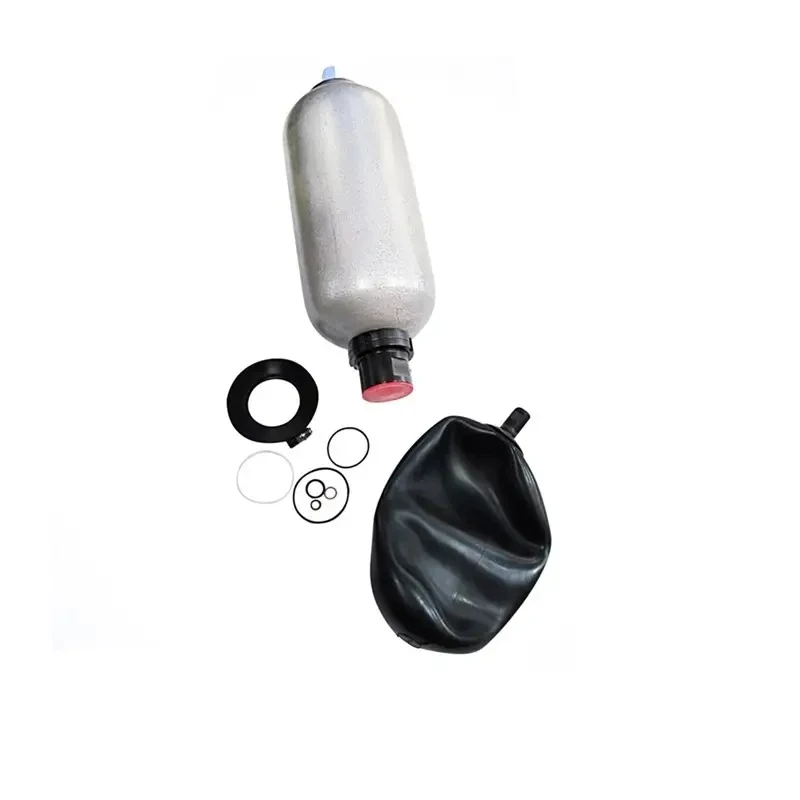

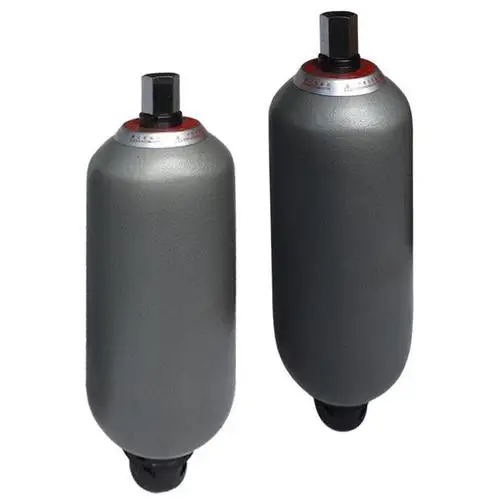

• Monoblock Hot-Spun Seamless Alloy Steel Shell: The outer pressure vessel (Shell) is forged from ultra-pure 35CrMo or 45# seamless alloy steel tubes, contoured seamlessly via advanced computer-controlled hot spinning machinery. This seamless structure eliminates weld seams or localized heat-affected stress zones, while the inner bore undergoes precision honing to safeguard the internal bladder from abrasion during high-frequency cycles.

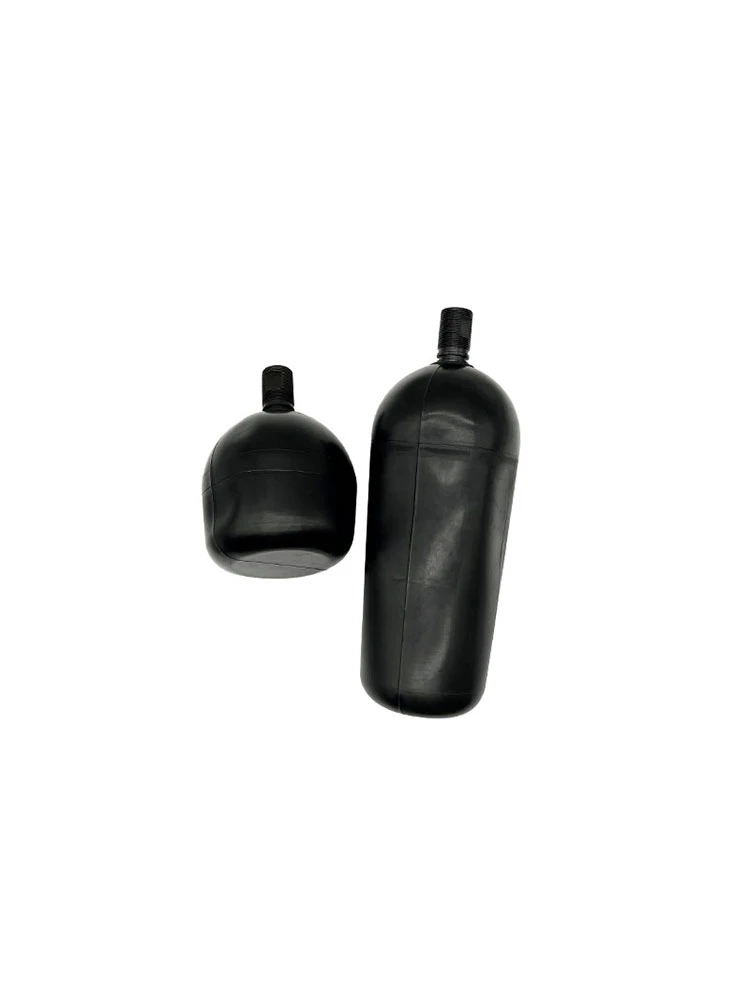

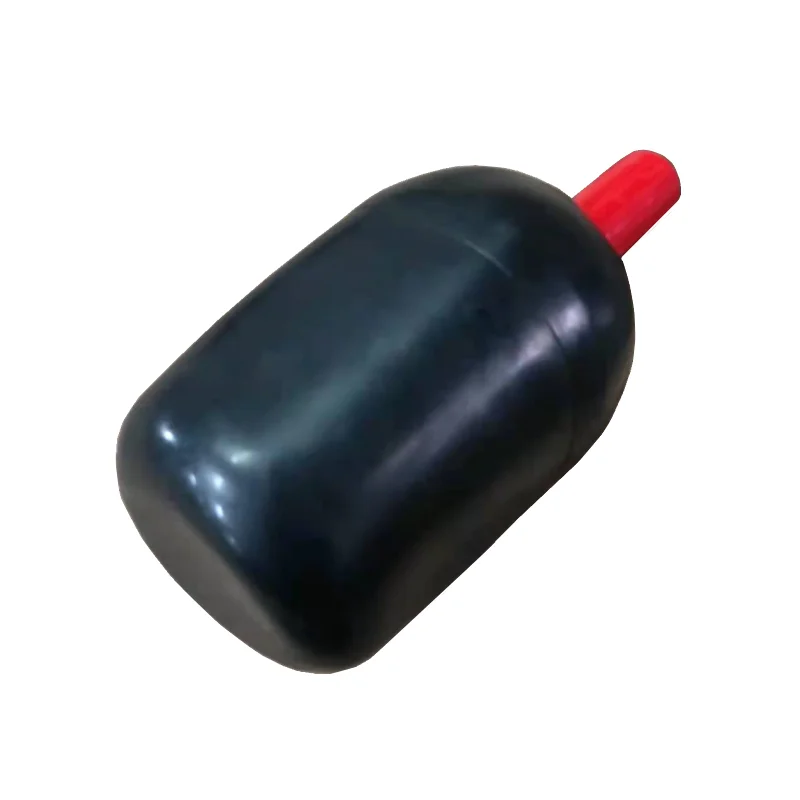

• Low-Permeability High-Elasticity Rubber Bladders: The central gas bladder utilizes an optimized compound rubber matrix with tightly grouped polymer chains. This design yields a 40% reduction in micro-gas permeability compared to basic standard-grade bladders. Its excellent dynamic fatigue profile enables the bladder to withstand over $10^6$ expansion-contraction cycles without micro-cracking.

• High-Flow CFD-Optimized Anti-Extrusion Poppet Valves: For high-velocity configurations such as the NXQ-1.6L and 6.3L, the lower fluid port integrates a spring-loaded steel poppet valve optimized via CFD analysis. During rapid discharge cycles when the bladder expands to the base, the spring-loaded poppet closes instantly to support the bladder, preventing it from extruding into the high-pressure oil lines.

• Corrosion-Resistant Structural Microporous Coatings: External surfaces are shielded by a heavy-duty industrial anti-rust coating. For harsh operating environments using water-glycol or mildly corrosive media, the inner vessel walls can be enhanced with chemical nickel plating or thermal-cured epoxy resin to insulate the metal from cavitation and oxidation.

Application Areas

Thanks to their rapid discharge times, high flow ratings, exceptional gas retention, and robust safety margins, the NXQ series bladder accumulators are widely deployed across modern heavy-duty machinery:

• Heavy CNC Machine Tools & Metal Forming Equipment: High-volume injection oil circuit energy compensation for die-casting machinery, and low-draw, extended pressure-holding circuits for hydraulic clamping fixtures.

• Mobile Machinery & Heavy Tunneling Equipment: Hydro-pneumatic accumulator braking networks for heavy construction vehicles, and real-time stabilization circuits for shield tunneling machine advancement cylinders.

• Power Generation, Metallurgy & Energy Stations: Emergency safety shut-off systems for steam turbine main EH oil blocks, blast furnace top control manifold lines, and pitch control blocks for large wind turbine blades.

Expert Maintenance Tips

• Never Charge Accumulator Shells with Oxygen or Compressed Air: These units are high-pressure gas containment vessels. Never introduce oxygen or regular compressed air; under high temperatures and pressures, the oil-gas mixture can ignite, causing an explosion. Technicians must utilize dedicated charging kits (such as the QT-2 toolset) to introduce pure Nitrogen ($\ge 99.99\%$), keeping the pre-charge pressure $P_0$ within 25% to 90% of the minimum system working pressure (typically $P_0 \approx 0.9 P_1$).

• Implement Schedule Diagnostics for Pre-Charge Pressure Checks: Over extended operating periods, gas valve seals may experience minor micro-permeability losses, leading to gradual pressure drops. Check nitrogen levels every 3 to 6 months during scheduled machine shutdowns (ensuring hydraulic lines are completely depressurized). Insufficient gas pressure can cause excessive bladder deformation and folding against the poppet valve, shortening its service life.

• Ensure Hydraulic Line Demobilization Prior to Component Service: Before removing or servicing an accumulator from a manifold stack, never loosen any threaded interfaces or split-flange plates while pressurized. Technicians must actuate the manual or electrical safety isolation block to route stored fluid energy safely back to the reservoir. Verify that the pressure gauge reads zero before proceeding to prevent high-velocity fluid injection hazards.
