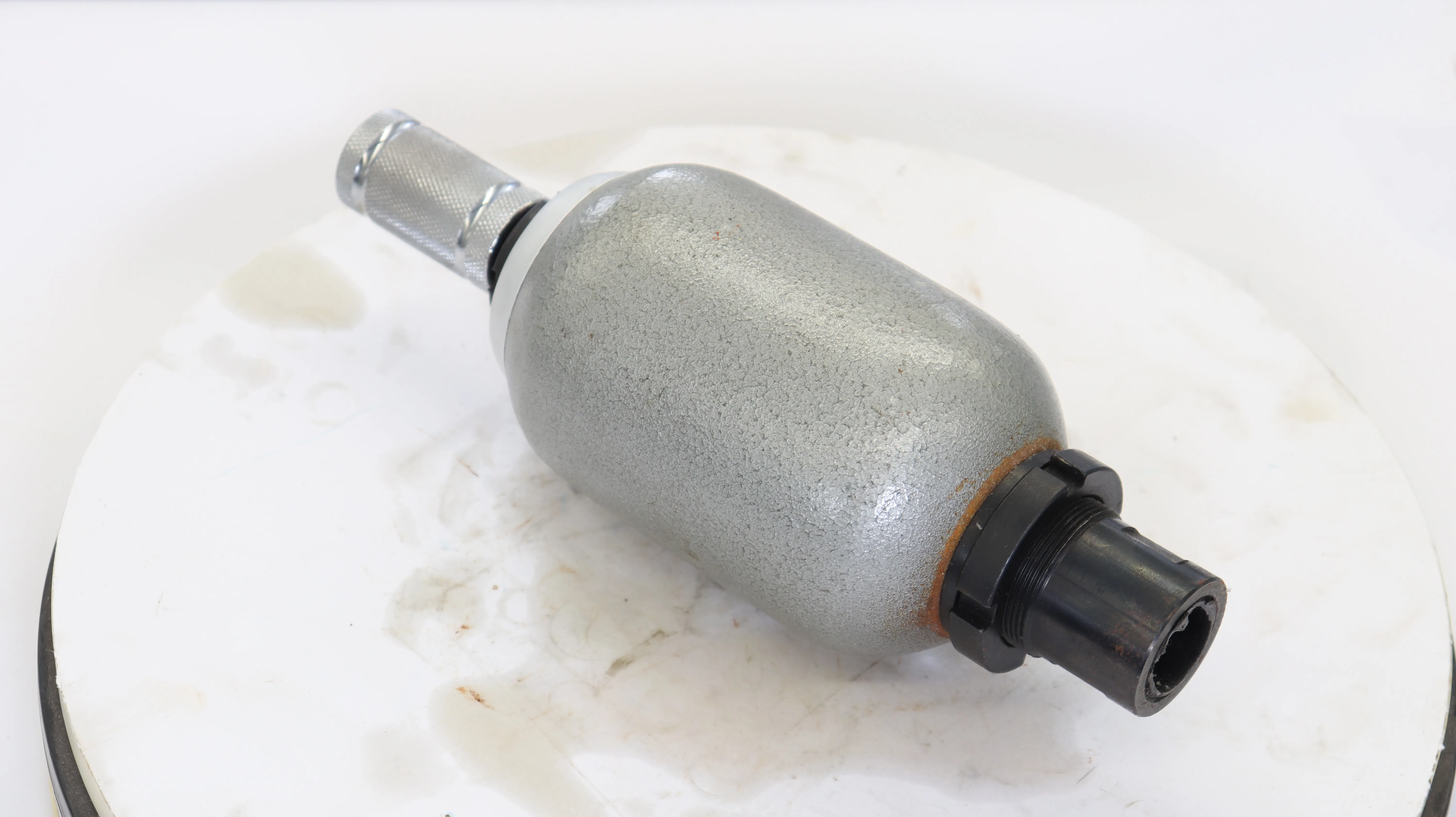

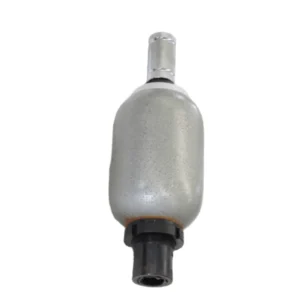

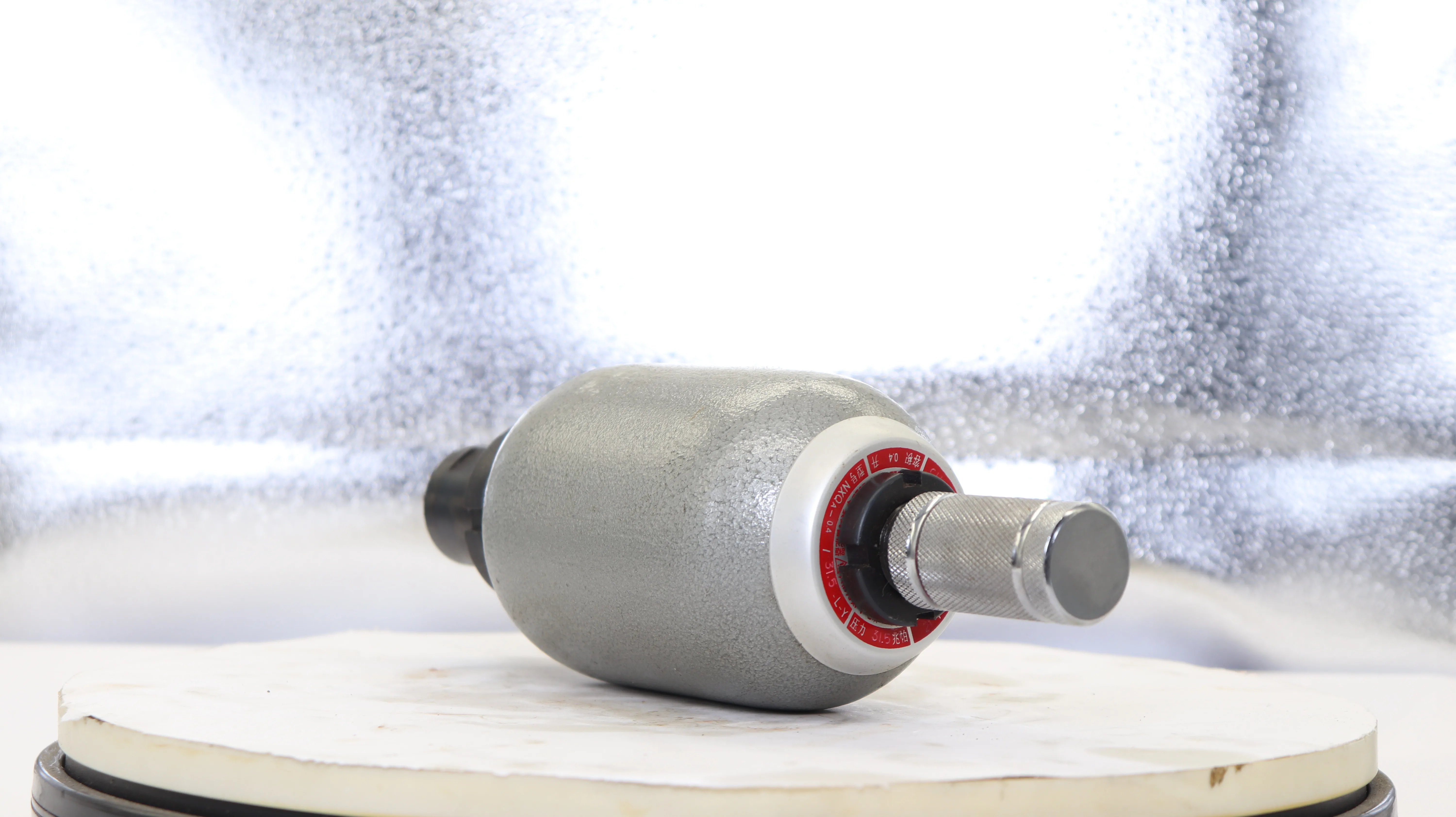

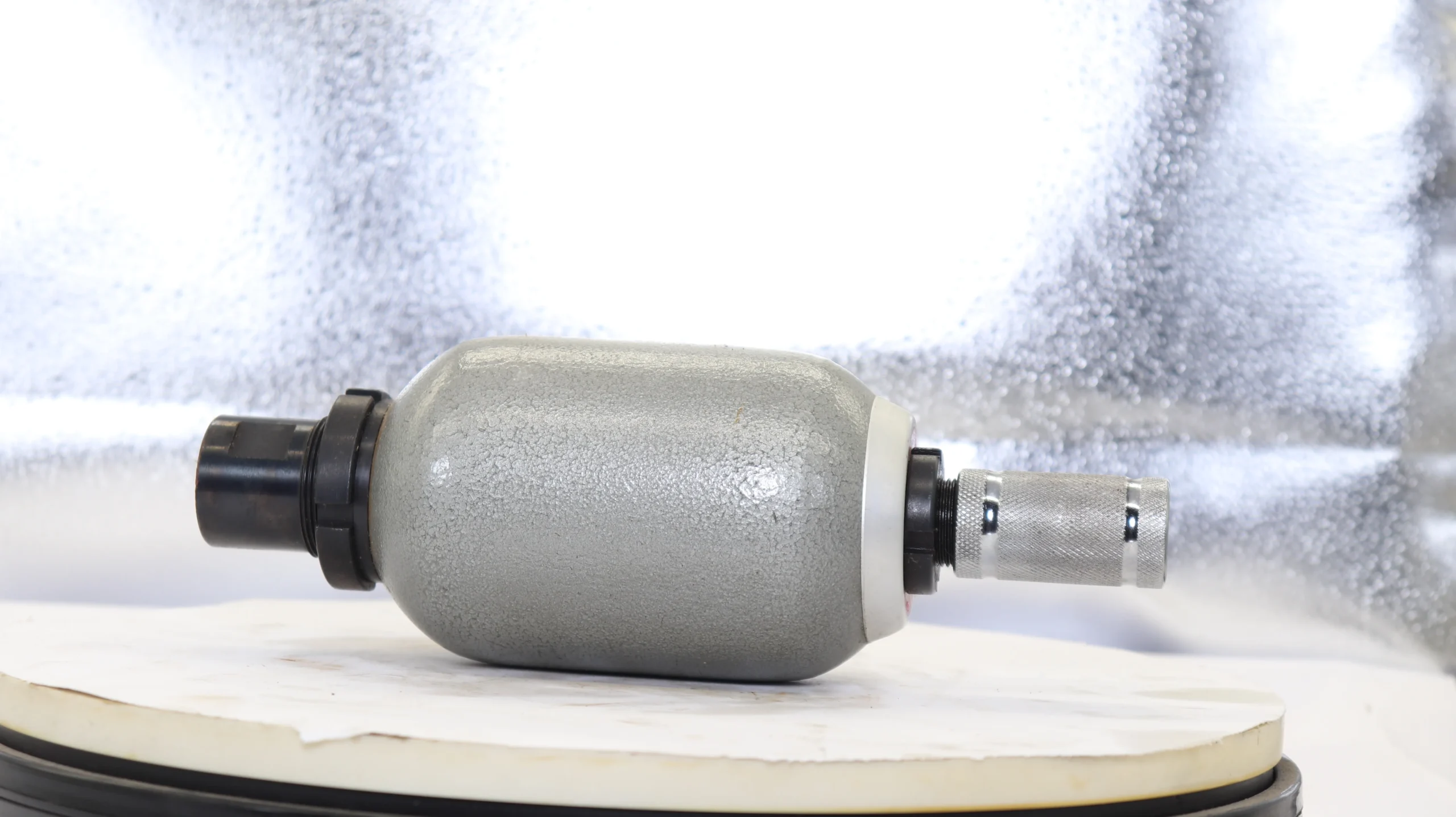

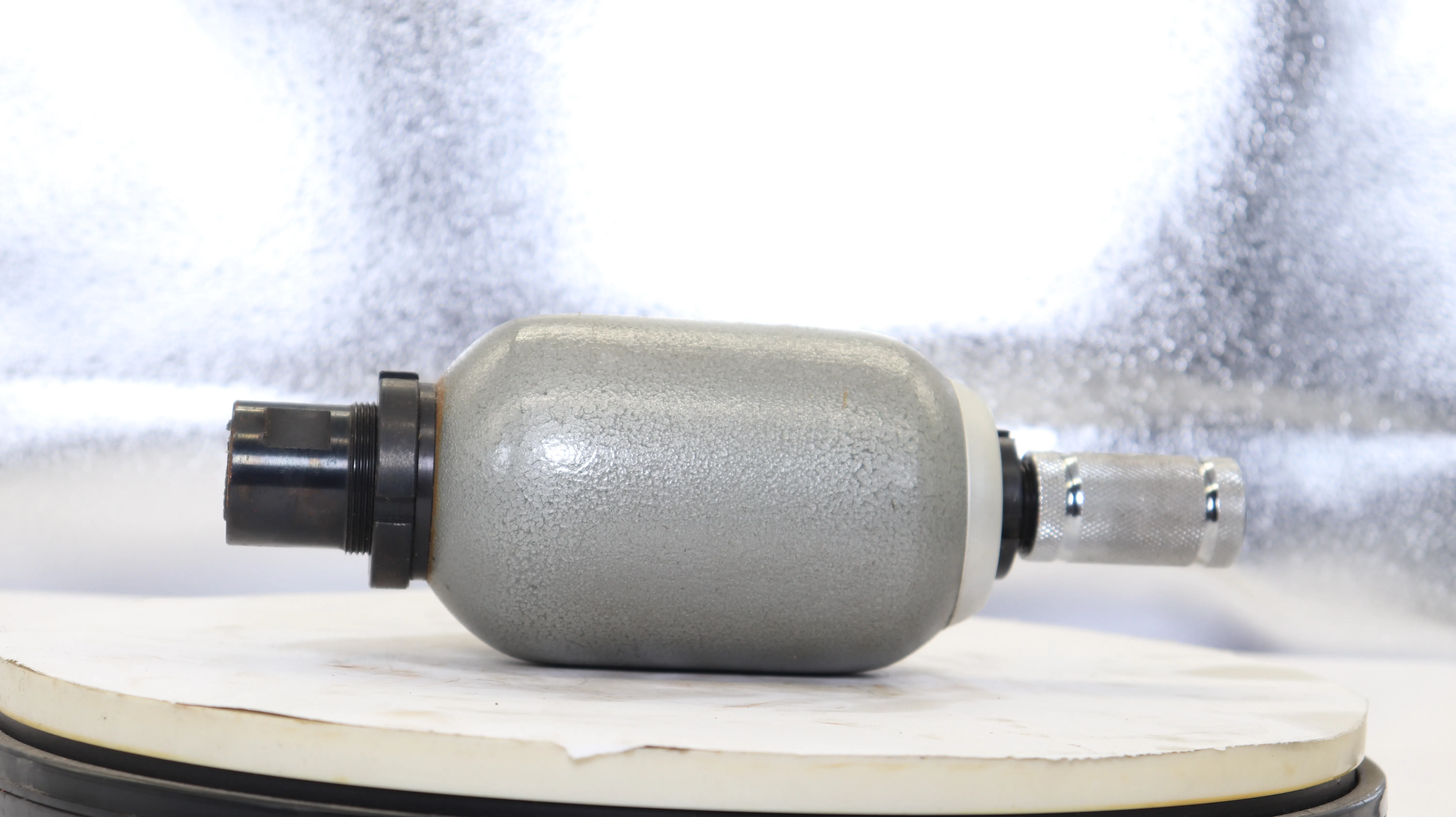

NXQ National Standard Bladder Accumulator | NXQ-0.63L NXQ-AB-6.3L 10L | 20MPa High Pressure Hydraulic Accumulator

Chengyuan Hydraulic offers the NXQ Series Bladder Type Accumulators, engineered in strict accordance with National Standards (GB). Serving as the “battery” and “buffer” of hydraulic circuits, the lineup ranges from the compact NXQ-0.63L to the heavy-duty NXQ-AB-10L.

By leveraging the compressibility of nitrogen gas within a rubber bladder, NXQ accumulators store hydraulic energy for rapid release. They are indispensable for compensating leakage, maintaining system pressure, and absorbing shocks caused by valve transitions. Chengyuan ensures every unit undergoes 100% Pressure Vessel Safety Verification and Simulation Load Testing, guaranteeing a high safety factor and extended bladder life under 20MPa operating conditions.

Technical Specifications

• Model Series: NXQ (Standard) / NXQ-AB (Enhanced)

• Nominal Volume: 0.63L, 1L, 1.6L, 4L, 6.3L, 10L (up to 160L available)

• Nominal Pressure: 20 MPa (200 Bar) / 31.5 MPa optional

• Charging Interface: M24*1.5 (National Standard)

• Working Medium: Petroleum-based hydraulic oil, water-glycol

• Temperature Range: -10°C to +70°C (depending on bladder material)

• Shell Material: 35# Forged Steel / High-strength seamless steel tube

• Bladder Material: Nitrile Rubber (NBR) / Viton (FKM)

Key Technical Advantages:

• Rapid-Response Bladder: Features an integrated NBR molding with superior flexibility and airtightness. It reacts in milliseconds to release energy, suppressing pressure pulsations and significantly reducing system noise.

• High-Pressure Safety Shell: The shell is manufactured using seamless forging or deep-drawing processes. With no weld weaknesses and a nickel-plated or phosphated surface, it provides excellent fatigue strength and corrosion resistance.

• Optimized Poppet Valve: A built-in mushroom-type poppet valve prevents the bladder from being extruded into the oil port during rapid discharge, drastically extending the life of the bladder.

• Precision Gas Interface: Equipped with a standard M24*1.5 charging port with excellent sealing performance, ensuring stable pre-charge nitrogen pressure and reducing maintenance intervals.

Application Areas:

• Energy Storage: Supplements pump flow during peak demand to reduce the required installed motor power.

• Emergency Power Source: Provides pressure to complete equipment resets or emergency braking during power outages.

• Shock & Pulsation Absorption: Installed at pump outlets or before large directional valves to absorb hydraulic shocks and protect piping.

• Thermal Expansion Compensation: Balances pressure fluctuations in closed-loop systems caused by temperature changes.

Expert Maintenance Tips:

• Pre-charge Calibration: Pre-charge pressure $P_0$ is typically set to 90% of the minimum working pressure. NEVER use oxygen or compressed air; use only high-purity nitrogen.

• Vertical Orientation: Accumulators should be installed vertically (gas valve on top) to minimize friction between the bladder and shell and to facilitate air bleeding.

• Routine Inspection: Inspect the pre-charge pressure every six months. A significant drop in pressure may indicate a faulty gas valve core or a deteriorating bladder.
