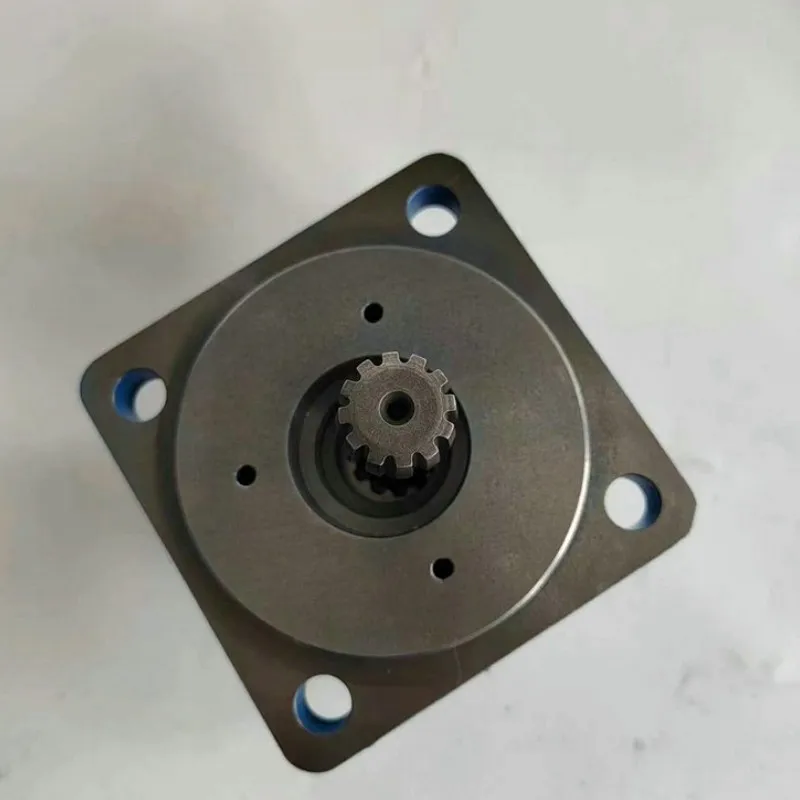

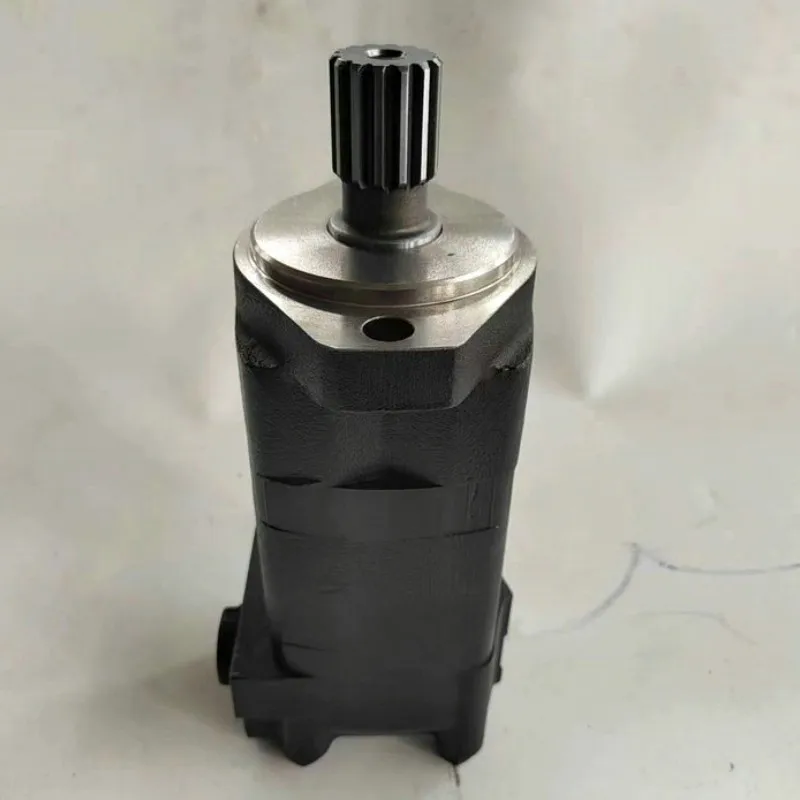

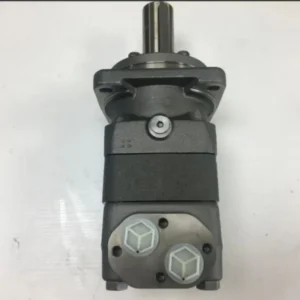

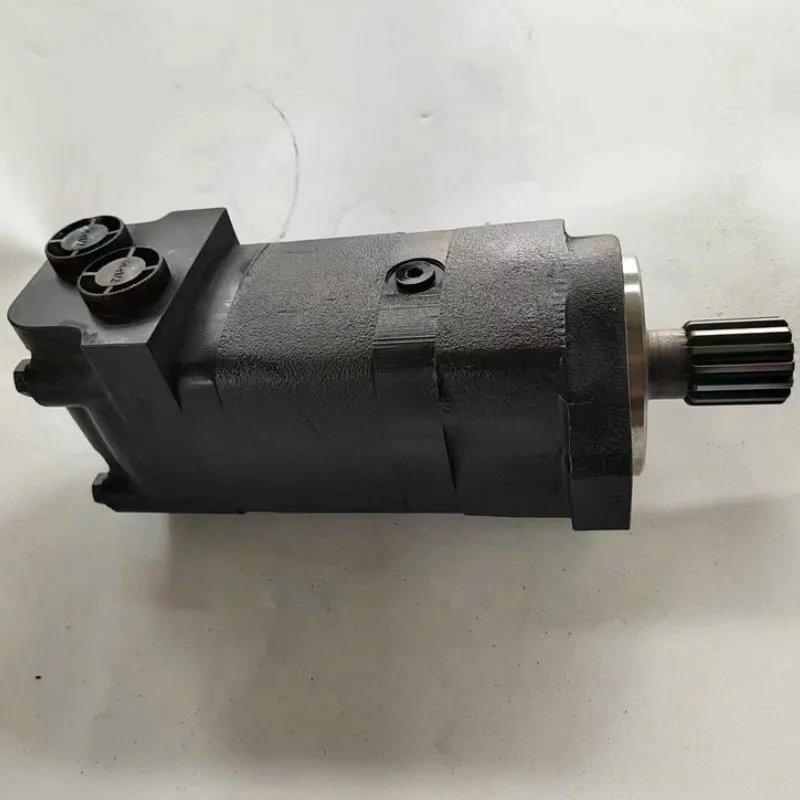

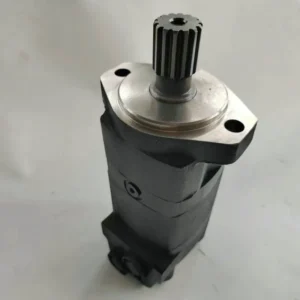

Danfoss OMS Series Hydraulic Orbit Motor OMS200 OMS250 OMS315

The industrial-grade Danfoss Compatible OMS Series High-Displacement Medium Orbit Hydraulic Motors, engineered by Chengyuan Hydraulic, are low-speed high-torque (LSHT) fluid power components developed for continuous utility operations, mobile machine chassis drives, and heavy-duty industrial rotating networks. Operating as an industry standard in orbital motor design, this series features an advanced Disc Valve distribution system coupled with a high-precision rolling-element gerotor set (Roll-Gator® geometry). This structural setup enables the motor to deliver smooth torque output and maintain a stable volumetric performance curve, even when subjected to intense radial and axial side-loading profiles under full system workloads.

This professional B2B technical copywriting profiles and replaces Danfoss’s factory reference model platforms and part numbers, focusing on high-demand configurations: OMS 200 (151F3024), OMS 250 (151F0519), and OMS 315 (151F0548). Decoded through global hydraulic nomenclature, the “OMS” identifier establishes this mid-frame platform as utilizing a separate disc valve drive train with high-capacity integrated tapered roller bearings. The numbers “200/250/315” define the specific nominal displacement thresholds in cubic centimeters per revolution, while the 8-digit part numbers identify the physical mounting configurations, such as standard 4-bolt wheel/magneto flanges, specialized input drive shafts (straight keyed, tapered, or splined), and metric or imperial fluid port interfaces. These motors are heavily integrated into construction equipment, agricultural harvesters, marine winches, and municipal vocational trucks.

Chengyuan’s alternative orbit motors precisely match original Danfoss design dimensions regarding mounting flange pilots, bolt hole spacing geometry, output shaft clearances, and port alignments. This engineering accuracy delivers 100% direct drop-in interchangeability for B2B commercial procurers, hydraulic system distributors, and machinery rebuild centers. Maintenance crews can insert these replacements directly into existing machinery spaces without modifying mechanical couplings, fluid plumbing, or support brackets, minimizing equipment changeover costs.

Orbital motors often operate in challenging outdoor environments characterized by abrasive dust, high moisture, and frequent shock reversals under load. Lower-grade alternatives are prone to shaft seal leakage, speed drops caused by rapid wear on the valve plate, or structural shaft failure. To ensure dependable field operation, 100% of Chengyuan’s OMS series replacement motors undergo 100% strict dynamic load testing on digitized simulation benches. Evaluated up to a 210 bar continuous pressure limit, each unit is checked for mechanical efficiency, initial breakaway starting torque, and smooth directional shifting before delivery.

Technical Specifications

• Product Classification: Low-Speed High-Torque (LSHT) Disc Valve Design Hydraulic Orbit Motor

• Compatible Reference Platform Series: Danfoss OMS Series Platform (OMS200, OMS250, OMS315 Structural Framework)

• Exact Part Number Cross-Reference & Engineering Configurations:

  • Replacement Reference: OMS 200 (151F3024): Nominal geometric displacement of 200 cc/rev. Maximum continuous speed rated up to 430 rpm, maximum continuous output torque of 610 N·m, with a maximum continuous power threshold of 20 kW.

  • Replacement Reference: OMS 250 (151F0519): Nominal geometric displacement of 250 cc/rev. Maximum continuous speed rated up to 340 rpm, maximum continuous output torque of 730 N·m, with a maximum continuous power threshold of 18 kW.

  • Replacement Reference: OMS 315 (151F0548): Nominal geometric displacement of 315 cc/rev. Maximum continuous speed rated up to 270 rpm, maximum continuous output torque of 820 N·m, with a maximum continuous power threshold of 15 kW.

• Maximum Rated Continuous Operating Pressure: 210 bar (21 MPa / 3045 psi) continuous workload limits; maximum intermittent peak allowance up to 250 bar (25 MPa)

• Maximum Permissible Return Line Backpressure: Up to 140 bar continuous when equipped with an independent casing drain line connected back to the tank

• Fluid Distribution Valve System: Independent hydraulically balanced Disc Valve arrangement driven by a dedicated cardan drive link

• Output Bearing Structural Configuration: Dual large-capacity Tapered Roller Bearings integrated into the front housing for high external loading resistance

• Shaft Sealing Profile Matrix: Equipped with a High-Pressure Shaft Seal (HPSS) arrangement developed for frequent directional changes and high backpressure durability

• Target Medium Fluid Cleanliness Threshold: Rated to ISO 4406 20/16 or better

Key Technical Advantages

• Independent Hydraulically Balanced Disc Valve System: Unlike light-duty shaft-valve motors, the OMS series separates the fluid distribution valve from the main drive shaft. The disc valve is located at the rear of the motor and features a pressure-compensated sealing balance chamber. This setup keeps the valve plate seated correctly against the gerotor face at 210 bar, maintaining a volumetric efficiency $\ge 92\%$ over a long service life and ensuring smooth low-speed operation down to 5–10 rpm without stick-slip behavior.

• Roll-Gator® Heavy-Duty Roller Star Kit Integration: The stationary outer ring of the gerotor set incorporates high-accuracy, hardened alloy steel rollers at each tooth location. These rollers convert the sliding contact of standard orbit motors into low-friction rolling contact. This reduces initial mechanical resistance to improve starting torque efficiency and absorbs localized peak shear forces during abrupt start-stop cycles under full load.

• Dual Tapered Roller Main Shaft Bearing Support: The front motor housing includes two heavy-duty tapered roller bearings arranged back-to-back. This layout positions the axial and radial support points close to the flange face, allowing the OMS motor to handle heavy side loads up to 30 kN without requiring external support bearings. This enables direct integration with drive sprockets, vehicle wheels, or cable drums.

• Monoblock Nodular Cast Iron Reinforced Housing: The outer structural framework is cast as a single piece from high-strength ductile iron. The thick-walled casing provides high torsional rigidity to prevent internal flexing during sudden high-pressure reversals or dynamic braking spikes, keeping the internal cardan drive shaft aligned to eliminate shaft fatigue and breakdown.

Application Areas

Chengyuan’s high-performance replacement Danfoss OMS series orbit hydraulic motors deliver dependable low-speed, high-torque power across various heavy mobile and industrial sectors:

• Mobile Propulsion & Vocational Chassis Drives: Ground propulsion loops for compact wheel loaders, road sweepers, skid steer attachments, and utility aerial lift platforms.

• Agricultural Equipment & Forestry Machinery: Header drives and feed augers for combine harvesters, automated crop seeding mechanisms, and debarking wheels or chain-saw drives on forestry processors.

• Industrial Material Handling & Deck Winches: Primary drive components for heavy scrap conveyor belts, factory apron feeders, marine mooring winches, cargo hoists, and plastic injection screw pre-plasticizer loops.

Expert Maintenance Tips

• For OMS200/250/315 Motors Operating in Circuits with Frequent High-Speed Reversals or Serial Multi-Motor Layouts, the Case Drain Port Must Be Piped Directly Back to the Oil Tank: While the high-pressure shaft seal is built for durability, plugging the drain port allows pressure to build up in the seal cavity during directional shifts. Connecting the external drain line keeps case pressure below 5 bar to maximize seal life.

• During Initial Commissioning or After a Complete System Overhaul, Fill the Motor Case with Clean, Filtered Hydraulic Oil via the Open Port Prior to Turning the System On: The internal cardan shaft splines and disc valve assembly rely on oil within the housing for immediate lubrication at startup. Running the motor dry can score the matching splines, leading to premature wear and potential shaft failure.

• When Replacing Models with Standard Straight Keyed or Splined Shafts, Such as the 151F0519 (OMS250), Never Force External Couplings, Sprockets, or Pulleys onto the Shaft End Using an Impact Tool: Heavy axial impact forces on the shaft end can transfer through the internal assembly and damage the precision disc valve surfaces at the rear of the motor. This can lead to increased internal leakage and reduced volumetric efficiency during operation. Use threaded draw-bolts or mechanical puller sets for installation.
