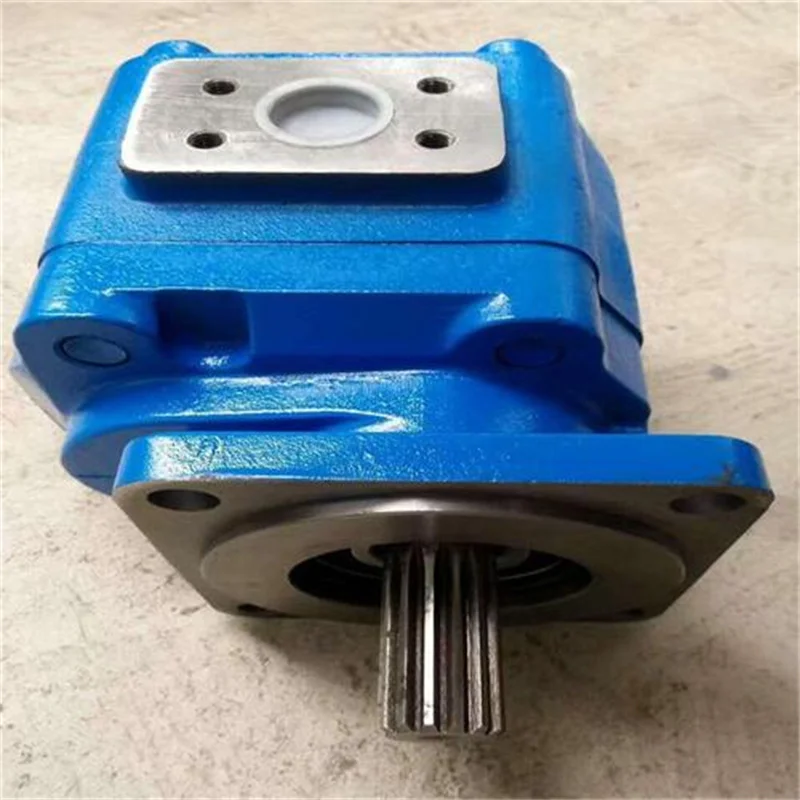

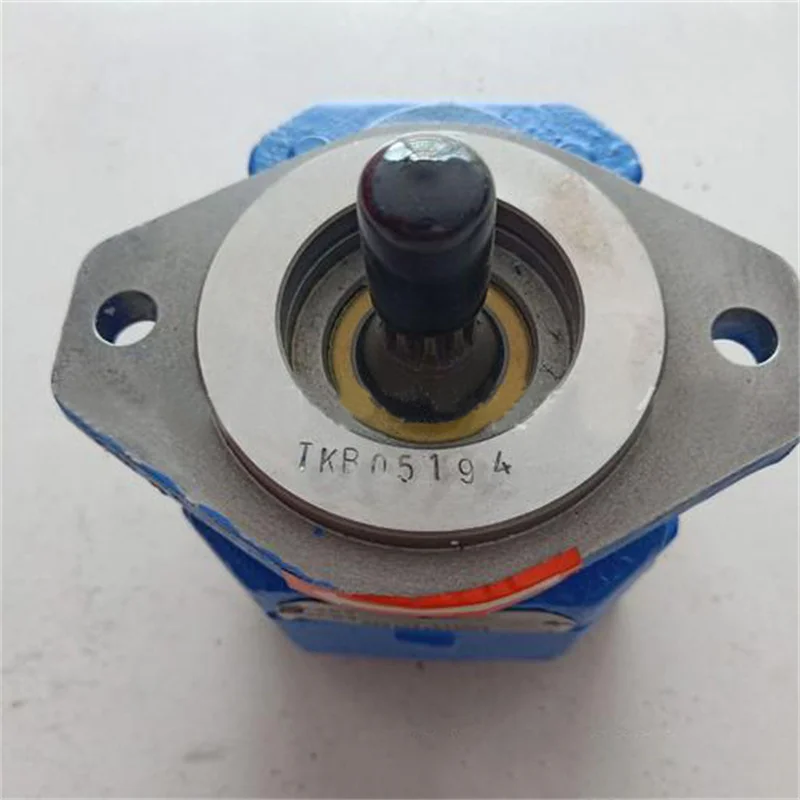

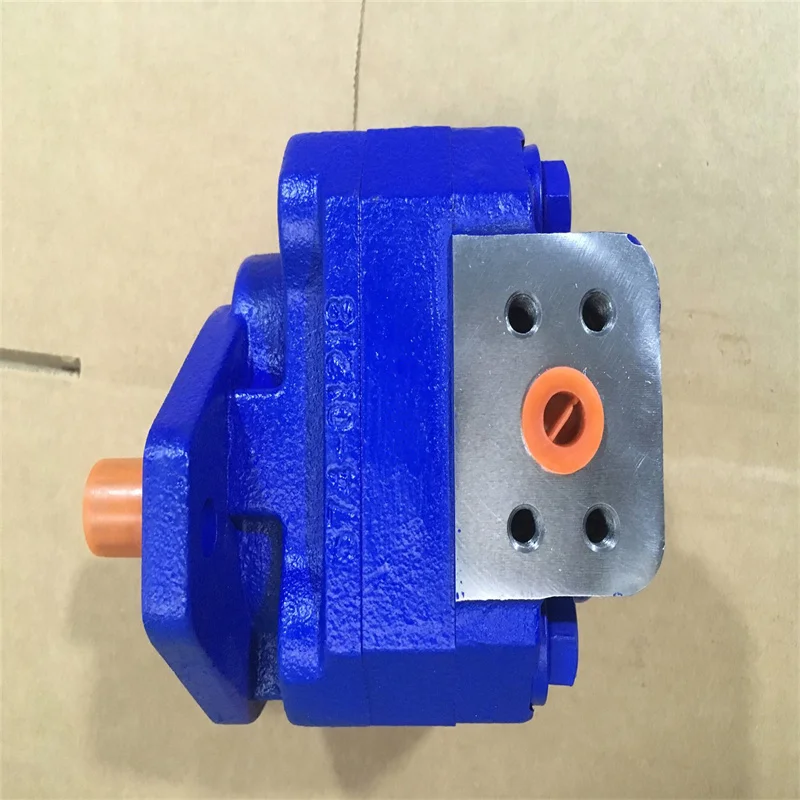

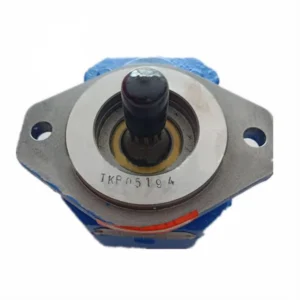

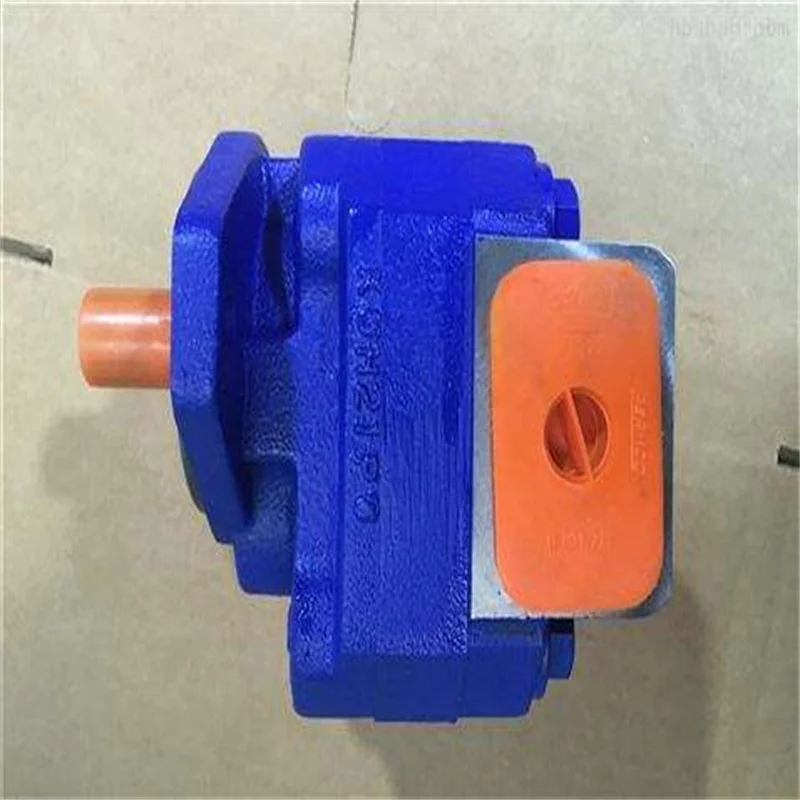

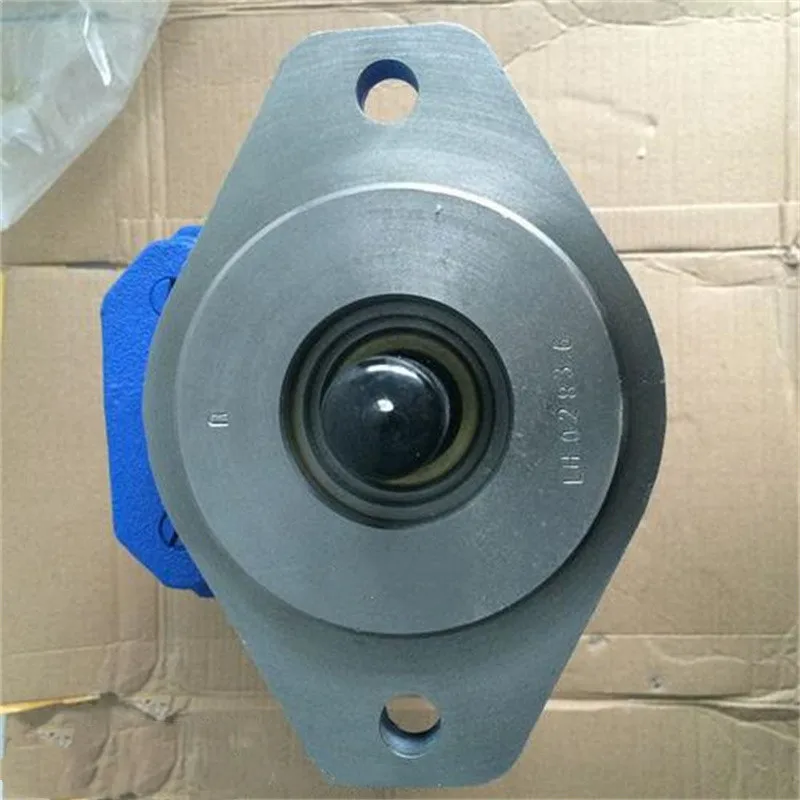

Commercial P124 Series Hydraulic Gear Pump P124A08KRZA07-81 P124A082KYZA07-81 for Sany SY485 SY500 SY550 Excavators

The heavy-duty P124 Series Dual Cast Iron Hydraulic Gear Pumps (featuring specific engineering codes P124A08KRZA07-81 and P124A082KYZA07-81) engineered by Chengyuan Hydraulic represent premium fluid power solutions tailored for 100% direct drop-in interchangeability as the pilot and auxiliary fluid supply within the main pump modules of Sany heavy-duty excavators, specifically SY485, SY500, and SY550 series. Manufactured in precise geometric configuration with legacy Commercial/Parker corporate cast iron specifications, this dual pump matrix guarantees identical flange pilots, splined drive shafts, and rear/side port layouts. B2B procurement networks and heavy plant maintenance facilities can execute immediate pump-bay swaps without modifying rigid high-pressure lines or brackets.

Operating as the reliable control heart for mining-class heavy excavators, the P124 series sustains constant pressure feed to the main pilot proportional control valves (PPC) and separate cooling fan modules under violent structural impulses. At Chengyuan, rigorous performance standards are strictly enforced; every single P124 dual pump must successfully clear a 100% thorough dynamic simulation test block schedule before leaving our manufacturing facility. By running the units under extreme simulated cyclical digging loads up to 240 bar, analyzing volumetric efficiency stability across maximum thermal spikes, and tracking case noise signatures, we certify that our aftermarket units perfectly mirror original equipment longevity in aggressive quarry and job site environments.

Technical Specifications

• Product Series Classification: P124 Series High-Pressure Two-Piece Cast Iron Dual Gear Pump

• Primary Application Match: Sany Large-Scale Crawler Excavator Pilot Circuitry (SY485 / SY500 / SY550)

• Housing Structural Material: High-tensile monolithic ductile cast iron shell

• Drive & Control Topology: Mechanical splined shaft drive; fixed-displacement quantitative gear delivery

• Nominal Continuous Operating Pressure: 210 bar (21 MPa)

• Maximum Peak Shock Pressure: 240 bar (24 MPa)

• Model-Specific Configuration Parameters (Catalog Verified):

  • Model Designation: P124A08KRZA07-81

  • Front Section Displacement: Approx 16.0 cc/rev ($cm^3/rev$); Rear Section Displacement: Approx 16.0 cc/rev ($cm^3/rev$); Input Shaft Layout: Involute splined shaft adhering to standard SAE matching; Rotation: R (Right-Hand / Clockwise); Maximum Continuous Velocity: 2500 rpm; Total Theoretical Delivery at 1800 rpm: Approx 28.8 L/min + 28.8 L/min; Net Weight: Approx 14.5 kg.

  • Model Designation: P124A082KYZA07-81

  • Front Section Displacement: Approx 16.0 cc/rev ($cm^3/rev$); Rear Section Displacement: Approx 16.0 cc/rev ($cm^3/rev$); Mounting Pilot Flange: KY specialized structural indexing interface; Rotation: Z (Specific multi-character proprietary designation representing dedicated rotation profile for rear-tandem integration onto primary piston pumps); Maximum Continuous Velocity: 2500 rpm; Maximum Self-Priming Velocity: 3000 rpm; Net Weight: Approx 14.8 kg.

Key Technical Advantages

• Two-Piece High-Tensile Ductile Iron Enclosure: Unlike aluminum alternatives that suffer yield deflection under intense operational parameters, the P124 utilizes premium vacuum-melted ductile iron housing sections. Boasting a tensile rating $\ge 500\,\text{MPa}$, the shell exhibits virtually zero micro-expansion at 240 bar, completely stopping radial cross-port leakage.

• Floating Axial Pressure-Balanced Thrust Plates: The pump incorporates floating thrust plates treated with advanced anti-friction coatings. By channelling specialized discharge pressure behind the plates, an automatic axial seal calibration is achieved. This maintains tight contact against the gear faces, keeping volumetric efficiency above 93% across the product’s lifespan.

• Monoblock High-Load Alloy Journal Bushings: Outfitted with heavy-wall, micro-porous copper-lead alloy sleeve bushings that distribute intense radial forces. This design provides high resistance to shaft deflection, protecting the internal wear faces against scuffing or seizure even during high-temperature oil shears or cold-start conditions.

• Micron-Precision Shaved Involute Gear Pairs: The gear-and-shaft components are single-piece forged from premium alloy steel, treated via carbonitriding and precision-ground on German CNC wheel grinders. Surface roughness is restricted beneath $Ra\,0.2\,\mu\text{m}$ with micron-level profile tolerances, enabling smooth rolling contact that suppresses mechanical noise by 3 to 5 dB.

Application Areas

The P124 series dual cast iron gear pumps, celebrated for their mechanical rigidity and flat delivery lines, serve as the dedicated auxiliary power modules mounted onto primary excavator twin-piston pumps:

• Heavy Crawler Excavator Pilot Power Units: Delivering smooth, uninterrupted pilot control fluid to the main control valve (MCV) blocks of Sany SY485, SY500, and SY550 45-to-55 ton extraction excavators.

• Hydrostatic Fan Drives & Auxiliary Flow Merging: Supplying dependable high-pressure fluid flow to independent engine-cooling radiator fans or acting as auxiliary confluent flow sources for heavy rock breaker attachments.

• Heavy Rotary Drilling Rigs & Mining Loaders: Serving as the underlying pilot logic power source for mining-class crawler-mounted rotary drills and high-tonnage wheel loaders.

Expert Maintenance Tips

• Enforce Perfect Concentric Alignment During Tandem Assembly: These auxiliary gear pumps are typically bolted directly into the rear accessory drive spline of the primary piston pump. When positioning P124A082KYZA07-81, apply high-load anti-seize grease (e.g., molybdenum disulfide) to the splines and torque the mounting fasteners in a cross-sequence to eliminate shaft stress and prevent shaft fatigue fractures.

• Eliminate Fluid Aeration and Intake Cavitation Risk: Pilot gear pumps operate at high rotational speeds matched to the diesel engine (frequently exceeding 2000 rpm). Maintain proper reservoir levels and replace brittle suction hoses. Any atmospheric air ingress triggers intense cavitation pitting, eroding the thrust plates and leading to a drop in pilot control pressure.

• Routine Inspection of the Primary Pilot Relief Valve: The control loop circuit pressure is governed by the pilot relief valve located on the main block (typically set between 39 bar and 45 bar). If this relief valve sticks shut, it forces the P124 gear pump to work continuously under its maximum pressure envelope, cutting bearing life. Test and log pilot circuit pressures every 1000 operational hours.
