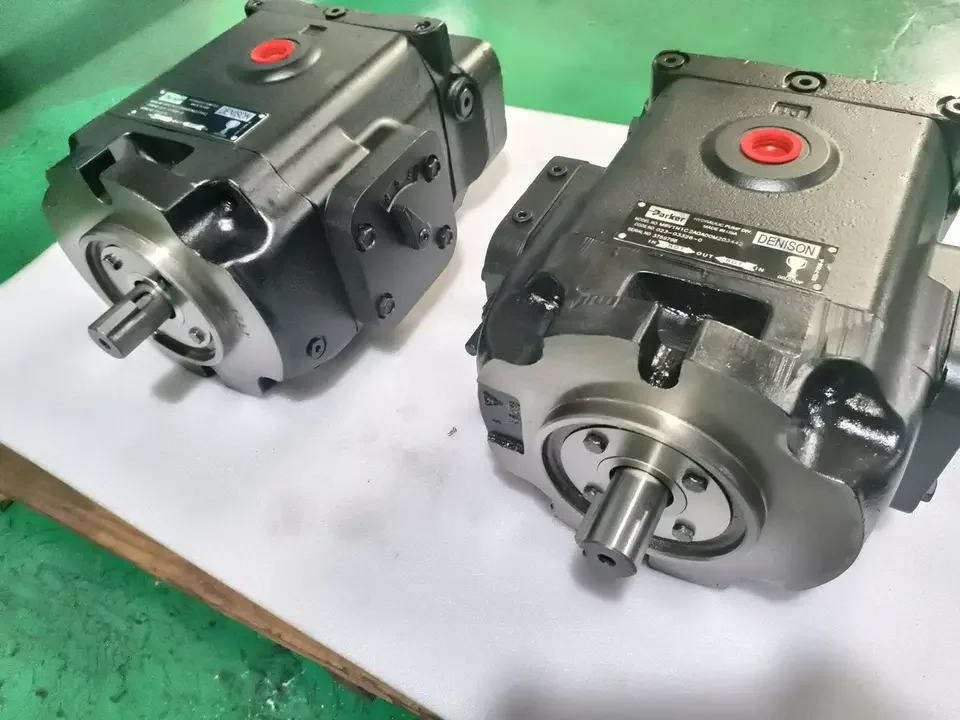

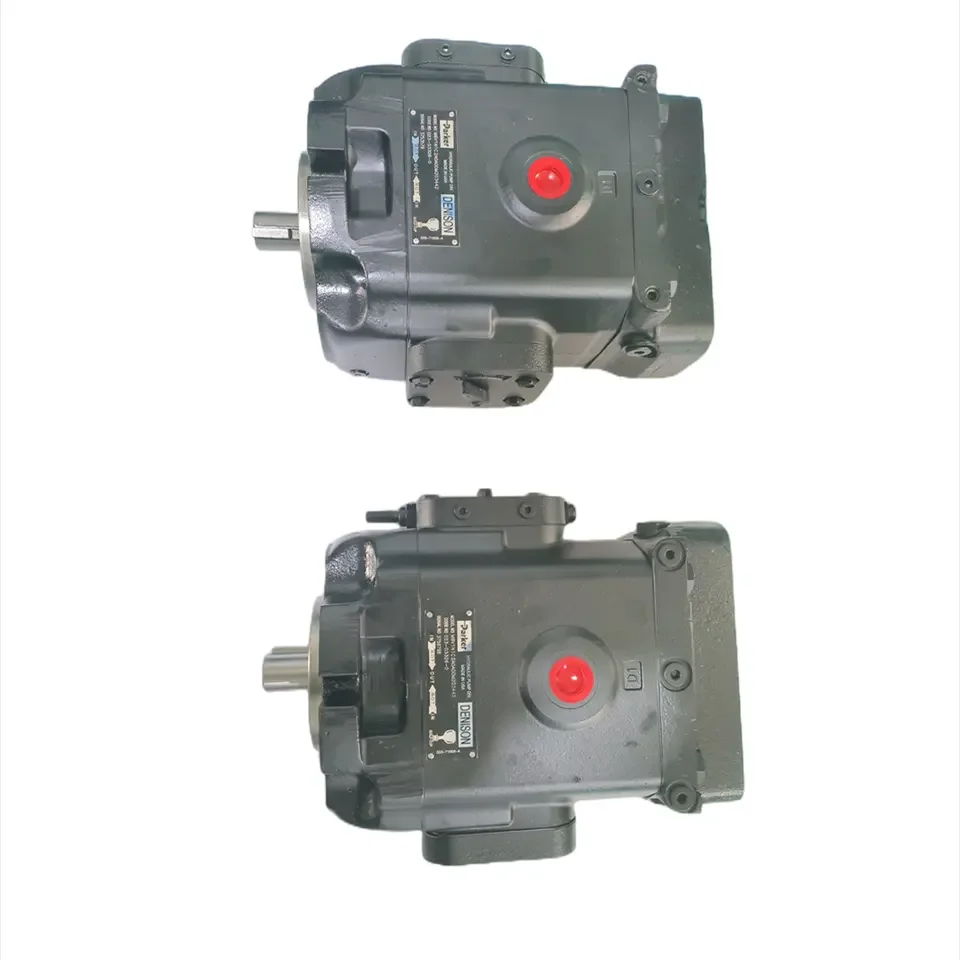

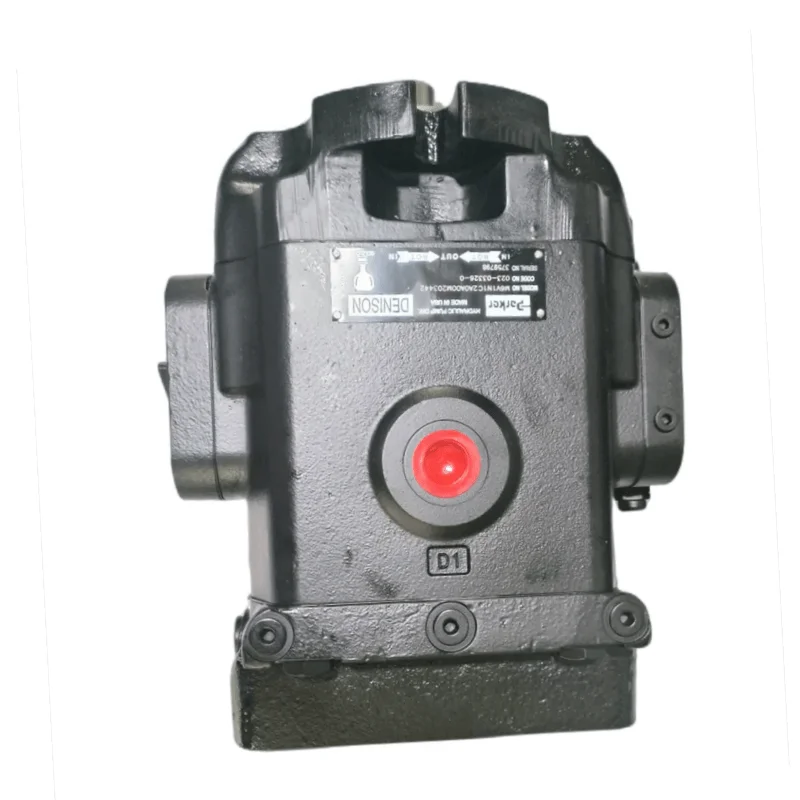

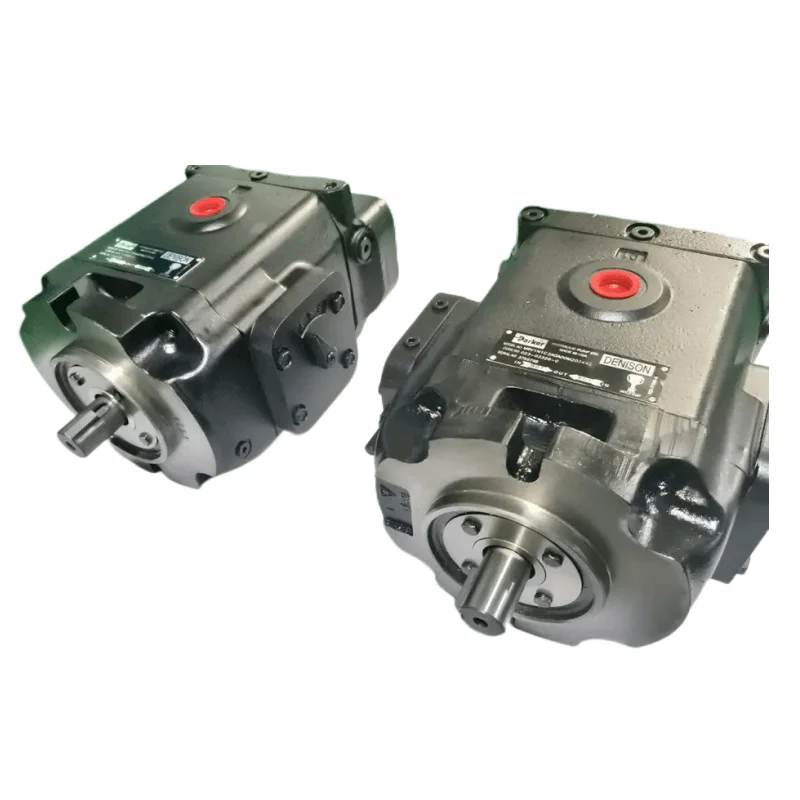

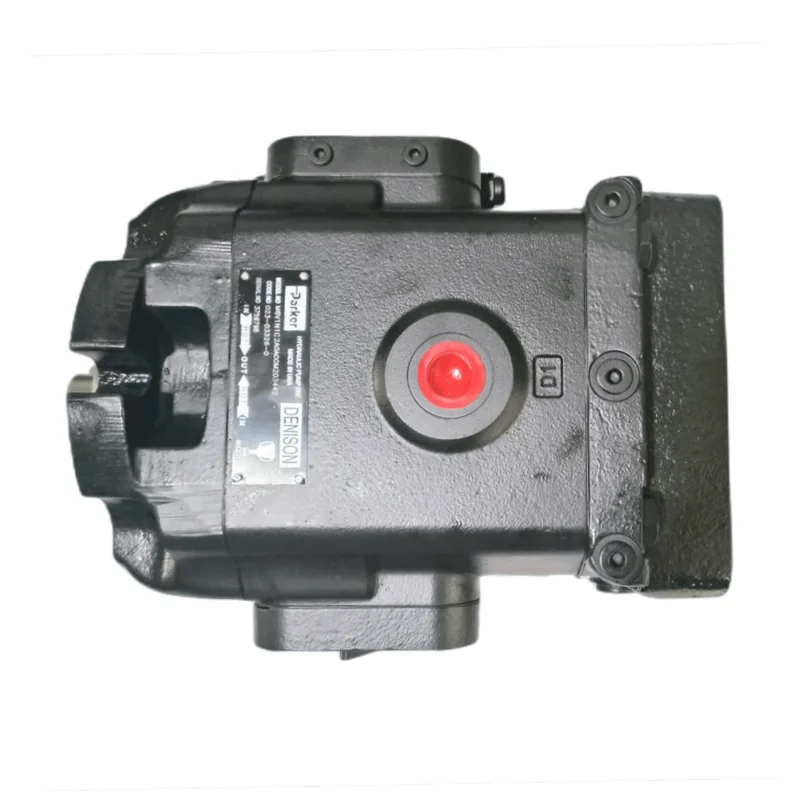

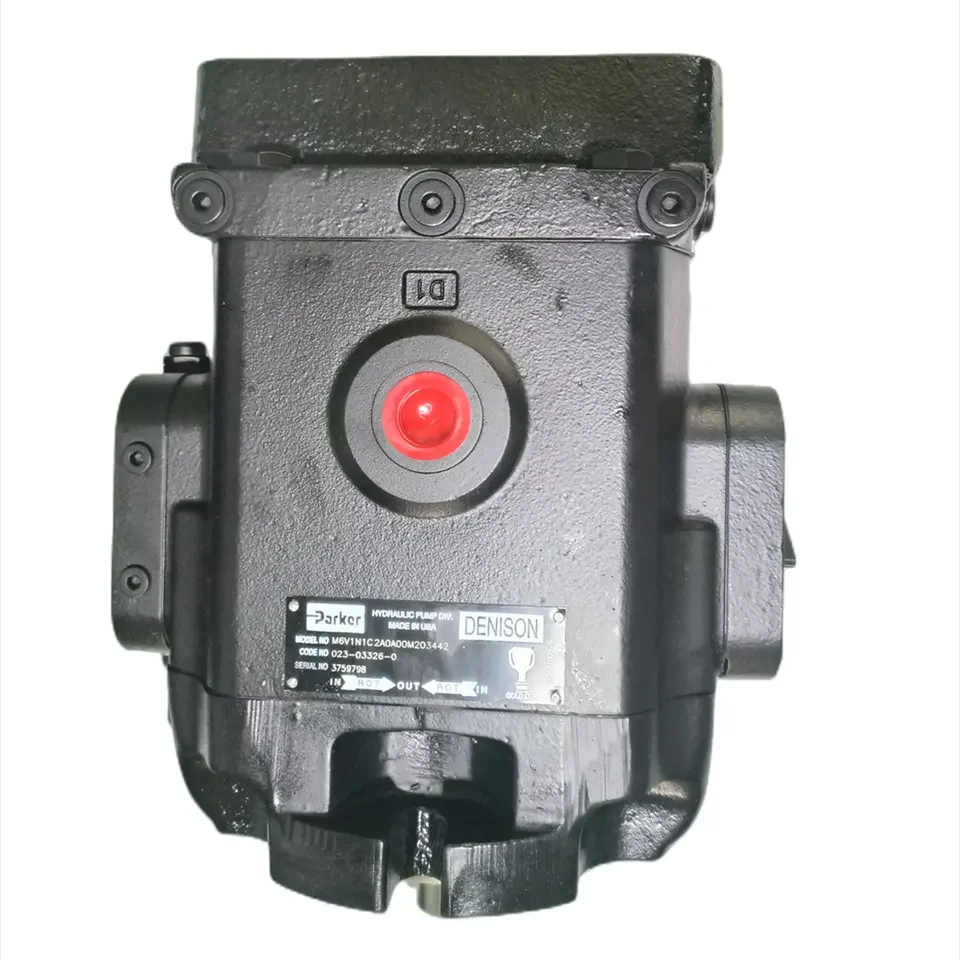

Parker Denison P7D Series Piston Pump | P7D-3R10-4A2-A | High Pressure Open Circuit Pump

The P7D Series axial piston variable pumps from Chengyuan Hydraulic are the heavy-duty power cores designed for open-circuit industrial and mobile applications. Fully compatible with Parker Denison standards, the P7D series combines classic rugged construction with modern, high-efficiency control logic. It is specifically engineered for conditions requiring extreme nominal pressure (420 bar) and absolute reliability. Every P7D pump (e.g., P7D-3R10) undergoes 100% simulated full-load condition testing to ensure pressure response, efficiency, and mounting dimensions achieve 100% original-place interchangeability.

Technical Specifications :

• Full Model Code: P7D-3R10-4A2-A (and derivative series)

• Displacement: 140 mL/rev (based on P14P frame)

• Nominal Operating Pressure: 420 bar (42 MPa)

• Peak Pressure: 500 bar (50 MPa)

• Maximum Rated Speed: 2400 rpm (at self-priming)

• Control Methods: Pressure Compensator, Load Sensing (LS)

• Drive Shaft: SAE Standard Splined or Keyed Shaft

• Housing Material: High-strength Ductile Iron

• Weight: Approx. 82 kg

Key Technical Advantages:

• Patented Rocker Cam Design: The P7D features Denison’s signature rocker cam swashplate structure. This design reduces friction and wear on moving parts, enabling exceptionally long bearing life even under extreme pressures, outperforming traditional swashplate pumps.

• Superior Volumetric Efficiency: With precision-ground valve plates and piston assemblies, volumetric efficiency remains above 96% at rated pressure. This translates to lower heat generation and higher system energy efficiency, reducing operational costs.

• Exceptional Power Density: Delivers high displacement and pressure output within a compact housing. This allows for easy replacement in space-constrained machinery (like drill rigs and cranes) without modifying system layouts.

• Low Noise & Long-Life Bearings: Equipped with oversized tapered roller bearings to handle massive radial and axial loads. Optimized fluid passages reduce pulsations, resulting in 3-5 dB lower noise levels than competitors.

Application Areas:

• Drilling & Mining: High-pressure systems for rotary drilling rigs and underground mining vehicles.

• Marine & Offshore: Deck cranes, winches, and steering hydraulic circuits.

• Heavy Industrial Presses: Forging equipment requiring continuous, stable 420 bar operation.

Expert Maintenance Tips:

• Case Drain Monitoring: Ensure the drain line is sufficiently large; case pressure must never exceed 2 bar. Excessive backpressure will lead to shaft seal failure or internal compensator malfunction.

• Filtration Requirements: As an ultra-high pressure pump, the system must utilize a return filter with a rating of at least 10μm. Maintain fluid cleanliness at ISO 18/16/13 or better.

• Initial Priming: Fill the pump housing with clean hydraulic oil through the drain port before startup. Utilize a “jogging” start method to purge air at no load to prevent dry-friction damage to the pistons.
