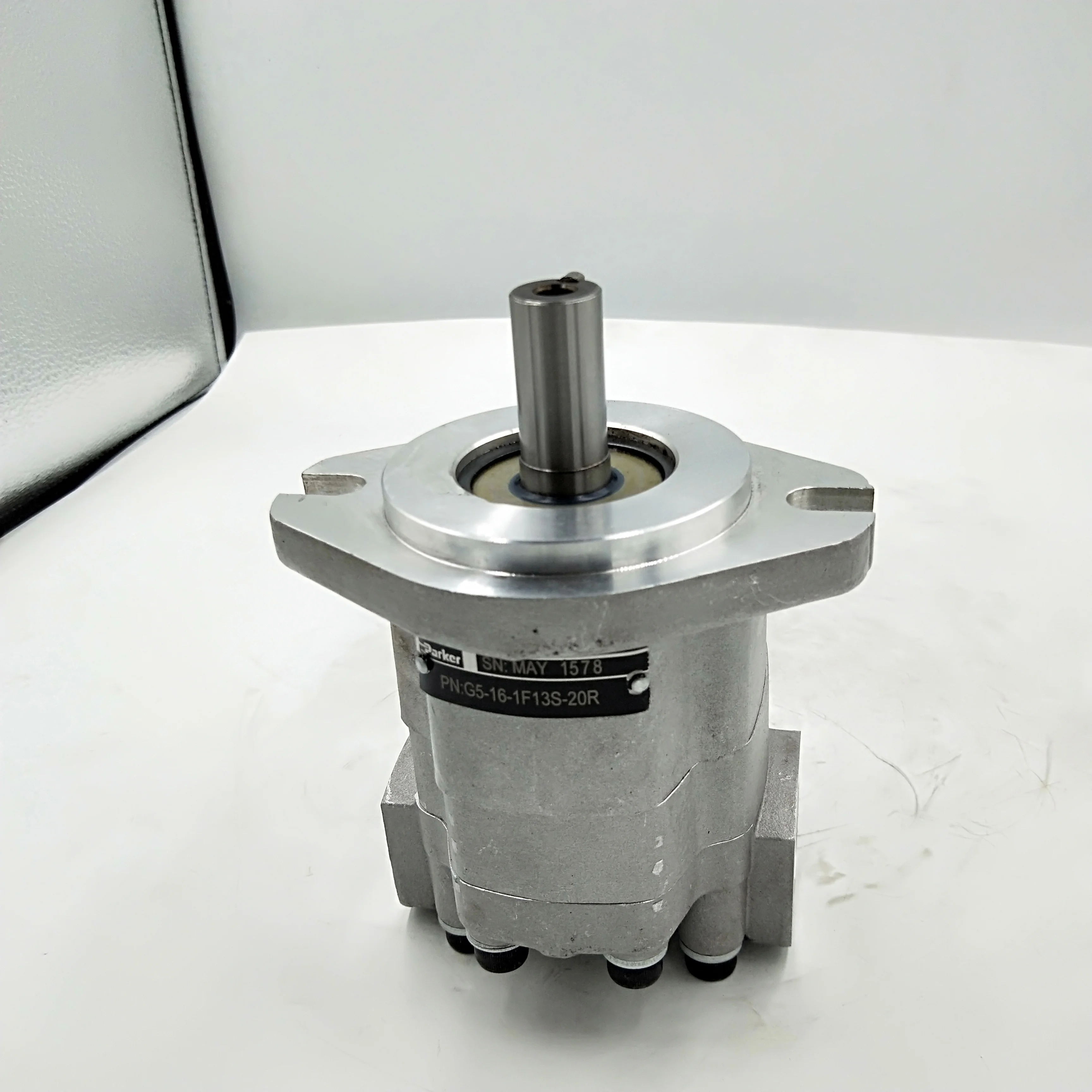

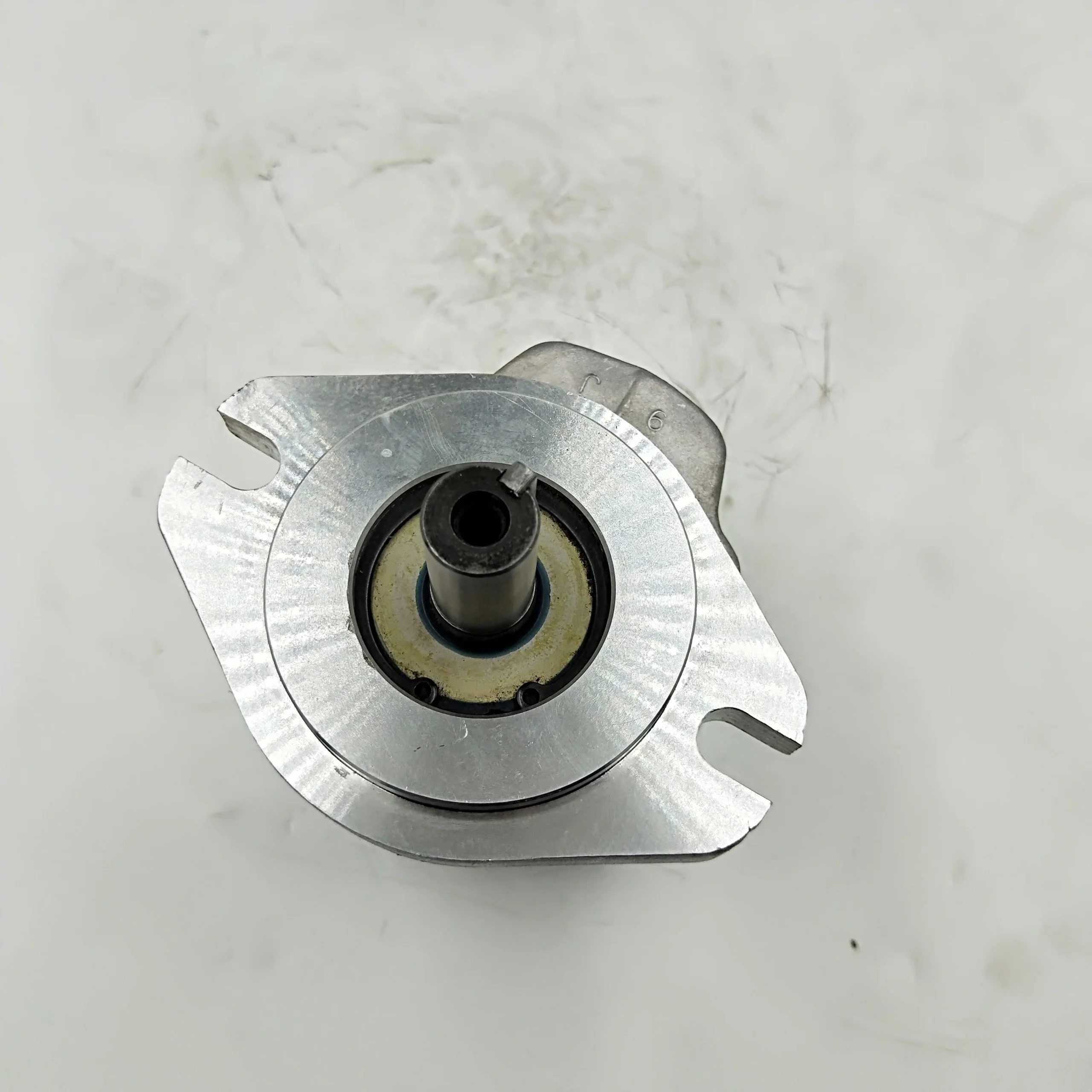

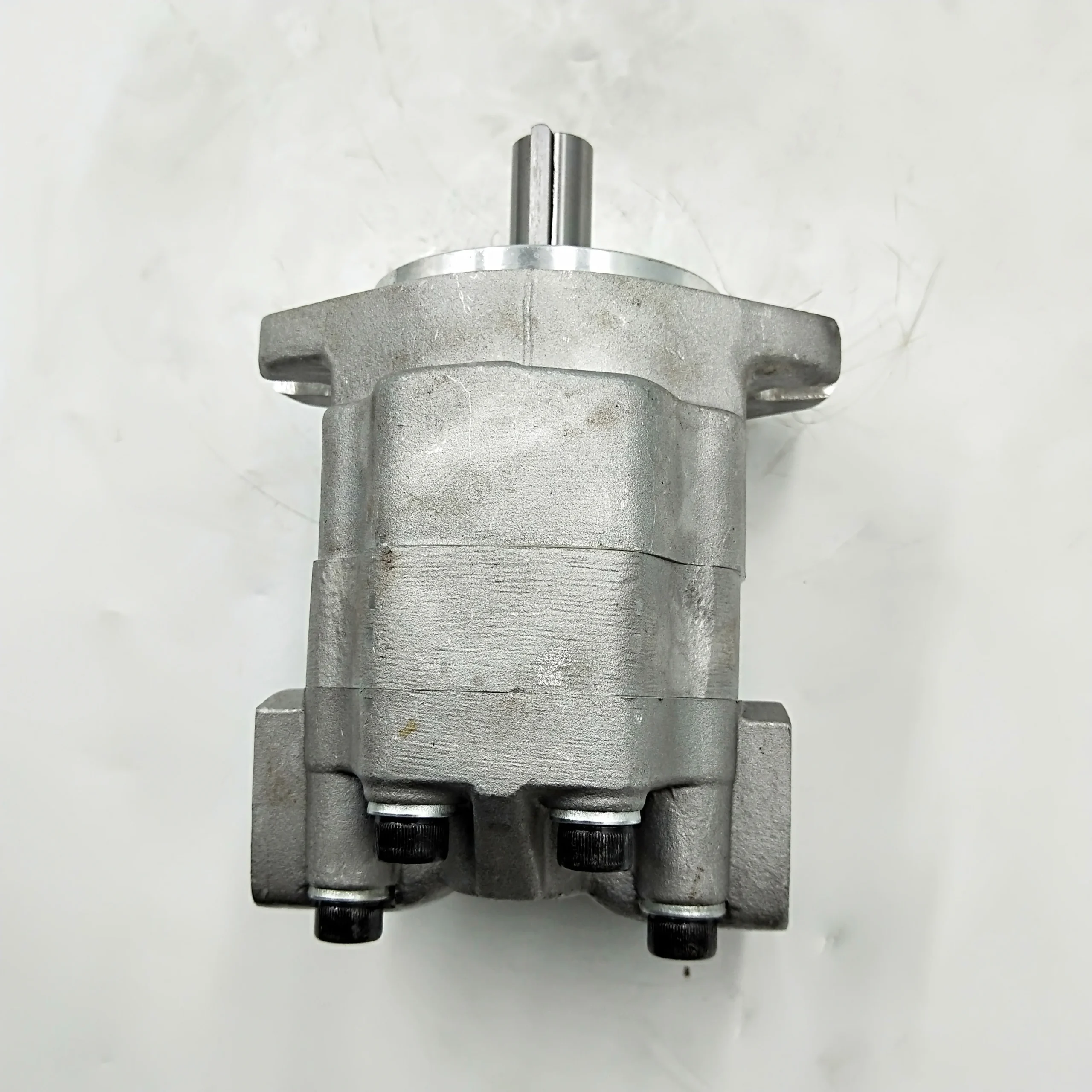

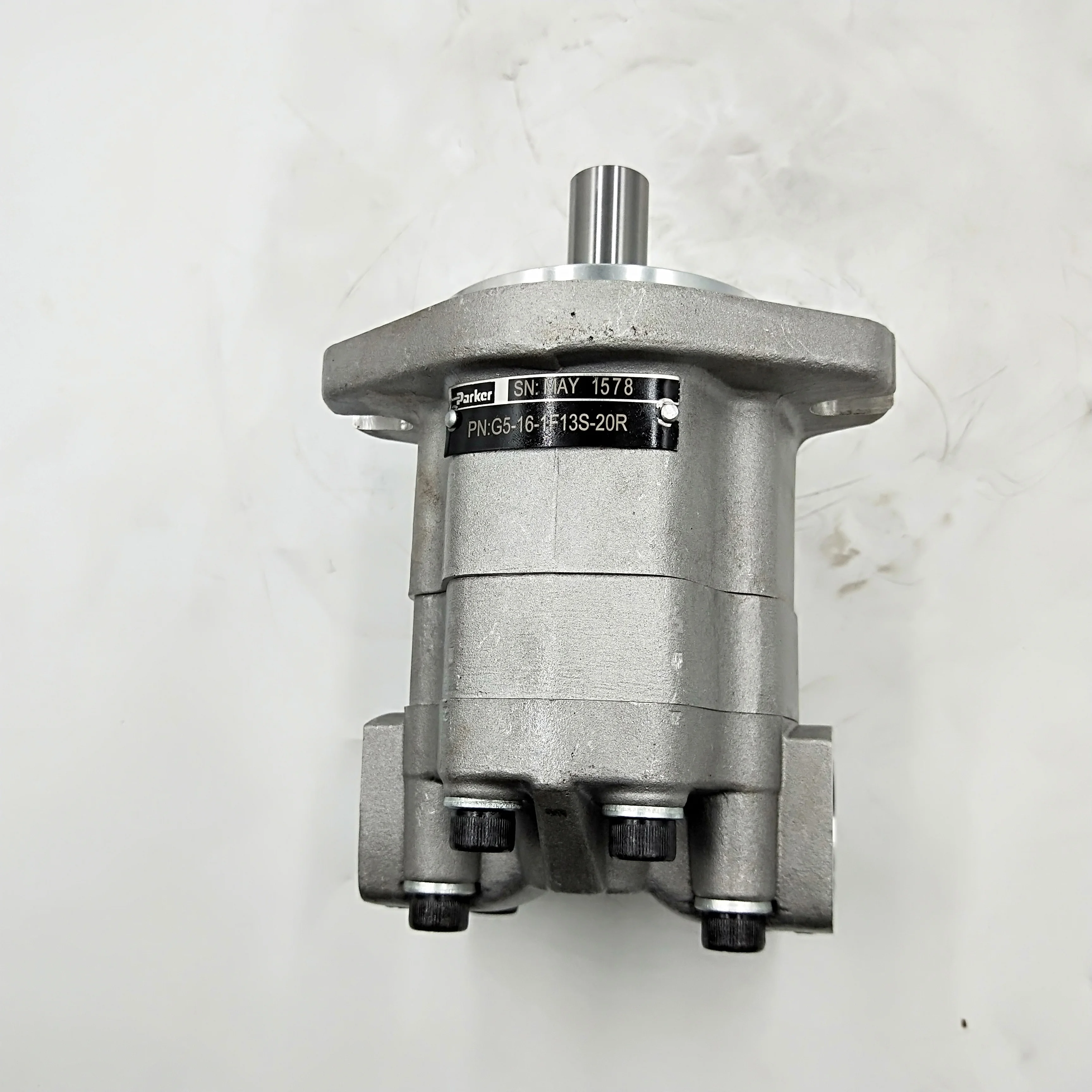

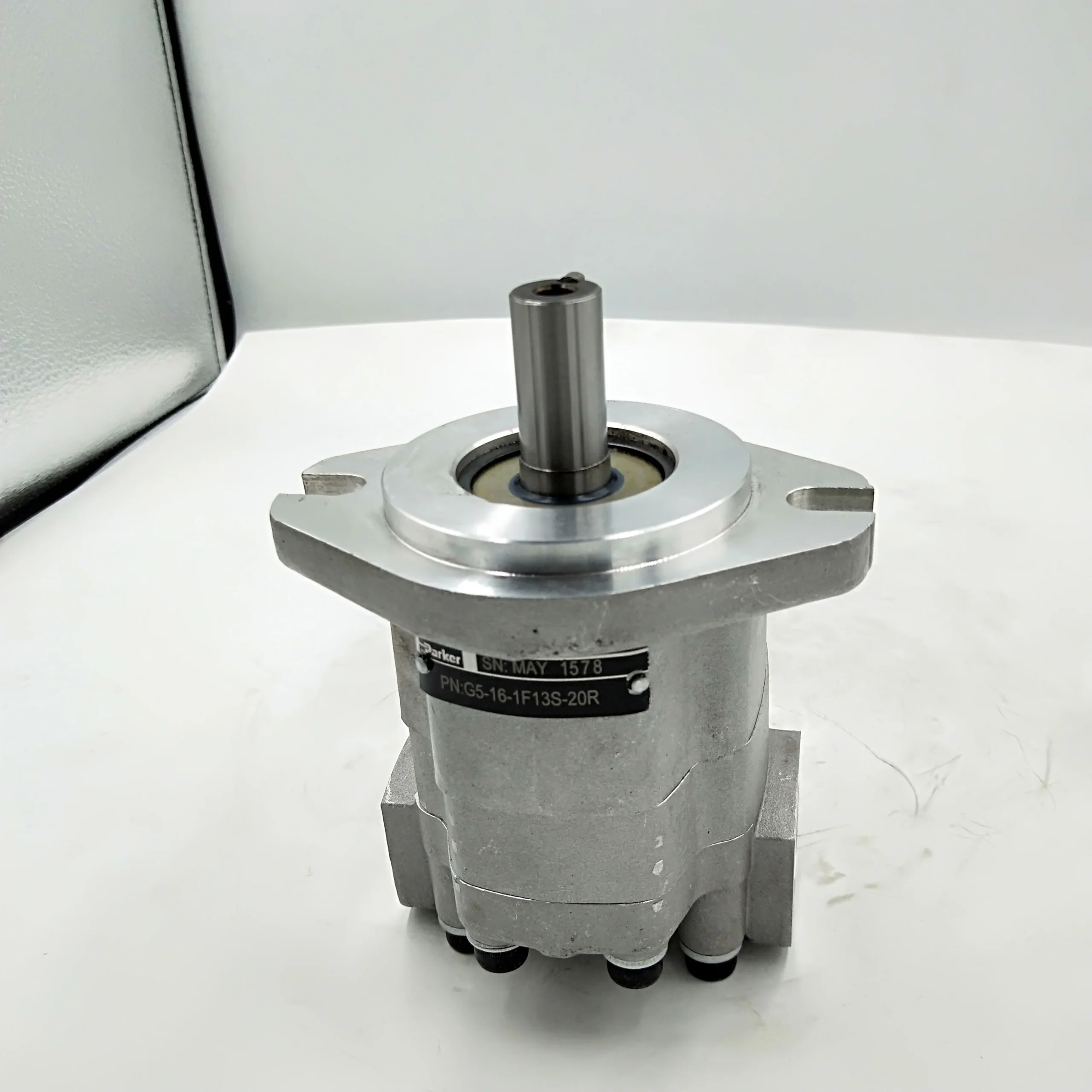

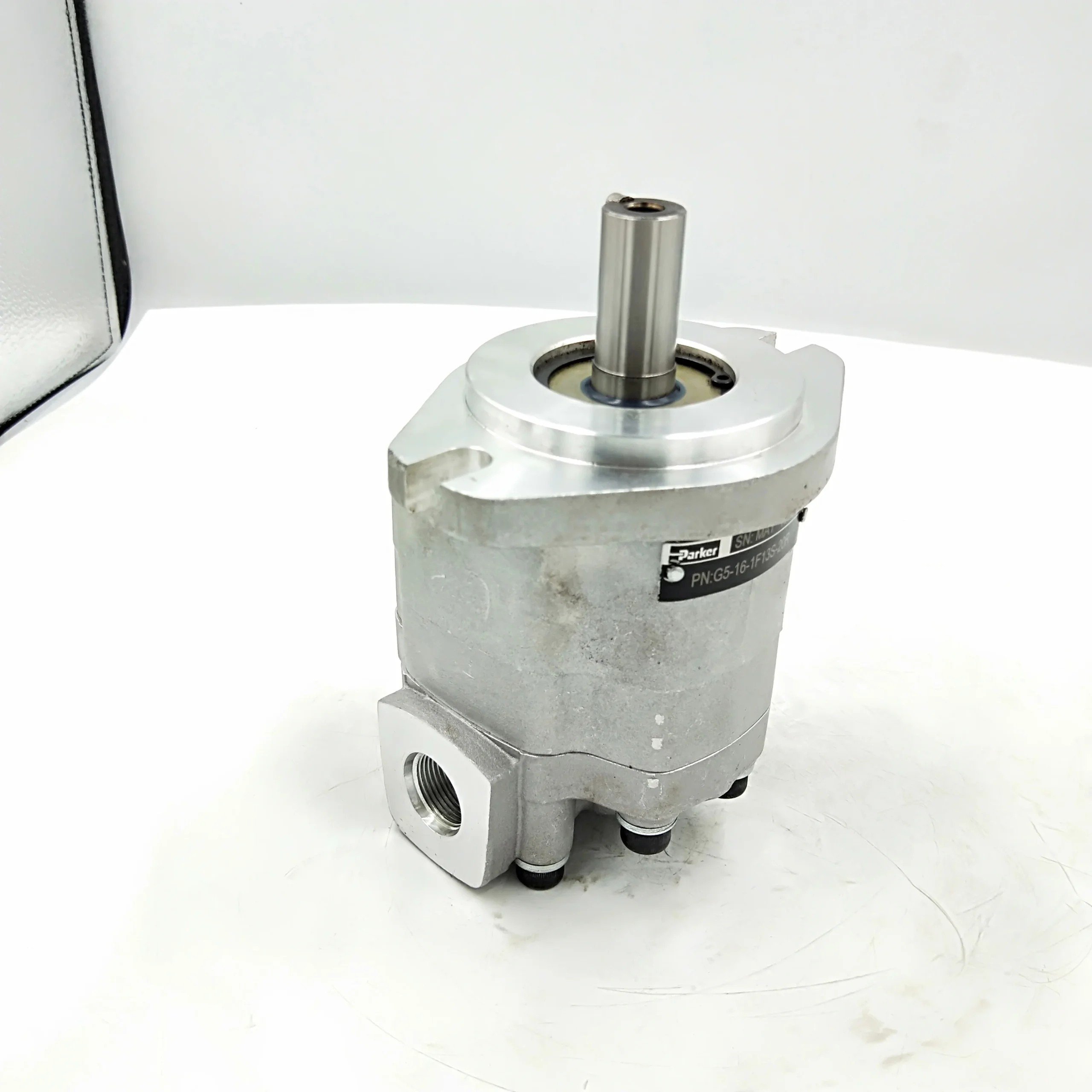

Parker G5 Series Hydraulic Gear Pump | G5-16 | High Pressure Aluminum Pump

The Parker G5 Series premium industrial and mobile high-pressure fixed displacement hydraulic gear pumps manufactured by Chengyuan Hydraulic are high-efficiency fluid power components engineered to thoroughly match the technical specifications of Parker Hannifin. This robust aftermarket alternative product matrix specifically addresses the demanding requirements of vocational vehicles and material handling applications, featuring the widely utilized core displacement model G5-16.

Operating as the reliable primary energy heart within specialized service vehicles, truck-mounted crane steering loops, and waste compaction machinery, a gear pump’s structural rigidity and volumetric efficiency under cyclic loading govern total system responsiveness. The Parker G5 pedigree is globally recognized for its unique three-piece high-strength extruded aluminum housing and advanced hydrostatic axial pressure-balancing framework. Chengyuan guarantees 100% original-place drop-in interchangeability across all assemblies regarding standard SAE 2-bolt mounting flanges (SAE A or B patterns), input drive shaft options (involute splined or straight keyed formats), floating thrust plate clearances, and side split-flange/threaded porting alignments. Prior to shipment, every single gear pump unit undergoes 100% full-capacity simulated pressure and speed tests on advanced digital benches, ensuring continuous stability up to 25.0 MPa.

Technical Specifications

• Compatible Brand: Parker Hannifin (Industrial High Pressure External Gear Standard)

• Target Replacement Configuration: G5-16 Series (Matching various shaft and flange combinations)

• Geometric Volumetric Displacement: 16.0 $cm^3/rev$

• Maximum Continuous Operating Pressure: 25.0 MPa (250 bar / 3,625 psi)

• Maximum Allowable Peak System Pressure: 27.5 MPa (275 bar / 3,988 psi)

• Operational Drive Speed Range: 500 rpm – 3,000 rpm (Optimized for vehicle engine PTO or high-speed electric motor direct-coupling)

• Flange & Shaft Interface Options: Standard SAE A/B 2-bolt positioning pilots paired with 9-tooth/11-tooth involute splined shafts or cylindrical straight keyed shafts

• Factory Calibrated Volumetric Efficiency: $\ge 94\%$ (verified at 1,500 rpm under full rated pressure conditions)

• Housing Metallurgy: High-strength forged aluminum alloy body section combined with high-density ductile cast iron front and rear covers

• Total Assembly Structural Weight: Approx. 4.8 kgs (10.6 lbs)

Key Technical Advantages:

• Composite Metallurgy Featuring Forged Aluminum Body & Cast Iron Covers: The primary G5 center section is sculpted from premium aerospace-grade forged aluminum alloy under heavy extrusion pressing, while the front and rear caps are cast from high-tensile nodular ductile iron. This structural engineering achieves a lightweight design without sacrificing mechanical casing stiffness, limiting internal expansion under 27.5 MPa transient shock waves.

• Axial Hydrostatic Balance via Floating Pressure-Balanced Side Plates: The inner rotating gear set leverages floating side thrust plates backed by specialized pressure-balanced sealing tracks. By channeling high-pressure system fluid behind the plates, this assembly forces a tight micron-level seal against the gear faces, self-compensating for long-term wear and holding volumetric efficiency over 94%.

• Micro-Precision Ground Alloy Steel Gears with Trapped-Oil Alleviation: The integrated drive and driven gear shafts are machined from premium low-carbon alloy steel (such as 20CrMnTi) using micro-precision hobbing, vacuum case-hardened, and finished via fine grinding to reach HRC 58-62. Optimized fluid relief cuts eliminate pressure spikes during gear tooth meshing, dropping average operational acoustic noise below 68 dB(A).

• Heavy-Duty Self-Lubricating DU Bushing Bearing System: The rotating shaft journals are supported by high-capacity imported DU composite bearings (comprising a PTFE friction-reducing layer, a sintered bronze intermediate layer, and a rigid steel backing). Lubricated continuously by the system oil flow, this configuration absorbs radial shear stresses, keeping the shaft concentric at high speeds and protecting the front shaft lip seals from leaking.

Application Areas:

• Truck-Mounted Lifting Machinery & Special Municipal Vehicles: Providing quiet fluid power to steering assist lines on boom trucks, aerial platforms, and mobile vehicle winches.

• Refuse Collection Vehicles & Municipal Maintenance Fleet: Serving as the primary system supply for multi-way control valves on rear-loading refuse packagers and road sweepers.

• Industrial Manifolds & Compact Hydraulic Power Stations: Supplying continuous pressure loops to rapid automation lift stations and auxiliary rapid-advance circuits on sheet metal bending presses.

Expert Maintenance Tips:

• Mandatory Manual Fluid Priming and Shaft Rotation Prior to First Start: Because the G5-16 series features tightly matched running clearances, operating it dry will cause immediate component breakdown. During initial system mounting or following a reservoir oil change, you must pre-fill the pump cavity with clean fluid through the suction port and rotate the input shaft several turns manually. Jog the motor or PTO intermittently during startup. Never run the pump dry, or the floating thrust plates will lock and gall against the gear faces within seconds from dry friction heat.

• Zero Shock Impact Tolerances and Concentricity Controls Along the Drive Shaft: When securing the gear pump onto the engine PTO socket or electric motor adapter bracket, ensure the coupling and splines slide home smoothly. Never use a steel hammer or heavy tools to force the shaft coupling into position. Sudden axial impact loads can crack the internal alignment pins. Keep alignment concentricity tolerances strictly under $\le 0.05mm$ to protect the front lip seals from leaking under pressure.

• Enforce Clean Fluid Filtration Matrix to Eliminate Internal Scoring: High-pressure aluminum gear components are vulnerable to fine particulate abrasive scraping. Total loop fluid cleanliness must be held at or above ISO 4406 20/18/15, backed by a $\le 100$ mesh inlet suction strainer that is inspected routinely. Allowing sand dust or metallic friction particles to enter the fluid will score the aluminum side plates, causing severe internal slip and pressure drops when hot.
