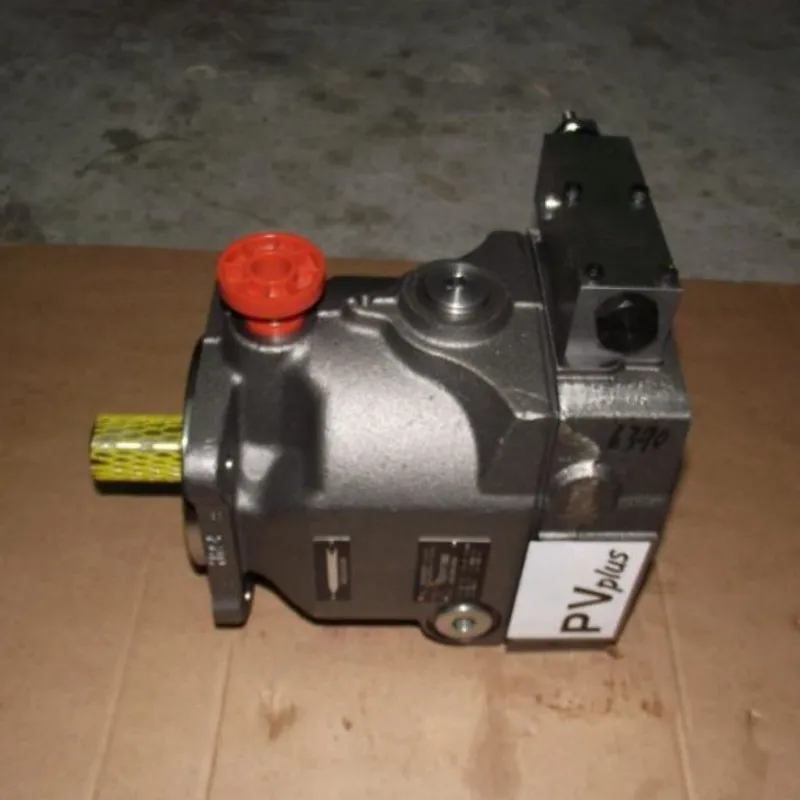

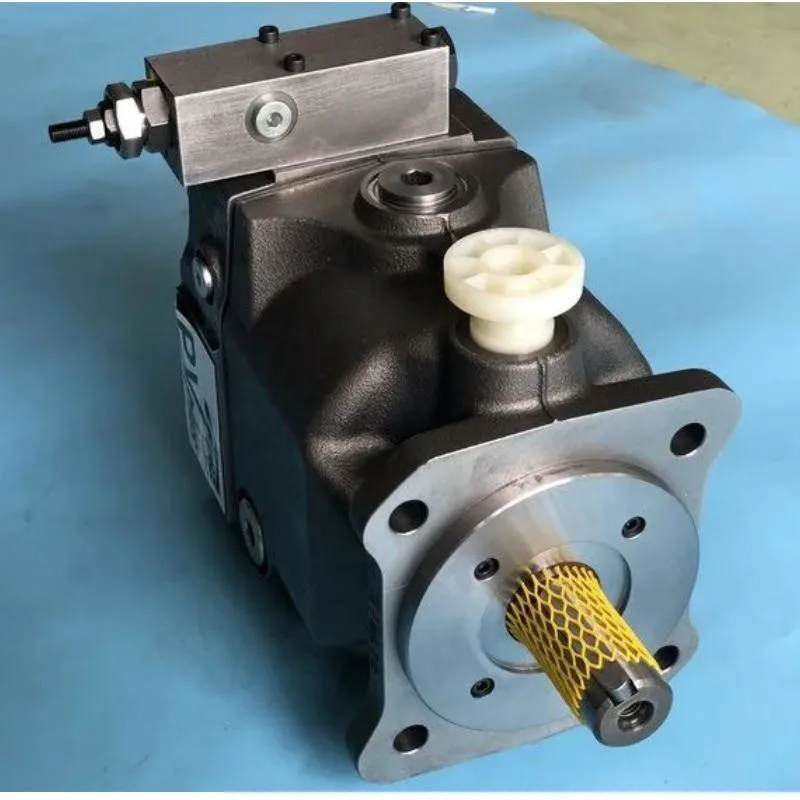

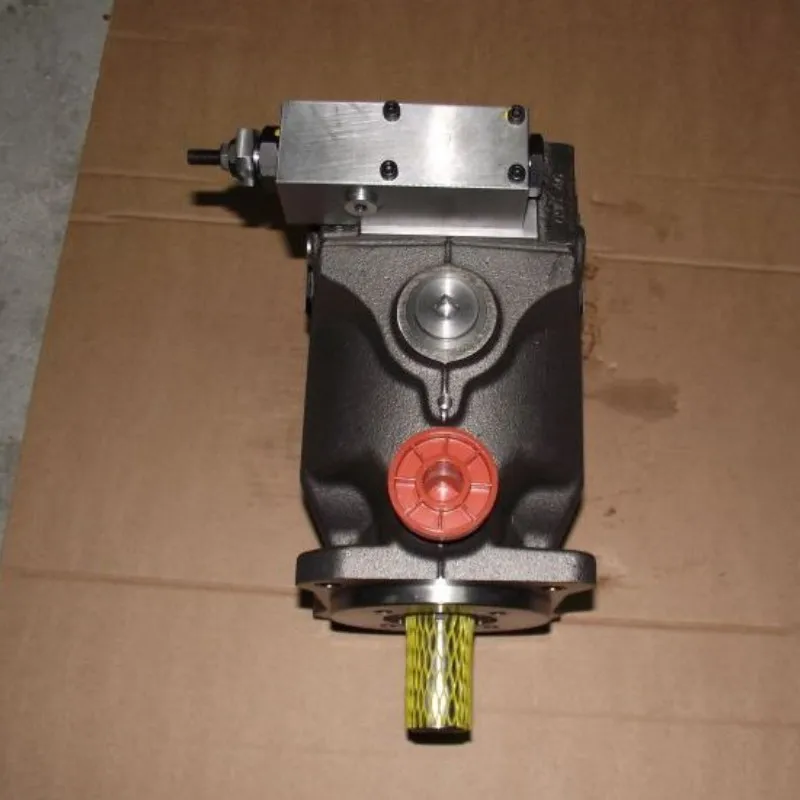

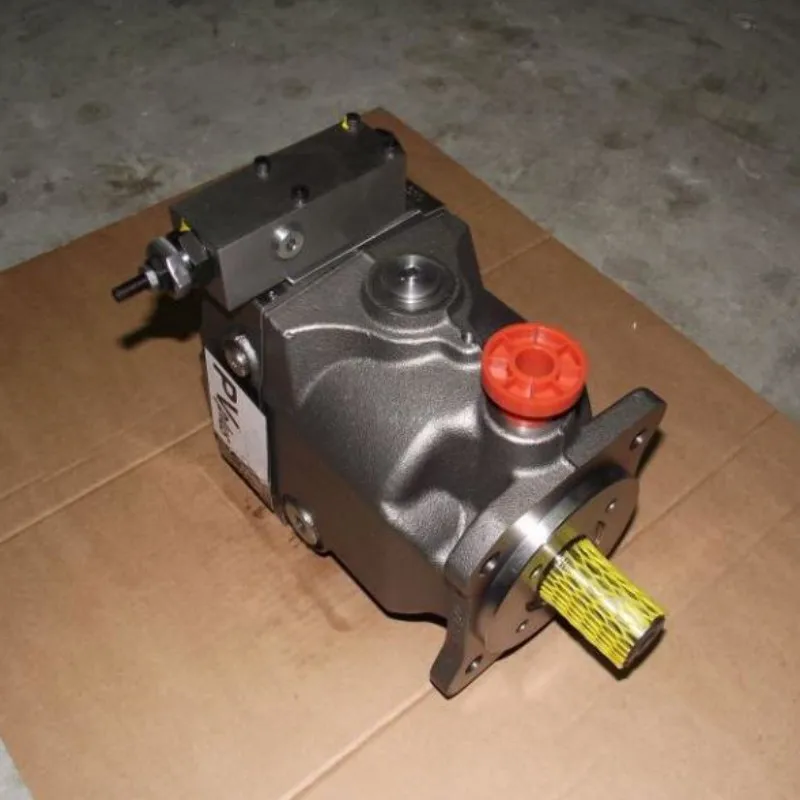

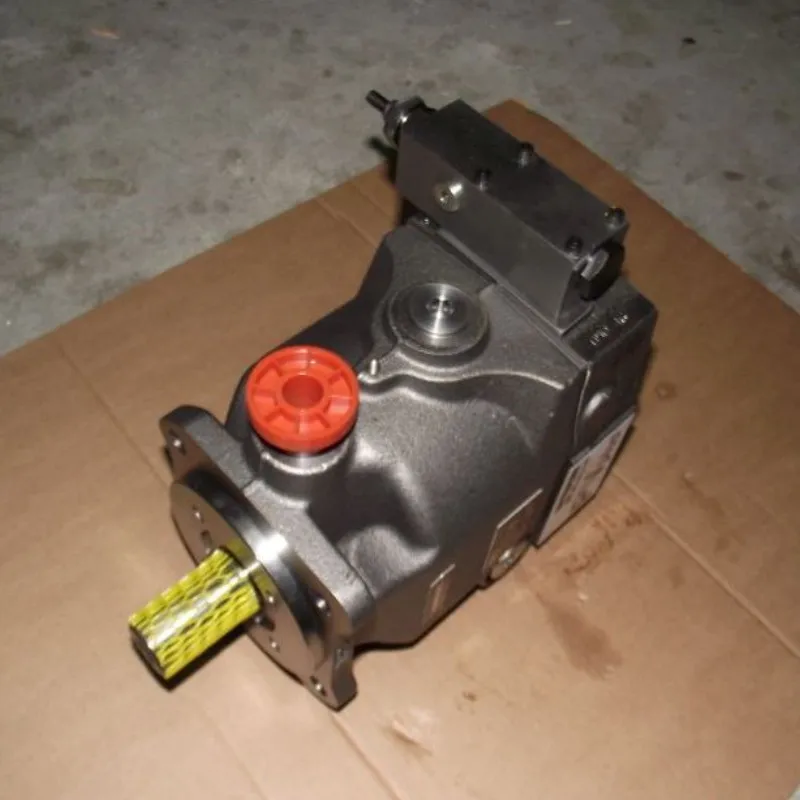

Parker PV Plus Series Axial Piston Pump | PV080 PV092 PV040 PV046 | Variable Displacement Hydraulic Pump

The Parker PV Plus Series premium heavy-duty swash-plate type axial piston pumps manufactured by Chengyuan Hydraulic are high-pressure fluid power components engineered to thoroughly match the rigid performance standards of Parker Hannifin (Pumps & Motors Division Europe). This high-tier alternative product matrix is tailor-made to fulfill demanding aftermarket procurement requirements for complex, tightly regulated open-loop control configurations, specifically focusing on specific factory designations: PV080R1K1T1NMCC (80ml/rev with high-dynamic regulation), PV092R1K1T1NMMC (92ml/rev with integrated pilot valves), PV040R1D1T1NGCC (40ml/rev splined shaft build), and PV046R1K1B1NFDS (46ml/rev with specialized hydro-mechanical compensators).

Operating as the critical primary energy muscle within rapid-reversal scrap metal balers, industrial forging presses, and high-tonnage marine winch gearboxes, a piston pump’s high-pressure tolerance dictates systemic stability and machine duty cycles. Chengyuan guarantees 100% original-place drop-in interchangeability across all units regarding metric ISO 3019-2 or SAE positioning pilots, cylindrical parallel/involute splined drive shafts, integrated valve blocks (such as the MMC/MCC module with electro-hydraulic closed-loop control or remote pressure limiters), and main flow split-flange connection interfaces. Every singular assembly undergoes 100% simulated load qualification and transient overpressure testing on digitized high-power diagnostic benches prior to shipment, guaranteeing high structural performance up to 350 bar.

Technical Specifications

• Compatible Brand: Parker Hannifin (Industrial Variable Displacement Infrastructure)

• Target Replacement Model Codes: PV080R1K1T1NMCC, PV092R1K1T1NMMC, PV040R1D1T1NGCC, PV046R1K1B1NFDS

• Nominal Volumetric Displacement:

  • PV040 Series: 40 $cm^3/rev$

  • PV046 Series: 46 $cm^3/rev$

  • PV080 Series: 80 $cm^3/rev$

  • PV092 Series: 92 $cm^3/rev$

• Rated Operating Pressure: 350 bar (35 MPa / 5075 psi)

• Maximum Allowable Peak System Pressure: 420 bar (42 MPa / 6090 psi)

• Maximum Drive Rotation Speed:

  • Frame Sizes 040 / 046: Up to 2,800 rpm

  • Frame Sizes 080 / 092: Up to 2,300 – 2,500 rpm (Sustains stable suction down to a minimum of 400 rpm)

• Control Block Assembly Codes:

  • MCC / MMC Typology: High-accuracy pressure control integrated with an auxiliary pilot valve block for closed-loop tuning

  • NGC / FDS Typology: Remote electro-hydraulic displacement/pressure compensating configurations with tailored dynamic flow dampening

• Shaft and Mounting Configuration: K1 / D1 markers dictate metric straight parallel keyed shafts (Ø 32mm / Ø 40mm) or standard DIN/ISO involute splines, mated with standardized ISO 4-bolt square mounting patterns.

Key Technical Advantages:

• Hydrostatically Balanced Swashplate Counter-Momentum: Features a robust counter-acting piston mechanism matched with pre-compression chambers that dampens high-frequency mechanical vibration. Even under 420 bar peak pressure shocks, the swashplate maintains balanced angular stiffness, mitigating metal-to-metal piston slap and sustaining volumetric efficiency above 96% under continuous load.

• Rigid Noise-Optimized Housing & Anti-Cavitation Porting: The pump housing’s interior geometry is redesigned via Computational Fluid Dynamics (CFD) to maximize suction flow volume and smooth internal turbulence. When operating at a high threshold of 2,300 rpm, fluid vacuum levels at the inlet drop significantly, reducing operational noise levels by 3-5 dB(A) compared to low-tier replacement designs.

• Vacuum-Oiled Case Hardening for Core Tribological Pairs: The main cylinder barrel block, bi-metal valve plate, and hardened pistons are manufactured from high-density tool-steel alloys treated via vacuum oil-quenching cycles to a uniform hardness of HRC 61-64. Super-finished to mirror-like tolerances, these sliding interfaces prevent thermal scuffing or barrel lift caused by fine particulate wear.

• High-Transient Integrated Pilot Control Modules: The pilot-operated pressure compensators on configurations like the PV092-MMC feature meticulously calibrated spool orifices. This allows the internal control spool to follow electrical or pilot-oil signals within 40ms, delivering smooth pressure cut-offs and minimizing systemic hydraulic shock during high-velocity machine operations.

Application Areas:

• Heavy Industrial Forging Press & Injection Molding Lines: Delivering high-pressure continuous fluid delivery to waste scrap balers, die-casting machinery, and high-tonnage metal forming systems.

• Marine Hoisting Winches & Deck Infrastructure: Primary pump cores for open-loop constant-tension mooring systems and heavy cargo cranes.

• Heavy Tunnelling Shields & Specialized Rotary Rigs: Powering the advanced rotary driving heads of piling rigs and the continuous hydraulic thrusters of underground shield tunnel boring machinery.

Expert Maintenance Tips:

• Mandatory Pre-Lubrication Case Priming Procedure: After placing the new pump assembly (e.g., PV080 / PV092) and tightening all fittings, you must pre-fill the pump crankcase with a minimum of 2.0 to 3.0 liters of clean hydraulic oil through the highest case drain port prior to cranking the engine or motor. Operating the unit dry, even for a few seconds, will cause immediate, irreversible scuffing on the piston shoes and main shaft bearing.

• Strict Case Drain Backpressure Management: The external case drain line must be plumbed directly back to the reservoir without passing through any filtration screens, chillers, or check valves. Continuous operational pressure inside the housing must strictly stay below 0.5 bar (0.05 MPa), with transient spikes not exceeding 2 bar. High drain backpressure will compromise the front Viton shaft seal, causing oil leakage or mechanical displacement of the piston shoes.

• Preventative Orifice Inspection for Advanced Controls (MMC/FDS): The pilot-stage restrictor orifices inside the MMC controller feature micro-diameters. Hydraulic oil cleanliness must be held at ISO 4406 18/16/13 or cleaner. If the system exhibits an inability to reach peak pressure or exhibits slow stroke responsiveness, clean the internal orifices with clean kerosene rather than attempting a complete tear-down of the primary pump assembly.
