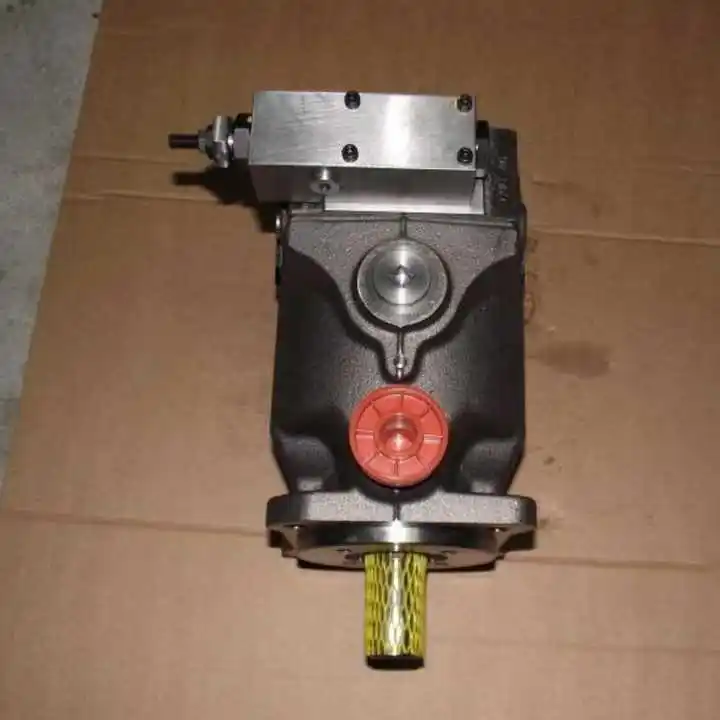

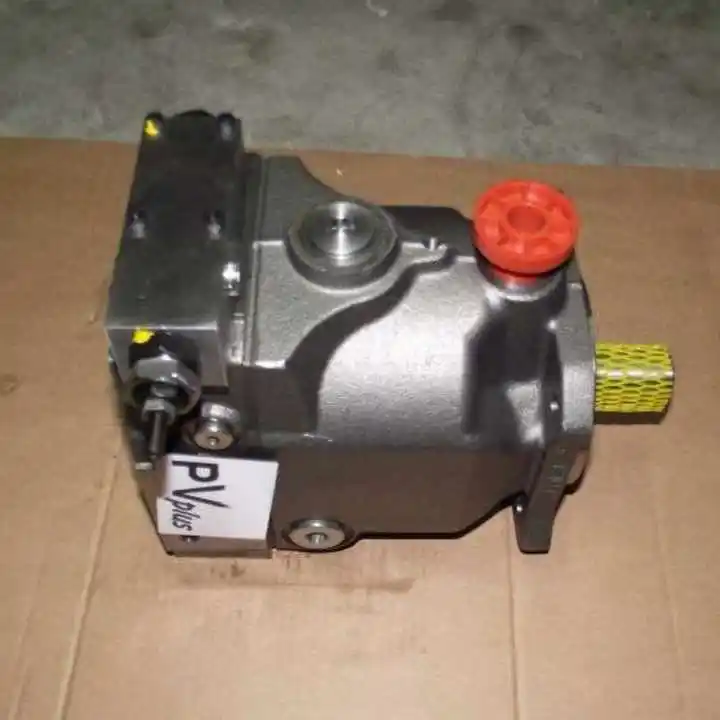

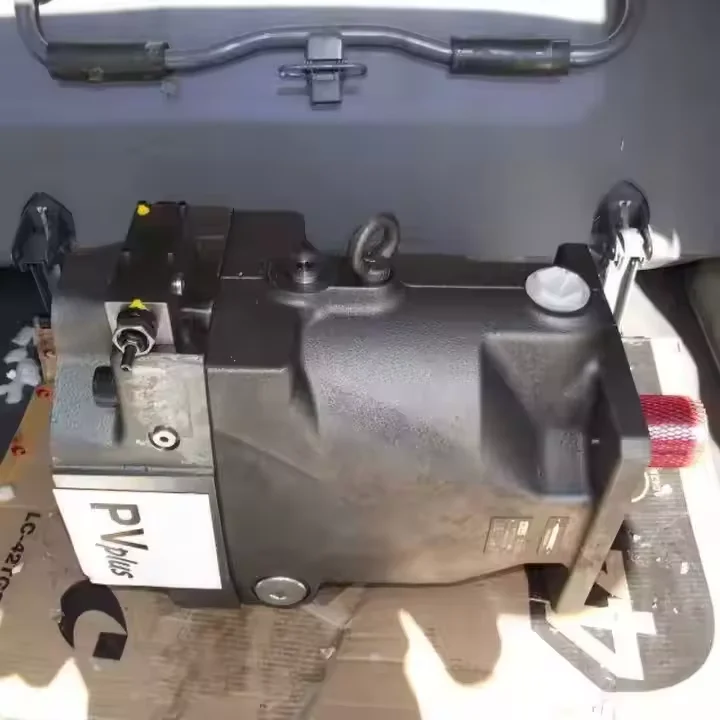

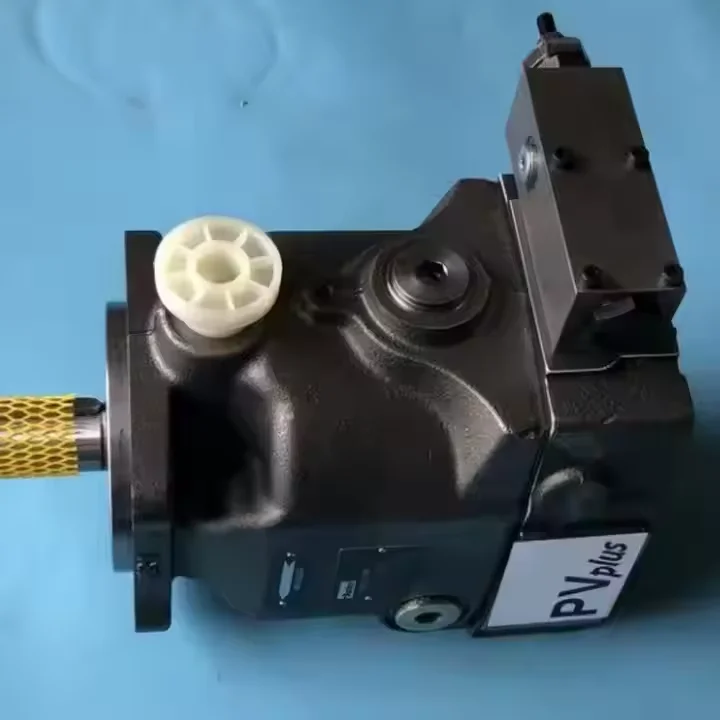

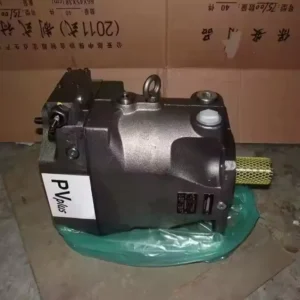

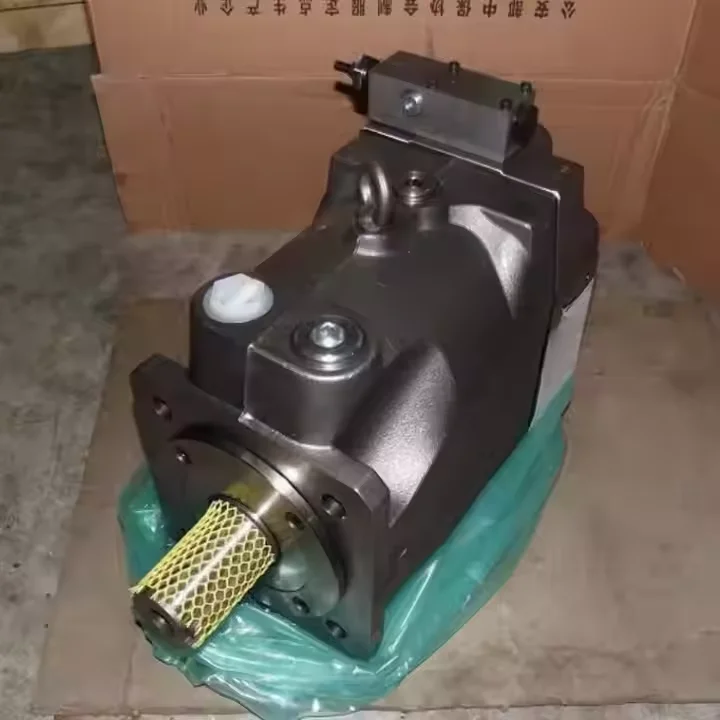

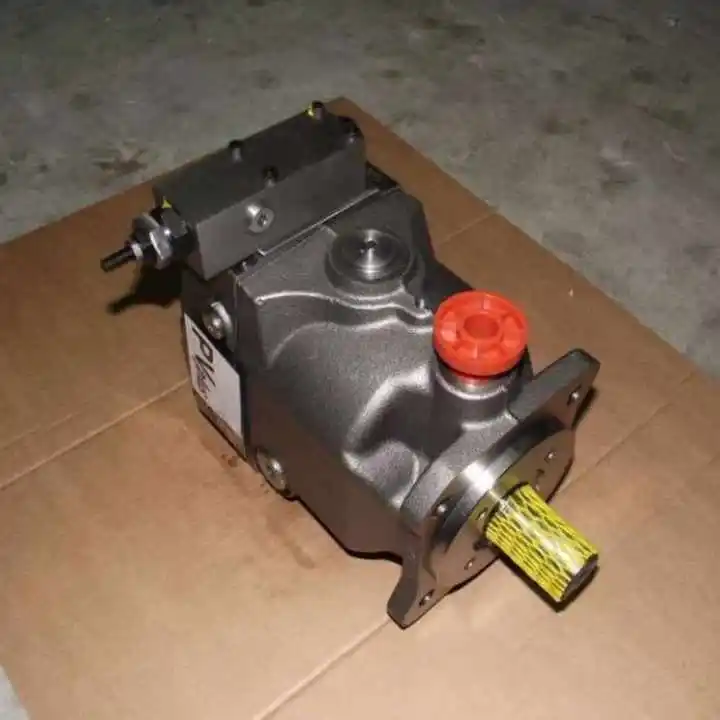

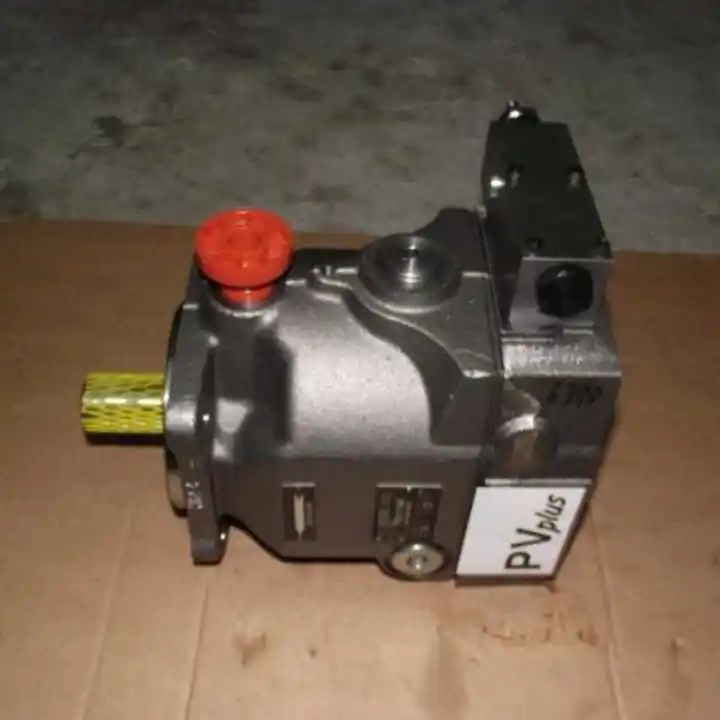

Parker PV180 Series Axial Piston Pump PV180R1K1T1NMRZ Variable Pump

The industrial-grade Parker Compatible PV180 Series High-Pressure Axial Piston Hydraulic Pumps, engineered by Chengyuan Hydraulic, are variable displacement fluid power components developed for heavy-duty industrial pressing networks, metallurgical lines, and high-capacity marine engineering platforms. Operating as a premier reference within high-pressure open-circuit systems, this series integrates an optimized 9-piston low-pulsation layout with a continuous pressure threshold of up to 350 bar. It features quick displacement adaptation and low noise levels, making it suitable for modern high-performance industrial power units.

This technical product copywriting profiles and replaces Parker’s factory reference model code: PV180R1K1T1NMRZ. Broken down by engineering nomenclature, this code specifies: PV180 (180 cc/rev frame size displacement), R (Clockwise rotation), 1 (Standard single pump variant, non-thru-shaft design), K (Standard SAE D 4-bolt pilot mounting arrangement), 1 (Standard SAE cylindrical straight keyed input shaft), T1 (Standard single-stage pressure compensator/control valve covering a 15–350 bar threshold), N (Premium Nitrile NBR seal combination), M (Equipped with mechanical minimum/maximum displacement adjustment screws), R (Side-mounted standard SAE 4-bolt flange port positions), and Z (Standard manufacturing series designATOR).

Chengyuan’s alternative axial piston pumps perfectly realign with original Parker design prints regarding primary installation space envelopes, SAE 4-bolt mounting flange pilots, shaft drive dimensional tolerances, and top-mounted pilot control manifold interfaces. This layout delivers 100% direct drop-in interchangeability for B2B commercial procurers, industrial pump distributors, and OEM system designers. Engineering teams can bolt the replacement pump directly into tight hydraulic power unit enclosures without needing to remake custom bell housings, motor couplings, or high-pressure piping manifolds, reducing system conversion expenses.

High-pressure variable piston pumps operate under harsh structural conditions, including high shock loads, prolonged dead-head pressure cycles, and rapid flow switching. Lower-grade alternatives often suffer from piston slipper detachment, valve plate scuffing under full load, or compensator valve spool binding, which can cause sudden over-pressurization failures. To ensure operation, 100% of Chengyuan’s PV180R1K1T1NMRZ replacement pumps undergo 100% strict dynamic load testing on digitized simulation benches. Verified up to a 350 bar continuous workload limit, each unit is checked for hot volumetric output, response times during step-load phases, and dead-head leakage flow rates before packaging.

Technical Specifications

• Product Classification: Swashplate Design Variable Displacement Axial Piston Hydraulic Pump

• Compatible Reference Platform Series: Parker PV Series Size 4 Framework (PV180 Dedicated Family)

• Exact Model Designation Profile: PV180R1K1T1NMRZ

• Nominal Geometric Displacement: 180 cc/rev ($11.0\text{ in}^3/\text{rev}$)

• Maximum Continuous Operating Pressure: 350 bar (35 MPa / 5075 psi)

• Maximum Permissible Peak Intermittent Pressure: 420 bar (42 MPa / 6090 psi)

• Maximum Permissible Rotational Speed (at 1 bar absolute inlet pressure): 2100 rpm (optimized for direct standard 4-pole synchronous motor pairing)

• Minimum Continuous Operating Speed Threshold: 400 rpm

• Control Valve Manifold Mechanism Type: T1 Type Standard Pressure Compensator with manual pressure cutoff adjustment screw

• Pressure Adjustment Spectrum Horizon: Adjustable from 15 bar up to 350 bar

• Input Drive Shaft Configuration: Standard SAE D cylindrical straight keyed shaft matching original factory dimensions

• Mounting Flange Matrix Alignment: Standard SAE D 4-bolt positioning flange arrangement

• Fluid Suction & Discharge Interface Setup: Side-mounted standard SAE 4-bolt split flange interfaces (Suction: Code 61 SAE 3″, Discharge: Code 62 SAE $1\frac{1}{4}$“)

• Case Drain Port Configuration: Top and side-mounted standard G $\frac{3}{4}$” parallel thread interfaces

• Permissible Continuous Fluid Temperature Horizon: -20°C to +90°C

Key Technical Advantages

• 9-Piston Low-Pulsation Swashplate Configuration: The internal rotating assembly incorporates a 9-piston odd-numbered configuration. The paired valve plate features pre-compression fluid chambers designed to reduce flow pulsation by over 50% compared to traditional piston pumps. This dampens fluid-borne vibration throughout downstream piping to enable quiet operation.

• Hydrostatically Balanced Piston Slipper Geometries: The piston slippers are finished with precision lapping and include hydrostatically balanced oil lubrication pockets. High-pressure fluid from the piston chamber creates a micrometer-scale oil film between the slipper face and the swashplate. This prevents direct metal-to-metal contact at 350 bar operations, reducing friction wear during intense acceleration or cyclic loads.

• Hydrodynamic Large Cradle Swashplate Bearings: The tilting swashplate assembly is supported by advanced fluid-film composite cradle bearings instead of traditional rolling elements. This design provides high load-carrying capacity to absorb axial piston forces. Combined with the T1 pressure control valve, it delivers rapid step response times of 40 to 60 milliseconds from full flow to zero flow for responsive pressure management.

• Heavy-Duty Thick-Walled Ductile Iron Vibration-Damping Casing: The structural outer housing is cast from heavy-wall nodular iron (QT600-3). Engineered for high tensile strength, it minimizes housing deflection under cyclic high-pressure pulses to maintain the micro-scale clearances between the cylinder block and the valve plate, preserving volumetric efficiency over a long service life.

Application Areas

Chengyuan’s high-performance replacement Parker PV180R1K1T1NMRZ piston pumps deliver reliable, high-pressure fluid power across heavy industrial automated machinery sectors:

• Heavy Metal Scrap Packing & Scrap Shear Machining: Powering high-tonnage scrap balers, structural metal cutters, four-column material briquetting presses, and refractory ceramic molding lines.

• Marine Engineering, Deck Cranes & Off-Shore Equipment: Supplying stable high-pressure fluid loops for mooring winches, cargo handling deck cranes, and heavy bulkhead door actuation networks.

• Metallurgical Smelting & Heavy Factory Automation Power Packs: Serving as the central high-pressure fluid source for blast furnace control blocks, continuous billet casting lines, and automated raw material processing machinery.

Expert Maintenance Tips

• Prior to Initial Operation, the Pump Casing Must Be Filled with Clean, Filtered Hydraulic Oil via the Highest Available Case Drain Port: The internal rotating components, including the cylinder block face, valve plate, and piston slippers, depend entirely on fluid in the housing for immediate lubrication. Running the pump dry—even during initial brief startup cycles—can cause rapid frictional heating and score these precision metal surfaces.

• The Case Drain Piping Must Run Separately and Directly Back to the Reservoir; the Pipe’s Internal Cross-Sectional Area Must Not Be Smaller Than the Drain Port Thread Size, and Case Backpressure Must Never Exceed 2 bar Continuous: Restricting or merging the drain line with high-volume return manifolds can cause excessive pressure inside the pump casing. This can cause the shaft seal to leak or rupture, and can lift the piston slippers off the swashplate, leading to internal mechanical damage.

• Check Fluid Cleanliness Regularly (Every 3 Months Recommended); Main System Loops Must Be Maintained with an Absolute Filtration Rating of 10 Microns or Better: The internal control spools and piston assemblies operate with tight clearances. Hard particulate contamination entering the pump can jam the T1 compensator valve spool, preventing proper displacement adjustment or causing premature wear on the cylinder faces.
