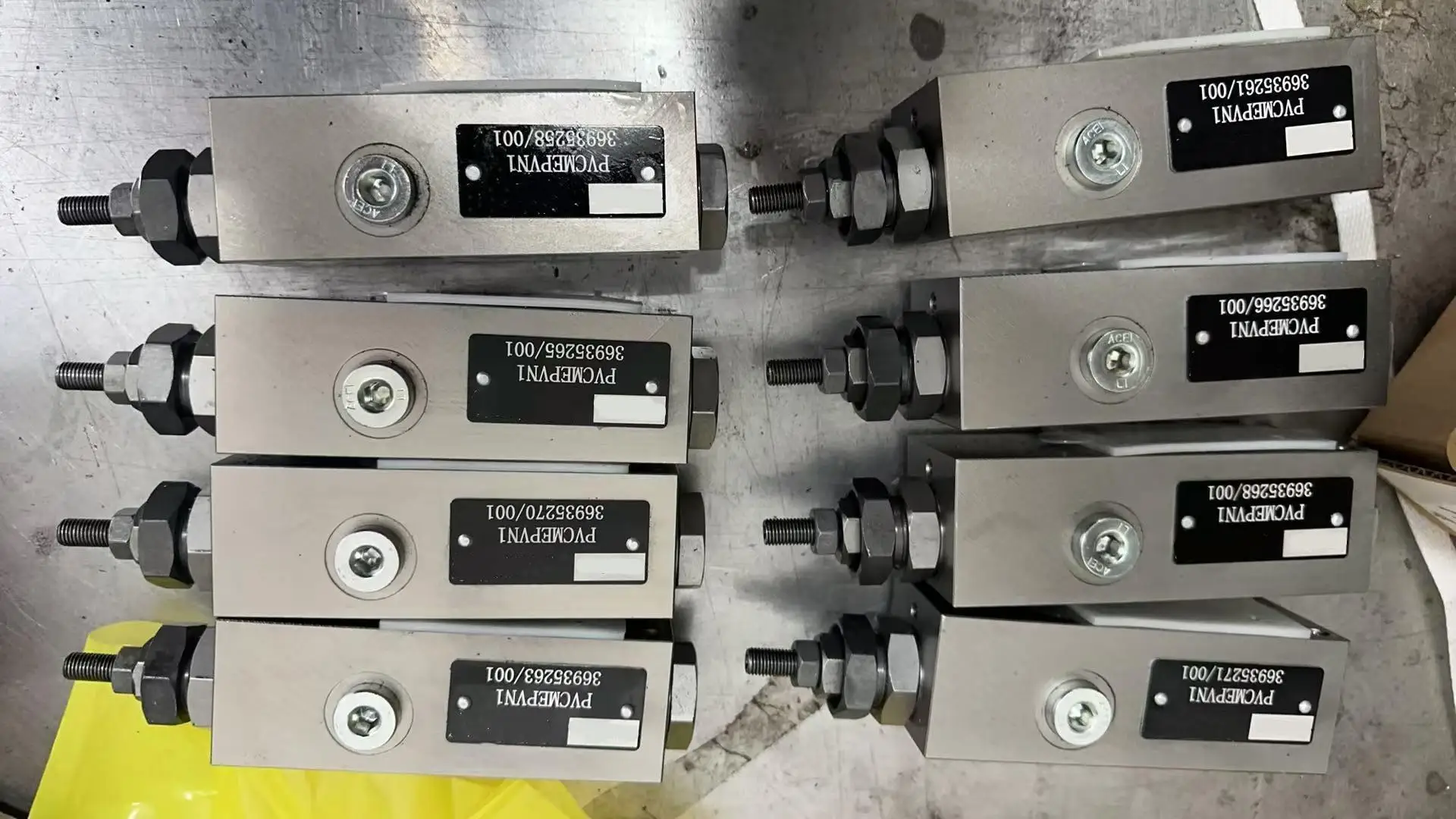

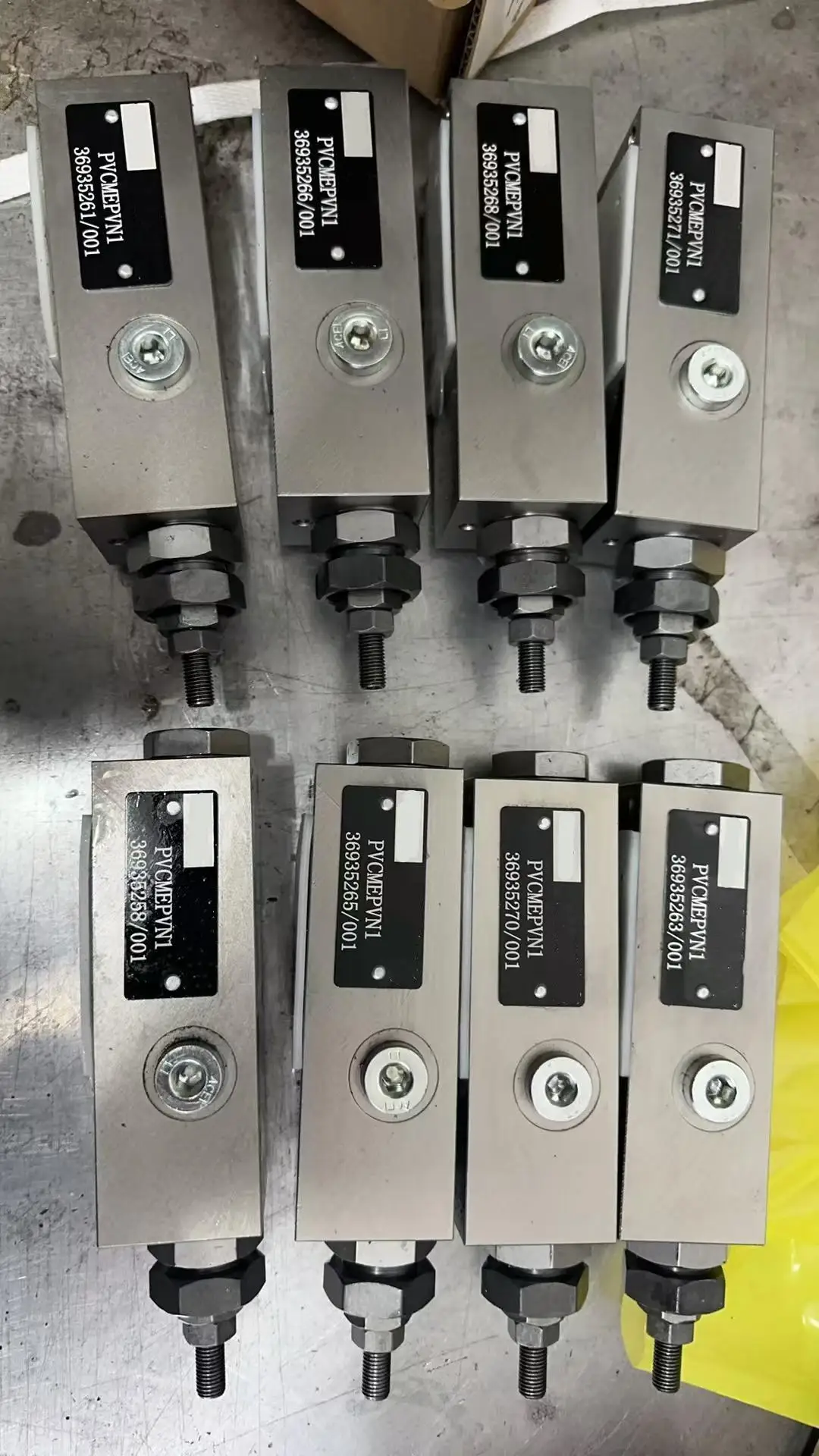

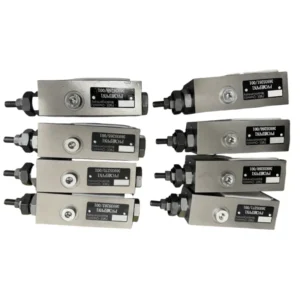

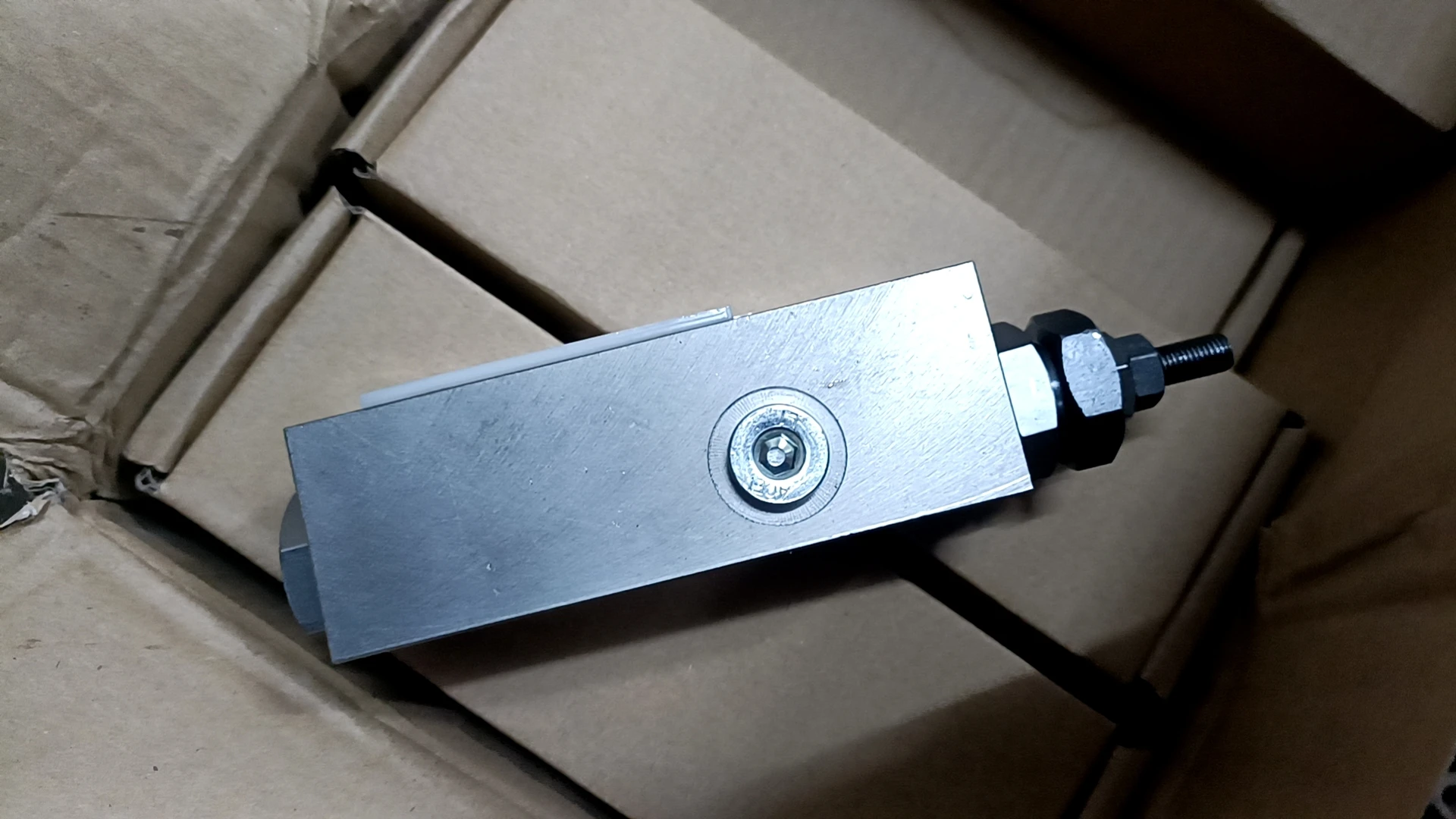

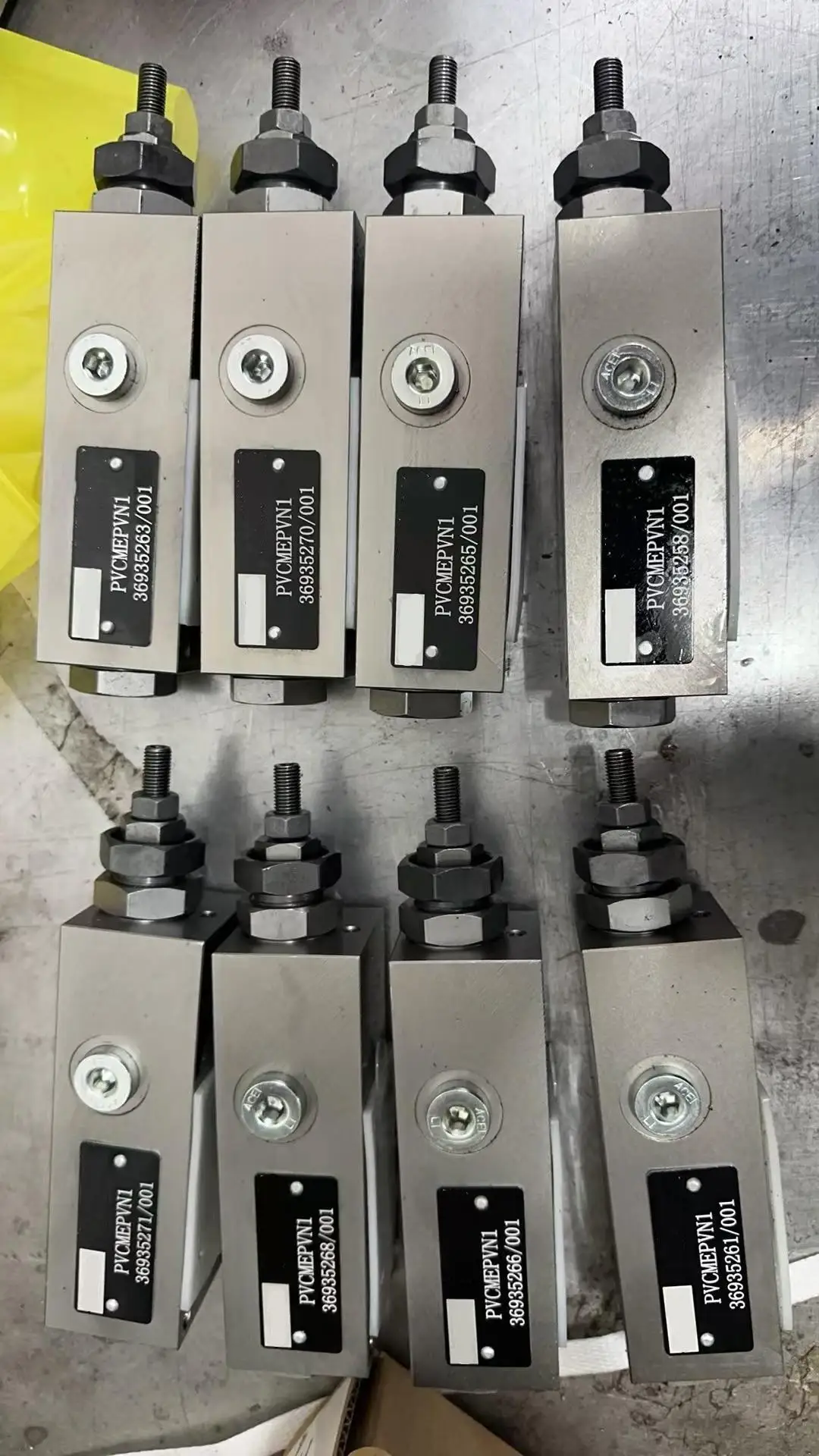

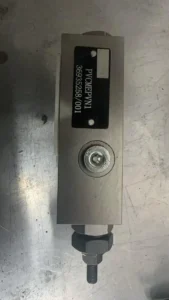

Comatrol PVCM PVCP Series Proportional Control Valve PVCMEPVN1 PVCMCLCN1

The industrial-grade Comatrol Compatible PVCM / PVCP / PVAP Series Proportional Load-Sensing Control Valves, precision-manufactured by Chengyuan Hydraulic, are high-accuracy electro-hydraulic control elements configured for sophisticated multi-function fluid systems. Integrating proportional flow modulation, pressure compensation logic, and load-sensing feedback mechanisms, this screw-in cartridge valve line ensures independent velocity control and predictable execution control across multiple simultaneously operated circuits, entirely decoupled from changing downstream working load variations.

This heavy-duty components profile targets global B2B mobile hydraulic system integrators, custom hydraulic integrated circuit (HIC) manifold builders, and professional machinery overhaul channels. It delivers 100% direct drop-in interchangeability with Comatrol’s premium proportional modulating series, precisely replacing core technical designations including: PVCMEPVN1, PVCMCLCN1, PVCMCMZN1, PVCMAMCN147, and PVCMET1N1. These valves serve as critical pilot throttling control devices within excavator control links, harvester harvester header height control groups, and precision mobile micro-positioning blocks. The specific alphanumerics define technical nuances such as default normally-closed/normally-open flowing geometry, proportional magnetic coil wattage, integrated dampening orifices, and customized pilot spring cracking thresholds.

Chengyuan’s alternative proportional control valves match global standard cavity profiles (including standardized imperial and metric unified cartridge ports), internal clearance horizons, and coil current-to-flow performance curves. This design enables a smooth overhaul without requiring structural modifications to existing aluminum or steel central manifolds, or costly rewrites to the onboard electronic control unit’s (ECU) pulse-width modulation (PWM) output algorithms.

Proportional logic cartridges demand strict manufacturing tolerances. Substandard market alternatives often experience spool seizure (“heat lockup”) under heavy pressure drops and elevated oil temperatures due to thermal expansion mismatch, wider magnetic hysteresis deadbands, or heavy internal pilot leakage that drops system efficiency. To ensure consistent control stability, 100% of Chengyuan’s replacement PVCM valve cores undergo 100% strict dynamic load testing on digitized simulation benches. Verified at continuous pressures up to 210-250 bar, each cartridge is certified for flow command linearity, low null-position leakage, and high-frequency transient response times.

Technical Specifications

• Product Classification: Screw-In Electro-Hydraulic Proportional Load-Sensing Modulating Cartridge Valve

• Compatible Reference Platform Series: Comatrol / Danfoss PVCM, PVCP, PVAP Proportional Cartridge Fluid Logic blocks

• Maximum Rated Operating Inlet Pressure: 210 bar to 250 bar (21 to 25 MPa / 3045 to 3625 psi)

• Nominal Regulated Flow Horizon: Rated up to 30 L/min to 60 L/min (approx. 8 to 16 GPM) depending on model configuration

• Actuation Method: Proportional solenoid-driven armature (PWM commanded) or proportional pilot-operated hydraulic mechanics

• Technical Model Coding Decoupling & Functional Attributes:

  • Replacement Reference: PVCMEPVN1

    • Configuration: Proportional flow control base cartridge; configured as normally-closed (NC) with standard modulating grooves; “N1” denotes a standard solid plug top without manual override mechanisms; accepts standard 12V DC or 24V DC proportional coils.

  • Replacement Reference: PVCMCLCN1

    • Configuration: Modulating logic variant optimized with integrated pressure compensation links or dedicated internal pilot bleeding orifices for closed-loop stability.

  • Replacement Reference: PVCMCMZN1

    • Configuration: Heavy-duty variant with specialized spring rates and internal dampening vectors designed to soften direction-reversal fluid shock on large-inertia actuators.

  • Replacement Reference: PVCMAMCN147

    • Configuration: Multi-function proportional module integrating a pilot-operated shock relief valve preset at 147 bar for circuit protection.

  • Replacement Reference: PVCMET1N1

    • Configuration: Proportional flow control cartridge equipped with an integrated backpressure-compensated balance spool layout on the tank (T) port.

• Recommended Solenoid PWM Command Frequency Range: 100 Hz to 200 Hz (120 Hz optimized center frequency with dither enabled)

• Mechanical Current Hysteresis Limit: $\le 4\%$ to $6\%$ of full rated command current limits

• Fluid Compatibility & Operating Viscosity Horizon: Industrial mineral-based anti-wear hydraulic oil matrices (HLP classification), spanning fluid operating viscosities from 15 cSt to 380 cSt

• Target Functional Ingress and Cleanliness Criteria: Must strictly track ISO 4406 19/16/13 criteria or better

Key Technical Advantages

• Micron-Level Low-Hysteresis Center Grinding Technology: The regulating valve spools and matched guide sleeves are manufactured from premium high-carbon chromium steel (such as 100Cr6) vacuum hardened to above 60 HRC, followed by precision match-grinding. The mechanical clearance between the spool and sleeve is maintained within 4 to 6 microns. This dimensional accuracy minimizes lateral hydraulic locking forces and reduces mechanical hysteresis for fine metering control.

• Hydrodynamically Balanced Pressure Compensation Slot Profiles: The valve spool features precision-machined metering slots with variable cross-sections. This geometry balances fluid forces acting on the spool axis during high-velocity flow. Combined with a companion compensating spool, it keeps flow steady despite downstream workload pressure fluctuations to ensure smooth implement movement.

• High-Frequency Response Proportional Armature Friction Control: The pilot-stage solenoid armature includes a low-friction polymer/PTFE coating operating within a polished guide tube. This reduces friction to allow quick, microsecond-level displacement response from weak current changes, providing crisp control profiles for closed-loop automated tracking platforms.

• Rigid One-Piece Threaded Cartridge Configuration: The external mounting threads and structural shoulders are manufactured to provide high tensile strength. This structural rigidity prevents sleeve bore distortion when the cartridge is torqued into a manifold block, while high-durometer backup rings and fluoropolymer (FKM) seals eliminate external fluid leakage under long-term pressure stress.

Application Areas

Chengyuan’s high-performance replacement Comatrol PVCM / PVCP series proportional control valves deliver smooth, reliable operation across complex machinery circuits:

• Advanced Agricultural Harvesters & Combines: Managing electro-hydraulic header height control loops, reel speed matching, and auxiliary unloading auger positioning.

• Mobile Aerial Work Platforms & Telehandlers: Functioning as the pilot modulating cartridge inside main manifold stacks to provide smooth, stable boom extension and platform rotation.

• Specialty Recovery Vehicles & Winch Controls: Controlling variable-speed winch line recovery, crane arm extensions, and heavy tilt bed hydraulic operations.

Expert Maintenance Tips

• Before Threading the New PVCM Proportional Cartridge into the Manifold Cavity, Ensure the Port is Thoroughly Flushed and Always Use a Calibrated Torque Wrench to Tighten to Specification: Because internal spool clearances are measured in microns, overtightening the cartridge or leaving debris in the threads can subtly warp the sleeve. This distortion can cause the spool to stick during operation when components expand with heat, posing an operational risk.

• Always Verify that High-Frequency Current Dither is Configured on the Central PLC / Driver Board Electronic Outputs: Proportional solenoids operate best when a low-amplitude dither current (typically around 100 Hz) is superimposed onto the primary control signal. This keeps the spool in a microscopic axial oscillation, breaking static friction to ensure smooth transitions and prevent system jerkiness or stick-slip behavior during slow movements.

• Maintain Strict Pilot Loop Filtration Quality (10-Micron Absolute Filtration Recommended) and Never Run the System with Contaminated or Water-Saturated Hydraulic Fluid: Proportional control orifices are highly sensitive to fluid contamination. Hard particulate matter passing through the metering edges will erode the precise slot profiles, which shifts the flow-command calibration curve and increases internal leakage over time. Maintain regular fluid analysis schedules.
