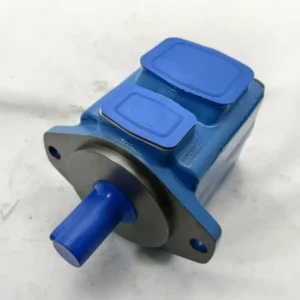

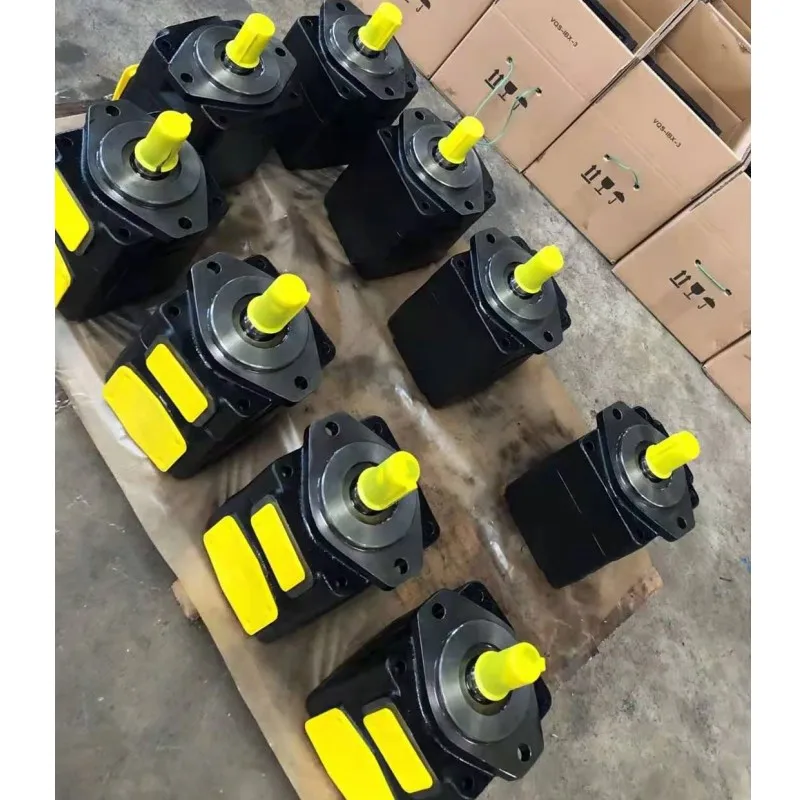

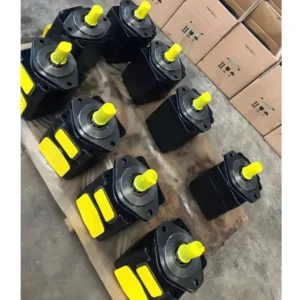

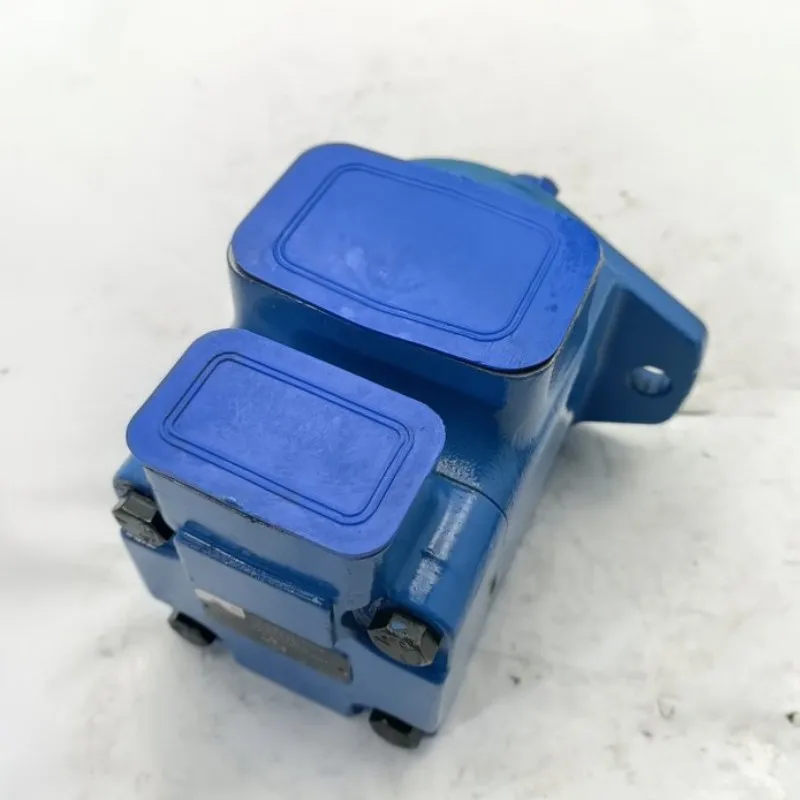

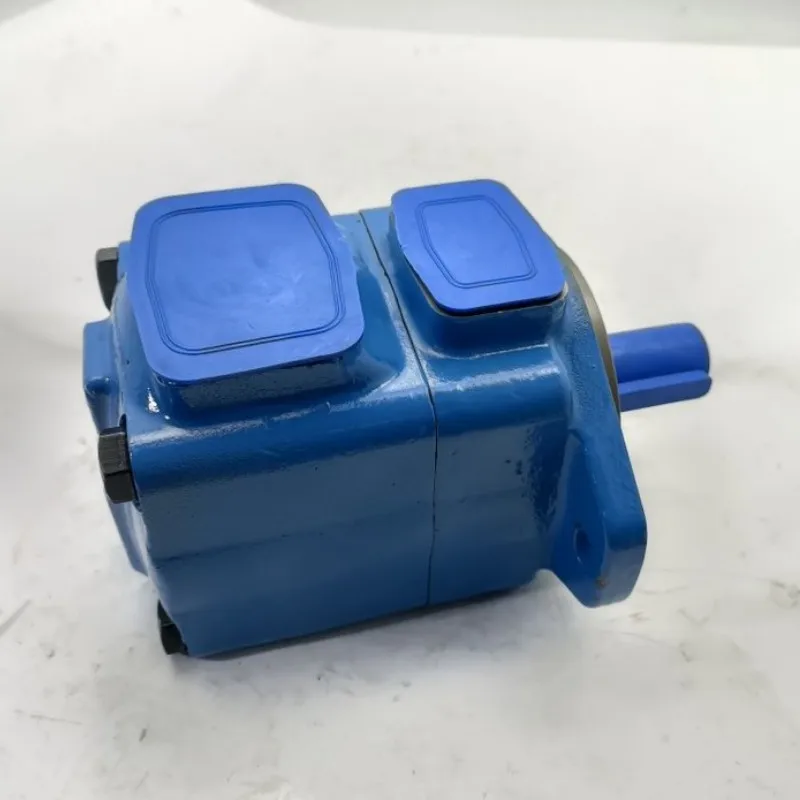

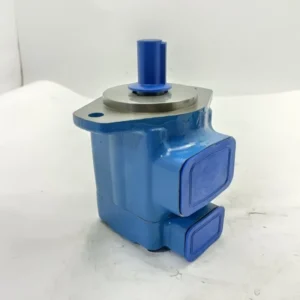

Rexroth PVV Vane Pump Replacement PVV1 PVV2 PVV4

The industrial-grade Rexroth Compatible PVV Series Fixed Displacement Vane Pumps, engineered by Chengyuan Hydraulic, are high-efficiency, low-pulsation, and low-noise fluid power generation components configured for modern factory automation frameworks, heavy centralized hydraulic power units (HPUs), and metal-forming heavy machinery. Utilizing a hydraulically balanced rotor-stator configuration and heavy-duty shaft bearings, this pump line ensures consistent volumetric efficiency and quiet operation under medium-to-high pressure regimes.

This comprehensive portfolio targets the global B2B fluid power infrastructure, alternative components marketplace, and machinery building sectors. It delivers 100% direct drop-in interchangeability across core Rexroth 1X design generation (series 10 to 19 engineering platforms) single pumps, including frame sizes: PVV1, PVV2, PVV4, and the high-output PVV5 series. For complex reference variants encountered during plant maintenance or machine overhauls, Chengyuan delivers precision-matched replacement assemblies, such as configuration models: PVV2-1X/040RA15D, PVV1-1X/036RA15LMB, and heavy-capacity single units like PVV4-1X/098RA15DMC (which also function as prime high-flow stages for multi-stage configurations like PVV21 or PVV42 series).

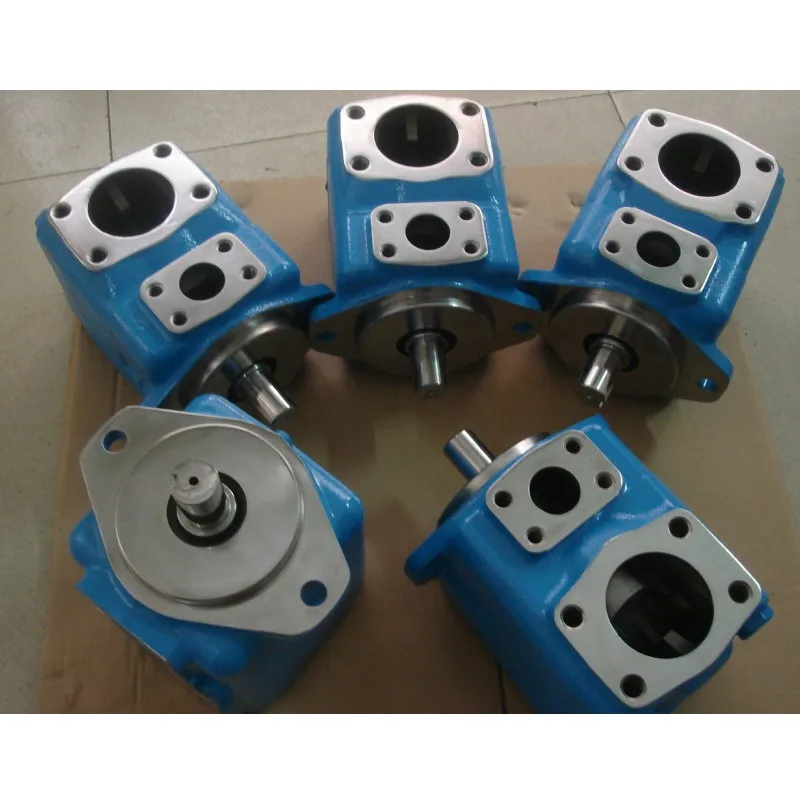

Chengyuan’s alternative fixed vane pumps conform to standard universal ISO and SAE dimensional criteria. Key mounting dimensions—including standard ISO 2-bolt or 4-bolt mounting flanges, heavy-duty parallel keyed or involute splined drive shafts, and standard SAE 4-bolt split-flange fluid ports—guarantee an exact match. During routine maintenance or system retrofits, maintenance personnel can complete a fast changeout directly without re-routing rigid high-pressure plumbing lines, modifying motor adapter frames, or replacing existing shaft couplings.

On continuous multi-shift production lines or during high-pressure clamping/holding intervals on heavy presses, hydraulic pumps face constant fluid-shearing and cyclic stress profiles. To eliminate premature wear on wear plates, bearing fatigue, or cavitation noise common in low-grade replacements, 100% of Chengyuan’s PVV series pumps undergo 100% strict dynamic load testing on digitized simulation benches. Verified at peak rated pressures ranging from 175 to 210 bar, each unit is certified for flow rate consistency, thermal volumetric efficiency, and quiet operation to ensure reliable service life.

Technical Specifications

• Product Classification: Fixed Displacement, Hydraulically Balanced Industrial Vane Pump

• Compatible Reference Platform Series: Rexroth PVV Series 1X Design Generation (encompassing size groups 1, 2, 4, 5 single pumps and multi-pump header elements)

• Maximum Permissible Continuous Circuit Pressure: Rated from 175 bar (17.5 MPa) up to 210 bar (21 MPa) depending on specific frame displacement size

• Operational Rotational Speed Horizons: From 900 rpm up to 1800 rpm (optimized for standard 4-pole/6-pole industrial electric induction motors)

• Technical Model Coding Decoupling & Precision Parameters:

  • Replacement Reference: PVV2-1X/040RA15D

    • Configuration: PVV2 mid-range frame single pump; “1X” denotes the 10-to-19 technical design modification series; “040” indicates a nominal geometric displacement of 40 cc/rev; “R” denotes right-hand (clockwise) shaft rotation viewed from the drive shaft end; “A” represents a parallel straight keyed drive shaft; “15” represents the standard SAE 4-bolt flange port dimension mapping code; “D” identifies standard ISO 2-bolt mounting flange metrics.

  • Replacement Reference: PVV1-1X/036RA15LMB

    • Configuration: PVV1 small frame low-noise pump variant; “036” indicates a nominal geometric displacement of 36 cc/rev; “R” denotes right-hand (clockwise) shaft rotation; “A” specifies a straight keyed drive shaft interface; “15” matches standard port size parameters; “LMB” represents a highly customized industrial configuration (e.g., “L” for specific relative port orientations, “M” for metric mounting threads, and “B” for specialized high-durability Viton elastomer seals or reinforced cartridge wear linings).

  • Replacement Reference: PVV4-1X/098RA15DMC

    • Configuration: PVV4 large frame heavy-duty pump seat; “098” specifies a large displacement configuration delivering 98 cc/rev; “R” denotes clockwise rotation; “A” represents a high-torque, large-diameter straight keyed shaft; “15” matches high-flow SAE split-flange ports; “DMC” denotes a specialized industrial configuration (“D” for heavy standard industrial flange geometry, “M” for full metric thread criteria, and “C” for low-resistance high-response cartridge internal mapping).

• Volumetric Dynamic Efficiency Limits: Thermal-saturated volumetric efficiency >= 92% to 95% under full load

• System Fluid Compatibility & Thermal Limits: Accommodates mineral-based industrial hydraulic fluids (HLP/HLPD anti-wear categories), spanning fluid operational temperatures from -10°C to +70°C

• Component Net Weight (PVV4 Size Example): Approx. 31.0 kg to 34.5 kg (68.3 to 76.0 lbs)

Key Technical Advantages

• Hydraulically Balanced Cam Ring Geometry for Reduced Bearing Load: The internal stator ring features an oval cam contour utilizing dual opposed suction and discharge zones. Because the intake and pressure ports are positioned 180 degrees apart, radial fluid pressures acting across the rotor are equalized. This design relieves the drive shaft and main bearings of heavy radial bending stress to lower mechanical wear and extend bearing life.

• Low-Pulsation Delivery with Precision Silencing Grooves: The cartridge wear plates incorporate micro-machined triangular silencing grooves optimized through fluid-flow simulation. These dampening paths ease the rapid pressure transitions as the vanes move from the low-pressure suction zone to the high-pressure discharge sector, reducing flow pulsation to minimize downstream pipeline vibration.

• High-Tensile Bimetallic Axially Floating Wear Plates: The wear side plates feature a rigid structural steel core bonded to a sintered bronze alloy friction matrix. An axial pressure-loading chamber on the rear of the plates scales tight sealing forces proportionally with system pressure. This configuration compensates for thermal expansion gaps to prevent high-pressure internal bypass leakage while avoiding localized metal-to-metal scoring.

• Modular Drop-In Cartridge Construction for Fast Overhauls: All high-wear internal core elements—including the stator cam ring, rotor, vanes, and side plates—are pre-assembled into a highly compact, modular cartridge kit. If oil contamination causes unexpected wear, field technicians can pull and replace the complete cartridge module by removing the pump cover bolts without disconnecting the main housing from hydraulic pipes, minimizing machine downtime.

Application Areas

Chengyuan’s high-performance replacement Rexroth PVV1 / PVV2 / PVV4 series fixed displacement vane pumps deliver precise fluid power and smooth output profiles across demanding machinery:

• Modern Plastics Processing & Automated Injection Molding Machines: Serving as a reliable, low-noise fluid source during low-pressure travel and high-pressure clamping phases to lower factory floor decibel levels.

• Industrial Scrap Metal Shears & Heavy-Duty Baler Extruders: Functioning as the primary or high-flow auxiliary fluid pump to handle cyclic, high-pressure load transitions.

• Centralized HPUs for Steel Mills & Automotive Production Lines: Providing consistent volumetric output and long continuous service life in demanding multi-shift manufacturing environments.

Expert Maintenance Tips

• Prior to Positioning the Pump on the Drive Frame, Mandatory Pre-Fill the Pump Inboard Housing Cavity with Clean System Hydraulic Fluid via the Highest Available Bleed Port and Rotate the Coupling by Hand a Few Turns: Vane pumps depend on an initial fluid film to lubricate the main bearings and vane edges during the first few seconds of startup. Attempting a dry jog or high-speed start can cause the vanes to fling out and score the dry stator cam track, welding components and leading to catastrophic internal failure within seconds.

• The Coaxial Alignment Error Between the Electric Motor Shaft and the Pump Drive Shaft Must Be Maintained Strictly Within 0.1 mm, with an Angular Misalignment Under 1°: Even though the internal architecture of the PVV pump is hydraulically balanced, external shaft misalignment induces severe structural bending forces onto the front drive shaft bearing. This will degrade the shaft lip seal within days, leading to oil leakage, and can eventually cause drive shaft fatigue failure under high-pressure cycling.

• If the Pump Output Develops a Harsh Acoustic Rattle or a Clicking Sound During Operation, Immediately Stop the System to Inspect the Intake Flange and Suction Strainer: Fixed displacement vane pumps have a low tolerance for suction restriction and air ingestion. A minor pinhole leak in the intake plumbing or a suction strainer clogged with fluid varnish creates severe cavitation. The microscopic bubbles implode violently in the high-pressure zone, pitting the bronze wear faces and stator tracks within days. Maintain clear inlet paths and airtight connections.
