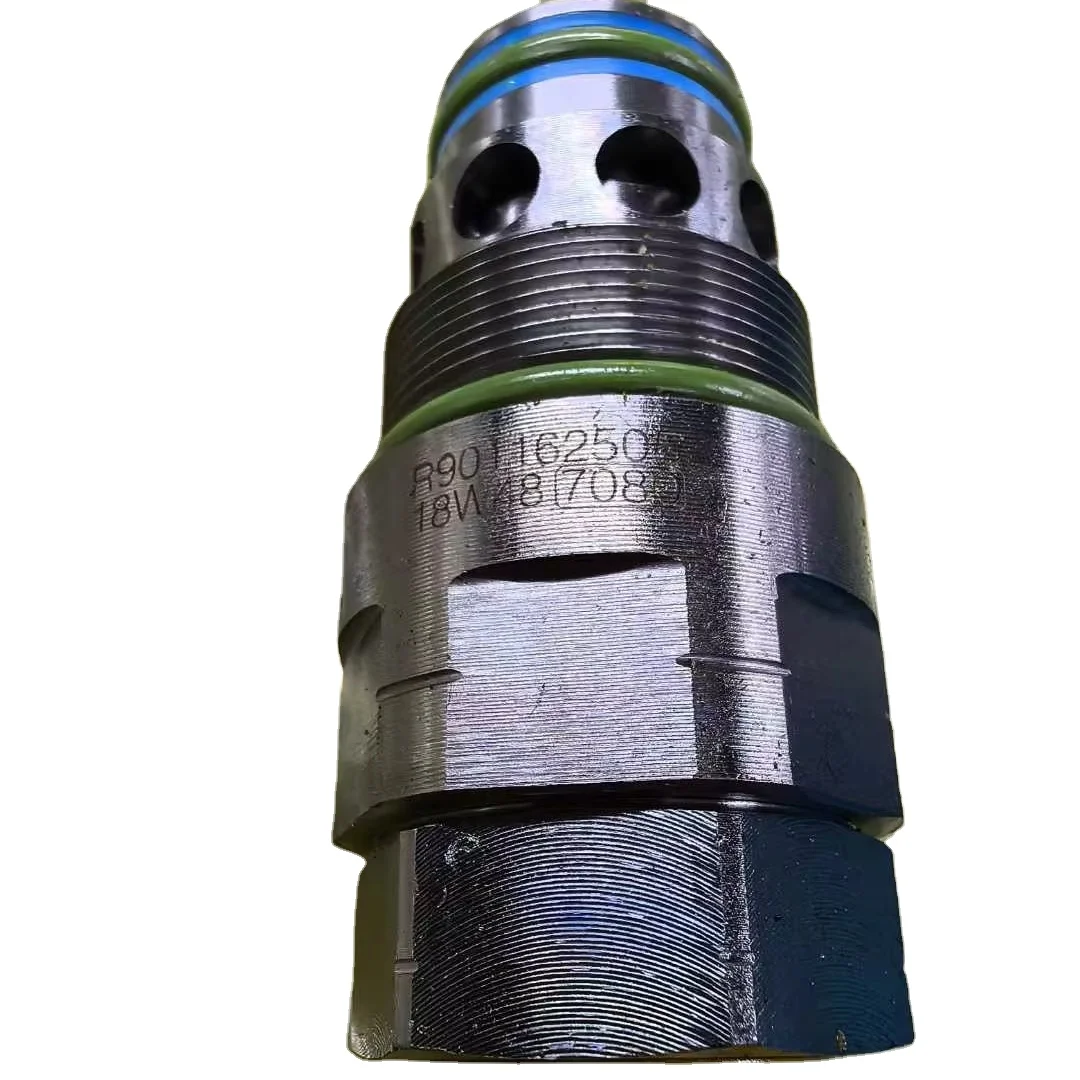

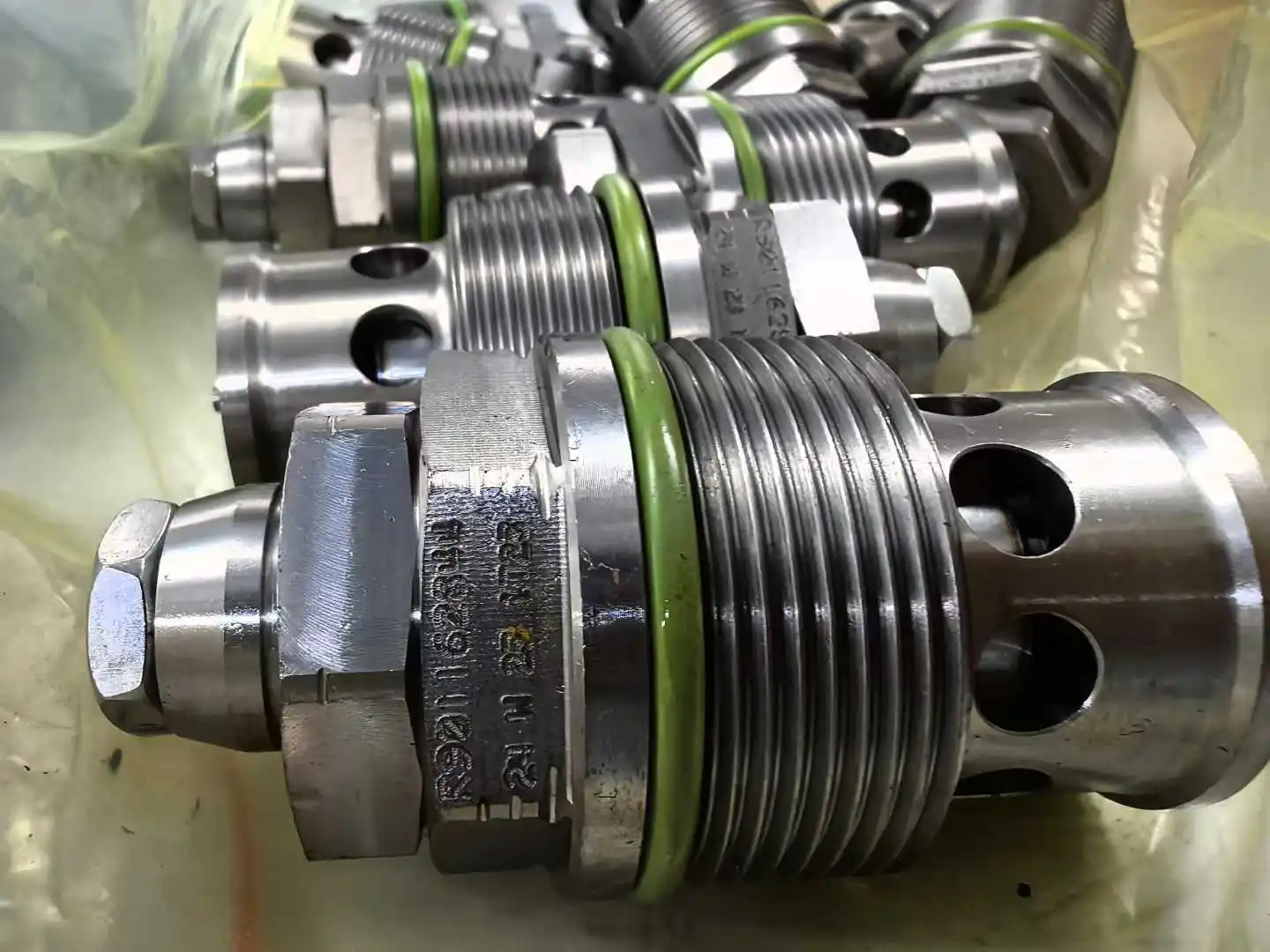

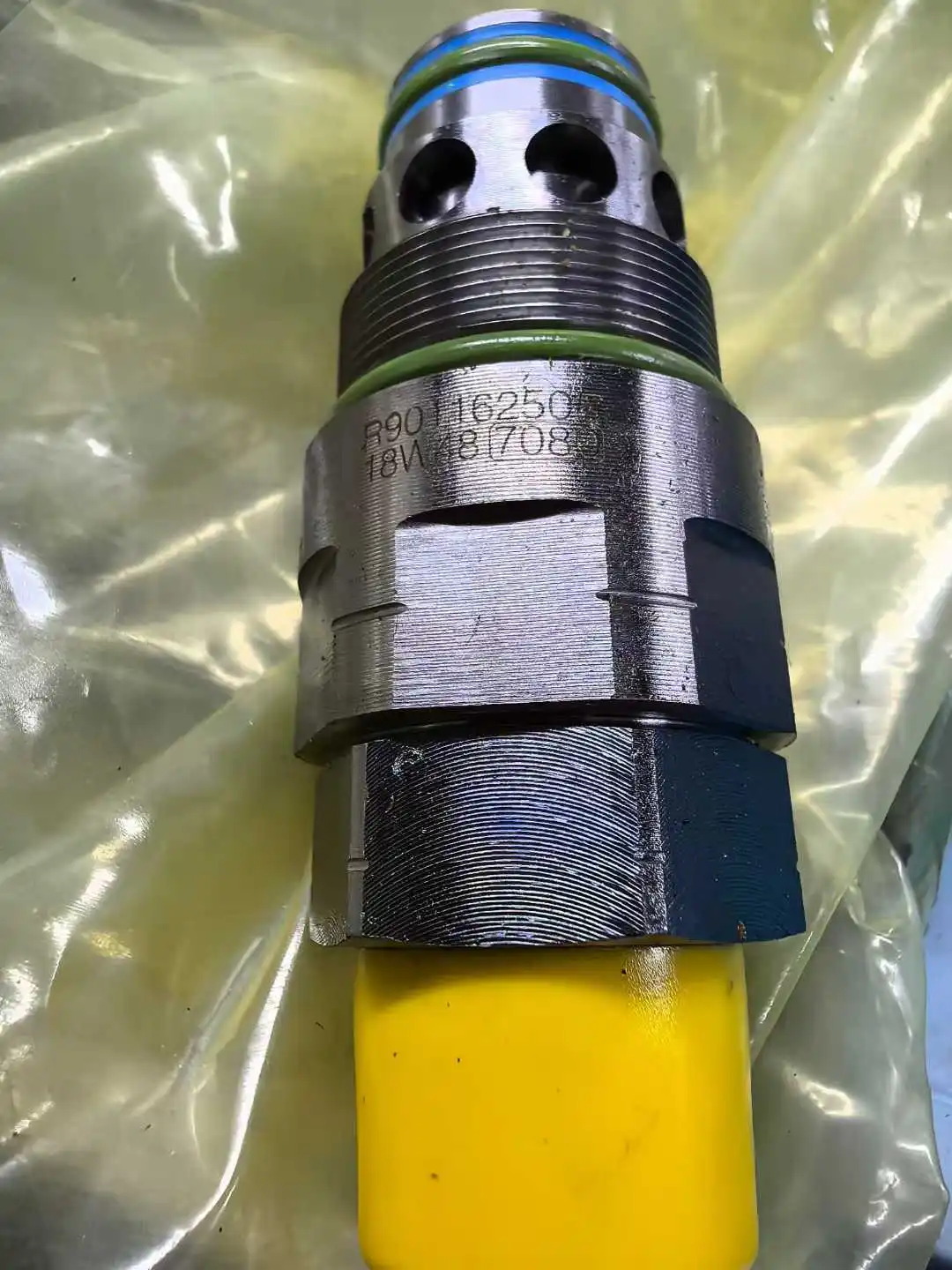

Rexroth Relief Valve R900174537 R901091168 DBD Series

he industrial-grade Rexroth Series Heavy-Duty High-Pressure Hydraulic Relief Valves (focusing on global B2B procurement material numbers including R900174537, R901091168, R930000360, R930050353, R901002319, and R900727801), engineered by Chengyuan Hydraulic, are critical system-level safety and pressure-regulating fluid power actuators. Purpose-built for heavy industrial hydraulic units, metallurgical machinery, mobile hydraulic circuits, and high-pressure hydraulic power packs (HPUs), these valves (such as the classic direct-acting DBD series poppet design) serve as the frontline defense for pressure limitation and constant-pressure stabilization.

Complying rigidly with international standard fluid power installation profiles, Chengyuan’s premium replacement valves offer 100% direct drop-in interchangeability with authentic Bosch Rexroth engineering standards. From standard threaded cartridge cavity boundaries, international subplate mounting matrices (such as Size 6, 10, 20, or 30), envelope geometries, to the exact adjustment screw/handwheel metrics and calibrated spring rates, these components insert flawlessly into pre-existing manifold layouts. Global hydraulic system distributors, system integrators, and OEM maintenance buyers can execute rapid field changeovers without modifying existing steel piping or block manifolds.

As the primary protective component of a hydraulic network, pressure relief valves are continuously subjected to immense continuous pressures, high-velocity fluid shearing, and rapid pressure spikes. Any degradation of the inner poppet profile, internal damping orifice clogging, or thermal spring relaxation will induce pressure setting drift, system chatter, or catastrophic mechanical over-pressure events. To ensure field safety, 100% of Chengyuan’s replacement relief valves undergo 100% strict dynamic simulation on high-pressure test benches. Monitored under full rated bypass flows and maximum pressure scales, each valve is qualified for precise pressure override curves, cracking pressure limits, and leak-free reseating behavior.

Technical Specifications

• Product Classification: Direct-Acting / Pilot-Operated High-Pressure Hydraulic Relief Valve

• Compatible Base Series Frameworks: Full engineering adaptation for Rexroth DBD series (Direct-Acting) and DB/DBW series (Pilot-Operated) platforms

• Mounting Interface Alternatives: Threaded Screw-In Cartridge, Subplate Manifold Mounting, or In-Line Threaded Pipe Housing

• Nominal Interface Diameters (Size): Available in Size 6 (NG6), Size 10 (NG10), Size 20, up to Size 30 configurations

• Maximum Permissible System Pressure: Rated up to $40.0 \text{ MPa}$ (400 bar / 5800 psi) with specialized versions capable of handling up to $63.0 \text{ MPa}$ (630 bar) ultra-high pressure applications

• Pressure Calibrated Tuning Stages: Dependent on specific factory material coding specs, spanning adjustment stages up to $2.5\text{ MPa}$, $10.0\text{ MPa}$, $20.0\text{ MPa}$, $31.5\text{ MPa}$, and $40.0\text{ MPa}$

• Maximum Volumetric Fluid Bypass Capacity: Accommodates flows from $50 \text{ L/min}$ (Size 6) up to $400 \text{ L/min}$ (Size 30)

• Material Part Numbers Technical Deconstruction:

  • Replacement Reference: R900174537 / R901091168

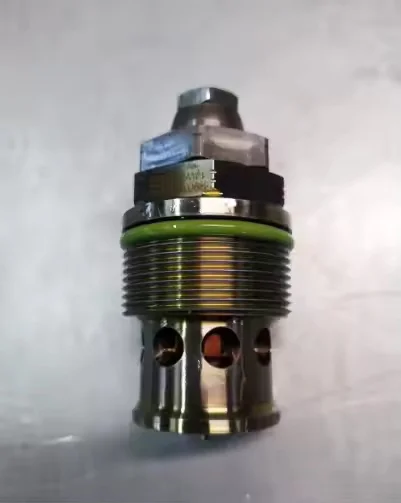

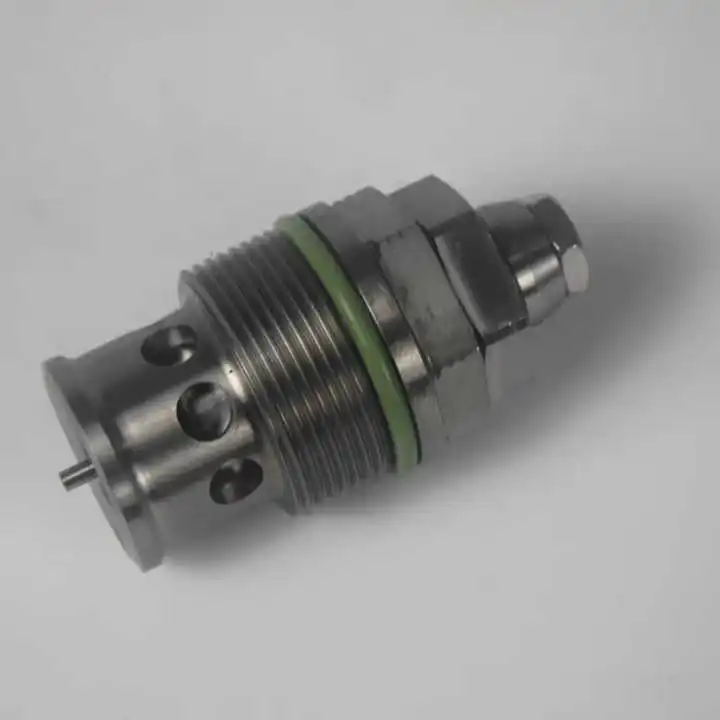

    • Function: High-pressure direct-acting poppet type relief valve (DBD series geometry), utilizing a heavy-duty helical spring setup for micro-second response times during catastrophic transient pressure spikes.

  • Replacement Reference: R930000360 / R930050353

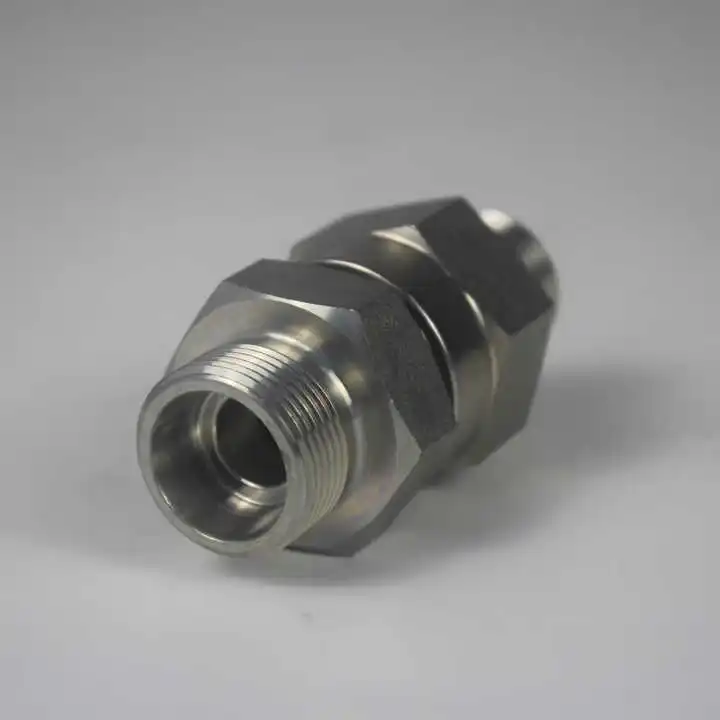

    • Function: Optimized screw-in cartridge/in-line configuration engineered for mobile material handling or space-constrained valve stacks, offering excellent mechanical vibration dampening.

  • Replacement Reference: R901002319 / R900727801

    • Function: High-flow pilot staging components commonly embedded within sectional valves or main pump block manifolds, delivering fine pressure overrides and stable regulation.

• Adjustment Adjustment Mechanisms: Hexagonal adjustment screw capped with a protective metal shroud or industrial plastic handwheel

• Component Weight Profile: Ranging from $0.4 \text{ kg}$ to $5.5 \text{ kg}$ based on structural frame and housing choices

Key Technical Advantages

• Micro-Polished High-Precision Metallic Poppet Seating: The main pressure-regulating poppet is milled from through-hardened alloy tool steel and finished via specialized spherical grinding. The mating surfaces maintain micro-inch roundness, ensuring a tight metal-to-metal lock up before the cracking pressure threshold is reached, minimizing pilot leakage.

• CFD-Engineered Hydrodynamic Flow Path with Integrated Damping: The internal discharge chambers are developed using 3D Computational Fluid Dynamics (CFD) and paired with an internal dynamic-pressure feedback damper. During heavy high-velocity bypass flow, the damping oil film absorbs high-frequency poppet oscillation, slashing operational noise by 8-10 dB and eliminating system squeal.

• High-Fatigue Silicon-Chromium Alloy Calibration Springs: The internal regulating springs are wound from high-purity imported Si-Cr spring steel, enhanced through shot-peening and stress-relieving thermal cycles. The spring maintains linear calibration through over 5 million cycling loops, limiting pressure setting drift to under 1% over years of service.

• Hardened, Cavitation-Resistant Active Surfaces: The internal sliding valve sleeves and wear-prone mating zones are hardened via high-frequency induction or fluid nitriding to HRC 58-62. This hard surface shield resists abrasion from suspended fluid particles and prevents fluid cavitation erosion under high-velocity flow states.

Application Areas

Chengyuan’s high-grade replacement Rexroth relief valves are widely integrated across high-pressure industrial and mobile hydraulic systems:

• Heavy Metallurgy & Metal Forming Presses: Serving as the primary safety limit relief valve for large forging press lines and steel mill hydraulic stations.

• Construction & Mobile Equipment: Main loop over-pressure safety protection for concrete boom pump circuits and heavy hydraulic crawler crane winch blocks.

• Industrial Machine Tools & Custom Hydraulic Power Packs (HPUs): Providing constant pressure regulation for fixed-displacement pump lines, workholding clamp circuits, and hydraulic stamping lines.

Expert Maintenance Tips

• Never Bottom Out or Forcefully Tighten the Adjustment Screw Clockwise Beyond Its Stated Limit: Bottoming out the screw compresses the regulating spring into a solid block, disabling the safety relief function. If a downstream load spikes or an actuator dead-ends under these conditions, system pressure will skyrocket instantly, risking fractured pump casings or line ruptures.

• Always Reference a High-Precision In-Line Pressure Gauge While Calibrating System Pressures: Never adjust pressure blind by feel. Once the required safety relief threshold is dialed in (typically 1.1 to 1.15 times the maximum system working pressure), tighten the mechanical locknut firmly and replace the protective cap to prevent the setting from drifting due to high-frequency machine vibration.

• Maintain Hydraulic Medium Fluid Cleanliness to at Least ISO 4406 19/16/13 Standards: The internal dynamic-pressure feedback damping channels have micro-scale cross-sections. If the hydraulic oil degrades, forms varnishes, or carries fine iron filings, these channels can easily plug. This will jam the poppet open (preventing system pressure build-up) or keep it locked shut (causing dangerous over-pressure states), making regular filtration maintenance essential.
