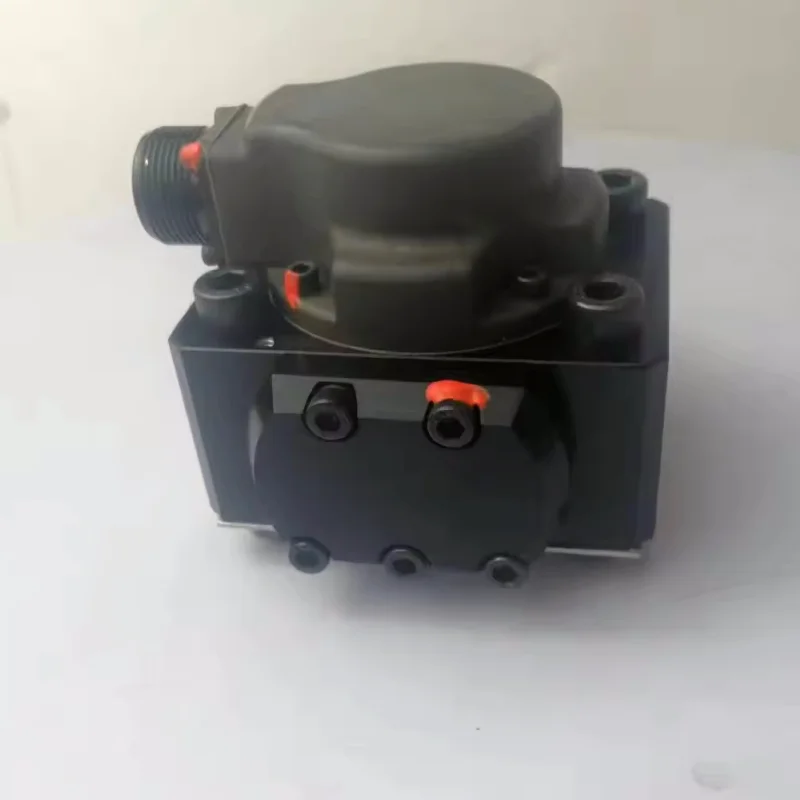

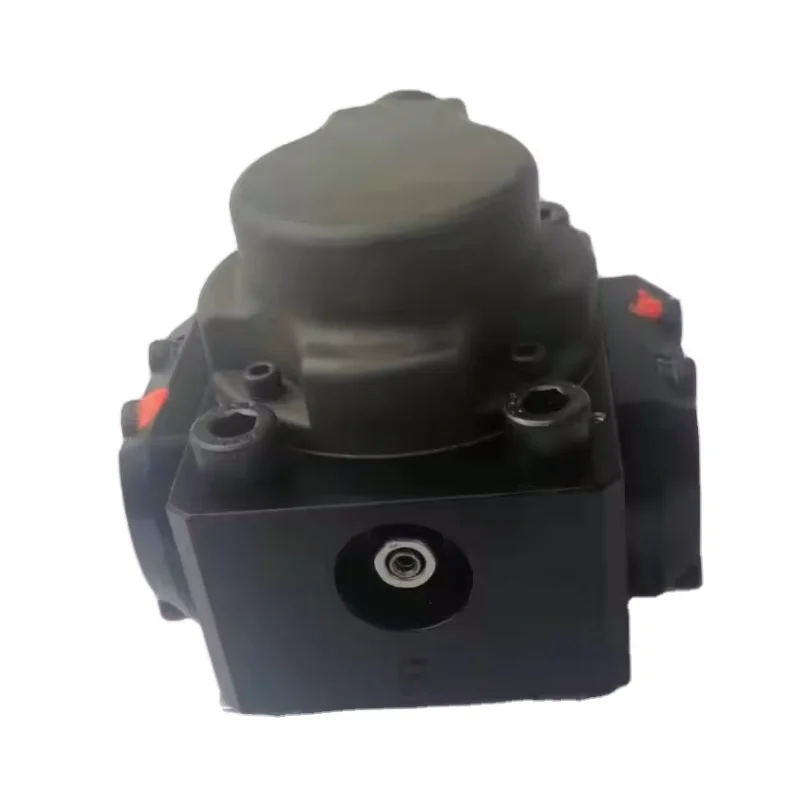

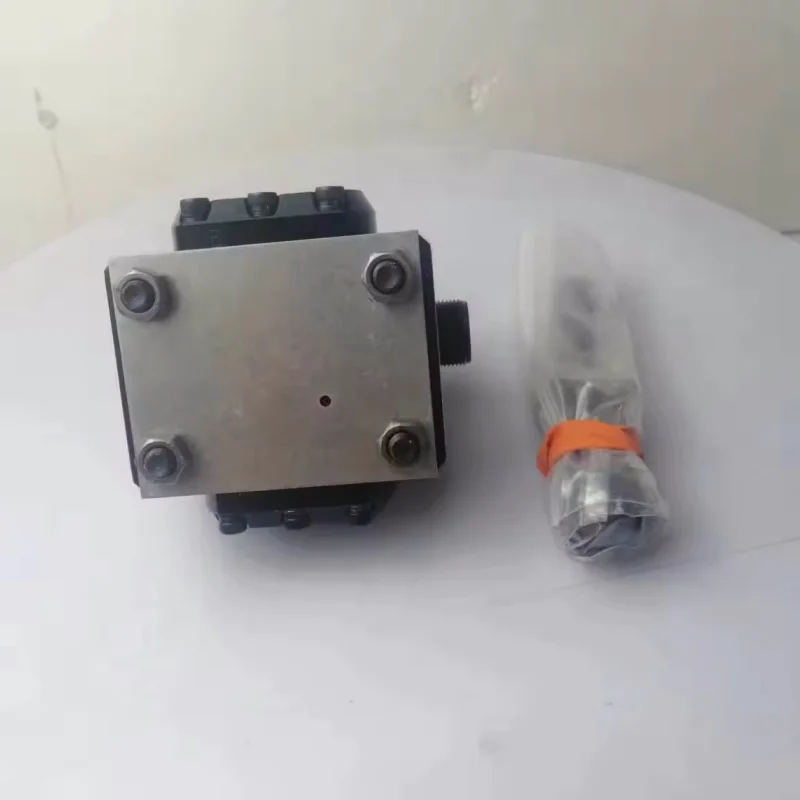

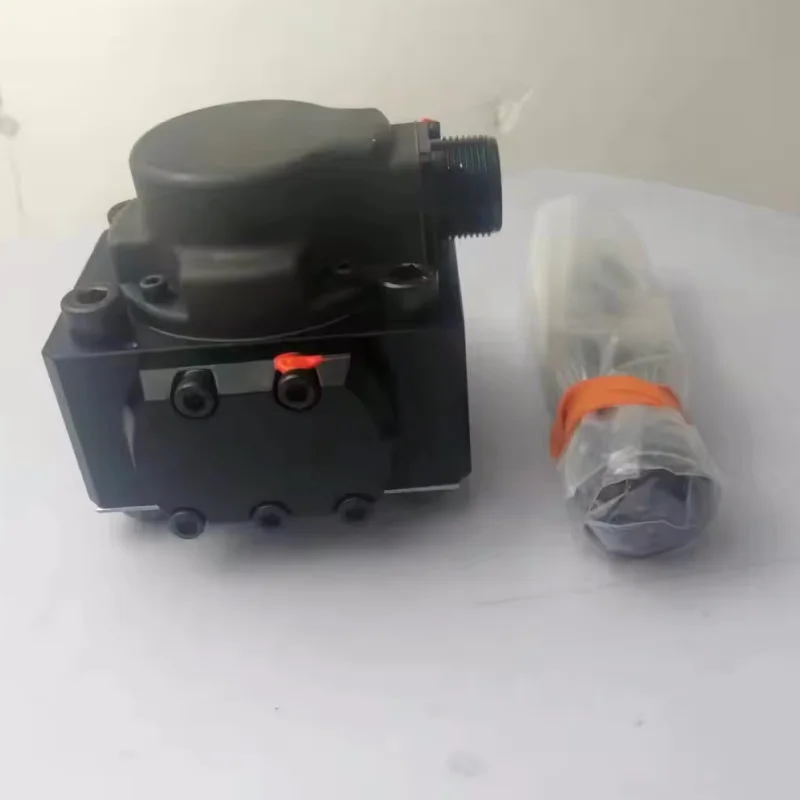

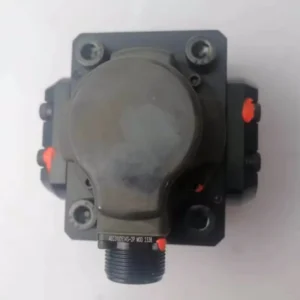

Vickers Moog SM4 Series Hydraulic Servo Valve | SM4-20 SM4-40 High Response

The SM4 Series two-stage electrohydraulic servo valves manufactured by Chengyuan Hydraulic are high-performance fluid modulation components fully engineered to match global Vickers (Moog standard template) close-loop control benchmarks. Serving as the primary critical interface within precision automated closed-loop systems, these servo valves convert micro-ampere ($\text{mA}$) electrical control inputs into highly responsive, low-hysteresis hydraulic flow and pressure outputs. This premium product portfolio specifically aligns with the ultra-high-precision custom catalog code structures: SM4-40(40)151-80/40-10-S205 and SM4-20(15)57-80/40-10-S182. The engineering designations identify designated nominal interface sizes (SM4-20 and SM4-40 platforms), a double nozzle-flapper pilot stage, and a mechanical feedback wire assembly configured alongside customized coil impedances and specialized spool/sleeve slip-fit tolerances (suffixes S182, S205). Every single SM4 servo valve undergoes 100% rigorous digital test-bench mapping for dynamic amplitude/phase frequency response profiles, hysteresis threshold drift validation, null bias centering adjustments, and high-vacuum casing tightness checks prior to delivery to guarantee performance metrics matching original specifications, delivering proven 100% original-place interchangeable compatibility.

Technical Specifications :

• Core Product Framework: Vickers SM4 Series Template Nozzle-Flapper Two-Stage Electrohydraulic Servo Valves

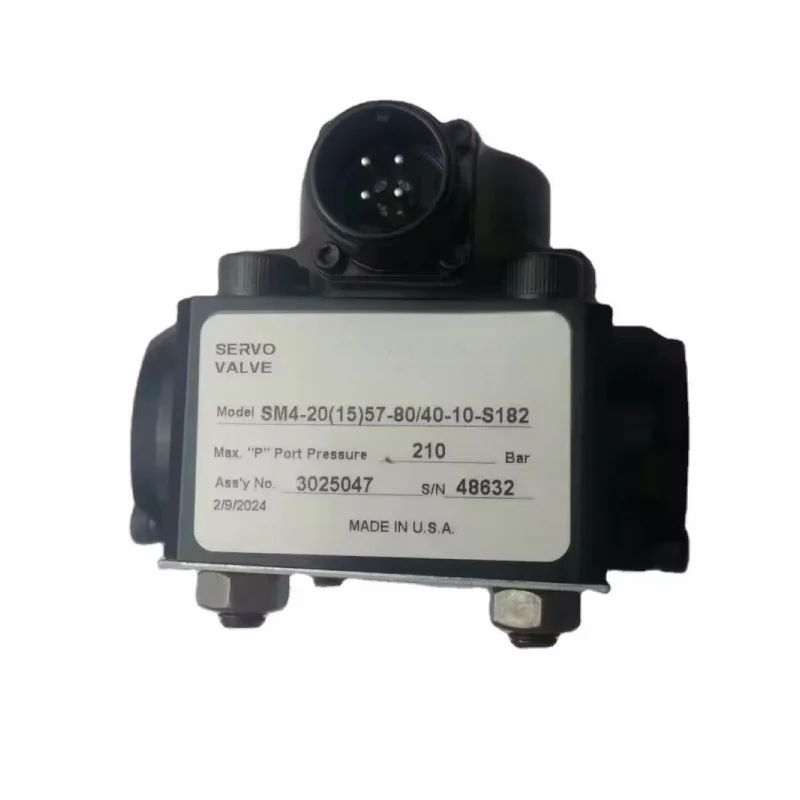

• Target Customized Identification: SM4-40(40)151-80/40-10-S205 / SM4-20(15)57-80/40-10-S182

• Nominal Flow Size Configurations:

  • Size SM4-20 Platform: Rated volumetric delivery limits spanning 15 L/min to 40 L/min (4 to 10.5 gpm).

  • Size SM4-40 Platform: Rated high-volume volumetric delivery limits spanning 40 L/min to 100 L/min (10.5 to 26.4 gpm).

• Maximum System Operating Pressure MAWP: Rated strictly up to 210 bar to 315 bar (21 to 31.5 MPa / 3045 to 4568 psi).

• Dynamic Step Response Envelope: Main spool full-stroke switching response time clocked at $\le 10\text{ ms}$ to $16\text{ ms}$.

• Hysteresis & Threshold Dead-Band Constraints: Constrained tightly to $\le 1\% \sim 2\%$ of rated signal input, with a fine resolution threshold of $\le 0.1\%$.

• Pilot Control Architecture: Symmetrical double nozzle-flapper pilot manifold actuated by an isolated wet torque motor.

• Closed-Loop Feedback Element: High-stiffness, fatigue-treated mechanical spring steel torque feedback wire.

• Specialized Engineering Suffixes (S182 / S205): Incorporates custom-matched, micro-lapped Spool & Sleeve Assemblies with specialized coil parameters, offering enhanced particulate tolerance and minimal null-position case leakage.

Key Technical Advantages:

• Symmetrical Double Nozzle-Flapper Pilot for Ultra-Fast Dynamic Response: The pilot stage utilizes a friction-free torque motor driving a symmetrical double nozzle-flapper configuration. Because the flapper-to-nozzle clearance is sub-millimetric, micro-ampere ($\text{mA}$) adjustments trigger an instantaneous differential pressure shift across the main spool. This design provides rapid dynamic tracking, completing micro-position corrections in milliseconds.

• Micro-Lapped Spool & Sleeve Assembly with Minimal Null Leakage: The central spool and sleeve are ground from high-hardness, wear-resistant tool steel alloys rather than being machined directly into the cast body. A slip-fit clearance of 1–2 microns ensures linear flow characteristics across the stroke while minimizing idle fluid bypass at the null position.

• High-Stiffness Mechanical Feedback for Long-Term Control Stability: Main spool displacement is mirrored through a fatigue-treated mechanical feedback wire back to the torque motor armature. As the spool moves, the feedback wire generates a counter-balancing mechanical torque. This physical closed-loop system resists EMI and electrical drift, ensuring steady, reliable operation.

• Hermetically Sealed Torque Motor Housing for Harsh Process Environments: The upper torque motor is isolated inside a hermetically sealed stainless steel enclosure, with internal coils vacuum-encapsulated in heavy-duty epoxy. This design shields the delicate wiring from moisture, machining coolants, and airborne dust, while blocking external electromagnetic interference from large plant electric motors.

Application Areas:

• High-Precision Metallurgical Processing & Steel Rolling Mills: Automated gauge control (AGC) cylinders on rolling mills and high-speed edge position control (EPC) steel strip tracking units.

• Aerospace Simulation & Multi-Axis Dynamic Test Benches: Multi-degree-of-freedom (6-DOF) hydraulic motion platforms for flight simulators and high-frequency suspension durability test rigs.

• Heavy-Duty Precision CNC Machine Tools: Hydrostatic ram positioning systems for heavy forging presses and electrohydraulic governor actuators for heavy steam turbines.

Expert Maintenance Tips:

• Enforce Ultra-Fine Oil Filtration Standards and Install a Non-Bypass 3-Micron Filter: Servo valves are highly vulnerable to particulate contamination. The system fluid cleanliness must be continuously filtered to match or exceed ISO 4406 14/11 (NAS Class 4-5). Install a non-bypass, high-pressure inline filter rated at $\beta_3 \ge 200$ directly upstream of Port P. Microscopic particles larger than 5 microns can score the spool or block the pilot nozzles (which measure only 0.1–0.2 mm), causing sudden cylinder runaways, severe chattering, or locked valve failure.

• Never Hot-Plug or Disconnect Electrical Aviation Terminals While System Power is On: The SM4 series operates on low-amperage current loops ($\pm 10\text{ mA}$ to $\pm 40\text{ mA}$). Never plug or unplug the electrical wiring harness while the main HPU controller or servo amplifier card is energized. Hot-plugging creates transient voltage arcs and inductive back-EMF spikes that can destroy the control amplifier cards or cause inter-turn short circuits within the torque motor coils.

• Isolate Valve Manifolds and Always Use a Dedicated Flushing Plate During System Cleaning: During machine commissioning, post-repair rebuilds, or complete fluid replacements, never leave the SM4 servo valve body bolted to the manifold during system flushing. Install a dedicated temporary flushing plate onto the mounting pad to route fluid directly through the main headers for at least 48 hours. Do not mount the servo valve until a particle count confirms the fluid is safe; otherwise, residual weld scale or machining burrs will score the assembly.
