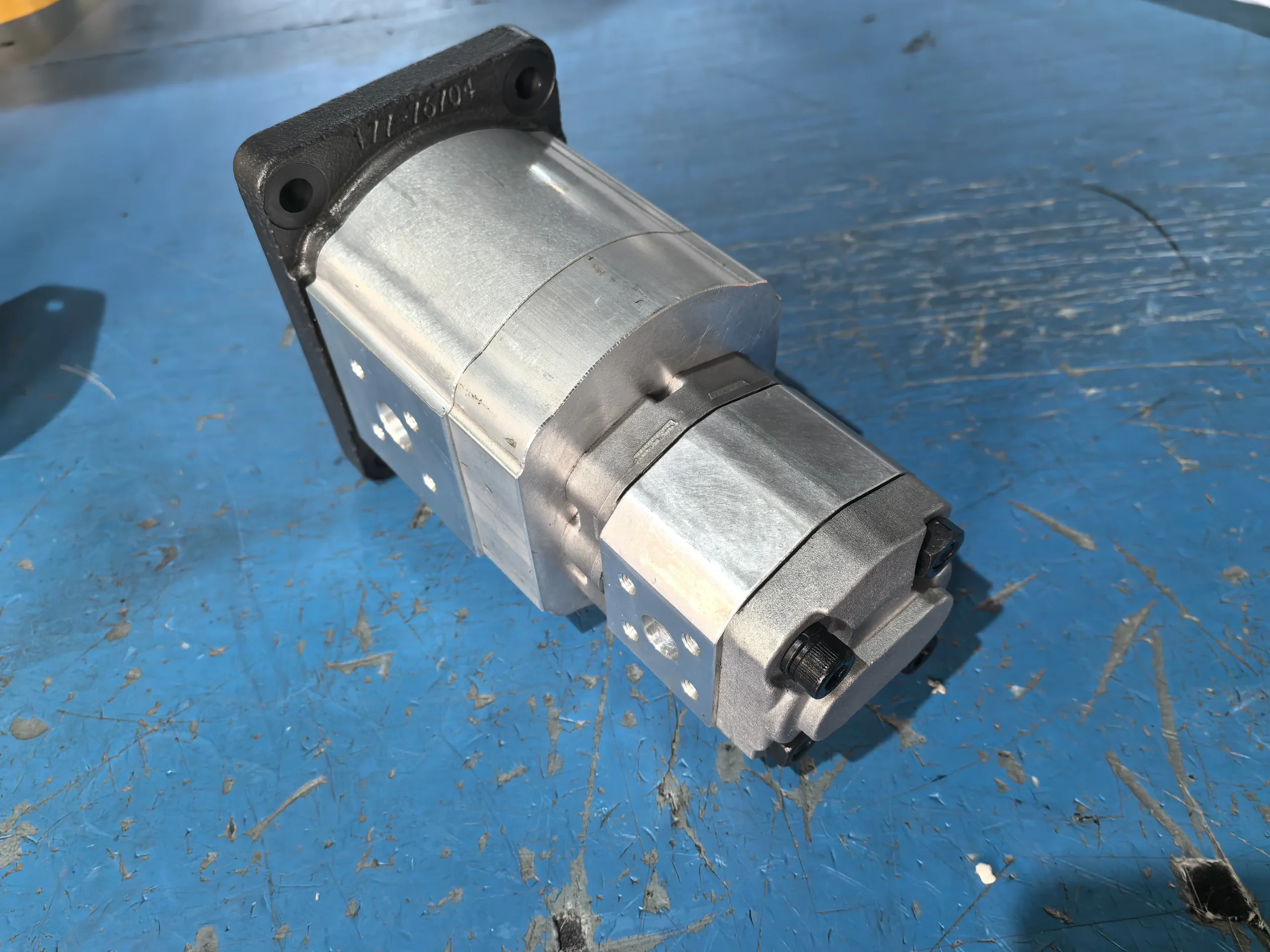

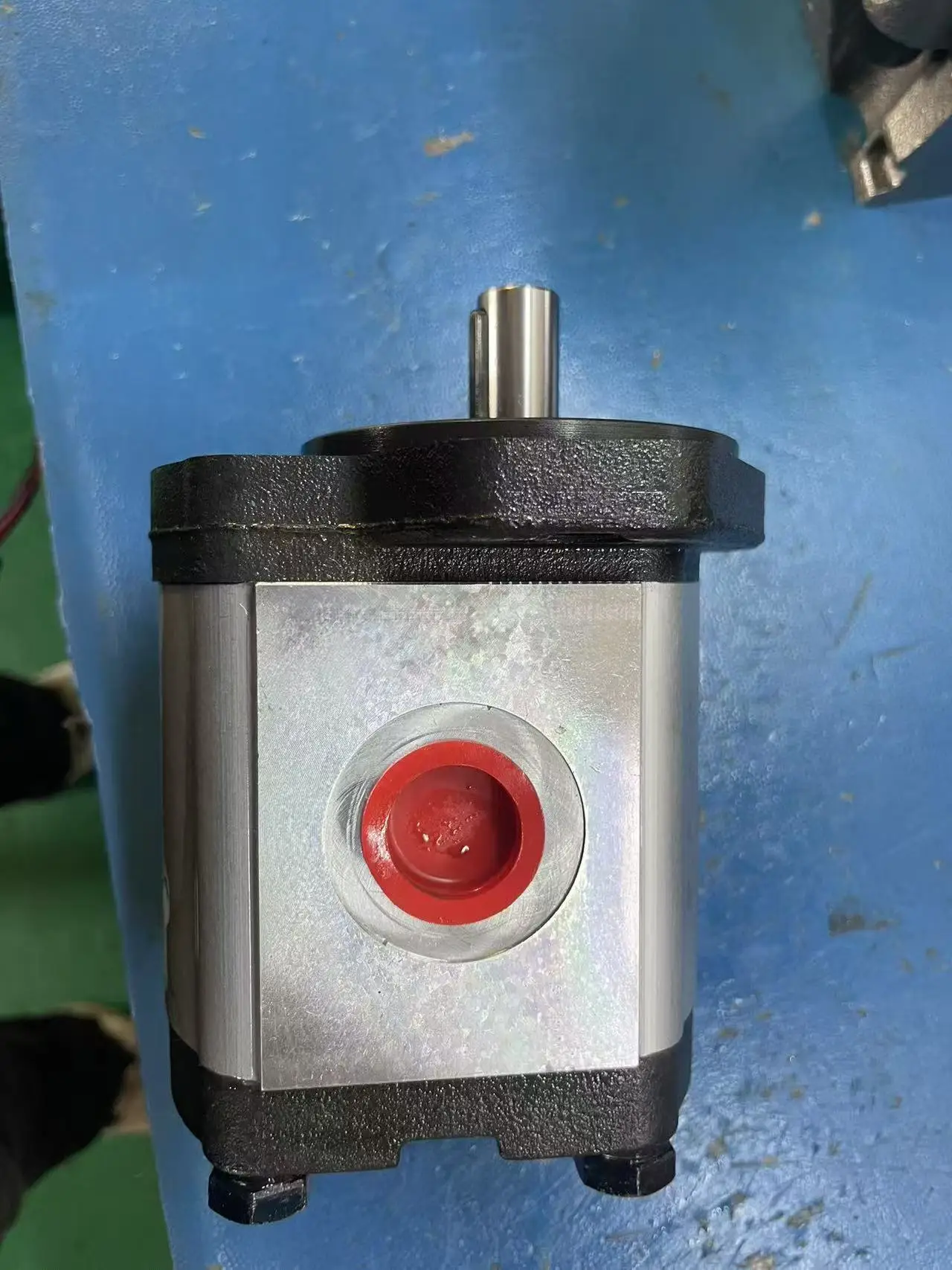

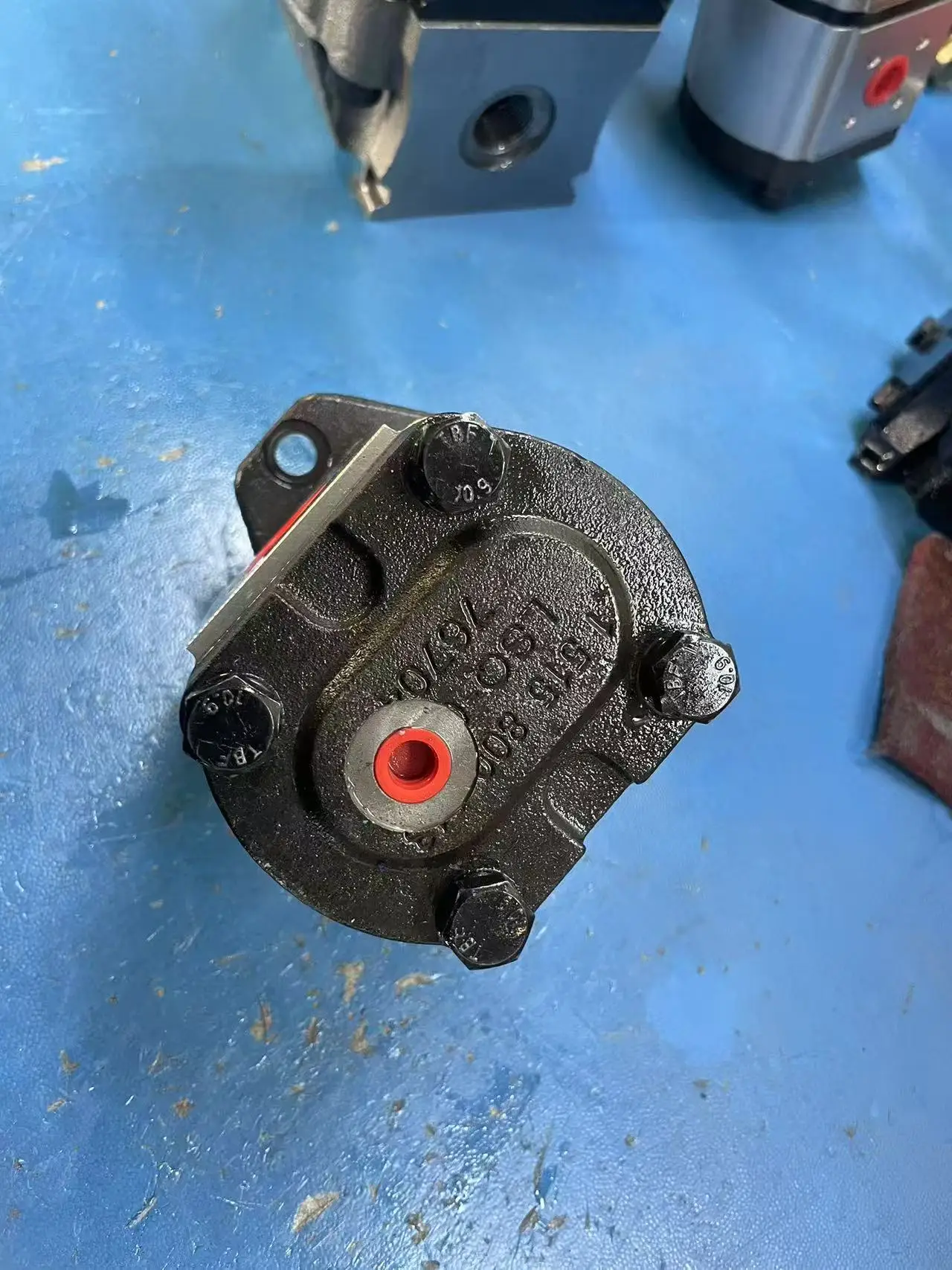

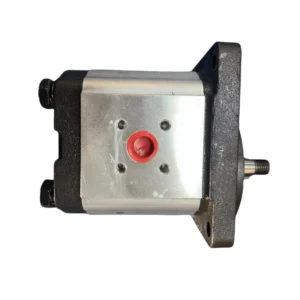

Danfoss SNP1 SNP2 SNP3 SNW Series Gear Pump Replacement

The Danfoss / Sauer-Danfoss SNP1, SNP2, SNP3, and SNW2 High-Pressure External Gear Pumps line (featuring exact configurations such as SNW2NN/011RN01BQ, SNP2NN/011RN03CA, and SNP1NN/4,3RN01BAP1C2C2NNNN/NNNNN) by Chengyuan Hydraulic represents a premium, industrial-grade solution built for 100% direct drop-in interchangeability with global OEM brands. Manufactured to strict European and SAE international dimensional tolerances, these high-density gear pumps align perfectly with original flange layouts, shaft designations, and service ports, enabling global B2B procurement networks to execute field replacements seamlessly without modifications to existing structural mounts or rigid piping.

Serving as the fluid power heart for off-highway vehicles and custom mini hydraulic power units (HPUs), the SNP/SNW series is internationally acclaimed for its high power-to-weight ratio and enduring volumetric resilience. At Chengyuan, we enforce a strict 100% simulated working condition testing matrix for all units before packaging. Our digital diagnostic test beds simulate continuous operating pressures up to 260 bar and rapid thermal spikes, verifying internal clearance compensation curves to guarantee that every pump delivers original-brand durability and consistent, pulseless flow under brutal field vibrations.

Technical Specifications

• Product Series Classification: SNP1, SNP2, SNP3, SNW2 High-Performance External Gear Pumps

• Material Infrastructure: High-tensile extruded aluminum alloy casing + specialized tempered cast iron front flange and rear end-cover

• Direction of Rotation: R (Clockwise rotation, viewed from the drive shaft face)

• Model-Specific Engineering Data (Catalog Verified):

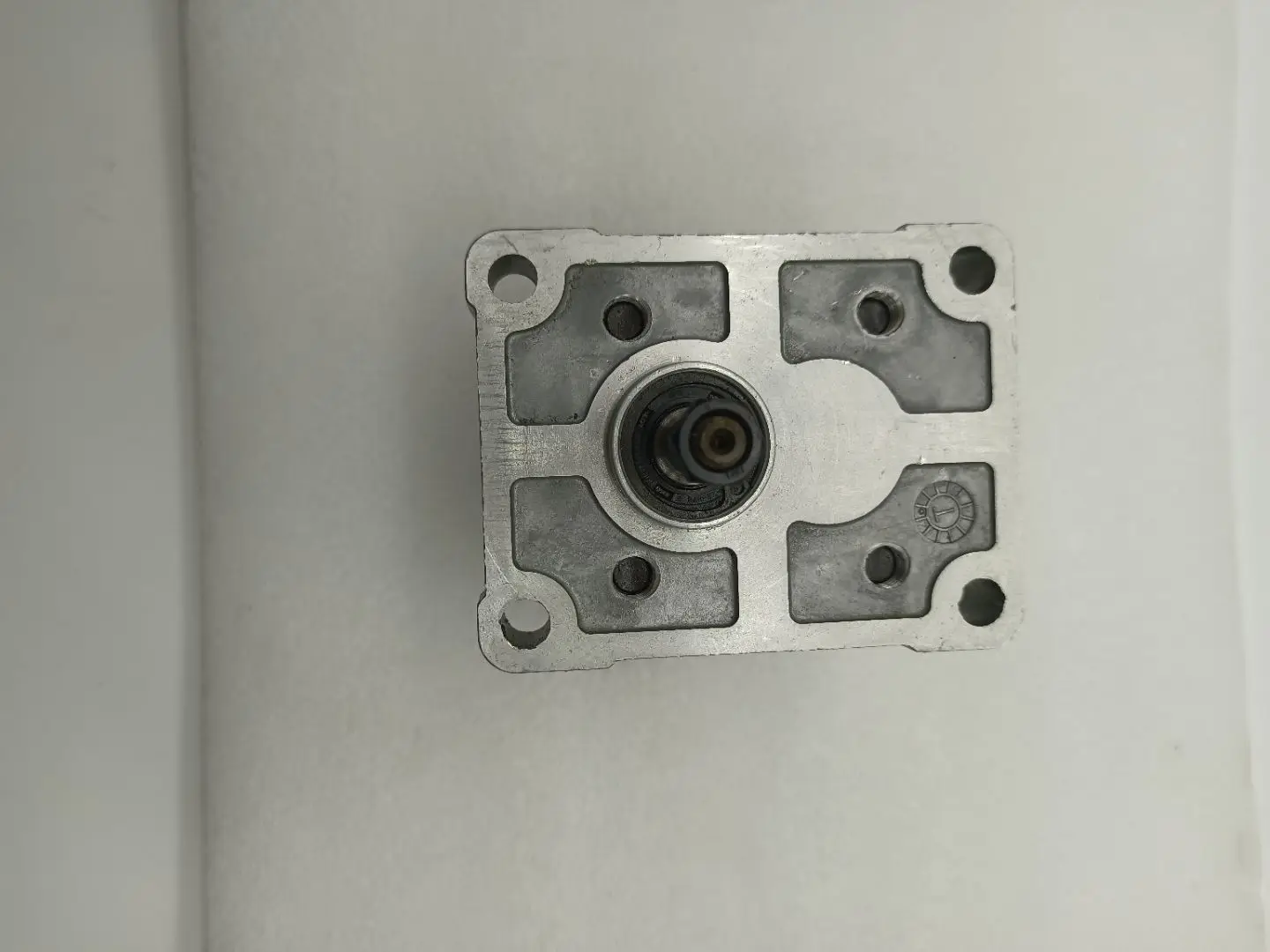

  • Model Code: SNP1NN/4,3RN01BAP1C2C2NNNN/NNNNN (Group 1 Framework)

  • Nominal Displacement: 4.3 cc/rev

  • Continuous Operating Pressure (Max Rated): 250 bar (25 MPa)

  • Maximum Peak Shock Pressure: 270 bar (27 MPa)

  • Maximum Continuous Rated Speed: 4000 rpm

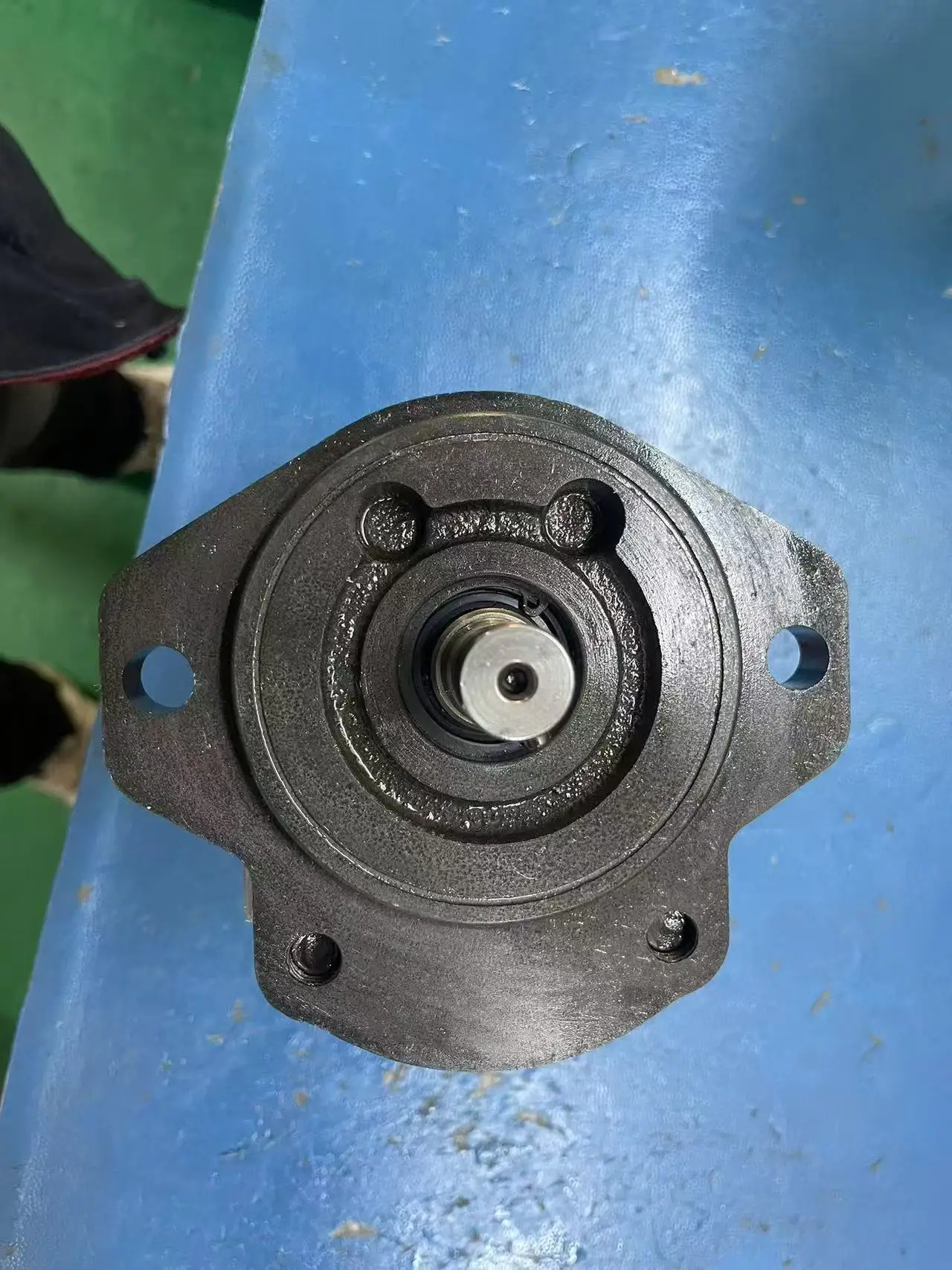

  • Shaft End Configuration: Standard tapered or parallel straight shaft (per 01 specification)

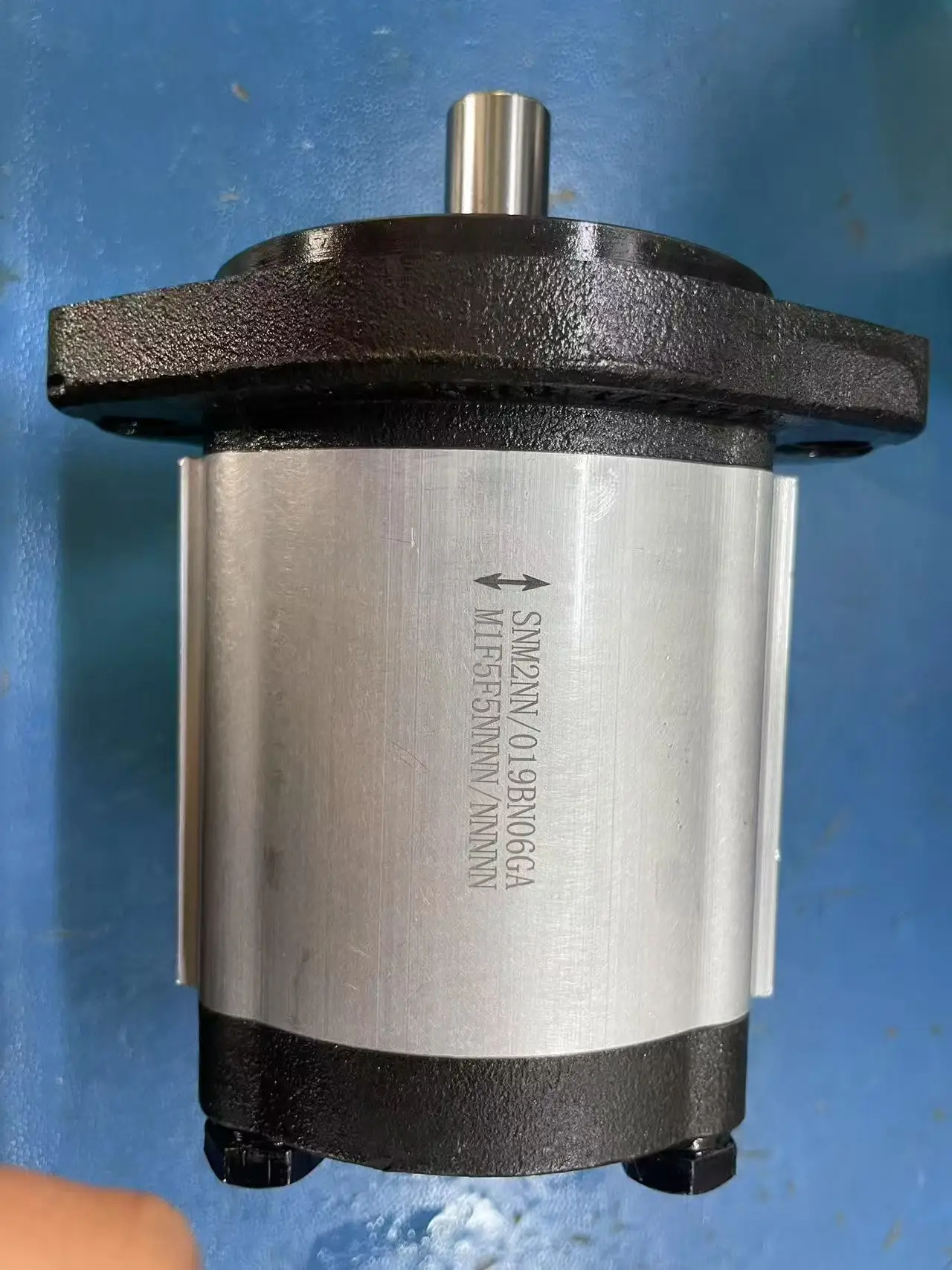

  • Model Code: SNP2NN/011RN03CA & SNW2NN/011RN01BQ (Group 2 Framework)

  • Nominal Displacement: 10.8 cc/rev (corresponding to size 011)

  • Continuous Operating Pressure (Max Rated): 260 bar (26 MPa)

  • Maximum Peak Shock Pressure: 280 bar (28 MPa)

  • Maximum Continuous Rated Speed: 4000 rpm

  • Inlet/Outlet Port Configurations: European standard split-flange or SAE threaded ports (per 01/03 coding matrix)

• Fluid Viscosity Range: 10 to 1000 mm²/s (Recommended continuous operation bandwidth: 12 to 60 mm²/s)

• Operating Fluid Temperature Spectrum: -20°C to +80°C

Key Technical Advantages

• Dual Floating Thrust Plates for Axial Compensation: The pump interior integrates advanced hydrostatically balanced floating bushings. By redirecting a metered channel of high-pressure discharge oil behind the bushing assemblies, the plates adaptively flush against the gear faces across varying load parameters. This permanently counters internal slippage induced by thermal expansion, sustaining volumetric efficiency above 95% at continuous 260 bar operations.

• Monoblock Case-Hardened 12-Tooth Involute Gearsets: The drive and idler gear shafts are forged from high-alloy carbon steel, processed through specialized carbonitriding hardening, and CNC-ground to mirror finishes. The asymmetric 12-tooth profile heavily suppresses fluid trapping and structural pulsations during mesh cycles, keeping overall acoustic noise levels 4 to 6 dB(A) lower than entry-level market alternatives.

• High-Capacity Self-Lubricating DU Bushings: Eliminating traditional needle bearings that are vulnerable to high-load fatigue cracking, our SNP/SNW pumps implement heavy-duty DU composite journal bearings. This bushing structure encapsulates micro-particulate oil contamination safely within its matrix and smoothly absorbs severe radial overhung loads, preventing premature internal bore wear and gear scoring.

• 100% Full-Load Factory Simulation Benchmarks: We reject random batch sampling methodologies. Every Chengyuan SNP2 and SNW2 gear pump must clear our automated test bench array prior to boxing. The diagnostic routine logs transient pressure shock profiles, shaft lip seal integrity under heat, and exact Q-P performance plotting to guarantee zero-defect operation straight out of the crate.

Application Areas

Thanks to their vast speed thresholds and lightweight aluminum body architectures, these pumps serve as the primary power choice for hydrostatic travel and auxiliary mobile systems:

• Material Handling & Logistical Hardware: Primary lift and hydrostatic power steering circuits for electric counterbalanced forklifts, reach trucks, and warehouse order pickers.

• Municipal Sanitation & Utility Vehicles: Main multi-port valve supply pumps for urban street sweepers, refuse compactor trucks, and outrigger control manifests on truck-mounted boom cranes.

• Off-Highway Agricultural Machinery: Rear three-point hitch lift systems for tractors, combine harvester header adjustments, and auxiliary hydrostatic steering loops.

• Miniature Hydraulic Power Units (HPUs): Automotive workshop two-post lifts, automated dock levelers, and space-confined compact industrial power stations.

Expert Maintenance Tips

• Rigid Alignment Verification & Flexible Couplings: Aluminum gear pumps carry minimal tolerance against excessive external overhung bending forces. When mounting, ensure precision concentric alignment between the pump shaft and prime mover (axial error $\le 0.1$ mm). Always implement a high-quality flexible jaw coupling; never use a hammer to force a coupling onto the shaft keyway, as this permanently damages the internal thrust seals and the front shaft lip.

• Mandatory Pre-Priming to Prevent Dry Scuffing: Prior to initial commissioning or restarting after a total fluid flush, pre-fill the pump intake chamber completely with micro-filtered hydraulic oil and manually rotate the drive shaft 3 to 5 revolutions. This generates an essential initial boundary lubrication layer across the internal DU bearings and thrust faces, avoiding fatal friction scoring during startup.

• Rigid Fluid Hygiene Regulations: Extruded aluminum bodies are highly sensitive to abrasive micro-contaminants suspended in the loop. Manage fluid cleanliness continuously to meet or exceed ISO 4406 20/18/15 (NAS Class 9). Ensure the return or kidney-loop circuit integrates high-efficiency absolute elements rated at $\le 25\,\mu\text{m}$, paired with an unrestrictive suction strainer on the intake.
