Sun Hydraulics Cartridge Valve Replacement | RDHA CCCA CXHA DBAF

The Sun Series High-Precision Threaded Cartridge Valves and Logic Elements manufactured by Chengyuan Hydraulic—comprising industry-essential models CSAD-XXN, RDHA-LCN, CXHA-XDN, CCCA-LBN, DKFS-XHN, NCEB-KAN, and DBAF-MHN—are premium hydraulic fluid solutions engineered for 100% direct drop-in interchangeability with global market components. Developed to precisely match the strict cavity configurations, fluid flow paths, and standard pitch threads outlined in Sun Hydraulics engineering guidelines, these cartridges slip effortlessly into your existing custom or standard hydraulic manifolds. This ensures immediate replacement and zero field layout retrofitting.

Serving as the critical logical and pressure control core inside high-pressure hydraulic power units (HPUs) and control blocks, this series provides robust functionality spanning shuttle, counterbalance, relief, check, logic, and proportional throttle disciplines. At Chengyuan, zero compromise is made on quality; every single valve cartridge undergoes 100% rigorous digital end-of-line simulation testing. By capturing cracking responses, geometric sealing metrics, and pressure-drop curves under high-load thermal stress profiles, we guarantee that every shipped component matches the original brand’s operational integrity.

Technical Specifications

• CSAD-XXN (Single Ball Shuttle Valve):

  • Function: 3-port shuttle valve (compares two pressure signals, directing the higher to port 3)

  • Cavity Specification: T-11A

  • Maximum Operating Pressure: 350 bar (5000 psi)

  • Maximum Rated Flow Capacity: 10 L/min

  • Control / Seals Code: X (Non-adjustable) / N (Buna-N / Nitrile seals)

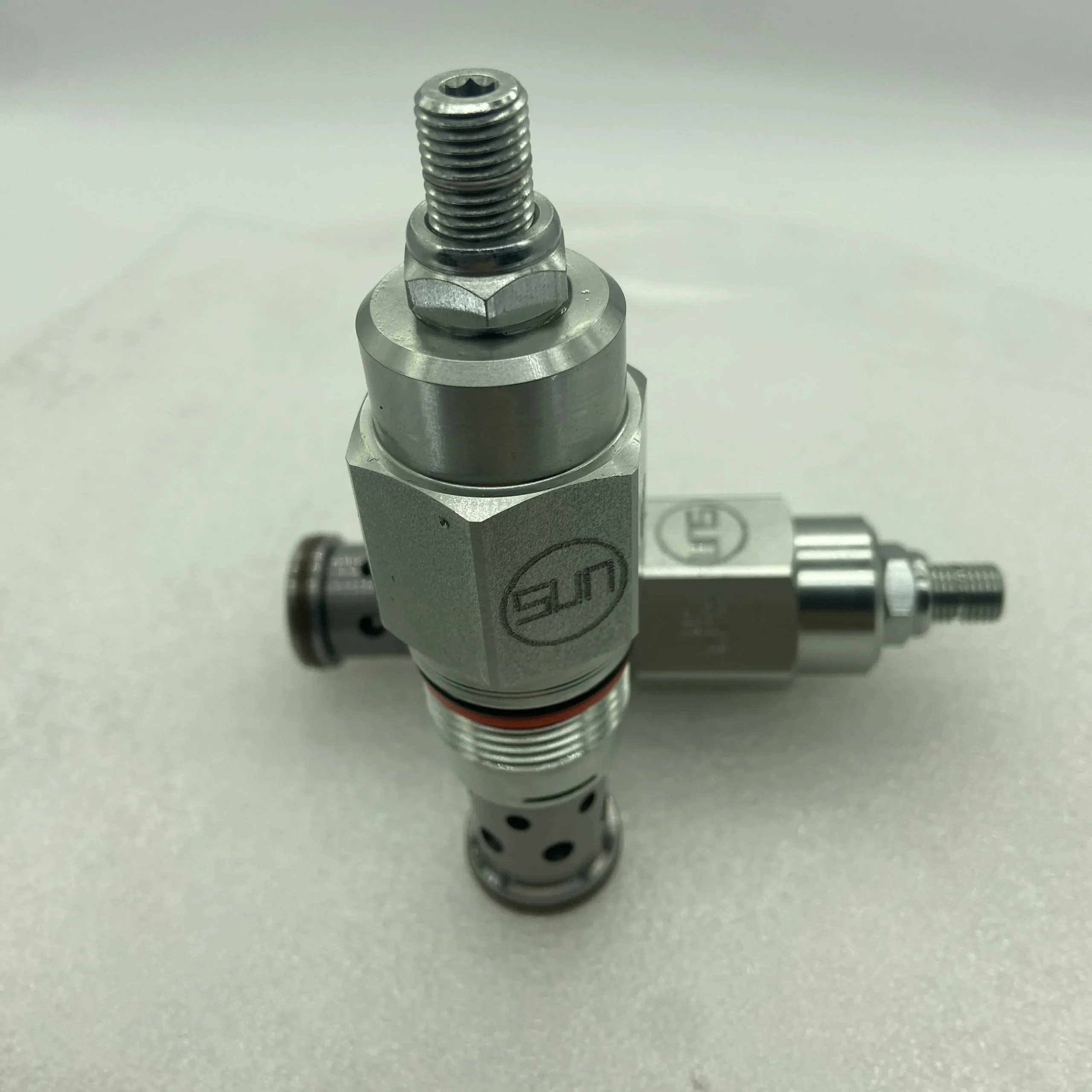

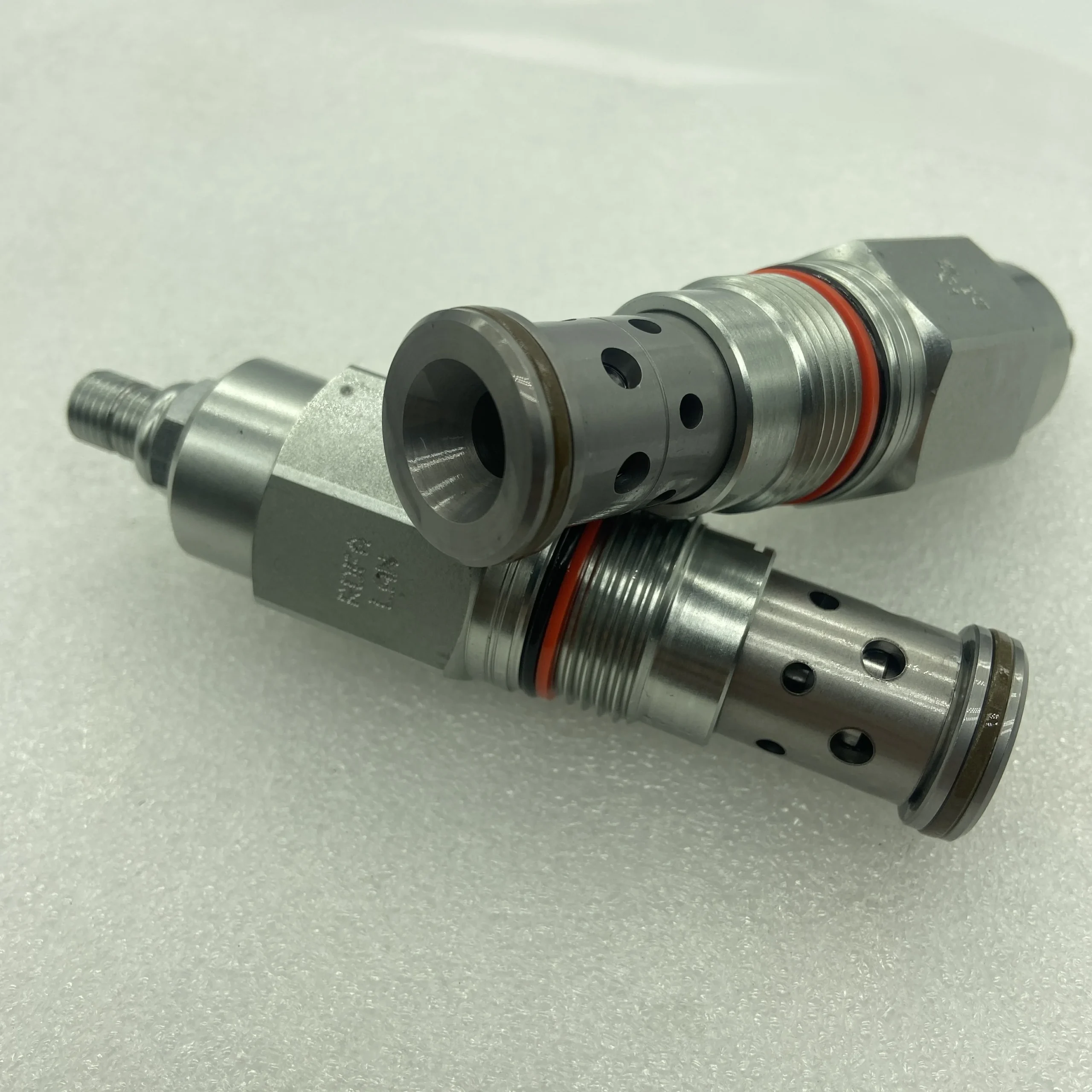

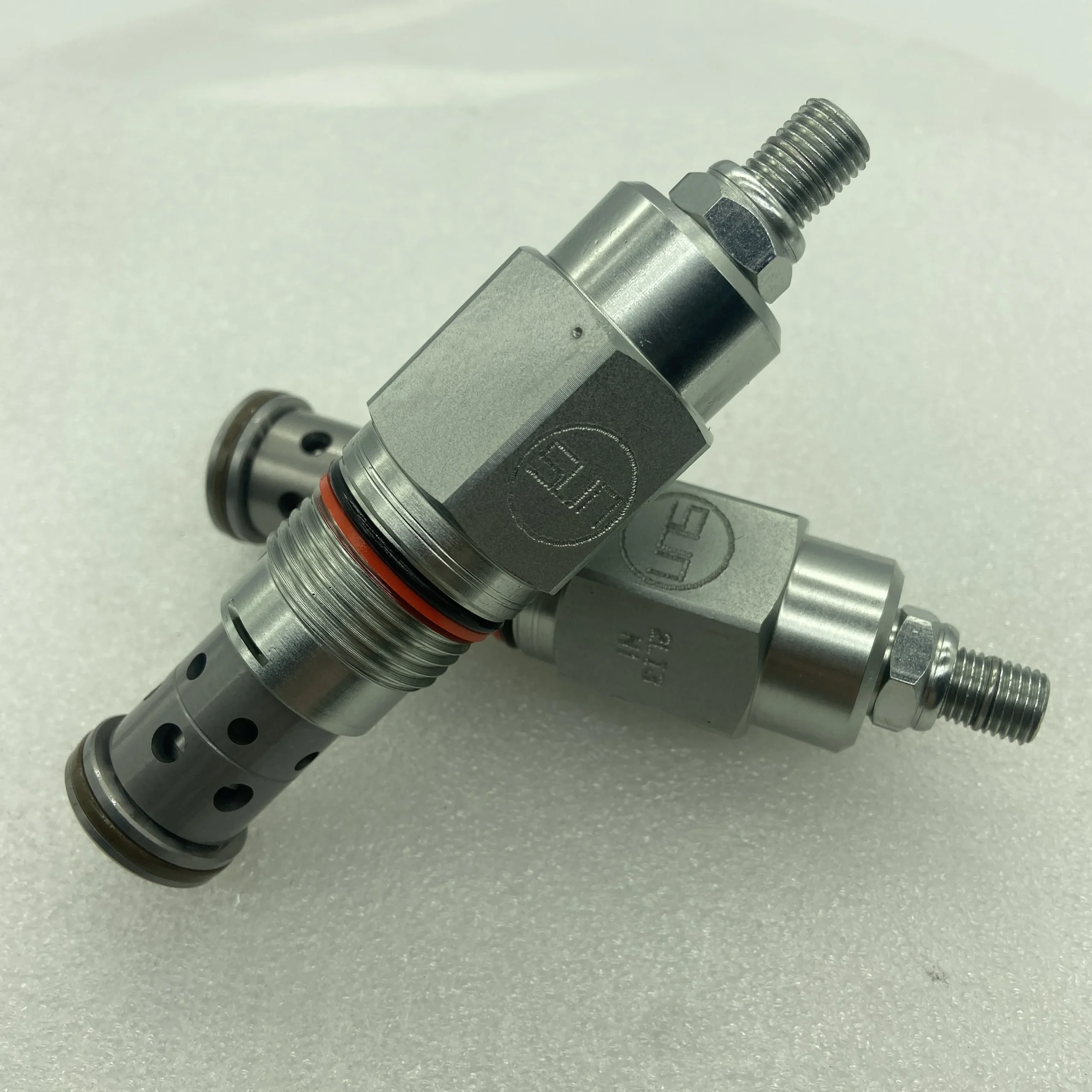

• RDHA-LCN (High-Flow Direct-Acting Relief Valve):

  • Function: 2-port direct-acting relief valve (instantaneous overload surge circuit protection)

  • Cavity Specification: T-3A

  • Maximum Rated Flow Capacity: 200 L/min

  • Pressure Adjustment Spectrum C: 150 – 6000 psi (10.5 – 420 bar)

  • Control Interface: L (Standard screw adjustment with leak-proof sealing cap)

• CXHA-XDN (Directional Check Valve):

  • Function: 2-port check valve (free flow nose to side, Port 1 to Port 2)

  • Cavity Specification: T-13A

  • Maximum Rated Flow Capacity: 40 L/min

  • Cracking Threshold Code D: 50 psi (3.5 bar)

  • Maximum Working Pressure: 350 bar

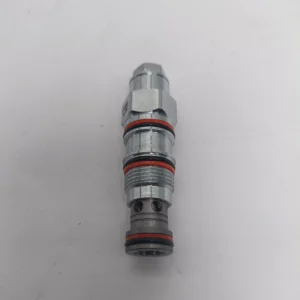

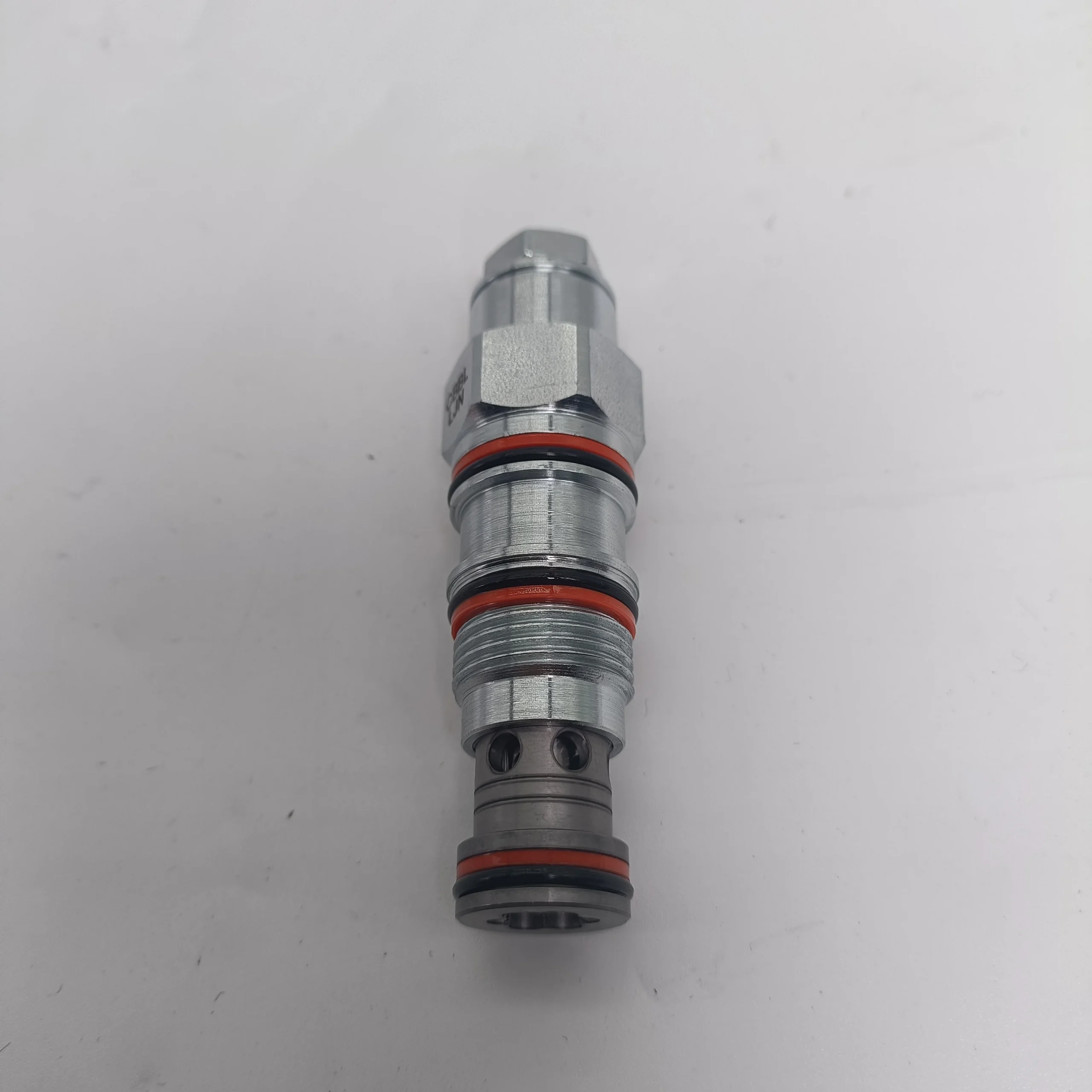

• CCCA-LBN (Low Pilot Ratio Counterbalance Valve):

  • Function: 3-port load-holding valve (ensures drift-free load locking and safe deceleration control)

  • Pilot Proportion Ratio: 2:1 (optimized for unstable, high-inertia over-center actuators)

  • Cavity Specification: T-11A

  • Maximum Rated Flow Capacity: 60 L/min

  • Pressure Adjustment Spectrum B: 400 – 1500 psi (28 – 105 bar)

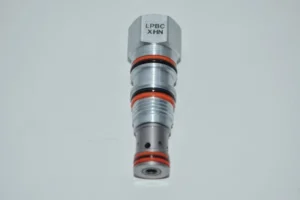

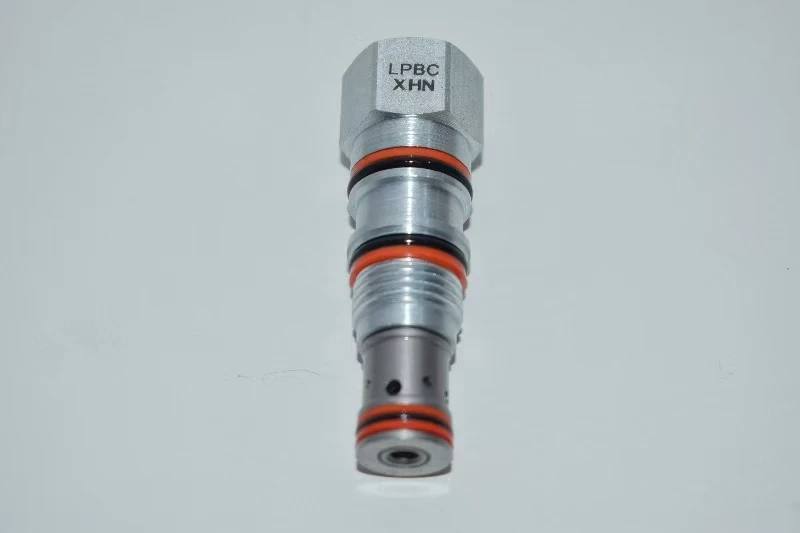

• DKFS-XHN (Normally Closed Balanced Spool Logic Element):

  • Function: Multi-purpose pilot-to-open logic spool (acts as a high-capacity directional or relief bypass)

  • Cavity Specification: T-11A

  • Maximum Rated Flow Capacity: 60 L/min

  • Maximum Structural Pressure: 350 bar

• NCEB-KAN (Pilot-Operated Proportional Throttle Valve):

  • Function: Electro-hydraulic proportional flow valve (normally closed, facilitates infinite fine velocity tuning)

  • Cavity Specification: T-11A

  • Maximum Control Flow Capacity: 40 L/min

  • Control Type: K (Electro-proportional solenoid actuated)

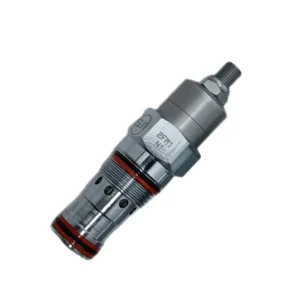

• DBAF-MHN (Pilot-Operated Relief Main Stage):

  • Function: 2-port pilot-operated relief valve (low cracking pulsation for constant system pressure regulation)

  • Cavity Specification: T-10A

  • Maximum Rated Flow Capacity: 95 L/min

  • Pressure Adjustment Spectrum H: 100 – 4000 psi (7 – 280 bar)

Key Technical Advantages

• Floating-Style Internal Cartridge Architecture: Crafted in complete alignment with the specialized two-piece floating mechanical layout. Even if a technician applies extreme installation torque on the factory floor, or the manifold block experiences micro-deflections due to intense pressure-induced thermal expansion, the internal working spool remains entirely isolated from thread distortions, guaranteeing stall-free self-alignment.

• Micron-Grade Tolerances & High Fatigue Endurance: Both internal spools and sleeve configurations are engineered from premium alloy bearing steel, heat-treated through precise vacuum ovens to exceed 60 HRC hardness. Internal moving components are precision-lapped to achieve concentricity values within $1-2 \mu m$, reducing internal fluid slippage to near-zero metrics and preventing mechanical load drift.

• Minimized Hysteresis & Excellent Proportional Linearity: The internal hydraulic pathways of the NCEB proportional valve and DBAF pilot relief valves are structurally streamlined via Computational Fluid Dynamics (CFD). This heavily mitigates erratic transient flow forces. Paired with anti-tilt calibrated springs, control hysteresis is kept under 3% for a predictable, linear performance curve.

• 100% Saturation Dynamic Test Bench Profiling: We reject random batch sampling methodologies. Chengyuan’s automated diagnostic test cells continuously monitor every single element, cross-checking cracking pressure accuracy, full flow drop characteristics (P-Q charts), dynamic seal leakage data, and solenoid coil ohm ratings. This ensures complete reliability out of the box.

Application Areas

This diverse cartridge suite is integrated directly within specialized manifold block architectures to replace high-cost OEM elements:

• Mobile & Hydrostatic Off-Highway Assets: Auxiliary quick-coupler attachments for excavators, outrigger load-locking modules for truck cranes and boom configurations (CCCA/CSAD), and electro-proportional variable velocity manifolds for aerial work platforms (NCEB).

• Road Construction Equipment: Closed-loop hydrostatic charge pump filtration manifolds for asphalt compactors, primary concrete pump truck delivery distribution networks, and heavy rotary drilling rig dynamic braking circuits.

• Industrial Plant Automation: Main safety relief loops inside recycling scrap metal balers and structural shears (DBAF/RDHA), high-flow logic manifolds for heavy primary steel mill power units (DKFS), and servo proportional manifolds for modern plastic injection molding machinery.

Expert Maintenance Tips

• Mandatory Torque Wrench Implementation: Threaded cartridge components are highly sensitive to uncalibrated installation forces. Never employ pneumatic impact wrenches. Over-tightening will distort external elastomeric static rings and strip housing threads. Adhere strictly to the engineering specifications: apply 40 – 45 Nm for T-10A cavities (DBAF) and 200 – 215 Nm for T-3A cavities (RDHA).

• Rigid Manifold Cavity Machining Diagnostics: If machining custom steel or aluminum manifold blocks, always verify step concentricity and shoulder finishes using calibrated thread plug gauges post-drilling. Residual burrs or tool chatter marks inside the pocket will tear the cartridge’s polyurethane O-rings and backup seals upon insertion, inducing catastrophic cross-chamber internal fluid bypass.

• Rigorous Loop Oil Hygiene Regulations: The internal pilot orifices of these cartridge valves (especially the NCEB proportional and DKFS logic units) have small clearances that are highly vulnerable to particulate jamming. Fluid cleanliness must be continuously managed to meet or exceed ISO 4406 18/16/13 (NAS Class 7). Ensure main return loops utilize high-efficiency elements with an absolute rating of $\le 10 \mu m$ and integrated magnetic cores.
